Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.

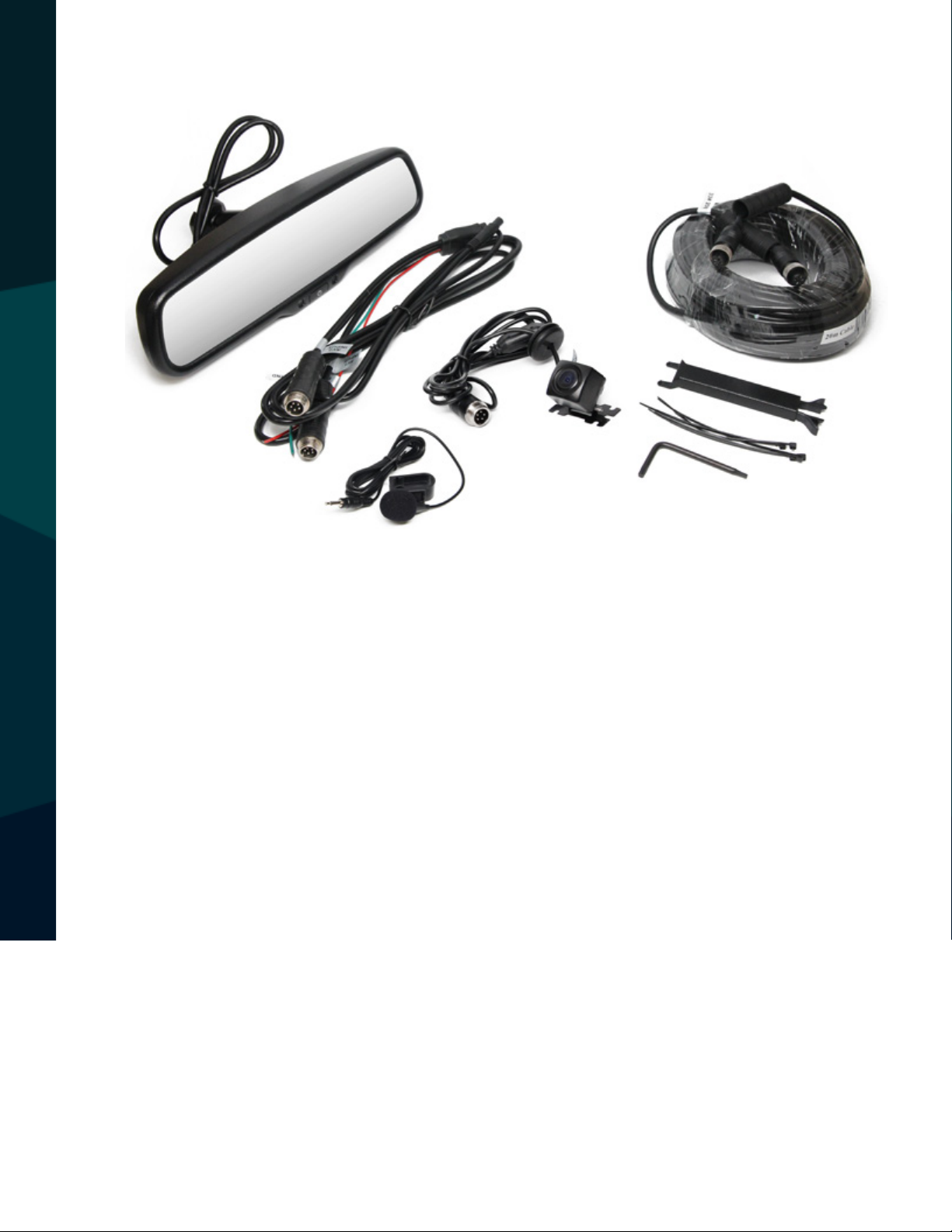

Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

RVS Systems
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemis limited.It doesnotdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

RVS Systems
6
If you have questions about this product, contact:
RVS Systems
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7

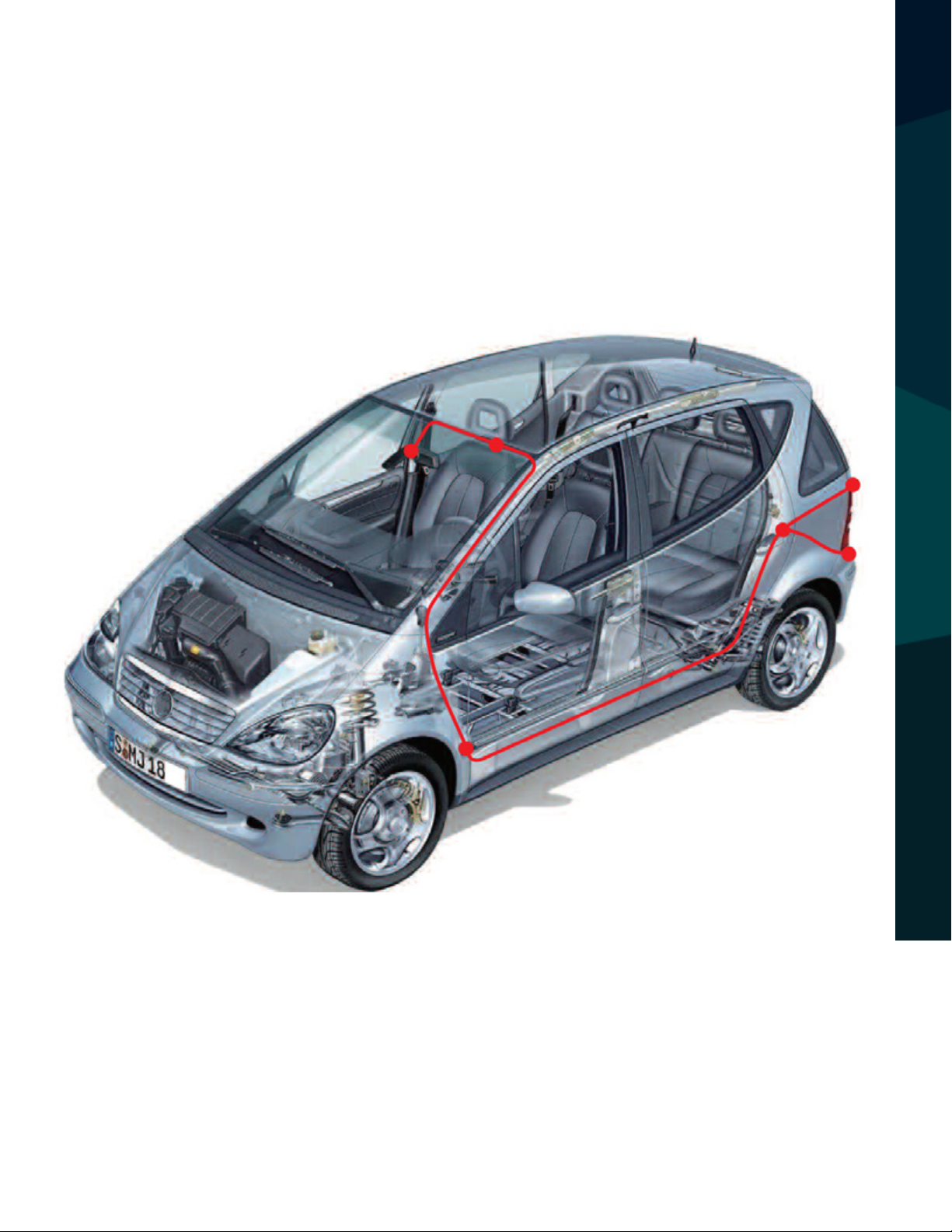

Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
35).
BEFORE YOU BEGIN

RVS Systems
8
Replacement Monitor
The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the“pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole).Dier-
ent cars have dierent brackets. Depending on your vehicle make and
manufacturer. There are many methods to remove the original rear-
view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car by wrong installation of the mirror. Figure 1.1
Clip-On Monitor
1. The Mirror Monitor attaches to the existing rear view mirror in
vehicle with the pressurized clips on the back of the monitor.
2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.
Camera & Cable
Be sure to position the cable properly. The aviation camera cable uses
aircraft grade connectors which means the camera cable can be ex-
posed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
camera extension cable which runs inside the vehicle. Figure 1.2
INSTALLATION GUIDE

Reverse With Condence ™ 9
Wiring
After connecting the camera to the“camera cable”the camera should
be plugged into AV2 input. Connect the RED 12V power wire to a an
ignition power source and the BLACK 12V ground wire to a chassis
ground.The GREEN wire is the REVERSE trigger wire. Connect this wire
to the vehicle’s backup light circuit to activate the rear-view image
whenever the vehicle shifts into reverse. To connect a second camera,
connect it to AV1 input. It can be turned on by pressing the power but-
ton on the monitor. Figure 2.1, Figure 2.2
Precautions for use of Mirror Monitor
I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.
INSTALLATION GUIDE + TIPS

RVS Systems
10

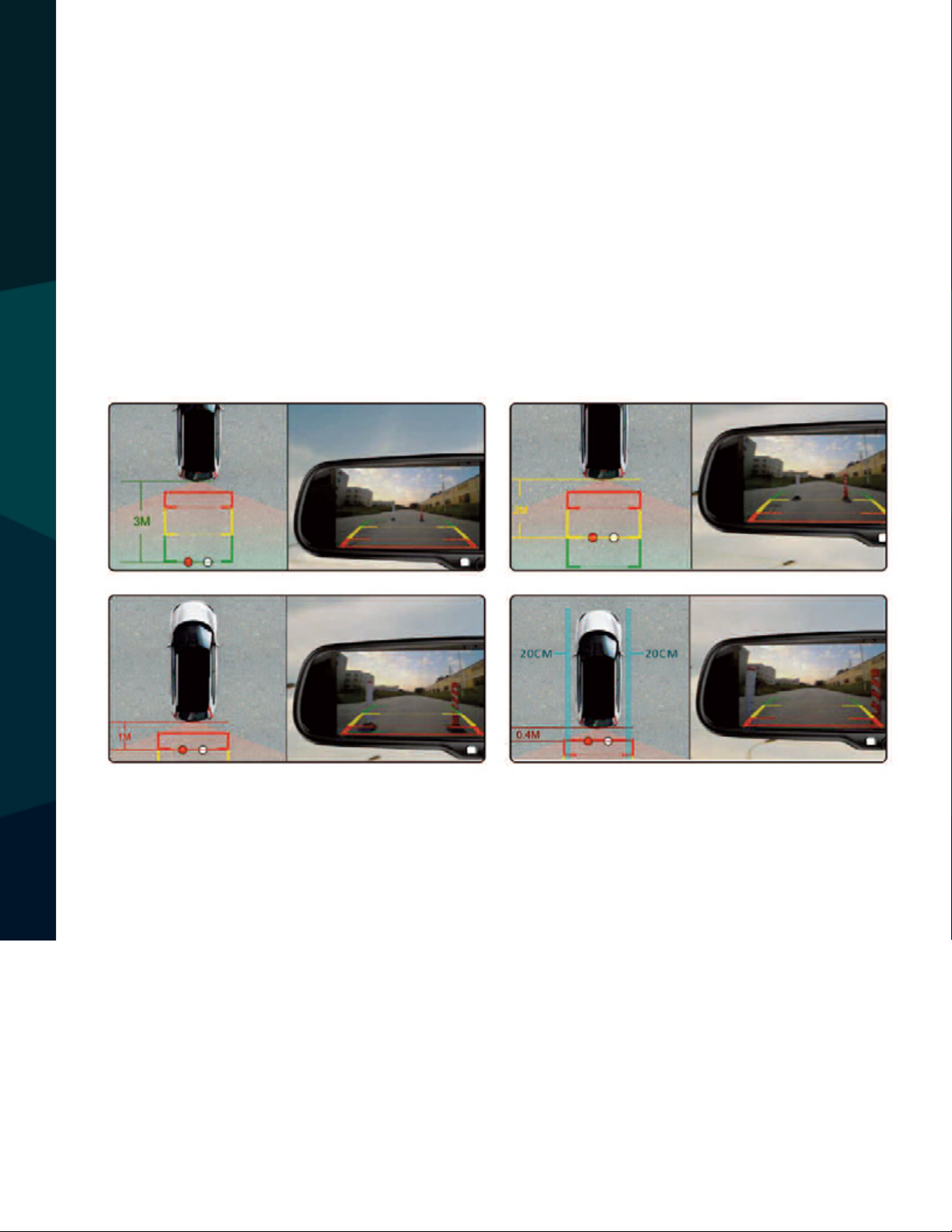

Generally, to help drivers estimate the distance from obstacles, there are
three lines for reference- red, yellow, and green. Those three lines are dis-
played on the monitor when car is reversing. The green line is 3M from the
back of the car and the yellow line is 6.5 ft. The distant red line is 1M from
the backside of car while the close red line is 0.4M. Both reference lines on
the left and right should leave 0.2M space from the car.
The accuracy of the grid-lines can vary based on how you angle your cam-
era. Therefore to compensate for inaccurancies, you can adjust the grid-
lines to your camera angle.
ADJUSTABLE GRID LINE
Accuracy
Grid Lines

Reverse With Condence ™ 11
FIGURE 1.1
FIGURE 1.2
INSTALLATION AND WIRE

RVS Systems
12

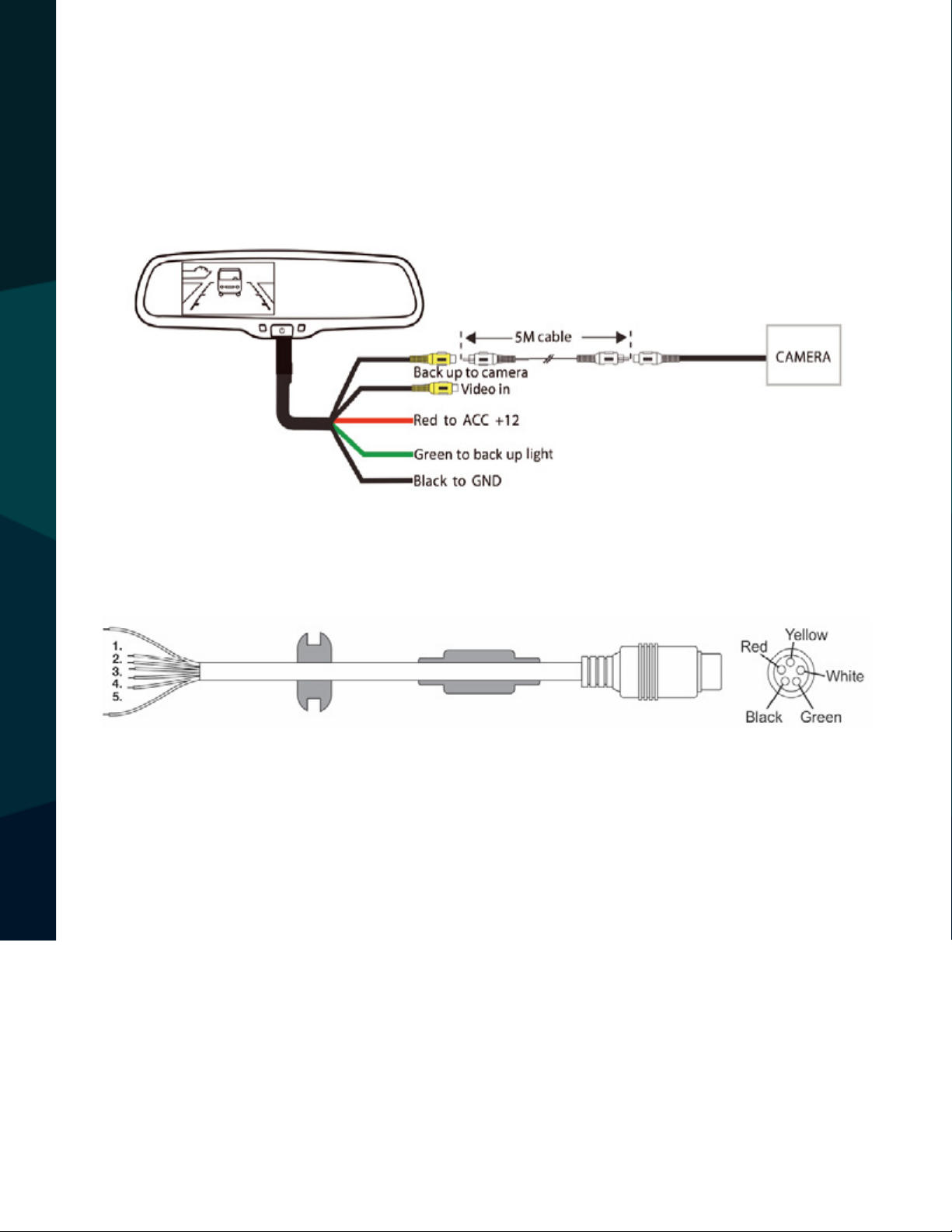

1. RED- Power (+)
2. YELLOW- Video
3. GREEN- Mirror / Normal Imaging
4. WHITE- Audio
5. BLACK- Ground (-)
HOW TO WIRE + SPLICING
FIGURE 2.1

Reverse With Condence ™ 13
HOW TO WIRE + SPLICING
FIGURE 2.2

RVS Systems
14

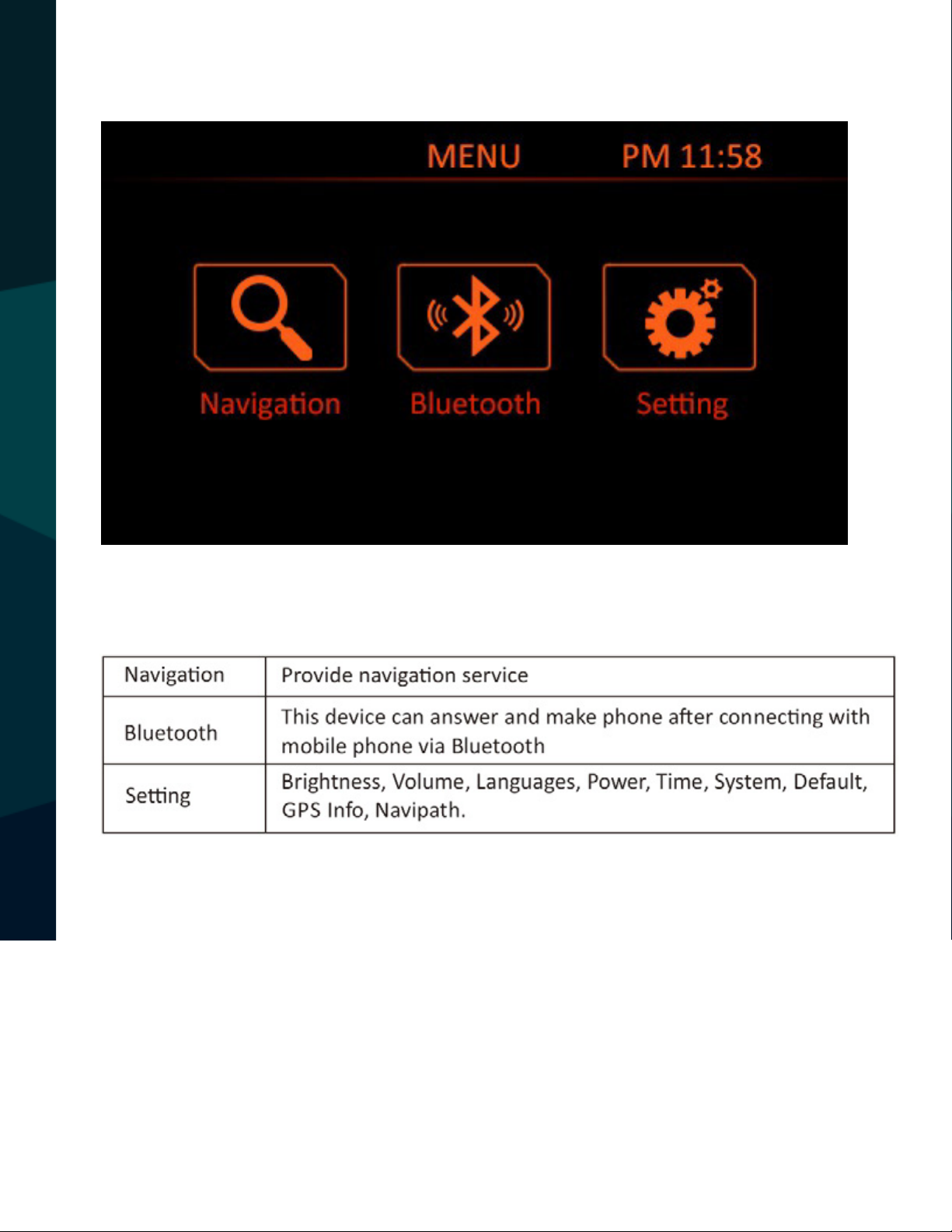

GPS NAVIGATION MENU + FUNCTION
NAVIGATION FUNCTIONS AND FEATURES
MAIN MENU
The GPS Navigation system uses a satellite signal to display your position on the naviga-
tion map. Set your destination, and the system will program the quickest, safest route.
Enjoy your trip with navigation features that include realistic onscreen animations, as
well as both voice and text indication.

Reverse With Condence ™ 15
GPS NAVIGATION MENU + FUNCTION
VOLUME ADJUST

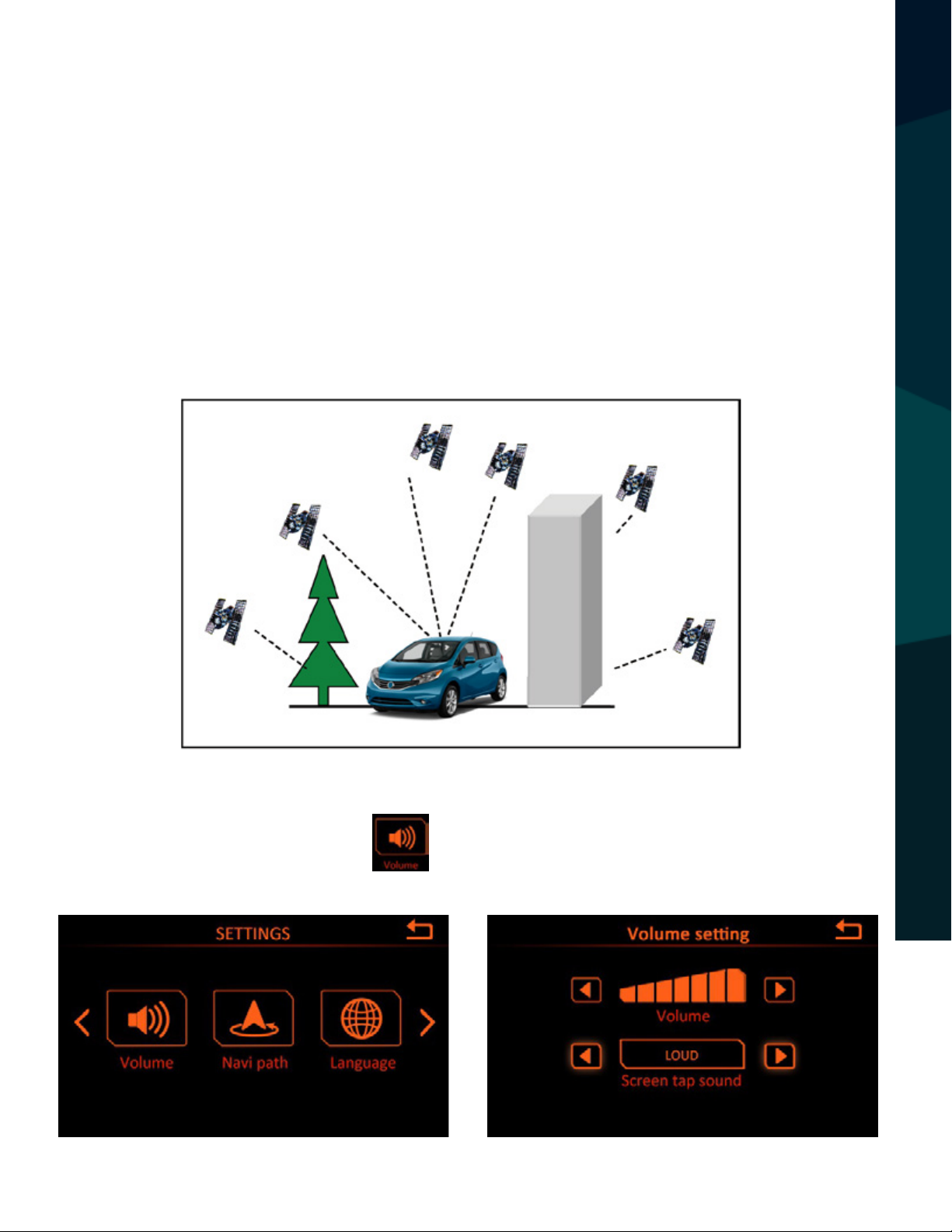

1. Map information:The navigation data may not be completely accurate because of
changing real time road conditions and construction. Please check road status before
your trip and always obey all trac rules.
2. Navigation: The navigation system should be only used as a reference, as the driver
may be more familar with the route than the GPS navigator in some situations.
3. Receiving Signal: Driving through tunnels, between dense, tall buildings, in under-
ground parking lots, under bridges, or in various poor weather conditions may aect
the ability of the system to recieve a signal, resulting in an inaccurate position or other
system errors.
In the setting menu, click the icon to enter the volume menu.
Volume options include“speaker volume adjustment”and“screen tap sound”.

RVS Systems
16
GPS NAVIGATION MENU + FUNCTION
NAVIGATION PATH
In the setting menu, click the icon to enter navigation path menu. Use this menu
to set a navigation path, or to change the auto start option on/o.

Reverse With Condence ™ 17
GPS NAVIGATION MENU + FUNCTION
GPS INFORMATION
LANGUAGE SETTING

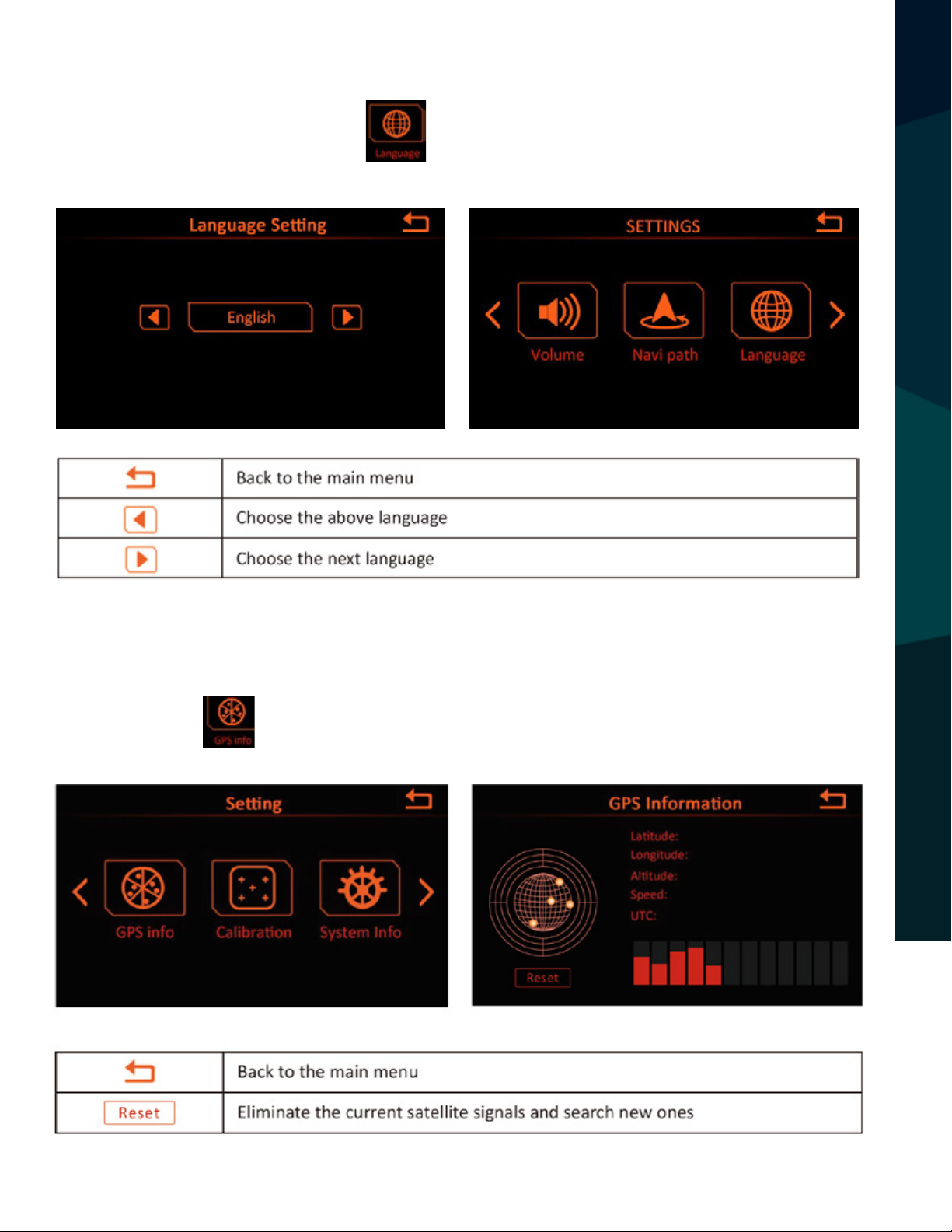

In the setting menu, click the icon to enter the language menu.
Twelve languages are available.
Single click the button to enter GPS menu. In this menu you can reset the GPS, or
check GPS information.

RVS Systems
18
GPS NAVIGATION MENU + FUNCTION
SYSTEM INFORMATION
DEFAULT SET
Single click the button to access the system information menu.
Single click to enter the default settings menu. In this menu you can restore
your system to default settings.

Reverse With Condence ™ 19
GPS NAVIGATION MENU + FUNCTION
SCREEN CALIBRATION
Single click the button to enter the screen calibration menu.
Click“ok”to start the screen calibration. Follow the instructions, pressing the screen until
the calibration succeeds. Click anywhere on the screen to save the calibration and exit to
the main interface. If you do not want to save the calibration, wait 30 seconds to automat-
ically exit to the main interface.

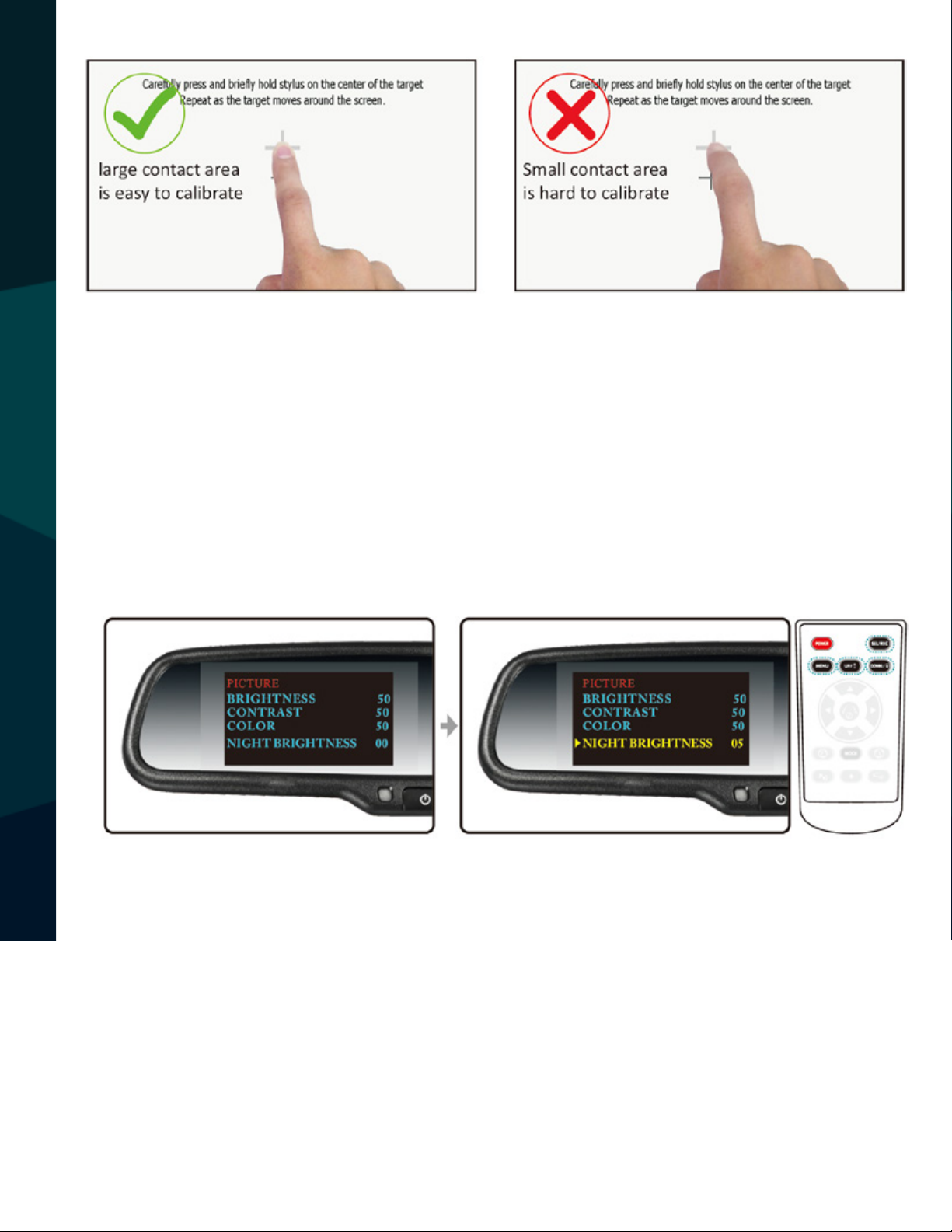

When calibrating the screen, use your index finger to click the “+”on the screen. Using the
index finger creates a large contact area, making it easier to calibrate.

RVS Systems
20
GPS NAVIGATION MENU + FUNCTION
ADJUST THE BRIGHTNESS OF MONITOR SCREEN AT NIGHT
SD/MMC CARD
At night, the monitor brightness adjusts automatically, depending on driving condi-
tions. If this is too bright or too dark for the driver, the brightness can be changed man-
ually with the remote control. Choose“MENU”, then scroll“SEL/ REC”to choose“NIGHT
BRIGHTNESS”, and adjust the brightness of the screen with“UP/DOWN.”
The included SD/MMC card contains navigation software, the map date and
media les. Be careful to insert the card into the system in the direction the arrow stick-
er indicates. Do not force the card in. Inserting the card improperly may damage it.
Note: Please do not take out the SD/MMC card while using the navigation system. Keep
the card out of reach of small children.When removing the card, let it naturally pop out
after gently pressing in.
