PatrolRecorder™4C Installation Guide October 2009
Safety Vision PatrolRecorder™ 4C
Police In-Car Camera and MDVR System
Copyright © 2009 Safety Vision, L.P.
All rights reserved.
Safety Vision and the Safety Vision logo are trademarks of Safety Vision, L.P.
Notice to Users: This document is confidential and contains proprietary information belonging to Safety Vision, L.P. This document and the information
contained herein cannot be distributed, communicated, reproduced, altered, or disseminated by any means, in whole or in part, without the express
written consent of Safety Vision, L.P. Possession of this document constitutes the user’s acceptance of these nondisclosure covenants. The information
in this document is believed to be accurate in all respects. However, Safety Vision cannot assume responsibility for any consequences resulting from the
use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to
incorporate such changes.
Safety Vision ▪6100 West Sam Houston Parkway North ▪Houston, Texas 77041 ▪USA
PATROLRECORDER 4C IG Ver 1.5.doc 1
Installation Guide
Overview
The Safety Vision PatrolRecorder™ 4C Police In-Car
Camera and Mobile Digital Video Recorder (MDVR)
System perform mobile surveillance and evidence
collection using digital recording technology. Components
of the PatrolRecorder™ 4C system are designed for
mobile digital video recording in rugged automotive
conditions.
The PatrolRecorder™ 4C system is designed to power
up automatically when the vehicle ignition is on and to
record automatically when sensors are triggered for
events such as activating the light-bar or siren. It is not
necessary for the driver to turn the system on or to
manually initiate or stop recording. (The system can also
be used for shift-based, continuous recording, rather than
event-based recording.)
The PatrolRecorder™ 4C system can be installed and
operated in any vehicle used for law enforcement or
security. The system includes a GPS interface, and an
optional radar interface is available. Programming options

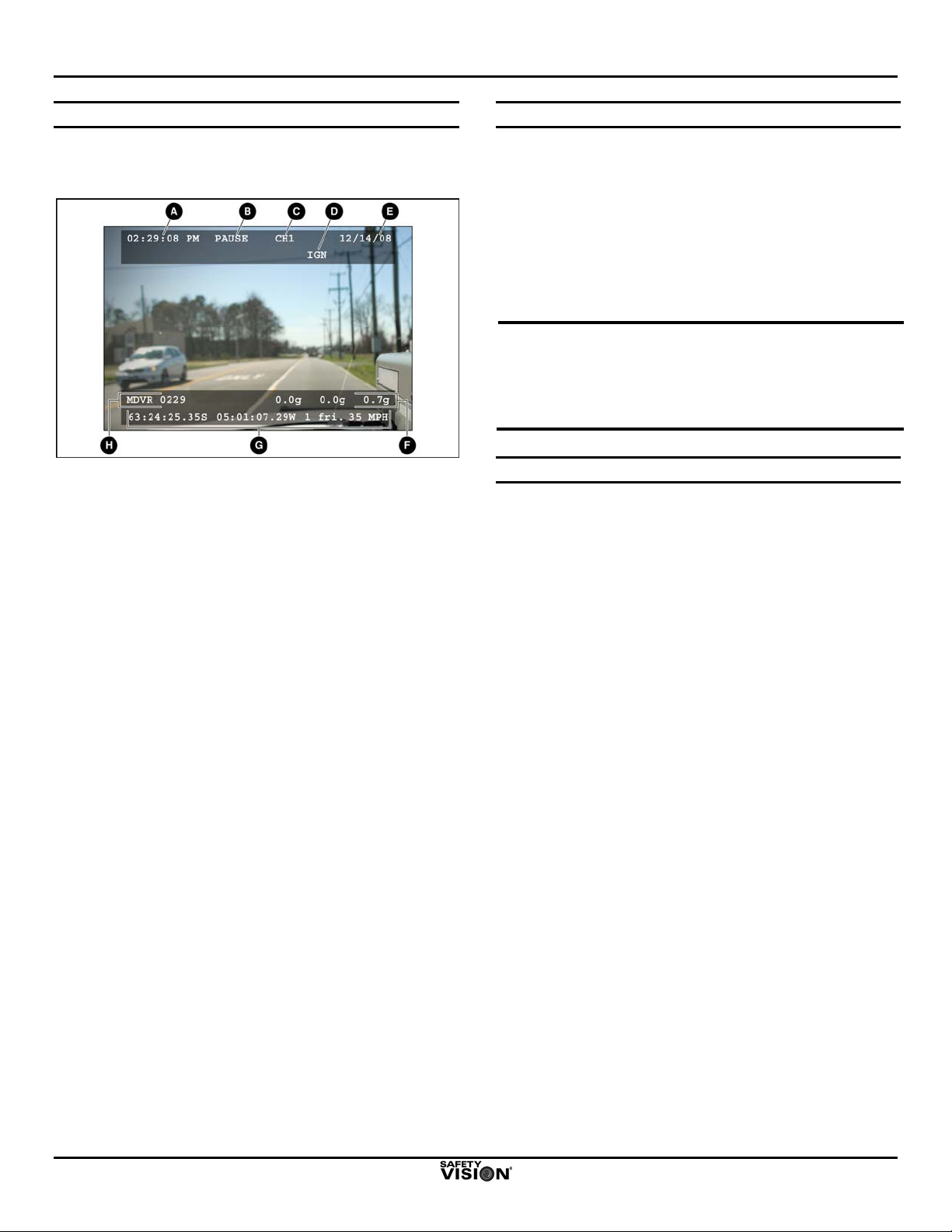

and on-screen display settings can be defined to meet
individual requirements.

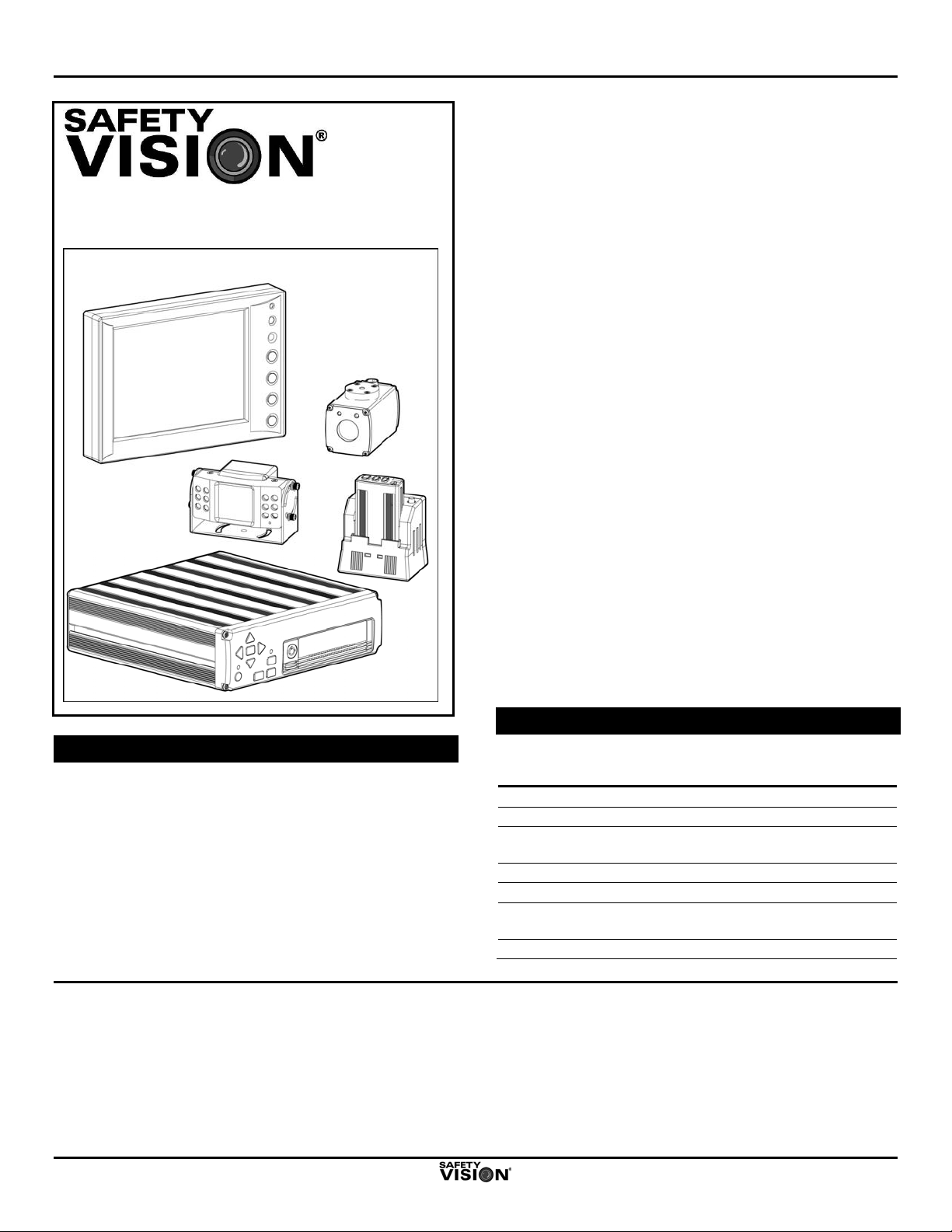

The main components of the PatrolRecorder™ 4C
system are:
MDVR, which features both manual event recording
and automatic input trigger recording for 7 input
triggers, plus a vehicle ignition trigger that
automatically powers up the PatrolRecorder™ 4C
system
2.5-inch removable hard drive that stores recorded
data in standard PC file format.

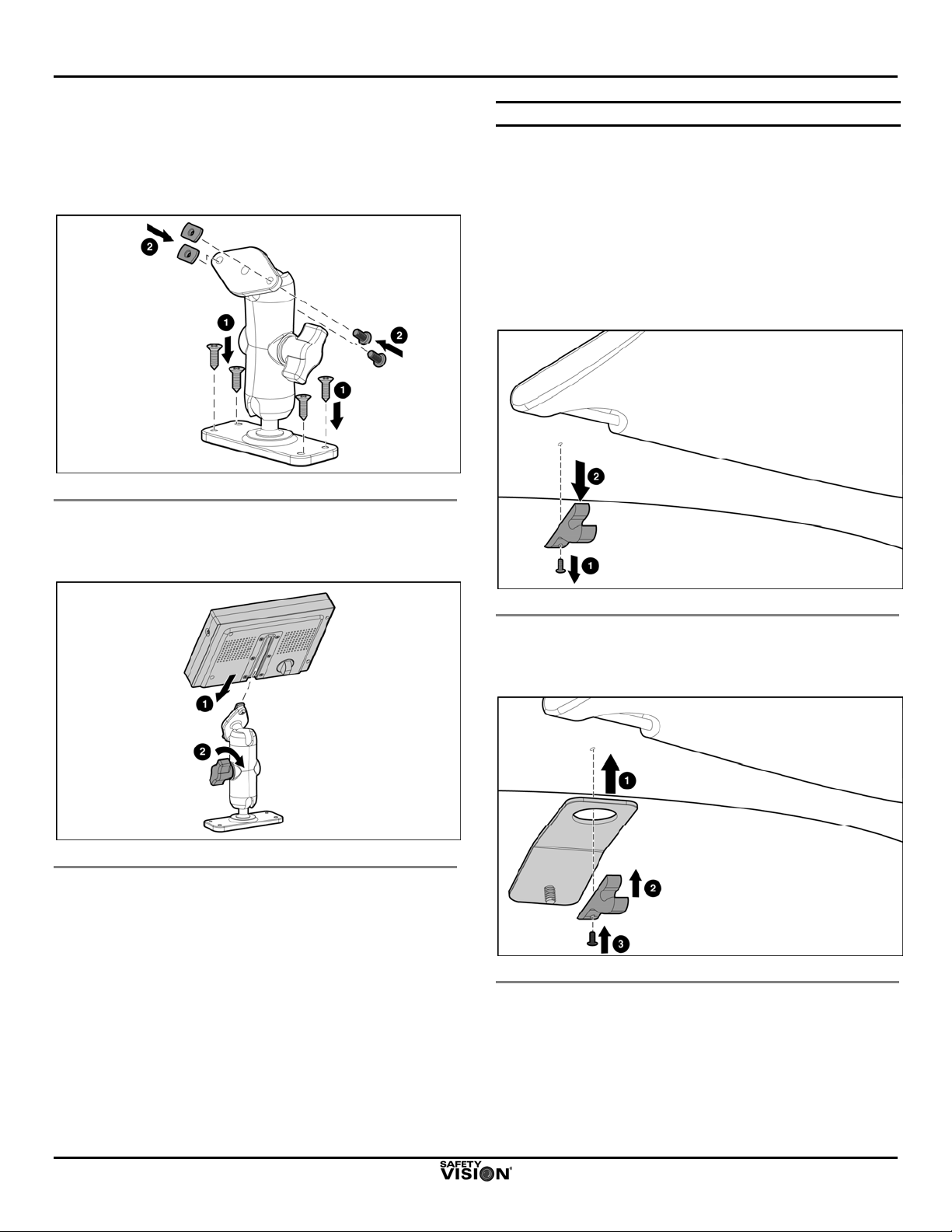

Color monitor with a 5.6-inch TFT LCD screen and an
integrated speaker
Forward-facing camera with speed zoom technology
Rear camera with integrated microphone and infrared
illuminators for better image quality in low light
Ability to add 2 additional wireless camera inputs
Wireless audio system with a line-of-sight operating
range of more than 1,000 feet and a maximum talk
time of 8 hours and standby time of 25 days
Supplied Hardware
The following hardware is supplied with each
PatrolRecorder™ 4C system:
Part Number Hardware Item

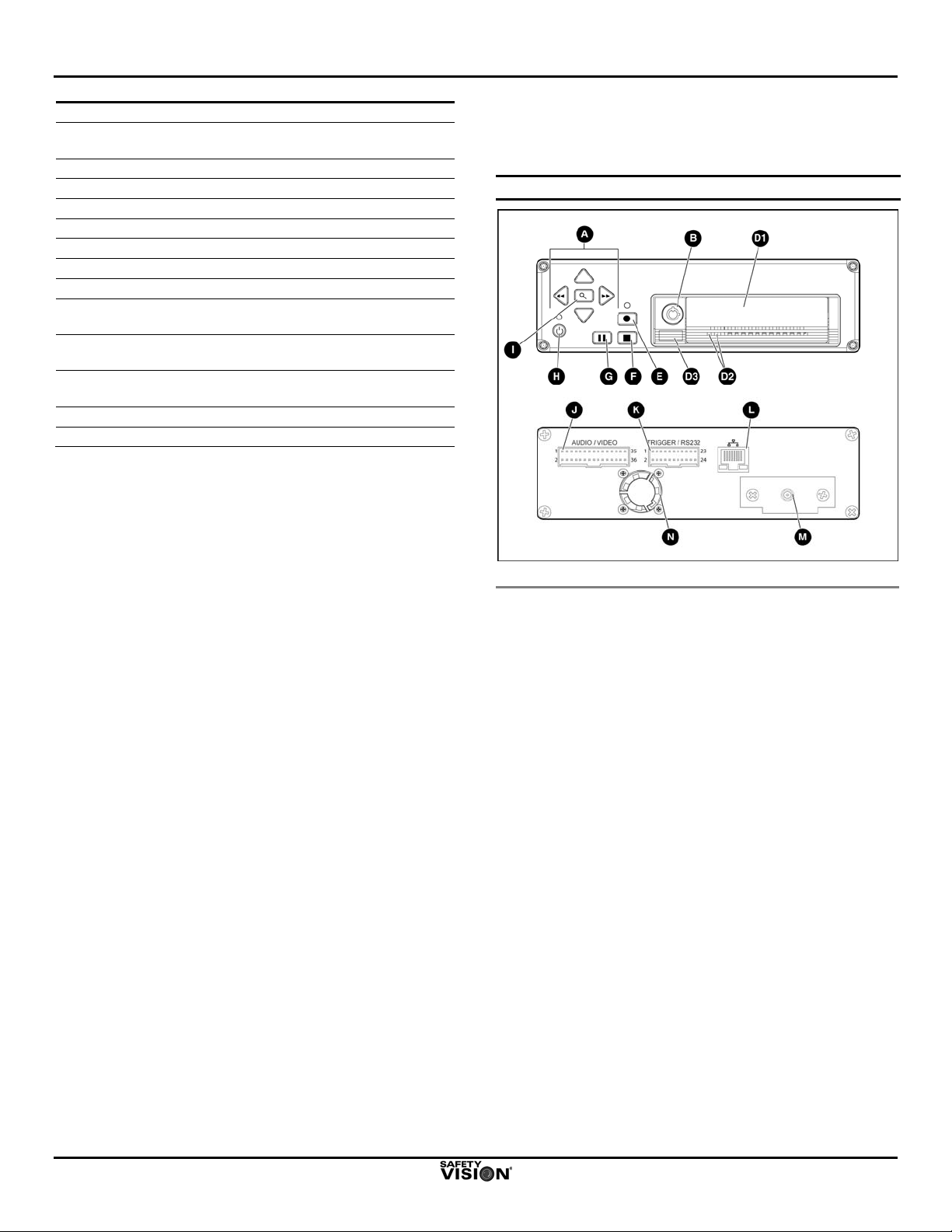

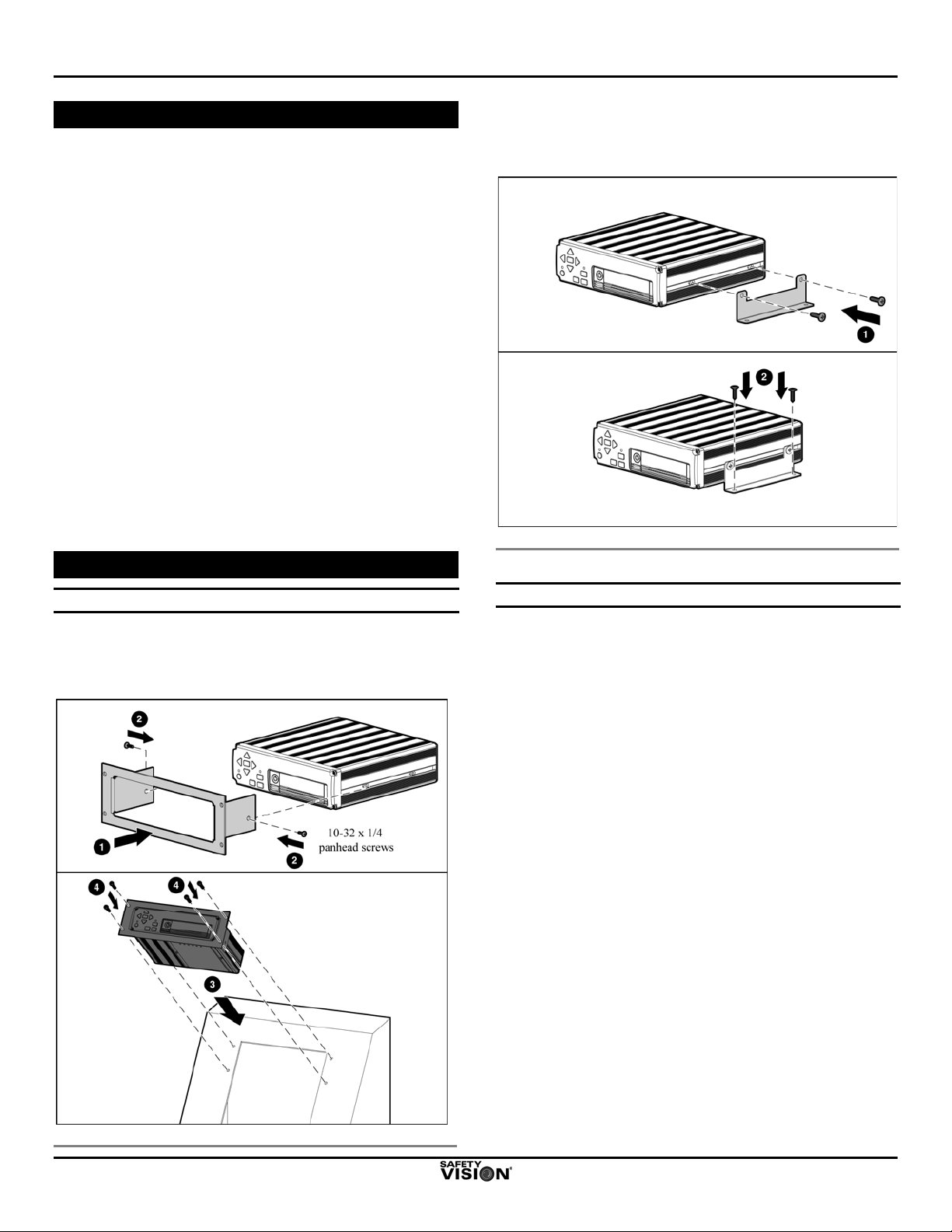

SV-4CHDDVR Mobile police 4-channel MDVR
SV-40HD
(RHD Model only) 40-GB removable hard drive
SV-4C-GPSCARD GPS viewer for SV-4CHDDVR

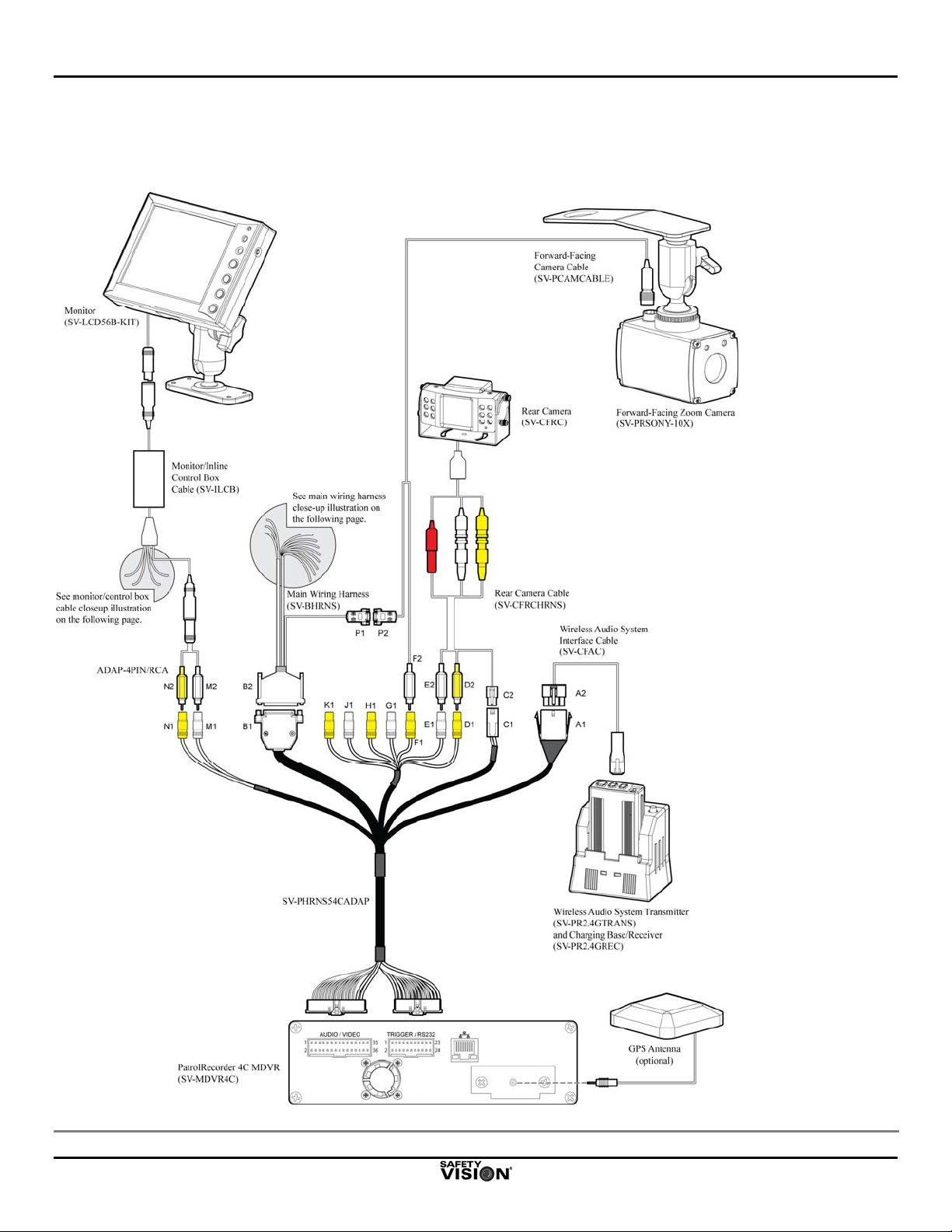

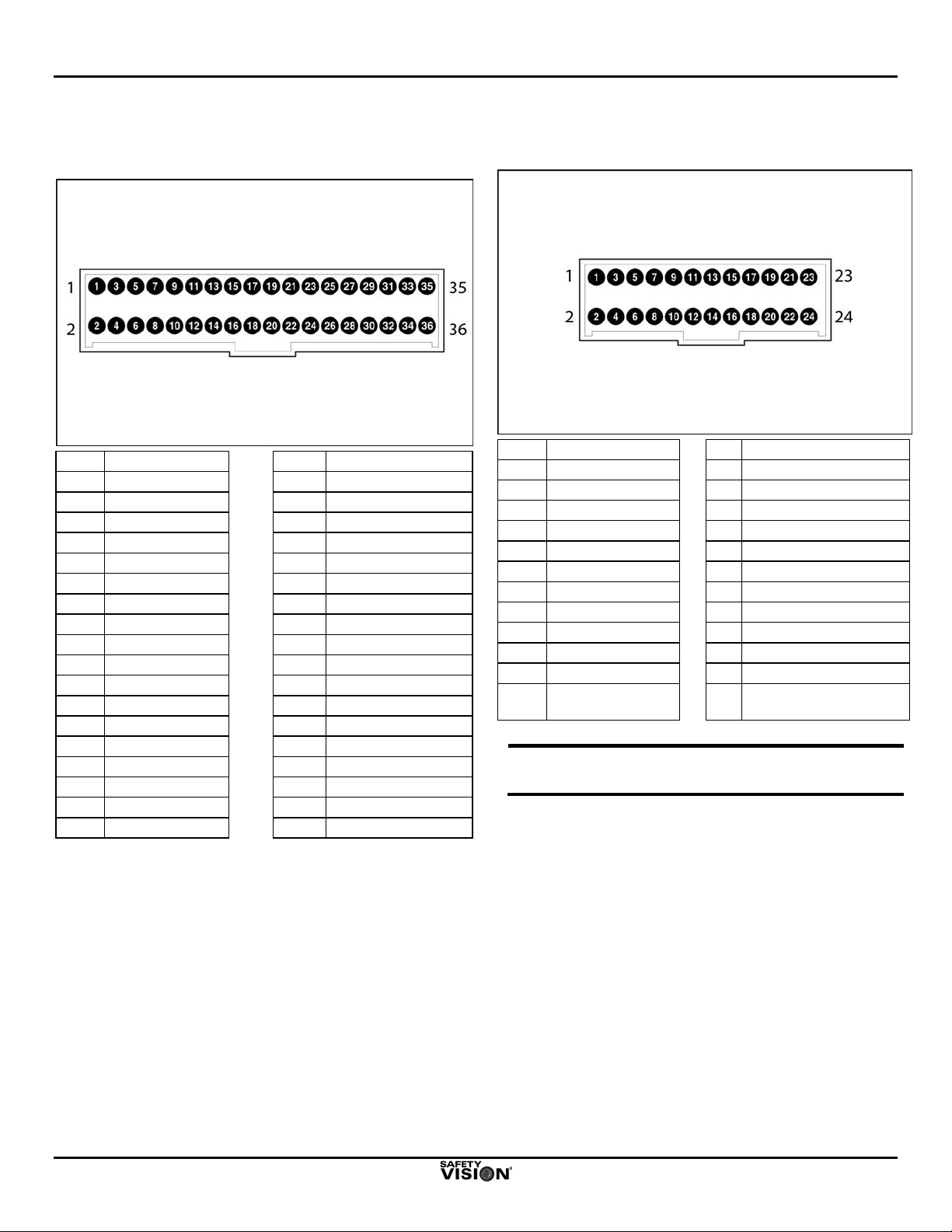

SV-4CPHRNS Wiring harness for SV-4CHDDVR
DAP-4PIN/RCA 6-foot audio-video adapter cable (MDVR
output to monitor input)
CAMMOUNTPAN Swivel mount for forward-facing camera
