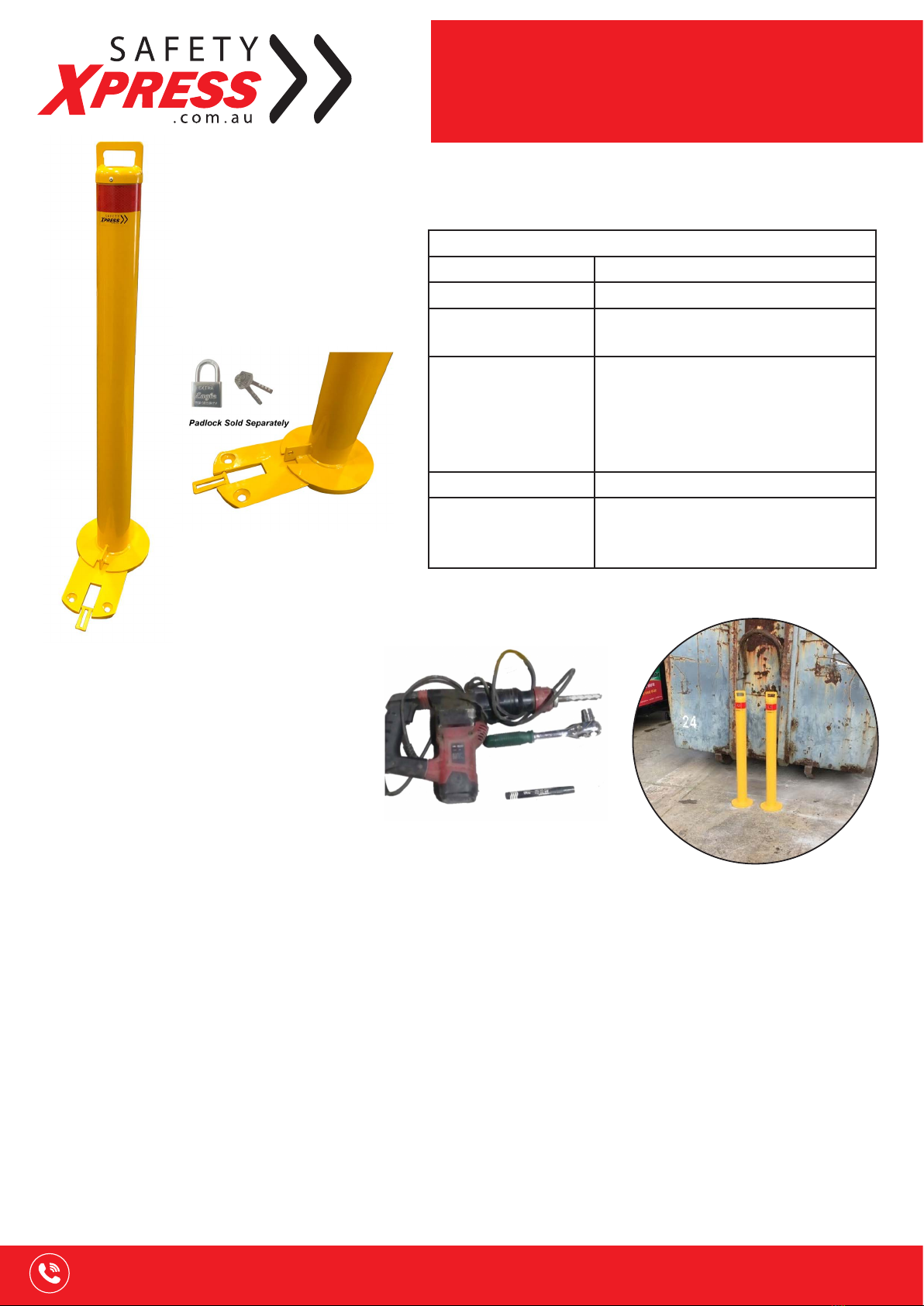

Safety Xpress REMBOLPADSLID User manual

www.safetyxpress.com.au
PRODUCT INFORMATION &
INSTALLATION GUIDE
1300 049 246
Specications
SKU REMBOLPADSLID
Material Hot Dip Galvanised Steel
Colour Powder Coated Yellow with
Class 1 Red Reective Tape
Dimensions:
Height: 1020mm
Diameter:
90mm (Pole) 200mm (Base)
Wall Thickness: 3mm
Base: 4 Mounting Holes
Item Weight 10kg
Fixings
4 x FREE Mounting Bolts
Included per bollard
(standard xings kit supplied)
Surface Mount Bollard
Installation:
1. Read installation guide from beginning to end.
2. Determine exactly where the bollard will
be placed. If you are installing more than one
bollard, mark the ground to ensure that you have
a straight line rst.
3. Take the slider receiver plate, drill a guide
hole in the surface, This is to mark the surface
so that you know where to continue to drill.
Continue to drill each guide hole to almost the
entire length of your xings.
Tools Required:
• Hammer drill with correct sized drill bit
• Countersunk xings
• A hand broom or industrial vacuum
4. Remove the slider plate and brush or vacuum
away any dust.
6. Secure bollard receiver plate into xing holes
with countersunk xings.
8. Slide your bollard in / out of slider receiver
plate to test a couple of time. Lock into place
using a padlock (sold separately).

www.safetyxpress.com.au
PRODUCT INFORMATION &
INSTALLATION GUIDE
1300 049 246
Technical Drawing
REMBOLPADSLID
89mm
1020 mm
200mm
90mm
130mm
4 X 14
26 X 90°
10 kg
SHEET OF
1:5
PROPORTION
DATE VERSION
REMBOLPADSLID
1
