What’s in the box?
How to install the VHF on desktop and overhead

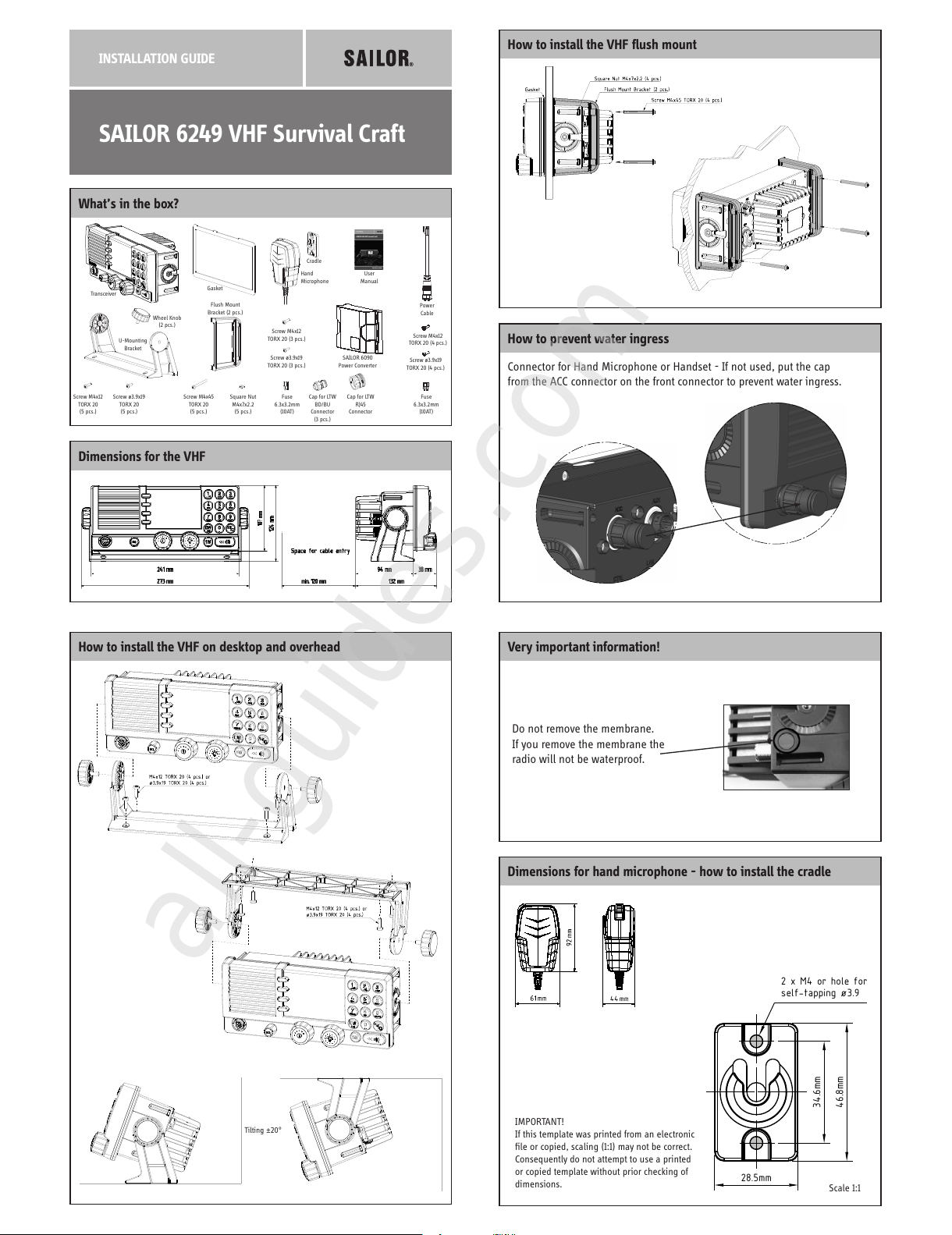

INSTALLATION GUIDE
SAILOR 6249 VHF Survival Craft
Dimensions for hand microphone - how to install the cradle
U-Mounting
Bracket
Gasket
Flush Mount
Bracket (2 pcs.)
Fuse
6.3x3.2mm
(10AT)
Cradle
Wheel Knob
(2 pcs.)
Screw M4x45
TORX 20
(5 pcs.)
Square Nut
M4x7x2.2
(5 pcs.)
Screw M4x12
TORX 20 (3 pcs.)
Screw ø3.9x19
TORX 20 (3 pcs.)
Screw M4x12
TORX 20
(5 pcs.)
Screw ø3.9x19
TORX 20
(5 pcs.)
Hand
Microphone
Very important information!
Do not remove the membrane.
If you remove the membrane the
radio will not be waterproof.
How to install the VHF flush mount
Cap for LTW
RJ45
Connector
Cap for LTW
BD/BU
Connector
(3 pcs.)
Fuse
6.3x3.2mm
(10AT)
Screw M4x12
TORX 20 (4 pcs.)
Screw ø3.9x19
TORX 20 (4 pcs.)
SAILOR 6090
Power Converter
User
Manual
Power
Cable
Transceiver
Tilting ±20°
99-129296
2 x M4 or hole for
self-tapping ø3.9
34.6mm 46.8mm
28.5mm
Scale 1:1
IMPORTANT!
If this template was printed from an electronic
file or copied, scaling (1:1) may not be correct.
Consequently do not attempt to use a printed
or copied template without prior checking of
dimensions.
How to prevent water ingress
Connector for Hand Microphone or Handset - If not used, put the cap
from the ACC connector on the front connector to prevent water ingress.
Dimensions for the VHF
All manuals and user guides at all-guides.com
all-guides.com

[e-mail] •thrane.com
98-133943-B
System Configuration - Example
VHF
99-133949
SAILOR 6249
Hand Microphone
SAILOR 6202
Power Converter
SAILOR 6090
12V DC
Ground
12V DC
+Vout (Red)
-Vout (Blue)
Remote on/off
NC
Screen/Ground
-Vin
+Vin
24V DC
Remove jumper
for remote on/off
from VHF
Aerial
RX/TX
24V DC
For further information, please download the
installation manual part no. 98-135548 at
http://esupport.thrane.com
Drilling plan on desktop and overhead How to install the SAILOR 6090 Power Converter
99-131985
200mm
53mm
71mm
247mm
9mm
4 x M4 or hole for
self-tapping ø3.9
23.5mm
Drilling plan
Flush mount template
Remove material from shaded area only!
99-132034
89mm
227mm
R2.5mm x 4
Scale 1:1
Cutout template for flush mounting of the VHF
IMPORTANT!
If this template was printed from an electronic
file or copied, scaling (1:1) may not be correct.
Consequently do not attempt to use a printed
or copied template without prior checking of
dimensions.
