Salamander 3 BAY AV CREDENZA User manual

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 1 of 17
3 BAY AV CREDENZA
WITH SINGLE DISPLAY MOUNT
D2/337BM1 ASSEMBLY INSTRUCTIONS
TIP HAZARD WARNING!
For use with video monitors weighing 175lbs (80kg) or less.
Use with heavier televisions may result in instability causing
tip over resulting in death or serious injury.

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 2 of 17
hardware
E
G
U
P
T
R
N
D
B
K
C
Q
J
L
O
H
F
I
ID PART # DESCRIPTION
A 300-530 1/4-20 Thumb Nut
B 303-524 5/16-18 x 1” Head Socket Cap Screw
C 300-518 1/4-20 x 3/8” Button Head Socket Screw
D 301-000 5/16 x 3/4” Countersink Socket Screw
E 300-485 1/4-20 x 1/2” Button Head Socket Screw
F 300-575 1/4-20 x 5/8” Button Head Screw
G 300-455 1/4-20 x 1” Head Socket Cap Screw
H 303-505 1/4-20 x 3/4” Set Screw
I 300-465 1/4-20 x 3/4” Head Socket Screw
J 302-315 10-32 x 5/8” Flanged Button Head
Socket Screw
K 303-462 1/4-20 x 2.25” Head Socket Screw
L 303-525 5/16-18 x 1.50” Head Socket Screw
M 301-695 M8 x 16mm Pan Phillips Head Screw
N 300-468 1/4” Flat Washer
O 300-835 Universal Shelf Peg
P 300-565 Drop In Nut
Q 300-560 1/4-20 Flat Nut
R 303-855 Universal Wall Bracket
S 301-470 5/16” Flat Washer
T 300-520 1/4-20 Small Flat Nut
U 301-265 1/4-20 - JCN
S
A
M

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 3 of 17
warnings
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS FURNISHING
WARNING! Failure to comply with these instructions may result in accident involving serious personal
injury. Failing to follow these instructions can result in the product being damaged or being destroyed or
voiding of the warranty.
WARNING! For use with video monitors weighing 175lbs (80kg) or less. Use with heavier televisions
may result in instability causing tip over resulting in death or serious injury.
CAUTION!
• Close supervision is necessary when this furnishing is used by or near children, invalids,
or disabled persons
• Use this furnishing only for its intended use as described in these instructions.
Do not use attachments not recommended by the manufacturer.
• Do not use outdoors
• For Commercial Use Only
Weight Capacities: Max Load: D2/337BM1 - 175 lbs (80kg)
***** SAVE THESE INSTRUCTIONS *****
Accessories and Spare Parts
Please contact Salamander Designs 860.761.9500 or www.salamanderdesigns.com/commercial
Tools needed
#2 Phillips Head Screw Driver
1/2 Drill Bit for Standard Installation
Pencil
Tape Measure
Level
TOOLS INCLUDED
PART # DESCRIPTION
P-400-030 Driver Bit 1/4” Hex Key
400-035 Leveler Wrench
400-030 1/4” Hex Key
400-070 1/8” Hex Key
400-080 5/32” Hex Key
400-058 3/16” Hex Key- Short Arm
301-240 1”x 2” Double Sided Tape

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 4 of 17
1. INSTALL display BRACKETS
Determine if Extension Wings are
Required to Mount Your Display
Measure the mounting pattern on your display:
200 x 200 to 600 x 400
Use Only Display Brackets
600 x 400 to 800 x 500
Use Display Brackets
with Extension Wings
A
OR

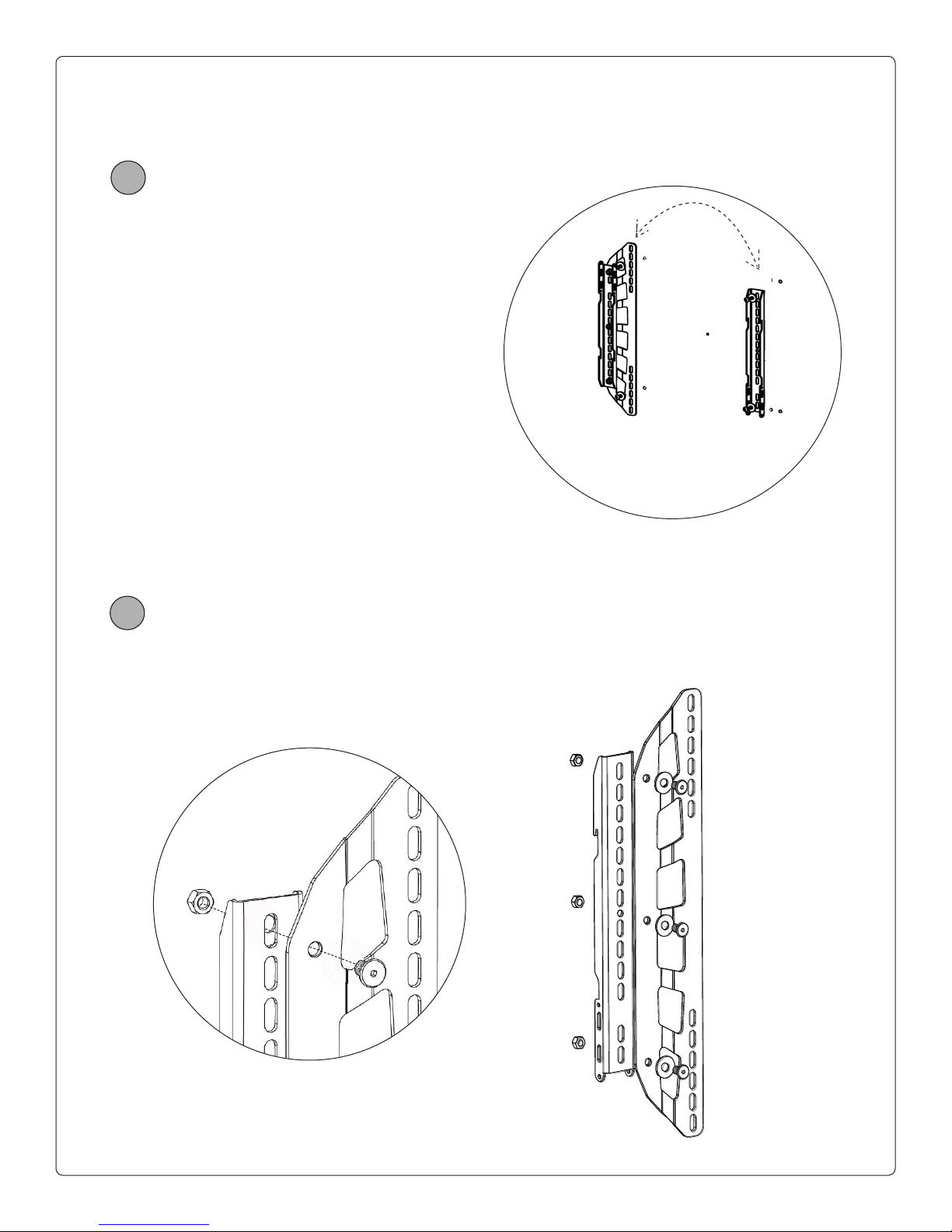

BAssemble Extension Wings if Required
Extension wings are fastened to display brackets using the
3 flat head screws, washers and lock nuts provided in the
PL100 Mount Kit prior to mounting your display.
Brackets
with Wings
Brackets

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 5 of 17
Optional
1. INSTALL display BRACKETS

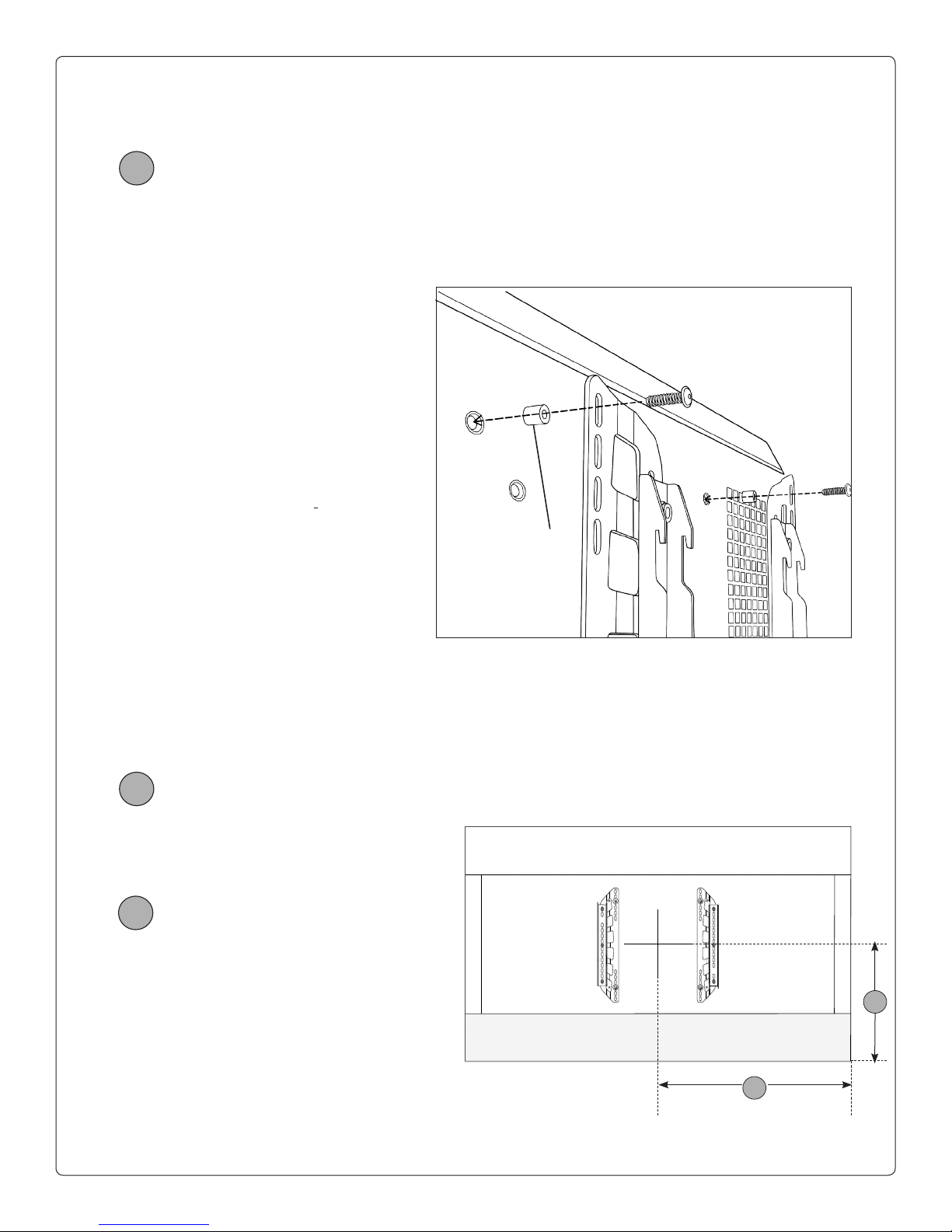

Attach Brackets to Display
Fasten the brackets using fasteners (length and size recommended
by the display manufacturer). Using improper screw length can
damage the display.
C
NOTE:
An assortment of screws and
optional spacers have been
provided in the PL100 Kit.
Optional Spacers are provided for
additional clearance between
the mount and the Display
if necessary.
M8 16mm screws are
supplied for use with
Microsoft Surface Hub.
2. ADJUSTING MOUNT
Determine Vertical Position of Mount
Measure from the bottom of display
to center of display mount bracket.
A
Determine Horizontal Position
of Mount
Measure the length of the display
and divide by 2 to get the horizontal
mount center.
NOTE:
If a space between the two displays
is required, add half of the width of the
space to this dimension.
B
X
A
B

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 6 of 17
2. ADJUSTING MOUNT
Determine Current Vertical Position of Mount - This will provide bottom
of screen to floor dimension for the current position of the mount.
Measure from the floor or top of cabinet to the current center of the Mount Plate
installed and subtract the vertical dimension determined in step 2A. The difference is
the amount of adjustment required.
C
Determine Current Horizontal Position of Mount
Measure from the center line of the cabinet to the center of the Mount Plate and
subtract the horizontal dimension determined in step 2B. The difference is the amount
of adjustment required.
Follow steps 2E thru 2I if vertical and/or horizontal adjustments are needed.
D
C
D

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 7 of 17
SLIDE
2. ADJUSTING MOUNT

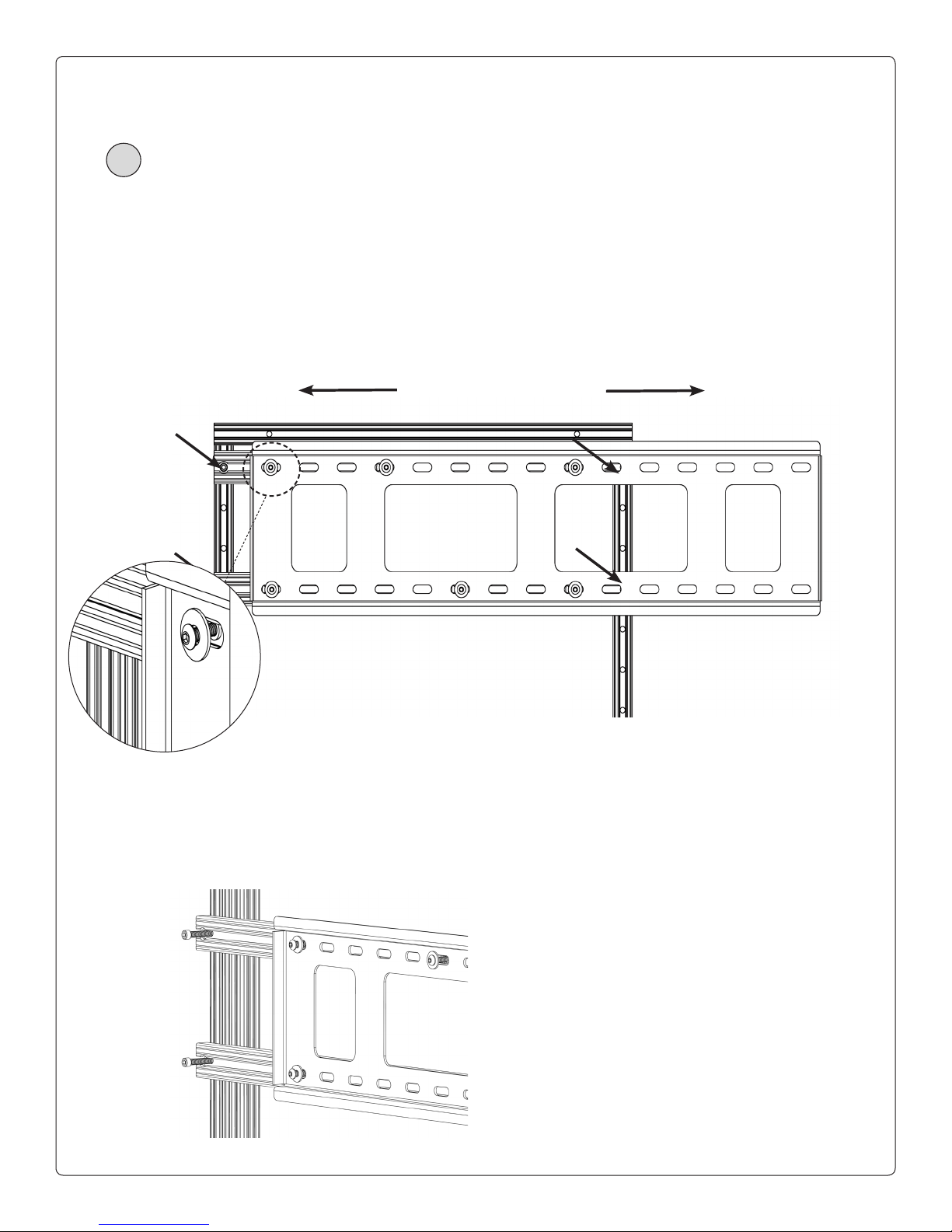

Vertical Mount Adjustment
Vertical adjustment is incrementally made by using the holes spaced
2” on the vertical mounting extrusions. If both vertical and horizontal
adjustments are need please read both 2E thru 2I prior to making
adjustments. Fastening points are shared.
E
Loosen Mount Plate and slide left or right to gain access to the fasteners
of the horizontal mounting extrusions.
Loosen bolts fastening the horizontal mounting extrusions to vertical
mounting extrusions. The flat nuts at the back of the vertical mounting
extrusions will drop and need to be repositioned.
If vertical adjustment are necessary
reposition the horizontal mounting
extrusions with the fasteners in place
and refasten to the vertical mounting
extrusions. Level the wall bracket
while retightening move to step 2F if
horizontal adjustments are needed.

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 8 of 17
2. ADJUSTING MOUNT

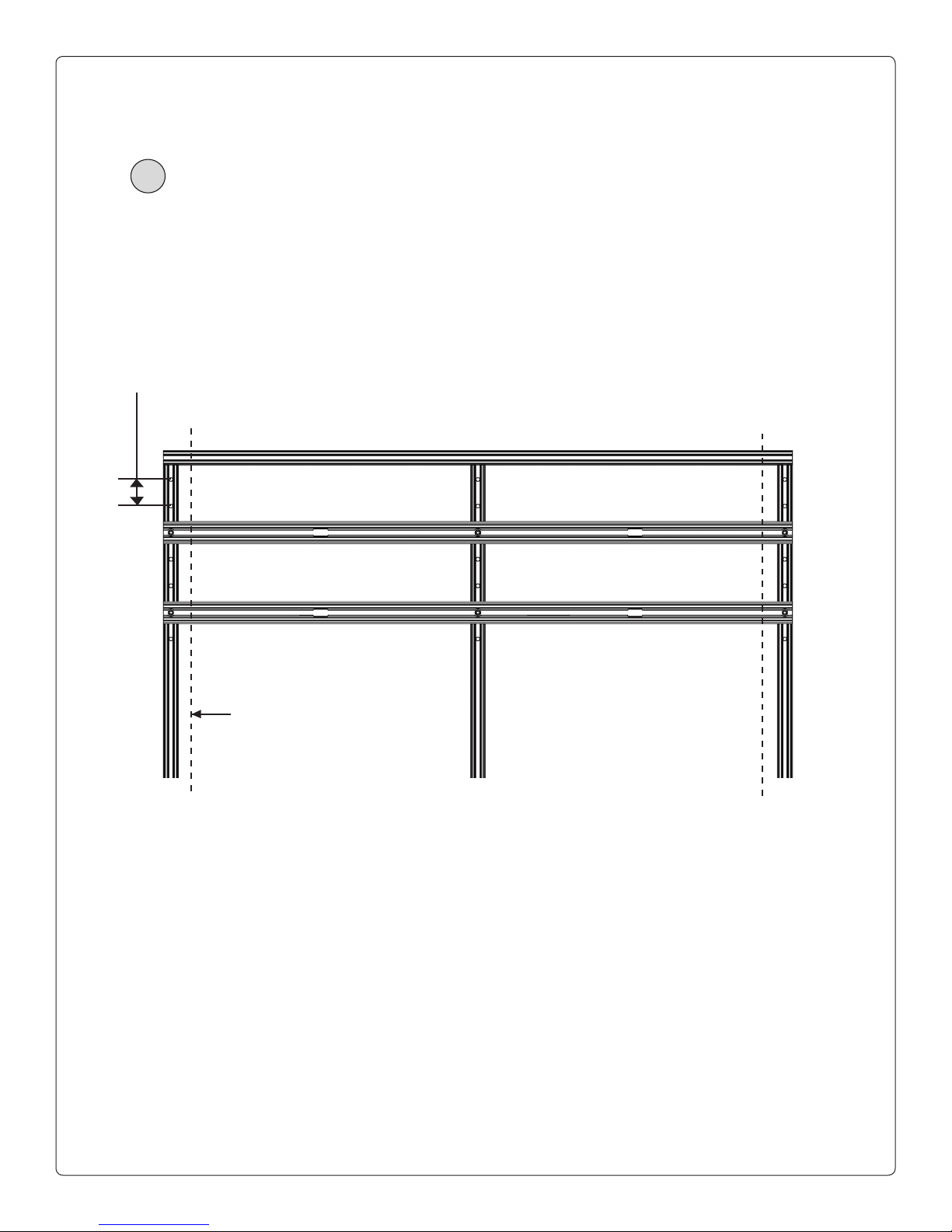

Horizontal Mount Adjustment
Relocate the bolt positions on the vertical mounting extrusions to
provide 2” incremental adjustments.
NOTE: The center line of the Display should never be positioned further than the indication shown
F
center line of display
should not exceed
this line (2” from post)
2” increments
Re-fasten assembly while re-leveling mount plates.
NOTE: It is important to Display alignment that brackets are level and aligned.
A long straight edge or string can help to measure.
** The Diagram above show the horizontal mounting extrusions
without mount plates for visual clarication **

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 9 of 17
3. CAMERA SHELF (OPTIONAL)
A
BInstall Mount
Insert 2 Flat Nuts (Q) into Camera Mounting post.
Insert Screw (E) and Washer (N) through the
Bracket and tighten with Hex Key. QE
N
QE
N
P
RN
Install Mount
Loosely assemble Screws (C), Washers (N)
and Drop-In Nuts (P) though Bracket (R).
Affix Bracket to top of the horizontal mounting post
by sliding Drop-In Nuts (P) into slots.
Adjust bracket to desired location an tighten with
provided Hex Key.
Verify that Drop-In Nuts catch extrusion.
C

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 10 of 17
D
3. CAMERA SHELF (OPTIONAL)
CInstall Shelf
Install Camera Shelf to Mounting Post using
2 Screws (D).
DPlace Camera
Use double side tape to secure
camera from sliding off shelf.

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 11 of 17
WARNING! This step requires two people.
4. LEVEL CABINET
Wood Block Foot
Lift cabinet and adjust leveler by hand.
Leveler
Jam Nut
Leveler Foot
Loosen jam nut with supplied wrench
and tighten to the locked position.

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 12 of 17
5. install Shelves
Insert into post channel
and slide to desired height.
Level shelf by adjusting
shelf peg positions and
tighten screw using hex key.
Note: Drop-in nut must
make a 1/4 turn in post.
Assemble loosely as shown.
I
O
P
Drop-In Nut Option
Should you desire shelf placement in location other
than predrilled locations, use the drop-in nut option.
This option allows shelf to be placed at any height.
NOTE: Shelf pegs can be re-positioned if desired.
A. Shelf placement can be adjusted if necessary to either predrilled
locations or any location using Drop-In Nuts (P) Shelf Peg
assembly (see diagram below).
B. Place shelves on pegs.
B
A

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 13 of 17
1
2
Remove Door
Release tab (1) ,then pull forward off
hinge base (2).
NOTE: For re-installation be sure to lock
Release Tab (1) into place before
setting hinge base (2) back into place.
Unlock Rack
Push latch toward center and latch
into notch.
NOTE: In re-installation be sure to hear a
click sound to know that the cartridge rack
is locked back into place
Remove Rack
To remove Cartridge Rack slide forward
toward the front of cabinet and remove.
Remove Wire Loom
Remove Thumb Nut,Stud,Washer,
Drop-In Nut and Screw.
NOTE: Do not remove Drop-In Nut completely,
leave loosely attached to Thumb Nut.
Re-installation- Reattach Thumb-Nut, Stud,
Washer and Drop-In Nut. Using Screw and
washer attach the other end to the rack.
6. RACK CARTRIDGE
For re-installation of Rack Cartridge reverse steps.
A
B
C
D

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 14 of 17
Plug in Power Supply
Plug in Ac adaptor bottom center
behind fan grill.
Attach Thermistor
7. Install Rear cooling panel
Install Rear Cooling Panel
Squeeze in the provided handled slots and
pull outward until panel is free.
NOTE: Reverse step for re-installation.
Upon removal, carefully place rear panel in
the up right position so not to damage the
fan assembly.
Alternative connection, connect the
thermistor directly to the component.
Loosen screw and slip the thermistor
wire under the screw head and tighten.
Use supplied magnetic cube to
hold thermistor in place on top of
the hottest piece of equipment
closest to the heat source.
A
B C

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 15 of 17
Pull on black cord to unlock
Click Fasteners and hook
TV Brackets onto Wall
Bracket from top.
Center TV Brackets on
Wall Bracket and push
black Click Fasteners
up into lock position.
Install Pad Lock.
WARNING! This Step Requires Two People
8. INstall display to mount
Lift display and place on Plano mounting bracket.
NOTE:
Be sure that lip of screen brackets are aligned with the mounting bracket.
Failure to do so may result in injury or damage to product.

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 16 of 17
Insert Drop-In Nut (P) into
the slots of the vertical
mounting post and using
the provided Hex Key.
H
Loosely assemble Set
Screw (H), JCN (U) and
Drop-In Nut (P) through
each hole in the panel.
Modesty Panel
Removing and Re-Installing
NOTE: Be sure bottom of modesty panel is flush to cabinets top.
ADJUSTMENT TIPS
A B
U
P
Main Adjustment (Side to Side and Up/Down)
Adjustment is made by turning screw (A) in and out.
Dismount Hinge from Hinge Plate
With one hand holding the door open, pull
back on the hinge quick-release lever (B).
Door Front
Adjust the tops of the doors to be
parallel to the top of the cabinet.
A
A
A
DOORS
NOTE: It is important that cabinet is level before adjusting doors, see step 4.
A
B

Salamander 3 Bay AV Credenza with Single Display Mount 503-234 [5.17] page 17 of 17
LIMITED WARRANTY FOR COMMERCIAL VIDEO DISPLAY STANDS AND MOUNTS
Salamander is proud to stand behind our products with industry-leading warranties. Should you ever encounter any problem with your
Salamander product, let us know. We are here to make it right. 1.860.761.9500
Full warranty including limitations and warranty claim information may be found at www.salamanderdesigns.com/commercial/warranty
Made in USA
