Sam4s 110 Series User manual

Table of Contents
System Introduction
System Installation
Part 1
Part 2
Part 3 System Utilization
Part 4 System Extension & Disassemble
Appendix A UEFI BIOS Set Up
Appendix B System Configuration
1. Safety Notices Before Installation or Use
2. System Introduction
3. General Specifications
4. Optional Specifications
5. Name and Function of each component (Front View)
6. Name and Function of each component (Rear view)
7. Name and Function of each component (I/O)
8. Name and Function of each component (I/O - Option)
1. Checking the Location for Installation
2. Before Connecting Peripherals
• Interface cover remove
• Cable arrange cover remove
3. Connecting DC power supply cable
1. Touch Screen Usage
2. POS Driver and Utility Introduction
3. Dual Monitor Usage
4. Dual Monitor Touch Screen Usage
5. How to control Direct I/O in order to use drawer
1. Power Adaptro
2. 2 Line Display
3. Dual Display
4. IC Card Reader
5. 2.5” SDD/HDD
6. Basic I/O Module
7. M.2 / M.2 RAID
8. Memory
9. Expansion I/O Module
10. Main Board
11. Main Display
12. Touch Panel & LCD
•15 inch Main Display
•15.6 inch Main Display
1. Understanding BIOS
• Understanding BIOS Set up
2. Serial voltage change & Using Keyboard shortcut
1. System Block Diagram
• J1900
•i3 / i5
2. Main Chipset & Connector
• J1900
•i3 / i5
•I/O Board
3. Main Jumper Setting
•J1900
•i3 / i5
4. IO Pin Map
•COM1/2 RS-232 Serial Port
(DSUB9 MALE)
•COM4 RS-232 Serial Port (RJ45)
• USB Port (TYPE A)
•COM1 RS-422/485 Serial Port (DS
UB9 MALE)
•Cash Drawer Port (RJ11)
•COM3 RS-232 Serial Port (RJ45)
•LAN Port (RJ45)
•Parallel Port (D-SUB25 FEMALE)
1. Part List
•MAIN
•38.1cm(15”) Main Display
•39.62cm(15.6”) Main Display
•Main Body
•I/O Module
•Expansion I/O Module
•I/O Cover
•MSR
•MSR+SCR
•Dallas/Finger Printer
•9.7inch Dual Display
•15inch Dual Display
•10.1inch Dual Display

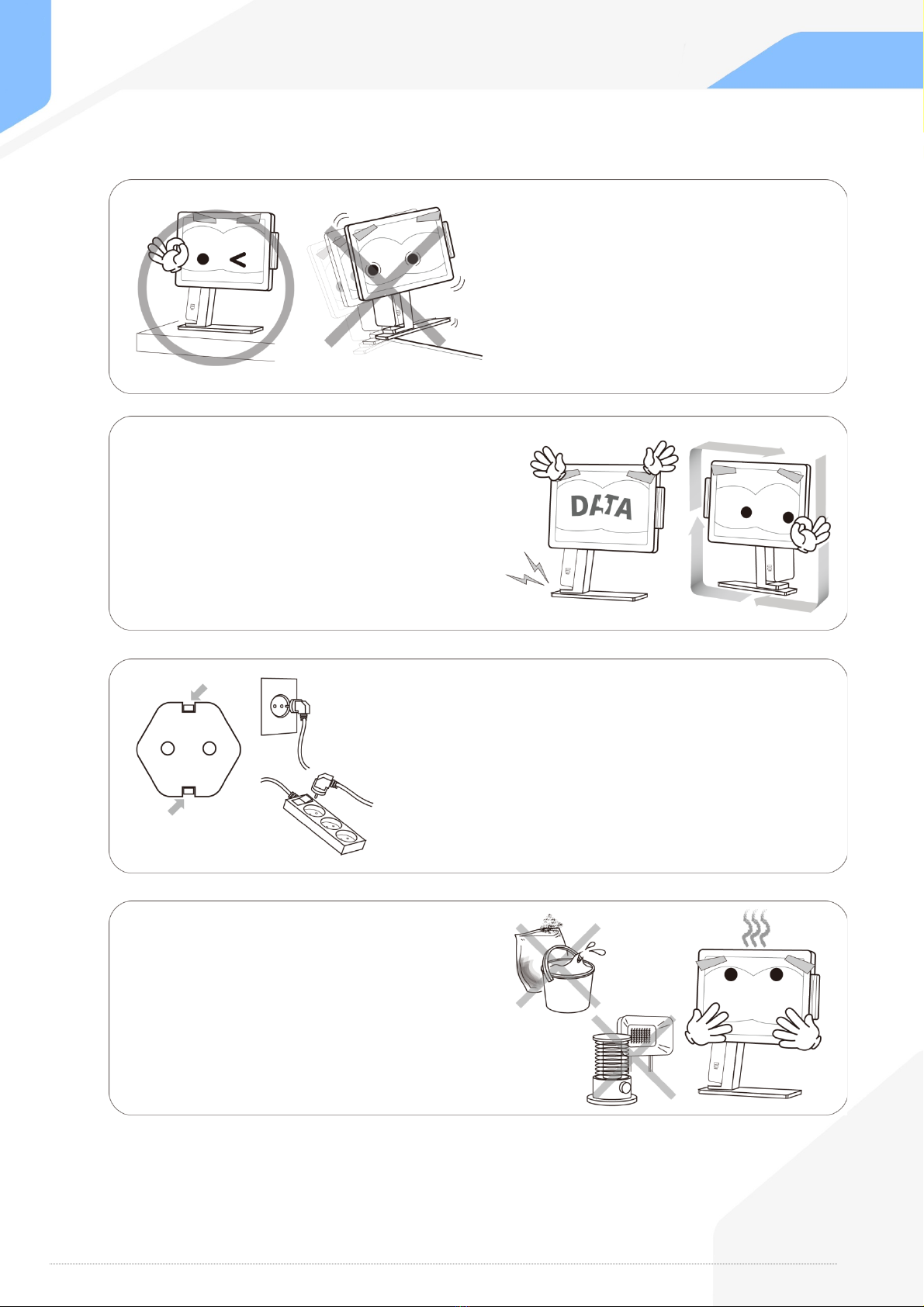

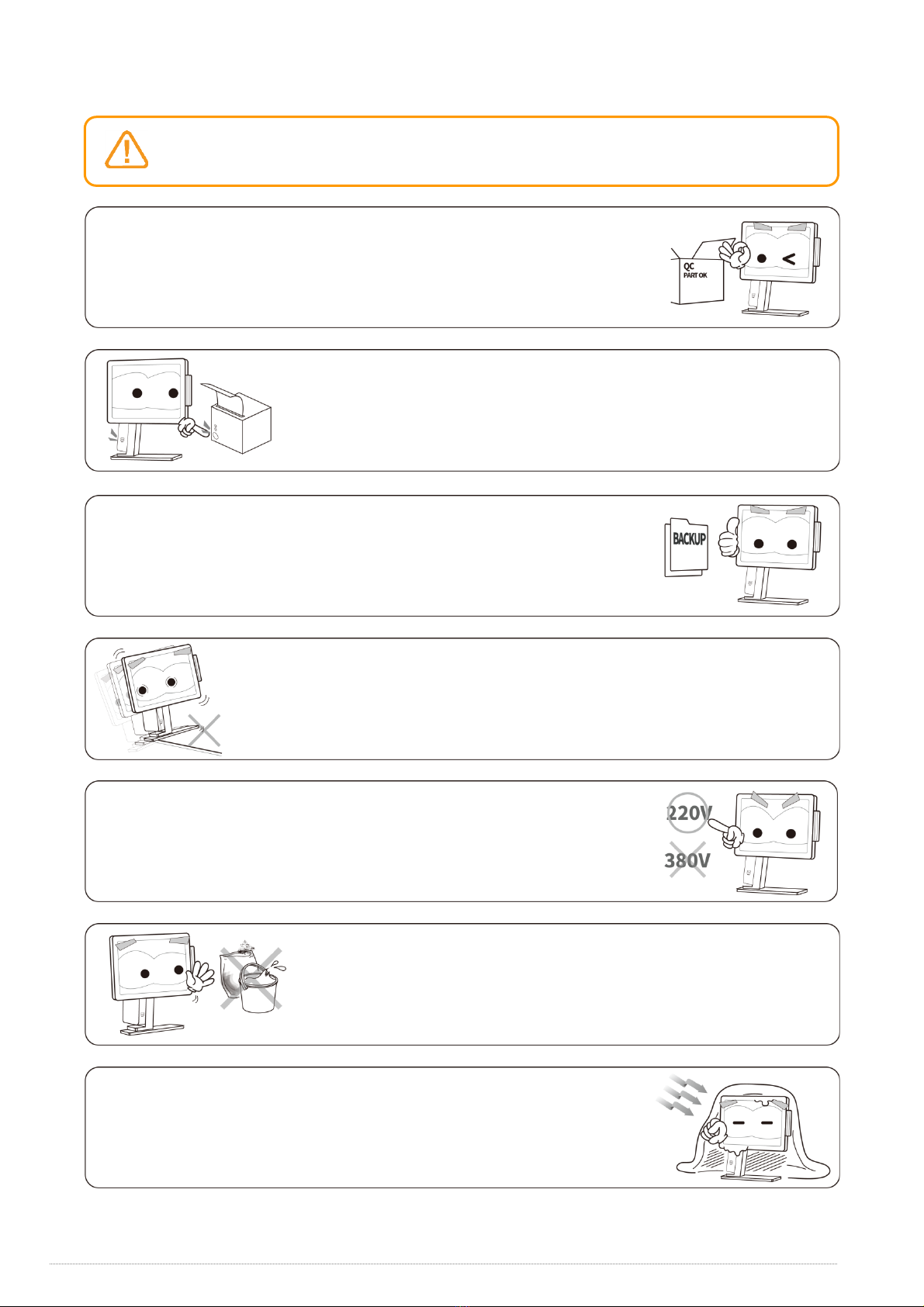

1. Cautions for safety before installation and use
• Use the following safety guidelines to help ensure your own personal safety and to help protect
your equipment and working environment from potential damage
System should use compatible peripherals.
Devices other than peripherals provided by us may
experience compatibility issues.
Please install the product in a dry and clean place. Dust
and moisture can adversely affect the performance and
stability of the system.
Please back up important data frequently. We do not
warrant data on storage devices.
Turn on the peripherals first when turning on system, turn
off the system first other than peripherals when turning off
system.
Do not block the ventilation hole of the product, and install
in a well ventilated area. The system may overheat causing
performance degradation and stability problems.
Install the product in a flat, non-slip location that is easily
operated by the user.
Use rated voltages to prevent fire hazard and product
damage.
1

1. Cautions for safety before installation and use
• Use the following safety guidelines to help ensure your own personal safety and to help protect
your equipment and working environment from potential damage
Connect the AC code to the grounded outlet. Do not
use the damaged power cable as there may be fire and
electric shock hazard of electric shock. Never touch AC
power with wet hands. May be electrocuted.
When disassembling or upgrading a product, make sure to
turn off the power and remove the power cables and
peripherals to avoid the risk of electric shock and damage
to the product.
Use a computer-only cleaner. Do not use benzene, excited
or alcohol. The product may be deformed.
Do not touch the modem, telephone lines, and exposed
terminals when thunder and lightning strike. Risk of electric
shock and fire.
Keep the product away from the heat appliance (heater,
etc.). There is a risk of product deformation or fire.
Keep plastic wrap out of reach of children.
The manufacturer does not warrant product failure due to
user arbitrary disassembly, repair or modification. Please
use the designated service center for warranty and repair.
2

System Introduction Part 1
• The exterior design and specifications of product can be changed without prior notice in order to
improve quality.
2. System Introduction
3

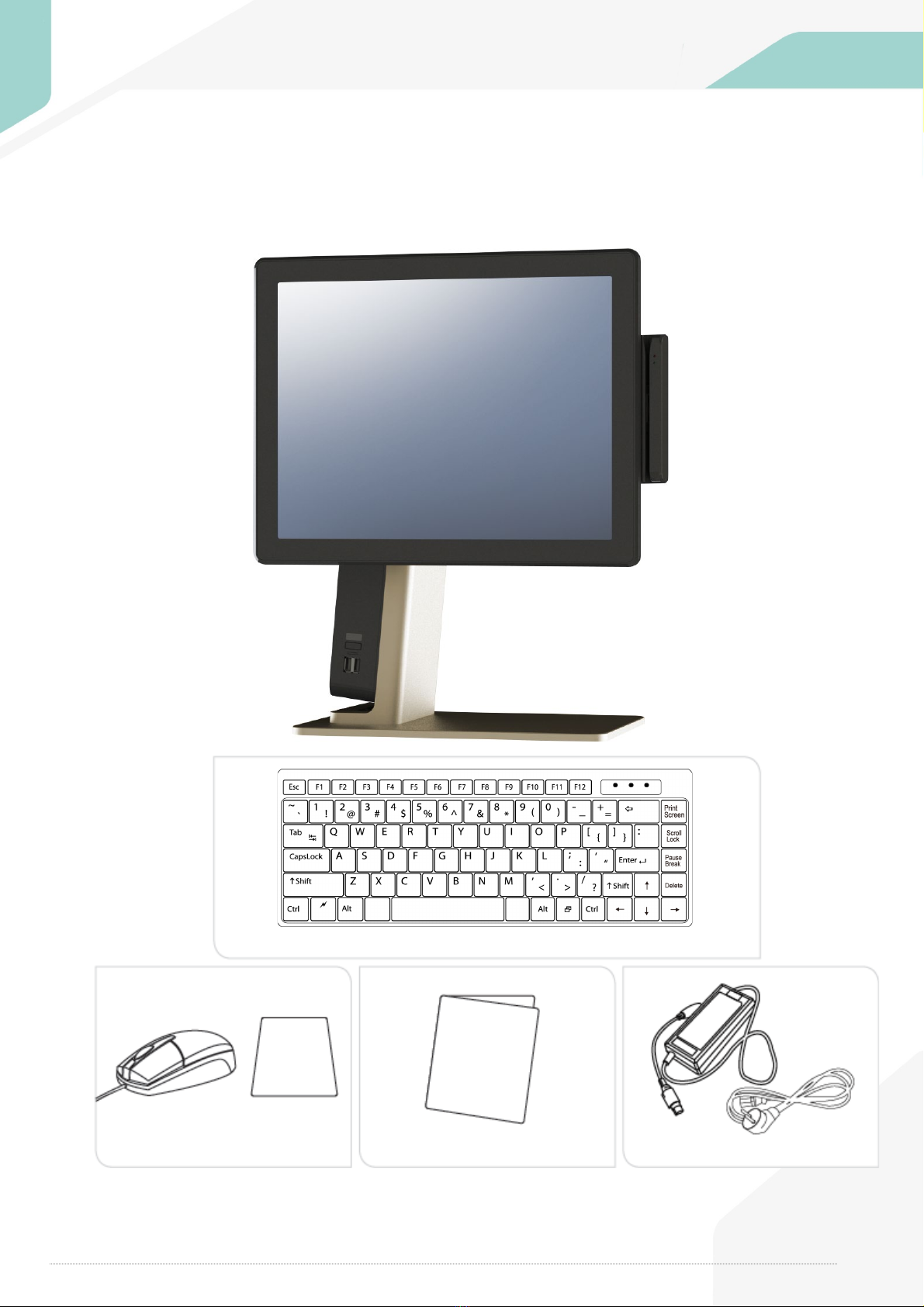

Keybord
Mouse, Pad Manual Adapter, Cable

System Introduction Part 1
3. General Specifications
4
Processor
Intel Celeron J1900 2.0GHz(2M Cache, up to 2.42GHz)
Intel Core-i3 7100U 2.40GHz(3M Cache)
Intel Core-i5 7200U 2.5GHz(3M Cache, up to 3.10GHz)
Chipset SOC
Graphic Integrated Intel HD Graphics
Data Storage SATA-III 2.5” SSD/HDD, m.2 2280 SSD
RAID Supported (Option)
Memory J1900 : DDR3 1600MHz 1 Slot (up to 8GB)
i3 / i5 : DDR4 2133MHz 2 Slot (up to 32GB)
BIOS AMI UEFI BIOS
Display
38.1cm (15” )
Resolution : 1024 x 768(4:3)
Color : 16.2M Colors supported
Contrast Ratio : 500:1
Backlight : 350cd/㎡, 50,000 hours
39.62cm (15.6”)
Resolution : 1366 x 768(16:9)
Color : 262K Colors supported
Contrast Ratio : 400:1
Backlight : 220cd/㎡, 15,000 hours
Touch Panel
Type : True flat PCT(Projective Capacitive Touch)
Interface : USB
Transparency : 85%
Surface Hardness : 7H
Hitting Life : 100,000,000 times
OS POSReady7 / Window 10
I/O Interface
COM(Serial) : D-SUB 9P x 3 Ports / RJ-45 x 1Port
5V / 12V or RI outputs through BIOS setup
USB Port
- J1900: Front x 2Ports(V2.0) / IO x 4Ports(V2.0)
- Core i3/i5: Front x 2Ports(V2.0) / IO x 4Ports(V3.0)
Ethernet Port : 10M/100M/1Gb RJ-45 x 1Port
DP(Display Port) : DP x 1port
HDMI : (i3 / i5 model only) HDMI x 1port
Audio Port : Line-out x 1port
DC-Output Port : 12V DC-OUT 2.5Φ x 1Port
Booting Device HDD, SSD ,M.2, External CD / DVD-ROM, USB Memory etc.
Power Supply AC INPUT : AC 100~240V /50~60Hz, 2A , DC OUTPUT : 12V / 5A (60W)
Dimensions / Weight
38.1cm (15”) 355 x 215 x 432 (W x D x H, mm) / 5.5kg
39.62cm (15.6”) 394 x 215 x 415 (W x D x H, mm) / 4.8kg

System Introduction Part 1
4. Optional Specifications
5
External I/O Interface
Option 1 ) SERIAL 1+1 D-SUB 9P x 1Port / RJ-45 x 1Port
Option 2) USB 2x2 USB 2.0 x 4Ports
Option 3 ) Parallel Parallel x 1Port
Magnetic Swipe Reader(MSR)
Read Track : ISO track 1, 2, 3
Interface : Internal USB Performance : 10~150 cm/sec
Head Reliability : 500,000 times
Error rate : Less than 0.5%
Customer Display
1) 2 Line LCD: 20 x 2(8 x 16 dot) Characters LCD
2) 24.64cm(9.7”) 1024 x 768, 4:3 LCD Monitor
3) 38.10cm(15”) 1024 x 768, 4:3 LCD Monitor
4) 25.65cm(10.1”) 1024 x 600, 16:9 LCD Monitor
5) 39.62cm(15.6”) 1366 x 768, 16:9 LCD Monitor

System Introduction Part 1
5. Name and Function of each component Front View
4
3
2
1
5
6
6
1. USB 2.0 Port
USB Devices can be used through this port, i.e. USB Scanner, USB Keyboard, USB Printer, etc.
2. Power button System power on and off through this button.
3. Indicating LED Lamp
The lights shows the system status and storage operation, i.e. system power on is green light,
HDD operation is red light.
4. Display Main Display, PCAP touch.
5. Magnetic Card Reader Can read 3 track magnetic card.
6. Stand & Plate

System Introduction Part 1
4
3
2
1
7
1. Screw Hole Fix a card reader.
2. Push Button for detachable Main Display
3. Upper Cover of Stand
Remove this cover, you can replace storage or install customer display.
4. System Cover Remove this cover, you can connect peripheral devices.
6. Name and Function of each component Rear View

System Introduction Part 1
3
2
1
5
4
8

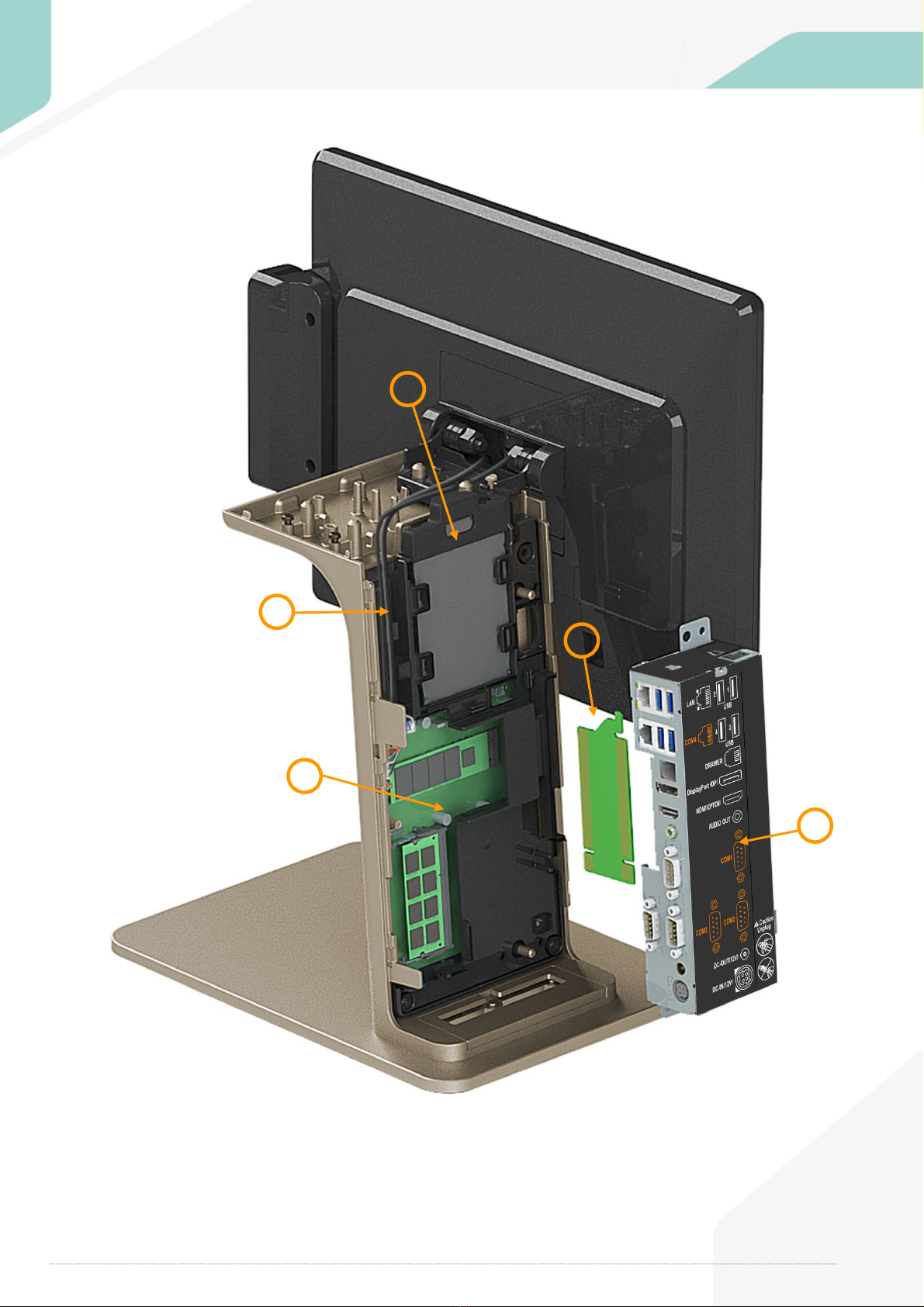

1. System Main Board
2. 2.5” SATAIII Storage (SSD/HDD)
3. Bridge board Connecting Main board and I/O module
4. I/O Module Connection peripheral devices
5. LVDS or eDP Cable Display cable for Main display
7. Name and Function of each component

System Installation Part 2
4
3
2 -2
1
5
6
7
8
8
9
10
2 -1
9

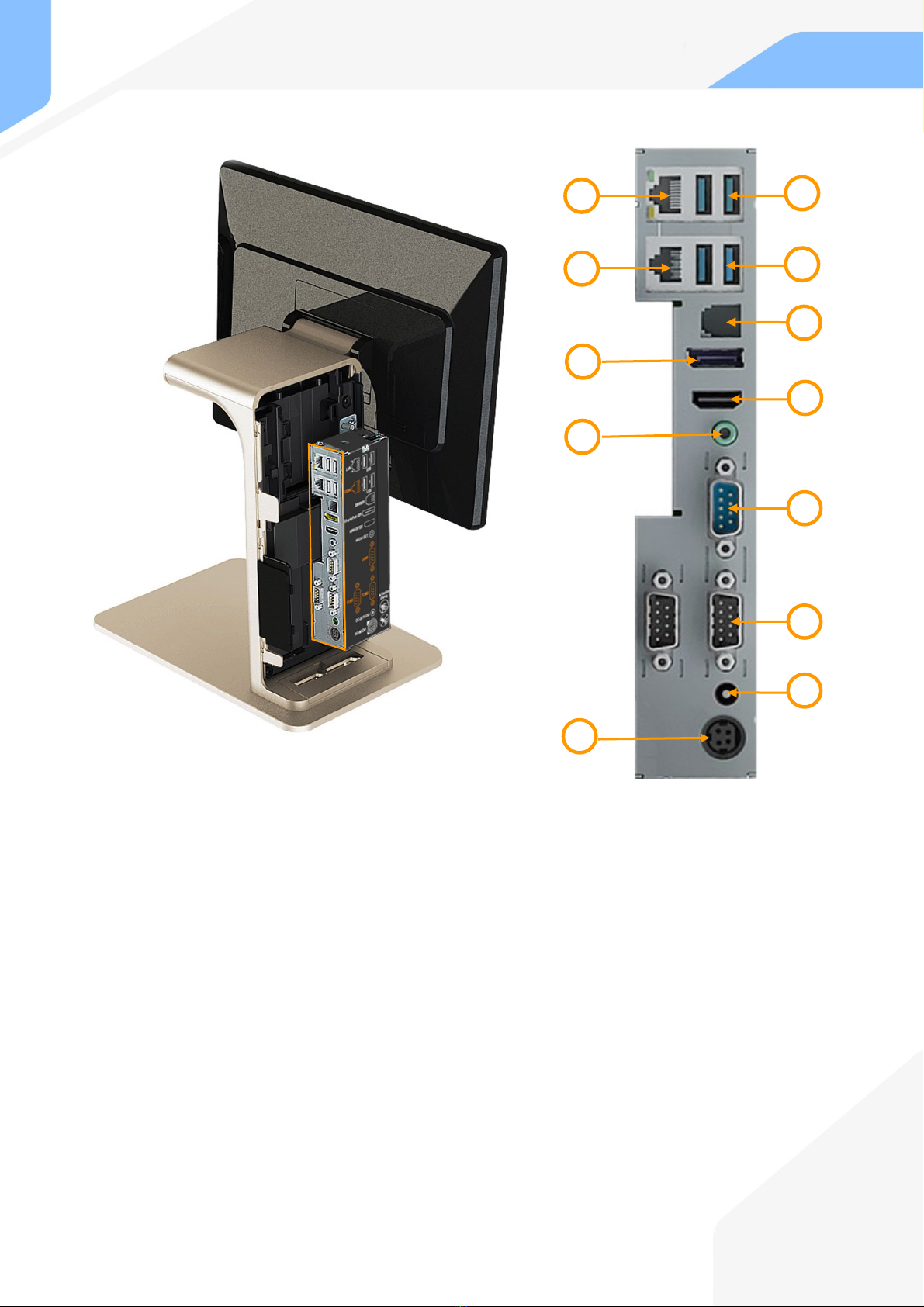

1. RJ-45 LAN (ETHERNET) port
You can connect RJ45 cable for 100M/1Gbps Ethernet connection
2. USB port You can connect devices such as the USB scanner, USB keyboard, USB printer.
J1900 System support USB 2.0, Core-i3/i5 System supports USB 3.0.
3. RJ-45 8Pin COM(Serial) port
You can connect serial devices such as barcode scanners, printers.
4. RJ-11 6Pin Cash Drawer port You can connect the cash drawer.
5. Display port(DP) You can connect monitor which is support DP port.
6. HDMI port You can connect monitor which is support HDMI port. (For Core i3/i5 only)
7. Audio port (Line-out) : You can connect the external speakers.
8. RJ-45 8pin COM(Serial) Port
You can connect serial devices such as barcode scanners, printers.
9. 12V DC Output(For dual display) 12V DC/1A power jack for dual display.
10. DC IN 4pin DC Input(Input power connection)
Jack is connected to the power supply to the system.
7. Name and Function of each component I/O

System Installation Part 2

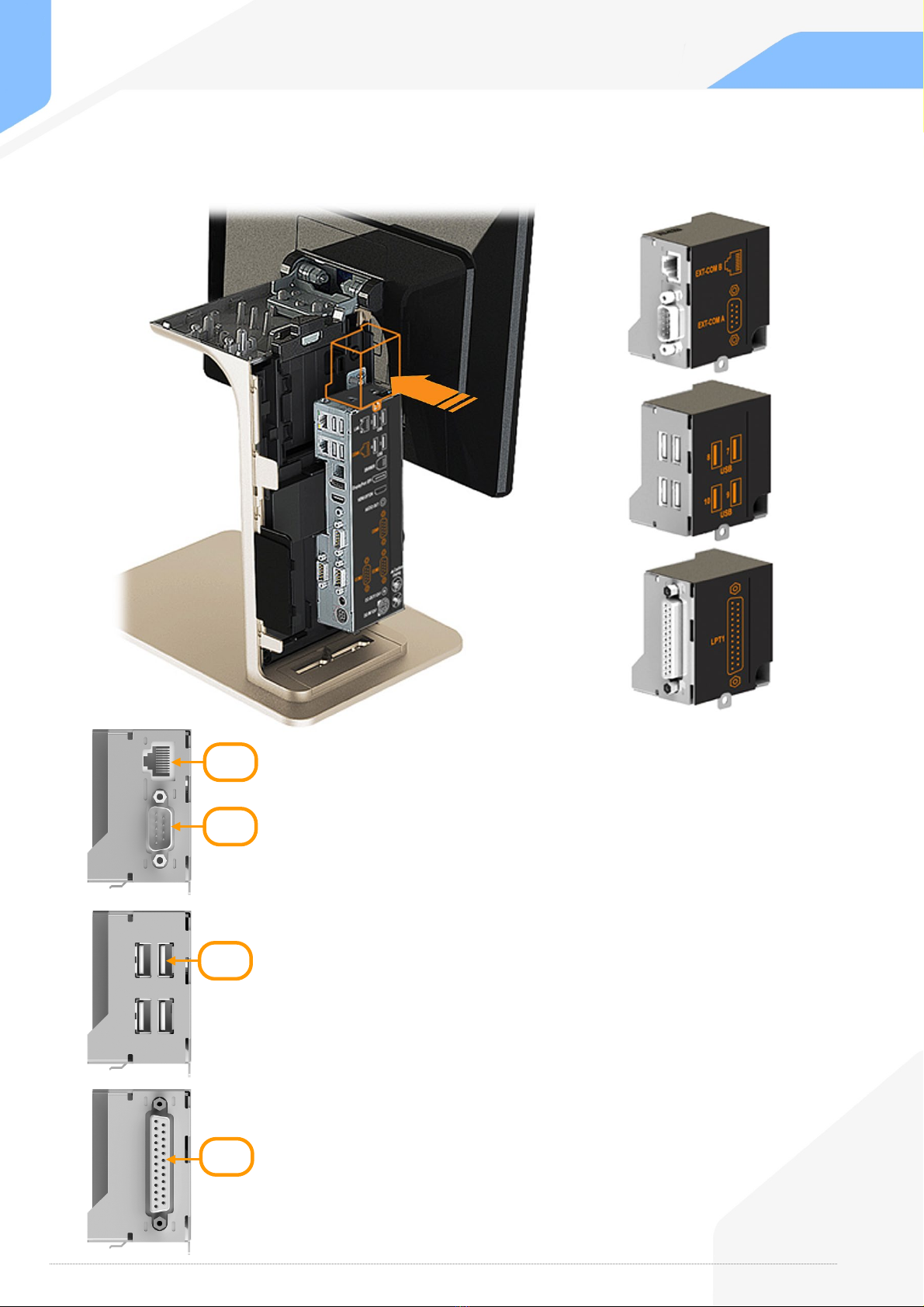

FORZA supports 3 types of extended I/O module. (USB/RS-232/Parallel)
8. Name and Function of each component Extended I/O
10
2 - 1
3 - 1
1 - 1
1 - 2
1-1. RJ-45 8Pin COM(Serial) port
You can connect serial devices such as barcode scanners, printers.
1-2. D-SUB 9Pin COM(Serial) port
You can connect serial devices such as barcode scanners, printers.
3-1. Parallel
You can connect parallel interface devices.
2-1. USB 2.0 port
You can connect devices such as the USB scanner, USB keyboard,
USB printer.

System Installation Part 2
It is important to choose a safe and secure place to install the terminal. Refer the information below.
1. Checking the Location for Installation
11
Choose a desk or table big and strong
enough to support the weight of the system
and peripherals.
-Make sure a system installed in a well0ventilated
place and keep the
space free around the system.
-Carpeted area can generate static electricity that
can alter memory or damage system
components.
-Choose appropriate environmental
conditions such as cool and dry places.
-Avoid humid and dusty places.
-Also avoid direct sunlight, rapidly
changing temperatures, or placing the
system near heat sources.
-System is not ready for waterproofing,
avoid moisture while operating the
system.
-Connect the power cable to a grounded electrical
outlet.
-Connect all the equipment into an isolated outlet to
prevent static electricity and short circuit.
-Do not install near electromagnetic and electrical
devices, such as phones that can cause system
damage.
-The socket-outlet shall be installed near the
equipment and shall be easily accessible.
Make sure electrical
outlet has rounding prong.

System Installation Part 2
It is important to choose a safe and secure place to install the terminal. Refer the information below.
1. Checking the Location for Installation
• Use the same battery for the product (motherboard) to prevent a risk of
explosion.
• Spec of CMOS Battery : 3V, CR2032
• Dispose of used battery according to the separate instruction.

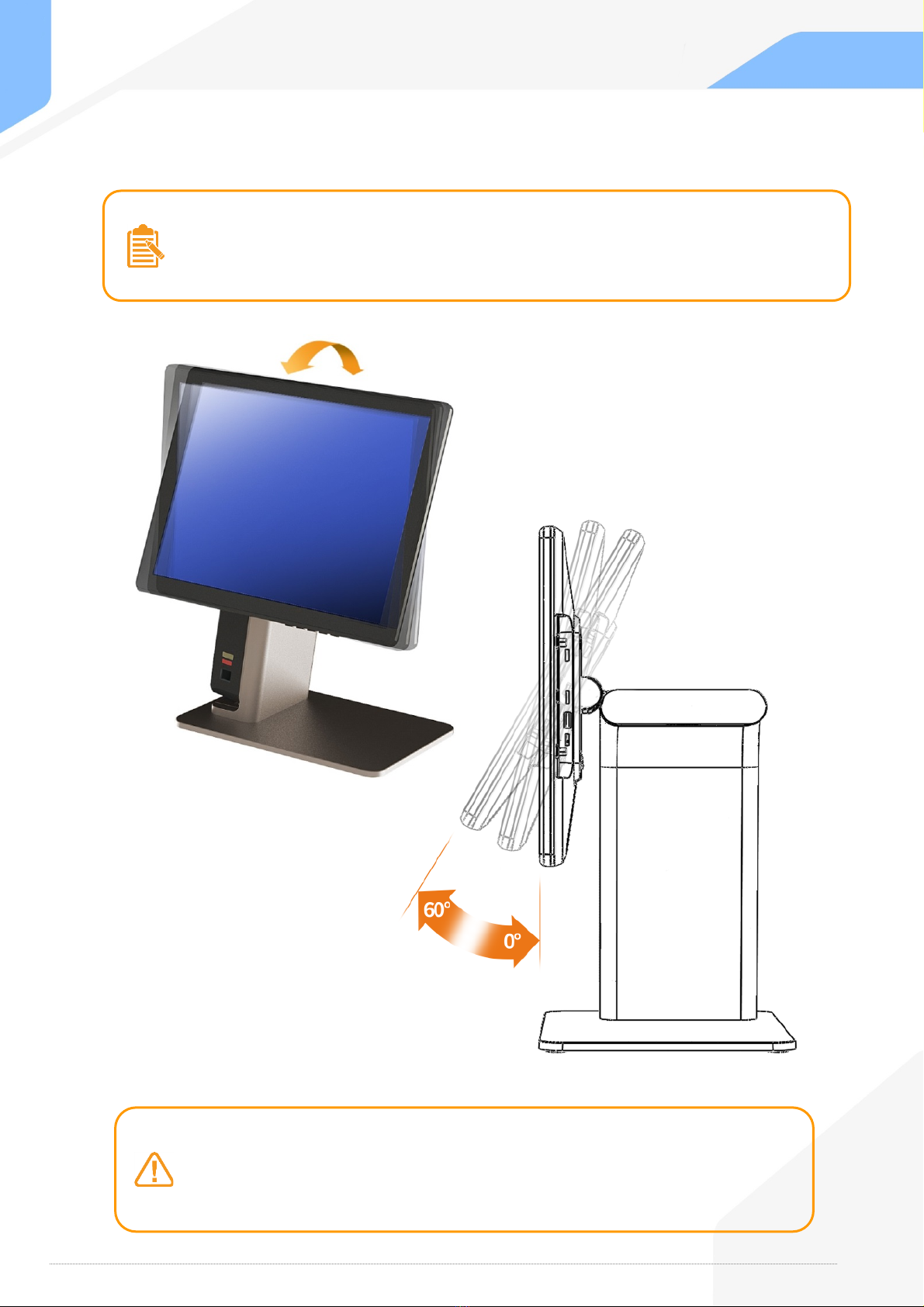

• How to adjust monitor
Adjust the system depending on the condition and use it with the exact angle.
Adjustable angle shown in the figure
12

System Installation Part 2

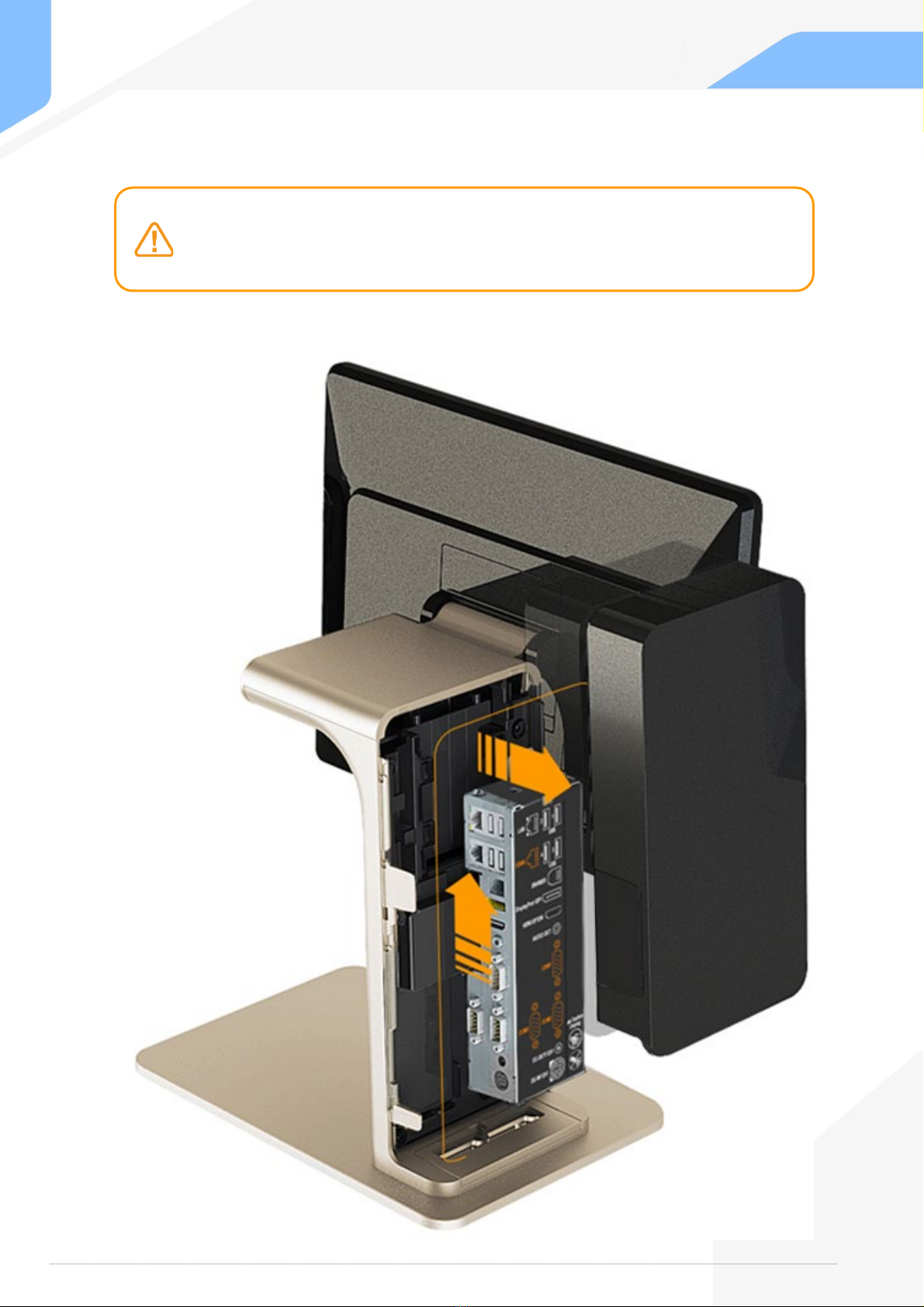

To connect peripherals first remove ‘System Cover’, which is the side of the system.
1. As in shown in the picture pull the ‘system cover’ in the direction of the arrows.
2. Before Connecting Peripherals
• Turn off the power of the system and connect/disconnect peripherals.
• Connecting peripherals to the corners parts of the system can cause hands
injury. For your safety use the gloves.
13

System Installation Part 2
Connect the DC power cable to the DC power input connector at the side of the system.
(Adapter 100V – 220V free voltage of the system can be used.)
3. Connecting DC power supply
• Only manufacturer adapter should be used for this system.
• Manufacturer won’t take responsibility for damages caused by using
products which not made by manufacturer.
• Be careful to connect correct direction of adaptor.
14

System Utilization Part 3
During the use of touch screen, when the accuracy becomes an issue, please re-do
coordination adjustment.
1. Touch Screen Use
1. Right click on the icon located at the lower right corner of menu and click on Control Panel.
Icon
15
2. Double click on the icon from Multi-touch Device_0 of SiW Daemon Control Panel.
3. Click on Standard Calibration button to proceed coordination adjustment.
If you wish to restore to previously saved set value, click on Restore Last Setting button.

System Utilization Part 3
1. Using the Touch Screen
• Do not use sharp objects such as pen as it may damage surface of the display.
16
1
2 3
4

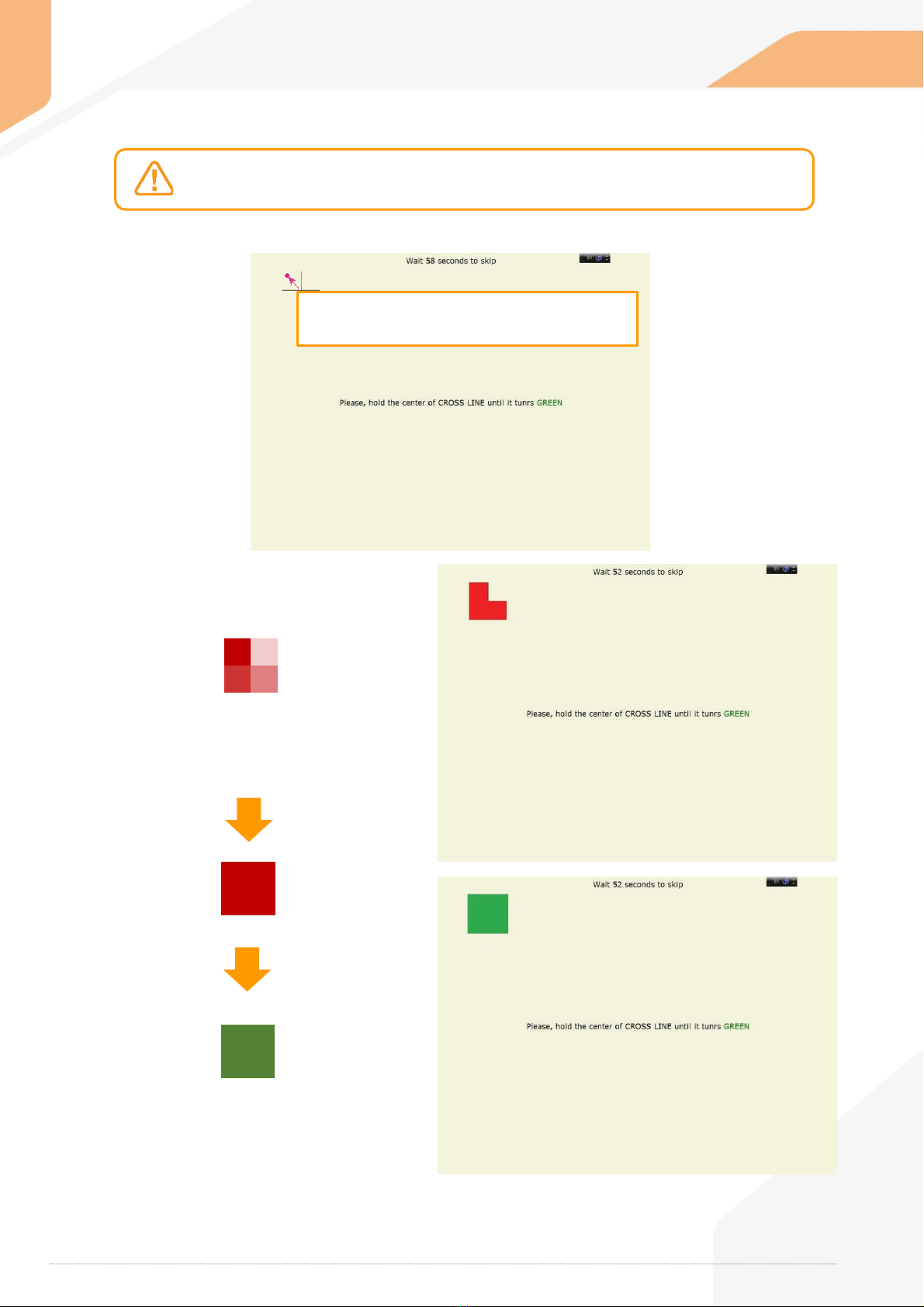

4. Click on the Standard Calibration button to start calibration.
5. Once the calibration is complete, the calibration window will close.
The red boxes will turn green in or
der and once all boxes are turned
green, the calibration is complete
Calibration Complete
A green box will appear. Hold on the point for couple
seconds. Repeat the same procedures for couple more
points.

System Utilization Part 3
2. Introducing POS System Driver and Utility
17
1. The driver and utility is inside the D:\Util_Drivers folder of the window installed on the storage
device.
Adobe Reader 11.0 : The Adobe Reader program is inside the folder.
MiiniPrinter : The windows driver for SAM4S mini printer ELLIX series is inside the folder.
MS Excel Viewer : The Microsoft excel viewer program is inside the folder.
POS Utility : The utility files related to POS are inside the folder.

System Utilization Part 3
2. Introducing POS System Driver and Utility
18
Drawer Driver : Cash Drawer Driver Installation file is inside the folder.
MSR : MSR Setup file is inside the folder.
OPOS : OPOS driver installation file is inside the folder.
Self Test Program : Test programs for dealers are inside the folder.
VFD : Files related to VFD are inside the folder.
•Above OPOS(OLE for Point of Sales) is Interoperable one of UPOS (Unified POS) of Microsoft Windows.
•Current OPOS Driver is developed under the POS regulation 1.10 as a standard and OPOS version support will continue.
•OPOS supporting OS : POSReady 2009, Win XP Pro, POSReady 7, Win 7 Pro, Win 8.1, Industry 8.1, Win 10
Location for OPOS Installation File
•When taking the goods out of the factory, the files are stored inside the storage device as a default. (D:\Util_Drivers\Utilit
y\Pos Utility\OPOS)
How to Install
•Run the ‘xxxxOPOSSET_RVx.xx.exe’ file inside the folder.
•During installation, all components are automatically registered and set according to the system structure.
