SaMASZ KDC 260 S User manual

SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
Established
–
1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: sama[email protected]
www.samasz.pl
OPERATOR'S MANUAL
TRAILED DISC MOWER
KDC 260 S - 2,60 m KDC 340 - 3,40 m
KDC 260 SL - 2,60 m KDC 340 S - 3,40 m
KDC 260 S T - 2,60 m KDC 340 SL - 3,40 m
KDC 260 SL T - 2,60 m KDC 340 S T - 3,40 m
KDC 300 - 3,00 m KDC 340 SL T - 3,40 m
KDC 300 S - 3,00 m KDC 341 - 3,40 m
KDC 300 SL - 3,00 m KDC 341 W - 3,40 m
KDC 300 S T - 3,00 m KDC 341 W T - 3,40 m
KDC 300 SL T - 3,00 m KDC 390 - 3,90 m
KDC 301 W - 3,00 m KDC 430 - 4,30 m
KDC 301 W T - 3,00 m
IN236EN002
2017-05-30
EDITION NO 3
Translation of the original operator’s manual
‒English ‒
Serial no.:
W – Mowers with swath rollers
S– Mowers with swath conditioner
SL – Mowers with light weight swath conditioner
T
–
Mowers with conveyor

DO NOT
TURN MOWER'S
DRIVE ON UNTIL
IT IS IN OPERATING POSITION
DO NOT
OPERATE THE MOWER WITH
UNAUTHORIZED
PERSONNEL PRESENT WITHIN
50 M OR LESS
ATTENTION:
Keep this manual for future use.
Well-proven design and quality materials ensure high reliability and durability of SaMASZ
machines.
We congratulate you on the purchase of your new SaMASZ mower and wish you much pleasure and
the very best experience resulting from its operation.
It is recommended to incline cutterbar by approx. 5°
towards mowing direction.
Operation on horizontal position is permissible.
Other position leads to serious damaging of cutterbar.

Operator's manual
Trailed disc mowers
KDC
- 1 -
Table of contents page
1. IDENTIFYING THE MACHINE...........................................................................................................3
2. INTRODUCTION ....................................................................................................................................3
3. DESIGNATION........................................................................................................................................4
3.1. Technical data........................................................................................................................................5
3.2. Design and operating principle..............................................................................................................7
3.3. Equipment and spare parts.....................................................................................................................9
4. SAFETY ADVICE AND WARNING...................................................................................................10
4.1. Safety rules and regulations.................................................................................................................10
4.2. Qualifications of operator....................................................................................................................12
4.3. Conditions of mounting mower on tractor ..........................................................................................12
4.4. Transport..............................................................................................................................................12
4.4.1. Relocating mower onto another vehicle for transport..................................................................12
4.5. Operating parts ....................................................................................................................................14
4.6. PTO shaft.............................................................................................................................................14
4.7. Hydraulic assembly .............................................................................................................................14
4.8. Tarpaulin guards..................................................................................................................................15
4.9. Residual risk ........................................................................................................................................15
4.9.1. Danger of catching.......................................................................................................................15
4.9.2. Danger of wound, abrasion and damage of skin..........................................................................15
4.9.3. Danger of liquid ejection out of hydraulics .................................................................................16
4.9.4. Bans .............................................................................................................................................16
4.9.5. Residual risk assessment..............................................................................................................16
4.10. Warning decals ....................................................................................................................................17
5. OPERATION..........................................................................................................................................21
5.1. Attaching the mower to the tractor......................................................................................................21
5.2. Preparing mower for transport.............................................................................................................21
5.3. Preparing mower for transport on public roads...................................................................................22
5.4. Mounting PTO shaft ............................................................................................................................23
5.5. Preparing mower for operation............................................................................................................24
5.6. Operation .............................................................................................................................................25
5.6.1. Basic information on mowing......................................................................................................25
5.6.2. Mower clogging...........................................................................................................................26
5.6.3. Driving with mower over windrows when taking turns ..............................................................27
5.7. Dismounting machine from the tractor................................................................................................27
5.8. Storing machine...................................................................................................................................27
6. MOUNTING AND ADJUSTMENTS ...................................................................................................27
6.1. Mounting knives..................................................................................................................................27
6.2. Controlling condition of knives and holder pins .................................................................................28
6.3. Replacing knives and holder pins........................................................................................................28
6.4. Swath width adjustment ......................................................................................................................30
6.5. Adjustment of clearance between conditioner plate and roller............................................................31
6.6. Replacement of flails in conditioner roller ..........................................................................................32
6.7. Adjustment of impact force between rollers........................................................................................33
6.8. Adjusting speed of conveyor belt ........................................................................................................33
6.9. Adjusting pressure of the cutterbar using support springs...................................................................33
6.10. Operating service.................................................................................................................................34
6.10.1. Daily maintenance................................................................................................................34
6.10.2. Off-season maintenance and storing ....................................................................................35
6.11. Controlling condition of cog belt and tension .....................................................................................36
6.12. Conveyor control and adjustment........................................................................................................37
6.12.1. Cleaning method of belt and rollers .....................................................................................37
6.12.2. Conveyor belt replacement and adjustment instruction .......................................................38
7. LUBRICATION......................................................................................................................................40
7.1. Cutterbar..............................................................................................................................................40
7.2. Intersecting axis gears .........................................................................................................................40
7.3. Roller cog gear ....................................................................................................................................41

Operator's manual
Trailed disc mowers
KDC
- 2 -
7.4. Bearings and joints ..............................................................................................................................42
7.5. Risks present when lubricating............................................................................................................43
8. DEFECTS AND THEIR REPAIR ........................................................................................................44
9. REPAIR AND WITHDRAWAL FROM USE .....................................................................................45
9.1. Repair...................................................................................................................................................45
9.1.1. Restarting the machine after repairs or longer storing periods ....................................................45
9.2. Demontage and withdrawal from use ..................................................................................................45
10. HYDRAULIC SCHEME .......................................................................................................................46
10.1. Hydraulic scheme of KDC mower.......................................................................................................46
10.2. Hydraulic scheme of conveyor ............................................................................................................47
11. WARRANTY CARD..............................................................................................................................48
12. WARRANTY TERMS ...........................................................................................................................48
12.1. Warranty claim procedure ...................................................................................................................48
12.2. Warranty repairs record .......................................................................................................................50

Operator's manual
Trailed disc mowers
KDC
- 3 -
1. IDENTIFYING THE MACHINE

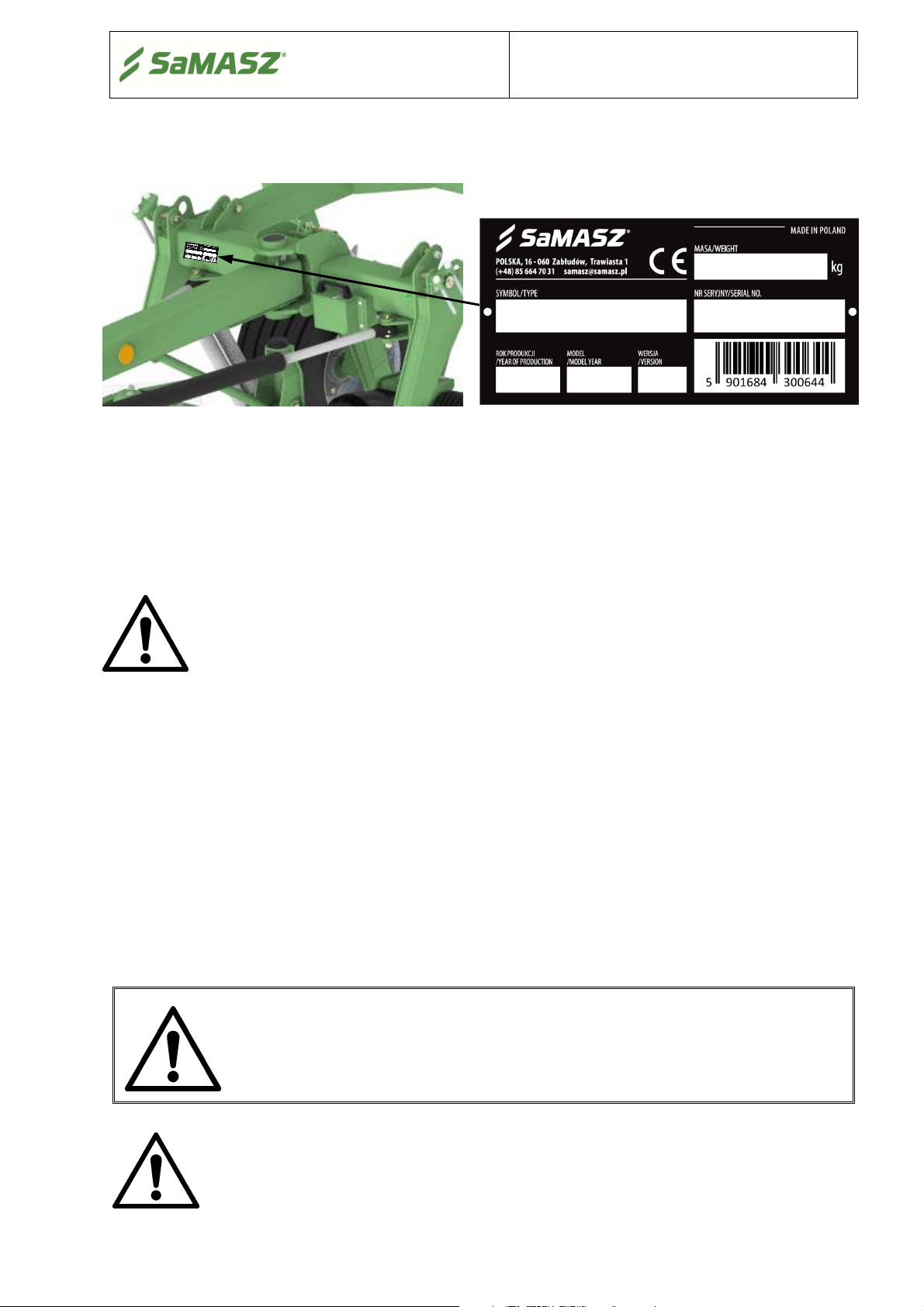

Data plate is permanently mounted to the mower's main frame in place shown in Fig. 1.
Fig. 1. Data plate placement
Data plate includes:
-
name and adress of the manufacturer,
-
model year,
-
CE marking means, that the produce
conforms to 2006/42/EC
-
version number,
Directive and
harmon
ized standards,
-
machine weight,
-
machine symbol,
-
id number,
-
date of manufacture,
-
barcode.
NOTE:
In case the operator's manual is unclear or illegible all necessary information
can be obtained from manufacturer or the dealer.
2. INTRODUCTION
 This operator's manual should be considered the mower's basic equipment and should be kept
for further reference. If the mower is handed over to another operator, it should be in working
condition, along with operator's manual, CE declaration of conformity and its basic equipment.
 Prior to operating the mower its user must familiarize himself with this manual as well as
common work safety rules.
 The mower is manufactured in accordance with safety standards requirements.
 Respecting recommendations herein shall ensure full operation safety.
 If you have any questions concerning commission and operation of the mower, please contact
the manufacturer.
 This operator’s manual is an indispensable part of any machine and is intended to familiarize
future user with principles of proper operation and use of the machine as well as the risks
involved.
GENERAL PRECAUTION
When operating the mower warnings and safety rules marked with
this sign herein should be respected.
NOTE:
Operating the mower without previous familiarizing with its contents as well
as by unauthorized personnel, particularly by children, is strictly forbidden.

Operator's manual
Trailed disc mowers
KDC
- 4 -
3. DESIGNATION
Mower is equipped with „Perfect Cut” cutterbar. Tab. 1 provides differences in mowing height
depending on angle at which cutterbars operate.

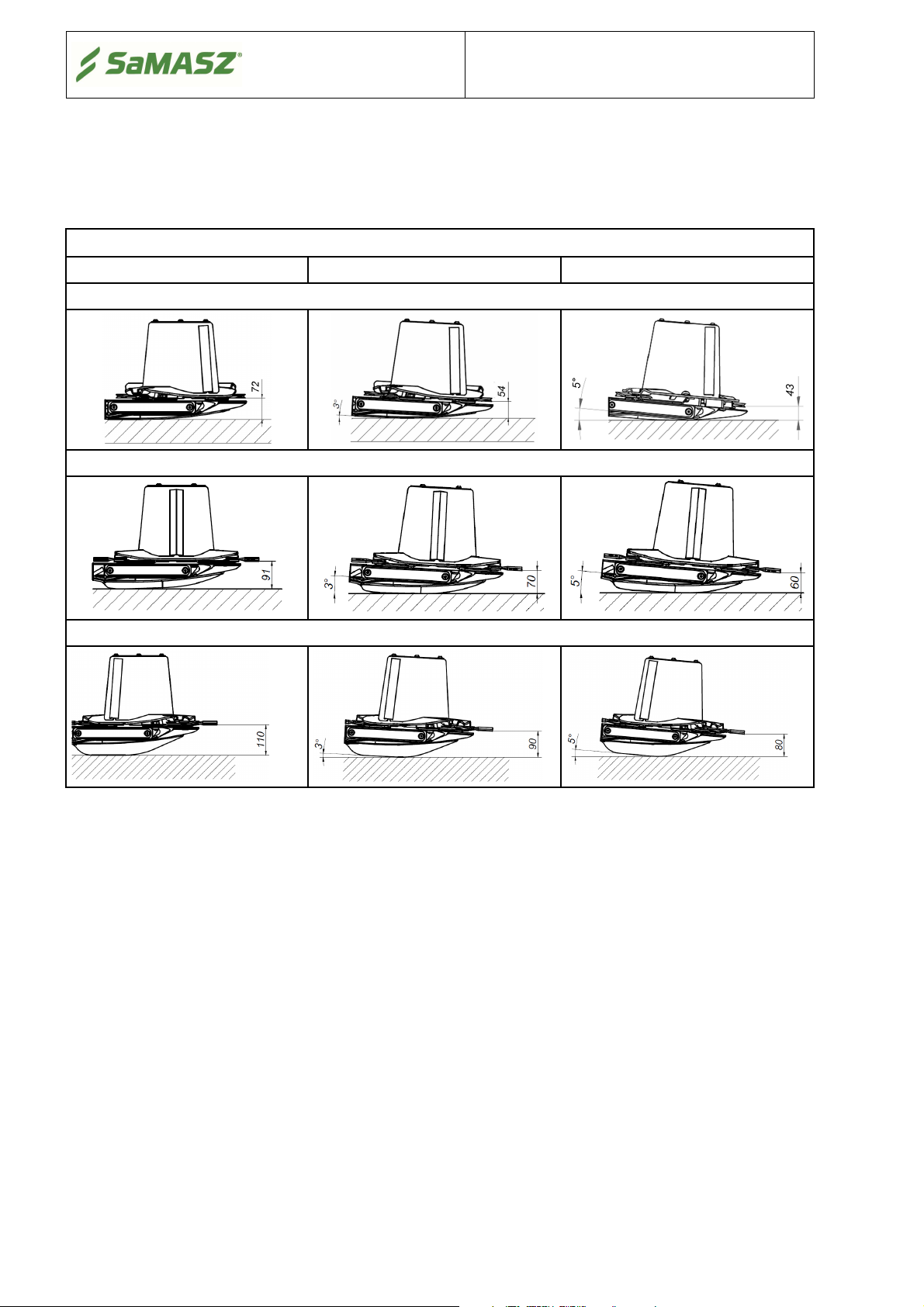

Tab. 1.Mowing heights depending on cutterbar and its inclination angle
„Perfect Cut” cutting bar
No tilt
3° tilt
5° tilt
Standard mowing height
Optional heights when using high mowing topping
Optional heights when using high mowing double topping
 Rotational suspended disc mower is designed for mowing the following: common grass,
medick, etc on meadows and on stone free fields as well as forming swath out of these. Meadow
being mowed should be even, previously prepared by rolling. With advantage of high grass the
first and the second row should be cut at height of 6 - 7 cm, while with great share of lower
grass – at 5 cm. Therefore, the final row should be cut a little bit higher so 7 - 8 cm from the
ground.
 Trailed mower with swath conditioner/rollers is designed for mowing the following: common
grass, medick, etc on meadows and on stone free fields as well as forming swath out of these.
As a result of shifting the consequent forage layers due to operating flails/roller grass stalks are
being broken and/or crushed as well as are loosing wax layer. It makes grass drying process
simpler and faster by approx. 30 - 40%. Rollers are particularly recommended for mowing
papilionaceous grasses such as medick.
 Meadow being mowed should be even, previously prepared by rolling and other processing.
NOTE: Mow very rare grass with zero angle inclination.

Operator's manual
Trailed disc mowers
KDC
- 5 -
NOTE:
Use of the mower for purposes other than mentioned herein is forbidden. Different
use than the above mentioned shall be considered as improper and may lead to
revoking of the warranty. The mower should be operated, maintained and repaired
only by personnel who are learned with its detailed specifications and safety rules
and procedures. Willful modifications to the mower may lead to revoking of the
warranty.
3.1. Technical data
Tab. 2.Technical data of trailed disc mowers
Mower type KDC 300 KDC 340 KDC 341 KDC 390 KDC 430
Operating width
3,00
m
3,40 m
3,40 m
3,90 m
4,30 m
Num
ber of knives
14 (7x2)
16 (8x2)
16 (8x2)
18 (9x2)
20 (10x2)
Tractor's PTO rpm 1000 rpm – standard
540 rpm
–
option
Minimal cooperating tractor power 60 kW
(80 HP)
67 kW
(90 HP)
67 kW
(90 HP)
74 kW
(100 HP)
82 kW
(110 HP)
Operating capacity at
V = 12km/h
~ 3,6 ha/h ~ 4,0 ha/h ~ 4,0 ha/h ~ 4,5 ha/h ~ 4,9 ha/h
Transport length
6,20 m
6,70 m
6,70 m
6,20 m
6,70 m
Transport width
3,00 m
3,40 m
3,40 m
3,90 m
4,30 m
Weight
1650 kg
1755 kg
1745 kg
1850 kg
2040 kg
3
-
point linka
ge category
II
Admissible transpo
rt speed
30 km/h
Wheels
340/55/R16
340/55/R16
340/55/R16
400/50/R15
400/50/R15
Recommended tire pressure
1,8 bar
1,8 bar
1,8 bar
2 bar
2 bar
Noise level
L
pA
75,6 ± 3,2 dB
L
Amax
87,0 ± 3,2 dB
L
Cpeak
87,0 ± 3,2 dB
Tab. 3. Technical data of trailed disc mowers with swath conditioner
Mower type KDC 260 S /
KDC 260 SL
KDC 300 S /
KDC 300 SL
KDC 340 S /
KDC 340 SL
Operating width
2,60 m
3,00 m
3,40 m
Number of knives
12 (6x2)
14 (7x2)
16 (8x2)
Tractor's PTO rpm 1000 rpm – standard
540 rpm
–
option
Minimal cooperating tractor power 52 kW
(70 KM)
67 kW
(90 KM)
81 kW
(110 KM)
Operating capacity at
V = 12km/h
~ 3,2 ha/h ~ 3,6 ha/h ~ 4,0 ha/h
Transport length
6,20 m
6,20 m
6,70 m
Transport width
2
,60 m
3,00 m
3,40 m
Weight
1850 k
g / 1820 kg
2350 kg / 2310 kg
2495 kg / 2445 kg
RPM conditioner’s shaft ~ 700 rpm
~ 1100 rpm
-
option
3
-
point linkage category
II
Admissible transport speed
30 km/h
Wheels
400/50/R15
400/50/R15
400/50/R15
Recommended
tire pressure
1,8 bar
2,2 bar
2,4
bar
Noise level L
pA
75,6
± 3,2
dB
L
Amax
87,0
± 3,2
dB
L
Cpeak
87,0
± 3,2
dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
L
Amax
– maximum value corrected by frequency characteristic Aof acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.

Operator's manual
Trailed disc mowers
KDC
- 6 -
Tab. 4. Technical data of trailed disc mowers with swath rollers and conveyor
Mower type KDC 301 W KDC 301 W T KDC 341 W KDC 341 W T
Operating width
3,00 m
3,00 m
3,40 m
3,40 m
Number of knives
14 (7x2)
14 (7x2)
16 (8x2)
16 (8x2)
Tractor's PTO rpm 1000 obr/min – standard
540 obr/min
–
opcja
Minimal cooperating tractor power 67 kW
(90 KM)
74 kW
(100 KM)
81 kW
(110 KM)
89 kW
(120 KM)
Operating capacity at
V = 12km/h
~ 3,6 ha/h
~ 3,6 ha/h
~ 4,0 ha/h
~ 4,0 ha/h
Transport length
6,20 m
7,10 m
6,70 m
7,6
0 m
Transport width
3,00 m
3,00 m
3,40 m
3,50 m
Weight
2100 kg
2500 kg
2235 kg
2665 kg
RPM conditioner’s shaft
~ 800 obr/min
3
-
point linkage category
II
Admissible transport speed
30 km/h
Wheels
400/50/R15
400/50/R15
400/50/R15
400/50/R15
Recommen
ded tire pressure
2 bar
2,4 bar
2,
2 bar
2,4 bar
Noise level L
pA
75,6
± 3,2
dB
L
Amax
87,0
± 3,2
dB
L
Cpeak
87,0
± 3,2
dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
L
Amax
– maximum value corrected by frequency characteristic Aof acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.
Tab. 5. Technical data of trailed disc mowers with swath conditioner and conveyor
Mower type KDC 260 S T /
KDC 260 SL T
KDC 300 S T /
KDC 300 SL T
KDC 340 S T /
KDC 340 SL T
Operating width
2,60 m
3,00 m
3,40 m
Number of knives
12 (6x2)
14 (7x2)
16 (8x2)
Tractor's PTO rpm 1000 obr/min – standard
5
40 obr/min
–
opcja
Minimal cooperating tractor power 60 kW
(80 KM)
74 kW
(100 KM)
89 kW
(120 KM)
Operating capacity at
V = 12km/h
~ 3,2 ha/h
~ 3,6 ha/h
~ 4,0 ha/h
Transport length
7,00 m
7,00 m
7,50 m
Transport width
2,60 m
3,00 m
3,40 m
Weight
2250 k
g / 2230 kg
2350 kg / 2325 kg
2495
kg / 2460 kg
RPM conditioner’s shaft
~ 1100 obr/min
3
-
point linkage category
II
Admissible transport speed
30 km/h
Wheels
400/50/R15
400/50/R15
400/50/R15
Recommended tire pressure
2 bar
2,2 bar
2,4 bar
Noise level L
pA
75,6
± 3,2
dB
L
Amax
87,0
± 3,2
dB
L
Cpeak
87,0
± 3,2
dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
L
Amax
– maximum value corrected by frequency characteristic Aof acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.

Operator's manual
Trailed disc mowers
KDC
- 7 -
3.2. Design and operating principle
1 – Linkage
2 - Lifting hydraulic cylinders
3a – Swath conditioner, 3b - Swath rollers
4 – Cutterbar
5 – Cutterbar drive shaft
6 – PTO shaft
7 – Cutterbar drive's intersecting axis gear
8 – Conveyor
9– Belt gear of swath conditioner/roller
10 – PTO shaft of swath conditioner/roller
11
–
Support springs
12 – Turning hydraulic cylinders
13 – Tiller
14 – Hitch
15 – Adjustment link
16 – Safety guards
17 – Wheels
18 – Swath guides
19 – Intersecting axis gear
20 – Intersecting axis gear
21 – Support leg
2
2
–
Warning plate
Fig.
2a. Overview of disk mower KDC
1
2
5
6
7
8
9
10
11
12
13
14
15
16
16
17
19
20
22
21

Operator's manual
Trailed disc mowers
KDC
- 8 -
Fig. 2b. Design of the trailed disc mower with swath conditioner
Fig. 2c. Design of the trailed disc mower with swath rollers
Hitch (14) is designed to mount the mower on a tractor. Drive onto cutterbar (4) is
transmitted from the tractor's rpm through PTO shaft onto intersecting axis gear (19), drive shaft
located on tiller (13), wide-angle PTO shaft (6) onto intersecting axis gear (20), cutterbar drive shaft
(5) and intersecting axis gear (7). Cutterbar has discs mounted with two rotary knives each. Extreme
most discs have additionally mounted swath guiding drums. Moreover drive from tractor's rpm
through intersecting axis gear (20), drive shaft (10) and belt gear (9) is transmitted onto swath
conditioner (3a) or rollers (3b). Cutterbar is mounted on linkage (1). Protective guard (16) is
mounted over the cutterbar. Maneuvering with the mower when driving is possible owing to two
hydraulic cylinders (12) which connect tiller to mower's linkage.
18
18
17
17
4
16
7
11
2
2
3a
22
22
15
4
17
17
3b
18
16
7
11
2
15
9
22

Operator's manual
Trailed disc mowers
KDC
- 9 -
PTO shaft end with overload
friction clutch –
To be mounted
on the mower side
3.3. Equipment and spare parts
Mowers are sold with the following standard equipment:
 warranty card,
 operator's manual with spare part list and declaration of conformity,
 cutting knives: two sets per mower – left and right knives,
 PTO shaft with overload friction clutch,
 spray paint (150 ml).
Optional equipment (on extra charge):
 warning triangle,
 high mowing toppings / double toppings.
Tab. 6. Recommended PTO shaft. Manufacturer: Bondioli & Pavesi
Mower Power Length Momentum Symbol Clutch Remarks
HP mm Nm
KDC 260 S/SL (T)
KDC 300
KDC 300 S/SL (T)
KDC 301 W (T)
KDC 340
KDC 340 S/SL (T)
KDC 341
KDC 341 W (T)
KDC 390
KDC 430
74 650-885 710 8G7T065CE007003
Friction clutch =
1200 Nm 1000 rpm
KDC 260
KDC 260 S/SL (T)
KDC 300
KDC 300 S/SL (T)
KDC 301 W (T)
KDC 340
KDC 340 S/SL (T)
KDC 341
KDC 341 W (T)
KDC 390
KDC 430
47 650-885 830 8G7T065CE007002
Friction clutch =
1450 Nm 540 rpm
Fig. 3. Shaft lubrication. Shaft connection
PTO shaft end without
clutch – To be mounted
on the tractor side

Operator's manual
Trailed disc mowers
KDC
- 10 -
NOTE:
PTO shaft lubrication frequency must be respected. Lubrication points are
marked in Fig. 3 to be lubricated every 50 hours.
PTO shaft shall also be lubricated prior to and after period of longer idleness.
PTO shafts of other brands with equivalent technical parameters may be used on the
SaMASZ permission.
NOTE:
Optional extra equipment should be ordered separately.
4. SAFETY ADVICE AND WARNING
4.1. Safety rules and regulations
 In case of tractors equipped with EHR, controlling with hydraulic lift is conducted with a button
located outside the tractor's cabin. When operating, please be extremely careful.
 Operating without safety guards and is not permitted. Neither operation with damaged or raised
guard is permitted (danger of stones, etc. being thrown out).
 Do not exceed 1050 rpm or 600 rpm on the shaft.
 No unauthorized personnel is allowed to remain within the danger area of at least 50 m. Keep
particular caution when operating near roads and in stony areas.
 Any maintenance and -adjustment work is allowed only with the drive disconnected and discs in
complete standstill. Caution: Cutting knives keep rotating for several seconds after the
engine is stopped.
 Check condition of knife holders regularly. Replace any damaged or worn part with new.
 When driving on public roads always respect the local traffic regulations concerning warning
lights-, while the mower shall be equipped with required safety devices.
 Condition of guards and its mounting should be checked regularly.
NOTE:
Any service and repair operations must be conducted with the tractor drive
disconnected and cutterbar on the ground and all rotating parts in the
complete standstill.
NOTE:
Keep the children away from the mower both in operation and standstill.
 The bolts and other fasteners should be inspected on regular basis. Operating with damaged or
worn fasteners is not admissible.
 The tractor engine must never be left running without supervision. Before leaving the tractor,
turn the engine off and take the ignition key out (Dz. U. nr 12/98 poz. 51).
 When operating the mower, please comply with the Resolution of the Minister of Agriculture
and Food Economy of 12-01-1998 on work safety when operating tractors, machines, technical
instruments and devices used in farming Dz. U. nr 12/98 poz. 51.
 In the event of any break in the machine operation, the drive should be disconnected
(Dz. U. nr 12/98 poz. 51).
 When operating the mower, the tractor should always be equipped with operator's cabin.
 Mower should not be operated when the tractor-mower set is not well balanced.
 The mower shall never be started, with people or animals near the machine.
 The safety guard shall never be lifted before the rotating drums are in complete standstill.
Tractor's engine must be stopped.

Operator's manual
Trailed disc mowers
KDC
- 11 -
 Always comply with safety decals describing hazards, and warning signs placed on the
machine.
 Prior to starting the tractor make sure that each drive is disconnected while the hydraulics
control levers are in neutral position.
 It is forbidden to drive the mower backwards when operating.
 Never get onto the mower.
 For operating and transport drive permissible slope shall be 8°.
 Never stand between the tractor and the mower, unless tractor-mower aggregate is protected
against shifting with the tractor's parking brake.
 Any maintenance check-ups and regulations may be conducted only when the mower is
disassembled and on the ground.
 If any part of the mower needs to be replaced, use only genuine spare parts according to spare
part list.
 Pay particular attention to PTO shaft guards and mower and tractor spline shaft guards. Never
operate with damaged guards.
 Hydraulic hoses should be inspected on regular basis and if any damage is found or they expire,
replace these with new ones. Expiry period for hydraulic hose should be no longer than 5 years.
 When connecting hydraulic hoses to tractor hydraulic connectors make sure, that either tractor
or mower hydraulics are pressure free.
 When servicing hydraulic unit, always wear protective gloves and eyewear. Hydraulic oil
leaking under pressure (16 MPa) may permeate through the skin and cause its infection
thereafter. If such is experienced, immediately visit a doctor.
 The mower should be stored under roof and in manner that effectively prevents animals and
people from being injured.
 Before starting the mower, make sure there are no animals underneath the guard.
 In case of a fatal failure, stop the machine's drive, turn the tractor's engine off and take out the
ignition key. Next, please contact technical service, and if an accident (here: road accident)
occurs, respect first aid rules and contact responsible authorities.
 Mower should be kept clean, so as to avoid danger of fire.
 When operating the mower, control damages to structures, protective aprons, chains, rubber
elements and if need be, replace these with new ones, even not completely worn out elements.
 When mounting the mower on a tractor, danger of wounding is present. It is recommended for
the operator to wear protective gloves.
 Prior to approaching operation with the machine, make sure that all safety guards are not
damaged and fitted in place.
 Do not leave agricultural machinery on slopes or other descents without providing protection
against its free runaway.
 When operating over a stony field or nearby roads there exists a risk of throwing out stones or
other objects, which may pose a danger for passing-by vehicles on the road or for passers-by.
Therefore keep the safe distance.
 The operator is not allowed to leave the tractor while driving.
 Check pressure in the machine's wheels regularly.
 In the event of any break in the equipment operation, turn off the drive.

Operator's manual
Trailed disc mowers
KDC
- 12 -
4.2. Qualifications of operator
To provide safe machine operation each person being the machine operator must meet the
following requirements:
 Operator should hold driving license, have ability to drive vehicles safely and know road traffic
rules.
 Operator must be in proper physical condition to be able to operate the machine.
 Operator must not be under the influence of alcohol, drugs and medicines, which all have
influence on vehicle driving and machine operation.
 Operator should be familiarized with this manual and follow its provisions.
 Operator should be familiar with working principles of both the tractor and the machine, and be
able to recognize and avoid hazards resulting from operation of the aggregate.
4.3. Conditions of mounting mower on tractor
 Prior to the mounting operation, check whether the tractor's and the mower's hitch categories are
compatible and make sure that tractor's hitch load is adequate for the machine aggregated.
 Prior to mounting the machine, examine technical condition of the mower's hitch assembly and
tractor's 3-point linkage.
 Use only genuine pins and cotters to mount the mower on a tractor.
4.4. Transport
 Any modifications in the mower's position are possible only if no unauthorized personnel is
around (children in particular).
 Prior to putting the mower to transport position make sure, that the tractor PTO is disconnected
and all the rotating parts in complete standstill.
 Driving speed should always be adjusted to current road conditions and traffic code applicable
in your country.
 Do not exceed permissible speed of 30 km/h.
 No person and no objects must remain on the mower when driving or transporting.
 When taking turns pay particular attention and consider the machine's weight and dimensions.
WARNING:
It is forbidden to drive on public roads, if the mower's transport width is more
than 3 m (for: KDC 340, KDC 340 S/SL (T), KDC 341, KDC 341 W (T),
KDC 390, KDC 430).
4.4.1. Relocating mower onto another vehicle for transport
Both the carrier and the driver shall be responsible for the mower transport safety. Any
equipment and parts must be secured properly for transport.
In order to have the mower relocated safely onto another vehicle, please follow these rules:
 the mower should be seized by any lifting device only in places indicated on the machine by the
hook sign (Fig. 4).

Operator's manual
Trailed disc mowers
KDC
- 13 -
Fig. 4. Transport holders of KDC mower
 to lift the mower, use only lifting devices with hoisting capacity bigger than the mower weight
provided on data plate. It also applies to ropes and chains used for lifting,
 transport belts, belt suspensions, ropes cannot be damaged. Whenever damages to these parts
are spotted replace these with new ones,
 when mounting slings, chains, handles etc. always pay attention to setting the machine's center
of gravity properly (Fig. 5),
 to catch machines, pick ropes of adequate length, so that the angle between them is no greater
than 120°, and the angle between the strand and the vertical is no greater than 60°,
 collapsible elements should be locked in transport position,
 when relocating the mower onto another vehicle, there should be no unauthorized personnel
permitted to remain within the danger area,
 the mower should be protected from shifting on the vehicle's trailer.
NOTE:
Securing both the danger area and activity performed shall lie under the
responsibility of the person in charge of the mower transporting.
Fig. 5. Location of centre of gravity

Operator's manual
Trailed disc mowers
KDC
- 14 -
Tab. 7. Location of centre of gravity
Dimension
[mm]
Mower type
KDC 260 S KDC 260 SL KDC 260 ST KDC 260 SLT
A 4420 4415 4720 4720
B
825
830
800
805
Dimension
[mm]
Mower type
KDC 300 KDC 300 S KDC 300 SL KDC 300 ST KDC 300 SLT KDC 301 W KDC 301 WT
A
4180
4440
4435
4750
4750
4460
4820
B
830
850
855
800
800
820
800
Dimension
[mm]
Mower type
KDC 340 KDC 340 S KDC 340 SL KDC 340 ST KDC 340 SLT
A
4610
48
65
4860
5200
5200
B
830
850
855
795
795
Dimension
[mm]
Mower type
KDC 341 KDC 341 W KDC 341 WT KDC 390 KDC 430
A
4610
4920
5270
4190
4700
B
830
805
795
815
805
4.5. Operating parts
 Prior to operating the mower check the knife, knife mountings and the knife holder condition.
 Worn or damaged knives, knife mountings or knife holders should be replaced immediately
with new ones.
WARNING!
During replacement of working parts, it should be used personal protective
gloves.
4.6. PTO shaft
 Before operating learn provisions found in bar manufacturer's manual placed on the bar.
 Use only the mower's manufacturer recommended PTO shafts featuring guards in good
technical condition.
 In order to operate safely use only fully technically fit, undamaged PTO shafts. Damaged PTO
shaft shall be repaired or replaced with new one.
 Before any operation make sure whether PTO rpm have proper rotational direction.
4.7. Hydraulic assembly
 Caution! Hydraulic assembly is under pressure! Hydraulic oil under pressure may permeate
through skin and cause serious injury, therefore skin and eyes should be protected in particular.
In case of injuries caused by a liquid under pressure, call a doctor immediately.
 Hydraulic hoses can be connected to tractor's hydraulics, provided that both the tractor’s and the
mower's hydraulic assemblies are not under pressure. To remove the pressure from the hoses
just simply restart the tractor's hydraulic valves several times, once the tractor is off.
 When dismounting the machine from the tractor, set the equipment aside, deflate the pressure
from hydraulics and turn tractor's engine off.
 When controlling for hydraulic assembly's malfunction and looking for oil leaks, it is forbidden
to touch any potential leaks until the entire assembly is under pressure.
 Note! It is recommended that the hydraulic oil used should not exceed 10 oil purity class in
accordance with NAS 1638.

Operator's manual
Trailed disc mowers
KDC
- 15 -
1
2
3
1
When using hydraulic hoses:
 Avoid stretching the hoses when operating.
 Do not allow hydraulic hoses to get deflected.
 Do not expose hydraulic hoses to contact with any sharp edges.
 If damaged or worn, replace the hoses with new ones.
 Useful life for hydraulic hoses is 5 years from their production date.
4.8. Tarpaulin guards
Due to their storing, SaMASZ manufactured mowers feature standard tarpaulin guards (1) for
self-mounting. In order to mount the guard properly put it on a mower and secure with catches (2)
and with front guard (3) (Fig. 6).

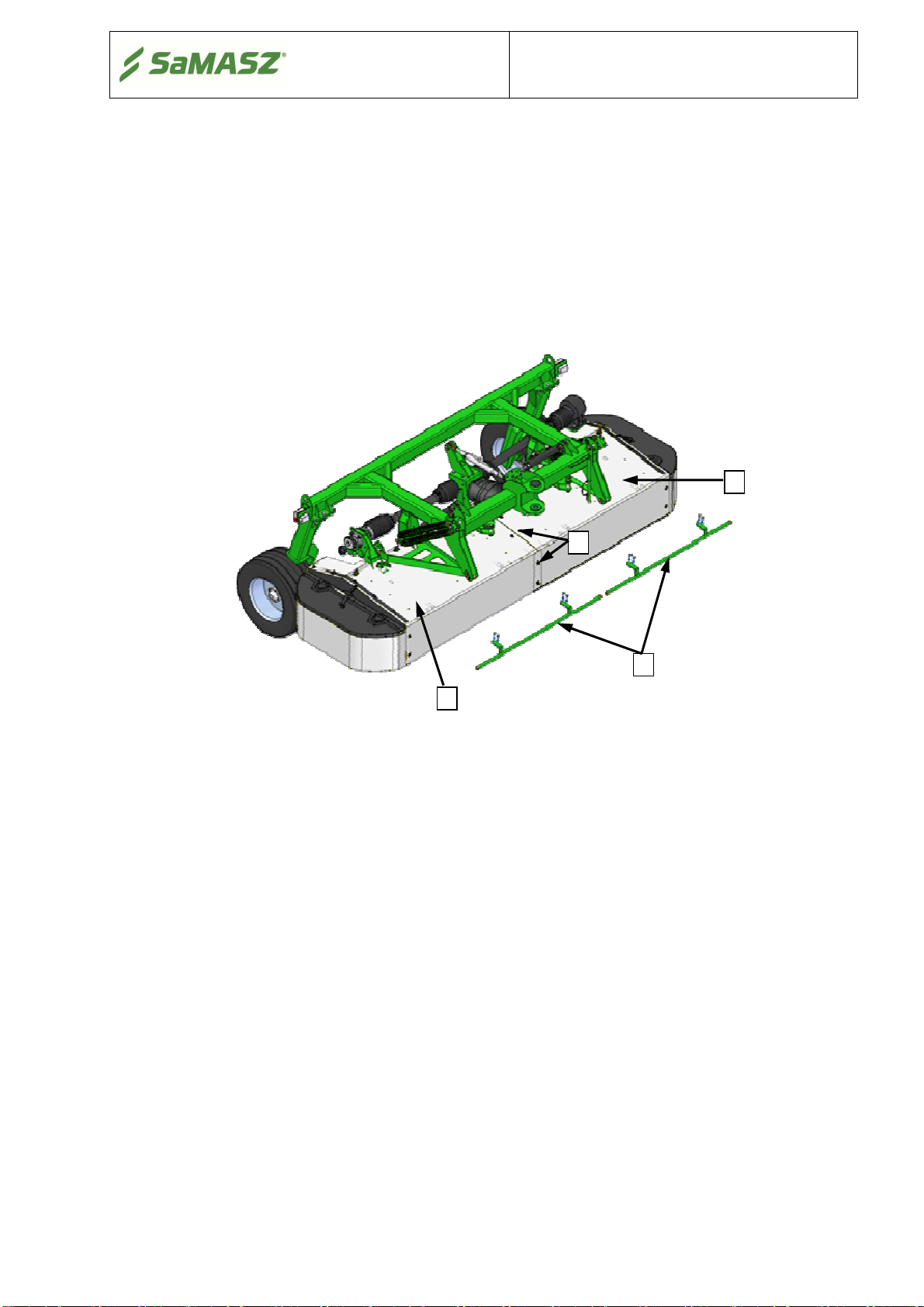

Fig. 6. Mounting tarpaulin guard on mower
4.9. Residual risk
Despite the fact, that SaMASZ company – the manufacturer of the mower takes the
responsibility for the mower design and manufacturing, in order to eliminate hazard, certain risk
when operating the mower is unavoidable. Residual risk results from incorrect or improper
behaviour of the mower operator.
Major source of risk follows performance of these operations:
 operation of mower by minors as well as not being learned with content of the operator's
manual,
 operation of mower by persons under influence of alcohol or other abusive substances,
 not keeping caution while transporting and relocating the mower during operation,
 transport of persons remaining on the machine,
 presence of persons and animals within the mower operation range,
 performing operations related to servicing and adjustment with engine on.
4.9.1. Danger of catching
This kind of risk occurs when the mower position is changed, when operating near rotating
parts, operating without safety guards. When operating, maintenance and regulation works are
conducted always wear protective gloves, footwear and clothing with no loose parts, belts, etc..
Always comply with safety decals placed on the mower.
4.9.2. Danger of wound, abrasion and damage of skin
Present when replacing working parts with sharp edges, cleaning the machine and removal
of any clogging and jams.For any repair and maintenance works always wear safety gloves.

Operator's manual
Trailed disc mowers
KDC
- 16 -
4.9.3. Danger of liquid ejection out of hydraulics
When connecting hydraulic hoses to and from the tractor hydraulic connectors make sure,
that either tractor or mower hydraulics are pressure free.
When servicing hydraulic unit, always wear protective gloves and eyewear. Inspect
hydraulic hoses regularly.
NOTE:
Residual risk results from incorrect behaviour of the mower's operator.
4.9.4. Bans
Bear in mind the following bans when operating the mower:
 do not unblock the mower, make any adjustments or repairs when the mower is operating,
 never change the sequence of operation and maintenance works specified in the operator's
manual,
 never operate the mower when its working condition is poor or has safety guards damaged,
 never get your limbs close to mower's rotating parts,
 during the mower repair and maintenance works always comply with the descriptions included
in the operator's manual, while conducting them with the tractor drive disconnected,
 prior to approaching any works, focus your attention solely on the tasks to do,
 never operate the mower being under influence of alcohol, drugs, or strong medicines,
 wear clothing that is not too loose, nor too tight. Too loose clothing elements may be pulled in
by the mower's rotating parts,
 the mower cannot be operated by children nor handicapped people.
When describing residual risk, the mower shall be considered a machine, which until the
moment of production launching had been designed and manufactured in accordance with top
technology until the day of the mower manufacture.
NOTE:
Despite following the specified instructions and prohibitions, residual risk is
still present.
4.9.5. Residual risk assessment
Keep the following recommendations:
 learn operator’s manual thoroughly,
 do not allow any person to remain on the machine when operating and driving,
 do not allow any person to remain within the mower's operating range,
 perform any works related to machine's adjustment, maintenance and lubrication with engine
off,
 perform machine repair works if skilled in such respect,
 operate the machine, if learned the operator’s manual,
 protect the machine against access of children and any unauthorized personnel,
 and in result residual risk when operating the mower may be limited to necessary minimum.
When the risk of being exposed to noise cannot be avoided or eliminated by any
group protective means or organization of work, employer (operator) must:
1) provide the operator with individual means of noise protection, if the noise level
in work place exceeds 80 dB.
2) provide the operator with individual means of noise protection and supervise its
proper use, if the noise level in work place reaches or exceeds 85 dB.

Operator's manual
Trailed disc mowers
KDC
- 17 -

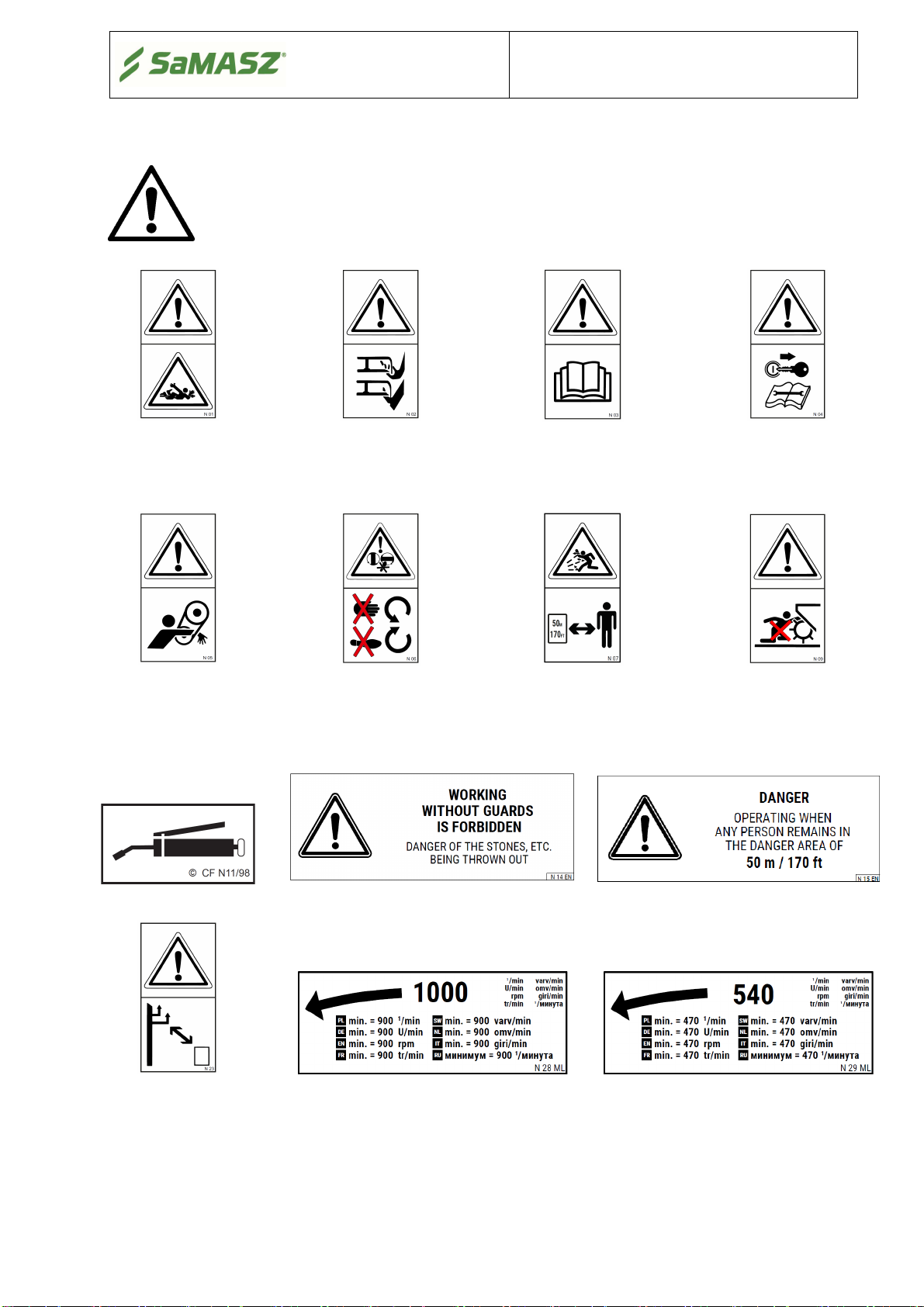

4.10.Warning decals
NOTE:
a) all warning decals (labels) should be clean and legible,
b) lost or damaged decals (labels) must be replaced with new ones,
c) new decals (labels) may be ordered at the manufacturer.
N-01
Be extremely careful when
PTO shaft is rotating
N-02
Warning: cutting knives! Do
not get near to the operating
mower
N-03
Prior to operation
commencement read the
operator's manual carefully
N-04
Prior to approaching any
maintenance or repair works,
turn the machine off
N-05
Warning: belt gear, keep
particular attention
N-06
Warning: pulling-in parts
N-07
Operating the mower is
forbidden with presence of any
unauthorized personnel within
the danger area of 50 m
N-09
Warning: rotor
N-11 N-14 N-15
N-23
Warning:
power lines
N-28 N-29

Operator's manual
Trailed disc mowers
KDC
- 18 -

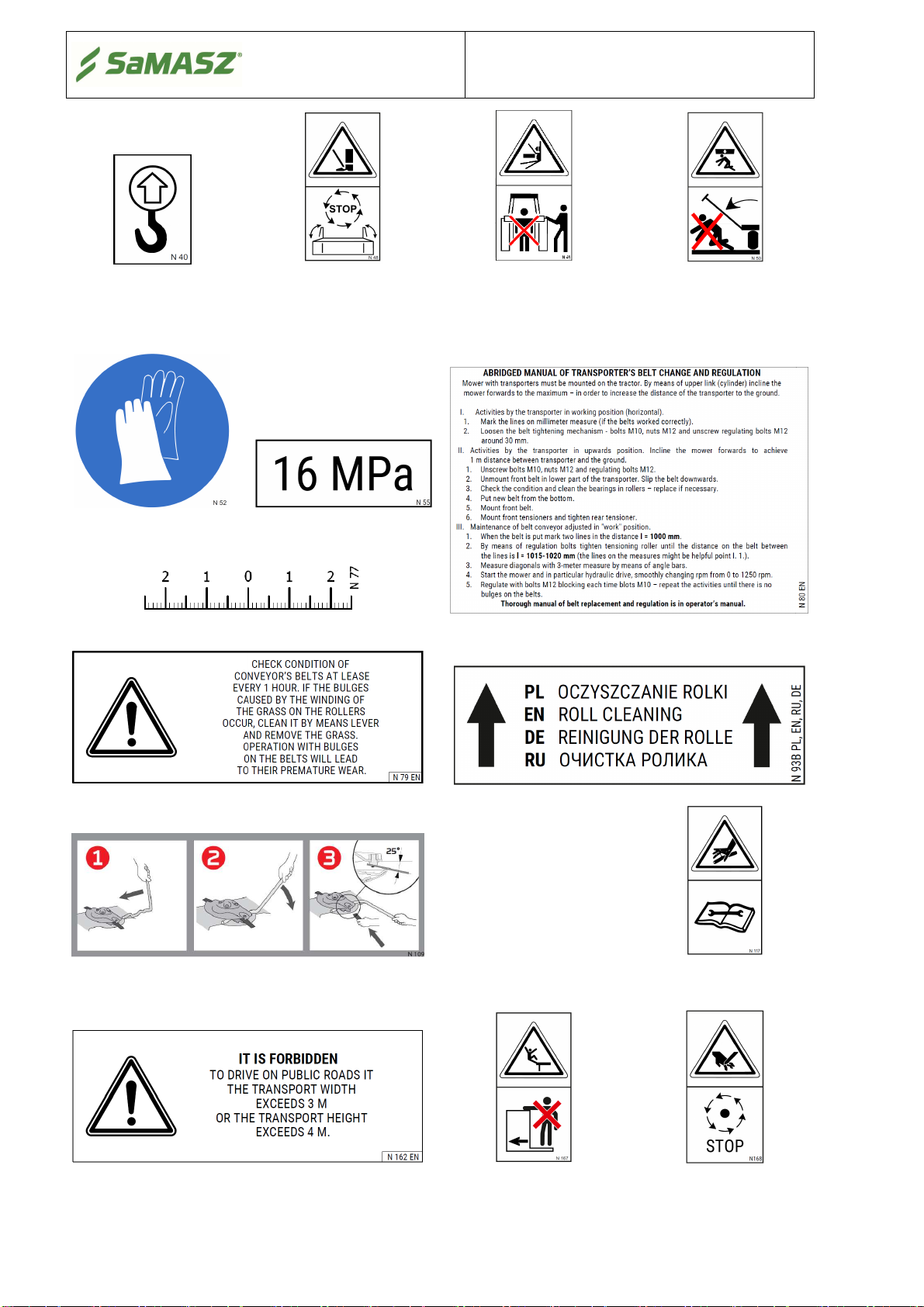

N-40
Transport holder for
moving the mower
N-48
Stay away from mower’s
inclination area
N-49
Never stand near tractor’s
3-point linkage while
steering tractor’s lift
N-50
Do not remain in the
mower swinging area
N-52
Wear protective gloves
N-55
N-77
Tightening of conveyor's belt
N-80
Adjustment and replacement of conveyor's belt
N
-
79
N
-
93
N-109 N-117
Avoid contact with liquid
coming out under pressu
re
N-162 N-167
Do not go onto safety
brackets and guards
N-168
Do not touch the machine
before the rotating parts have
not come to a complete
standstill
