SaMASZ KDC 260 User manual

SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
Established
–
1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: [e-mail]
www.samasz.pl
OPERATOR'S MANUAL
TRAILED DISC MOWER
KDC 260 - 8' 6" KDC 301 W - 9' 10"
KDC 260 S - 8' 6" KDC 301 W T - 9' 10"
KDC 260 SL - 8' 6" KDC 340 - 11' 2"
KDC 260 S T - 8' 6" KDC 340 S - 11' 2"
KDC 260 SL T - 8' 6" KDC 340 SL - 11' 2"
KDC 300 - 9' 10" KDC 340 S T - 11' 2"
KDC 300 S - 9' 10" KDC 340 SL T - 11' 2"
KDC 300 SL - 9' 10" KDC 341 - 11' 2"
KDC 300 S T - 9' 10" KDC 341 W - 11' 2"
KDC 300 SL T - 9' 10" KDC 341 W T - 11' 2"
KDC 390 - 13'
KDC 430 - 14'
W – Roller conditioner
S – Tine conditioner
SL – Lightweight tine conditioner
T – Belt conveyor
IN236USA003
30.05.2017
EDITION NO. 2
Original manual
Serial no.:

DO NOT
TURN MOWER'S
DRIVE ON UNTIL
IT IS IN OPERATING POSITION
DO NOT
OPERATE THE MOWER WITH
UNAUTHORIZED
PERSONNEL PRESENT WITHIN 50 M OR
LESS
ATTENTION:
Keep this manual for future reference.
Design and high quality of materials ensure high reliability and durability of SaMASZ machinery.
It is recommended to incline cutterbar by approx. 5°
towards mowing direction.
Operation on horizontal position is permissible.
Other position leads to serious damaging of cutterbar.

Operator's manual
Trailed disc mowers
KDC
- 1 -
Table of contents.........................................................................................................................................page
1. IDENTIFYING THE MACHINE...........................................................................................................3
2. INTRODUCTION ....................................................................................................................................3
3. PROPER AND INTENDED USE ...........................................................................................................4
3.1. Technical data........................................................................................................................................5
3.2. Design and working principle................................................................................................................8
3.3. Standard equipment and spare parts ....................................................................................................10
4. SAFETY PRECAUTIONS ....................................................................................................................11
4.1. General safety rules and regulations...................................................................................................11
4.2. Qualifications of operator....................................................................................................................13
4.3. Conditions of mounting mower on tractor ..........................................................................................13
4.4. Transport..............................................................................................................................................13
4.4.1. Putting the mower onto another vehicle for transport..................................................................14
4.5. Working parts ......................................................................................................................................15
4.6. PTO shaft.............................................................................................................................................15
4.7. Hydraulic assembly .............................................................................................................................15
4.8. Safety curtains .....................................................................................................................................16
4.9. Residual risk ........................................................................................................................................16
4.9.1. Danger of machine entanglement ................................................................................................17
4.9.2. Danger of cutting injury, abrasion and damage of skin ...............................................................17
4.9.3. Danger of injury from liquid ejection out of hydraulic system....................................................17
4.9.4. Forbidden actions.........................................................................................................................17
4.9.5. Residual risk assessment..............................................................................................................17
4.10. Safety labels and their meaning...........................................................................................................18
5. OPERATION..........................................................................................................................................22
5.1. Attaching the mower to the tractor......................................................................................................22
5.2. Preparing mower for transport.............................................................................................................22
5.3. Preparing the mower for transport.......................................................................................................24
5.4. Mounting PTO shaft ............................................................................................................................24
5.5. Preparing the mower for operation......................................................................................................25
5.6. Operation (mowing) ............................................................................................................................26
5.6.1. Essential information concerning mowing ..................................................................................27
5.6.2. Mower clogging and jams............................................................................................................28
5.7. Unmounting the machine from tractor ................................................................................................29
5.8. Storing .................................................................................................................................................29
6. MOUNTING AND ADJUSTMENTS ...................................................................................................29
6.1. Mounting knives and timing of the knives ..........................................................................................29
6.2. Controlling condition of knives and holder pins .................................................................................30
6.3. Replacing the knives and holder pins ..................................................................................................30
6.4. Swath width adjustment ......................................................................................................................32
6.5. Adjusting space between tine conditioner’s mask and its shaft...........................................................33
6.6. Replacing tine conditioner’s tines .......................................................................................................33
6.7. Adjusting force of the pressure of roller conditioner...........................................................................34
6.8. Adjusting speed of conveyor belt ........................................................................................................35
6.9. Maintenance and service .....................................................................................................................35
6.9.1. Checking the condition of cog belt and tension...........................................................................35
6.9.2. Daily maintenance .......................................................................................................................36
6.9.3. After-season maintenance and storing of machine ......................................................................36
6.10. Conveyor control and adjustment........................................................................................................37
6.10.1. Cleaning belts and rollers .......................................................................................................37
6.10.2. Conveyor belt replacement and adjustment instruction..........................................................38

Operator's manual
Trailed disc mowers
KDC
- 2 -
7. LUBRICATION......................................................................................................................................40
7.1. Cutterbar ..............................................................................................................................................40
7.2. Intersecting axis gears..........................................................................................................................41
7.3. Roller conditioner’s gearbox ...............................................................................................................42
7.4. Bearings and joints ..............................................................................................................................42
7.5. Risks present when lubricating............................................................................................................43
8. MALFUNCTIONS AND THEIR REPAIRS........................................................................................44
9. DISASSEMBLY AND WITHDRAWAL FROM USE........................................................................45
9.1. Scrapping .............................................................................................................................................45
9.1.1. Restarting the machine after repairs or longer storing periods ....................................................45
9.2. Demontage and withdrawal from use ..................................................................................................45
10. HYDRAULIC SCHEME .......................................................................................................................46
11. WARRANTY CARD..............................................................................................................................47
12. WARRANTY TERMS ...........................................................................................................................47
12.1. Warranty claim procedures..................................................................................................................47
12.2. Warranty repairs record .......................................................................................................................48

Operator's manual
Trailed disc mowers
KDC
- 3 -
1. IDENTIFYING THE MACHINE

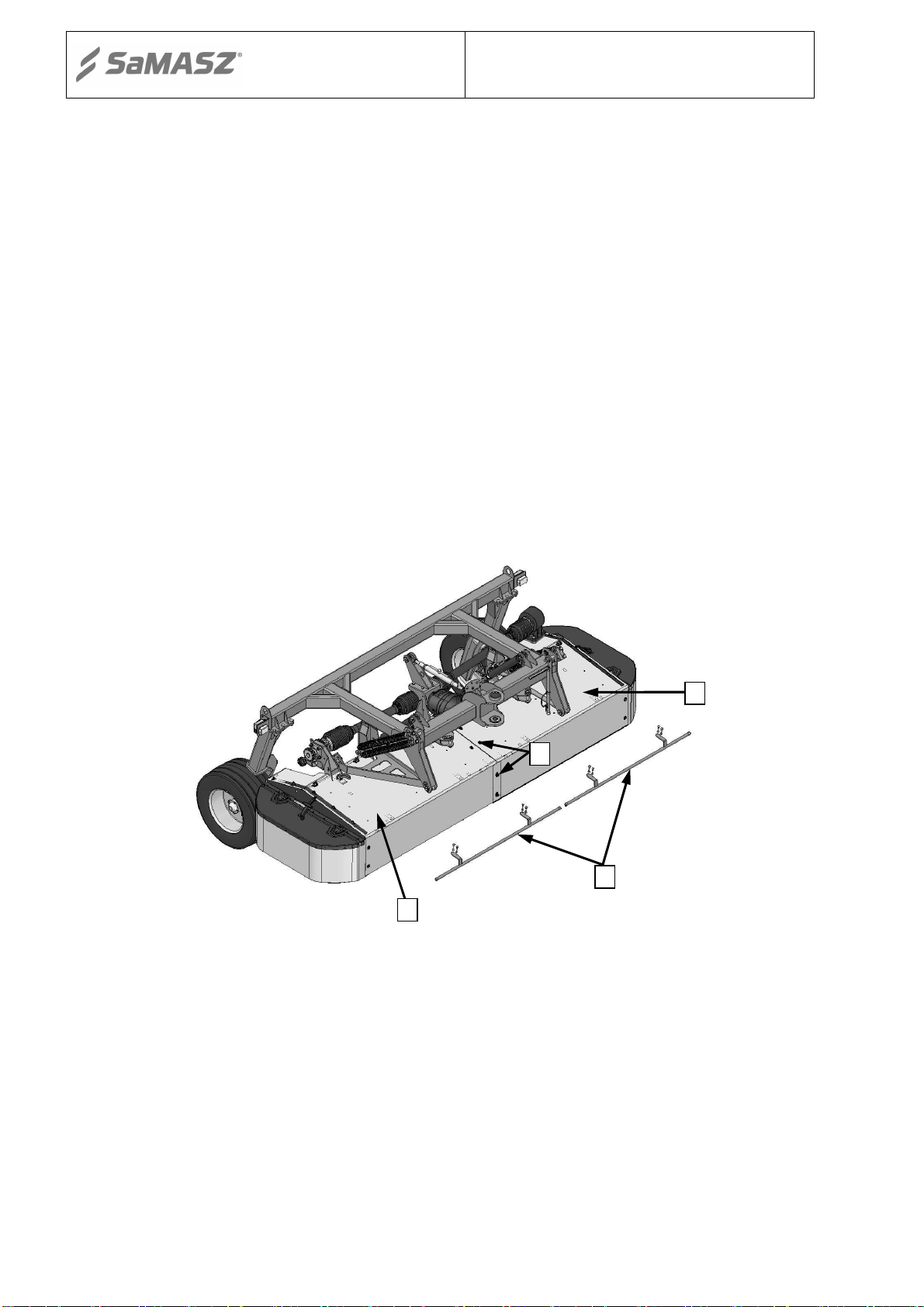

Data plate is mounted to the mower's main frame in the place shown in Fig. 1.
Fig. 1.Data plate placement
Data plate includes:
-
name and adress of the manufacturer,
-
model year,
-
CE marking means, that the produce
-
version number,
conforms to 2006/42/EC Directive and
-
machine weight,
harmonized standards,
-
id number,
-
machi
ne symbol,
-
barcode.
-
date of manufacture,
NOTE:
In case the operator's manual is unclear or illegible all necessary information
can be obtained from manufacturer or the dealer.
2. INTRODUCTION
 This operator’s manual is essential for safe and proper use of this mower and should be read
before anyone operates this mower . It should be kept near the mower for future use. If the
mower is used by another operator, it should be in working condition and include this operator’s
manual and all other basic equipment.
 Operator’s manual is attached to every machine in order that the operator can familiarize
himself with design, working principles, service and adjustment of the mower. The operator
should be familiar with common safety rules and procedures.
 The mower is manufactured according to international safety rules.
 Compliance with the safety precautions in this operator’s manual will help to enable safe
operation.
 This operator’s manual is an indispensable part of any machine and is intended to familiarize
future user with principles of proper operation and use of the machine as well as the risks
involved.
GENERAL PRECAUTION
When operating the mower warnings and safety rules marked with
this sign herein should be respected.
NOTE:
Operating the mower without having been familiarized with its contents as
well as by unauthorized personnel, particularly by children, is strictly
forbidden.

Operator's manual
Trailed disc mowers
KDC
- 4 -
3. PROPER AND INTENDED USE
1. Mower is equipped with Perfect Cut cutterbar. The mowing height differences, depending on
the inclination angle of the cutterbar are shown in Tab. 1.
Tab. 1. Mowing heights depending on cutter bar’s inclination angle.
„Perfect Cut” cutting bar
No tilt
3° tilt
5° tilt
Standard mowing height
Optional heights when using high mowing topping
Optional heights when using high mowing double topping
 Rotational suspended disc mower is intended mow green fodder such as grass and alfalfa on
permanent grassland (pastures), on crop fields without rocks, and to form loose rows of cut
fodder. The pasture or field being mown should be even and best if prepared by rolling. In
the event there is a majority of tall grass, the first and second mowing should be done at a height
of 2.4" - 2.8", while with a majority of short grass, at a height of 2". The last mowing should be
done a little higher - at 2.8" - 3.1" from the ground.
 Trailed front mower with tine/roller conditioner is intended to mow green fodder such as grass
and alfalfa on permanent grassland (pastures), on crop fields without rocks, and to form loose
rows of cut forage. As a result of the passing of the layers of the green fodder through the flails
or rollers, the grass stems are broken and a layer of wax is removed. This facilitates and speeds
up the drying process of the fodder by approximately 30 to 40%. The use of rollers is especially
recommended when mowing legumes such as alfalfa. Rollers are particularly recommended for
mowing grass legume such as alfalfa.
 The pasture or field being mown should be even and best if prepared by rolling.
NOTE: Grass, which has not grown much should be mowed with zero angle inclination.
2.7
"
2
"
1,7
"
2
.8
"
2
.4
"
4.3"
3.5"
3.1"
3.6
"

Operator's manual
Trailed disc mowers
KDC
- 5 -
WARNING:
Use of the mower for purposes other than described above is forbidden.
Improper use can be dangerous and may lead to voiding of the warranty.
Mower should be operated and repaired only by people familiar with its
detailed specifications and with all applicable safety rules and regulations
and with the relative dangers. Unauthorized modifications to the mower will
lead to voiding the warranty.
3.1. Technical data
Tab. 2.Specification of trailed disc mowers
Mower type KDC 260 KDC 300 KDC 340 KDC 341 KDC 390 KDC 430
Working
width
8' 6"
9' 10"
11' 2"
11' 2"
13'
1
4'
Number of knives
[pcs]
12 (6x2)
14 (7x2)
16 (8x2)
16 (8x2)
18 (9x2)
20 (10x2)
Tractor's PTO rpm 1000 rpm – standard
540 rpm
–
option
Minimal cooperating tractor power 45 kW
(60 HP)
60 kW
(80 HP)
67 kW
(90 HP)
67 kW
(90 HP)
74 kW
(100 HP)
82 kW
(110 HP
)
Working capacity at
V =
8 mph
~ 3,2 ha/h ~ 3,6 ha/h ~ 4,0 ha/h ~ 4,0 ha/h ~ 4,5 ha/h ~ 4,9 ha/h
Transport length
20' 4"
20' 4"
2
1
'
1
"
2
1
'
1
"
20' 4"
2
1
'
1
"
Transport width
8' 6"
9' 10"
11' 2"
11' 2"
13'
14'
Weight
3417 lbs.
3637 lbs.
3869 lbs.
3847 lb
s.
4079 lbs.
4498 lbs.
3
-
point linkage category
II
Admissible transport speed
17 mph
Wheels
340/50/R16
340/55/R16
340/55/R16
340/55/R16
400/50/R15
400/50/R15
Recommended tire pressure
1,8 bar
1,8 bar
1,8 bar
1,8 bar
2 bar
2 bar
Noise level
L
pA
75,6 ±
3,2 dB
L
Amax
87,0 ± 3,2 dB
L
Cpeak
87,0 ± 3,2 dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
L
Amax
– maximum value corrected by frequency characteristic Aof acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.

Operator's manual
Trailed disc mowers
KDC
- 6 -
Tab. 3. Specification of trailed disc mowers with swath conditioner
Mower type KDC 260 S /
KDC 260 SL
KDC 300 S /
KDC 300 SL
KDC 340 S /
KDC 340 SL
Working
width
8' 6"
9' 10"
11' 2"
Number of knives
[pcs]
12 (6x2)
14 (7x2)
16 (8x2)
Tractor's PTO rpm 1000 rpm – standard
540 rpm
–
option
Minimal cooperating tractor power 52 kW
(70
HP
)
67 kW
(90
HP
)
81 kW
(1
10
HP
)
Working capacity at
V =
8 mph
~ 3,2 ha/h ~ 3,6 ha/h ~ 4,0 ha/h
Transport length
20' 4"
20' 4"
2
1
'
1
"
Transport width
8' 6"
9' 10"
11' 2"
Weight
4079 lbs.
/
4013 lbs.
5180 lbs.
/
5092 lbs.
5500 lbs.
/
5390 lbs.
RPM conditioner’s shaft ~ 700 rpm
~ 1100 rpm
-
option
3
-
point linkage category
II
Admissible transport speed
17
mph
Wheels
400/50/R15
400/50/R15
400/50/R15
Recommended tire pressure
1,8 bar
2,2 bar
2,4 bar
Noise level L
pA
75,6
± 3,2
dB
L
Amax
87,0
± 3,2
dB
L
Cpeak
87,0
± 3,2
dB
Tab. 4. Specification of trailed disc mowers with swath rollers and conveyor
Mower type KDC 301 W KDC 301 W T KDC 341 W KDC 341 W T
Working
width
9' 10"
9' 10"
1
1' 2"
11' 2"
Number of knives
[pcs]
14 (7x2)
14 (7x2)
16 (8x2)
16 (8x2)
Tractor's PTO rpm 1000 rpm – standard
540
rpm
–
standard
Minimal cooperating tractor power 67 kW
(90 HP)
74 kW
(100 HP)
81 kW
(110 HP)
89 kW
(120 HP)
Working capacity at
V =
8 mph
~ 3,6 ha/h ~ 3,6 ha/h ~ 4,0 ha/h ~ 4,0 ha/h
Transport length
20' 4"
2
3
'
4
"
2
1
'
1
"
2
4
'
1
"
Transport width
9' 10"
9' 10"
11' 2"
11' 2"
Weight
4630
lbs.
5512
lbs.
4927
lbs.
5875
lbs.
RPM conditioner’s shaft
~ 800 rpm
3
-
point linkage category
II
Admissib
le transport speed
17
mph
Wheels
400/50/R15
400/50/R15
400/50/R15
400/50/R15
Recommended tire pressure
2 bar
2,4 bar
2,2 bar
2,4 bar
Noise level L
pA
75,6
± 3,2
dB
L
Amax
87,0
± 3,2
dB
L
Cpeak
87,0
± 3,2
dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
L
Amax
– maximum value corrected by frequency characteristic Aof acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.

Operator's manual
Trailed disc mowers
KDC
- 7 -
Tab. 5. Specification of trailed disc mowers with swath tine conditioner and conveyor
Mower type KDC 260 S T /
KDC 260 SL T
KDC 300 S T /
KDC 300 SL T
KDC 340 S T /
KDC 340 SL T
Working
width
8
' 6"
9' 10"
11' 2"
Number of knives
[pcs]
12 (6x2)
14 (7x2)
16 (8x2)
Tractor's PTO rpm 1000 rpm – standard
540
rpm
–
standard
Minimal cooperating tractor power 60 kW
(80 HP)
74 kW
(100 HP)
89 kW
(120 HP)
Working capacity at
V =
8 mph
~ 3,2 ha/h ~ 3,6 ha/h ~ 4,0 ha/h
Transport length
22' 12"
22' 12"
24' 7"
Transport width
8' 6"
9' 10"
11' 2"
Weight
4960
lbs.
/
4916
lbs.
5181
lbs.
/
5126
lbs.
5500
lbs.
/
5423
lbs.
RPM conditioner’s shaft
~ 1100 rpm
3
-
point linkage category
II
Admissible transport speed
17
mph
Wheels
400/50/R15
400/50/R15
400/50/R15
Recommended tire pressure
2 bar
2,2 bar
2,4 bar
Noise level
L
pA
75,6 ± 3,2 dB
L
Amax
87,0
± 3,2
dB
L
Cpeak
87,0
± 3,2
dB
L
pA
– noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
L
Amax
– maximum value corrected by frequency characteristic Aof acoustic pressure level.
L
Cpeak
– peak level of acoustic pressure corrected by frequency characteristic C.

Operator's manual
Trailed disc mowers
KDC
- 8 -
3.2. Design and working principle
1 – Linkage
2 - Lifting hydraulic cylinders
3a – Swath conditioner, 3b - Swath rollers
4 – Cutterbar
5 – Cutterbar drive shaft
6 – PTO shaft
7 – Cutterbar drive's intersecting axis gear
8 – Conveyor
9– Belt gear of swath conditioner/roller
10 – PTO shaft of swath conditioner/roller
11
–
Support springs
12 – Turning hydraulic cylinders
13 – Tiller
14 – Hitch
15 – Adjustment link
16 – Safety guards
17 – Wheels
18 – Swath guides
19 – Intersecting axis gear
20 – Intersecting axis gear
21 – Support leg
2
2
–
Warning plate
Fig.
2a. Overview of disk mower KDC
1
2
5
6
7
8
9
10
11
12
13
14
15
16
16
17
19
20
22
21

Operator's manual
Trailed disc mowers
KDC
- 9 -

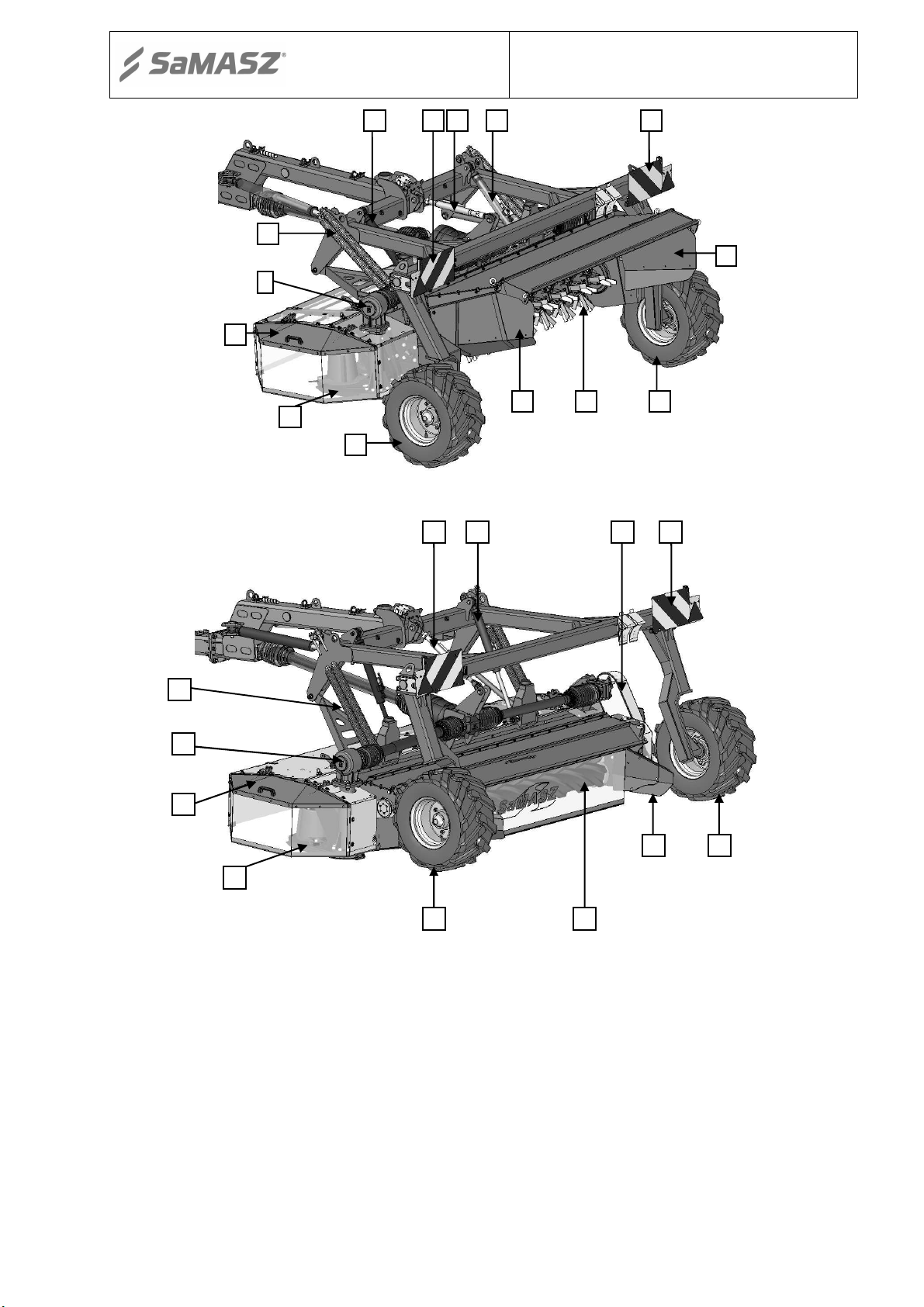

Fig. 2b. Design of the trailed disc mower with swath conditioner
Fig. 2c. Design of the trailed disc mower with swath rollers
Hitch (14) enables attachment of the mower to a tractor. Drive onto cutterbar (4) is
transmitted from the tractor's rpm through PTO shaft onto intersecting axis gear (19), drive shaft
located on tiller (13), wide-angle PTO shaft (6) onto intersecting axis gear (20), cutterbar drive shaft
(5) and intersecting axis gear (7). Cutterbar has discs mounted with two rotary knives each. Extreme
most discs have additionally mounted swath guiding drums. Moreover drive from tractor's rpm
through intersecting axis gear (20), drive shaft (10) and belt gear (9) is transmitted onto swath tine
conditioner (3a) or rollers (3b). Cutterbar is attached to linkage (1). Protective guard (16) is
mounted over the cutterbar. Maneuvering with the mower when driving is possible owing to two
hydraulic cylinders (12) which connect tiller to mower's linkage.
18
18
17
17
4
16
7
11
2
2
3a
22
22
15
4
17
17
3b
18
16
7
11
2
15
9
22

Operator's manual
Trailed disc mowers
KDC
- 10 -
3.3. Standard equipment and spare parts
The mowers are sold with the following standard equipment:
 warranty card,
 operator's manual with spare part catalogue and declaration of conformity,
 cutting knives: two sets per mower – left and right knives,
 PTO shaft,
 spray paint (150 ml),
Optional equipment:
 warning triangle,
 high mowing toppings / double toppings.
Tab. 6. Recommended PTO shafts for KDC mowers - Bondioli & Pavesi
Mower Power Length
Moment
um Symbol Clutch Remarks
HP mm Nm
KDC 260 S (T)
KDC 300 S/W (T)
KDC 301 W(T)
KDC 340 S/W (T)
KDC 341 W(T)
74 650-885 710 8G7T065CE007003 Friction clutch = 1200
Nm 1000 rpm
KDC 260 S (T)
KDC 300 S/W (T)
KDC 301 W(T)
KDC 340 S/W (T)
KDC 341 W(T)
47 650-885 830 8G7T065CE007002 Friction clutch = 1450
Nm 540 rpm
Fig. 3. PTO shaft lubrication points; Mounting directions.
NOTE:
PTO shaft lubrication frequency must be respected. Lubrication points
marked on Fig. 3should be lubricated every 50 hours.
PTO shaft shall also be lubricated before and after longer idleness periods.
PTO shafts of other brands with equivalent parameters could be used after first obtaining
SaMASZ permission.
NOTE:
Optional extra equipment should be ordered separately.
PTO shaft end without
clutch – To be mounted
on the tractor side
PTO shaft end with overload
friction clutch –
To be mounted
on the mower side

Operator's manual
Trailed disc mowers
KDC
- 11 -
4. SAFETY PRECAUTIONS
The following precautions are for your safety. They must be read carefully
and followed by every person who operates or maintains the machine. Failure to follow these
safety precautions could result in serious injury or death to the operator, maintenance person or
bystanders and property damage to the machine and surrounding property.
Safety Signal Words
This manual and the safety labels attached to this equipment utilize signal words that signify
safety hazards with different levels of severity. Below are the words used and the definitions
for these words:
• DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury.
• WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
• CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
• NOTE is used to address practices not related to physical injury.
4.1. General safety rules and regulations
The following descriptions are for your safety: They must therefore be read carefully
and applied every time you use the machine.
 The machine has been designed for use by one single operator.
 When using, servicing, repairing, moving or storing the machine, the operator must wear safety
footwear, safety gloves plus ear protection and dusk mask if necessary.
 During use, the machine may give rise to dust, especially if the soil is dry. You are advised to
use a tractor with a cab fitted with filters in the ventilation system. Failing this, wear a dust
mask with filter to protect your respiratory tract
 Front axis of the tractor should be weighted to keep the balance. If need be, use front wheel
weights.
 In order to keep steering conditions, impact on front axis should be at least 20% of the complete
tractor.
 Be extremely careful whenever using hydraulic lift lever or buttons. Any operation with
hydraulic lift lever should be done from operator’s seat; DO NOT move the lever from outside
of a tractor.
 In case of tractors equipped with EHR, operating with hydraulic lift is done by the buttons
mounted outside the tractor’s cabin. When operating be extremely careful.
 When switching from mowing to transport position, remove the entire PTO shaft or at least one
end of the shaft from the tractor’s PTO so it cannot turn.
 When attaching the mower to a tractor, the operator should wear protective gloves.
 DO NOT operate the mower unless all safety guards are in place and operational. In addition,
any damaged protective aprons should be replaced with a new one
 Start mowing only when tractor’s PTO reaches its normal 1000 rpm. DO NOT exceed 1050
PTO rpm.
 No person (except operator) should stand within danger area which is a minimum of 164' 1"
from any operating part, especially when operating near roads and in areas with stones and other
debris. Be certain that children and animals are at a safe distance away from the machine .

Operator's manual
Trailed disc mowers
KDC
- 12 -
IMPORTANT: Maintenance and adjustment should ONLY be done after the following has
occurred:
1. tractor’s engine has been stopped and ignition key has been taken out,
2. all rotating parts have come to complete standstill (NOTE: cutting knives will
rotate for several minutes after engine is turned off),
3. the cutterbar is on the ground .
 Never tamper with or remove safety devices on the machine or make them inoperable.
 Before starting work and periodically thereafter, replace any damaged, missing and/or worn
knives and knife holders.
 When driving on public roads always comply with local traffic regulations, especially those
concerning warning lights.
 When the mower is lifted for repair on 3-point linkage, it should be secured against falling by
mechanical support or by chain.
 The bolts and other fasteners have to be periodically checked and, if necessary, tightened or
replaced. DO NOT work with damaged or worn fasteners.
 Never lift the mower on tractor linkage when the drive is operating and the cutting discs are
rotating.
 When operating the mower, the tractor should always be equipped with operator protection that
is required by laws and regulations.
 Never start the mower when the mower blades are off the ground.
 Before you start the tractor make sure that all drives are turned off and the levers that turn the
hydraulics are in neutral position.
 Never leave tractor’s engine running without supervision. Before you leave the tractor, turn off
the engine and remove the key from tractor’s ignition.
 DO NOT operate the mower when driving the tractor backwards.
 Permissible inclination of the mower on a slope when working and during transport is 8°.
Exceeding this incline can result in mower tipover.
 Never stand between tractor and mower unless tractor and mower are secured against moving
by the tractor’s brake.
 If any maintenance must be done under an elevated mower, it must be blocked or otherwise
secured against falling.
 When the parts of the mower need replacement, use only original spare parts as described in the
spare parts list. Pay particular attention to PTO shaft’s guards and mower’s and tractor’s spline
shaft guards.
Hydraulic hoses are potentially very dangerous. Do the following to minimize any hazards:
1. Hydraulic hoses should be periodically checked and if any damage to the hoses have
occurred or if they have been used more than 5 years, replace with new ones.
2. Never use scotch tape to repair hydraulic hoses.
3. When connecting hydraulic hoses to tractor’s hydraulic connectors, make sure that
the tractor’s or mower’s hydraulic system is not under pressure.
 The mower should be stored under a roof and in a way as to not be hazardous bot people or
animals.
 In case of a fatal failure, stop the machine's drive, turn the tractor's engine off and take out the
ignition key. Next, please contact technical service, and if an accident (here: road accident)
occurs, respect first aid rules and contact responsible authorities.
 In the event of an accident involving this mower in a field or on a road, follow all applicable
first aid procedures and contact SaMASZ technical service.
 Mower should be kept clean, so as to avoid danger of fire.

Operator's manual
Trailed disc mowers
KDC
- 13 -
4.2. Qualifications of operator
To provide safe machine operation each person being the machine operator must meet the
following requirements:
 Operator should hold driving license, have ability to drive vehicles safely and know road traffic
rules.
 Operator must be in proper physical condition to be able to operate the machine.
 Operator must not be under the influence of alcohol, drugs and medicines, which all have
influence on vehicle driving and machine operation.
 Operator should be familiarized with this manual and follow its provisions.
 Operator should be familiar with working principles of both the tractor and the machine, and be
able to recognize and avoid hazards resulting from operation of the aggregate.
4.3. Conditions of mounting mower on tractor
 Prior to the mounting operation, be sure that the tractor and mower hitches are compatible and
that the tractor's hitch load is adequate for the machine which is to be mounted or attached.
 Prior to mounting the machine, examine the technical condition of the mower's hitch assembly
and tractor's 3-point linkage.
 Use only genuine cotter pins to mount the mower on a tractor.
4.4. Transport
The lifting, handling and transporting operations can be very dangerous unless they are carried
out with the utmost caution. Have all persons not involved in the actual work move away from the
area and limit the zone where the operations are to be carried out. Also make sure that the area in
which the operations take place is clear and that there is a sufficient escape route, i.e. a free, safe
zone to which the operators can quickly move if the load should fall.
The safety hooks and ropes used to lift the machine must be of an adequate carrying capacity.
To minimize the risk of serious injury or death, do the following:
 When the machine is converted from the transport position to the work position and vice versa,
you could be pinched or crushed by some of its parts. Take extra care when carrying out these
maneuvers and have all persons keep well clear of the danger zone.
 Do not change position of the mower until there are no people or animals around (pay particular
attention to children).
 While transporting the mower, put a warning plate with combined lights and reflectors and
warning triangle on the mower.
 During transport, always put the mower in its proper and safe transport position. See section 5.3.
 Before putting the mower in transport position, make sure that the tractor’s PTO is turned off
and all rotating parts have come to a complete stop.
 Do not drive over 30 km/h (17 mph). Drive slower if road conditions are poor, especially on
irregular surfaces or steep slopes.
 The behavior of the tractor on the road, such as its turning and braking capacities, are affected
by the implements mounted.
 No person and no objects must remain on the mower when driving or transporting.
 When taking turns pay particular attention and consider the machine's weight and dimensions.
 When driving on the road after work, check to make sure that the tires and soil working tools
are clean to prevent the road surface from becoming dirty.
 Make sure that the machine is not damaged during transport.

Operator's manual
Trailed disc mowers
KDC
- 14 -
NOTE:
It is forbidden to drive on public roads, if the mower's transport width is more
than 3 m (for: KDC 340, KDC 340 S/SL (T), KDC 341, KDC 341 W (T),
KDC 390, KDC 430).
4.4.1. Putting the mower onto another vehicle for transport
The driver and the carrier are responsible for the mower’s transport safety. Equipment and
parts must be secured during transport. To put the mower onto another vehicle in a safe way, please
obey the following rules.
 Transport should be done by qualified and specifically trained personnel,
Fig. 4. Transport holders on KDC mower
 Grab the mower by any lifting devices only in places indicated by hook sign (Fig. 4),
 For mower lifting, use only lifting devices with hoisting capacity larger than mower’s weight
shown in data plate. This also applies to ropes and chains used for lifting,
 Do not lift if transport belts, belt suspensions, ropes are damaged. Whenever damage to these
parts occurs, replace with new ones,
 When mounting slings, chains, handles etc., always set the machine's center of gravity properly,
 To safely support the machine, use ropes of adequate length so that the angle between them is
no greater than 120°, and the angle between the strand and the vertical is no greater than 60°,
 Lift the machine with the utmost caution and move it slowly,
 No one should be within the range of action of the lifting equipment when any transporting
operations are being carried out,
 Collapsible parts should be blocked in transport position,
 When the mower is on the vehicle’s trailer, the machine should be secured against moving.
NOTE:
Securing both the danger area and providing activity performance in a safe
manner shall lie under the responsibility of the person in charge of the mower
transportation.

Operator's manual
Trailed disc mowers
KDC
- 15 -
Fig. 5. Location of centre of gravity
Tab. 7. Location of centre of gravity
Dimension
[mm]
Mower type
KDC 260 KDC 260 S KDC 260 SL KDC 260 ST KDC 260 SLT
A 4150 4420 4415 4720 4720
B
810
825
830
800
805
Dimension
[mm]
Mower type
KDC 300 KDC 300 S KDC 300 SL KDC 300 ST KDC 300 SLT KDC 301 W KDC 301 WT
A
4180
4440
4435
4750
4750
4460
4820
B
830
850
855
800
800
820
800
Dimension
[mm]
Mower type
KDC 340 KDC 340 S KDC 340 SL KDC 340 ST KDC 340 SLT
A
4610
4865
4860
5200
5200
B
830
850
855
795
795
Dimension
[mm]
Mower type
KDC 341 KDC 341 W KDC 341 WT KDC 390 KDC 430
A
4610
4920
5270
4190
4700
B
830
805
795
815
805
4.5. Working parts
 Before operating the mower, check knife’s, knife mounting’s and knife holder’s condition.
 Worn or damaged knives, knife mountings or knife holders should be immediately replaced
with new ones.
4.6. PTO shaft
 Before operating, read bar manufacturer's manual placed on the bar. Follow all safety
precautions in that manual.
 Use only PTO shafts recommended by mower’s manufacturer with guards in good condition.
 In order to operate safely, use only undamaged PTO shafts and shields. Damaged PTO shafts
and shields must be repaired or replaced with new ones before use.
4.7. Hydraulic assembly
 Hydraulic assembly is under high pressure. Hydraulic oil under pressure may penetrate skin and
cause serious injury or death. Skin and eyes should be protected when working around this
assembly.
 In case of injury caused by a liquid under pressure, call a doctor immediately.

Operator's manual
Trailed disc mowers
KDC
- 16 -
 Hydraulic hoses can be connected to the tractor's hydraulics provided that both the tractor’s and
the mower's hydraulic assemblies are not under pressure. To remove the pressure from the
hoses, start the tractor's hydraulic valves several times with the tractor off.
 When unmounting the machine from the tractor, put the equipment aside, deflate the pressure
from hydraulics and turn tractor's engine off.
 When looking for oil leaks, do so safely. Use a cardboard card. Do not touch any potential leaks
until the entire hydraulic assembly has been relieved of pressure.
 Use only hydraulic oil featuring oil purity class 9 - 10 in accordance with NAS 1638.
When using hydraulic hoses:
 Avoid stretching the hoses when operating.
 Do not allow hydraulic hoses to get deflected.
 Do not expose hydraulic hoses to contact with any sharp edges.
 If damaged or worn, replace the hoses with new ones.
 Useful life for hydraulic hoses is 5 years from their production date.
4.8. Safety curtains
SaMASZ mowers feature standard safety curtains (1) for self-fitting. In order to put the curtain
properly put it on the mower and secure with catches (2) and with front guard (3) Fig. 6. Examine
condition of curtains and their mounting on a regular basis. Fix immediately if damaged and replace
if missing. Do not operate mower without safety curtains.
Fig. 6. Mounting safety curtain guard on the mower
4.9. Residual risk
Despite the fact that SaMASZ Białystok, the manufacturer of the mower, has taken great care
in the design and manufacturing of the mower, certain risks during mower operation and
maintenance are unavoidable. A major source of risk that could result in serious injury or death can
occur during the performance of these operations.
Major source of risk follows performance of these operations:
 operation of mower by minors,
 operation by individuals who have not read the operator's manual and safety labels,
 operation of mower by persons under influence of alcohol or other substances,
 not being cautious during transportation and moving mower during operation,
 transport of persons who are on the machine,
 presence of persons and animals within the mower operation range,
 performing servicing and machine adjustments with the engine on.
1
3
1
2

Operator's manual
Trailed disc mowers
KDC
- 17 -
4.9.1. Danger of machine entanglement
This risk occurs when (1) changing position of a mower, (2) operating near rotating parts,
and (3) working without safety guards. During operation, maintenance and adjustment, always wear
protective gloves, shoes and clothes without loose parts, belts and so on. Always comply with
safety labels placed on the mower.
4.9.2. Danger of cutting injury, abrasion and damage of skin
This risk occurs during replacement of working parts with sharp edges cleaning the machine
and removal of any clogging and jams.. During any maintenance work, always use safety gloves.
4.9.3. Danger of injury from liquid ejection out of hydraulic system
During connection of hydraulic hoses to hydraulic connectors, be sure that tractor’s or mower’s
hydraulic system is not under pressure. Regularly check hydraulic hoses for leaks.
4.9.4. Forbidden actions
During mower’s operation, do not do the following:
 never unblock the mower, make any regulations or repairs of the mower while it is in
motion,
 never change order of operation and maintenance activities described in operator’s manual,
 never operate the mower when it is not in working order or has damaged safety guards,
 never get your hands and legs close to rotating parts of the mower,
 during repair and maintenance of the mower, always comply with descriptions included in
operator’s manual. Always do these activities when the tractor’s drive is off,
 never operate the mower under influence of alcohol, drugs, or strong medicine that impair your
attention,
 do not wear clothes or jewelry that are too loose or too tight. Too loose clothing or jewelry may
be pulled in by the rotating parts of the mower,
 the mower should not be operated by children or by handicapped people,
When describing residual risk, the mower complies with the state of the art in technology on the
date it was manufactured.
4.9.5. Residual risk assessment
Residual risk occurs from not complying with the instructions and safety precautions. Such risk can
be minimized by doing the following:
 thorough familiarizing yourself with operator’s manual,
 allow no persons on the machine when operating,
 allow no persons within the mower operation range,
 adjust, maintain and lubricate the machine with the engine off,
 only skilled persons should perform repairs of the machine,
 children and strangers must keep away when the machine is operating
When the risk of exposure to noise cannot be avoided or eliminated by any
protective means or organization of work, employer (farmer) must:
1) provide the operator with individual means of noise protection, if the noise level
in work place exceeds 80 dB.
2) provide the operator with individual means of noise protection and supervise the
correctness of its usage, if the noise level in work place reaches or exceeds 85 dB.

Operator's manual
Trailed disc mowers
KDC
- 18 -
4.10. Safety labels and their meaning
Safety labels are critical to safe use of this mower. They must be read, understood and followed.
Also, be sure that:
 All warning decals are clean and legible,
 All lost or damaged decals are replaced by ordering new decals from your dealer or supplier,
 All persons using this mower have read the section of this manual explaining the meanings of
these labels,
 All spare part used for repair of the mower should have all safety labels provided by the
manufacturer.
N-01
Be extremely careful when
PTO shaft is rotating
N-02
Warning: cutting knives! Do
not get near to the operating
mower
N-03
Prior to operation
commencement read the
operator's manual carefully
N-04
Prior to approaching any
maintenance or repair works,
turn the machine off
N-05
Warning: belt gear, keep
particular attention
N-06
Warning: pulling-in parts
N-07
Operating the mower is
forbidden with presence of any
unauthorized personnel within
the danger area of 170 ft
N-09
Warning: rotor
N-11 N-14 N-15
N-23
Warning:
power lines
N-28 N-29
