Samson 3256 Service manual

Translation of original instructions
EB 8065 EN
Edition May 2020
Type3256 Valve · DIN version
In combination with an actuator,
e.g. a Type3271 or Type3277 Pneumatic Actuator

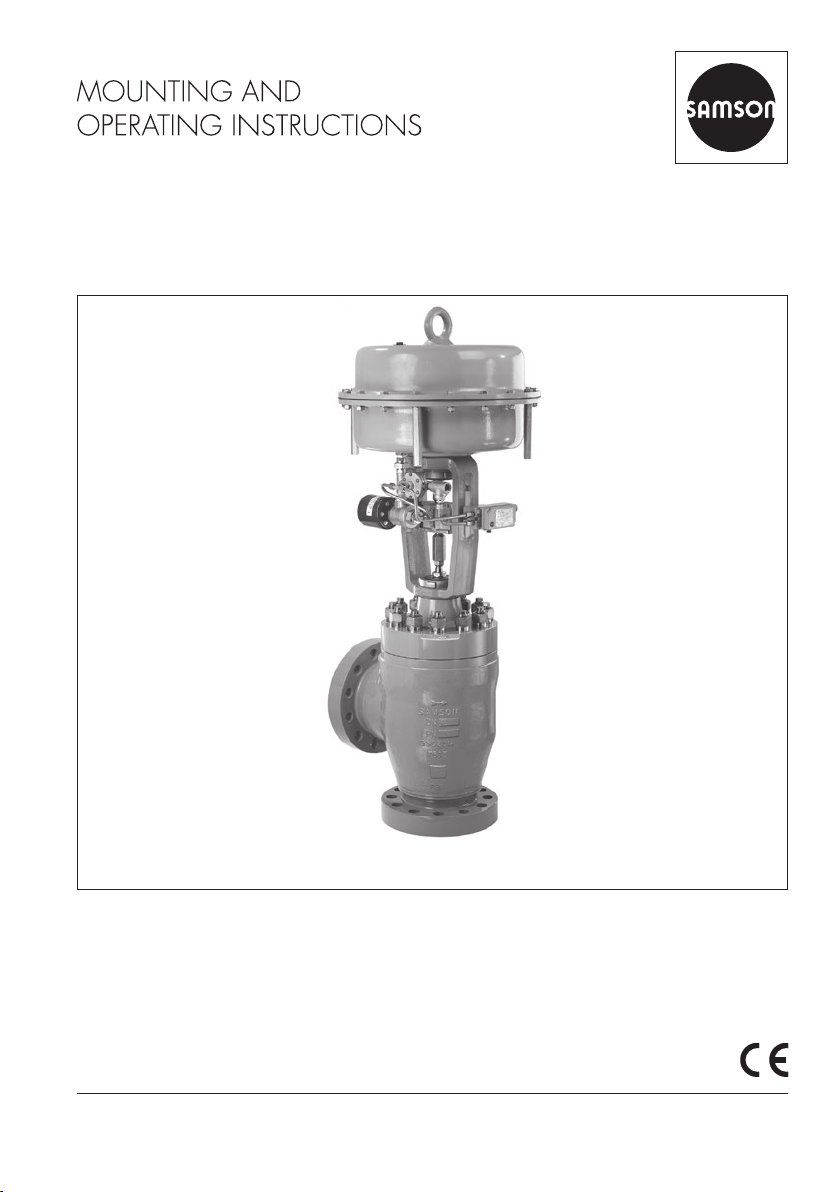

Type3256 Valve with Type3271 Actuator

Note on these mounting and operating instructions
These mounting and operating instructions assist you in mounting and operating the device
safely. The instructions are binding for handling SAMSON devices. The images shown in
these instructions are for illustration purposes only. The actual product may vary.
ÎFor the safe and proper use of these instructions, read them carefully and keep them for
later reference.
ÎIf you have any questions about these instructions, contact SAMSON‘s After-sales Service
([e-mail]).
Documents relating to the device, such as the mounting and operating
instructions, are available on our website at www.samsongroup.com >
Service & Support > Downloads > Documentation.
Definition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip
EB 8065 EN

Contents
EB 8065 EN
1 Safety instructions and measures ................................................................1-1
1.1 Notes on possible severe personal injury ......................................................1-4
1.2 Notes on possible personal injury ................................................................1-4
1.3 Notes on possible property damage.............................................................1-6
1.4 Warnings on the device...............................................................................1-8
2 Markings on the device ..............................................................................2-1
2.1 Valve nameplate .........................................................................................2-1
2.2 Actuator nameplate.....................................................................................2-2
2.3 Material numbers........................................................................................2-2
2.4 Label when an adjustable packing is installed ...............................................2-2
3 Design and principle of operation ...............................................................3-1
3.1 Fail-safe position.........................................................................................3-1
3.2 Versions .....................................................................................................3-3
3.3 Additional ttings........................................................................................3-3
3.4 Accessories ................................................................................................3-4
3.5 Technical data ............................................................................................3-4
4 Shipment and on-site transport ...................................................................4-1
4.1 Accepting the delivered goods .....................................................................4-1
4.2 Removing the packaging from the valve........................................................4-1
4.3 Transporting and lifting the valve..................................................................4-1
4.3.1 Transporting the valve .................................................................................4-2
4.3.2 Lifting the valve...........................................................................................4-3
4.4 Storing the valve.........................................................................................4-3
5 Installation.................................................................................................5-1
5.1 Installation conditions..................................................................................5-1
5.2 Preparation for installation...........................................................................5-3
5.3 Installing the device.....................................................................................5-3
5.3.1 Mounting the external anti-rotation xture.....................................................5-4
5.3.2 Mounting the actuator onto the valve..........................................................5-13
5.3.3 Installing the valve into the pipeline ............................................................5-14
5.4 Testing the installed valve...........................................................................5-14
5.4.1 Leak test...................................................................................................5-16
5.4.2 Travel motion............................................................................................5-17
5.4.3 Fail-safe position.......................................................................................5-17
5.4.4 Pressure test..............................................................................................5-17

Contents
EB 8065 EN
6 Start-up .....................................................................................................6-1
7 Operation..................................................................................................7-1
7.1 Normal operation .......................................................................................7-2
7.2 Manual operation .......................................................................................7-2
8 Malfunctions ..............................................................................................8-1
8.1 Troubleshooting ..........................................................................................8-1
8.2 Emergency action .......................................................................................8-2
9 Servicing....................................................................................................9-1
9.1 Periodic testing ...........................................................................................9-3
9.2 Preparing the valve for service work.............................................................9-5
9.3 Mounting the valve after service work...........................................................9-5
9.4 Service work...............................................................................................9-5
9.4.1 Replacing the gasket ...................................................................................9-5
9.4.2 Replacing the packing.................................................................................9-6
9.4.3 Replacing the seat and plug.......................................................................9-12
9.5 Ordering spare parts and operating supplies ..............................................9-14
10 Decommissioning .....................................................................................10-1
11 Removal ..................................................................................................11-1
11.1 Removing the valve from the pipeline..........................................................11-2
11.2 Removing the actuator from the valve .........................................................11-2
12 Repairs ....................................................................................................12-1
12.1 Returning devices to SAMSON ..................................................................12-1
13 Disposal...................................................................................................13-1
14 Certicates...............................................................................................14-1
15 Annex......................................................................................................15-1
15.1 Tightening torques, lubricants and tools ......................................................15-1
15.2 Spare parts ..............................................................................................15-1
15.3 After-sales service.....................................................................................15-3

EB 8065 EN 1-1
Safety instructions and measures
1 Safety instructions and measures
Intended use
The SAMSON Type3256 Angle Valve in combination with an actuator (e.g. Type3271 or
Type3277 Pneumatic Actuator) is designed to regulate the ow rate, pressure or temperature
of liquids, gases or vapors. The valve with its actuator is designed to operate under exactly
dened conditions (e.g. operating pressure, process medium, temperature). Therefore, opera-
tors must ensure that the control valve is only used in operating conditions that meet the spec-
ications used for sizing the valve at the ordering stage. In case operators intend to use the
control valve in other applications or conditions than specied, contact SAMSON.
SAMSON does not assume any liability for damage resulting from the failure to use the de-
vice for its intended purpose or for damage caused by external forces or any other external
factors.
ÎRefer to the technical data and nameplate for limits and elds of application as well as
possible uses.
Reasonably foreseeable misuse
The control valve is not suitable for the following applications:
−Use outside the limits dened during sizing and by the technical data
−Use outside the limits dened by the valve accessories connected to the valve
Furthermore, the following activities do not comply with the intended use:
−Use of non-original spare parts
−Performing service and repair work not described in these instructions
Qualications of operating personnel
The control valve must be mounted, started up, serviced and repaired by fully trained and
qualied personnel only; the accepted industry codes and practices must be observed. Ac-
cording to these mounting and operating instructions, trained personnel refers to individuals
who are able to judge the work they are assigned to and recognize possible hazards due to
their specialized training, their knowledge and experience as well as their knowledge of the
applicable standards.
Personal protective equipment
We recommend checking the hazards posed by the process medium being used (e.g.
uGESTIS (CLP) hazardous substances database). Depending on the process medium and/
or the activity, the protective equipment required includes:

1-2 EB 8065 EN
Safety instructions and measures
−Protective clothing, gloves, eye protection and respiratory protection in applications with
hot, cold and/or corrosive media
−Wear hearing protection when working near the valve
−Hard hat
−Safety harness when working at height
−Safety footwear, ESD (electrostatic discharge) footwear, if necessary
ÎCheck with the plant operator for details on further protective equipment.
Revisions and other modications
Revisions, conversions or other modications of the product are not authorized by SAMSON.
They are performed at the user's own risk and may lead to safety hazards, for example. Fur-
thermore, the product may no longer meet the requirements for its intended use.
Safety features
The fail-safe position of the control valve upon air supply or control signal failure depends on
the actuator used (see associated actuator documentation). When the valve is combined with
a SAMSON Type3271 or Type3277 Pneumatic Actuator, the valve moves to a certain fail-
safe position (see the 'Design and principle of operation' section) upon supply air or control
signal failure. The fail-safe action of the actuator is the same as its direction of action and is
specied on the nameplate of SAMSON actuators.
Warning against residual hazards
To avoid personal injury or property damage, plant operators and operating personnel must
prevent hazards that could be caused in the control valve by the process medium, the operat-
ing pressure, the signal pressure or by moving parts by taking appropriate precautions. Plant
operators and operating personnel must observe all hazard statements, warning and caution
notes in these mounting and operating instructions.
Hazards resulting from the special working conditions at the installation site of the valve must
be identied in a risk assessment and prevented through the corresponding safety instruc-
tions drawn up by the operator.
ÎObserve safety measures for handling the device as well as re prevention and explosion
protection measures.

EB 8065 EN 1-3
Safety instructions and measures
Responsibilities of the operator
The operator is responsible for proper operation and compliance with the safety regulations.
Operators are obliged to provide these mounting and operating instructions as well as the
referenced documents to the operating personnel and to instruct them in proper operation.
Furthermore, the operator must ensure that operating personnel or third parties are not ex-
posed to any danger.
The operator is additionally responsible for ensuring that the limits for the product dened in
the technical data are observed. This also applies to the start-up and shutdown procedures.
Start-up and shutdown procedures fall within the scope of the operator's duties and, as such,
are not part of these mounting and operating instructions. SAMSON is unable to make any
statements about these procedures since the operative details (e.g. differential pressures and
temperatures) vary in each individual case and are only known to the operator.
Qualications of operating personnel
Operating personnel must read and understand these mounting and operating instructions as
well as the referenced documents and observe the specied hazard statements, warnings
and caution notes. Furthermore, the operating personnel must be familiar with the applicable
health, safety and accident prevention regulations and comply with them.
Referenced standards and regulations
The control valves comply with the requirements of the European Pressure Equipment Direc-
tive 2014/68/EU and the Machinery Directive 2006/42/EC. Valves with a CE marking
have a declaration of conformity which includes information about the applied conformity
assessment procedure. The 'Certicates' section contains this declaration of conformity.
Non-electric valve versions whose bodies are not lined with an insulating material coating do
not have their own potential ignition source according to the risk assessment stipulated in
EN13463-1:2009, section5.2, even in the rare incident of an operating fault. Therefore,
such valve versions do not fall within the scope of Directive 2014/34/EU.
ÎFor connection to the equipotential bonding system, observe the requirements specied in
section6.4 of EN60079-14 (VDE0165-1).

1-4 EB 8065 EN
Safety instructions and measures
Referenced documentation
The following documents apply in addition to these mounting and operating instructions:
−Mounting and operating instructions for the mounted actuator, e.g. uEB8310-X for
Type3271 or Type3277 Pneumatic Actuator
−Mounting and operating instructions for mounted valve accessories (positioner, solenoid
valve etc.)
−uAB0100 for tools and tightening torques
−Manual uH02: Appropriate Machinery Components for SAMSON Pneumatic Control
Valves with a Declaration of Conformity of Final Machinery
1.1 Notes on possible severe personal injury
DANGER
!
Risk of bursting in pressure equipment.
Valves and pipelines are pressure equipment. Impermissible pressure or improper
opening can lead to valve components bursting.
ÎObserve the maximum permissible pressure for valve and plant.
ÎBefore starting any work on the control valve, depressurize all plant sections affect-
ed as well as the valve.
ÎDrain the process medium from all the plant sections concerned as well as the
valve.
1.2 Notes on possible personal injury
WARNING
!
Risk of burn injuries due to hot or cold components and pipelines.
Depending on the process medium, valve components and pipelines may get very hot
or cold and cause burn injuries.
ÎAllow components and pipelines to cool down or heat up.
ÎWear protective clothing and safety gloves.

EB 8065 EN 1-5
Safety instructions and measures
WARNING
!
Risk of hearing loss or deafness due to loud noise.
The noise emissions depend on the valve version, plant facilities and process medium.
ÎWear hearing protection when working near the valve.
Risk of personal injury due to exhaust air being vented.
While the valve is operating, the actuator, for example, may vent during closed-loop
operation or when the valve opens or closes.
ÎInstall the control valve in such a way that vent holes are not located at eye level and
the actuator does not vent at eye level in the work position.
ÎUse suitable silencers and vent plugs.
ÎWear eye protection when working in close proximity to the control valve.
Crush hazard arising from moving parts.
The control valve contains moving parts (actuator and plug stem), which can injure
hands or ngers if inserted into the valve.
ÎDo not insert hands or nger into the yoke while the air supply is connected to the
actuator.
ÎBefore working on the control valve, disconnect and lock the pneumatic air supply
as well as the control signal.
ÎDo not impede the movement of the actuator and plug stem by inserting objects into
the yoke.
ÎBefore unblocking the actuator and plug stem after they have become blocked (e.g.
due to seizing up after remaining in the same position for a long time), release any
stored energy in the actuator (e.g. spring compression). See associated actuator
documentation.
Risk of personal injury due to preloaded springs.
Valves in combination with pneumatic actuators with preloaded springs are under ten-
sion. These control valves with SAMSON pneumatic actuators can be identied by the
long bolts protruding from the bottom of the actuator.
ÎBefore starting any work on the actuator, relieve the compression from the preload-
ed springs (see associated actuator documentation).

1-6 EB 8065 EN
Safety instructions and measures
WARNING
!
Risk of personal injury due to residual process medium in the valve.
While working on the valve, residual medium can ow out of the valve and, depending
on its properties, cause personal injury, e.g. (chemical) burns.
ÎIf possible, drain the process medium from all the plant sections affected and the
valve.
ÎWear protective clothing, safety gloves, respiratory protection and eye protection.
Risk of personal injury through incorrect operation, use or installation as a result of
information on the valve being illegible.
Over time, markings, labels and nameplates on the valve may become covered with dirt
or become illegible in some other way. As a result, hazards may go unnoticed and the
necessary instructions not followed. There is a risk of personal injury.
ÎKeep all relevant markings and inscriptions on the device in a constantly legible
state.
ÎImmediately renew damaged, missing or incorrect nameplates or labels.
1.3 Notes on possible property damage
NOTICE
!
Risk of valve damage due to contamination (e.g. solid particles) in the pipeline.
The plant operator is responsible for cleaning the pipelines in the plant.
ÎFlush the pipelines before start-up.
Risk of valve damage due to unsuitable medium properties.
The valve is designed for a process medium with dened properties.
ÎOnly use the process medium specied for sizing.

EB 8065 EN 1-7
Safety instructions and measures
NOTICE
!
Risk of leakage and valve damage due to excessively high or low tightening
torques.
Observe the specied torques when tightening control valve components. Excessive
tightening torques lead to parts wearing out more quickly. Parts that are too loose may
cause leakage.
ÎObserve the specied tightening torques (uAB0100).
Risk of valve damage due to the use of unsuitable tools.
Certain tools are required to work on the valve.
ÎOnly use tools approved by SAMSON (uAB0100).
Risk of valve damage due to the use of unsuitable lubricants.
The lubricants to be used depend on the valve material. Unsuitable lubricants may cor-
rode and damage surfaces.
ÎOnly use lubricants approved by SAMSON (uAB0100).
Risk of the process medium being contaminated through the use of unsuitable lubri-
cants and/or contaminated tools and components.
ÎIf necessary, keep the valve and the tools used free from solvents and grease.
ÎMake sure that only suitable lubricants are used.

1-8 EB 8065 EN
Safety instructions and measures
1.4 Warnings on the device
Warning Meaning of the warning Location on the device
Warning against moving parts
There is a risk of injury to hands or ngers through the
stroking movement of the actuator and plug stem if they
are inserted into the yoke while the air supply is con-
nected to the actuator.

EB 8065 EN 2-1
Markings on the device
2 Markings on the device
2.1 Valve nameplate
22
21
20 19
1817
16
151413121110
8
7
6
5
4
2
1

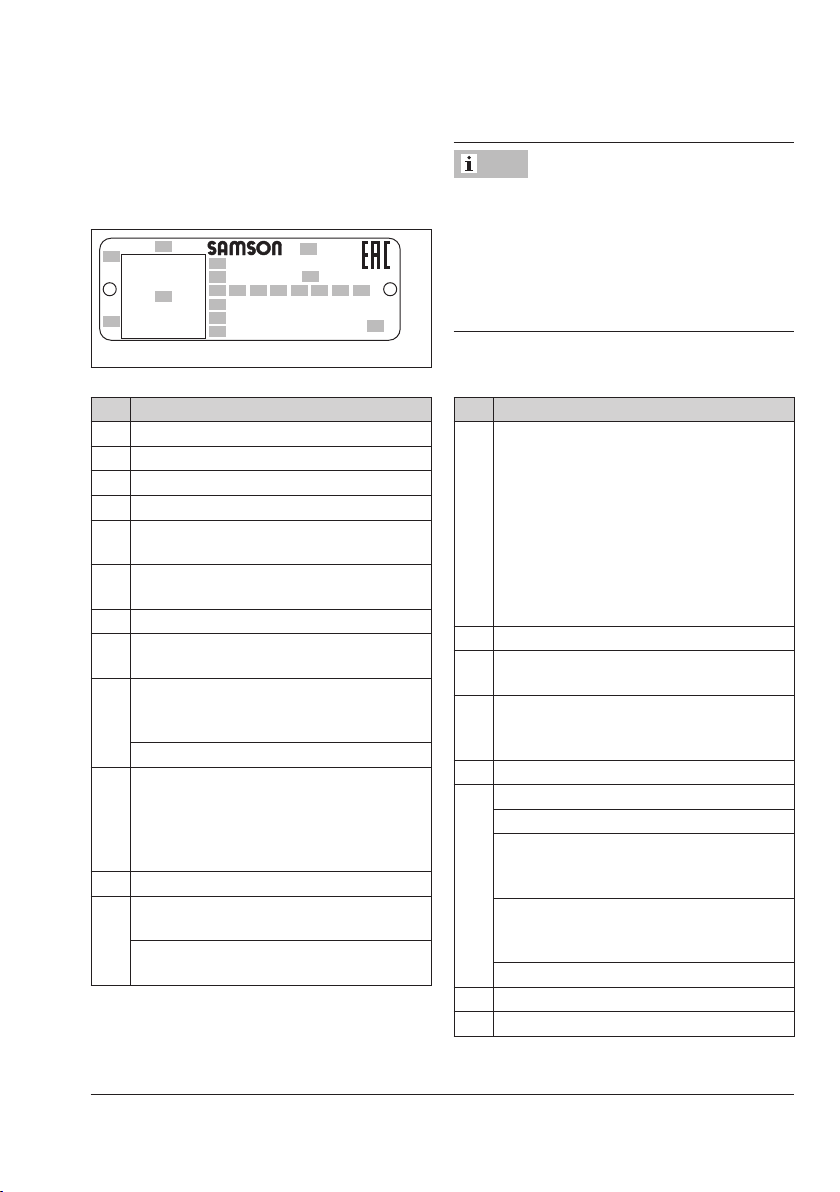

Fig.2-1: Inscriptions on the valve nameplate
Fig.2-1 and the inscription table list all
possible characteristics and options that may
appear on a valve nameplate. Only the
inscriptions relevant to the ordered
Type3256 Valve actually appear on the
nameplate.
Note
Item Inscription meaning
1 Data Matrix code
2 Type designation
4 Material
5Month and year of manufacture
6 Valve size:
DIN: DN · ANSI: NPS · JIS: DN
7 Pressure rating:
DIN: PN · ANSI: CL · JIS: K
8 Order number/item
10 Flow coefcient:
DIN: KVS · ANSI: CV
11 Characteristic:
%: equal percentage · LIN: linear
mod-lin: modied linear
NO/NC: on/off service
12 Seat-plug seal:
ME: metal · HA: carbide metal ·
ST: metal base material with Stellite®facing
KE: ceramic · PT: PTFE soft seal · PK: PEEK
soft seal
13 Seat code (trim material): on request
14 Pressure balancing:
DIN: D · ANSI/JIS: B
Version:
M: mixing valve · V: ow-diverting valve
Item Inscription meaning
15 Noise reduction:
1:ow divider(ST)1 · 2:ST2 · 3:ST3
1/PSA:ST1 standard and integrated in
seat for PSA valve
AC-1/AC-2/AC-3/AC-5:AC trim, versions
1 to 5
LK: perforated plug · LK1/LK2/
LK3:perforated plug with ow divider ST1
to ST3 · MHC1:multi-hole cage
CC1:Combi Cage · ZT1:Zero Travel
16 Country of origin
17 PSA version:
PSA
18 Cage/seat style:
CC: clamped cage, clamped seat
SF: suspended cage, anged seat
19 CE marking
20 ID of the notied body
PED: Pressure Equipment Directive
G1/G2: gases and vapors
Fluid group1= hazardous
Fluid group2= other
L1: liquids
Fluid group1= hazardous
Fluid group2= other
I/II/III: Category 1 to 3
21 Serial number
22 NE53 (NAMUR Recommendation)

2-2 EB 8065 EN
Markings on the device
The nameplate (80) is afxed to the yoke of
the valve (see Fig.2-2).
80
Fig.2-2: Location of the nameplate
2.2 Actuator nameplate
See associated actuator documentation.
2.3 Material numbers
The seat and plug of the valves have an item
number written on them. You can contact us
stating this item number to nd out which
material is used. Additionally, a seat code is
used to identify the trim material. This seat
code is specied on the nameplate.
2.4 Label when an adjustable
packing is installed
An instructional label is afxed to the valve
when an adjustable packing is installed (see
Fig.2-3).
Fig.2-3: Label when an adjustable packing is
installed

EB 8065 EN 3-1
Design and principle of operation
3 Design and principle of oper-
ation
The Type3256 Angle Valve is preferably
combined with a SAMSON Type3271 or
Type3277 Pneumatic Actuator (see
Fig.3-1). It can also be combined with other
actuators.
The seat (4) and plug with plug stem (5) are
installed in the body (1). The plug stem is
connected to the actuator stem (A7) by the
stem connector clamps (A26) and is sealed
by a spring-loaded V-ring packing (15).
Alternatively, an adjustable high-
temperature packing can be used.
The springs in the pneumatic actuator are
located either above or below the
diaphragm (A4) depending on the selected
fail-safe action. A change in the signal
pressure acting on the diaphragm causes the
plug to move. The actuator size is
determined by the diaphragm area.
The medium ows through the valve in the
direction indicated by the arrow. A rise in
signal pressure causes the force acting on
the diaphragm in the actuator to increase.
The springs are compressed. Depending on
the selected direction of action, the actuator
stem retracts or extends. As a result, the plug
position in the seat changes and determines
the ow rate through the valve.
The direction of ow is different for the ver-
sion with a ceramic anti-wear sleeve: the
medium ows through the valve in the ow-
to-close direction.
3.1 Fail-safe position
The fail-safe position of the control valve up-
on air supply or control signal failure de-
pends on the actuator used (see associated
actuator documentation).
Depending on how the compression springs
are arranged in the SAMSON Type3271
and Type3277 Pneumatic Actuator, the
valve has one of two different fail-safe posi-
tions:
Actuator stem extends (FA)
When the signal pressure is reduced or the
air supply fails, the springs move the actua-
tor stem downward and close the valve. The
valve opens when the signal pressure is in-
creased enough to overcome the force exert-
ed by the springs.
Actuator stem retracts (FE)
When the signal pressure is reduced or the
air supply fails, the springs move the actua-
tor stem upwards and open the valve. The
valve closes when the signal pressure is in-
creased enough to overcome the force exert-
ed by the springs.
The actuator's direction of action can be re-
versed, if required. Refer to the mounting
and operating instructions of the pneumatic
actuator:
uEB8310-X for Type3271 and Type3277
Tip

3-2 EB 8065 EN
Design and principle of operation
4
1
5
17
14
15
92
8
10
9
84
S
3
A26/27
A7
A8
A4
A10
A16
2
1 Body
2Bonnet
3Yoke
4 Seat
5 Plug (with plug stem)
8 Threaded bushing (packing
nut)
9Stem connector nut
10 Lock nut
14 Body nut
15 Packing
17 Body gasket
84 Travel indicator scale
92 Castellated nut
A4 Diaphragm
A7 Actuator stem
A8 Ring nut
A10 Spring
A16 Vent plug
A26/27 Stem connector clamps
S Signal pressure connection

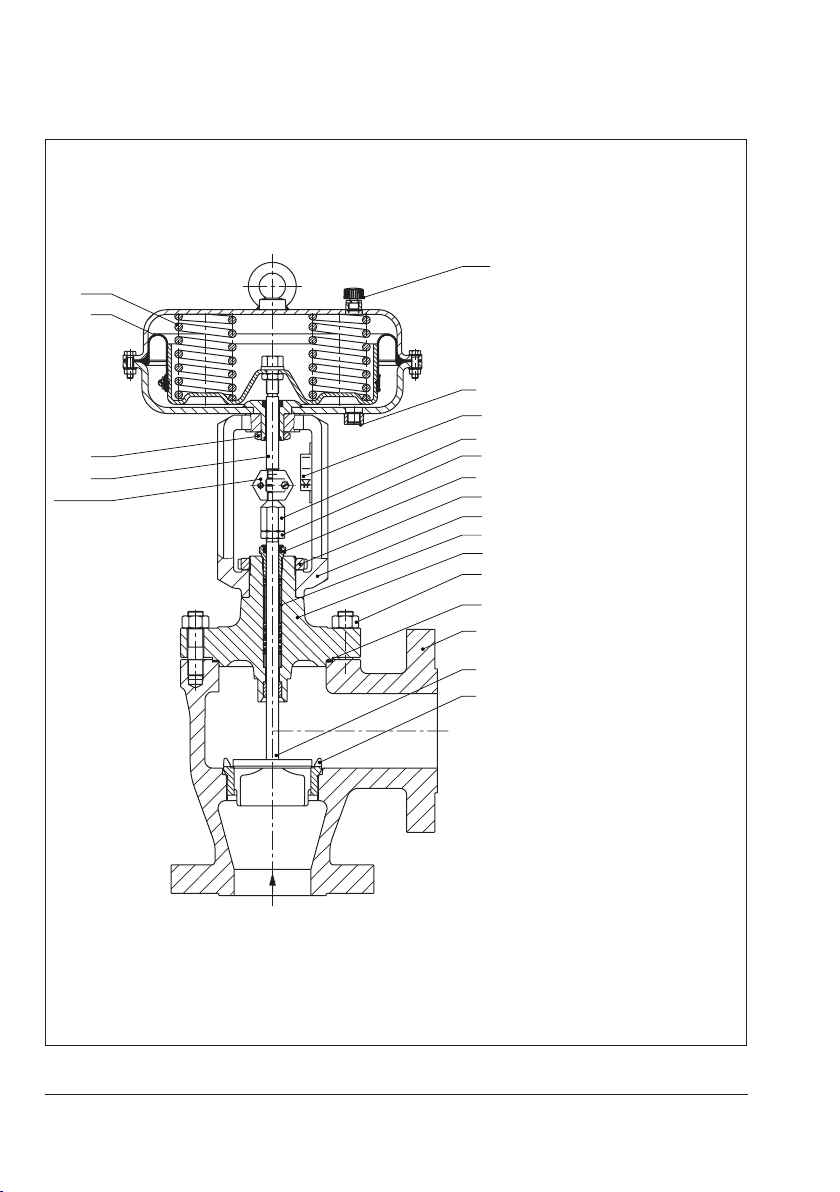

Fig.3-1: Type3256 Angle Valve with Type3271 Pneumatic Actuator

EB 8065 EN 3-3
Design and principle of operation
3.2 Versions
With insulating section/bellows seal
The modular design allows an insulating sec-
tion or bellows seal to be tted to the stan-
dard valve version.
Trims
Flow dividers (uT8081) can be used to re-
duce the noise emission.
AC trims (uT8082 and uT8083) can be
used for low-noise pressure letdown of liq-
uids.
Perforated plugs (uT8086) can be used to
handle critical medium states (e.g. saturated
steam).
Ceramic trim parts (uT8071) can be used
when the valve is subject to considerable
erosion and abrasion (e.g. through ashing
service and in applications involving corro-
sive media containing solid particles).
Actuators
In these instructions, the preferable combina-
tion with a SAMSON Type3271 or
Type3277 Pneumatic Actuator is described.
The pneumatic actuator (with or without
handwheel) can be replaced by another
pneumatic actuator in a different size, but
with the same travel.
ÎObserve the maximum permissible actu-
ator force.
If the travel range of the actuator is larger
than the travel range of the valve, the spring
assembly in the actuator must be preloaded
so that the travel ranges match. See associ-
ated actuator documentation.
The basic pneumatic actuator can be re-
placed by a pneumatic actuator with addi-
tional handwheel or by an electric actuator.
3.3 Additional ttings
Strainers
We recommend installing a SAMSON
strainer upstream of the valve. It prevents
solid particles in the process medium from
damaging the valve.
Bypass and shut-off valves
We recommend installing a shut-off valve
both upstream of the strainer and down-
stream of the valve and installing a bypass
line. The bypass ensures that the plant does
not need to be shut down for service and re-
pair work on the valve.
Insulation
Control valves can be insulated to reduce
heat energy transfer.
Refer to the instructions in the 'Installation'
section.
Test connection
Versions with bellows seal tted with a test
connection (G
1
/
8
) at the top ange allow the
sealing ability of the bellows to be moni-
tored.
Particularly for liquids and vapors, we rec-
ommend installing a suitable leakage indica-
tor (e.g. a contact pressure gauge, an outlet
to an open vessel or an inspection glass).
Note

3-4 EB 8065 EN
Design and principle of operation
Safety guard
For operating conditions that require in-
creased safety (e.g. in cases where the valve
is freely accessible to untrained staff), a safe-
ty guard must be installed to rule out a crush
hazard arising from moving parts (actuator
and plug stem). Plant operators are responsi-
ble for deciding whether a guard is to be
used. The decision is based on the risk posed
by the plant and its operating conditions.
3.4 Accessories
Information Sheet uT8350
3.5 Technical data
The nameplates on the valve and actuator
provide information on the control valve ver-
sion. See the 'Markings on the device' sec-
tion.
More information is available in Data Sheet
uT8065.
Noise emissions
SAMSON is unable to make general state-
ments about noise emissions. The noise emis-
sions depend on the valve version, plant fa-
cilities and process medium.
Note

EB 8065 EN 3-5
Design and principle of operation
Table 3-1: Technical data for Type3256
Material Cast steel 1.0619 Cast steel 1.7357 Cast stainless
steel 1.4408
Valve size 1) DN 15 to
150
200 to
300
15 to
150
200 to
300
15 to
150
200 to
300
Pressure rating 1) PN 16 to
400
16 to
100
16 to
400
16 to
100
16 to
400
16 to
100
Type of connection Flanges All DIN EN versions
Welding ends DINEN12627
Seat-plug seal Metal seal · Soft seal · High-performance metal seal
Characteristic Equal percentage · Linear · Quick opening (uT8000-3)
Rangeability 50 : 1
Compliance ·
Temperature ranges in °C · Permissible operating pressures acc. to pressure-temperature diagram (see
Information Sheet u T8000-2)
Body without insulating section –10 to +220 °C · Up to +350 °C with high-temperature
packing
Body with Insulating section or bellows
seal –10 to +4003) –10 to +500 –196 to +550
Valve plug
2)
Standard Metal seal –196 to +550
Soft seal –196 to +220
Balanced with PTFE ring –50 to +2203)
Balanced with graphite ring 200 to 550
Leakage class according to IEC60534-4
Valve plug
Standard Metal seal Standard: IV · High-performance metal seal: V
Soft seal VI
Balanced, metal seal With PTFE (standard): IV · High-performance metal seal: V
With graphite ring: IV
1) DN400 and 500 on request; up to PN400 on request
2) Only in combination with suitable body material
3) Lower temperatures on request

3-6 EB 8065 EN
Design and principle of operation
Dimensions and weights
Table 3-2 and Table 3-3 provide an overview of the dimensions and weights of the standard
version of Type3256 Valve. The lengths and heights in the dimensional drawing are shown
on page3-7.
Dimensions in mm · Weights in kg
Table 3-2: Dimensions for Type3256 Valve
Valve DN 15 25 40 50 80 100 150 200 250 300
Length L
(anges and
welding ends)
PN 10 to 40 90 100 115 125 155 175 225 275
On request
PN 63 to
160 105 115 130 150 190 215 275 325
PN 250 115 130 150 175 225 260 350 400
PN320 115 130 150 175 225 260 350 400
PN 400
1271) 1501) 1891) 2221) 2851) 3331) 4541)
On
re-
quest
Height H4
PN 10 to
160 134 129 129 175 160 170 210
On
re-
quest
PN 250 to
400 175 170 170 221 242 296 371 547
H8 for actuator
350cm² 240 240 240 240 240 240 –
355cm² 240 240 240 240 240 240 418 –
700cm² 240 240 240 240 240 240 418 418 –
750cm² 240 240 240 240 240 240 418 418 418 –
1000cm²
–
295 295 295 418 418 418 –
1400-60cm² 295 295 295 418 418 On request
1400-
120cm² 480 480 480 503 503
5032) 650
2800cm² 480 480 480 503 503
5032) 650
2 x 2800cm² 480 480 480 503 503
5032) 650
1) Face-to-face dimensions according to SAMSON standard
2) H8 = 650mm with 250mm seat bore
