Samson 611 Service manual

Translation of original instructions
EB 6116 EN
Edition August 2018

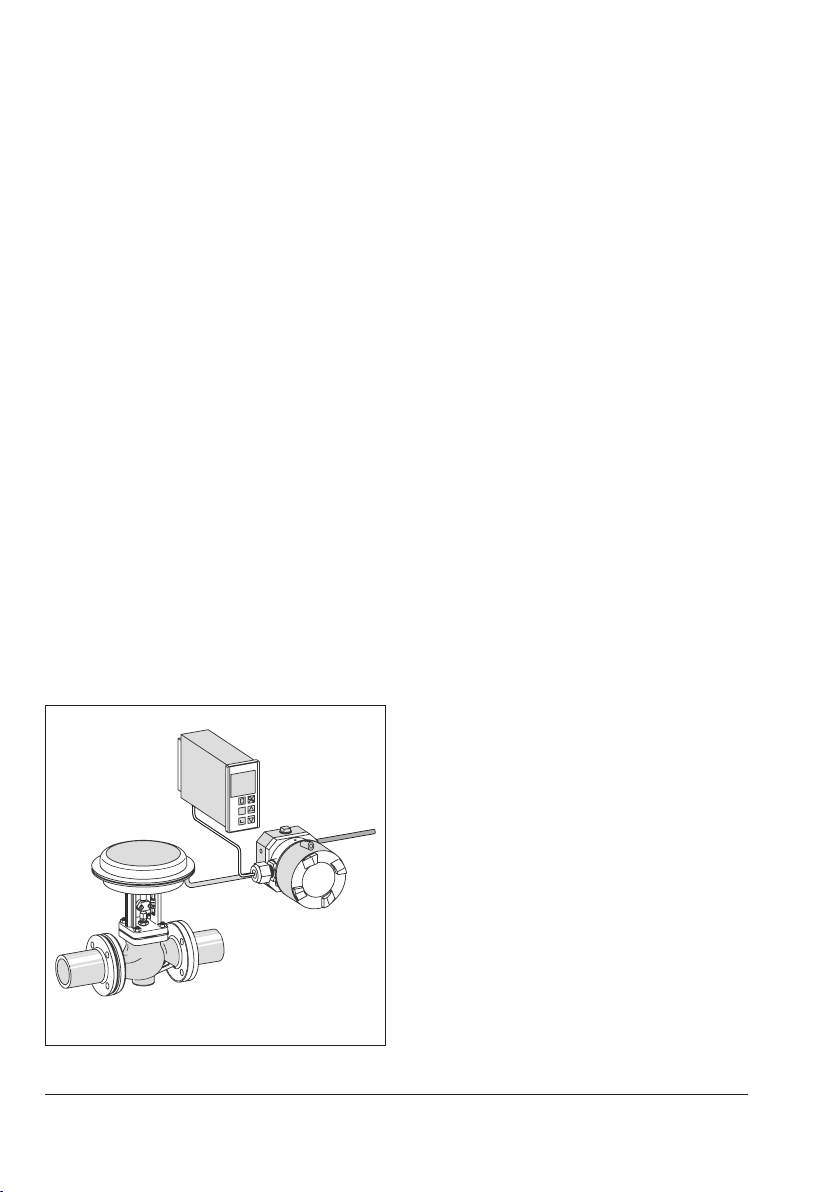

Type6116 Electropneumatic Converter for Direct Current Signals

Note on these mounting and operating instructions
These mounting and operating instructions assist you in mounting and operating the device
safely. The instructions are binding for handling SAMSON devices. The images shown in
these instructions are for illustration purposes only. The actual product may vary.
ÎFor the safe and proper use of these instructions, read them carefully and keep them for
later reference.
ÎIf you have any questions about these instructions, contact SAMSON‘s After-sales Service
([e-mail]).
The mounting and operating instructions for the devices are included
in the scope of delivery. The latest documentation is available on our
website at www.samsongroup.com > Service & Support > Downloads >
Documentation.
Denition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip
EB 6116 EN

Contents
EB 6116 EN
1 Safety instructions and measures ...................................................................5
1.1 Notes on possible severe personal injury .........................................................7
1.2 Notes on possible personal injury ...................................................................8
1.3 Notes on possible property damage................................................................8
2 Markings on the device .................................................................................9
2.1 Nameplate....................................................................................................9
2.2 Article code.................................................................................................10
3 Design and principle of operation ................................................................12
3.1 Versions......................................................................................................14
3.2 Technical data .............................................................................................16
3.3 Accessories .................................................................................................23
4 Measures for preparation............................................................................25
4.1 Unpacking ..................................................................................................25
4.2 Transporting and lifting ................................................................................25
4.3 Storage.......................................................................................................25
4.4 Preparation for installation............................................................................25
5 Mounting and start-up.................................................................................26
5.1 Mounting orientation....................................................................................26
5.2 Installing i/p converters................................................................................26
5.3 Electrical connection.....................................................................................26
5.4 Pneumatic connection...................................................................................28
5.5 Mounting the i/p converter to positioners.......................................................28
5.5.1 Principle of operation...................................................................................29
5.5.2 Accessories .................................................................................................29
5.5.3 Mounting position of the converter ................................................................29
5.5.4 Electrical connection.....................................................................................30
5.5.5 Pneumatic connection...................................................................................30
5.5.6 Operation ...................................................................................................30
6 Operation...................................................................................................34
6.1 Checking zero and span...............................................................................34
6.1.1 Checking zero .............................................................................................34
6.1.2 Checking span.............................................................................................36
6.2 Zeroadjustment(versionswith0to20mAinputsignal)..................................36

Contents
EB 6116 EN
7 Maintenance ...............................................................................................37
7.1 Cleaning the restrictor ..................................................................................37
7.2 Cleaning pneumatic connections ...................................................................37
7.3 Servicing explosion-protected devices............................................................38
8 Malfunctions ...............................................................................................39
9 Decommissioning and removal ....................................................................41
9.1 Removing the i/p converters .........................................................................41
9.2 Disposal......................................................................................................41
10 Annex.........................................................................................................41
10.1 After-sales service........................................................................................41
10.2 Certicates ..................................................................................................41

EB 6116 EN 5
Safety instructions and measures
1 Safety instructions and measures
Intended use
TheType6116i/pConverterisusedtoconvertadirectcurrentinputsignalintoapneumatic
output signal for measuring and control tasks. The i/p converter is particularly suitable as an
intermediate element between electric measuring devices and pneumatic controllers or be-
tween electric control devices and pneumatic control valves.
Thedeviceisdesignedtooperateunderexactlydenedconditions(e.g.inputsignal,pres-
sure). Therefore, operators must ensure that the device is only used in operating conditions
thatmeetthespecicationsusedforsizingthedeviceattheorderingstage.Incaseoperators
intendtousethedeviceinotherapplicationsorconditionsthanspecied,contactSAMSON.
SAMSON does not assume any liability for damage resulting from the failure to use the de-
vice for its intended purpose or for damage caused by external forces or any other external
factors.
ÎRefertothetechnicaldataandnameplateforlimitsandeldsofapplicationaswellas
possible uses.
Reasonably foreseeable misuse
Thedeviceisnotsuitableforuseoutsidethelimitsdenedduringsizingandbythetechnical
data. Furthermore, the following activities do not comply with the intended use:
−Use of non-original spare parts
−Performing service and repair work not described in these instructions
Qualications of operating personnel
Thedevicemustbemounted,startedup,servicedandrepairedbyfullytrainedandqualied
personnel only; the accepted industry codes and practices are to be observed. According to
these mounting and operating instructions, trained personnel refers to individuals who are
able to judge the work they are assigned to and recognize possible hazards due to their spe-
cialized training, their knowledge and experience as well as their knowledge of the applica-
ble standards.

6 EB 6116 EN
Safety instructions and measures
Personal protective equipment
SAMSONWe recommend checking the hazards posed by the plant and the process medium
being used (e.g. uGESTIS(CLP)hazardoussubstancesdatabase).
ÎProvide protective equipment (e.g. safety gloves, eye protection) appropriate for the ma-
terial safety data sheet.
ÎCheck with the plant operator for details on further protective equipment.
Revisions and other modications
Revisions,conversionsorothermodicationsoftheproductarenotauthorizedbySAMSON.
They are performed at the user's own risk and may lead to safety hazards, for example. Fur-
thermore, the product may no longer meet the requirements for its intended use.
Warning against residual hazards
To avoid personal injury or property damage, operators and operating personnel must pre-
vent hazards that could be caused in the device by the process medium and operating pres-
sure by taking appropriate precautions. They must observe all hazard statements, warning
and caution notes in these mounting and operating instructions, especially for installation,
start-up and service work.
Responsibilities of the operator
The operator is responsible for proper operation and compliance with the safety regulations.
Operators are obliged to provide these mounting and operating instructions as well as the
referenced documents to the operating personnel and to instruct them in proper operation.
Furthermore, the operator must ensure that operating personnel or third persons are not ex-
posed to any danger.
Responsibilities of operating personnel
Operating personnel must read and understand these mounting and operating instructions as
wellasthereferenceddocumentsandobservethespeciedhazardstatements,warnings
and caution notes. Furthermore, the operating personnel must be familiar with the applicable
health, safety and accident prevention regulations and comply with them.
Referenced standards and regulations
Devices with a CE marking have an EU declaration of conformity, which includes information
about the applied conformity assessment procedure. The EU declaration of conformity is in-
cludedintheannexoftheseinstructions(seesection10.2).

EB 6116 EN 7
Safety instructions and measures
For electrical installation, observe the relevant electrotechnical regulations and the accident
preventionregulationsthatapplyinthecountryofuse.InGermany,thesearetheVDE
regulations and the accident prevention regulations of the employers’ liability insurance.
For installation in hazardous areas, observe the relevant standards that apply in the country
ofuse.StandardapplicableinGermany:EN60079-14(VDE0165,Part1)Explosive
Atmospheres–ElectricalInstallationsDesign,SelectionandErection.
ThemaximumpermissiblevaluesspeciedintheECtypeexaminationcerticatesapply
when interconnecting intrinsically safe electrical equipment (Uior U0, lior I0, Pior P0, Cior C0
andLiorL0).
Referenced documentation
The following documents apply in addition to these mounting and operating instructions:
−Safety Manual uSH6116foruseinsafety-instrumentedsystems
1.1 Notes on possible severe personal injury
DANGER
!
Risk of fatal injury due to the ignition of an explosive atmosphere.
Incorrect installation, operation or maintenance of the i/p converter in potentially explo-
sive atmospheres may lead to ignition of the atmosphere and cause death.
ÎThefollowingregulationsapplytoinstallationinhazardousareas:EN60079-14
(VDE0165,Part1).
ÎInstallation, operation or maintenance of the i/p converter must only performed by
personnel who has undergone special training or instructions or who is authorized
to work on explosion-protected devices in hazardous areas.
Loss of Exd protection due to opening the enclosure cover or damage to the cover's
thread and/or the connecting thread.
ÎTheenclosurecovermustbermlyclosedduringoperation.
ÎPut the i/p converter out of operation when its cover thread or connecting thread is
damaged. Replace it with a new device.

8 EB 6116 EN
Safety instructions and measures
1.2 Notes on possible personal injury
WARNING
!
The i/p converter poses no hazard with possible personal injury.
ÎCheck with the plant operator for details on possible personal injury which could
be caused by the plant and ambient conditions (e.g. process medium, tempera-
ture).
1.3 Notes on possible property damage
NOTICE
!
A zero shift may occur due to shocks.
Shocks can cause a zero shift which impairs the correct functioning.
ÎProtectthedeviceagainstexternalinuences(e.g.impact,shocks).
ÎCheckzero,ifnecessary(seesection6).
Risk of malfunction due to failure to comply with required air quality.
Aninsufcientairqualitymayleadtotheoutputsignalnotbeingproportionaltothe
input signal.
ÎMakesurethattheairqualitycomplieswiththerequirements(seesection3.2).
ÎChecktheairlterandseparatorinstalledintheupstreamairreducingstationreg-
ularly.

EB 6116 EN 9
Markings on the device
2 Markings on the device
2.1 Nameplate
Input
Output
Supply
SAMSON 6116
i/p Converter
Model 6116 -
Var.-ID
Serial no.
SAMSON AG D-60314 Frankfurt
See technical data for ambient temperature
Made in Germany
4
3
2
5
6
7
1 Explosion protection
specications
2 Input signal (electric)
3 Output signal (pneumatic)
4 Supply pressure
5 Model no.
6CongurationID
7 Serial number
SAMSON 6116-…
i/p Converter
Model 6116 -
Var.-ID Serial no.
SAMSON AG D-60314 Frankfurt Made in Germany
0044
Input
Output
Supply
* See technical data and
explosion-protection certificate for
permissible ambient temperature
and maximum values.
1
2
3
4
5
67
Fig.1: Nameplate examples for Type6116 i/p Converter
The Type6109 and Type6112 i/p Modules have their own nameplate which differs from the
nameplate on the i/p converter.
Location of the nameplate
Thenameplateisafxedwithgroovedpinstothesideofthei/pconverter.
Nameplate
Fig.2: Location of the nameplate
Note

10 EB 6116 EN
Markings on the device
2.2 Article code
Order no. Type6116- xxxxx x xxxxxxxx x
Explosion
protection Without 0
ATEX1)2) II2GExiaIICT6Gb 1
1/2
ATEX3) II2GExdIICT6;II2GExdIICT6/T5/T4Gb 2
CSA5)12) ClassI,GroupsB,C,D;ClassII,GroupsE,F,G;
Class III; Type 4 Enclosure
3
0 1…5 1/2 0…3
FM5)12) ClassI,II,III;Div.1,GroupsB,C,D,E,F,G;
ClassI,Div.2,GroupsB,C,D;
ClassII,Div.2,GroupsF,G;ClassIII;
Type 4X Enclosure
1 0/3
CSA1) Ex ia IIC T6; Class I, Zone 0:
ClassI,Div.1,GroupsA,B,C,D;
ClassII,Div.1,GroupsE,F,G;ClassIII;
ClassI,Div.2,GroupsA,B,C,D;
ClassII,Div.2,GroupsE,F,G;ClassIII;
Type 4 Enclosure
4
3
FM1) IS,ClassI,II,III;Div.1,GroupsA–G;
Class I, Zone 0, AEx ia IIC;
NI,ClassI,Div.2,GroupsA,B,C,D;
Type 4X Enclosure
IECEx4)6) Ex d IIC T6/T4 5
0 1/2 1 0/2
IECEx1) Ex ia IIC T6; Ex nA IIC T6 62 2
JIS4) Ex d IIC T6 7 0 1/2
i/p converter
module Type6109 4) 1
0 1 0 1 1
Type6112 2
Input 4 to 20 mA 0 1
4to12mA 1) 11)
2 0 3
12to20mA,withoutswitch-offelectronics 1) 7) 11)
2 04
0to20mA,withoutswitch-offelectronics 7)
2 0 5
4to20mA,withoutswitch-offelectronics 7) for positioner
attachment 0 6
Output 0.2to1.0bar 0 1
3to15psi 0 2
0.4to2.0bar
2 0 4
6to30psi
2 0 5
Special
ranges 8) Initialvalue0.1to0.4bar;span0.75to1.00bar
2 1 1
Initialvalue0.1to0.4bar;span1.00to1.35bar
2 1 2
Initialvalue0.1to0.4bar;span1.35to1.81bar
2 1 3
Initialvalue0.1to0.8bar;span1.81to2.44bar
2 1 4
Initialvalue0.1to0.8bar;span2.44to3.28bar
2 1 5
Initialvalue0.1to0.8bar;span3.28to4.42bar
2 1 6
Initialvalue0.1to1.2bar;span4.42to5.94bar
2 1 7
Initialvalue0.1to1.2bar;span5.94to8.00bar
2 1 8

EB 6116 EN 11
Markings on the device
Order no. Type6116- xxxxx x xxxxxxxx x
Direc-
tion of
action
Increasing/increasing 1
Increasing/decreasing 1) 2
Electrical
connection ½-14NPT 1
M20x1.5 2
Pneumatic
connection Positioner attachment (without booster) 9)
0 6 0 1 1 0 0 0
¼-18NPT 1
ISO-228/1-G¼ 2
Degree of
protection Without (vent for positioner attachment)
0 6 0 1 1 0 0 0
IP54 1
IP65 2
NEMA 4 10) 3
Output pres-
sure gauge Without 0
With 1) 1
Temperature
range Tmin≥–25°C(Type6109standard)
1 0
Tmin≥–45°C(Type6112subjectedtoroutinetest,metal
cable gland)
2 1
Tmin≥–40°C(Type6112standard)
2 2
Special ver-
sion Without 0 0 0
IECExapproval:ExdIICT6/T5/T4Gb
2 2 5 1
EAC Ex approval: on request
1/2 2 5 2
KCS approval, Korea: on request
5 2 6 2
1) Not for positioner attachment
2) WithdegreeofprotectionIP54/IP65only
3) Supply pressure max. 6 bar; output 5.6 bar
4) Only with 0.2 to 1 bar/3 to 15 psi
5) With ½ NPT electrical connection, degree of protection NEMA 4 or positioner attachment
6) With½NPTelectricalconnection,degreeofprotectionIP65orpositionerattachment
7) Without switch-off electronics and without potentiometer for zero point and span correction
8) Specifysettingrange,e.g."setto0.1to4bar";outputpressuremax.8bar.Initialvalueraisedto
max.3.0bar(specialversion)
9) Only with Ex d or explosion-proof according to CSA and FM standards
10) Only explosion-proof or intrinsically safe according to CSA and FM standards
11) 4to12mAand12to20mAinputonlyupto4.0barspan
12) Onlywith0.2to1bar(3to15psi)and0.4to2bar(6to30psi)output

12 EB 6116 EN
Design and principle of operation
TROVIS6493
Type3241-1
Type6116
Supply
air
p
e
Fig.3: Application
3 Design and principle of oper-
ation
TheType6116i/pConverterisusedtocon-
vert a direct current input signal into a pneu-
matic output signal for measuring and con-
trol tasks. The i/p converter consists of an
Type6109orType6112i/pConverter
Module and a downstream volume booster.
The input is a load-independent direct cur-
rentof4to20mAor0or20mA.Theout-
putisapneumaticsignalof0.2to1baror
othersignalrangesuptomax.8bar.
Principle of operation (see Fig.4)
When operated, the supplied direct current i
owsthroughtheplungercoil(2)locatedin
theeldofapermanentmagnet(3).Atthe
balance beam (1), the force of the plunger
coil, which is in proportion to the current, is
balanced against the force of the dynamic
backpressure pK, which is produced on the
apper(6)bytheairjetleavingthenozzle
(7).Thesupplyair(9)owstothebottom
chamber of the volume booster (8) and a
certain amount of air determined by the dia-
phragmpositionowspastthesleeve(8.5)
and leaves through the output (OUTPUT 36).
As the input current and the forces acting on
theplungercoilincrease,theapper(6)
moves closer to the nozzle (7). This causes
the backpressure and the cascade pressure
pKupstream of the restriction (8.2) to in-
crease until the cascade pressure corre-
sponds with the input current.
The increasing backpressure pushes the dia-
phragm (10) and the plug sleeve (9) down-
wards. As a result, the supply air causes the
output pressure pAto increase until a new
state of equilibrium is reached in the dia-
phragm chambers.
When the backpressure pKdrops, the dia-
phragm moves upward, releasing the plug
sleeve and thus allowing the output pressure
pAtoescapethroughtheventing(EXHAUST)
until the forces are equal again.
Switch-off electronics
Devices with an input range from 4 to
20mAhaveaslideswitchwhichactivates
theswitch-offelectronics(seeFig.5).This
function allows the input signal to be set to
0mAwhenthesignalfallsbelowtheswitch-
ingpointof4.08mA.Thiscausesthepneu-
matic output to be vented to approximately
100mbar.Thisguarantees,forexamplethe
tight shut-off function of a valve. This func-
tion requires a characteristic which passes
through the zero point, for example at an
outputsignalof0.2to1bar.

EB 6116 EN 13
Design and principle of operation
6
7
8
10
8.2
9
1
2
3
4
i
5
p
A
pK
ZERO SPAN
SUPPLY 8
EXHAUST
OUTPUT 36
GAUGE (36)
Type6109/6112
i/p Module
1Balancebeam
2 Plunger coil
3 Permanent magnet
4 Zero point and span adjusters (only in version with electronics)
5 Slide switch for switch-off electronics (only in version with electronics)
6 Flapper plate
7 Nozzle
8 Volume booster
8.2 Fixed restriction
9 Sleeve
10 Diaphragm
pAOutput pressure
pKBackpressure(cascadepressure)
Supply air
Fig.4: Functional diagram

14 EB 6116 EN
Design and principle of operation
If the characteristic line does not pass
through zero (e.g. for an allocated output
signalfrom0.8to2.7bar),thepneumatic
output is vented to a remaining pressure of
approx.0.3barwhentheswitch-offelec-
tronics are activated.
3.1 Versions
The nameplate and article code provide de-
tails on the device version (see section2).
Versions for safe areas
−Type6116-0 ...
Versions for hazardous areas
−Type6116-1...Exiacc.toATEXand
GOST(EAC)
−Type6116-2...Exdacc.toATEX,IEC
andGOST(EAC)
−Type6116-3... Explosion-proof acc. to
CSA and FM standards
−Type6116-4... Intrinsically safe accord-
ing to CSA and FM standards
−Type6116-5... Explosion Proof/IEC/
Australia/Korea
−Type6116-6... Intrinsically safe/IEC/
Australia
−Type6116-7… Exdacc.toJISstan-
dard/Japan
Note
Output0.8to2.7bar
Remainingpressureapprox.0.3bar
4 8 12 16 20 m
A
1
2
3
bar
2.7
0.3
0.8
4812 16 20 m
A
0.2
0.4
0.6
0.8
1.0
bar
Output0.2to1bar
Remaining pressure approx.
0.1bar
Fig.5: Switch-off electronics and remaining pressure

EB 6116 EN 15
Design and principle of operation
Further versions
−Type6116-x2xxxxxxxxx1… :
−Temperaturesdownto–45°C
−Type6116-0…:
−AS-interface connection with
Type6150Slave
−Voltageinput(e.g.0to10V)with
Type6151u/iModule
−Electropneumatic converter without
booster or switch-off electronics:
Converters can be combined with
SAMSON Type3760, Type3766-000
(model index .02 and higher) and
Type4765PneumaticPositioners.See
section5.5.
−Type 6116-xx060111000xxxx for
attachment to p/p positioners
(½NPTconnection)
−Type 6116-xx060112000xxxx for
attachment to p/p positioners
(M20x1.5 connection)
−Type6116-xx06011x000xxxx (for po-
sitioner attachment)
(withType6109i/pConverterModule
only)
Input: 4to20mA,othersignalson
request, internal resistance
approx.200Ωat20°C
Output: 0.2to1barforpositioner
Other data same as standard version

16 EB 6116 EN
Design and principle of operation
3.2 Technical data
No explosion protection Type6116-0
With explosion protection Types6116-1/-2/-3/-4/-5/-6/-7
Input 5) 4to20mA,othersignalsonrequest
Minimumcurrent>3.6mA,loadimpedance≤6V(correspondingto300Ωat
20mA)
Versionswithexplosionprotection:loadimpedance7V(correspondingto350Ωat
20mA)
Versions without switch-off electronics: Ri=200Ω±7.5%
Output 5) 0.2to1bar(3to15psi)(Type6109i/pConverterModule)
0.4to2bar(6to30psi)(Type6112i/pConverterModule)
Specialrangesadjustableaccordingtocustomerspecications:
Output range = Initial value 10) +Span ∆p with Type6112 i/p Module
0.1to0.4bar +0.75to1.0bar Module A
0.1to0.4bar +1.0to1.35bar ModuleB
0.1to0.4bar +1.35to1.81bar Module C
0.1to0.8bar +1.81to2.44bar Module D
0.1to0.8bar +2.44to3.28bar Module E
0.1to0.8bar +3.28to4.42bar Module F
0.1to1.2bar +4.42to5.94bar ModuleG
0.1to1.2bar +5.94to8.0bar ModuleH9)
Max. air output
capacity 3)
2.0m³/hwithanoutputof0.6bar(0.2to1.0bar)
2.5m³/hwithanoutputof1.2bar(0.4to2.0bar)
8.5m³/hwithanoutputof5.0bar(0.1to8.0bar)
Supply air Atleast0.4barabovetheuppersignalpressurerangevalue,max.10barwithout
supplypressureregulator,max.6barforExdversion
Air quality acc. to
ISO8573-1:2001
Maximum particle size and density: Class 4 · Oil content: Class 3
Pressuredewpoint:Class3oratleast10Kbelowthelowestambienttemperatureto
be expected
Air consumption 2) 0.08mn³/hat1.4bar
0.1mn³/hat2.4bar
Max.0.26mn³/hat10bar
Characteristic Characteristic: Output linear to input
Hysteresis ≤0.3%ofnalvalue
Deviation from terminal-
based conformity ≤1%ofupperrangevalue(forupperrangevaluesupto5bar);moreexactvalues on request
≤1.5%ofupperrangevalue(forupperrangevaluesabove5bar)
Effectin%oftheupper
range value
Supplyair:0.1%/0.1bar2)
Alternatingload,supplyairfailure,interruptionoftheinputcurrent:<0.3%
Ambienttemperature:lowerrangevalue<0.03%/K,span<0.03%/K

EB 6116 EN 17
Design and principle of operation
Dynamic response
Limitingfrequency 5.3Hz
Phase shift –130°
Variable position Max.3.5%dependingonattachment:±1%inhorizontalposition(Type6109)
Max.1%dependingonattachment:±0.3%inhorizontalposition(Type6112)
Ambient conditions, degree of protection, compliance and weights
Storage temperature –45to+80°C
Ambient temperature 11)
WithType6109 –30to+70°C 6);–30to+60°C1)
WithType6112 –40to+70°C 6) 7);–40to+60°C 1) 7)
Degree of protection IP54 4),IP65 8), NEMA 4
Compliance ·
Explosion protection
ATEX, IECEx, ... RefertoTable1
Materials
Enclosure Die-cast aluminum, chromated and plastic coated
Cable gland (standard) 12) Blackpolyamide(6to12mmclampingrange,–20to+80°C)
Weight
0.85kg
1) Details(includingelectricspecicationsandinstallationinstructions)insection10.2(ECtypeexaminationcerti-
cate)
2) Measured with average output pressure
3) Measuredwith2mhosewith4mminsidediameter
4) Observe recommended mounting position.
5) Seesection3.1whencombinedwithapositioner
6) Devices without explosion protection
7) Specialversionsdownto–45°Cavailableonrequest
8) Possible by using accessories
9) Themaximumpossibleoutputpressureis8bar.
10) Initialvalueraisedupto3.0bar(specialversion)
11) Metalcableglandsandventplugsarerequiredfortemperaturesbelow–20°C.
12) Devices with type of protection "Flameproof enclosure" are delivered without cable gland.
Dimensions
The dimensions for the i/p converters are included on the next pages.

18 EB 6116 EN
Design and principle of operation
Table1: Summary of explosion protection approvals
Type Certication Type of protection/comments
6116
-1
EC type exam-
inationcerticate
Number PTB02ATEX2199 II2GExiaIICT6Gb
Date 2003-03-07
On request
-2
EC type exam-
inationcerticate
Number PTB98ATEX1024X II2GExdIICT6
Date 2002-07-03
EC type exam-
inationcerticate
Number BVS14ATEXE104X II2GExdIICT6/T5/T4Gb
Date 2014-06-27
IECEx Number IECExBVS14.0066X ExdIICT6/T5/T4Gb
Date 2014-07-01
On request
-3
CSA Number 1471157 ClassI,GroupsB,C,D;
ClassII,GroupsE,F,G;ClassIII
Type 4 Enclosure
Date 2014-11-14
FM Number 1W5A4.AE ClassI,II,III;Div.1,GroupsB,C,D,E,F,G;
ClassI,Div.2,GroupsB,C,D;
ClassII,Div.2,GroupsF,G;ClassIII
Type 4X Enclosure
Date 1993-04-01
-4
CSA
Number 1607866
Ex ia IIC T6; Class I, Zone 0:
ClassI,Div.1,GroupsA,B,C,D;
ClassII,Div.1;GroupsE,F,G;ClassIII
ClassI,Div.2,GroupsA,B,C,D;
ClassII,Div.2,GroupsE,F,G;ClassIII
Type 4 Enclosure
Date 2005-09-16
FM Number 3020228 IS,ClassI,II,III,Div.1,GroupsA–G;
Class I, Zone 0, AEx ia IIC;
NI,ClassI,Div.2,GroupsA,B,C,D
Type 4X Enclosure
Date 2005-02-28

EB 6116 EN 19
Design and principle of operation
Type Certication Type of protection/comments
6116
-5
KCS Korea On request
IECEx Number IECExTSA05.0015 Ex d IIC T6/T4
Date 2005-04-22
-6
IECEx Number IECExTSA05.0008X Ex ia IIC T6; Ex nA IIC T6
Date 2005-04-04
-7
JIS
Number TC13622
Ex d IIC T6Date 2017-05-20
Valid until 2020-05-19

20 EB 6116 EN
Design and principle of operation
Wall and pipe mounting·Order no. 1400-6216
Ø40
88
127
EXHAUST(venting)
IP65
M20x1.5 or ½-14 NPT
for electrical connection
Pressure gauge
SUPPLY
OUTPUT
Wall mounting
72
118.4
OUTPUT
Cable gland
EXHAUST
(venting)IP65
75
220
Ø 2" pipe
15
OUTPUT
Clamp for attachment
to 2“ pipe
Wall
mounting
SUPPLY
Fig.6: Dimensional drawings for wall and pipe mounting
