Indoor unit Outdoor unit
MH18AP1(P2)-09
MH19AP1(P2)-07
MH19AP1(P2)-12
MH24AP1(P2)-12
MH26AP1(P2)-07
MH26AP1(P2)-12
AD18P1(P2)E09
AD19P1(P2)E07
AD19P1(P2)E12
AD24P1(P2)E12
AD26P1(P2)E07
AD26P1(P2)E12
MH18AP1(P2)X
MH19AP1(P2)X
MH24AP1(P2)X
MH26AP1(P2)X
UD18P1(P2)E2
UD19P1(P2)E2
UD24P1(P2)E2
UD26P1(P2)E3

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆Do not place any obstacles in front of the unit.
◆Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
◆Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
OTHERS
◆Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D
ISPOSING OF THE UNIT
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register

E-3
ENGLISH
Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6
■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8
◆ O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 12
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 15
■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 15
◆ P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 20
■ Operating Your Air Conditioner Without the Remote Control . . . . . 20
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
■ Cleaning Deodorizing and Bio Filters (option) . . . . . . . . . . . . . . . . 23
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

View of the Unit
E-4
◆If you want to turn on/off the display during operation,
press the button on the remote control.
◆The room temperature sensor senses air temperature
around the sensor, and shows the temperature on the
display. The
✴✴ 18/19/24 ✴✴✴ models display the room
temperature as soon as the indoor unit is operated.
◆The
✴✴ 26 ✴✴✴ model displays the room temperature
as soon as the remote control is operated. For the first
3 minutes, the set temperature is displayed and the room
temperature is displayed.
NN
NNoo oott ttee ee

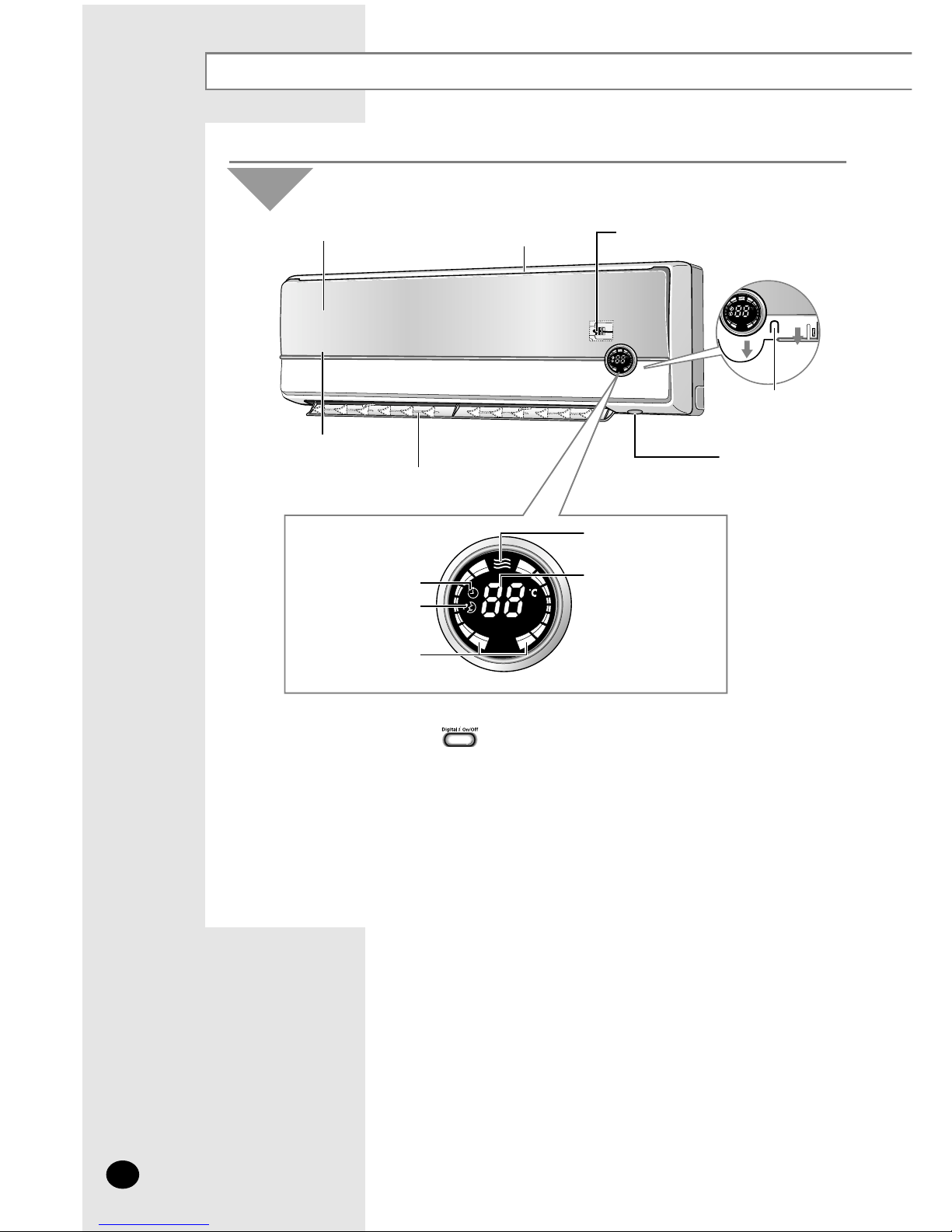

Indoor Unit
Air filter
(under the grille) Air flow blades
(outlet)
Remote Control Sensor
On/Off switch
Timer indicator
Fan speed setting
Sleep Timer indicator
Operation indicator
Set temperature &
Room temperature
Auto grille Air Inlet Room temperature sensor
The design and shape are subject to change according to the model.

E-5
ENGLISH
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
MH18AP1(P2)X MH19AP1(P2)X UD18P1(P2)E2 UD19P1(P2)E2
Air Inlet(Rear)
Air Outlet Connection Valve
Outdoor Unit UD24P1(P2)E2
Air Inlet(Rear)
Air Outlet Connection Valve
Outdoor Unit UD26P1(P2)E3
Air Inlet(Rear)
Air Outlet Connection Valve
Outdoor Unit
MH24AP1(P2)X
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
MH26AP1(P2)X

Remote Control - Buttons and Display
E-6
Operating mode
( AUTO, COOL, DRY,
FAN, HEAT)
Remote control
transmission indicator
Off Timer setting
Energy saving
Anion button
Sleep button
Energy saving button
Swing button
Timer Set/Cancel button
Temperature adjustment
buttons
Temperature setting
Air flow direction
Turbo mode
Sleep mode
On/Off button
Mode selection button
(AUTO, COOL, DRY, FAN, HEAT)
Fan speed adjustment
button
Turbo button
On Timer button
Off Timer button
Fan speed
Anion indicator
On Timer setting
Battery discharge indicator
Digital On/Off button

Getting Started
You have just purchased a multi split type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contains valuable information on using your
air conditioner. Please take the time to read it as it will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-7
ENGLISH

Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆+ on the battery with + on the remote control.
◆- on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
◆if they have not actually been used.
You must insert or replace the remote control batteries when :
◆You purchase the air conditioner
◆The remote control does not work correctly
NN
NNoo oott ttee ee
E-8

Selecting the Automatic Operating Mode
E-9
ENGLISH

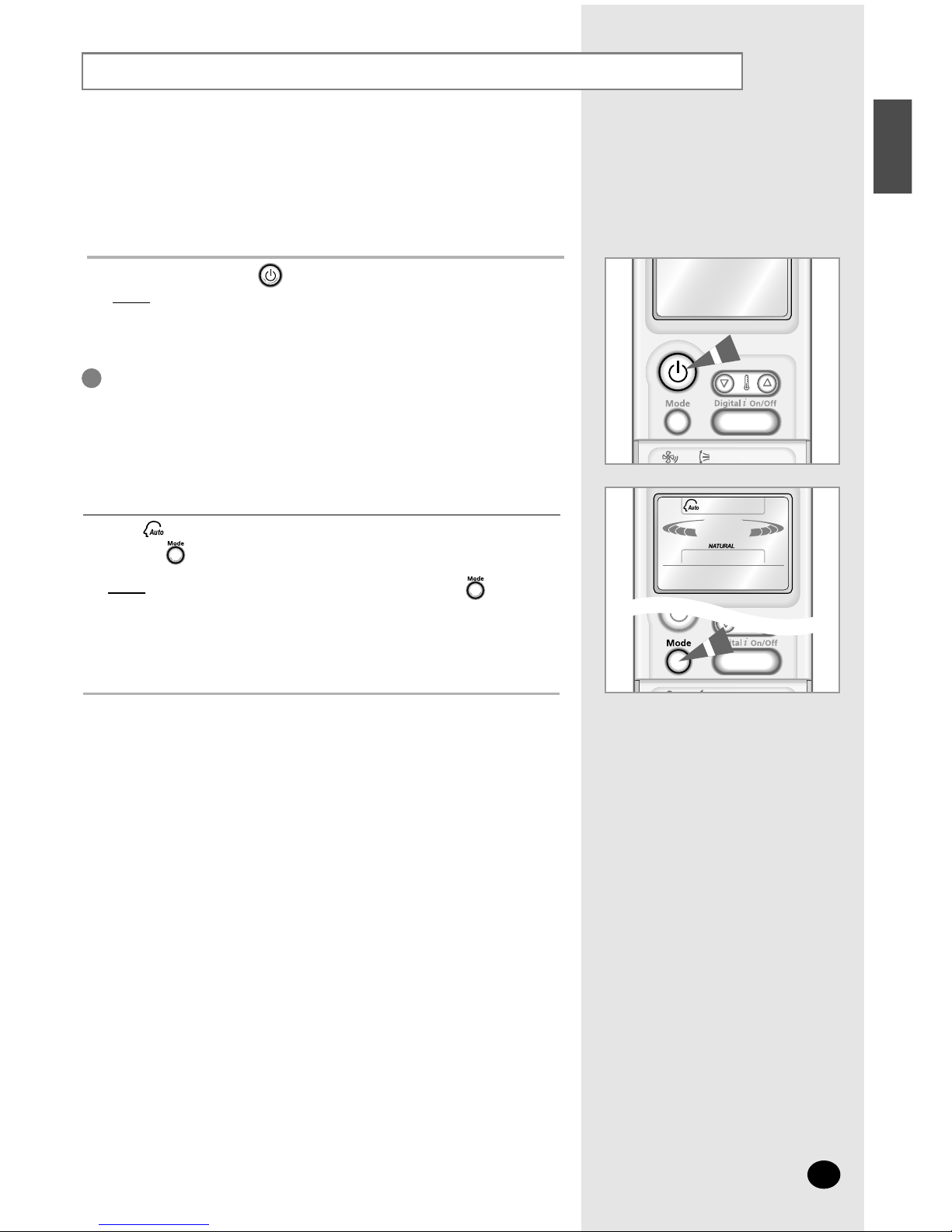

You can start the air conditioner in Automatic mode from your remote
control. In the Automatic mode, the optimum temperature and the fan
speed is selected automatically.
1
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:◆The indoor unit beeps each time you press the button.
◆The air conditioner runs in AUTO mode.
2
You can change modes at any time.
If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee

Cooling Your Room

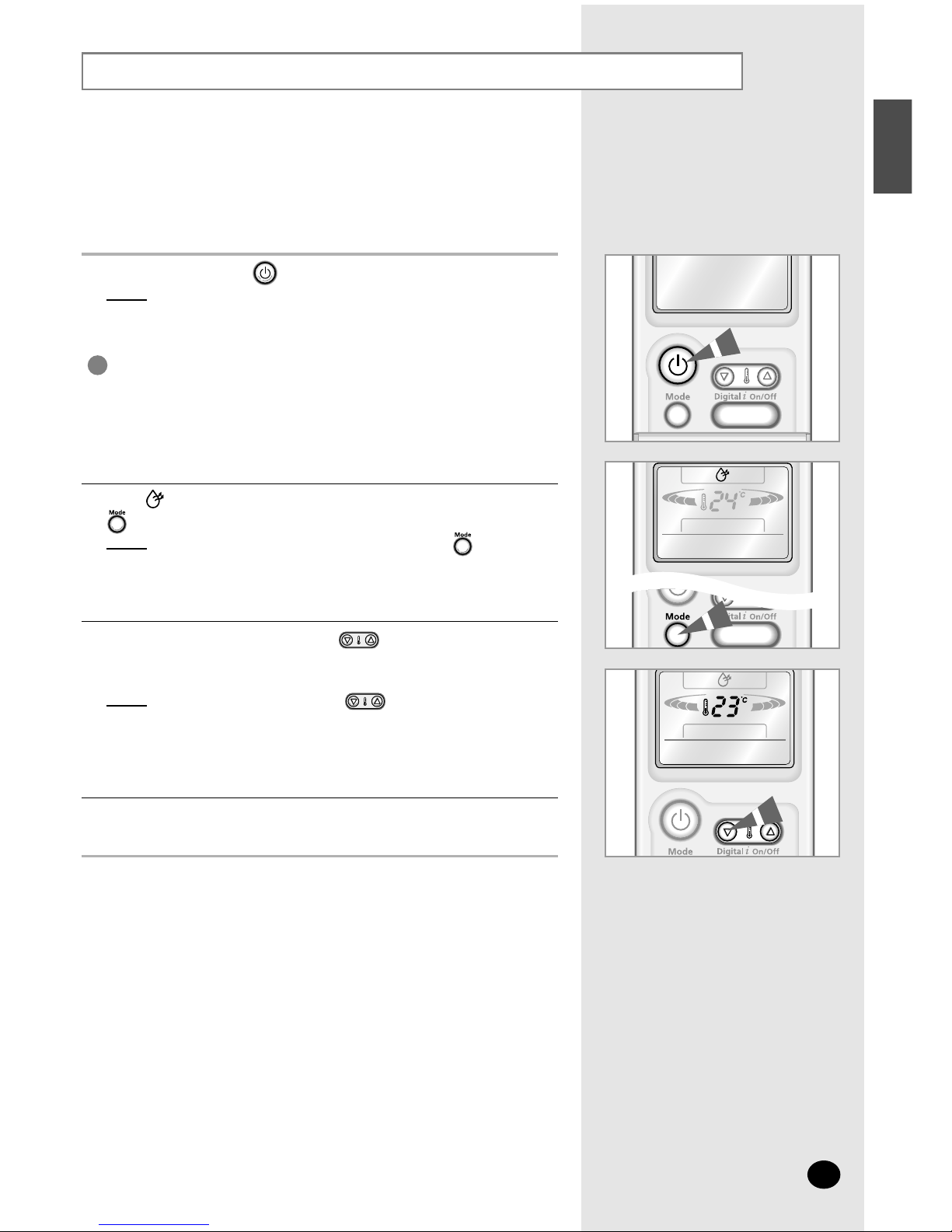

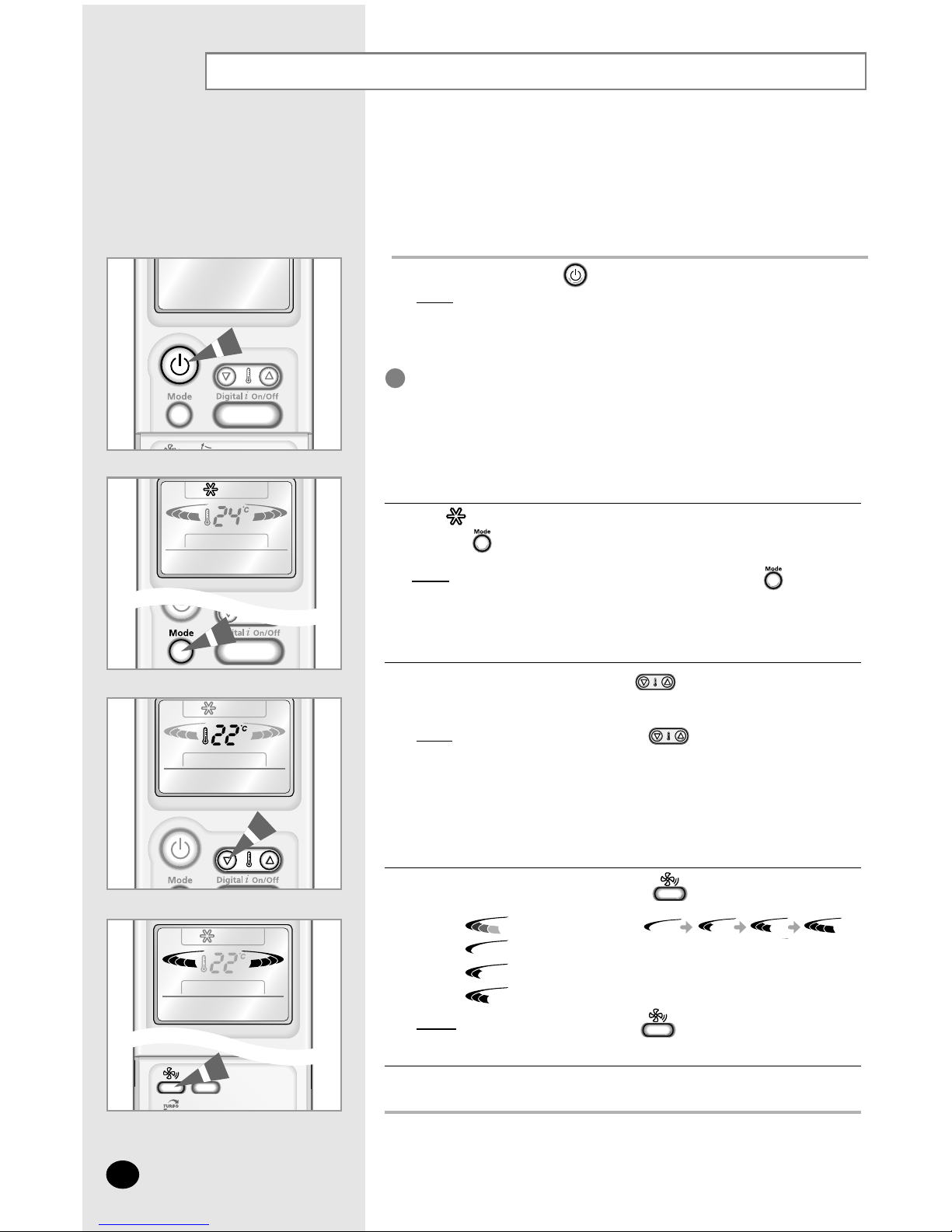

1If necessary, press the (On/Off) button.
Result: ◆ The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the COOL mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
To adjust the temperature, press the button one or more times until
the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature.
◆If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan is still operating.
3
Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result: Each time you press the button, the indoor unit
beeps.
4
To control the direction of the air flow, refer to page 15.
5
You must select the Cool mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling
E-10

Heating Your Room
E-11
ENGLISH
You must select the Heat mode if you wish to adjust the:
◆Heating temperature
◆Fan speed when heating
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the HEAT mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the button one or more times
until the required temperature is displayed.
Possible temperatures are between 16°C and 30°C inclusive.
Result:◆Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts heating, provided that the room
temperature is lower than the desired temperature
(selected temperature+3°C).
◆If the room temperature reaches the set temperature, the air
conditioner stops heating, but the fan is still operating.
4Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result:◆
Each time you press the button, the indoor unit beeps.
◆ For the first three to five minutes, the fan operates very
slowly until the air has been sufficiently warmed. Once the
correct temperature has been reached, the fan is automatically
set to the required speed.
5To control the direction of the air flow, refer to page 15.
IMPORTANT

Changing the Room Temperature Quickly
The Turbo cooling/heating function is used to cool or heat your room
as quickly as possible.
EE
EExx xxaa aamm mmpp ppll llee ee : You have just come home and find that the room is very
hot. You wish to cool it down as quickly as possible.
The Turbo function operates for 30 minutes with the maximum settings before
returning automatically to the mode and temperature previously selected.
1 If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when the unit
was last used.
◆The indoor unit beeps.
2 Press the button.
Result:◆The temperature and fan settings are adjusted automatically.
◆The air conditioner cools or heats the room as quickly as possible.
◆After 30 minutes, the air conditioner is reset automatically to the
previous mode, temperature and fan settings.
But, if you press the button in DRY or FAN mode,
it will change to AUTO mode automatically.
3 If you wish to stop the Turbo function before the end of the 30-minute period,
press the button again.
Result: The air conditioner is reset automatically to the previous mode,
temperature and fan settings.
4 To control the direction of the air flow, refer to page
15.
E-12

Removing Excess Humidity
E-13
ENGLISH
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature too
much.
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in DRY mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the button one or more times
until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to page 15.
IMPORTANT

Airing Your Room
If the atmosphere in your room is stale, you can air the room using
the Fan feature.
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
2If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in FAN mode.
◆ The temperature is set automatically.
NN
NNoo oott ttee eeYou can change modes at any time.
3Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
4To control the direction of the air flow, refer to page 15.
E-14

Adjusting the Air Flow Direction Vertically
Adjusting the Air Flow Direction Horizontally
There are two sets of inner air flow blades. Just as the outer air flow
blade can be adjusted vertically, the inner blades can be adjusted
horizontally.
1Adjust each set of inner blades to the required position, by pushing or
pulling them sideways.
Depending on the position of the indoor unit on the wall of your room,
you can adjust the position of the outer air flow blade on the bottom
of the unit, thus increasing the efficiency of the air conditioner.
1Press the button one or more times as required.
Result: The outer blade is adjusted vertically.
RECOMMENDATION When... Adjust the blade to face...
Cooling Upwards.
Heating Downwards.
2If you want the blade to move up and down automatically when the air
conditioner is operating, press the button.
Result: The blade move up and down, around the base position set.
3
To stop the blade moving up and down, press the button again.
NN
NNoo oott ttee eeIf you switch the air conditioner... Then the blade is...
Off Closed completely.
On again Set to the initial position powered.
E-15
ENGLISH

Setting the On Timer
◆If you press the button when the Off Timer is set,
the Off Timer is also cancelled.
NN
NNoo oott ttee ee
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 0.5 hour and 24
hours inclusive.
1
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature on the display
disappear after 10 seconds.
◆The air conditioner will switch on automatically when the
counter displayed on the remote control reaches the set time
and disappears the On Timer setting.
2
Press the (Set/Cancel) button.
To Cancel the On Timer
E-16
To select an operating mode in advance, press the button until the
desired mode is displayed at the top of the remote control.
Result: ◆The air conditioner will run in the selected mode when it is
turned on.
3

Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 0.5 hour and 24
hours inclusive.
1
You can see or change the setting mode and/or the temperature
by pressing the button or the button after setting the
Off Timer.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The air conditioner will switch off automatically when the
counter displayed on the remote control reaches the set time
and disappears the Off Timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
◆If you press the button when the On Timer is set,
the On Timer is also cancelled.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button.
To Cancel the Off Timer
E-17
ENGLISH

Setting the Sleep Timer
The Sleep Timer can be used when you are cooling or heating your
room to switch the air conditioner off automatically after a period of
six hours.
NN
NNoo oott ttee eeIf you wish to switch the unit off at a specific time, refer to
page 17.
1Make sure that you have selected either COOL or HEAT mode.
2Press the button.
Result:◆The indoor unit beeps.
◆The air conditioner will be controlled as indicated in the
illustrations below.
Cooling The desired temperature is
increased by 1°C every hour.
When it has been increased
by 2°C (after two hours), the
temperature is maintained for
four hours.
Heating The desired temperature is
decreased by 1°C every hour.
When it has been decreased
by 2°C (after two hours), the
temperature is maintained for
four hours.
To Cancel the Sleep Timer
If you no longer wish to use the Sleep Timer that you have set, you
can cancel it at any time.
Press the button.
Result:◆The indoor unit beeps.
◆The is no longer displayed.
◆The air conditioner operates normally.
E-18

Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
Heating performances The heat pump inside the air conditioner
absorbs heat from outside air and brings it
indoors. If the temperature of the outside air
drops, the air conditioner will heat less. If you
find that the room is not warm enough, use an
additional heating appliance.
Warm air circulation The air conditioner circulates warm air to heat
your room; as a result, some time will be
required after starting the air conditioner to
warm the entire room. If necessary, set the air
conditioner on before you wish to use the
room.
Frost When outside temperatures are low and
humidity is high, frost may form in the outdoor
unit when heating is selected.
If this happens:
◆The heating operation is stopped.
◆The Deice mode is triggered automatically
for about seven minutes.
No intervention is required from you; after
about seven minutes, the air conditioner starts
operating again normally.
High indoor and outdoor If both the indoor and outdoor temperatures
temperatures are high and you select the Heat mode, the
outdoor unit’s fan and compressor may stop at
times. This is normal; simply wait until the air
conditioner switches on again.
Power failure If a power failure occurs when the air conditioner
is operating, the unit is switched off.
When the power returns, the air conditioner starts
up again automatically.
E-19
ENGLISH

Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges within which the air conditioner can be used.
If the air conditioner is used at... Then...
High temperatures The automatic protection feature may be triggered and the air conditioner stops.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating 0°C to 24°C approx. 27°C or less -
Cooling 21°C to 43°C approx. 18°C to 32°C approx. 80% or less
Drying 18°C to 43°C approx. 18°C to 32°C approx. -
❇ If the outdoor temperature is as low as 0°C, the heating capacity drops up to 70~80% depending on
the operating condition.
If the cooling operation is used at over 33°C(indoor temperature), it does not cool at its full capacity.
Low temperatures A water leak or some other malfunction may occur if the heat exchanger freezes.
High humidity levels Water may condense on and drip from the surface of the indoor unit if it is used for long periods.
E-20

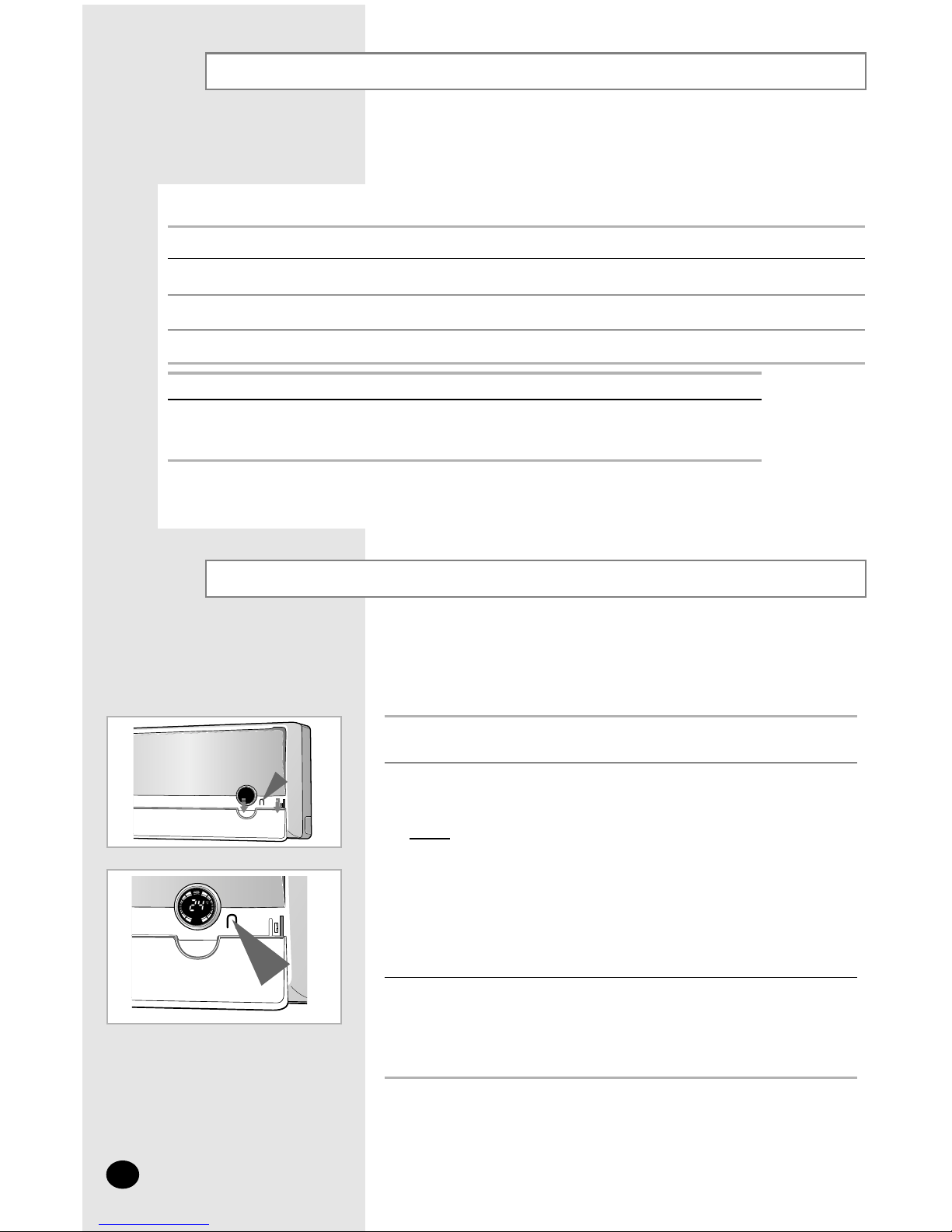

Operating Your Air Conditioner Without the Remote Control
Your air conditioner can be operated directly from the indoor unit if
the remote control is lost or broken.
1Slide the lower front grille down.
2To switch the air conditioner on, press the On/Off switch on the right
side of the indoor unit.
Result:◆The operation indicator on the indoor unit comes on.
◆The indoor unit beeps.
◆The air conditioner starts up in the most suitable mode for
the room temperature:
Room Temperature Operating Mode
Less than 21°C Heat
21°C or above Cool
3To switch the air conditioner off, press the On/Off switch again.
NN
NNoo oott ttee eeEven if the air conditioner has been switched on via the
On/Off switch, operations can still be controlled using the
remote control as usual.
