Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series
FIPS 140-2 Security Policy
Document Revision: 1.0
H.W. Version: MZILS7T6HMLS-000H9 and MZILS15THMLS-000H9
F.W. Version: 3P00

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 2 of 19
Table of Contents
Introduction..................................................................................................................................... 4
Cryptographic Boundary................................................................................................................. 4
Security Level Specification........................................................................................................... 7
Approved Algorithms ..................................................................................................................... 8
Non-Approved Algorithms ............................................................................................................. 9
Physical Ports and Logical Interfaces............................................................................................. 9
Identification and Authentication Policy...................................................................................... 12
Access Control Policy................................................................................................................... 14
Unauthenticated Services.............................................................................................................. 17
Physical Security Policy ............................................................................................................... 18
Mitigation of Other Attacks Policy............................................................................................... 19

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 3 of 19
Revision History
Author(s)
Version
Updates
SeungJae Lee
1.0
Initial Version

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 4 of 19
Introduction
Samsung Electronics Co., Ltd. (“Samsung”) SAS 12G TCG Enterprise SSC SEDs
PM1633a Series, herein after referred to as a “cryptographic module” or “module”,
SSD (Solid State Drive), satisfies all applicable FIPS 140-2 Security Level 2
requirements, supporting TCG Enterprise SSC based SED (Self-Encrypting Drive)
features, designed to protect unauthorized access to the user data stored in its
NAND Flash memories. The built-in AES HW engines in the cryptographic
module’s controller provide on-the-fly encryption and decryption of the user data
without performance loss. The SED’s nature also provides instantaneous
sanitization of the user data via cryptographic erase.
Module Name
Hardware Version
Firmware
Version
Drive
Capacity
Samsung SAS 12G TCG Enterprise
SSC SED PM1633a
MZILS7T6HMLS-000H9
3P00
7.6TB
MZILS15THMLS-000H9
3P00
15.2TB
Exhibit 1 –Versions of Samsung SAS 12G TCG Enterprise SSC SED PM1633a
Series.
Cryptographic Boundary
The following photographs show the cryptographic module’s top and bottom views.
The multiple-chip standalone cryptographic module consists of hardware and
firmware components that are all enclosed in two aluminum alloy cases, which
serve as the cryptographic boundary of the module. The top and bottom cases are
assembled by screws and the tamper-evident labels are applied for the detection of
any opening of the cases. No security relevant component can be seen within the
visible spectrum through the opaque enclosure.
New firmware versions within the scope of this validation must be validated
through the FIPS 140-2 CMVP. Any other firmware loaded into this module is out
of the scope of this validation and requires a separate FIPS 140-2 validation.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 5 of 19
Exhibit 2 –Specification of the Samsung SAS 12G TCG Enterprise SSC SEDs
PM1633a Series Cryptographic Boundary (From top to bottom –Left to right:
top side, bottom side, front side, back side, left side, and right side).

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 6 of 19

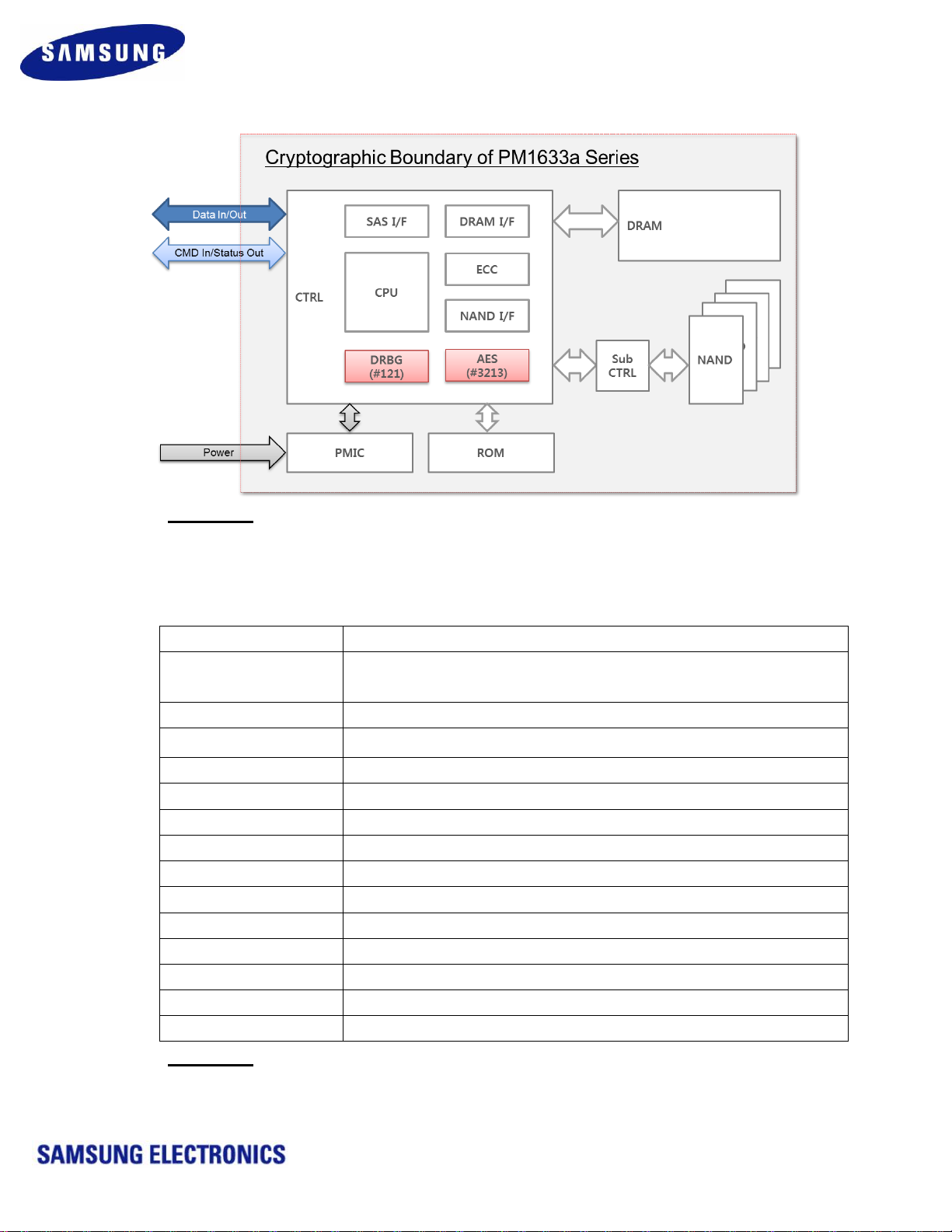

Exhibit 3 –Block Diagram for Samsung SAS 12G TCG Enterprise SSC
SEDs PM1633a Series.
Acronym
Acronym
Description
CTRL
REX Controller (SAMSUNG TREX SAS 12G
TLC/MLC SSD Controller)
Sub-CTRL
Falconet Controller (SAMSUNG Sub-Controller)
SAS I/F
Serial Attached SCSI Interface
CPU
Central Processing Unit (ARM-based)
DRAM I/F
Dynamic Random Access Memory Interface
ECC
Error Correcting Code
NAND I/F
NAND Flash Interface
PMIC
Power Management Integrated Circuit
ROM
Read-only Memory
DRAM
Dynamic Random Access Memory
NAND
NAND Flash Memory
LBA
Logical Block Address
MEK
Media Encryption Key
MSID
Manufactured SID(Security Identifier)
Exhibit 4 –Acronym and Descriptions for Samsung SAS 12G TCG
Enterprise SSC SEDs PM1633a Series.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 7 of 19
Security Level Specification
Security Requirements Area
Level
Cryptographic Module Specification
2
Cryptographic Module Ports and Interfaces
2
Roles, Services, and Authentication
2
Finite State Model
2
Physical Security
2
Operational Environment
N/A
Cryptographic Key Management
2
EMI/EMC
3
Self-tests
2
Design Assurance
2
Mitigation of Other Attacks
N/A
Exhibit 5 –Security Level Table.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 8 of 19
Approved Algorithms
The cryptographic module supports the following Approved algorithms for secure
data storage:
CAVP
Cert.
Algorithm
Standard
Mode /
Method
Key Lengths,
Curves or Moduli
Use
617
AES
FIPS 197
SP 800-38A
ECB
256-bit
Data Encryption /
Decryption
Note: AES-ECB is
only utilized as the
pre-requisite for
DRBG #121; no
other modes or key
sizes are used and it
is not otherwise
exposed in this
implementation
whatsoever.
3213
AES
FIPS 197
SP 800-38E
XTS
256-bit
Data Encryption /
Decryption
Note: AES-ECB is
the pre-requisite for
AES-XTS; AES-ECB
alone is NOT
supported by the
cryptographic
module in FIPS
Mode.
121
DRBG
SP 800-90A
Revision 1
CTR_ DRBG
AES-256
Deterministic
Random Bit
Generation
932
ECDSA
FIPS 186-4
SigVer
P-224
Digital Signature
Verification
3382
SHS
FIPS 180-4
SHA-256
Message Digest
Exhibit 6 -Samsung SAS 12G TCG Enterprise SSC SED PM1633a Series
Approved Algorithms.
NOTE 1: The cryptographic module implements LSI Corporation’s LSI-CS
DRBG in its original entirety without alteration. (I.e. there have been no
changes to the cryptographic algorithm boundary whatsoever). Testing was
carried out by LSI in a Synopsys VCS simulation environment; additional
algorithm validation testing in not required as per FIPS 140-2 IG G.11
NOTE 2: This module supports AES-XTS which is only approved for
storage applications.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 9 of 19
NOTE 3: The additional 128 and 192 bit AES in the DRBG #121 is latent
functionality and is not utilized in the Samsung PM1633a cryptographic
module whatsoever.
Non-Approved Algorithms
The cryptographic module supports the following non-Approved but allowed
algorithms:
Algorithm
Caveat
Use
NDRNG
Non-deterministic Random Number Generator (only
used for generating seed materials for the Approved
DRBG)
Exhibit 7 -Samsung SAS 12G TCG Enterprise SSC SED PM1633a Series non-
Approved but allowed algorithms.
Physical Ports and Logical Interfaces
Physical Port
Logical Interface
SAS Connector
Data Input/Output
Control Input
Status Output
Power Connector
Power Input
Exhibit 8 –Specification of the Samsung SAS 12G TCG Enterprise SSC SED
PM1633a Series Cryptographic Module Physical Ports and Logical Interfaces.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 10 of 19
Security rules
The following specifies the security rules under which the cryptographic module
shall operate in accordance with FIPS 140-2:
The cryptographic module operates always in FIPS Mode once shipped from
the vendor's manufacturing site.
The steps necessary for the secure installation, initialization and start-up of
the cryptographic module as per FIPS 140-2 VE10.03.01 are as follows:
oStep1. User should examine the tamper evidence
Inspect the entire perimeter for cracks, gouges, lack of screw(s)
and other signs of tampering including the tamper evident
sealing label.
If there is any sign of tampering, do not use the product and
contact Samsung.
oStep2. Identify the firmware version in the device
Confirm that the firmware version is equivalent to the version(s)
listed in this document via SCSI Inquiry command
oStep3. Take the drive’s ownership
Change SID’s PIN by setting a new PIN
Change EraseMaster’s PIN by setting a new PIN
Erase Method on each LBA Range to rekey the encryption key
Change BandMaster0~7’s PIN by setting new PINs
Configure the LBA Range(s) by setting ReadLockEnabled and
WriteLockEnabled columns to True
Don’t change LockOnReset column in Locking Table so that
the drive always gets locked after a power cycle
oStep4. Configure FW download and Diagnostic features
Disable Makers Class using SID Authority to disable FW
download and Diagnostic features
Enable Makers Class only when FW download and Diagnostic
features are needed
oStep5. Periodically examine the tamper evidence
If there is any sign of tampering, stop using the product to avoid
a potential security hazard or information leakage.
The cryptographic module shall maintain logical separation of data input,
data output, control input, status output, and power.
The cryptographic module shall not output CSPs in any form.
The cryptographic module shall use the Approved DRBG for generating all
cryptographic keys.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 11 of 19
The cryptographic module shall enforce role-based authentication for
security relevant services.
The cryptographic module shall enforce a limited operational environment
by the secure firmware load test using ECDSA P-224 with SHA-256.
The cryptographic module shall provide a production-grade, opaque, and
tamper-evident cryptographic boundary.
The cryptographic module enters the error state upon failure of Self-tests.
All commands from the Host (General Purpose Computer (GPC) outside the
cryptographic boundary) are rejected in the error state and the cryptographic
module returns an error code (0x91) via the status output. Cryptographic
services and data output are explicitly inhibited when in the error state.
The cryptographic module satisfies the requirements of FIPS 140-2 IG A.9
(i.e. key_1 ≠key_2)
The module generates at a minimum 256 bits of entropy for use in key
generation.
Power-on Self-tests
Algorithm
Test
AES
Encrypt KAT and Decrypt KAT for AES-256-XTS at power-on
SHS
KAT for SHA-256 at power-on
DRBG
KAT for CTR_DRBG at power-on
ECDSA
KAT for ECDSA P-224 SHA-256 signature verification at
power-on
Exhibit 9 –Power-on Self-tests.
F/W integrity check
oF/W integrity check is performed by using 212 bit error detection
code at power-on
Conditional Self-test
oPairwise consistency: N/A
oBypass Test: N/A
oManual key entry test: N/A
oF/W load test
F/W load test is performed by using ECDSA algorithm with P-
224 and SHA-256
oContinuous random number generator test on Approved DRBG
oContinuous random number generator test on NDRNG

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 12 of 19
Identification and Authentication Policy
The following table defines the roles, type of authentication, and associated
authenticated data types supported by the cryptographic module:
Role
Authentication Data
CO Role
Password
User Role
Password
FW Loader
ECDSA
Exhibit 10 - Roles and Required Identification and Authentication
(FIPS 140-2 Table C1).
The authentication mechanism allows 6-byte length or longer Password, where
each byte can be any of 0x00 to 0xFF, for every Cryptographic Officer and User
role supported by the module, which means a single random attempt can succeed
with the probability of 1/248 or lower.
Each authentication attempt takes at least 133ms and the number of attempts is
limited to TryLimit, which is set to 5 in manufacturing time. Since the module
takes at least 8 seconds to be ready after power-on and 5 authentication failures
require a power-cycle, it takes 8665ms for every 5th authentication attempt.
Therefore, the probability of multiple random attempts to succeed in one minute is
35 / 248, which is much less than the FIPS 140-2 requirement 1/100,000.
The authentication mechanism for FW Loader role is ECDSA P-224 with SHA256
digital signature verification, which means a single random attempt, can succeed
with the probability of 1/2112.
Each authentication attempt takes at least 2 seconds, which enforces the maximum
number of attempts to be no more than (60*1000)/2000 in one minute. Therefore,
the probability of multiple random attempts to succeed in one minute is
{(60*1000)/2000}/2112, which is much less than the FIPS 140-2 requirement
1/100,000.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 13 of 19
Authentication Mechanism
Strength of Mechanism
Password (Min: 6 bytes, Max:
32 bytes) Authentication
-Probability of 1/248 in a single
random attempt
-Probability of 35/248 in multiple
random attempts in a minute
ECDSA Signature Verification
-Probability of 1/2112 in a single
random attempt
-Probability of {(60*1000)/2000}/2112
in multiple random attempts in a
minute
Exhibit 11 - Strengths of Authentication Mechanisms
(FIPS 140-2 Table C2).

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 14 of 19
Access Control Policy
The cryptographic module contains the following Keys and CSPs:
CSPs
Generation, Storage and Zeroization Methods
DRBG Internal State
Note: The values of V
and Key are the
“secret values” of the
internal state.
Generation: via SP800-90A CTR_DRBG
Storage: N/A
Zeroization: via “Initialization” service and “Zeroize”
service
DRBG Seed
Generation: via NDRNG
Storage: N/A
Zeroization: via “Initialization” service and “Zeroize”
service
DRBG Entropy Input
String
Generation: via NDRNG
Storage: N/A
Zeroization: via “Initialization” service and “Zeroize”
service
CO Password
Generation: N/A
Storage: Plaintext in DRAM and Flash
Zeroization: via “Initialization” service and “Zeroize”
service
User Password
Generation: N/A
Storage: Plaintext in DRAM and Flash
Zeroization: via “Initialization” service, “Erase an LBA
Range’s Password/MEK” service and “Zeroize” service
MEK
Generation: via SP800-90A CTR_DRBG
Key Type : AES-XTS 256
Storage: Plaintext in Flash
Zeroization: via “Initialization” service, “Erase an LBA
Range’s Password/MEK” service and “Zeroize” service
Exhibit 12 –CSPs and details on Generation, Storage and Zeroization Methods.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 15 of 19
The cryptographic module contains the following Public Key:
Public Keys
Generation, Storage and Zeroization Methods
FW Verification Key
(ECDSA Public Key)
Generation: N/A
Storage: Plaintext in Flash
Zeroization: N/A
Exhibit 13 –Public Keys and details on Generation, Storage and Zeroization
Methods

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 16 of 19
The following table lists roles, services, cryptographic keys, CSPs and Public Keys
and the types of access that are available to each of the authorized roles via the
corresponding services:
Role
Service
Cryptographic Keys,
CSPs and Public Keys
Type(s) of Access
(R=Read, W=Write,
G=Generate, Z=Zeroize)
Cryptographic
Officer
Initialization
DRBG Internal State
DRBG Seed
DRBG Entropy Input String
CO Password
MEK
Z, G, R
Z, G, R
Z, G, R
Z, W
Z, G
Enable/Disable FW
Download Service
N/A
N/A
Drive Extended Status
N/A
N/A
Erase an LBA Range’s
Password/MEK
DRBG Internal State
DRBG Seed
DRBG Entropy Input String
MEK
User Password
Z, G, R
Z, G, R
Z, G, R
Z, G
Z, W
Zeroize
DRBG Internal State
DRBG Seed
DRBG Entropy Input String
CO Password
User Password
MEK
Z
Z
Z
Z
Z
Z
User
Unlock an LBA Range
MEK
R
User Password
R
Set User Password
User Password
W
Lock an LBA Range
MEK
Z
Configure an LBA
Range
N/A
N/A
Write Data
MEK
R
Read Data
MEK
R
FW Loader
Update the firmware
FW Verification Key
R
Exhibit 14 –Services Authorized for Roles, Access Rights within Services (FIPS
140-2 Table C3, Table C4).

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 17 of 19
Unauthenticated Services
The following table lists the unauthenticated services:
Role
Unauthenticated
Service
Cryptographic Keys &
CSPs
Type(s) of
Access
(R=Read,
Z=Zeroize,
G=Generate)
Cryptographic Officer,
User and FW Loader
Zeroize
DRBG Internal State
DRBG Seed
DRBG Entropy Input String
Password
MEK
Z
Z
Z
Z
Z
Cryptographic Officer,
User and FW Loader
Get Random Number
DRBG Internal State
DRBG Seed
DRBG Entropy Input String
Z, G, R
Z, G, R
Z, G, R
Cryptographic Officer,
User and FW Loader
Get MSID
N/A
N/A
Cryptographic Officer,
User and FW Loader
Show Status
N/A
N/A
Cryptographic Officer,
User and FW Loader
Self-test
N/A
N/A
Exhibit 15 –Unauthenticated Service, Cryptographic Keys & CSPs and Type(s)
of Access.

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 18 of 19
Physical Security Policy
The following physical security mechanisms are implemented in a cryptographic
module:
The Module consists of production-grade components enclosed in an
aluminum alloy enclosure, which is opaque within the visible spectrum.
The top panel of the enclosure can be removed by unscrewing screws.
However, the module is sealed with tamper-evident labels in accordance
with FIPS 140-2 Level 2 Physical Security requirements so that
tampering is easily detected when the top and bottom cases are detached.
2 tamper-evident labels are applied over both top and bottom cases of
the module at the factory. The tamper-evident labels are not removed
and reapplied without tamper evidence.
The following table summarizes the actions required by the Cryptographic Officer
Role to ensure that physical security is maintained:
Physical Security
Mechanisms
Recommended
Frequency of
Inspection/Test
Inspection/Test Guidance Details
Production grade
cases
As often as feasible
Inspect the entire perimeter for cracks,
gouges, lack of screw(s) and other signs of
tampering. Remove from service if
tampering found.
Tamper-evident
Sealing Labels
Inspect the sealing labels for scratches,
gouges, cuts and other signs of tampering.
Remove from service if tampering found.
Exhibit 16 - Inspection/Testing of Physical Security Mechanisms
(FIPS 140-2 Table C5)

Samsung SAS 12G TCG Enterprise SSC SEDs PM1633a Series Security Policy
This non-proprietary Security Policy may only be copied in its entirety without alterations including this statement. Samsung copyright 2016.
Page 19 of 19
Exhibit 17 –Signs of Tamper
Mitigation of Other Attacks Policy
The cryptographic module has not been designed to mitigate any specific attacks
beyond the scope of FIPS 140-2.
Other
Attacks
Mitigation
Mechanism
Specific
Limitations
N/A
N/A
N/A
Exhibit 18 - Mitigation of Other Attacks (FIPS 140-2 Table C6)
