Samsung YP-U2J User manual

YP-U2J

2
For Your Safety
Read this manual carefully to ensure proper use of the product
and to avoid any danger or physical damage.
Failing to heed the product instructions may cause serious injury.
WARNING
Product Use
Improper use can result in explosion,
fire or electric shock.
Do not disassemble, repair
or modify this product on
your own.
Do not get the product wet
or drop it in water.
If the product gets wet, do not
switch it on. Contact a Service
Center.
Do not place the product in
damp, dusty or sooty
areas, as it could result in
fire or electric shock.
Do not leave the product in
areas above 35°C(95°F)
(such as a sauna or inside
a parked car).
During the summer the
temperature inside a car may
rise up to 80°C(176°F).
To avoid hearing damage
Using the earphone or headphone for an extended
time can cause serious damage to your hearing.
If you are exposed to sound louder than 85db for an extended
time, you may adversely affect your hearing.
The louder the sound is, the more seriously damaged your
hearing may be (an ordinary conversation is 50 to 60 db and
the noise level on a busy road is approximately 80 db).
You are strongly advised to set the volume level to medium
(the medium level is usually less than 2/3 of the maximum).
If you feel a ringing in the ear(s), lower the volume
or stop using the earphone or headphone.
To avoid a risk of traffic accident
Do not use the earphone while you are driving a
automobile or motorcycle, or riding a bicycle, as it
can cause a serious accident and, furthermore, is
prohibited by law in some areas.
Using the earphone while walking on a road, in
particular, on the crosswalk can lead to a serious accident.
For your safety,make sure the earphone cable does
not get in the way of your arm or other surrounding
objects while you are exercising or a walking.

3
Avoid malfunction
Prevent any foreign
particles or dust from
entering into the product.
Do not cause excessive
impact on the product by
dropping it. Do not place
heavy objects on top of the
product.
Do not spray water on the
product. Never clean the
product with chemical
substances such as
benzene or thinner, as it may
cause fire, electric shock or
deteriorate the surface.
Do not place the product
near magnetic objects, as it
may cause a malfunction.
Failure to follow all instructions may lead to physical injuries or damage to the product.
CAUTION
Product Use
Take care to avoid product malfunc-
tion and physical damage.
When wearing the
product around your neck,
take care not to exert
excessive force on the
neck string.
Management of Important Data
Be sure to backup
important data.
Please be aware that we claim no
responsibility for damage from data
loss due to breakdown, repair or
other causes.
Be careful when using the player
with the USB cover removed.
The USB connector is sharp and
may cause injury.

4
Contents
Chapter 1. Preparation
Checking the Product and
Accessories .................................................7
Checking the Accessories ...........................7
Components ................................................8
Screen Display Information .......................10
Button Functions .......................................11
Charging the battery ...............................12
Basic Use ...................................................13
Chapter 2. Importing Music Files
Importing Music Files..............................18
Connecting to your PC..............................18
Installing Windows Media Player10...........19
Transferring Music to your Player .............20
Chapter 3. Listening to Music/FM Radio
Listening to Music....................................23
Listening to Music......................................23
Transferring Playlists from WMP10...........26
To Play a Playlist.......................................28
To Play a Favorite......................................29
User Button Custom Function...................31
Listening to FM Radio .............................34
Listening to FM Radio ...............................34
Searching for Frequencies ........................35
Setting a Frequency ..................................36
To Delete Presets......................................39
Setting FM Radio.......................................40
Recording...................................................42
Voice Recording ........................................42
Safety Precautions ....................................2
Contents ......................................................4

5
Chapter 4. Settings
Settings.......................................................44
Setting Music.............................................44
Setting Time...............................................46
Setting the Display.....................................47
Setting Language ......................................48
Setting the system.....................................49
Chapter 5. Troubleshooting
System Reset.............................................52
To Upgrade Firmware ..............................53
Troubleshooting........................................55
Chapter 6. Appendix
Menu Tree...................................................58
Product Specifications............................59
License........................................................60
Safety Information....................................62
Warranty .....................................................64

Chapter 1. Preparation
Checking the Product and
Accessories .................................................7
Checking the Accessories ...........................7
Components ................................................8
Screen Display Information .......................10
Button Functions .......................................11
Charging the battery ...............................12
Basic Use ...................................................13

7
Chapter 1. Preparation
Checking the Product and Accessories
Checking the Product and Accessories
Checking the Accessories
The following diagrams are a guide and
may differ slightly from the actual product
appearance.
Player Earphones Installation CD
■ Design of accessories is subject to change for the purpose of improvement, without notice.

8
Checking the Product and Accessories
Components
Neck String Hole
USB Cover
USB Connection Plug
LED Lighting
Screen Display
Move Track/Quick Search Button
MENU/Select Button Volume Control Button
User/Recording Button
Power & Play/Pause Button
Front, Right Side and Top

9
Chapter 1. Preparation
Checking the Product and Accessories
Bottom
Hold Switch
Reset Button
Microphone
Earphone Connection Port
Earphone Connection
√ Left Side
Earphones

10
Checking the Product and Accessories
Screen Display Information
Music
1
Play/Pause/Stop indicator
2
Current Music Number/
Total Number indicator
6
Music Title indicator
3
Sound Mode indicator
4
Repeat Play indicator
7
Play Status Bar
8
Play Time indicator
5
Battery indicator
1
FM Reception Indicator
2
Channel Number Indicator
3
Mono/Stereo & MUTE Indicator
4
Frequency Indicator
5
Frequency Location Indicator
FM Radio

11
Chapter 1. Preparation Checking the Product and Accessories
Checking the Product and Accessories
Button Functions
Buttons Functions and Use
■ Long press for power on & off.
■ Short press for play/pause.
■ Long press to start voice recording.
■ Short press to use user setting functions –Repeat AB/DNSe
/Play Speed/Play Mode
■ Long press to quickly scan tracks.
■ Short press to move to the previous track or play the current track
from the beginning.
■ Long press to quickly scan tracks.
■ Short press to move to next track.
■ Push in the direction of the arrow to lock the button functions.
■ Long press to move to the menu screen.
■ Short press to move to the navigation list.
■ Press with a pointed object to reset.
■ Short press to increase the volume or move to an upper item/menu.
■ Short press to reduce the volume or move to a lower item/menu.

12
Charging the battery
Fully charge the battery before using the player for the first
time or when it has not been used for a while.
Screen Display
■ Charging...
■ Fully Charged
Remove the USB Cover and then connect the USB Connection Plug to the USB port
( ) on your PC.
■It takes about two and a half hours for a full charge although this may vary depending on the PC
environment.
Battery Use
■ Recharge and store within the temperature range of 5 °C ~35 °C( 40 °F ~95 °F ).
■ Do not overcharge (longer than 12 hours). Excessive charging or discharging may shorten the battery’s life.
■ Battery life naturally shortens slowly over time as it is a consumable item.
■ The USB connection may be unstable if you are using a USB hub. Directly connect to the USB port on your PC.
■ For stable charging, run WMP10 after connecting to your PC.

13
Chapter 1. Preparation Charging the battery/Basic Use
Basic Use
Press and hold the [ ] button to move to the menu
screen.
Turning the Power On & Off
Turning the Power On
Press and hold the [ ] button.
■Power is turned on.
Turning the Power Off
Press and hold the [ ] button.
■Power is turned off.
Playing Music
1
Press the [ ] button.
■Music starts to play.
3
2
Press the [ + , - ] button to select <Music> .
■ Power is automatically turned off when none of the buttons have been pressed for a preset
period of time (Default: 10 seconds) in the pause mode.
√ Page 46
NOTE

14
Basic Use (Continued)
Volume Control
Press the [ + , - ] button on the front of the player.
■The Volume Status Bar will appear.
■Press the [ + ] button to increase the volume or the [ –]
button to decrease it.
Lock Function
In Hold mode, all buttons are disabled. This function is
useful when you are walking or jogging.
1
Push the [HOLD] switch on the player in the
direction of the arrow.
2
Push the [HOLD] switch in the opposite direction
of the arrow to release the Lock function.

15
Chapter 1. Preparation Basic Use
Searching for Files with <Navigation>
Search easily for files using the <Navigation> function.
5
Use the [ √√ I] button to move to the file list in the
selected folder.
■ Use the [ √√ I ] button to move to the lower level, the [ lœœ ]
button to the upper level.
4
Press the [
+
, - ] button to select a folder of your choice.
7
Press the [ ] button.
■ The selected file will start playing.
Press and hold the [ ] button to move to the menu
screen.
1
Press the [ ] button.
■ The <Navigation> folder list will appear.
3
Press the [
+
, - ] button to select a file of your choice.
6
2
Press the [
+
, - ] button to select <Navigation> .
Navigation Menu
■ <Track> : Allows you to see
the list of all files.
■ <Artist> : To play by artist
■ <Album> : To play by album
■ <Genre> : To play by genre
■ <Playlist> : Allows you to
listen to the playlist
transferred to WMP10.
■ <Favorite> : Allows you to
listen to your favorite music
by adding it to <Favorite>.
■ <Recorded> : Allows you to
listen to the voice recording.
■ A file without an ID3 Tag (music information) is displayed as [Unknown].
NOTE

16
Basic Use (Continued)
Reset Function
If a product malfunction occurs, you can
re-initialize the system by pressing the Reset
button.
√ Page 52
Reset Button

Chapter 2. Importing Music Files
Importing Music Files..............................18
Connecting to your PC..............................18
Installing Windows Media Player10...........19
Transferring Music to your Player .............20

18
Remove the USB Cover then connect the USB Connection Plug to the USB port ( )
on your PC.
■All functions are disabled during connection.
Connecting to your PC
Importing Music Files
PC Requirements
■ Pentium 300MHz or higher
■ Windows XP Service Pack 1 or higher
■ 100MB of free hard disc space
■ CD Rom Drive (2X or higher)
■ USB Port 2.0
■ DirectX 9.0 or higher
■ Windows Media Player 10.0 or higher
For use in conjunction with a PC, the following is required:

Chapter 2. Importing Music Files
19
Connecting to your PC/ Installing Windows Media Player10
Installing Windows Media Player10
Importing Music Files
You cannot transfer files to the player when Windows Media Player 10 is not
installed on your PC.

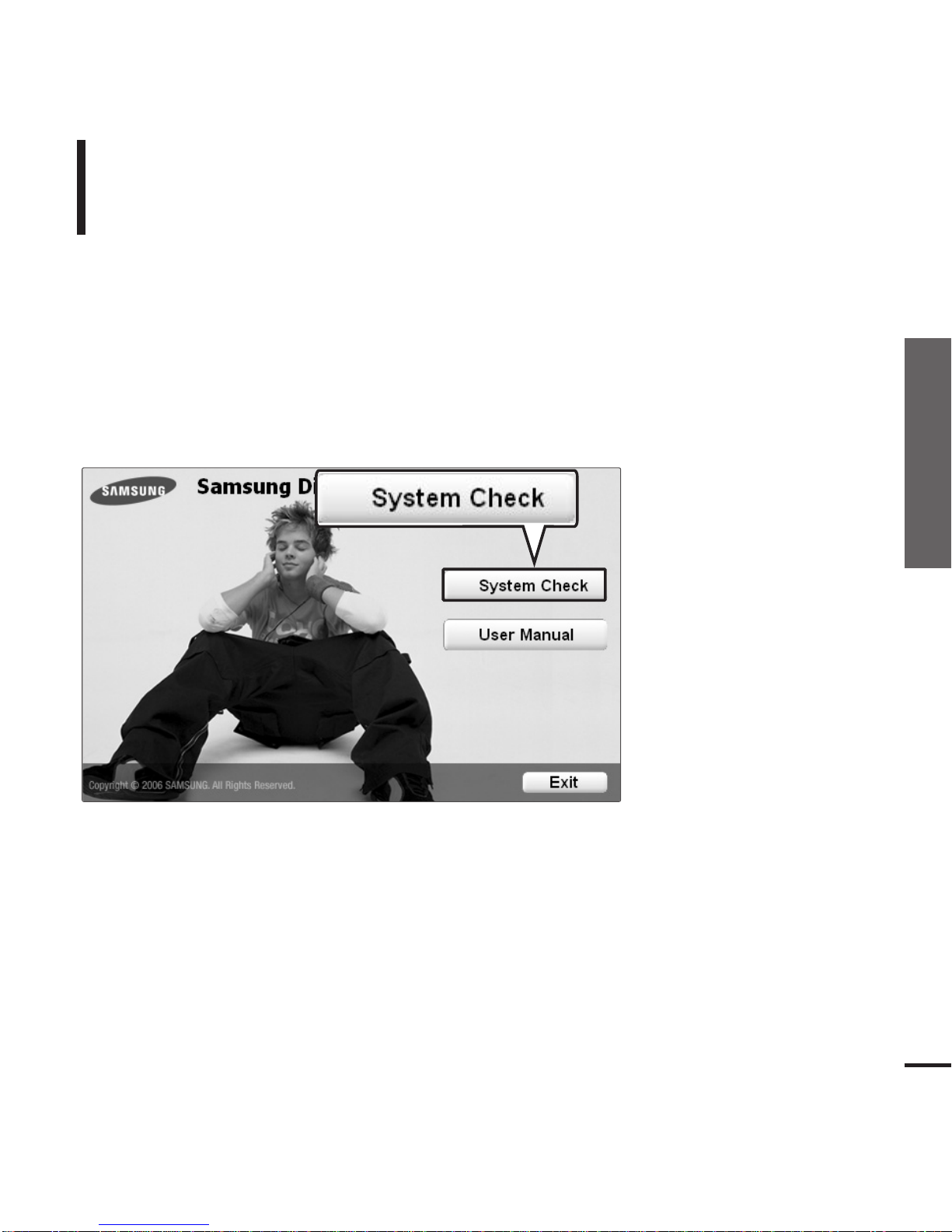

■ To install Windows Media Player 10 on your PC, insert the installation CD into the CD-ROM drive
of your PC and select the [System Check].

20
Transferring Music to your Player
Importing Music Files
1
Connect the player to your PC.
2
Run Windows Media Player10.
■ Select [Start] → [Programs] → [Windows Media Player] on
the Desktop.
You can download MP3,WMA and secure WMA files using Windows Media Player 10.
The files downloaded from WMP10 to the player, will be automatically saved in the
Navigation.
6
Select the files you want to transfer to the
player, drag and drop them to the left
[Sync List] window.
4
Double click on the My Computer icon
located on the Desktop.
5
Locate the folder on your PC where your
Music files are stored.
3
Select [Sync] at the top of the screen and the
Sync window will appear.
