Samsung Level Box User manual

Level Box
User manual
www.samsung.com

2
English..................................................3
Español.............................................. 25
Contents

3
English
Copyright
Copyright © 2014 Samsung Electronics
This guide is protected under
international copyright laws.
No part of this guide may be
reproduced, distributed, translated,
or transmitted in any form or by any
means, electronic or mechanical,
including photocopying, recording,
or storing in any information storage
and retrieval system, without the
prior written permission of Samsung
Electronics.
• Please read this manual before
using the device to ensure safe and
proper use.
• The illustrations in this user manual
may differ from the actual device.
Device specifications are subject to
change without prior notice and
this document may not have been
updated to reflect these changes.
• Bluetooth
®
is a registered trademark
of Bluetooth SIG, Inc. worldwide.
English

4
Device layout
Front
Status indicator
[Play/Stop] button
[Volume (-)] button
[Volume (+)] button
[Talk] button
NFC antenna
Microphone

5
English
Back
[Pairing ( )] button
[Power] switch
Audio input jack
Power connection
jack
• Check the product box for the Level Box, charger (USB power
adapter, USB cable), 3.5 mm audio cable, and user manual. The
items supplied with the device and available accessories may vary
by region.
• The status indicator is visible only when it is turned on.

6
Use only the battery charger
supplied with the product.
Using unapproved chargers
may slow down the
charging process or cause
damage to the product.
Charging the device
This device has a built-in battery.
Charge the battery completely
before using the device for the first
time or after it has not been used for
an extended period.
Connect the charger to the
Bluetooth speaker and plug the
power cord into the power outlet.

7
English
Charging time and
standard run times
(3,600 mAh)
Charging
time Approx. 2.5 hrs
Standard
run times
Call time Approx.
15 hrs
Play time Approx.
15 hrs
Standby
time
Approx.
2,000 hrs
• The status indicator turns red
while the device is being charged.
The status indicator turns blue
when charging is complete.

8
Measuring the battery
charge
Press and hold the [Talk] and
[Volume (-)] buttons simultaneously.
The status indicator flashes 4 times
in different colors, according to the
charge left in the battery.
• Battery run time is
based on results of tests
performed with factory
default settings.
• The battery charging time
and run times may vary,
depending on the usage
environment.

9
English
Turning the device on
or off
Slide the [Power] switch to turn the
device on or off. When you turn on
the device for the first time, it enters
the Bluetooth pairing mode.
Charge level Indicator
color
More than
80 % Blue
30–80 % Purple
Less than 30 % Red

10
Connecting to other
devices
You can connect the Level Box
to other Bluetooth-enabled
devices, such as smartphones,
tablets, or PCs. Also, if you have
devices that support the near field
communication (NFC) feature, you
can control the Bluetooth feature
to connect the devices to the Level
Box.
• When the device is turned on,
the status indicator flashes blue
4 times.
• When the device is turned off,
the status indicator turns blue
and then flashes red before
turning off.
Power on
Power off

11
English
Connecting via Bluetooth
1
Turn on the Level Box. Press and
hold the [Pairing ( )] button for
about 3 seconds.
• The Level Box enters the
Bluetooth pairing mode and
the status indicator turns
on blue.
When connecting for the first time,
pair the Level Box with the other
Bluetooth-enabled device. Keep the
devices close to each other while
pairing or using the Level Box.
Instructions for Bluetooth
connection or Bluetooth
connection via NFC may
vary by device. Refer to the
device’s user manual for
additional information.

12
Connecting via the NFC
function
1
Enable the NFC feature on the
other device.
2
Turn on the Level Box and bring
the other device’s NFC antenna
close to the NFC antenna on the
Level Box.
2
On the Bluetooth-enabled
device, access the Bluetooth
setup mode and search for
Bluetooth devices.
3
From the search results, select
the product name.
• When pairing is complete,
the Level Box appears as
“Connected”in the device list.

13
English
• If you are connecting a
smartphone to the device,
unlock the screen. The NFC
feature may not work when
the smartphone screen is
locked.
• End the Bluetooth
connection between the
product and any other device
first. The NFC function is
not available while another
device is connected to the
Bluetooth speaker.

14

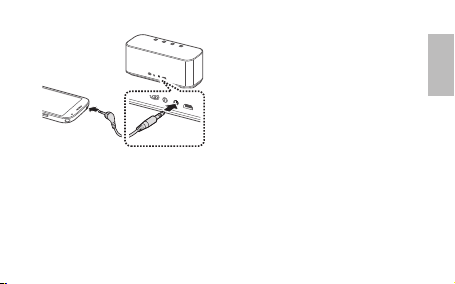

Connecting via an audio
cable
You can connect your smartphone
or a media player to the Level Box
with an audio cable.
End the Bluetooth connection
between the product and any other
device before making a connetion
with the audio cable.
Ending the Bluetooth
connection
To disconnect the Level Box, turn
it off or disable the Bluetooth
functionality on the Bluetooth-
enabled device.
You can also bring the NFC antennas
together to end the Bluetooth
connection between the devices.

15
English
Using the Level Box
When the Level Box is connected
to a Bluetooth or NFC-enabled
device, you can play audio on the
Level Box or use it as a speaker
phone. While a device is connected
to the Bluetooth speaker, you can
press the [Talk] button to turn on
the voice recognition feature of the
connected device (if available).

16
• Press the [Play/Stop] button to
pause or resume playback.
• Press the [Play/Stop] button twice
to skip to the next file.
• Some device may allow
you to control only the
volume.
• The audio cable
connection allows you to
control only the volume.
Playing audio
Play audio from your smartphone,
multimedia player, or PC.
• Adjust the volume with the
[Volume (+)/(-)] buttons.
• A notification will sound when
the speaker volume reaches its
maximum value. If the sound is
not loud enough even with the
speaker volume set to maximum,
adjust the volume of the
connected device.

17
English
• Press the [Volume (+)/(-)] buttons
to adjust the volume.
• Press the [Play/Stop] button to
mute or unmute the microphone.
• Press and hold the [Talk] button to
pause or resume a call.
Receiving a call
If a smartphone is connected to the
Level Box, you can press the [Talk]
button to answer a call.
• Press and hold the [Talk] button to
reject a call.
• Press the [Talk] button to end
a call.

18
Samsung Level
On the connected device, download
the Samsung Level application
from Google Play Store or Samsung
Apps. Launch this application to use
various functions.
If an incoming call is detected
during a call, the indicator flashes
blue 2 times and the ringtone will
sound.
• Press the [Talk] button to end
the current call and answer the
incoming call.
• Press and hold the [Talk] button to
hold the current call and answer
the incoming call.
• Press and hold the [Talk] button to
switch between calls.

19
English
Specifications and
features
Dimensions
(mm)
164.3 X 62.3
X 69.2
Weight 600 g
Transmission
power 1 mW
Bluetooth
frequency
2,402–2,480
MHz
• The Samsung Level
application is compatible
with Samsung mobile
devices running Android
operating system 4.2.2 or
later. Depending on your
device’s specifications, a
partially blank screen may
appear or some functions
may not work on your
device.
• To use the application,
ensure that the devices
are connected via the
Bluetooth feature.

20
Operating
temperature 5 °C–35 °C
The wireless connection
range may vary, depending
on the usage environment.
Bluetooth
version BT 3.0
Supported
Bluetooth
profile
A2DP, HSP, HFP,
AVRCP
Wireless
connection
range
10 m
NFC
frequency 13.56 MHz
