Samsung MWR-WE10N User manual

NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 24 2013-02-01 오후 6:34:12

Wired remote controller
MWR-WE10N
Air Conditioner
installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
This manual is made with 100% recycled paper.
EN PT ES DE FR EL IT RU AR
DB68-03716A(1)
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 25 2013-02-01 오후 6:34:13

2
Safety Information
WARNING
Contact a service center for installation.
 Potential risk of malfunction, water leak, electric shock and re.
Install the product with proper power supply.
 Potential risk of re or product damage.
Consult the place of purchase or a contact center to disassemble or repair the product.
 Potential risk of malfunction, electric shock, or re.
The electric work must be done by qualied person according to national wiring regulations and installation guide.
 If an unauthorized person performs the installation, any resulting defects can cause malfunctions,
electrical shocks, or re accidents.
Install the product on a hard and even place that can support its weight.
 If the place cannot support its weight, the product may fall down and it may cause product damage.
Do not move or reinstall the product on your discretion.
 Potential risk of electric shock or re.
Check if the installation work is done correctly according to the installation manual.
 Incorrect installation may cause electric shock or re.
When you want to dispose your Wired Remote Controller, ask the service center.
This installation manual explains how to install a Wired Remote Controller connected to the indoor unit of
your Trane system air conditioner.
Please read this manual thoroughly before installing the product.
(Please refer to appropriate installation for any optional product installation.)
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 2 2013-02-01 오후 6:34:05

3
ENGLISH
CAUTION
Do not install the product where there’s combustible gas.
 Potential risk of re and explosion.
Ensure no water gets into the Wired Remote Controller.
 Potential risk of electric shock or re.
Install the air conditioner away from direct exposure to sunlight, in room temperature range of 0°C(32°F)~39°C(102°F).
 Potential risk of electric shock or malfunction.
Do not handle the product with sharp objects.
 Potential risk of electric shock or product damage.
Do not install the product in areas exposed to oil or vapor.
 Potential risk of product damage or malfunction.
Do not put undue stress on the power cable.
 Potential risk of broken cable and re.
Do not install the product in areas with frequent use of acid or alkali spray.
 Potential risk of electric shock or product malfunction
Do not connect power cable to a communication terminal.
 Potential risk of re.
Be cautious not to interfere any other electrical devices if the product is installed in a place such as hospital.
 Potential risk of product malfunction.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 3 2013-02-01 오후 6:34:06

4
Wired Remote Controller Installation
Optional accessories
External Dimensions
• The Wired Remote Controller should be installed by an installation expert.
• Check and conrm the power is o before installing your Wired Remote Controller.
• Install the Wired Remote Controller cables in accordance with the electrical wiring rules, and allow it to pass
through the inner area of the wall so that other people can’t reach it.
120.0(4.72)
124.0(4.88)
63.8(2.51)
19.5(0.76)
[Unit : mm(inch)]
Wired Remote
Controller (1) Cable Tie (2) Cable Clamp(3) M4X16 Screw (5) User Manual (1) Installation Manual (1) U Terminal (4)
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 4 2013-02-01 오후 6:34:06

5
ENGLISH
Wired Remote Controller Installation
 Push the two hooks at the same time.
1. Push the two hooks at the bottom of your Wired Remote Controller at the same time, and then pull up the
front cover to separate it from the rear cover.
2. Arrange the power cable and the communication cable so that they t in the housing along the edges of the
rear cover.
• Insert a at head screwdriver into the square groove in the upper area of the
hook to disassemble it easily.
<When the cable is not concealed> <When the cable is concealed>
15cm(6inch)
10cm(4inch)
If you need more space for the
wiring work, you can take it off.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 5 2013-02-01 오후 6:34:06

6

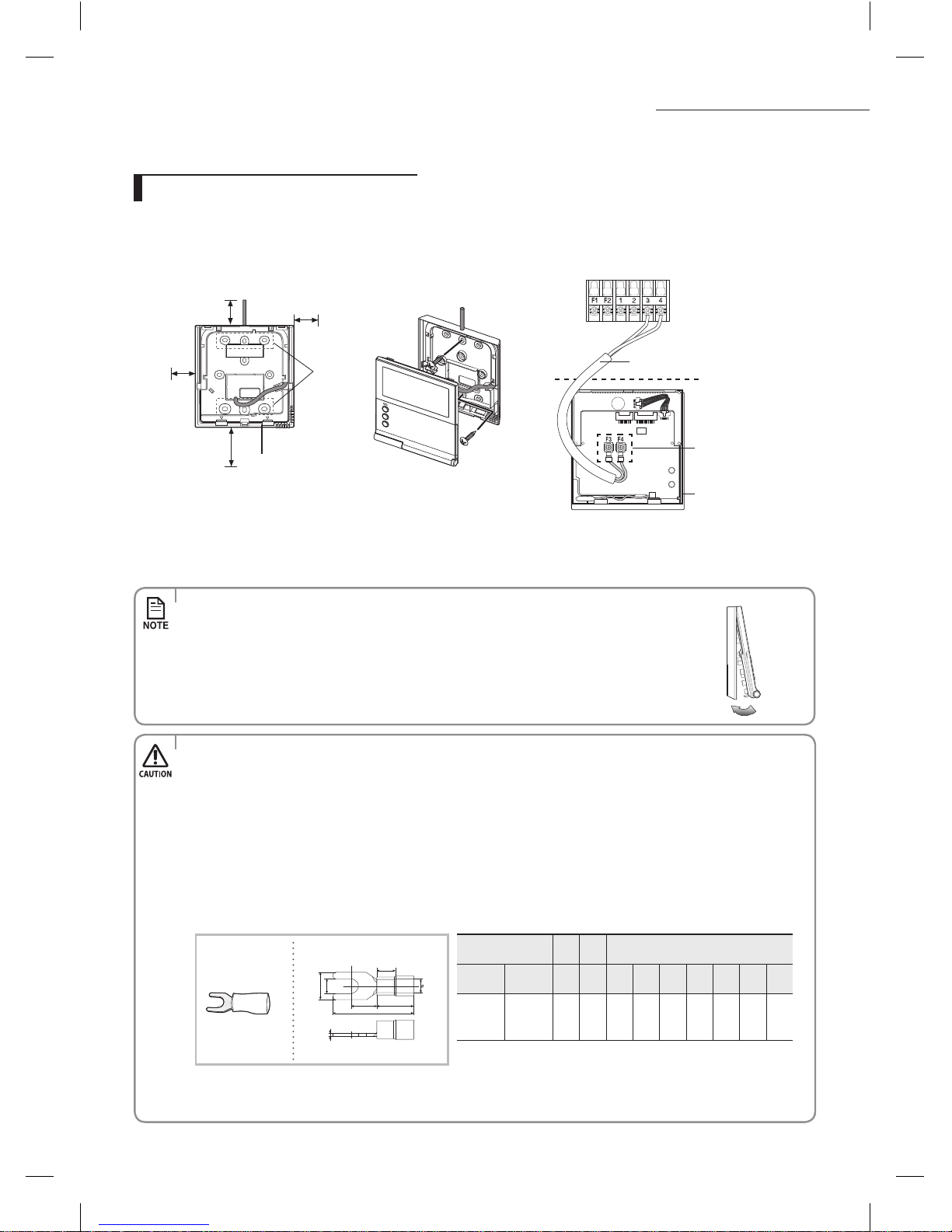

Wired Remote Controller Installation
4. Reassemble your Wired Remote Controller.
Wired Remote Controller Installation
• Align the controller with the upper groove rst, and insert it by turning it downward as
shown in the gure.
After assembly, check and conrm that no wires are stuck in the gap between the rear and
front cover.
• When installing a Wired Remote Controller by using a cable longer than 10 m(32.80 ft), you must install the
communication cable and the power cable separately. (Electrical interference can cause your Wired Remote Controller
to malfunction.)
• When installing your Wired Remote Controller on the wall, consider the size of the wire hole, and select a wire with
a proper thickness.
• Wire that is connectable to Wired Remote Controller PCB.
- If you install the Wired Remote Controller by reclaiming, install it according to U-terminal cable specication.
- If you install the Wired Remote Controller by using two pieces of PVC wire, remove the 30cm(12inch) of the
sheath of the cable and install it only with the two pieces of wires. (Recommended specication: AWG21)
• The following are the specs of the compression ring terminal connected to your Wired Remote Controller PCB.
W
t
G
E
F
L
Stud D
Range of Permitted Wires Rated
Size
Stud
Size Basic Size
[mm (inch)]
AWG mm2
(inch2)
mm2
(inch2)
mm
(inch) t øD G E F W L
22~16
0.25~1.65
(0.0003 ~
0.0025)
1.5
(0.0023)
3
(0.1181)
0.7
(0.0275)
3.8
(0.1496)
10.0
(0.3937)
4.5
(0.1771)
6.5
(0.2559)
6.0
(0.2362)
21.2
(0.8346)
 Maximum distance for connecting communication and
power cable: 100 m(3.280 ft)
• Screws on the PCB terminal must be tightened with less than 6N-cm tightening torque. If the tightening torque is
greater, it may damage the screw thread.
3. Using more than two screws, rmly ax the rear cover of the remote controller to the wall, and then connect
the communication & power cable[(F3,F4) or (3, 4)], making sure these cables have reasonable length,
to the terminal at the back of the cover.
10mm(0.4inch) or more
10mm(0.4inch)
or more
50mm(2inch) or more
10mm(0.4inch) or more
Screw hole
Rear cover
Front cover
PCB terminal
Wire (not supplied)
 Before fixing the rear cover, secure at least
10mm(0.4inch) space of upper side, left side,
right side, and 50mm(2inch) space
of bottom side.
 You must fit the screws into
the screw holes.
Indoor unit
Wired Remote
Controller
 Do not tighten the screws on the
PCB terminal with excessive force.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 6 2013-02-01 오후 6:34:07

7
ENGLISH

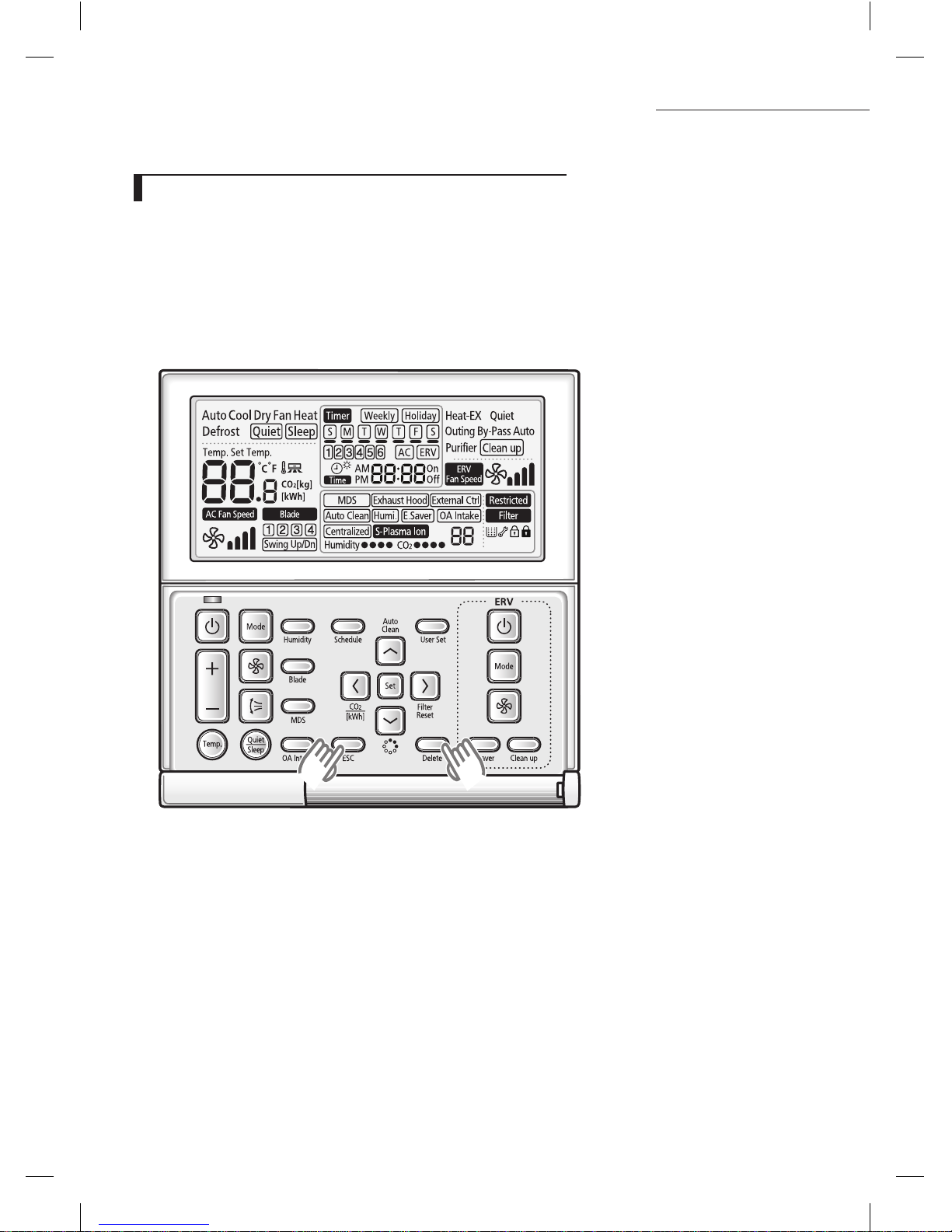

Tracking Your Indoor Unit from the Wired Remote Controller
1. Tracking of your Wired Remote Controller will automatically start when you turn on the power after installation.
2. If you want to perform tracking again after installation, then press the Esc and Delete buttons at the same time
for more than ve seconds.
  The system will reset, and tracking will start again.
3. During tracking, the total number of currently searched indoor units and ventilator(ERV) will be displayed.
4. It may take about 5 minutes at initial installation or when you re-set the Master setting.
• If you want to perform tracking again after installation, then press the Esc and Delete buttons at the same time
for more than ve seconds.
Displays the total number
of units searched
Indicates tracking
in progress
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 7 2013-02-01 오후 6:34:07

8
34
COM2(F3, F4) COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2) COM1(F1, F2)
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
Wired Remote
Controller
Wired Remote
Controller
Wired Remote
Controller
Master ventilator(ERV)

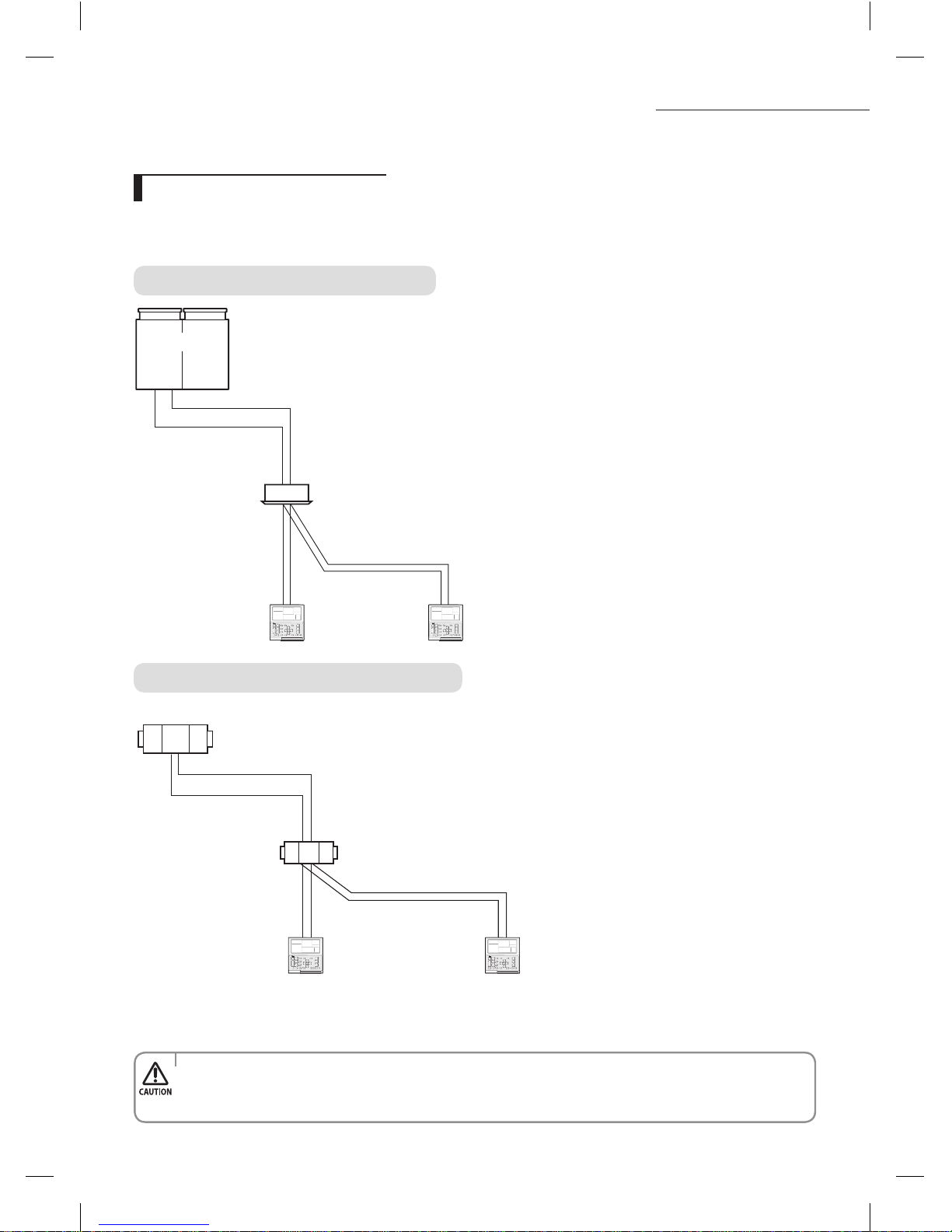

Individual Control with Your Wired Remote Controller
  Individual control means that you are using one remote controller to control one indoor unit or ventilator(ERV).
Wired Remote Controller Installation
When Connected to an Indoor Unit Only
When Connected to an ventilator(ERV) Only
Outdoor Unit
Indoor Unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)
Wired Remote
Controller
Wired Remote
Controller
Wired Remote
Controller
Indoor Unit Indoor Unit
• Regardless of the indoor group address (RMC address) or the ventilator(ERV) group address, only the indoor unit
connected to COM2 is individually controlled.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 8 2013-02-01 오후 6:34:08

9
ENGLISH
Outdoor Unit
Indoor Unit
Wired Remote
Controller
Outdoor Unit
Indoor Unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4)
Outdoor Unit
COM1(F1, F2) COM1(F1, F2)
Wired Remote
Controller
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Indoor Unit Indoor Unit Indoor Unit
Group Control with Your Wired Remote Controller
  Group control means that you are using one Wired Remote Controller to control two or more indoor units and
ventilator(ERV) at the same time.
When Connected to an Indoor Unit Only
• Regardless of the indoor unit’s group address (RMC address), only the indoor units connected to COM2 are
controlled in group.
• Regardless of your outdoor units, you can control a maximum of 16 indoor units as a group.
(1) Using One Wired Remote Controller to control three indoor Units
(2) Using One Wired Remote Controller to control indoor units connected to dierent outdoor unit
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 9 2013-02-01 오후 6:34:08

10
Wired Remote Controller Installation
When Connected to an ventilator(ERV) Only
(1) Using One Wired Remote Controller to Control Three ventilator(ERV)
34
Wired Remote
Controller
COM2(F3, F4)
Master ventilator(ERV)
COM1(F1, F2)
Ventilator(ERV) Ventilator(ERV) Ventilator(ERV)
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
• Regardless of the ventilator(ERV)'s group address (RMC address), only the ventilator(ERV) connected to COM2
controlled in group.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 10 2013-02-01 오후 6:34:08

11
ENGLISH
Outdoor Unit
COM1(F1, F2) COM1(F1, F2)
Wired Remote
Controller
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Indoor Unit Indoor Unit Indoor Unit
COM2(F3, F4)
Ventilator(ERV)

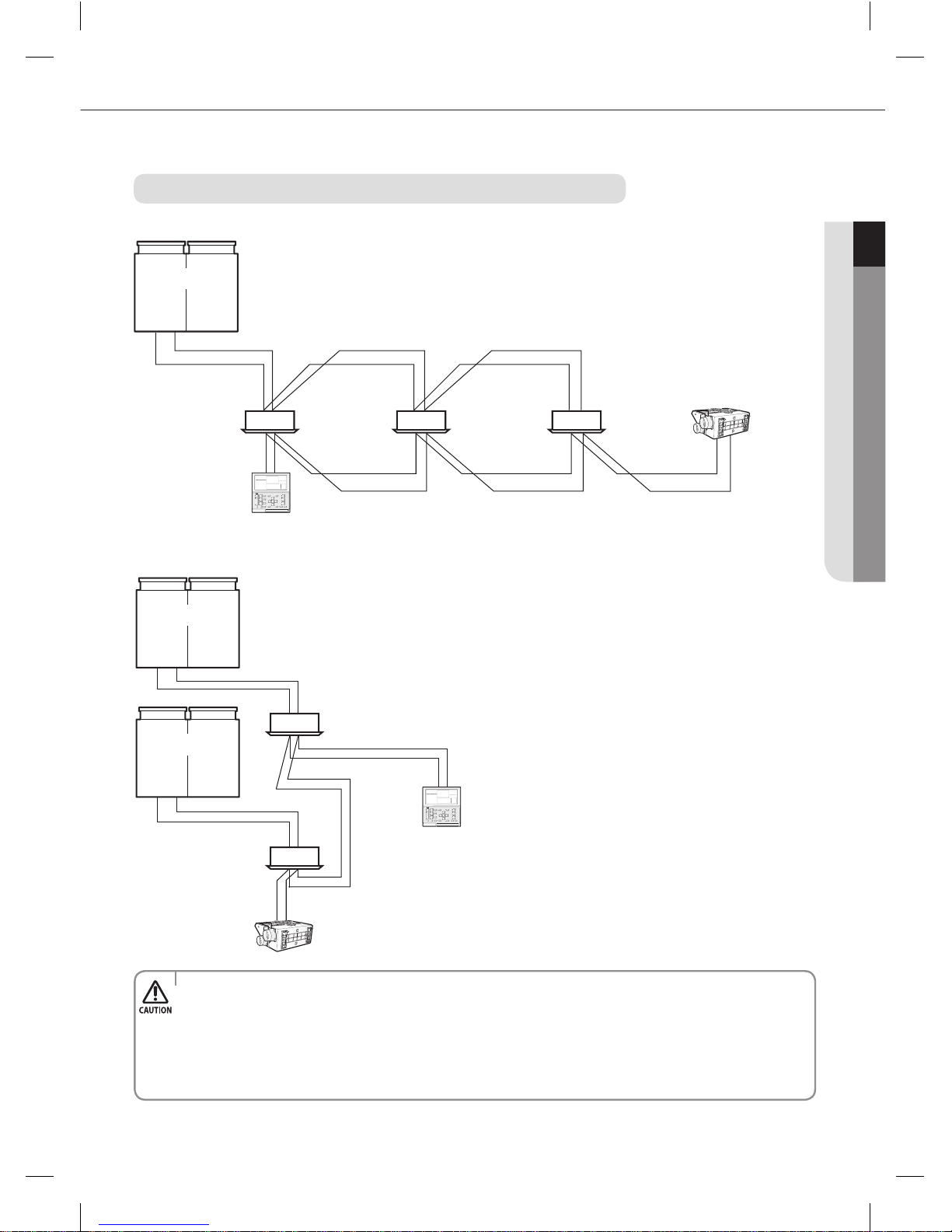

When Connected to an Indoor Unit and an ventilator(ERV) together
• Regardless of the indoor unit’s group address (RMC address), only the indoor units and ventilator(ERV) connected
to COM2 are controlled in group.
• When controlling indoor units and ventilator(ERV) together in group, you can control maximum of 16 indoor units
and ventilator(ERV).
• If you want to use the power saving function, you have to connect Wired Remote Controller to only one indoor
unit and one ventilator(ERV).
(1) Using One Wired Remote Controller to control multiple indoor units and ventilator(ERV)
(2) Using One Wired Remote Controller to control indoor units connected to dierent outdoor unit and
ventilator(ERV)
Outdoor Unit
Indoor Unit
Wired Remote
Controller
Outdoor Unit
Indoor Unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
Ventilator(ERV)
COM2(F3, F4)
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 11 2013-02-01 오후 6:34:09

12
Outdoor Unit
Indoor Unit
COM1(F1, F2)
Wired Remote
Controller (Master)
COM2(F3, F4)
Wired Remote
Controller (Slave)
Wired Remote Controller
(Master)
COM2(F3, F4)
Master ventilator(ERV)
COM1(F1, F2)
Ventilator(ERV)
Wired Remote Controller
(Slave)

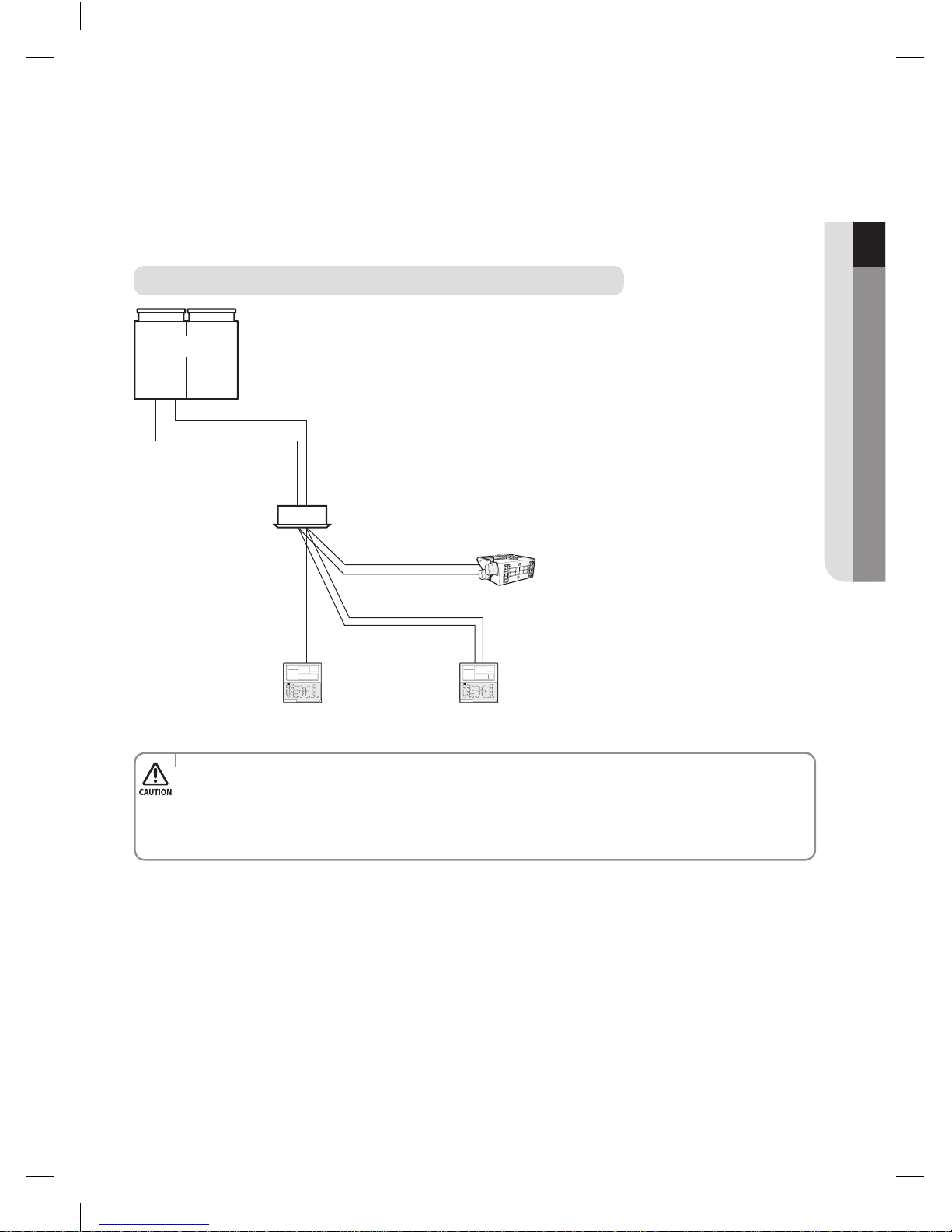

Controlling 2-Remote controller
  2-Remote controller is controlling one indoor unit, ventilator(ERV) or one group of indoor units and
ventilator(ERV) with two remote controllers.
When Connected to an Indoor Unit Only
When Connected to an ventilator(ERV) Only
• For the slave Wired Remote Controller settings, please refer to the sections about the additional functions of the
Wired Remote Controller. (Refer to page20)
0 : Master, 1 : Slave
Wired Remote Controller Installation
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 12 2013-02-01 오후 6:34:09

13
ENGLISH
Outdoor Unit
Indoor Unit
COM1(F1, F2)
Wired Remote
Controller (Master)
COM2(F3, F4)
Wired Remote
Controller (Slave)
COM2(F3, F4)
Ventilator(ERV)
When Connected to an Indoor Unit and an ventilator(ERV) Together
• Regardless of the indoor unit group address (RMC address), only the indoor units connected to COM2 are
controlled by 2-remote controller.
• For the slave Wired Remote Controller settings, please refer to the sections about the additional functions of the
Wired Remote Controller. (Refer to page20)
0 : Master, 1 : Slave
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 13 2013-02-01 오후 6:34:09

14
Initializing Your Wired Remote Controller Communication
 If the number of indoor unit or ventilator(ERV) is decreased while you are using your remote control to control one
indoor unit, ventilator(ERV) or a group of indoor units and ventilator(ERV), then you need to initialize your remote
controller communication.
Wired Remote Controller Installation
1. Press the Esc and Delete buttons at the same time for more than ve seconds.
  Your Wired Remote Controller will be initialized, and the device will search for the indoor units/ventilator(ERV)
connected to your Wired Remote Controller again.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 14 2013-02-01 오후 6:34:10

15
ENGLISH

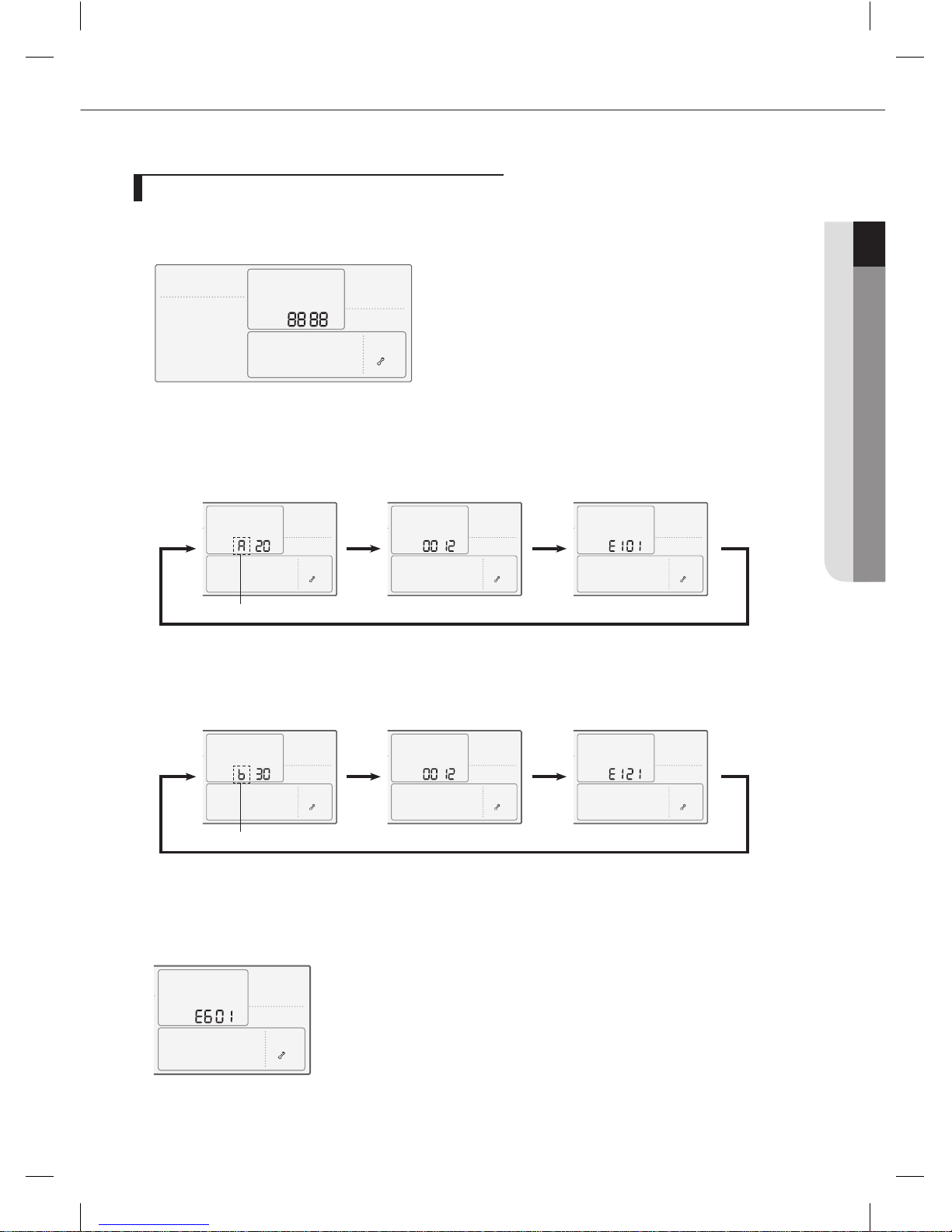

LCD Display
Errors Displayed on Your Wired Remote Controller
  Error codes for the Wired Remote Controller and the product connected to your Wired Remote Controller will be
displayed in the LCD display.
Indoor Unit
When an Error Occurs in Your Indoor/Outdoor Units (Product Group Display: A)
  The product address for the error will be displayed, followed by the error code.
Example : Error 101 occurs for Indoor Unit No. 200012.
Ventilator(ERV)
When an Error Occurs in Your Ventilator(ERV) (Product Group Display: B)
  The product address for the error will be displayed, followed by the error code.
Example : Error 121 has occurred at ventilator(ERV) No. 300012.
When an Error Occurs in Your Wired Remote Controller
  Only an error code will be displayed. (No address will be displayed.)
Example : Error 601 has occurred at your Wired Remote Controller.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 15 2013-02-01 오후 6:34:10

16

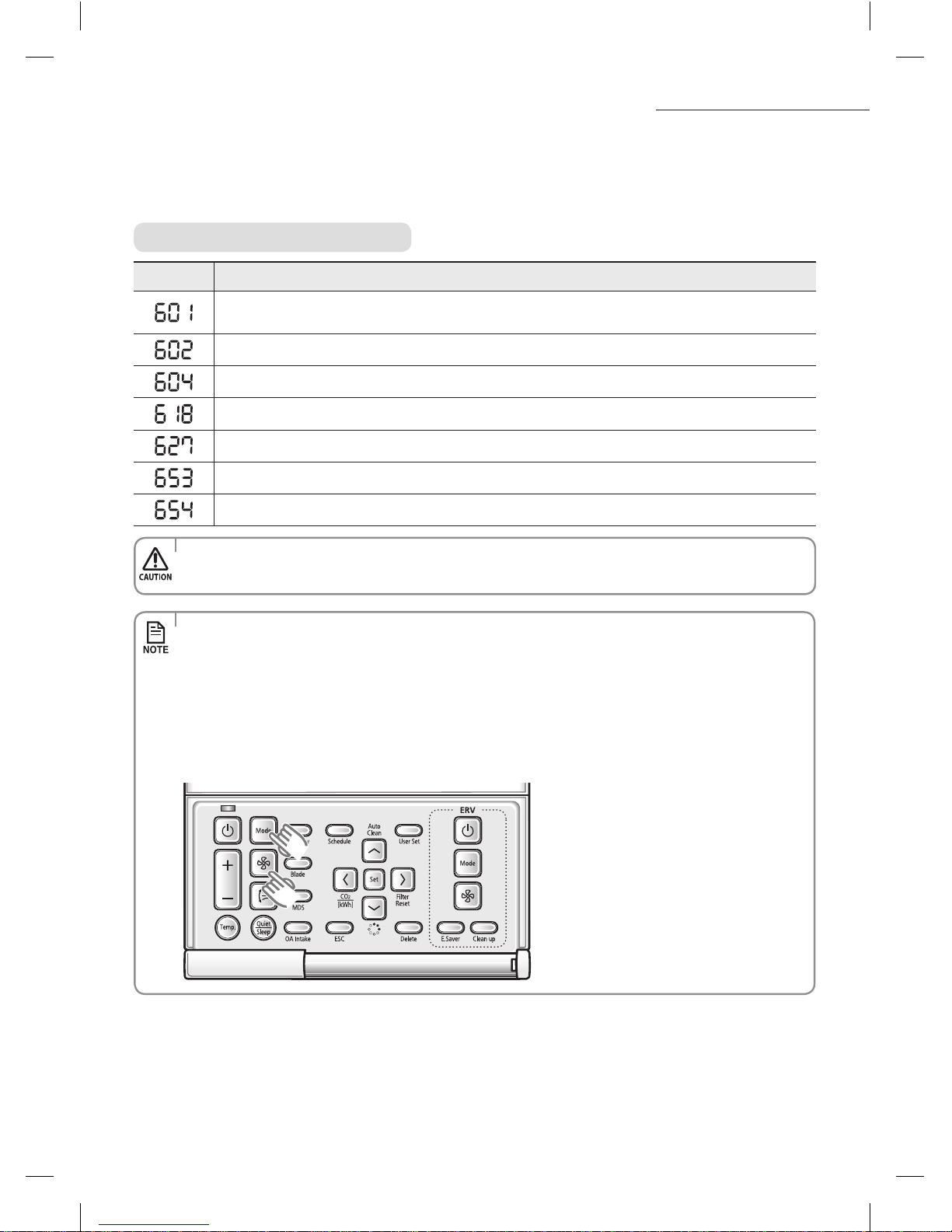

AA
Display Description
Communication error between wired remote controller and indoor/ERV units after successful
communication.
No communication between Master(Main) and Slave(Sub) wired remote controllers.
No communication between wired remote controller and indoor/ERV units
Over 16 indoor/ERV indoor units installed.
Two or more wired remote controllers set as Slave(SUB).
Temperature sensor Open/Short error.
EEPROM Read, Write error
• For the error codes for your indoor/outdoor units and ventilator(ERV), refer to the installation manual of each
device.
[Setting/Cancelling the Mode master indoor unit]
• Mode master indoor unit setting is simply selecting an indoor unit that will become standard among many
indoor units to prevent mixed operation (which one or more indoor units operating in dierent operation
mode).
- Setting: Connect just 1 indoor unit and stop the operation. Then press and hold the Mode button for 5 seconds
to set the indoor unit as 'Mode master indoor unit'
- Cancelling: Connect just 1 indoor unit and stop the operation. Then press and hold the Fan speed button for 5
seconds to cancel the 'Mode master indoor unit' setting.
Wired Remote Controller Installation
Wired Remote Controller Error Codes
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 16 2013-02-01 오후 6:34:11

ENGLISH
17
AA

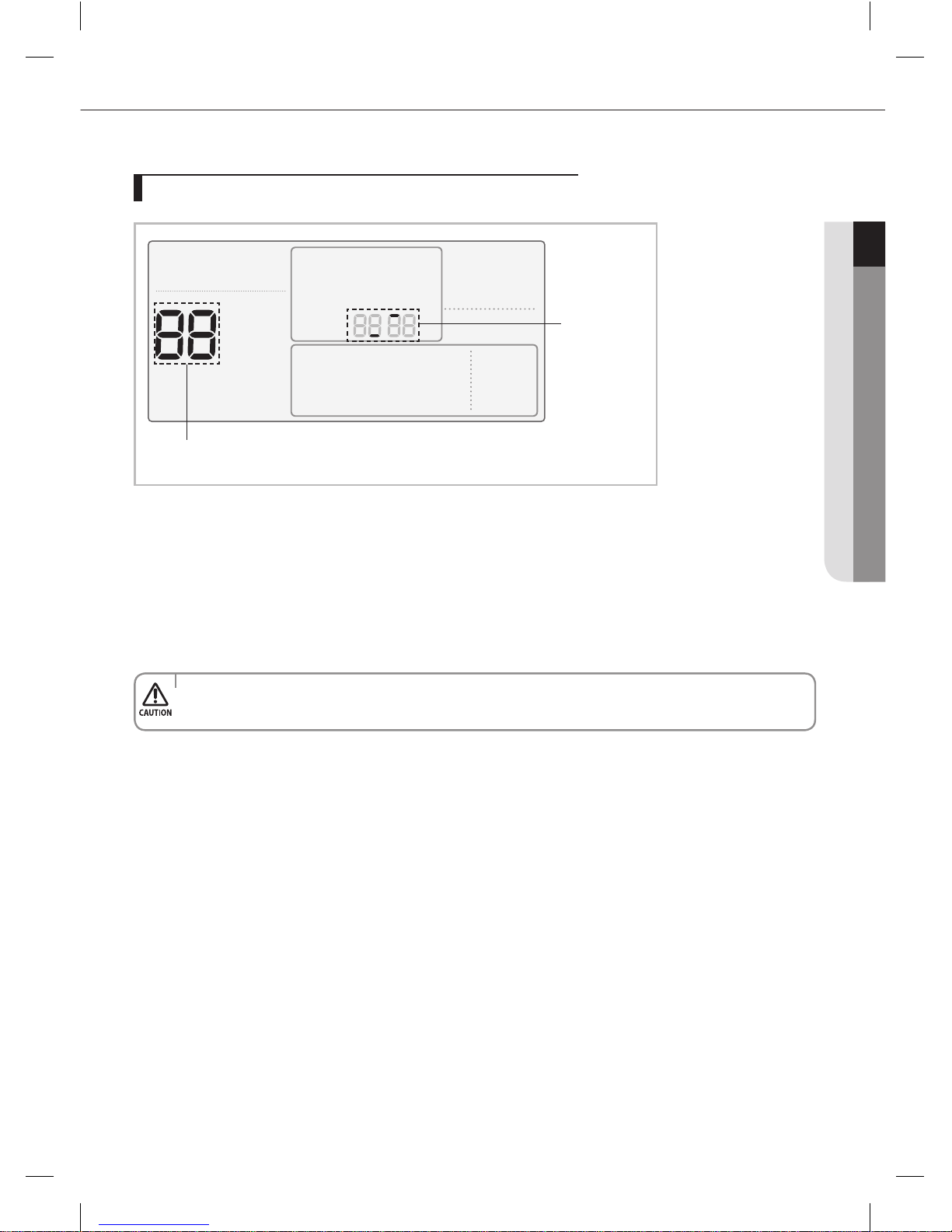

Main Menu Sub-menu 1 2 3 54 6
Data bit
Additional Functions of Your Wired Remote Controller
Wired Remote Controller Installation/Service Mode
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 17 2013-02-01 오후 6:34:11

AA
18
1. If you want to use the various additional functions for your Wired Remote Controller, press the Set and
Esc buttons at the same time for more than three seconds.
  You will enter the additional function settings, and the [main menu] will be displayed.
2. Refer to the list of additional functions for your Wired Remote Controller on the next page, and select the desired
menu.
  Using the [
∧ ]/[ ∨ ] buttons, select a main menu number and press the [ ＞ ] button to enter the sub-menu setting
screen.
  Using the [
∧ ]/[ ∨ ] buttons, select a sub-menu number and press the [ ＞ ] button to enter data setting screen.
  When you enter the setting stage, the current setting will be displayed.
  Refer to the chart for data settings.
  Using the [
∧ ]/[ ∨ ] buttons, select the settings. Press the [ ＞ ] button to move to the next setting.
  Press the Set button to save the settings and exit to the sub-menu setting screen.
  Press the Esc button to exit to normal mode.
• While setting the data, you can use the [ ＜ ]/[ ＞ ] buttons to set the range of Data bit.
• While conguring the setting, press the Esc button to exit to the setting sub-menu without saving your
changes.
Wired Remote Controller Installation/Service Mode
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 18 2013-02-01 오후 6:34:11

19
ENGLISH
Main
menu
Sub
menu Function Data bit
Factory
setting
Description Unit
1
1Wireless remote controller
Option setting/checking (1)
Cooling/Heating selection 1 0 0 – Cooling/Heating,
1 – Cooling only -
Use of wireless remote controller 2 1 0 – No use, 1 - Use -
MAIN/SUB wired remote
controller 3 0 0 –MAIN, 1- SUB -
Temperature unit 4 0 0 – Celcius(°C), 1 – Fahrenheit(°F) -
2Wireless remote controller
Option setting/checking (2)
Temperature sensor selection 1 0 0 – Indoor unit,
1 – Wired remote controller -
Use of average temperature 2 0 0 – No use, 1 - Use -
Use of Auto mode 3 1 0 – No use, 1 - Use -
Temperature display 4 0 0 – Set temperature,
1 - Room temperature -
AC On/Off button function 5 0
0 – Indoor unit + ERV,
1 – Indoor unit only,
2 – ERV only,
-
3Blade
setting/checking
Lock of Blade1 1 0 0 – Unlock, 1 – lock -
Lock of Blade2 2 0 0 – Unlock, 1 – lock -
Lock of Blade3 3 0 0 – Unlock, 1 – lock -
Lock of Blade4 4 0 0 – Unlock, 1 – lock -
4ERV option
Setting/checking
Use of By-Pass mode 1 0 0 – No use, 1 - Use -
Use of Auto mode 2 0 0 – No use, 1 - Use -
Use of air purification mode 3 0 0 – No use, 1 - Use -
Use of external control 4 0 0 – No use, 1 - Use -
5Room Temperature
compensation
Temperature control reference 1,2,3 0 -9 ~ 40°C(15~104°F) 0.1°C
Temperature compensation value 4,5,6 0 -9.9 ~ 9.9°C 0.1°C
6 Number of connected units Number of indoor units 1,2 - 0 ~ 16 -
Number of ERVs 3,4 - 0 ~ 16 -
7 Temperature increment/decrement (°C only) 1 0 0-1°C, 1-0.5°C, 2-0.1°C -
8Set/Check ERV Energy saving
operation
Select individual Energy saving
operation 1 0
0-ON/OFF alternating operation,
1-Outdoor air cooling operation
for different temperature setting
-
Minimum temperature of
outdoor air cooling 3,4 15 5 ~ 15°C (41~59°F) °C
0 Factory option setting 1 0 0 – Unchanged
1 – Factory setting -
21 Software code 1~6 - Software code -
2 Software version 1~6 - Software version -
Additional Functions of Your Wired Remote Controller
• ‘NONE’ will be displayed if the indoor unit does not support the function.
In some cases, the setting may not possible or it may be not applied though it is set on the unit.
• If communication initialization is needed after the setting, the system will reset automatically and
communication will be initialized.
NASA_Wired Remote Control_MWR-WE10N_EN_IM_03716A(1).indd 19 2013-02-01 오후 6:34:11
