Samsung MWR-SH11UN User manual

Air conditioner
Installation manual
Wired remote controller MWR-SH11UN
• Thank you for purchasing this Samsung Product.
• Before operating this unit, please read this installation manual carefully and retain it for future
reference.
DB68-08199A-01

ENGLISH-2
Contents
Preparation
Safety precautions ....................................................................................................... 3
Before installation ....................................................................................................... 5
Installation
Wired remote controller installation ...................................................................................... 6
Others
Wired remote controller installation/service mode ...................................................................... 15

ENGLISH-3
01 PREPARATION
Safety precautions
This installation manual explains how to install a wired remote controller connected to the indoor unit of your Samsung
system air conditioner. Please read this manual thoroughly before installing the product.
(Please refer to appropriate installation for any optional product installation.)
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property
damage.
WARNING
Contact a service center for installation.
f Potential risk of malfunction, water leak, electric shock and re.
Install the product with proper power supply.
f Potential risk of re or product damage.
Consult the place of purchase or a contact center to disassemble or repair the product.
f Potential risk of malfunction, electric shock, or re.
The electric work must be done by qualied person according to national wiring regulations and installation guide.
f If an unauthorized person performs the installation, any resulting defects can cause malfunctions, electrical shocks, or re
accidents.
Install the product on a hard and even place that can support its weight.
f If the place cannot support its weight, the product may fall down and it may cause product damage.
Do not move or reinstall the product on your discretion.
f Potential risk of electric shock or re.
Check if the installation work is done correctly according to the installation manual.
f Incorrect installation may cause electric shock or re.
When you want to dispose your wired remote controller, ask the service center.

ENGLISH-4
Safety precautions
CAUTION
Do not install the product where there’s combustible gas.
f Potential risk of re and explosion.
Ensure no water gets into the wired remote controller.
f Potential risk of electric shock or re.
Install the air conditioner away from direct exposure to sunlight, in room temperature range of
0 °C(32 °F) ~ 39 °C(102 °F).
f Potential risk of electric shock or malfunction.
Do not handle the product with sharp objects.
f Potential risk of electric shock or product damage.
Do not install the product in areas exposed to oil or vapor.
f Potential risk of product damage or malfunction.
Do not put undue stress on the power cable.
f Potential risk of broken cable and re.
Do not install the product in areas with frequent use of acid or alkali spray.
f Potential risk of electric shock or product malfunction
Do not connect power cable to a communication terminal.
f Potential risk of re.
Be cautious not to interfere any other electrical devices if the product is installed in a place such as hospital.
f Potential risk of product malfunction.
Please take the product gently after unpacking the package.
f Drop or throwing can lead to the potential risk of product damage.

ENGLISH-5
01 PREPARATION
Before installation
Optional accessories
Wired remote
controller (1) M4x16 screw (4) User manual (1) Installation manual (1)
• The wired remote controller should be installed by an installation expert.
• Check and conrm the power is o before installing your wired remote controller.
• Install the wired remote controller cables in accordance with the electrical wiring rules, and allow it to pass
through the inner area of the wall so that other people can’t reach it.
CAUTION
External dimensions
119.9 (4.722)
93.5 (3.682)
19.7
(0.776)
[Unit : mm(inch)]

ENGLISH-6
Wired remote controller installation
Wired remote controller installation
1. Insert a small at head screwdriver into the square groove in the bottom of your wired
remote controller, and then pull up the front cover to separate it from the rear cover.
2. Arrange the communication cable so that they t in the housing along the edges of the rear cover.
Remove it
< When the cable is not concealed > < When the cable is concealed >
5 cm (2 inch) 5 cm
(2 inch)

ENGLISH-7
02 INSTALLATION
4. Reassemble your wired remote controller.
• A lign the controller with the upper groove rst, and insert it by turning it downward as
shown in the gure.
After assembly, check and conrm that no wires are stuck in the gap between the rear and
front cover.
• When installing a wired remote controller by using a cable longer than 10 m(32.80 ft), you must install the communication cable
and the power cable separately. (Electrical interference can cause your wired remote controller to malfunction.)
• When installing your wired remote controller on the wall, consider the size of the wire hole, and select a wire with a proper
thickness.
• If you install the wired remote controller by using two pieces of PVC wire, remove the 30 cm (12 inch) of the
sheath of the cable and install it only with the two pieces of wires. (Recommended specication: AWG20)
• Maximum distance for connecting communication and power cable : 100 m (328 ft).
•
Screws on the PCB terminal must be tightened with less than 6N-cm tightening torque. If the tightening torque is
greater, it may damage the screw thread.
3. Using more than two screws, rmly ax the rear cover of the remote controller to the wall, and then connect the
communication and power cable [(F3,F4) or (3, 4)], making sure these cables have reasonable length, to the terminal at
the back of the cover.
F1 F2 V1 V2 F3 F4
F3 F4
10 mm(0.4 inch) or more
10 mm(0.4 inch)
or more
10 mm(0.4 inch) or more
10 mm(0.4 inch) or more
Screw hole
Rear cover
Front cover
PCB terminal
Wire (not supplied)
KBefore fixing the rear cover, secure at least
10 mm (0.4 inch) space of upper side, left
side, right side, and bottom side.
KYou must fit the screws into
the screw holes.
Indoor unit
Wired remote
controller
KDo not tighten the screws on the
PCB terminal with excessive force.
CAUTION

ENGLISH-8
Wired remote controller installation
Tracking your indoor unit from the wired remote controller
Displays the total number of indoor units searched
Indicates tracking in progress
1. Tracking of your wired remote controller will automatically start when you turn on the power after installation.
2. If you want to perform tracking again after installation, then press the top right corner (hidden button) of the display for
more than 7 seconds.
- The system will reset, and tracking will start again.
3. During tracking, the total number of currently searched indoor units will be displayed.
4. It may take about 3 minutes at initial installation or when you re-set the Power Master setting.
• If you want to reset the system of your wired remote controller, then press the top right corner (hidden button) of
the display for more than 7 seconds.
CAUTION

ENGLISH-9
02 INSTALLATION
Individual control with your wired remote controller
Individual control means that you are using one remote controller to control one indoor unit.
Outdoor unit
Indoor unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4) COM2(F3, F4)
Wired remote
controller
Wired remote
controller
Wired remote
controller
Indoor unit Indoor unit
• Regardless of the indoor group address (RMC address) only the indoor unit connected to COM2 is individually
controlled.
CAUTION

ENGLISH-10
Wired remote controller installation

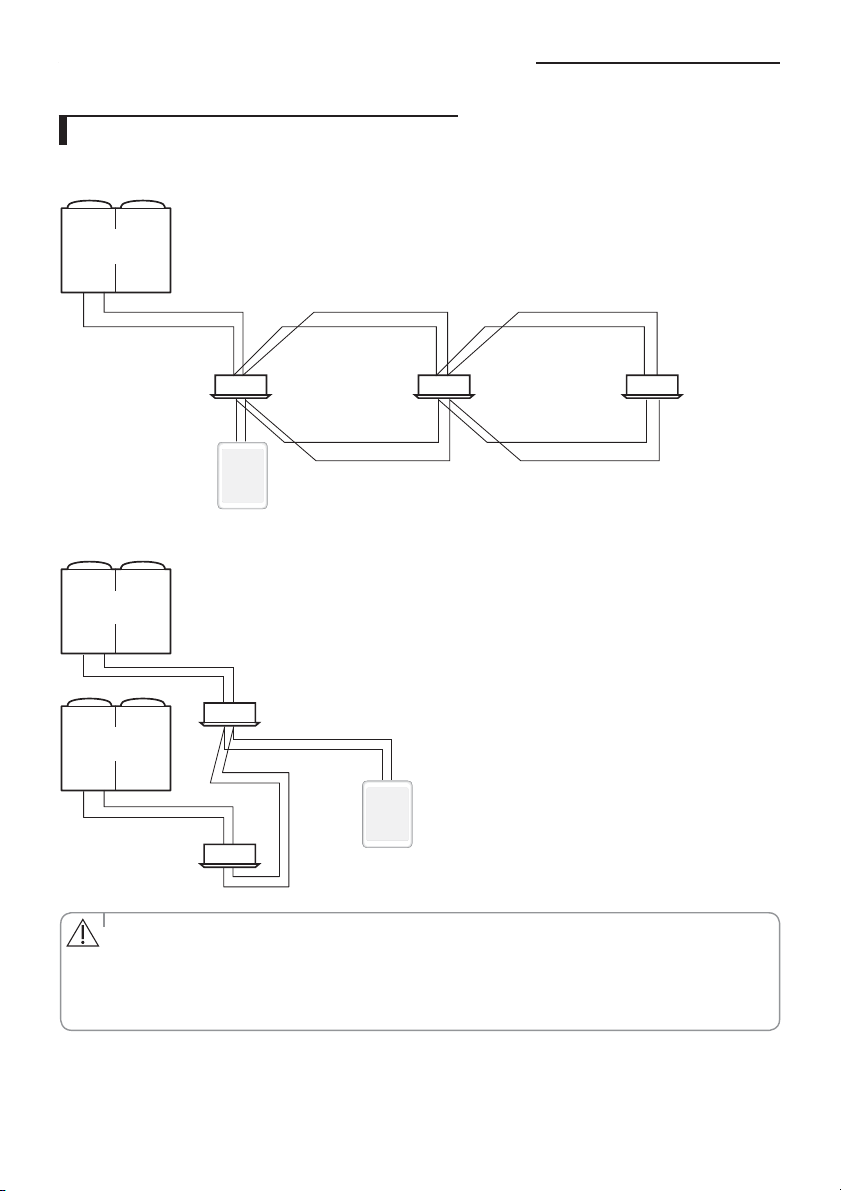

Group control with your wired remote controller
Group control means that you are using one wired remote controller to control two or more indoor units at the same time.
1. Using one wired remote controller to control three indoor Units
Outdoor unit
COM1(F1, F2) COM1(F1, F2)
Wired remote
controller
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Indoor unit Indoor unit Indoor unit
2. Using one wired remote controller to control indoor units connected to dierent outdoor unit
Outdoor unit
Indoor unit
Indoor unit
Wired remote
controller
Outdoor unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4)
• Regardless of the indoor unit’s group address (RMC address), only the indoor units connected to COM2 are
controlled in group.
• Regardless of your outdoor units, you can control a maximum of 16 indoor units as a group.
• When controlling group of indoor units connected to dierent outdoor unit, address of the each outdoor unit
must be set dierently.
CAUTION

ENGLISH-11
02 INSTALLATION
Controlling 2-Remote controller
2-Remote controller is controlling one indoor unit or a group of indoor units with two remote controllers.
Outdoor unit
Indoor unit
COM1(F1, F2)
Wired remote
controller (Main)
COM2(F3, F4)
Wired remote
controller (Sub)
• For the Sub wired remote controller settings, please refer to the sections about the additional functions of the
wired remote controller. (Refer to 'Additional Functions of your wired remote controller' main menu 1 ¤sub
menu 1, Main/Sub setting)
• You can only use several functions on the Main setting.
- On-o timer
- Outing
- Easy tuning
- Displays the total number of indoor units
- Adjust temperature and select mode when relative temperature is displayed
CAUTION
• Wired remote controller without a Main/Sub setting is properly connected, but If you need to set a specic
wired remote controller as a Main, you have to set Main/Sub in the service mode 1-1.

ENGLISH-12
Wired remote controller installation
Initializing your wired remote controller communication
If the number of indoor unit is decreased while you are using your remote control to control one indoor unit or a group of
indoor units, then you need to initialize your remote controller communication.
Press the top right corner (hidden button) of the display for more than 7 seconds.
- Your wired remote controller will be initialized, and the device will search for the indoor units connected to your wired
remote controller again.

ENGLISH-13
02 INSTALLATION
Errors displayed on your wired remote controller
Error codes for the wired remote controller and the indoor units connected to your wired remote controller will be displayed
in the LCD display.
LCD Display
When an error occurs in your indoor/outdoor units (product group display : A)
- The product address for the error will be displayed, followed by the error code.
Example : Error 101 occurs for Indoor Unit no. 10 (decimal digits)
Indoor unit Outdoor unit address
(hexadecimal digits)
Indoor unit main address
(hexadecimal digits)
Error code
When an error occurs in your wired remote controller
- Only an error code will be displayed. (No address will be displayed.)
Example : Error 601 has occurred at your wired remote controller.

ENGLISH-14
Wired remote controller installation

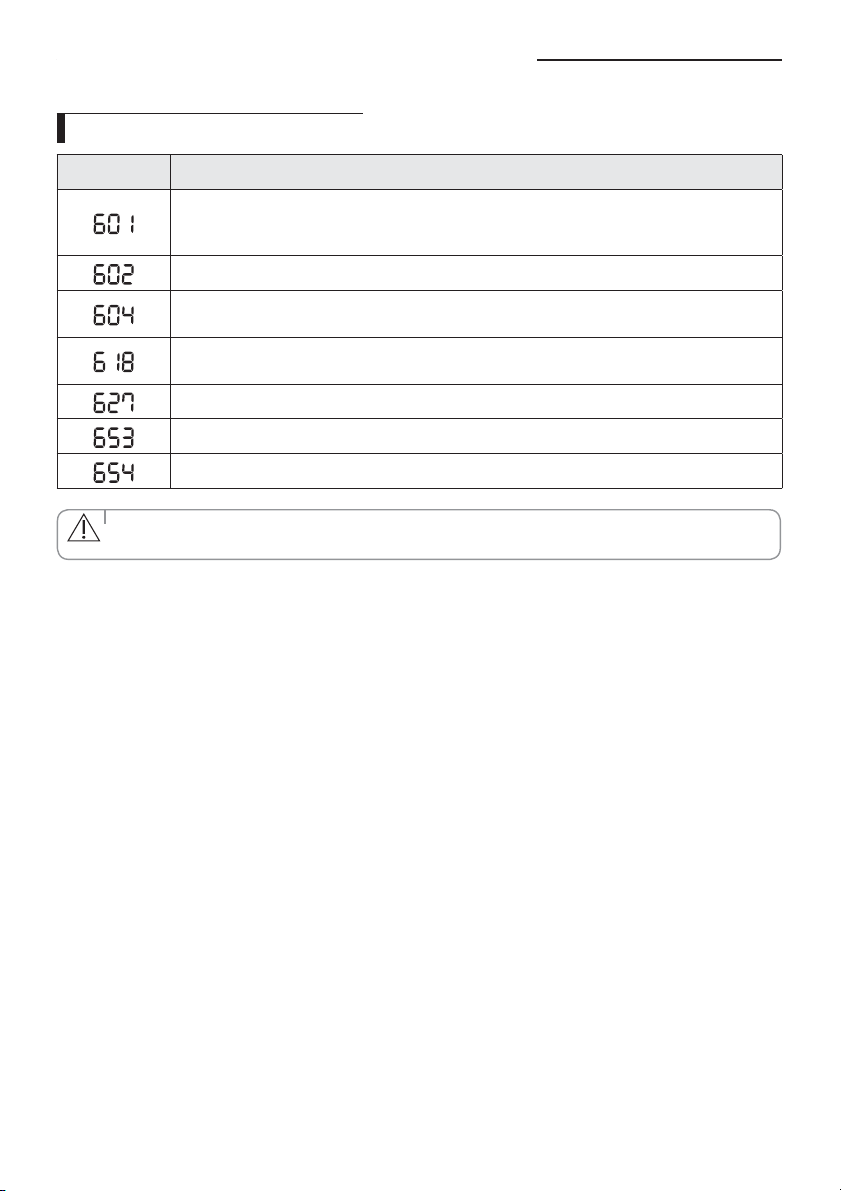

Wired remote controller error codes
Display Description
Communication error between wired remote controller and indoor units
(When communication is lost for over 3 minutes after detecting the indoor unit and the wired remote
controller)
No communication between Main and Sub wired remote controllers
No communication between wired remote controller and indoor units
(Including communication error between indoor units and outdoor units)
- Exceeded maximum number of indoor unit connection (16 indoor units)
- Reset is required after checking the number of indoor units
Two or more wired remote controllers set as Sub
Temperature sensor open/short error
EEPROM error
• For the error codes for your indoor/outdoor units, refer to the installation manual of each device.
CAUTION

ENGLISH-15
03 OTHERS
Wired remote controller installation/service mode
Additional functions of your wired remote controller
Main menu
Sub menu
Setting
value
ʒʓ
Page
Move menu Move page

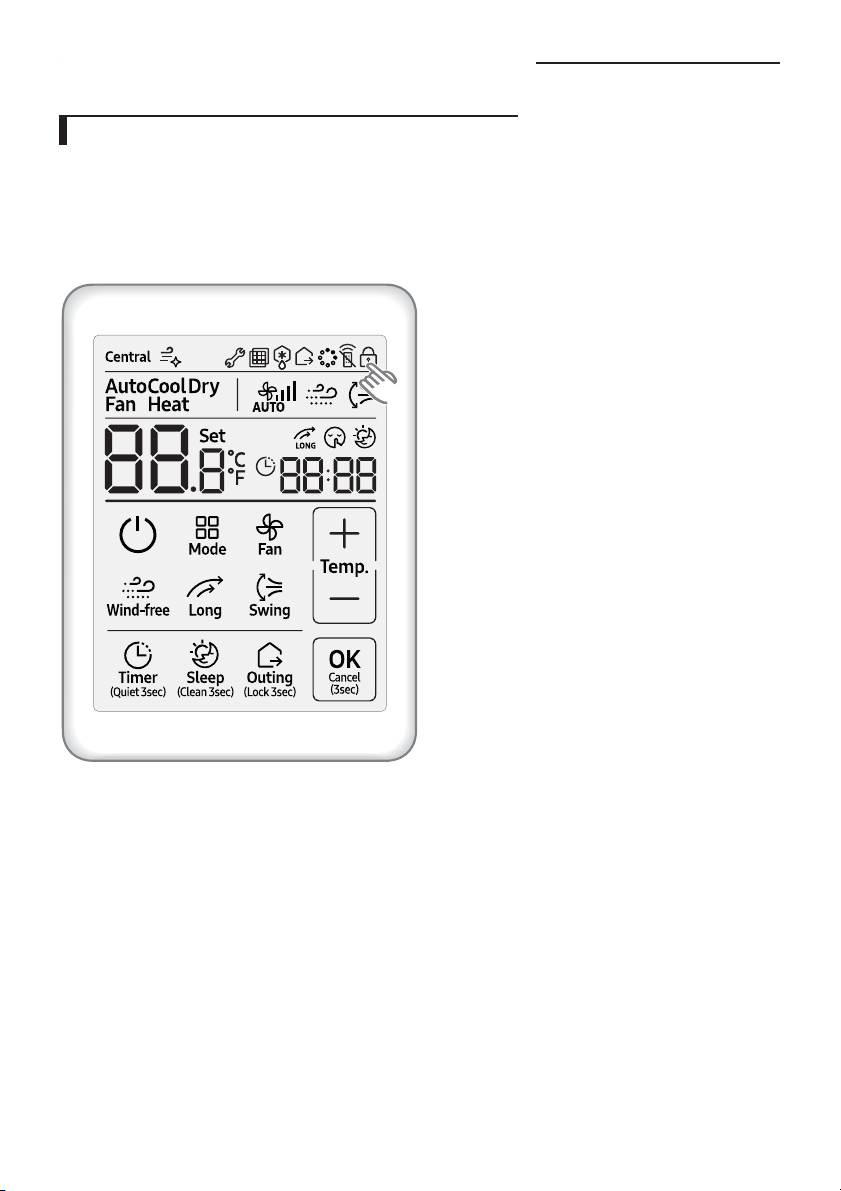

1. If you want to use the various additional functions for your wired remote controller, press the top right corner (hidden
button) of the display for more than 3 seconds and drop it.Then you can press [ + ]/[ - ] buttons and select No.3 and press
[ OK ] button.
- You will enter the additional function settings, and the main menu will be displayed.
- If you select the other number and press [ OK ] button, then you can go back to the normal display.
2. Refer to the list of additional functions for your wired remote controller on the next page, and select the desired menu.
- Using the [ + ]/[ - ] buttons, select a main menu number and press the [ Mode ] button to enter the sub-menu setting
screen.
- Using the [ + ]/[ - ] buttons, select a sub menu number and press the [ Mode ] button to enter data setting screen.
- Using the [ + ]/[ - ] buttons, select the settings.
- Press the [ Fan ] button to select page.
- Press the [ OK ] button to save the current settings. the [ OK ] button is invalid on the main menu or sub menu setting
screen.
- Press the [ Cancel ] button for more than 3 seconds to exit to normal mode without saving settings.

ENGLISH-16
Wired remote controller installation/service mode
Additional functions of your wired remote controller
• If communication initialization is needed after the setting, the system will reset automatically and
communication will be initialized.
NOTE
Main
menu
Sub
menu Function description Setting value Page Save location
Value Factory default
1
1
Wired remote
controller
setting/
checking (1)
Cooling/Heating selection
0 - Cooling/Heating,
1 - Cooling only 001
Wired remote controller
Use of wireless remote controller
for indoor unit
0 - No use, 1 - Use 1 02 Wired remote controller
Main/Sub wired remote
controller
0 - Main, 1 - Sub 0 03 Wired remote controller
Temperature unit
0 - Celsius(°C),
1 - Fahrenheit(°F) 004
Wired remote controller
2
Wired remote
controller
setting/
checking (2)
Temperature sensor selection
0 - Indoor unit,
1-Wired remote
controller
001
Wired remote controller
Use of average temperature 0 - No use, 1 - Use 0 02 Wired remote controller
Use of Auto mode 0 - No use, 1 - Use 1 03 Wired remote controller
Temperature display
0 - Set temperature
1 - Room
temperature
2 - Relative
temperature 1)*
004
Wired remote controller
5
Room
temperature
compensation
2)*
Temperature control reference
-9 ~ 40 °C Current sensor
temperature 01
Wired remote controller
Temperature compensation value -9.9 ~ 9.9 °C 0 02,03 Wired remote controller
6
Number of
connected
units
Number of indoor units
0 ~ 16 0 01 None
7
Temperature increment/decrement unit
(°C only)
0 - 1 °C, 1 - 0.5 °C, 2 -
0.1 °C 001
Wired remote controller
0 Factory option setting
0 - Unchanged,
1 - Factory setting 0 01 None
21
Software code Software code None 01~03 None
2
Software version Software version None 01~03 None
4
1
Indoor unit
address/
option setting/
checking 3)*
Target address setting
Target address of
indoor unit (Example
: 20 02 1F)
View master 01~03 None
2
Main address setting/checking
0~4F (in hexadecimal
digits)
Main address of
target 01 None
3
RMC address setting/checking 0x00~0xFE 4)* RMC address of
target 01 None
4
Basic option setting/checking Option code Basic option
of target
01~20
5)* None
5
Install option setting/checking Option code Install option of
target
01~20
5)* None
6
Install(2) option setting/checking Option code Install(2) option
of target
01~20
5)* None
7
MCU/Port address setting
MCU address (00 to 15)
Port address (A to F)
MCU address of
target 01~02 None

ENGLISH-17
03 OTHERS
Main
menu
Sub
menu Function description Setting value Page Save location
Value Factory default
5
2
Indoor unit
discharge
temperature
setting/
checking 2)*
Use of discharge
temperature control
0 - No use, 1 - Use 0 01 Indoor unit
Cooling discharge temperature 8~18 °C 15 02 Indoor unit
Heating discharge temperature 30~43 °C 38 03 Indoor unit
3
Fresh duct
indoor unit
discharge
temperature
setting/
checking 2)*
Cooling discharge temperature
13~25 °C 18 01 Fresh duct
indoor unit
Heating discharge temperature 18~30 °C 25 02 Fresh duct
indoor unit
4
AHU Indoor
unit discharge
temperature
setting/
checking 2)*
Use of discharge
temperature control
0 - No use, 1 - Use 0 01 AHU Indoor unit
Cooling discharge temperature 8~25 °C 15 02 AHU Indoor unit
Heating discharge temperature 18~43 °C 38 03 AHU Indoor unit
7
1
View master
setting/
checking
Indoor unit view master setting/
checking
Indoor unit view
master address
(Example : 20 02 1F)
Indoor unit view
master 01~03 None
2
Mode master
indoor unit
setting/
checking
Mode master indoor unit
checking
Indoor unit master
address (Example :
20 02 1F)
none 01~03 None
3
Mode master indoor unit setting
6)*
0-No use, 1-Use,
2-Release 7)* none 01 None
8
1
Status of automatic air volume setting 1 0 01 Indoor unit
2
Automatic air volume operation 1 0 01 Indoor unit
3
Automatic air volume voltage setting 1 2 01 Indoor unit
0
1
Reset
Factory setting
1 0 None
2
Power master reset 8)* 1 0 None
3
Outdoor units reset 1 0 None
1)* Relative temperature means that the wired remote controller only displays the temperature increase or decrease (± 3)
compared to the reference temperature. Reference temperature is determined by other controller's desired temperature
setting.
(Example : DMS set 24 °C (75 °F) ¤24 °C (75 °F) is reference temperature. Wired remote controller displays it as '0' )
2)* Only the celsius temperature unit is allowed when this function setting and checking in the service mode.
For the fahrenheit temperature, you need temperature conversion before this function setting and checking
by the celsius temperature unit.
3)* When setting the address/option, you can set the target indoor unit by selecting sub menu 1.

ENGLISH-18
Wired remote controller installation/service mode
4)* RMC(1) : 0~F/RMC(2) : 0~F (hexadecimal digits)
When RMC(1) is set as F, RMC(2) setting is only available up to E. (RMC(1): Group channel, RMC(2): Group address)
• Main address of the indoor unit is displayed and entered in hexadecimal digits. Please refer to the following table.
NOTE
Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal
00 0 1016 2032 3048 4064
011 1117213331494165
02 2 1218 2234 3250 4266
03 3 1319 2335 3351 4367
044 1420243634524468
05 5 1521 2537 3553 4569
06 6 1622 2638 3654 4670
07 7 1723 2739 3755 4771
088 1824284038564872
09 9 1925 2941 3957 4973
0A 10 1A 26 2A 42 3A 58 4A 74
0B 11 1B 27 2B 43 3B 59 4B 75
0C 12 1C 28 2C 44 3C 60 4C 76
0D 13 1D 29 2D 45 3D 61 4D 77
0E 14 1E 30 2E 46 3E 62 4E 78
0F 15 1F 31 2F 47 3F 63 4F 79
5)* The total option codes are 24 digits. You can set six digits at a time and it is distinguished by number.
- Press the [ Fan ] button to go to the next page.
• Indoor unit's option setting is from SEG1 to SEG24.
- SEG1, SEG7, SEG13, SEG19 cannot be set and will not be displayed.
- SEG2 is a type of option and it cannot be set.
- Each SEG is displayed in the corresponding page below:
. SEG2 ~ SEG6 : Page1 ~ Page5
. SEG8 ~ SEG12 : Page6 ~Page10
. SEG14 ~ SEG18 : Page11 ~ Page15
. SEG20 ~ SEG24 : Page16 ~ Page20
- Press the [ Fan ] button to go to the next page.
CAUTION
Page1 Page2 Page3 Page4 Page5 Page6 Page7 Page8 Page9 Page10
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
0XXXXX1XXXX X
Page11 Page12 Page13 Page14 Page15 Page16 Page17 Page18 Page19 Page20
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
2 X XX X X3XX X X X
<SEG 2>
PAGE 1 PAGE 2 PAGE 3
<SEG 3> <SEG 4>

ENGLISH-19
03 OTHERS
6)* Setting is available when there is only 1 indoor unit connection and while the indoor unit operation is not operating.
7)* You can see no.0(no use) and no.1(use) while mode master indoor unit setting.
For the mode master indoor unit setting, select the no.1(use). And you can release the mode master unit setting
by selecting the no.2(release).
8)* Power master reset is a setting needed to supply optimized power to wired remote controller when multiple indoor units
are connected to wired remote controller in a group.
The example of installation/service mode setting
1. Press the top right corner (hidden button) of the display for more than 3 seconds
and drop it. Then you can press [ + ]/[ - ] buttons and select No.3 and press [ OK ]
button.
- Main menu will be displayed. Press [ + ]/[ - ] buttons and select No.1.
2. Press [ Mode ] button to select the number you will set.
- Press [ + ]/[ - ] buttons and select No.1.
3. Press [ Mode ] button to enter the data setting stage.
- When you enter the setting stage, the current setting value will be displayed.
4. Press [ + ]/[ - ] buttons to select No.1
- The wired remote controller option is set from both cooling and heating to
cooling only.
5. Press the [ Fan ] button to select page No.2, then Press [ + ]/[ - ] buttons to select
No.0
- The wired remote controller option is set to no use of wireless remote controller.
6. Press the [ OK ] button to save the current settings.
- Press the [ Cancel ] button for more than three seconds to exit to normal mode
without saving settings.
