Samsung MWR-WS00 User manual

ENGLISH
ESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCH
INSTALLATION
MANUAL
Wired Remote Controller
MWR-WS00
System Air Conditioner
DB98-25180A(1)SE F I DP G R A
EΛΛHNIKARUSSIAN
MWR-WS00_E_IM_25180.indd 23 2006-03-28 ｿﾀﾈﾄ 3:13:53

E-2
Safety Precautions
Read carefully this installation manual before
installation and check if the Wired Remote Controller is
installed correctly after installation.
 Do not attempt to install or repair this Wired Remote
Controller by yourself.
This Wired Remote Controller contains no user-serviceable
parts. Always consult authorized service personnel for
repairs.
When moving, consult authorized service personnel
for disconnection and installation of the Wired Remote
Controller.
Ensure that the wall is strong enough to support the weight
of the Wired Remote Controller.
Must install the Wired Remote Controller with rated power
supply.
The Wired Remote Controller must be installed according to
the national electrical rules by an installation specialist.
If you wish to uninstall the Wired Remote Controller, consult
an authorized installation center.
WARNING
CAUTION
 Do not use inflammable gases near the Wired Remote
Controller.
Do not install the Wired Remote Controller in a location
where it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
Avoid locations where acid/alkali solution or special spray
is used.
Choose a location that is dry and sunny, but not exposed to
direct sunlight. Suitable temperature is between
0°C and 39°C.
 Do not spill water into the Wired Remote Controller.
Do not apply tensile strength to the cable to avoid cable
damage.
Do not press the buttons with a sharp object.
Do not connect the power cable to the control terminal.
If the Wired Remote Controller is installed in a hospital or
other special places, it should not affect other electronic
devices.
This installation manual describes how to install the Wired Remote Controller.
For installation of other optional accessories, refer to the appropriate installation manual.
MWR-WS00_E_IM_25180.indd 2 2006-03-28 ｿﾀﾈﾄ 3:13:36

E-3
ENGLISH
Contents
 WIRED REMOTE CONTROLLER AND ACCESSORIES .................................. 4
Accessories ............................................................................................... 4
 INSTALLING THE WIRED REMOTE CONTROLLER ....................................... 5
Installing the communication and power cables ................. 5
Installation ................................................................................................ 6
Setting the Wired Remote Controller Options ....................... 7
Wired Remote Controller Error Codes ........................................ 8
Connecting the Wired Remote Controller ................................ 8
 ADDITIONAL FUNCTIONS ............................................................................11
Service Mode ........................................................................................11
Setting the Indoor Unit Option Code .......................................12
Setting the RMC Address ................................................................13
Monitoring the Indoor Unit Cycle Data ...................................14
Compensating for the Wired Remote Controller
Temperature Sensor ..........................................................................15
RPM Compensation ...........................................................................16
EEV step setup when the indoor unit is off during
heating mode .......................................................................................17
Setting the Filter Time ......................................................................18
Heating Capacity Compensation ................................................19
Checking the Indoor Unit Option Switch Settings .............20
Note  The illustrations will help you to understand the
symbols displayed in the pictures.
 The illustrations in the step-by-step procedures use
3 different symbols:
PRESS PUSH HOLD DOWN
MWR-WS00_E_IM_25180.indd 3 2006-03-28 ｿﾀﾈﾄ 3:13:36

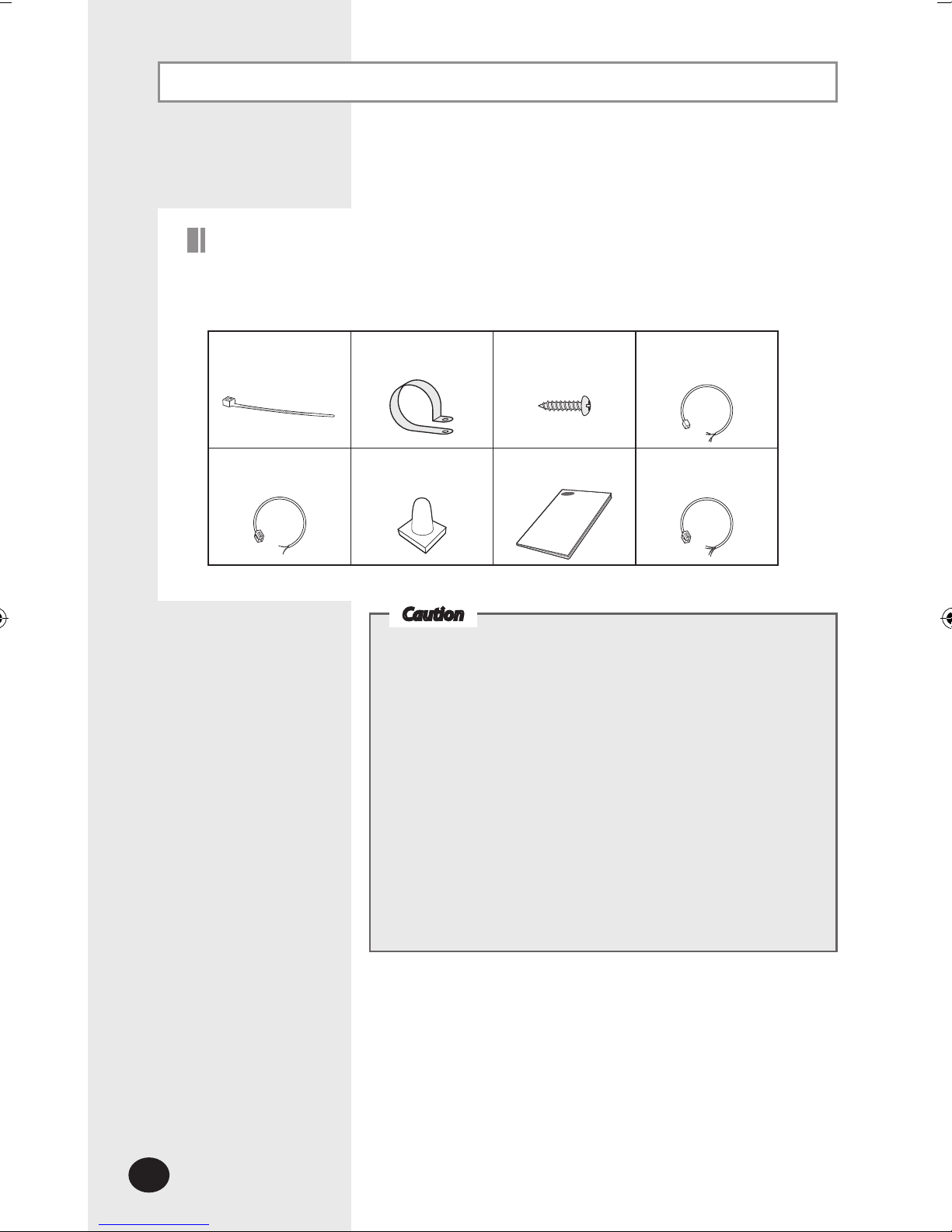

E-4
Wired Remote Controller and Accessories
 The wired remote controller should be installed by a
trained installer.
 Make sure the main power is off before installing the
wired remote controller.
 The cables must be installed according to the national
wiring regulations and inside the wall for safety
reasons.
 Always separate the communication cable and the
power cable to avoid malfunction of the unit.
(Connecting the power cable to the communication
terminal of the wired remote controller will cause
serious damage to the wired remote controller.
Make sure the wires are connected to the appropriate
terminals.)
Caution
Accessories
The following accessories are supplied with the air conditioner.

The number of each accessory is indicated in parentheses.
Cable Tie (2) Cable Clamp(4) M4X16 Screw(5)
Power Drawing Cable
(1)
Communication cable
(1)
Wire joint (4) User's manual (1) Communication and
power cable (1)
MWR-WS00_E_IM_25180.indd 4 2006-03-28 ｿﾀﾈﾄ 3:13:37

E-5
ENGLISH
Installing the Wired Remote Controller
Installing the communication and power cables
  If the power cable for the wired remote controller is installed inside the indoor unit,
the power cable supplied with the wired remote controller need not to be installed.
  If the power cable for the wired remote controller is not installed inside the indoor unit,
connect the indoor unit PCB to the terminal block inside the indoor unit using
the power cable supplied with the wired remote controller.
Connector type cable connection
AC Power supply
Check the wire colors.
The wires are color-coded
Power cable for the
wired remote controller
Communication cable for
the wired remote controller
(COM2)
White
Black
Red
Blue
F3
F4
White
Black
Red
Blue Blue 2P
(2.5 pitch)
White 2P
(2.5 pitch)
Indoor
unit PCB
White 2P
(2.5 pitch)
Blue 2P
(2.5 pitch)
Terminal type cable connection
AC Power supply
Check the wire colors.
The wires are color-coded
Power cable for the
wired remote controller
Communication cable for
the wired remote controller
(COM2)
White
Black Red
Blue Blue 2P
(2.5 pitch)
White 2P
(2.5 pitch)
Indoor
unit PCB
White 2P
(2.5 pitch)
Blue 2P
(2.5 pitch)
White
Black
Red
Blue
MWR-WS00_E_IM_25180.indd 5 2006-03-28 ｿﾀﾈﾄ 3:13:37

E-6
Installing the Wired Remote Controller (Continued)

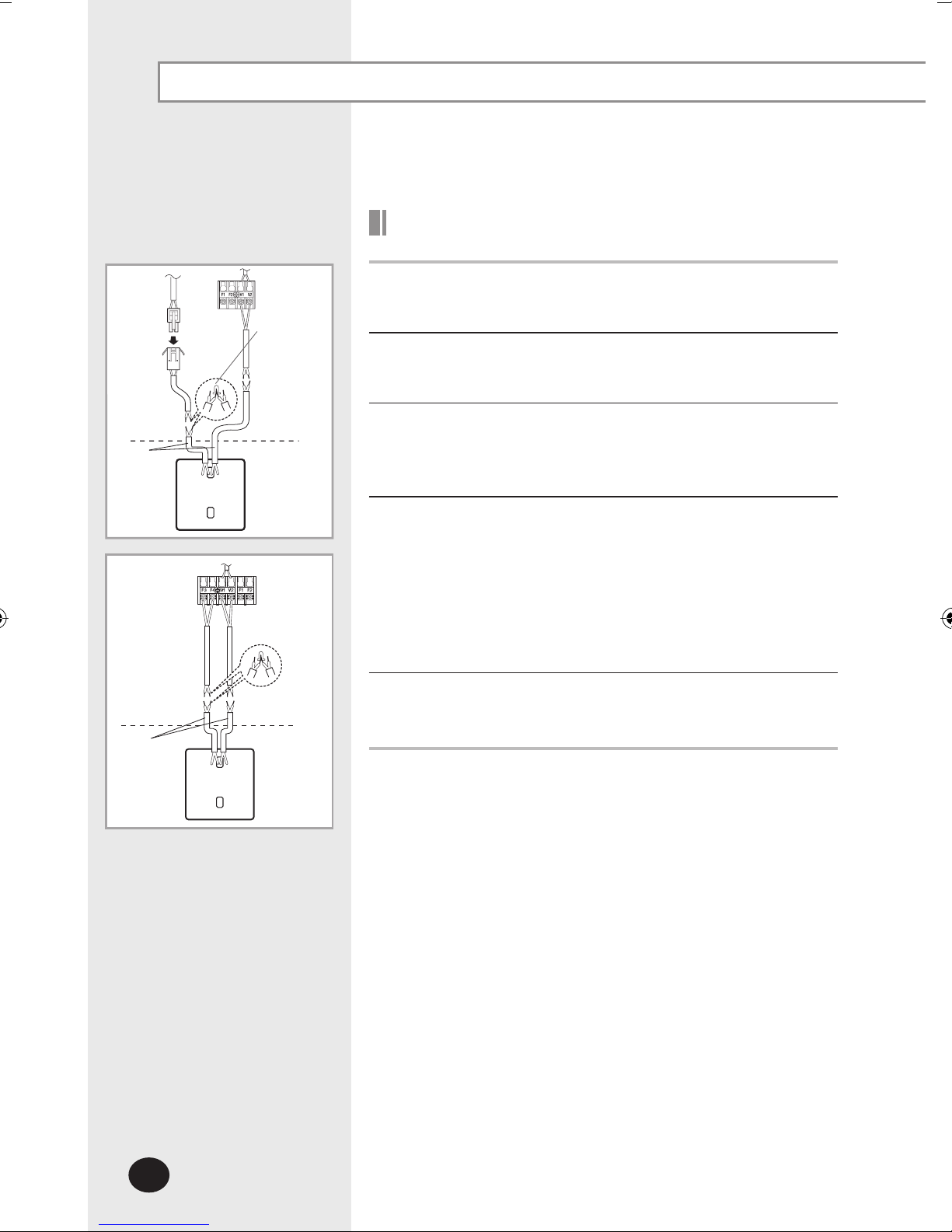

1Open the wired remote controller by pushing up the top cover
of the remote controller while holding the rear cover firmly.
2Install the rear cover of the wired remote controller on the wall
with the screws supplied.
3Connect the red and blue wires from the wired remote
controller to the V1 and V2 terminal of the indoor unit.
(Use a separate wire if needed for distance.)
4 Connect the indoor unit housing with the wired remote controller
housing supplied with the wired remote controller and connect
to the yellow and orange cables from the wired remote controller
or connect the yellow and orange cables from the wired remote
controller to the wires from the F3 and F4 terminal of the indoor
unit depending on the indoor unit type.
5 Reassemble the wired remote controller.
Installation
Indoor unit
Wired
remote
controller
Cables
not supplied
Housing
Tighten the
cable with
the wire joint
(accessories)
tightly.
Indoor unit
Wired
remote
controller
Cables
not supplied
F3 F4
MWR-WS00_E_IM_25180.indd 6 2006-03-28 ｿﾀﾈﾄ 3:13:38

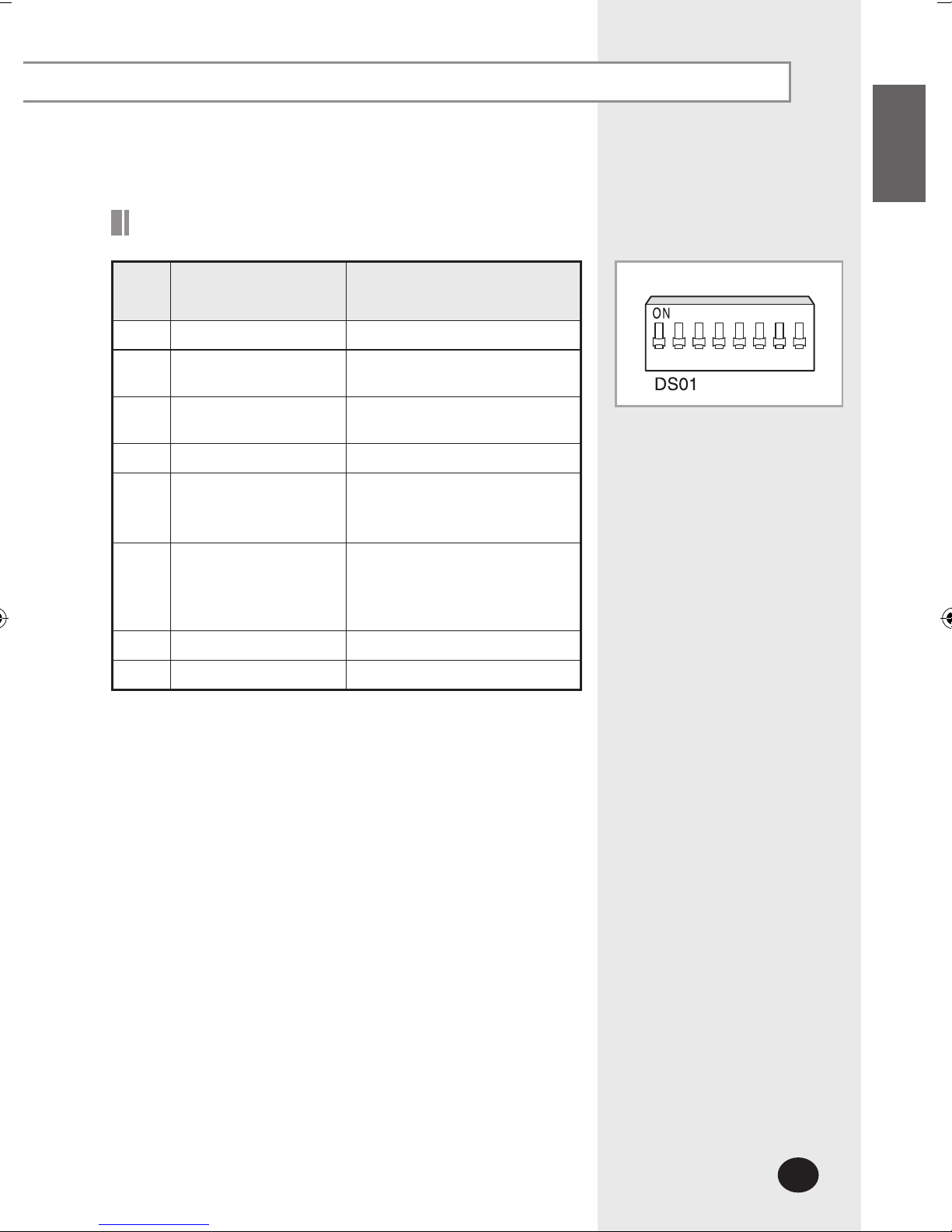

E-7
ENGLISH
Installing the Wired Remote Controller (Continued)
Setting the Wired Remote Controller Options
Switch
No. Switch OFF Switch ON
SW1 Cooling and Heating Cooling Only
SW2 Allow wireless remote
controller
Disable the wireless remote
controller
SW3 Master remote
controller Slave remote controller
SW4 Temp. display : °C Temp. display : °F
SW5
Use the indoor unit
temp. Sensor for the
indoor unit control
Use the wired remote controller
temp. Sensor for the indoor unit
control
SW6 -
Use the average of the indoor
unit sensor and the wired
remote controller sensor for the
indoor unit control
SW7 - -
SW8 Service mode monitor Service mode setup

       
      
MWR-WS00_E_IM_25180.indd 7 2006-03-28 ｿﾀﾈﾄ 3:13:38

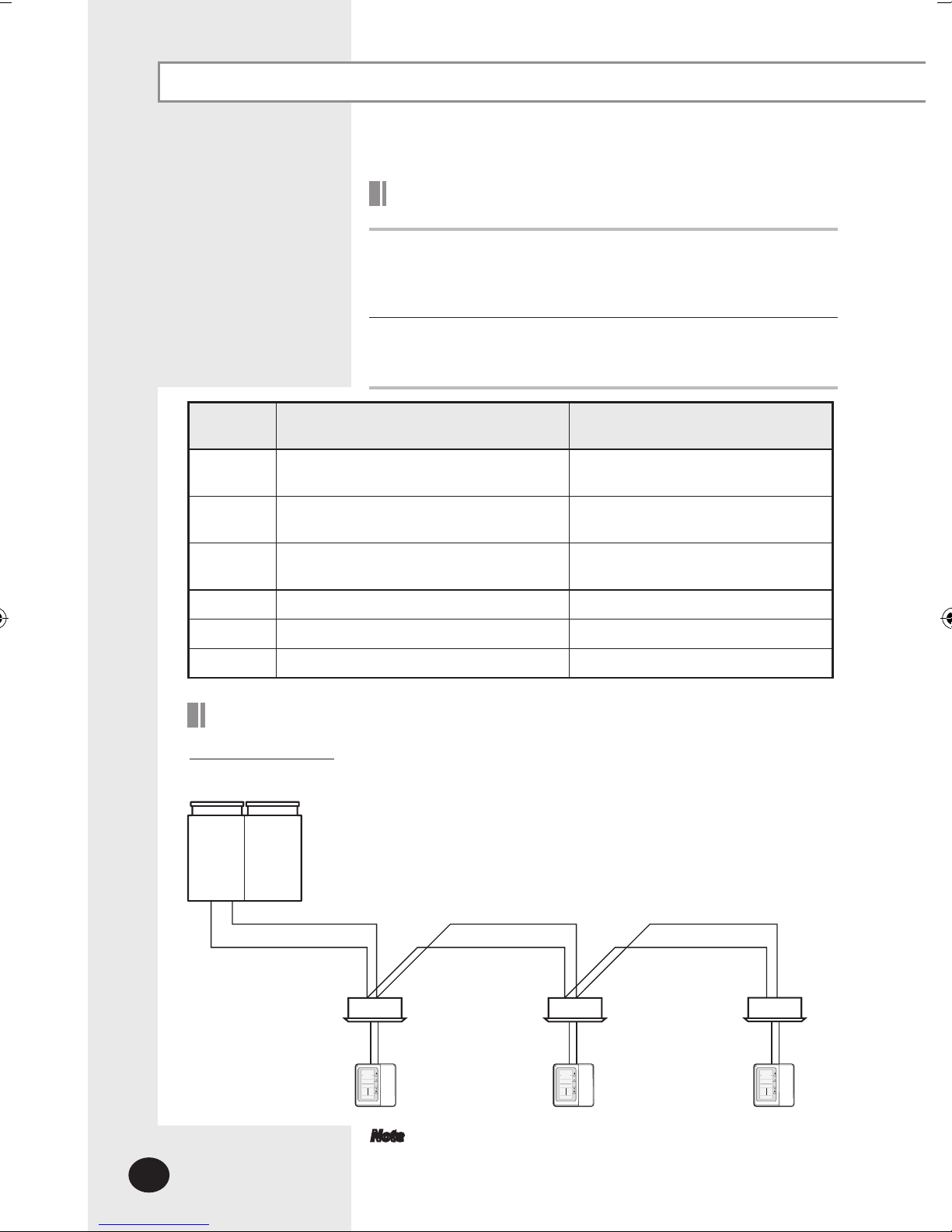

E-8
Wired Remote Controller Error Codes
1The error codes of the indoor and outdoor units are displayed
on the wired remote controller. Refer to the indoor and
outdoor unit technical manuals for the error codes reference.
2 The following error codes are related to the wired remote
controller.
Display Explanation Remark
601 Wired remote controller

indoor unit
communication error -
602 Master

slave wired remote controller
communication error
When using 2 wired remote
controllers to control one indoor unit.
604 Wired remote controller tracking error.
No indoor units found. -
606 COM1/COM2 installation error -
653 Temperature sensor error -
654 EEPROM error -
Installing the Wired Remote Controller (Continued)
Connecting the Wired Remote Controller
Individual Control
  Using one wired remote controller for one indoor unit.
Note The wired remote controller can be only installed on COM2.
Outdoor unit
Indoor unit
COM1
COM2
COM1
COM2 COM2
Wired remote controller
MWR-WS00_E_IM_25180.indd 8 2006-03-28 ｿﾀﾈﾄ 3:13:38

E-9
ENGLISH
Installing the Wired Remote Controller (Continued)
Note  Indoor units connected to different outdoor units can
be controlled as a group.
 At most 16 indoor units may be controlled as a group.

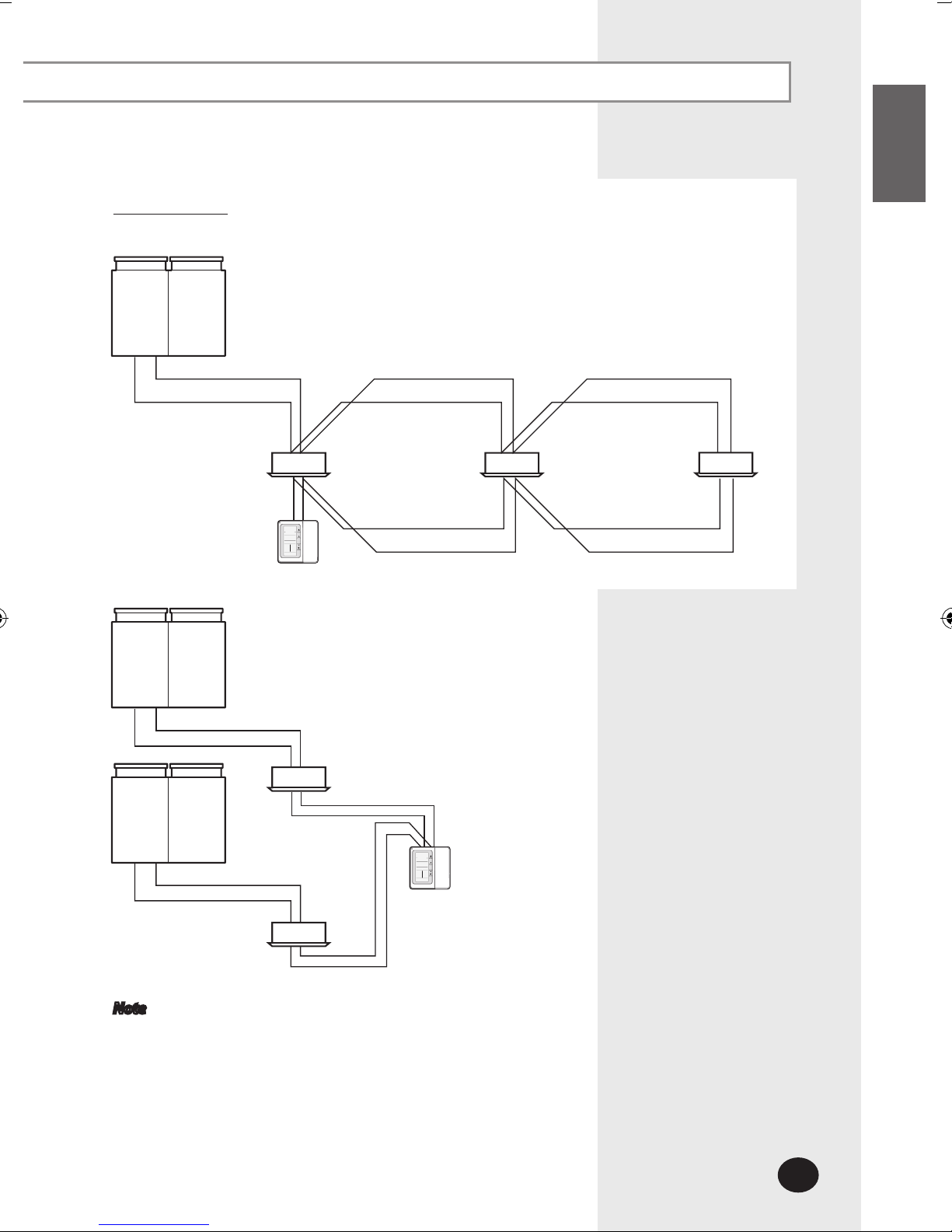

Group Control
  Using one wired remote controller for a group of indoor units.
Outdoor unit
Indoor unit
COM1 COM1
Wired remote controller
COM2 COM2
COM1
Outdoor unit
Indoor unit
Wired remote controller
Outdoor unit
Indoor unit
MWR-WS00_E_IM_25180.indd 9 2006-03-28 ｿﾀﾈﾄ 3:13:39

E-10
Installing the Wired Remote Controller (Continued)

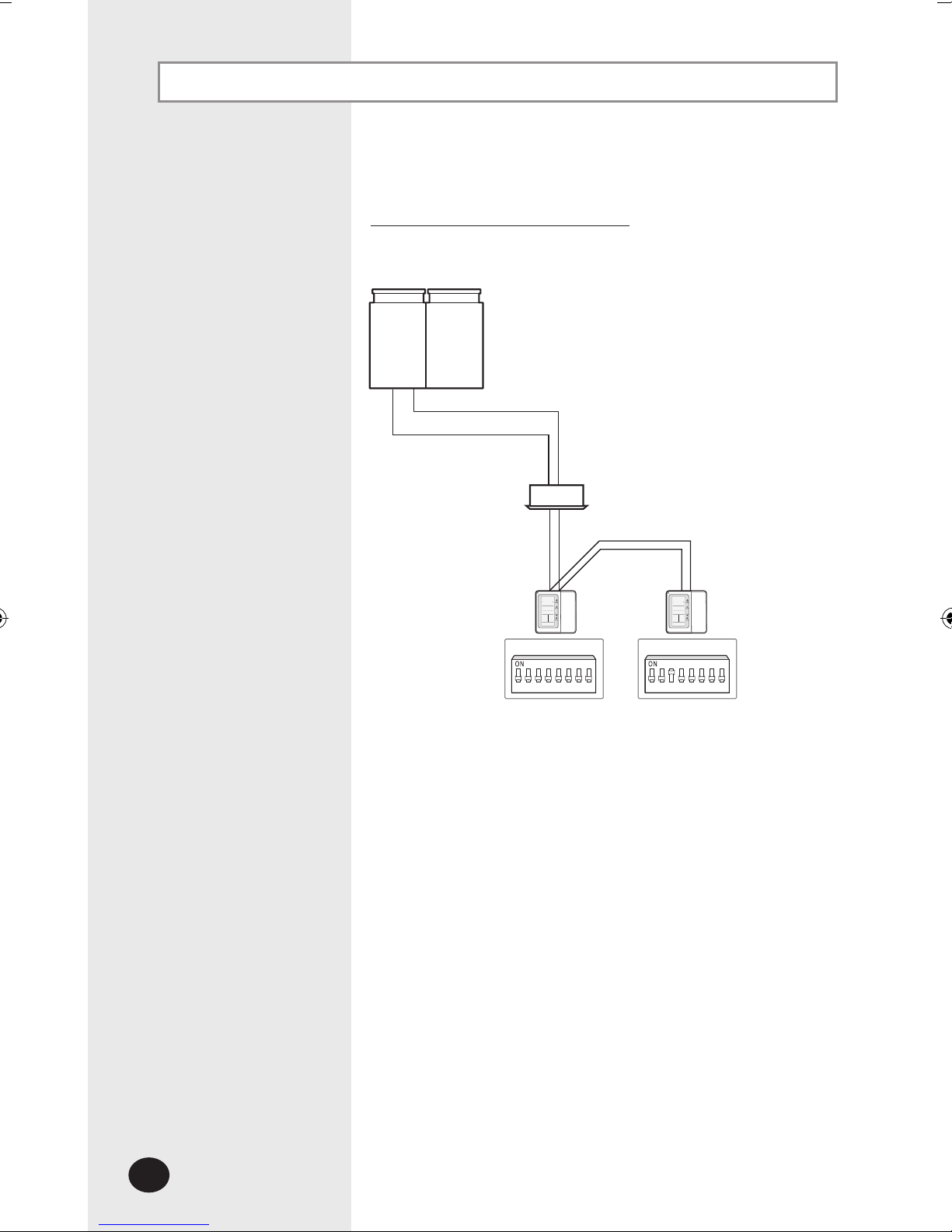

Using 2 wired remote controllers
  2 wired remote controllers can be used to control a single indoor
unit or a group of indoor units.

       
       
       
      
Outdoor unit
Indoor unit
COM1
Wired remote controller
(Master)
COM2
Wired remote controller
(Slave)
MWR-WS00_E_IM_25180.indd 10 2006-03-28 ｿﾀﾈﾄ 3:13:39

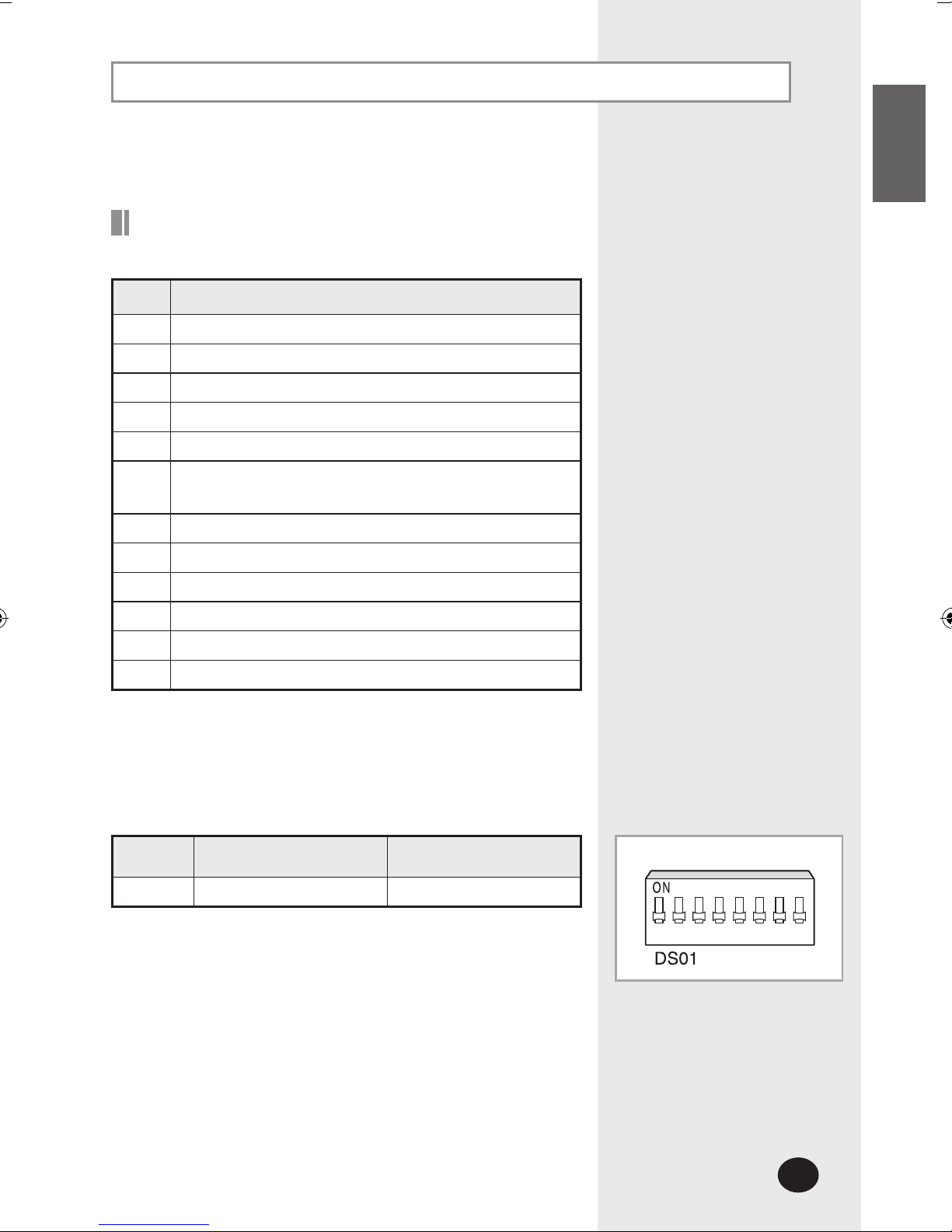

E-11
ENGLISH
Additional Functions
Service Mode
 The wired remote controller supports the following service modes.
Menu Description
1 Monitoring and setting the indoor unit option code
2 Monitoring and setting the indoor unit RMC address
3Monitoring the indoor unit cycle data
4Setting the indoor unit temperature sensor compensation
5Setting the RPM compensation
6Setting the EEV step when the indoor unit is off during
heating mode
7Setting the filter time
8Setting the heating capacity compensation
9Checking the indoor unit centralized control switch setting
10 Checking the indoor unit drain pump switch setting
11 Checking the indoor unit electric heater switch setting
12 Checking the indoor unit hot water heater switch setting
  If the option switch SW8 is set to ‘OFF’, the above service modes
can be only monitored. Set the option switch SW8 to ‘ON’ to set
the above service modes. In order to access the service mode,

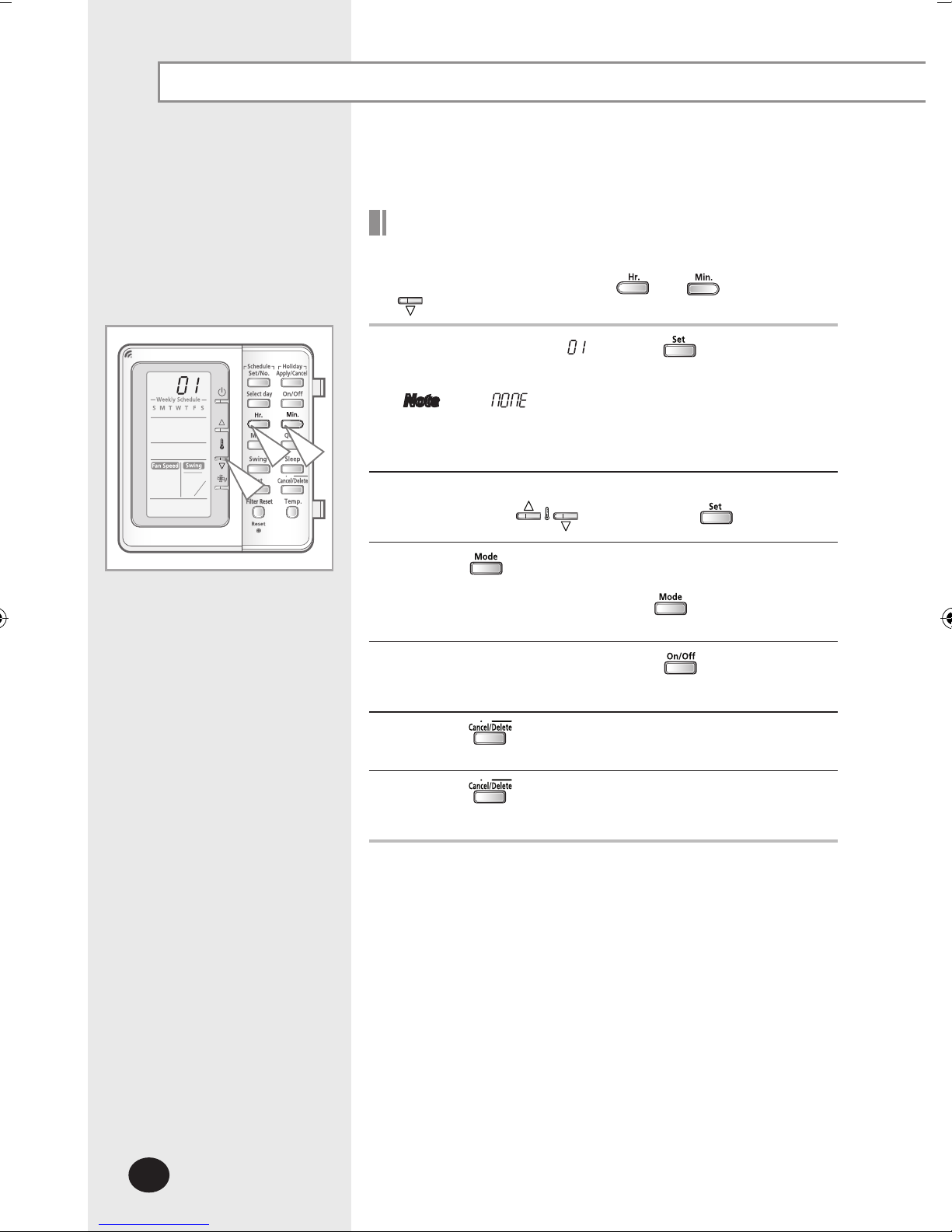

hold down the ‘Hr.’ and ‘Min.’ buttons and the temperature down
button at the same time for 5 seconds.
Switch No. Switch OFF Switch ON
SW8 Service mode monitor Service mode setup

       
      
MWR-WS00_E_IM_25180.indd 11 2006-03-28 ｿﾀﾈﾄ 3:13:39

E-12
Additional Functions (Continued)
Setting the Indoor Unit Option Code
In order to set the indoor unit option code using the wired
remote controller, hold down the and buttons and
the
button at the same time for 5 seconds.
1
The menu will display . Press the button to enter
the indoor unit option code mode.
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
Set the first 6 digits of the 12 or 24 digits of the option code
by pressing the
buttons and the button.
3Press the
button to set the second set of 6 digits.
If the option code is 24 digits, continue to set the third and
fourth set of 6 digits by pressing the
button.
4Once the option code is set, press the
button to transmit
the option code to the indoor unit.
5
Press the button to exit.
6Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 12 2006-03-28 ｿﾀﾈﾄ 3:13:40

E-13
ENGLISH
Additional Functions (Continued)
Setting the RMC Address
In order to set the RMC address of the indoor unit using the
wired remote controller, hold down the and buttons
and the
button at the same time for 5 seconds.
1
The menu will display .
Press the
button and the menu will display .
Press the button.
2
The main address of the indoor unit will be displayed on the
left and the RMC address of the indoor unit will flicker on the
right as shown.
3Press the buttons to set the RMC address and press
the
button.
4Press the button to exit.
5
Press the button anytime during setup to exit without
setting.
6Hold down the button to delete the RMC address set by
the wired remote controller and to restore the RMC address set
by the switch on the indoor unit PCB.
MWR-WS00_E_IM_25180.indd 13 2006-03-28 ｿﾀﾈﾄ 3:13:42

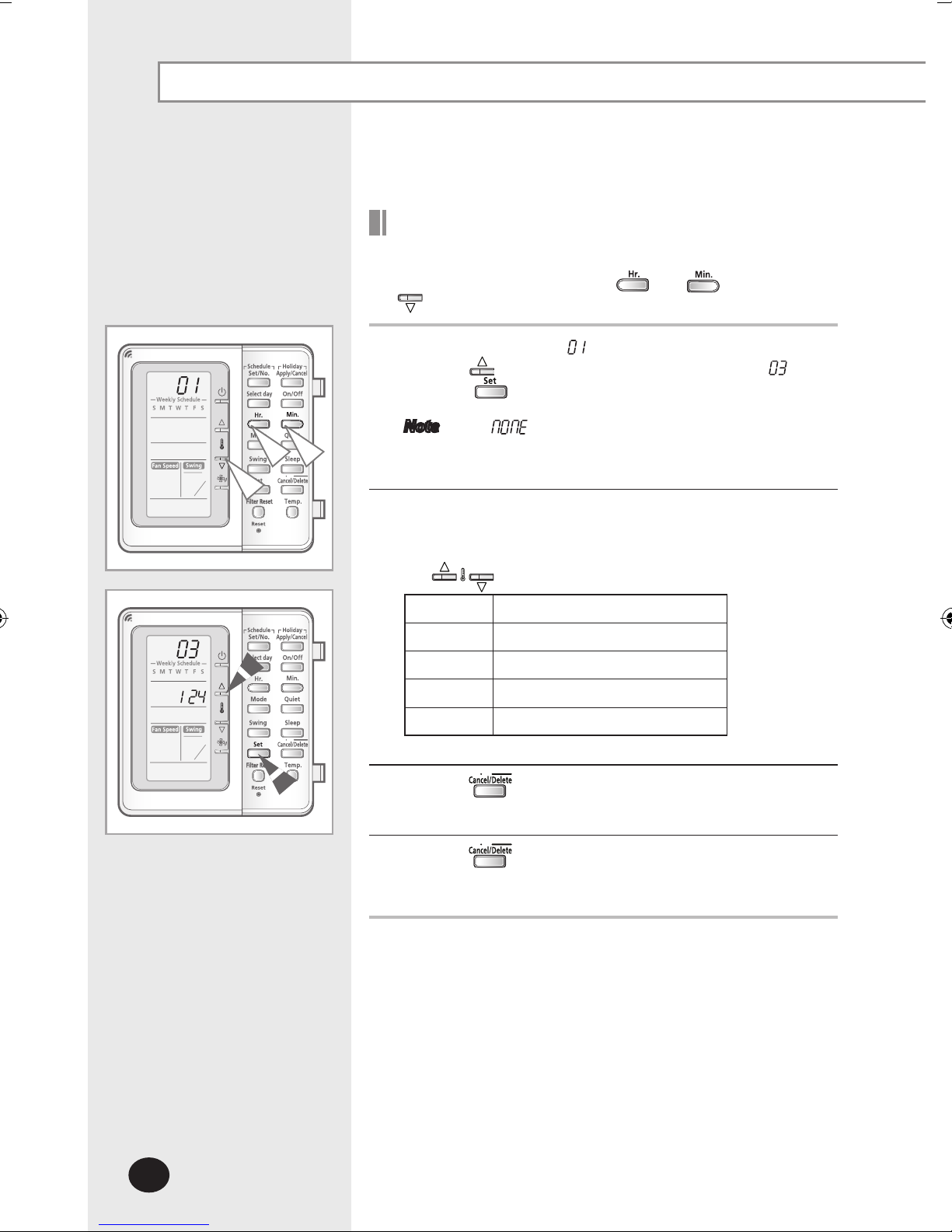

E-14
Additional Functions (Continued)
Monitoring the Indoor Unit Cycle Data
In order to monitor the indoor unit cycle data using the wired
remote controller, hold down the and buttons and
the
button at the same time for 5 seconds.
1
The menu will display .
Press the button twice and the menu will display .
Press the button.
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
4 digits will be displayed.
The first digit represents the menu and the remaining three
digits are used for data display. Select the menu using
the
buttons.
Menu Data
1 Indoor Temperature
2 EVA IN
3 EVA OUT
4 EEV
3Press the button to exit.
4Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 14 2006-03-28 ｿﾀﾈﾄ 3:13:44

E-15
ENGLISH
Additional Functions (Continued)
Compensating for the Wired Remote Controller
Temperature Sensor
In order to compensate for the temperature sensor of the wired
remote controller, hold down the and buttons and
the
button at the same time for 5 seconds.
1
The menu will display .
Press the
button until is displayed.
Press the button.
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
Press the buttons to set the compensation value
and press the button.
Note The compensation value range that can be set
is –9°C~9°C.
3Press the button to exit.
4Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 15 2006-03-28 ｿﾀﾈﾄ 3:13:45

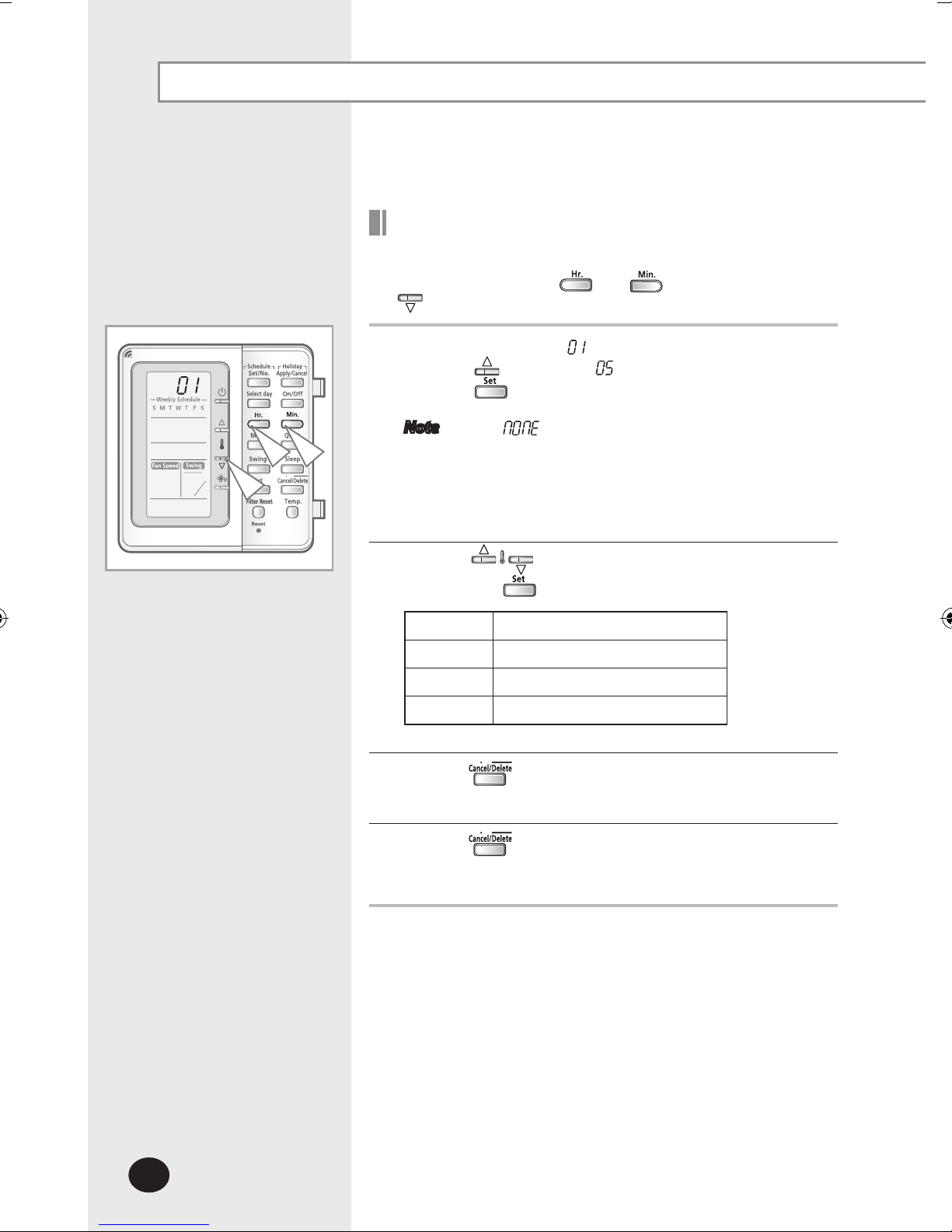

E-16
Additional Functions (Continued)
RPM Compensation
In order to compensate for the RPM using the wired remote
controller, hold down the and buttons and
the
button at the same time for 5 seconds.
1
The menu will display .
Press the
button until is displayed.
Press the button.
Note  ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
 RPM compensation can be set only for FAN
relay control models.
2
Press the buttons to set the RPM compensation
and press the button.
Value Function
0 Default (Use indoor unit PCB setting)
1 Set RPM compensation
2 Cancel RPM compensation
3Press the button to exit.
4Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 16 2006-03-28 ｿﾀﾈﾄ 3:13:46

E-17
ENGLISH
Additional Functions (Continued)
EEV step setup when the indoor unit is off during
heating mode
In order to set the EEV step for when the indoor unit is off
during heating mode using the wired remote controller, hold
down the and buttons and the
button at the
same time for 5 seconds.
1
The menu will display .
Press the
button until is displayed.
Press the button.
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
Press the buttons to set the EEV step and press
the button.
Value Function
0 Default (Use indoor unit PCB setting)
1 Fix 1:80 step
2 0/80 auto compensation
3Press the button to exit.
4Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 17 2006-03-28 ｿﾀﾈﾄ 3:13:48

E-18
Additional Functions (Continued)
Setting the Filter Time
In order to set the filter time of the indoor unit using the wired
remote controller, hold down the and buttons and
the
button at the same time for 5 seconds.
1
The menu will display .
Press the
button until is displayed.
Press the button.
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
Press the buttons to set the filter time and press
the button.
Value Function
0 Default (Use indoor unit PCB setting)
1000 1000 hours
2000 2000 hours
3Press the button to exit.
4Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 18 2006-03-28 ｿﾀﾈﾄ 3:13:49

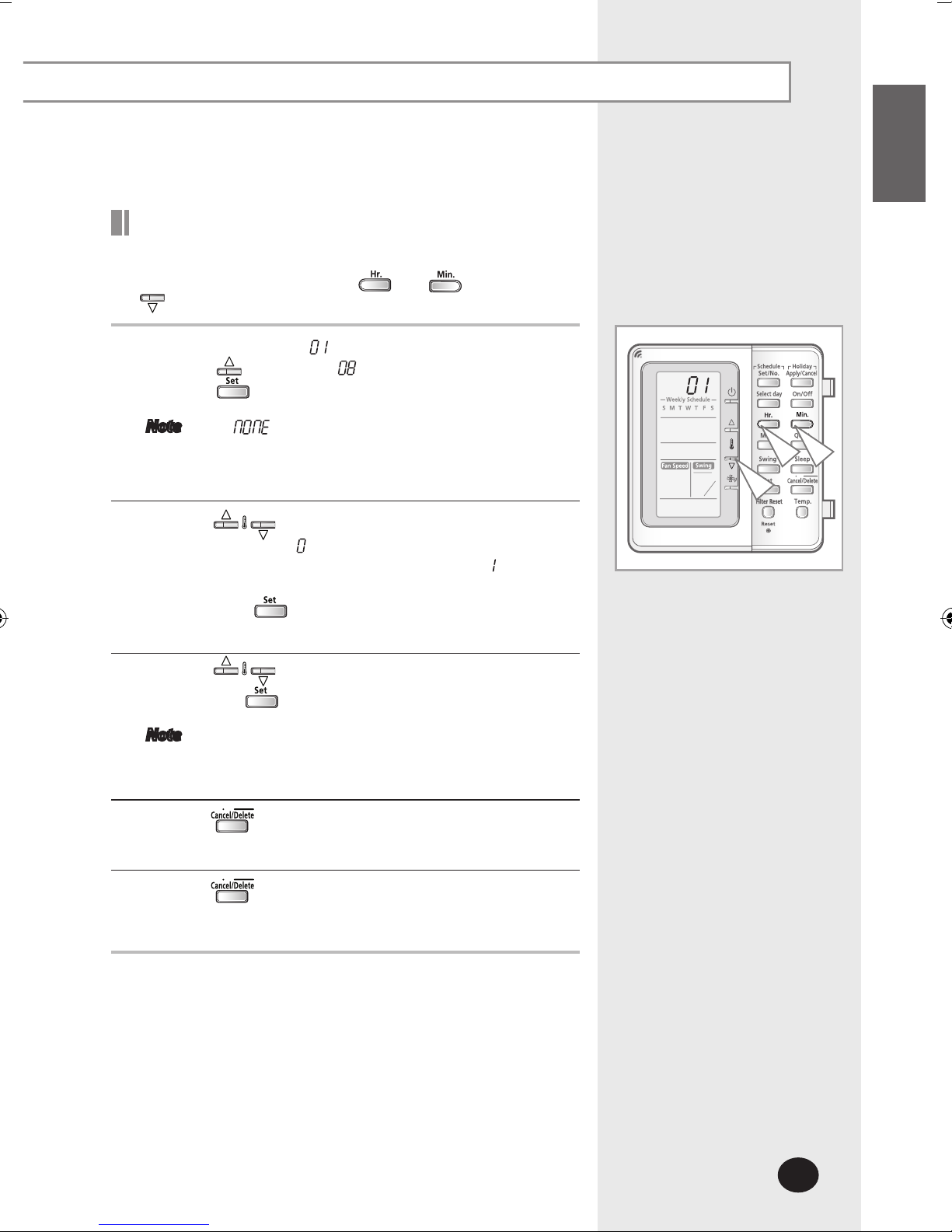

E-19
ENGLISH
Additional Functions (Continued)
Heating Capacity Compensation
In order to compensate for the heating capacity using the wired
remote controller, hold down the and buttons and
the
button at the same time for 5 seconds.
1
The menu will display .
Press the
button until is displayed.
Press the button.
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
Press the buttons to set which compensation value
is to be used. If set to , the compensation value set from
the indoor unit option switch is used and if set to , the
compensation value set from the wired remote controller is
used. Press the button.
3Press the
buttons to set the compensation value
and press the button.
Note The compensation value range that can be set
is –9°C~9°C.
4Press the button to exit.
5Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 19 2006-03-28 ｿﾀﾈﾄ 3:13:51

E-20
Additional Functions (Continued)
Checking the Indoor Unit Option Switch Settings
In order to check the indoor unit option switch settings using the
wired remote controller, hold down the and buttons
and the button at the same time for 5 seconds.
1
The menu will display .
Press the
button and select the appropriate menu
referring to the table below.
Value Data
9 Centralized control switch
10 Drain pump switch
11 Electric heater switch
12 Hot water heater switch
Note ‘ ’ will be displayed if the indoor unit does
not support the function and the setup mode
cannot be entered.
2
If the option switch is set to ON (which means disable
function), the value will display . If the option switch is set to
OFF (which means enable function), the value will display .
3Press the button to exit.
4Press the button anytime during setup to exit without
setting.
MWR-WS00_E_IM_25180.indd 20 2006-03-28 ｿﾀﾈﾄ 3:13:52
