USER’S MANUAL
Multi Function
Wired Remote Controller
MWR-WE00
System Air Conditioner
SE F I P GD Ne Po Hu DB98-30794A(1)AR
ENGLISHESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCHEΛΛHNIKA
NEDERLANDS
POLSKIMAGYARRUSSIAN
MWR-WE00_IB_E_30794-1.indd 29 2009-06-22 ｿﾀﾈﾄ 2:37:09

E-2
Safety Precautions
Do not attempt to install or repair this multi function
wired remote controller by yourself.
 This remote controller contains no user-serviceable parts.
Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for
disconnection and installation of the remote controller.
Ensure that the wall is strong enough to support the
weight of the remote controller.
Must install the remote controller with rated power
supply.
In the event of a malfunction (burning smell, etc.),
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
WARNING
CAUTION
 Do not use inflammable gases near the remote
controller.
 Do not spill water into the multi function wired remote
controller.
 Do not operate the remote controller with wet hands.
 Do not install the remote controller in a location where
it will come into contact with the combustible gases,
machine oil, sulphide gas, etc.
 Do not press buttons with a pointed thing.
 Do not pull or bend the multi function wired remote
controller cable excessively.
 Do not use this multi function wired remote controller
for other purpose.
 Do not spray an insecticide or other combustible things
on the multi function wired remote controller.
 Do not clean the multi function wired remote controller
with benzene, solvents or other chemicals.
 Do not give a shock to the multi function wired remote
controller or disassemble it by yourself.
• Before using the multi function wired remote controller, read carefully these
instructions.
• After reading the instructions, keep this user's manual in a handy and safe place.
If a user is changed, you must hand over the manuals.
• Never attempt to install the air conditioning system or to move the multi function
wired remote controller by yourself.
MWR-WE00_IB_E_30794-1.indd 2 2009-06-22 ｿﾀﾈﾄ 2:36:40

E-3
ENGLISH
Contents
 MULTI FUNCTION WIRED REMOTE CONTROLLER ........................ 4
 GETTING STARTED ........................................................................... 5
 SELECTING THE AUTOMATIC OPERATING MODE .......................... 6
 SELECTING THE COOLING MODE .................................................... 7
 SELECTING THE DEHUMIDIFYING MODE ........................................ 8
 SELECTING THE FAN MODE ............................................................. 9
 SELECTING THE HEATING MODE .................................................... 10
 SELECTING THE QUIET MODE ......................................................... 11
 SELECTING THE SLEEP MODE .......................................................... 12
 ADJUSTING THE AIR SWING DIRECTION ........................................ 13
 CHECKING THE ROOM TEMPERATURE ............................................ 14
 LOCKING THE MULTI FUNCTION WIRED REMOTE CONTROLLER ....... 14
 OPERATING THE ERV ...................................................................... 15
 USING THE E.SAVER FUNCTION ..................................................... 16
 SETTING THE 7-DAY SCHEDULE ...................................................... 17
 DELETING A SCHEDULE .................................................................... 20
 SETTING AND CANCELING A HOLIDAY SCHEDULE ......................... 21
 RESETTING THE 7-DAY SCHEDULE .................................................. 22
 SETTING THE AUTO STOP FUNCTION ............................................. 23
 SETTING THE TEMPERATURE LIMITS ................................................ 24
 LOCKING THE PARTS OF THE MULTI FUNCTION
WIRED REMOTE CONTROLLER
........................................................ 25
 SETTING THE CURRENT TIME AND DAY ......................................... 26
MWR-WE00_IB_E_30794-1.indd 3 2009-06-22 ｿﾀﾈﾄ 2:36:40

E-4
Getting Started
You have just purchased a multi function wired remote controller and it has
been installed by your installation specialist.
Your User’s Manual contain much valuable information on using
your multi function wired remote controller. Please take the time to read
them as they will help you take full advantage of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use 3 different symbols:
PRESS PUSH HOLD DOWN
Multi Function Wired Remote Controller
The multi function wired remote controller is installed on the wall.
Schedule number/
Schedule applied
unit display
Schedule/
Current time
display
Operation mode
display
AC fan speed/
air swing display
Special function
display
ERV fan speed
display
7-day schedule setup
Mode selection
ERV on/fan speed
control
Swing button
Energy saving
function selection
Room temperature
check button
Schedule reset button
Temperature
display
Operation ON/OFF button Temperature setting
button
Fan speed setting
button
Note  The button operates only when 1 indoor unit and 1 ERV unit is
connected to the multi function wired remote controller. If ERV unit is
not connected or more than 2 ERV units are connected, will be
displayed when you control it.
 ERV operates in Heat Exchange mode only.
 Press the buttons after cleaning the air filter. sign will be off.
The remote controller will display the filter sign to alert the user to clean the
filter and turn off the display when the buttons are pressed.
 will be displayed if you press the button of the function that the
indoor unit does not support.
 If you press button when ERV unit is connected to the multi function
wired remote controller, you can turn on/off both of ERV unit and the air
conditioner at the same time or turn on/off the air conditioner only.
The default setting is turning on/off both of them.
(Refer to the installation manual.)
 Even if the ERV and air conditioner are set to turn on/off at the same time,
you can control the air conditioner and ERV individually by other controllers
(Wireless remote controller, Centralized controller, S-NET mini, etc.) except
the multi function wired remote controller.
MWR-WE00_IB_E_30794-1.indd 4 2009-06-22 ｿﾀﾈﾄ 2:36:41

E-5
ENGLISH
Getting Started
You have just purchased a multi function wired remote controller and it has
been installed by your installation specialist.
Your User’s Manual contain much valuable information on using
your multi function wired remote controller. Please take the time to read
them as they will help you take full advantage of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use 3 different symbols:
PRESS PUSH HOLD DOWN
MWR-WE00_IB_E_30794-1.indd 5 2009-06-22 ｿﾀﾈﾄ 2:36:42

E-6
The room temperature and the fan speed are controlled
automatically in the auto mode.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the AUTO mode, press the button until Auto is
displayed on the remote controller.
Result:  The air conditioner will operate in auto mode.
 The auto fan speed will be selected
automatically in auto mode.
You cannot control the fan speed.
3
To adjust the temperature, press the buttons.
The temperature can be set between 18°C(65°F) and
30°C(86°F).
Result: The temperature will be adjusted by 1°C(1°F)
when the buttons are pressed.
4 To adjust the air swing direction, refer to page 13.
Note Fan speed in auto mode
When the room temperature is high, cool and strong
air will come out. After the room is cooled, mild air will
come out.
Selecting the Automatic Operating Mode
MWR-WE00_IB_E_30794-1.indd 6 2009-06-22 ｿﾀﾈﾄ 2:36:42

E-7
ENGLISH
Selecting the Cooling Mode
Select the cooling mode to lower the room temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the COOL mode, press the button until Cool is
displayed on the remote controller.
Result: The air conditioner will operate in cooling mode.
3
To adjust the temperature, press the buttons.
The temperature can be set between 18°C(65°F) and
30°C(86°F).
Result: The temperature will be adjusted by 1°C(1°F)
when the buttons are pressed.
4 Select the fan speed by pressing the button.
Result: Each time the button is pressed, fan speed will
change in the following order:
Low Med High Auto
5 To adjust the air swing direction, refer to page 13.
Note If you select heating mode while the cooling mode is in
operation, cooling mode will be canceled.
MWR-WE00_IB_E_30794-1.indd 7 2009-06-22 ｿﾀﾈﾄ 2:36:44

E-8
Select the dehumidifying mode if the room is too humid.
Using this mode will slightly lower the room temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the DRY mode, press the button until Dry is
displayed on the remote controller.
Result:  The air conditioner will operate in
dehumidifying mode.
 The Auto fan speed will be selected
automatically in the dry mode.
You cannot control the fan speed.
3
To adjust the temperature, press the buttons.
The temperature can be set between 18°C(65°F) and
30°C(86°F).
Result: The temperature will be adjusted by 1°C(1°F)
when the buttons are pressed.
4 To adjust the air swing direction, refer to page 13.
Selecting the Dehumidifying Mode
MWR-WE00_IB_E_30794-1.indd 8 2009-06-22 ｿﾀﾈﾄ 2:36:45

E-9
ENGLISH
Selecting the Fan Mode
Select the fan mode to circulate air without changing the
temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the FAN mode, press the button until Fan is
displayed on the remote controller.
Result:  The air conditioner will operate in fan mode.
 You cannot adjust the temperature in fan
mode.
3
Select the fan speed by pressing the button.
Result: Each time the button is pressed, fan speed will
change in the following order:
Low Med High
4 To adjust the air swing direction, refer to page 13.
MWR-WE00_IB_E_30794-1.indd 9 2009-06-22 ｿﾀﾈﾄ 2:36:46

E-10
Select the heat mode to raise the room temperature.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
Caution The air conditioner has a built-in protection
mechanism to prevent the unit from being
damaged when it is started immediately after
being:
 Plugged in
 Stopped
The air conditioner will start up after 3 minutes.
2
To select the HEAT mode, press the button until Heat is
displayed on the remote controller.
Result: The air conditioner will operate in heating mode.
3
To adjust the temperature, press the buttons.
The temperature can be set between 16°C(61°F) and
30°C(86°F).
Result:  The temperature will be adjusted by 1°C(1°F)
when the buttons are pressed.
 The air conditioner will start heating if the
set temperature is higher than the room
temperature.
 The fan will operate even if the set
temperature is lower than the room
temperature.
4 Select the fan speed by pressing the button.
Result: Each time the button is pressed, fan speed
will change in the following order:
Low Med High Auto
5 To adjust the air swing direction, refer to page 13.
Note  After starting heating operation, the air may not come out
immediately to prevent the cold air from coming out.
 (Defrost indicator)
- Defrost indicator will be on while your outdoor unit
defrosts the frost formed during heating operation.
After defrosting is completed, the indicator will be off.
(Air will not come out of the indoor unit while defrosting.)
 If you stop running the air conditioner after heating
operation, the air will come out for a while to radiate heat.
 If you select cooling mode while the heating mode is in
operation, heating mode will be canceled.
Selecting the Heating Mode
The heating mode can be selected only on the heat pump models.
MWR-WE00_IB_E_30794-1.indd 10 2009-06-22 ｿﾀﾈﾄ 2:36:48

E-11
ENGLISH
Selecting the Quiet Mode
Select the quiet mode to run the indoor unit as quietly as
possible.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
2
Select the desired operation mode by pressing the
button.
3
Press the button to select the Quiet mode.
Result:  The air conditioner will operate in quiet mode.
 Operating noise will be reduced.
Note Press the button again to exit the quiet
mode.
Note  If the indoor unit does not support Quiet mode,
will be displayed when you press the
button.
 If you press the button in fan mode,
will be displayed.
MWR-WE00_IB_E_30794-1.indd 11 2009-06-22 ｿﾀﾈﾄ 2:36:49

E-12
Selecting the Sleep Mode
Select the sleep mode to sleep in comfort without worrying to
urn off the air conditioner in the middle of the night.
The air conditioner will turn off automatically after 6 hours.
1
Press the (ON/OFF) button to turn on the indoor unit.
- Do not press the (ON/OFF) button if the remote
controller is on.
Result: The air conditioner will be turned on with the
most recently used mode.
2
Select the desired operation mode by pressing the
button.
Note Only cooling and heating mode support the sleep
mode.
3 Press the button for 3 seconds to select the Sleep
mode.
Result:  The air conditioner will operate in sleep mode.
 The air conditioner will gradually raise or
lower the set temperature internally and
eventually turn off automatically after 6 hours.
Note Press the button for 3 seconds again to exit
the sleep mode.
Note  If the indoor unit does not support Sleep mode,
will be displayed when you press the
button for 3 seconds.
 If the indoor unit is not in Cool/Heat mode,
will be displayed when you press the button for
3 seconds.
MWR-WE00_IB_E_30794-1.indd 12 2009-06-22 ｿﾀﾈﾄ 2:36:50

E-13
ENGLISH
Adjusting the Air Swing Direction
Adjust the air swing direction to circulate the air according
to various needs. By adjusting the air swing direction, the
efficiency of the air conditioner can be increased.
1
Press the button.
Result:  The blade will start swinging up and down.
 Press the button again to stop the
blade from swinging and set the blade to the
desired position.
Note The air swing direction cannot be set on duct type
indoor units.
will be displayed when the button is
pressed.
MWR-WE00_IB_E_30794-1.indd 13 2009-06-22 ｿﾀﾈﾄ 2:36:51

E-14
Checking the Room Temperature
You can check the current room temperature.
1
Press the button to check the room temperature.
Result: The room temperature will be displayed for
3 seconds and return to set temperature display.
Note The room temperature may be slightly different
depending on the installation location of the
remote controller.

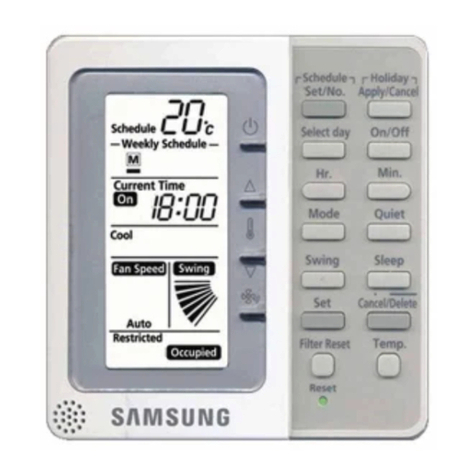

Locking the Multi Function Wired Remote Controller
Lock the multi function wired remote controller to prevent it
from children and changing the settings unwillingly.
1
Press the button for 3 seconds.
Result:  will be displayed and the multi function
wired remote controller is locked.
 When the multi function wired remote
controller is locked, you cannot control the
air conditioner by the multi function wired
remote controller.
Note Press the button for 3 seconds again to cancel
the lock.
MWR-WE00_IB_E_30794-1.indd 14 2009-06-22 ｿﾀﾈﾄ 2:36:52

E-15
ENGLISH
Operating the ERV
Select ERV function to ventilate the room.
1
Press the button to start ERV ventilating system.
Result: The fan speed will be displayed as High
2
Press the button to select the fan speed.
 You can adjust the fan speed by pressing the
button. The fan speed changes in order of High 
Turbo Med
 To stop the ERV, press the button again when the
fan speed is Med
Note  If you press the button when ERV unit is
connected to the multi function wired remote
controller, you can turn on/off both of ERV and the
air conditioner at the same time or turn on/off the
air conditioner only. The default setting is turning
on/off both of them.
(Refer to the installation manual.)
 The button operates when more than 1 ERV
unit is connected to the multi function wired remote
controller.
If not, will be displayed when you press the
button.
 ERV operates in heat exchange mode only.
MWR-WE00_IB_E_30794-1.indd 15 2009-06-22 ｿﾀﾈﾄ 2:36:53

E-16
Using the E. Saver Function
Select E.Saver function to save electricity.
1
Press the button.
Result: The air conditioner will operate in E.Saver mode.
Note In fan mode, E.Saver is displayed but the E.Saver
function is not operated.
Note  The button operates only when 1 indoor unit
and 1 ERV unit is connected to the multi function
wired remote controller.
If ERV unit is not connected or more than 2 ERV units
are connected, will be displayed when you
control it.
 When E.Saver function in operation, the indoor unit
and ERV unit may operate automatically.
 If you set the E.Saver function when the air
conditioner is operating in cool/heat mode, the
set temperature may set automatically [Cooling
operation : 26°C(79°F), Heating operation :
22°C(72°F)].
You can change it by pressing the buttons.
MWR-WE00_IB_E_30794-1.indd 16 2009-06-22 ｿﾀﾈﾄ 2:36:53

E-17
ENGLISH
Setting the 7-day Schedule
Set the 7-day schedule to reserve the On/Off timer to be repeated
every week. At most 10 schedules may be set for each day.
1
Press the button to set a schedule.
Result: The day is set to today and the schedule number
displays the next empty schedule number for
that day. If there are no schedules set,
the schedule number displays .
If there are 5 schedules set, for example,
the schedule number displays .
2
Press the button to select the day to set the schedule.
Result:  Each time the button is pressed, the
square box shifts to the right.
 Press the button to end the selection.
You will move to the device selection.
3
Press the button to select the device.
Result:  Each time the button is pressed,
  will be selected in order.
 Press the button to end the selection.
You will move to the On/Off selection.
Caution If ERV is not connected, only the AC can be
selected.
4
Press the button to set the schedule on or off.
Result:  Each time the button is pressed,
On Off will be selected in order.
 Press the button after the selection.
If you set On schedule, refer to step ‘5. Mode
selection’ and if you set Off schedule, refer to
step ‘10. Hour selection’.
MWR-WE00_IB_E_30794-1.indd 17 2009-06-22 ｿﾀﾈﾄ 2:36:55

E-18
Setting the 7-day Schedule (Continued)
5
Press the button to select operation mode.
Result: Each time the button is pressed, Auto 
Cool Dry Fan Heat will be selected in
order. Auto mode and Heat mode may not be
selected depending on the option settings.
(Refer to the installation manual.)
Note This step is for setting the ‘On schedule’.
6
Press the buttons to set the temperature.
Result: The temperature will be adjusted by 1°C(1°F)
when the buttons are pressed.
Note  This step is for setting the ‘On schedule’.
 You cannot control the desired temperature
if you selected fan mode.
7
Press the button to set the fan speed.
Result:  Fan speed can be adjusted in cool/fan/heat
mode.
 Press the button until the desired fan
speed you want is selected.
Note This step is for setting the ‘On schedule’.
8
Press the button to set the fan speed of ERV.
Result: Press the button until the desired fan speed
you want is selected.
Note This step is for setting the ‘On schedule’.
9
Press the button to set the set temperature, operation
mode and fan speed.
Result:  Schedule air conditioner and ERV together :
Set the desired temperature, operation mode
and fan speed of air conditioner/ERV.
 Schedule air conditioner only: Set the desired
temperature, operation mode and fan speed
of air conditioner
 ERV schedule only: Set the fan speed of ERV
MWR-WE00_IB_E_30794-1.indd 18 2009-06-22 ｿﾀﾈﾄ 2:36:56

E-19
ENGLISH
Setting the 7-day Schedule (Continued)
10
Press the button and select ‘Hour’ to set the hour.
Result:  Press the button until the desired hour is
selected.
 Each time the button is pressed,
the time is increased by 1 hour.
 Press the button to end the selection.
11
Press the button and select ‘Minute’ to set the minute.
Result:  Press the button until the desired
minute is selected.
 Each time the button is pressed,
the time is increased by 1 minute.
 Press the button to select schedule time.
The schedule time setting is completed and
you will move to schedule confirm display.
12
Press the button to complete 7-day schedule.
Result:  The display blinks once and the schedule set
will be saved.
 Press the button while setting the
schedule to cancel the setting. You cannot
cancel the schedule after pressing the
button.
Note  Once the schedule is saved, the schedules are
automatically sorted and the schedule number is
displayed by increasing time order.
 Press the button to cancel the setting.
 When the centralized control is set, you can set the
7-day schedule but it will not be executed.
MWR-WE00_IB_E_30794-1.indd 19 2009-06-22 ｿﾀﾈﾄ 2:36:58

E-20
Deleting a Schedule
Schedules may be deleted one at a time.
1
Press the button to enter the schedule setup mode.
Result: The day is set to today and the schedule number
displays the next empty schedule number
for that day. If there are no schedules set, the
schedule number displays .
If there are 5 schedules set, for example,
the schedule number displays .
2
Select the day of the schedule to be deleted by pressing the
button.
Result: Each time the button is pressed,
the square box blinks and shifts to the right.
3
Select the schedule number to be deleted by pressing the
button.
Result: Each time the button is pressed,
the schedule number will change.
4
Press the button for 3 seconds.
Result: The schedule is deleted and the remaining
schedules are sorted automatically.
MWR-WE00_IB_E_30794-1.indd 20 2009-06-22 ｿﾀﾈﾄ 2:36:59
