Sangean dpr-39 User manual

Operating instruction GB
Mode d’emploi F
Instruccions de manejo E
Gebruiksaanwijzing NL
Bedienungsanleitung D
DPR-39
DAB+ / FM-RDS Hand-held Receiver
DAB+ / FM-RDS Récepteur portable
DAB+ / FM-RDS Receptor de mano
DAB+ / FM-RDS Draagbare ontvanger
DAB+ / UKW-RDS Handempfänger
3A81X51000000

1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’
s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.

2
9. Do not defeat the safety purpose of
GB
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety. If the
provided plug does not fit into your outlet.
consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/ accessories
specified by the manufacturer.

3
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
anyway, such as power-supply cord or
plug is damaged. liquid has been spilled
or objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally, or
has been dropped.

4
15. To Reduce the Risk of Fire or Electric
Shock, Do not Expose This Appliance To
Rain or Moisture. GB
16. T h e S h o c k H a z a r d M a r k i n g a n d
Associated Graphical Symbol is provided
on the bottom panel of unit.
17. Apparatus shall not be exposed to
dripping or splashing and no objects filled
with liquids, shall not be placed on the
apparatus.

5

6

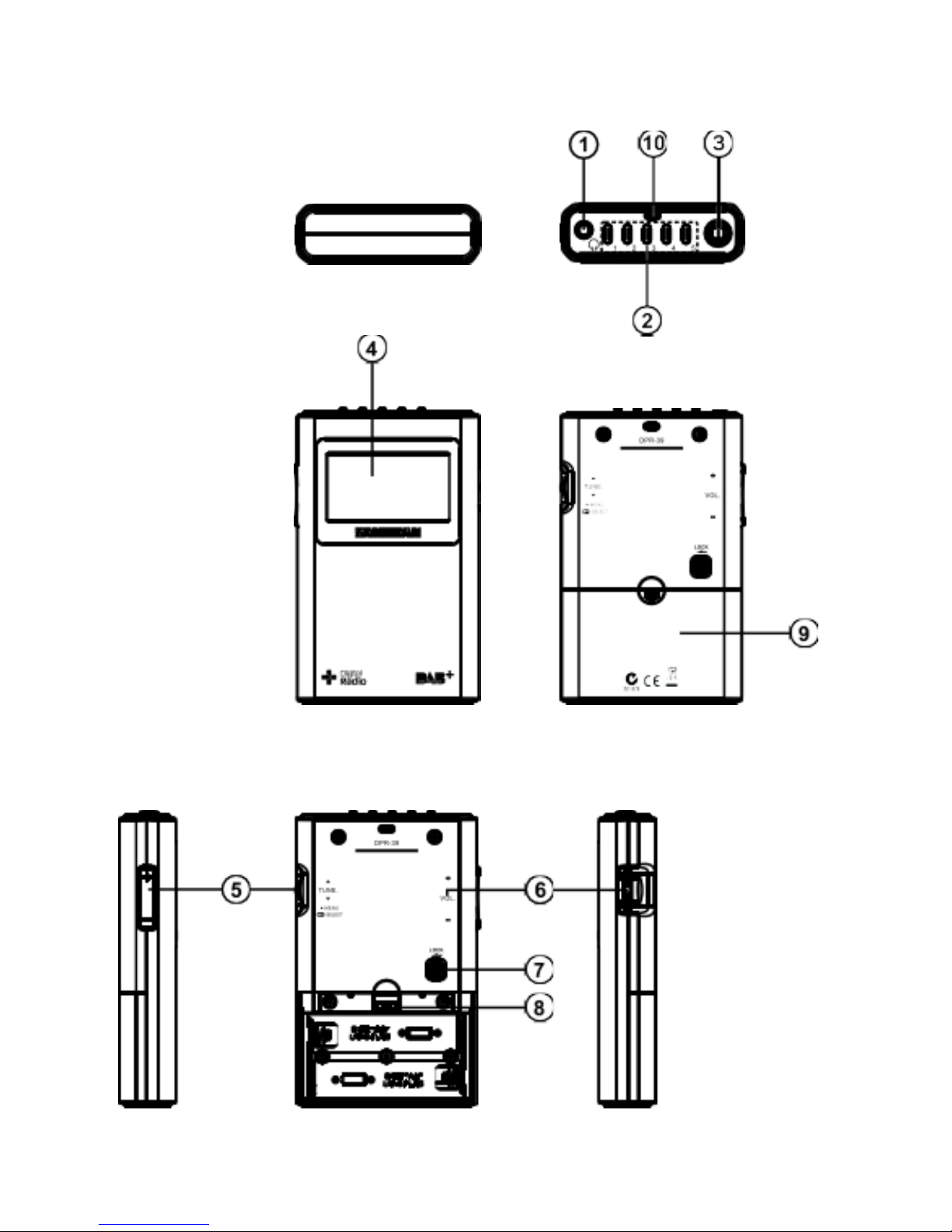

Controls
1 Headphone socket
GB
2 Preset buttons (1-5)
3 Power button
4 LCD display
5 Volume control
6 Tuning/Menu jog wheel
7 Lock switch (Note: If this is activated the
radio will not operate)
8 USB socket for software upgrade
9 Battery compartment
10 Strap holder

7
Battery Installation
Battery cover is located on the back of the
unit. Slide the cover downwards to gain
access to the battery compartment. Insert
two AA (UM-3/R6/LR6) batteries into the
compartment. Make sure that the battery is
positioned in accordance with the indicated
diagram. Replace cover.
Note:
You can always monitor the battery power
from LCD display battery icon. When battery
power becomes very low and unable to
operate the radio, low battery indicator will
appears on the LCD display. The radio will
shut off.
Headphones
The 3.5 mm stereo headphone socket located
on the top of your radio is provided for use
with stereo headphones or an earpiece.

8
Important:
Excessive volume levels from earphones GB
and headphones may cause damage to your
hearing.
Setting the clock
The clock will automatically update each time
you turn on the radio and tune to a DAB radio
station or to an FM station which is
broadcasting the time via RDS. Time display
will flash 0:00 for a few seconds then display
the clock time when it receives DAB or FM –
RDS clock time signal.
Initial operation –DAB
This step is only necessary for initial setup –
1. Make sure a headphones/an earpiece is
plugged in.
2. Press the Power button on the top of your
radio.

9
3. The display will show “Welcome to Digital
Radio” and start to scan the entire DAB+
channel range and stop at the first found
station. If the radio has been used before,
the last used station will be selected. Press
in the tuning/menu jog wheel to play the
station.
4. Turn the jog wheel either up or down to
display station list and find desired station.
Press in the jog wheel to select the station.
The radio will tune to the station and
display the station name.
5. Adjust the volume control for comfortable
listening.
Service Information –DAB
The Service Information display –Technical
information on the current status of the
station being broadcast.

10
While listening to DAB+, continually press in
the jog wheel to cycle through information on: GB
a. Program type (PTY)
b. Multiplex Name
c. Time
d. Date
e. Channel and Frequency
f . Bit Rate and Codec
g. Signal Strength
Menu Functions-DAB
Press in and hold the jog wheel for 2 seconds
to enter the menu list. The display will first
show DAB and <Find Services>. Turn the jog
wheel up or down and choose from the
following options: ‘Find Services’, ‘Back’, ‘FM
mode’, ‘Settings’ and ‘Prune’.
A) Find Services
Press in the tuning/menu jog wheel and turn
up or down to select.

11
● Full scan
press in the jog wheel to scan the whole
DAB network in your area. Radio will tune
to first station found after the scanning is
completed.
● Back
press in the jog wheel to go back to the
previous menu display.
● Manual tune
press in and turn the jog wheel to scroll the
whole station list. Press in the jog wheel to
select desired station.
B) Back
Press in the jog wheel to go back to current
listening status.
C) FM mode
Press in the jog wheel to select FM band.
D) Settings
Press in the jog wheel to select from following
settings options:

12
● Auto select
Press in and turn the jog wheel to select GB
YES or NO. Default setting is NO. Press
YES and the radio will auto select and tune
to the station shown on the display within a
few seconds.
● Back
Press in the jog wheel to go back to the
setting menu.
● Software upgrade
From time to time, new software features
for your radio may be developed. Your
radio has therefore been designed to allow
its internal software to be updated using
your USB upgrade port.
You should not attempt to update your
radio unless it is recommended to you by
Sangean Customer Services. Updating the
software may remove all network settings
and radio station presets from your radio.
Software updates for your radio may be
available in the future.

13
As software updates become available
software and information on how to update
your radio can be found at:
http://sg.sangean.com.tw/first/first.asp
http://www.sangean.eu/first/first.asp
www.sangean.com.au.
For more information, please contact our
Head Office by sending an email to: info@
sangean.com
● SW version
Press in the jog wheel to view software
version installed in the radio. Press in the
jog wheel again to go back to setting
menu.
● Factory reset
Press in and turn the jog wheel to select
YES or NO. Select YES to erase all saved
settings, station lists and favorites. All
settings will revert to factory default.
● Set contrast
Turn and press in the jog wheel to select
required LCD display contrast. Display
contrast will change accordingly.

14
● Set backlight
Press in the jog wheel to select Backlight GB
Auto.
Select YES and display backlight will auto
shut off 12 seconds after last operation.
Select NO and the display backlight will
remain on.
● DRC
Dynamic Range Control (DRC) feature can
make quieter sounds easier to hear,
especially when your radio is used in a
noisy environment. This function only
works within the DAB band.
Press in DRC and turn the jog wheel to
cycle through; DRC off, DRC Low and
DRC High. Press in to select your preferred
option:
DRC off –DRC is switched off, broadcast
DRC will be ignored.
DRC low –DRC level is set to 1/2 that sent
by broadcaster.
DRC high –DRC is set as sent by
broadcaster

15
● Language
Your radio functions can be configured to a
different language.
Press in and turn the log wheel to select
your desired language. The current
language setting is marked with an
asterisk.
● Sleep
Use the Sleep menu to set auto shut off
timer. Press in and turn the jog wheel to
cycle through:
Sleep off ( auto shut off disabled),
90-60-45-30-15 Auto shut off timer.
Radio will turn off after selected sleep time
has elapsed.
E) Prune
If you move to a different part of the country,
some of the stations which were listed may no
longer be available. Also, from time to time,
some DAB services may stop broadcasting,
or may change location or frequency.

16
Stations which cannot be found, or which
have not been received for a very long time GB
are shown in the station list with a question
mark.
The Prune stations function will delete the
marked DAB stations from your station list.
Press in the jog wheel to enter prune station
function.
Turn the jog wheel to select YES to cause
the stations list to be pruned, eliminating
unavailable stations If you do not wish to
prune stations, select NO and the display will
revert to the previous menu.
Operating your radio –FM
1. Turn on the radio by pressing Power
button. Press in jog wheel for 2 seconds
to enter Menu. Turn jog wheel and scroll
to FM Mode and press in to select the FM
band.

17
Search tuning - FM
1. Turn the jog wheel either down or down
until display shows “scanning”.
2. The radio will search in an upwards or
downwards direction until it finds a station
of sufficient signal strength.
Menu-FM
Press in the jog wheel for 2 seconds to enter
FM Menu. Turn the jog wheel either down or
up-down to find ‘FM Scan Zone’, ‘Back’, ‘DAB
mode’ and ‘Settings’.
A) FM Scan Zone
When using the FM mode your radio can be
set to either scan local stations or to scan all
stations including distant radio stations.
Press in and turn the jog wheel to enter FM
scan zone setting.
Select ‘Local’: only the stations with the
strongest signals are found during scanning
Select ‘Distant’: all available stations are
found during scanning

18
B) Back
press in jog wheel to return to FM listening.
C) DAB Mode
press in jog wheel to switch to DAB mode.
D) Settings
press in jog wheel to select from the following
settings:
● Audio setting
Turn the jog wheel to select Stereo allowed
or Forced mono.
Select ‘Stereo allowed’: the radio will
receive FM stereo broadcasts.
Select ‘Forced mono’: to improve reception
of a weak FM signal.
● Back
Press in the jog wheel to go back to the
setting menu.
● Software upgrade
From time to time, new software features
for your radio may be developed. Your
radio has therefore been designed to allow
its internal software to be updated using
your USB upgrade port.
