Sangean DPR-65 User manual

GB
DPR-65 Basic Black

1
Table of contents
Important safety instructions ..................................... 2-4
Controls ..................................................................... 5-6
Battery operation ....................................................... 7-8
Using USB cable to charge / Lock switch ............... 9-10
Operating your radio – DAB ....................................... 11
Selecting a station / Secondary services – DAB ... 12-13
Display modes – DAB ................................................ 14
Finding new stations – DAB ....................................... 15
Manual tuning – DAB ................................................. 16
Dynamic range control – DAB .................................... 17
Operating your radio – FM .................................... 18-19
Manual tuning – FM ................................................. 20
Display modes – FM .................................................. 21
Presetting stations / Recalling a preset – DAB and FM
............................................................................... 22-23
Stereo / Mono setting – FM ................................... 24-25
Scan sensitivity setting – FM ................................. 26-27
Software version / System reset ........................... 28-29
Headphone socket / Display backlight ....................... 30
Specications / Circuit features .................................. 31

2
GB
Important safety instructions
1. Read and understand all safety and operating instructions before
the radio is operated.
2. Retain instruction: The safety and operating instructions should be
retained for further reference.
3. Heed warnings. All warnings on the appliance and operating instructions
should be followed.
4. Follow all operations and use instructions.
5. Water and moisture: The appliance should not be used near water.
Do not use near a bathtub, washbowl, laundry tub, kitchen sink, wet
basement, swimming pool, etc.
6. Unplug the radio from the AC power outlet before cleaning. Use only
a damp cloth for cleaning the exterior of the radio.
7. Do not place the radio on an unstable cart, stand, bracket or table.
The radio may fall, causing serious personal injury and damage to
the radio.
8. Ventilation: This radio should be situated so that its location or position
does not interfere with its proper ventilation. For example, the radio
should not be used on a bed, sofa, rug or other soft surfaces that
may block the ventilation openings. It should not be placed in a
built-in situation like a cabinet that may reduce air ow through the
ventilation openings.
9. Power sources: The radio should be operated only from the type of
power source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your radio dealer or
power company.

3
10. Mains adaptor: The mains adaptor should be positioned so it is not
walked on, pinched, or items placed on top of it. Pay particular
attention to wires at plugs, convenience receptacles, and the point
where they exit from the unit. Unplug the mains adaptor by gripping
the adaptor, not the wire. Operate the radio using only the current
type of power source indicated. If you are not sure of the type of
power supply to your home, consult your dealer or local power compay.
11. Do not overload wall outlets or extension cords. This can result in a
risk of re or electrical shock. Never insert objects of any kind into
the radio through opening. The objects may touch dangerous
voltage points or short out parts. This could cause a fire or
electrical shock.
12. If the radio is left unattended or unused for long periods of time,
unplug it from the wall outlet. This will prevent damage caused by
unplug it from the wall outlet. This will prevent damage caused by
lightning or power line surges.
13. If the radio is left unattended and used for a long period of time,
remove the batteries. The batteries may leak and damage furniture
or your radio.
14. Do not attempt to service the receiver yourself. Removing the cover
may expose you to dangerous voltage, and will void the warranty.
Refer all servicing to authorized service personnel.
15. Never push objects of any kind into this radio through opening as
they may touch dangerous voltage points or short-out parts that
could result in a re or electric shock. Never spill liquid of any kind
into the product.

4
GB
16. The appliance should be serviced by qualied service personnel
when:
The power supply cord or the plug has been damaged.
Objects have fallen or liquid had been spilled into the radio.
The radio has been exposed to rain or water.
The radio does not appear to operate normally or exhibits a
marked change in performance.
The radio has been dropped, or the enclosure damaged.
A.
B.
C.
D.
E.

5
Controls and connections
1.
2.
3.
4.
5.
6.
7.
Speaker
LCD display
Power on/off
Charge / Battery Low indicator
Tuning Up / Down buttons
Select button
Info button
Preset buttons
Autotune button
Band button
Volume control
Alkaline/NiMH/NiCad rechargeable battery switch
Headphone socket
DC jack socket
8.
9.
10.
11.
12.
13.
14.
23 1
865
10 97
11
12
13
14
4

6
GB
Controls and connections
Telescopic aerial
Battery compartment
Lock switch
15.
16.
17.
17
15
16

7

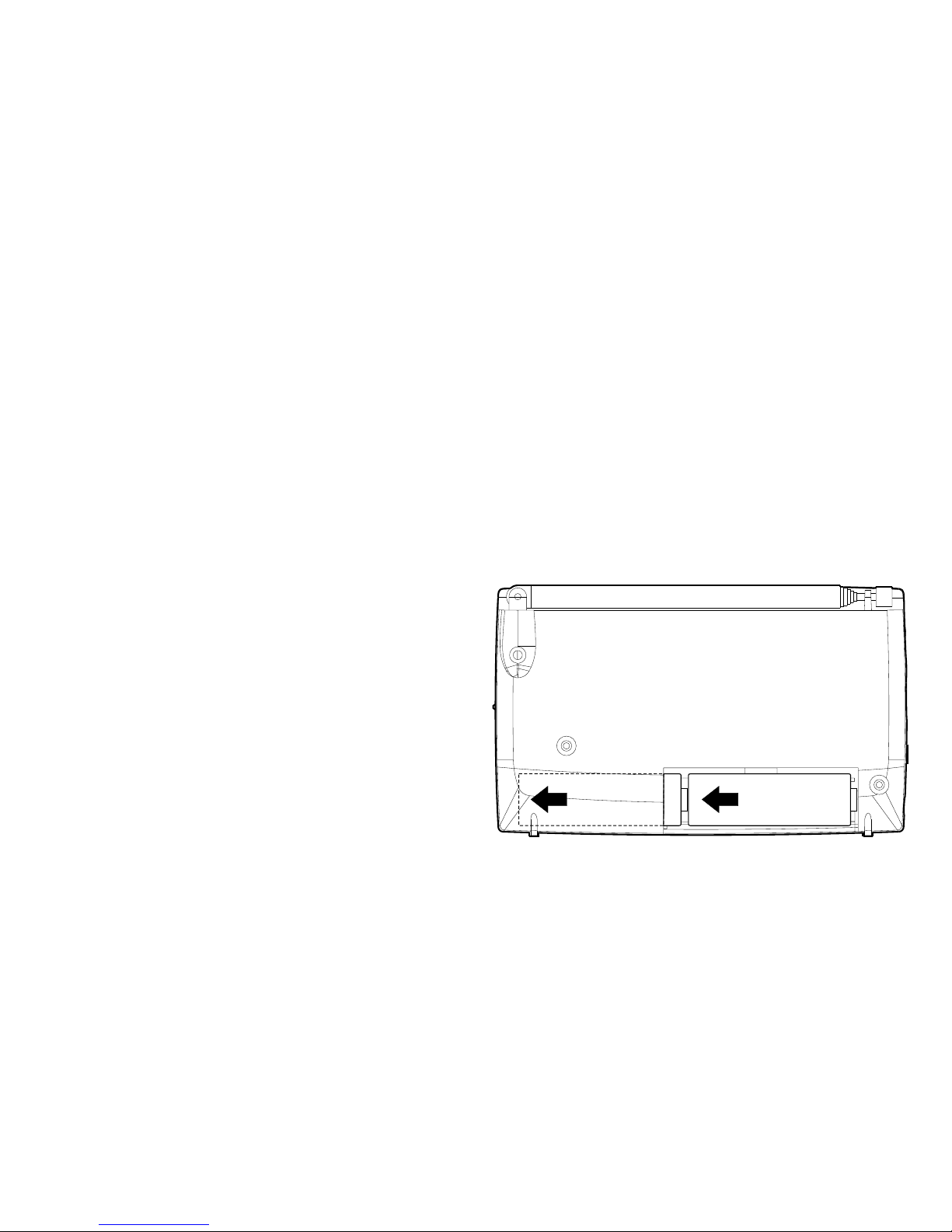

Battery operation
1. Remove the battery compartment cover on the back of the unit by
sliding the cover downwards. Open the battery compartment door.
Note:
Before you insert the batteries, if you use non-rechargeable batteries,
make sure the NiMH/NiCad/Alkaline switch which located on the side
of the unit is switched to OFF. If you use rechargeable batteries, make
sure to switch NiMH/NiCad/Alkaline switch to ON.
2. Insert two LR6 (AA size) batteries into the space in the compartment.
Take care to ensure all batteries are inserted with the correct polarity
as shown on the rear of your radio. Close the battery compartment
door.
3. When the battery capacity drops below a certain level the low battery
indicator will light. When you see this indicator you should replace
the batteries as soon as it is convenient to do so. Reduced power,
distortion and a “stuttering” sound are also signs that the batteries
may need replacing.

8
GB
IMPORTANT:
The batteries should not be exposed to excessive heat such as
sunshine, fire or the like. After use, disposable batteries should if
possible be taken to a suitable recycling center. On no account should
batteries be disposed of by incineration.
Note:
The batteries can be charged only when the radio is off. Connect the
mains adaptor into the DC jack socket to charge the batteries. Be sure
the battery type switch is set to ON. Charge new batteries fully the rst
time before rst use. This can take longer depending on the capacity
of the rechargeable batteries.
Do not use a mix of old and new rechargeable batteries.
Do not use a mix of full and empty rechargeable batteries.
Do not use batteries that have a different mAh capacity.
Do not use damaged or leaking batteries.
4. If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio. We
would recommend for economy that the DPR-65 is used via the mains
adaptor whenever possible with battery operation for occasional use
only.

9

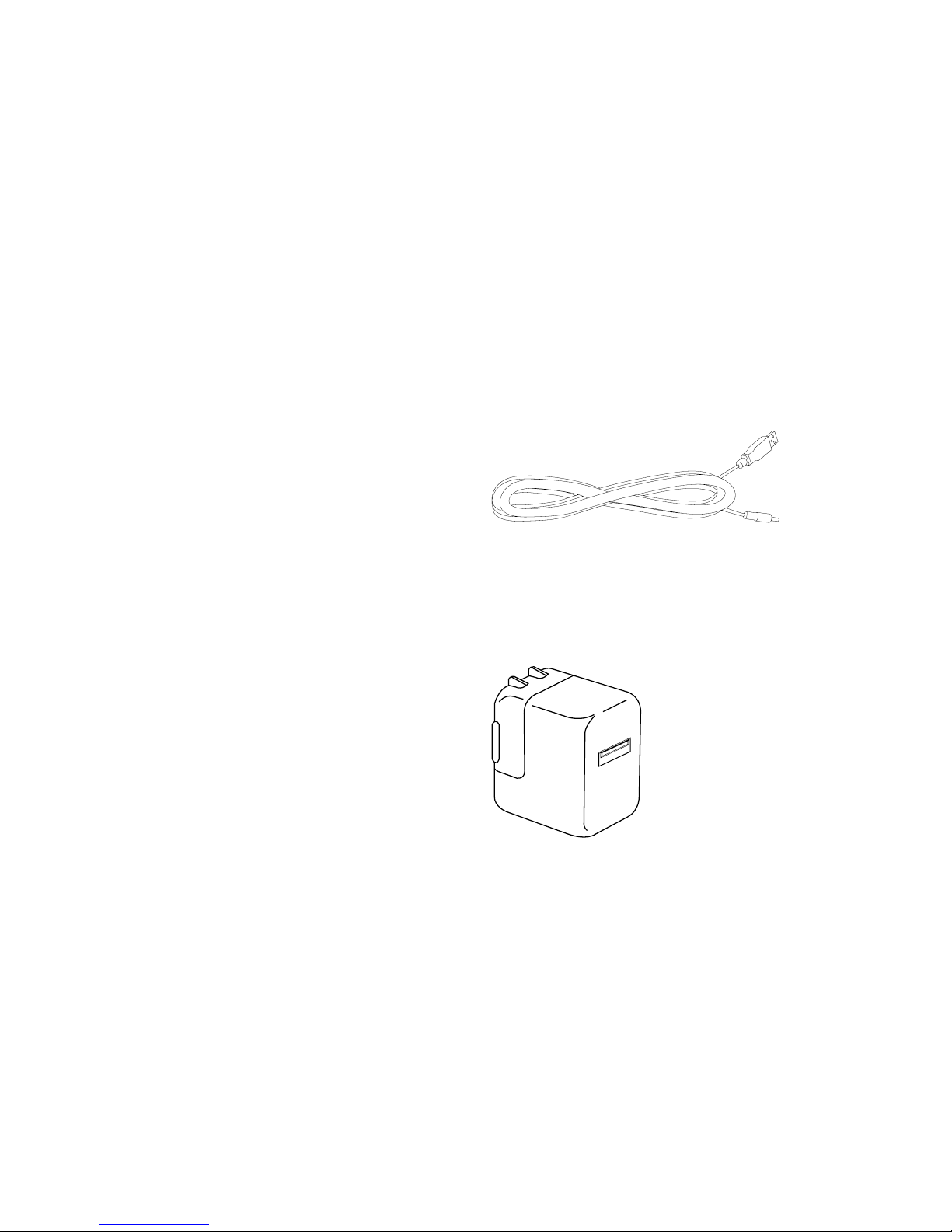

Using USB cable to charge
USB Cable Use this cable to connect your radio to any power source
with a USB port (e.g.PC) to charge.
1. Connect 3.8 mm plug to the DC jack.
2. Connect USB to any power source with USB port (e.g.PC).
Important:
The radio battery may drain instead of charge if radio is connected
to a PC that’s turned off or is in sleep or standby mode, or to a USB
hub, or to a USB port on a keyboard.
Other way to provide power to your radio
USB power adapter (not included) Use the USB power adapter to
provide power to your radio and charge the battery.
1. Buy a USB power adapter and connect the USB plug to the USB
port on the power adapter.
2. Connect 3.8 mm plug to the DC jack.
3. Plug the power adapter into a wall socket. Your radio will begin
charging.

10
GB
Lock switch
The lock switch is used to prevent unintentional operation of your
radio.
1. Set the Lock switch located on the side of your radio to the “Lock”
position and the power and all other buttons will be disabled.
This will prevent accidental operation when your radio is packed in a
suitcase or travel bag.
2. To release the lock, slide the Lock switch down to the “Unlock”
position .
IMPORTANT:
‘Key Locked’ will show on the display if pressing the buttons when the
radio is locked. The radio will not be able to be turned on if locking the
radio when it’s in power off mode.

11

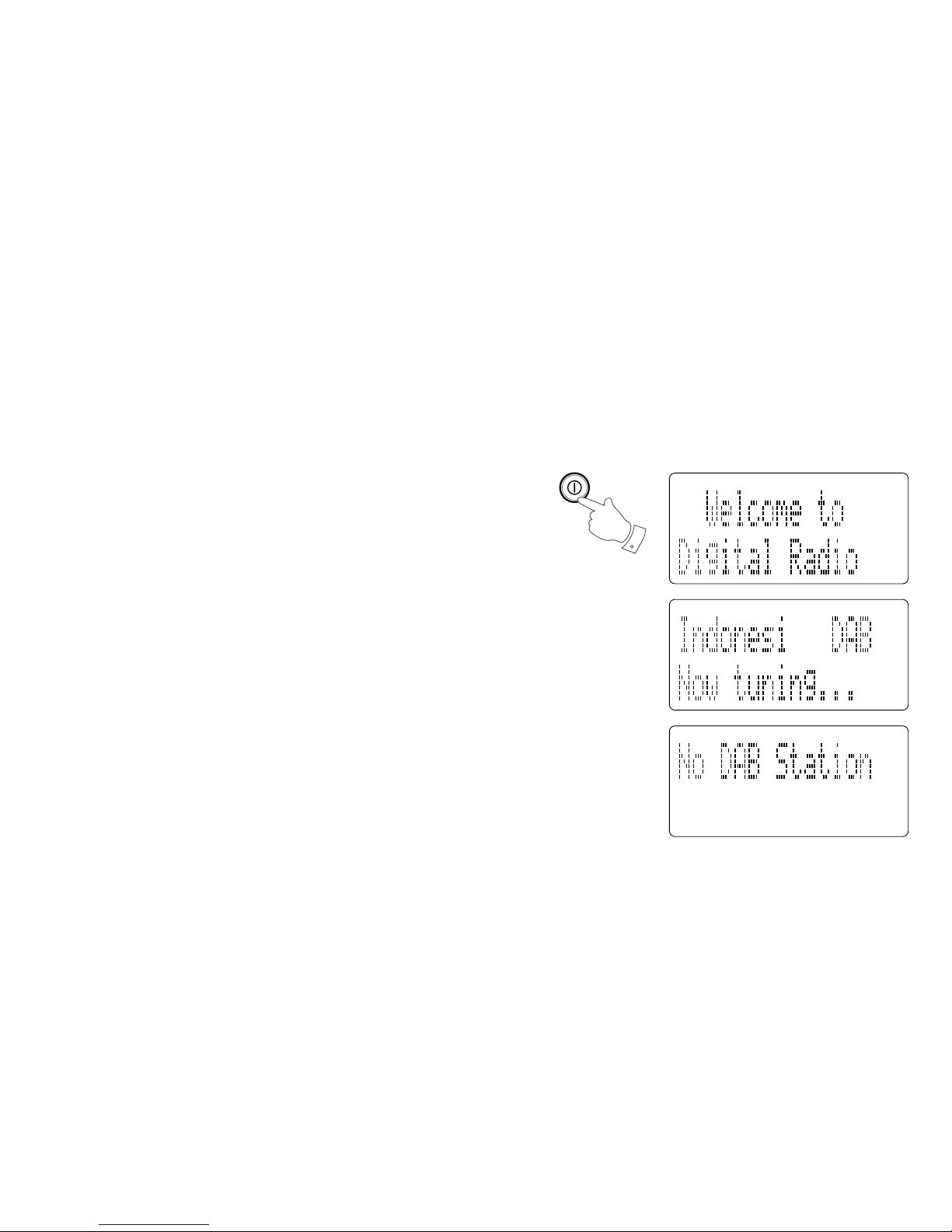

Operating your radio – DAB
1. Carefully extend the telescopic aerial.
2. Press the Power On/Off button to switch on your radio. The display
will show “Welcome to Digital Radio” briey.
3. If this is the rst time the radio is used a quick scan of the Band III
DAB channels will be carried out. The display will show “Welcome
to DAB”. If the radio has been used before the last used station will
be selected.
4. During the scanning process, as new stations are detected the
station counter on the right hand side of the display will increase and
stations will be added to the list. The lower line of the display shows
a bar-graph indicating progress of autotune.
5. When the scanning is complete the rst station (in numeric-alpha
order 0…9…A….Z) will be selected.
6. If the station list is still empty after the scan your radio will display
“No DAB station”.
7. If no signals are found it may be necessary to relocate your radio to
a position giving better reception.
2

12
GB
Selecting a station –DAB
1. The top line of the display shows the name of the station currently
selected.
2. Press the Tuning Up/Down buttons to scroll through the list of available
stations.
3. Press and release the Select button to select the station. The display
may show “Now tuning…” while your radio nds the station.
4. Adjust the Volume control to the required setting.
Note:
If after selecting a station the display shows “Not Available” it may be
necessary to relocate your radio to a position giving better reception.
3
4
2

13
Secondary services – DAB
1. Certain radio stations have one or more secondary services associated
with them. If a station has a secondary service associated with it the
display will show next to the station name on the station list. The
secondary service will then appear immediately after the primary
service as you press the Tuning Up button.
2. Press the Select button to select the station.
2
1

14
GB
Display modes – DAB
Your radio has seven display modes:
1. Press the Info button to cycle through the various modes.
a.
b.
c.
d.
e.
f.
g.
Displays scrolling text messages such as
artist/track name, phone in number etc.
Displays the type of station be listened to e.g.
Pop, Classic, News etc.
Displays the name of DAB multiplex to which
the current station belongs.
Displays the current time and date.
Displays the frequency of DAB multiplex for
the station listened to.
Displays the digital bit rate & audio type for
the station being listened to
Displays a graph showing the signal strength
for the station being received.
Scrolling Text
Program Type
Multiplex Name
Time and Date
Channels & Frequency
Bit rate & Audio type
Signal Strength

15
Finding new stations – DAB
As time passes new stations may become available. To find new
stations proceed as follows:
1. Press and release the Autotune button. The display will show
“Scanning”. Your radio will perform a scan of the DAB frequencies.
As new stations are found the station counter on the right-hand side
of the display will increase and stations will be added to the list.

16
GB
Manual Tuning – DAB
Manual tuning allows you to tune directly to the various DAB Band III
channels.
1. Press and hold the Info button to enter the advanced setting menu.
2. Press either the Tuning Up/Down button until the display shows
“Manual tune”.
3. Press the Select button. Press either the Tuning Up/Down button to
adjust the required DAB channel.
4. Press and release the Select button to select the required DAB
channel. The clear unlled rectangle indicates the minimum signal
level required for satisfactory reception. The signal strength bar will
go up and down showing the changing signal strength as you adjust
the telescopic aerial on your radio.
5. When a DAB signal is found, the display will show the name of the
DAB multiplex. Any new radio stations found will be added to the list
stored in the radio.
6. Press and release the Select button to return to normal tuning.
3-4,6
2

17
Dynamic Range Control settings – DAB
Dynamic Range Control (also known as DRC) can make quieter
sounds easier to hear when your radio is used in a noisy environment.
1. Press the Power On/Off button to switch on your radio.
2. Press and hold the Info button. The display will show “Station list”.
3. Press the Tuning Up/Down buttons until the display shows “DRC
value”.
4. Press and release the Select button to enter the setting.
5. Press the Tuning Up/Down buttons to select the required DRC setting
(the default is 0).
DRC 0 – DRC is switched off, Broadcast DRC will be ignored.
DRC 1 – DRC is set as sent by broadcaster.
DRC 1/2 – DRC level is set to 1/2 that sent by broadcaster.
6. Press and release the Select button to conrm the setting. The display
will return to normal tuning mode.
Note:
Not all DAB broadcasts are able to use the DRC function. If the
broadcast does not support DRC, then the DRC setting in the radio
will have no effect.

18
GB

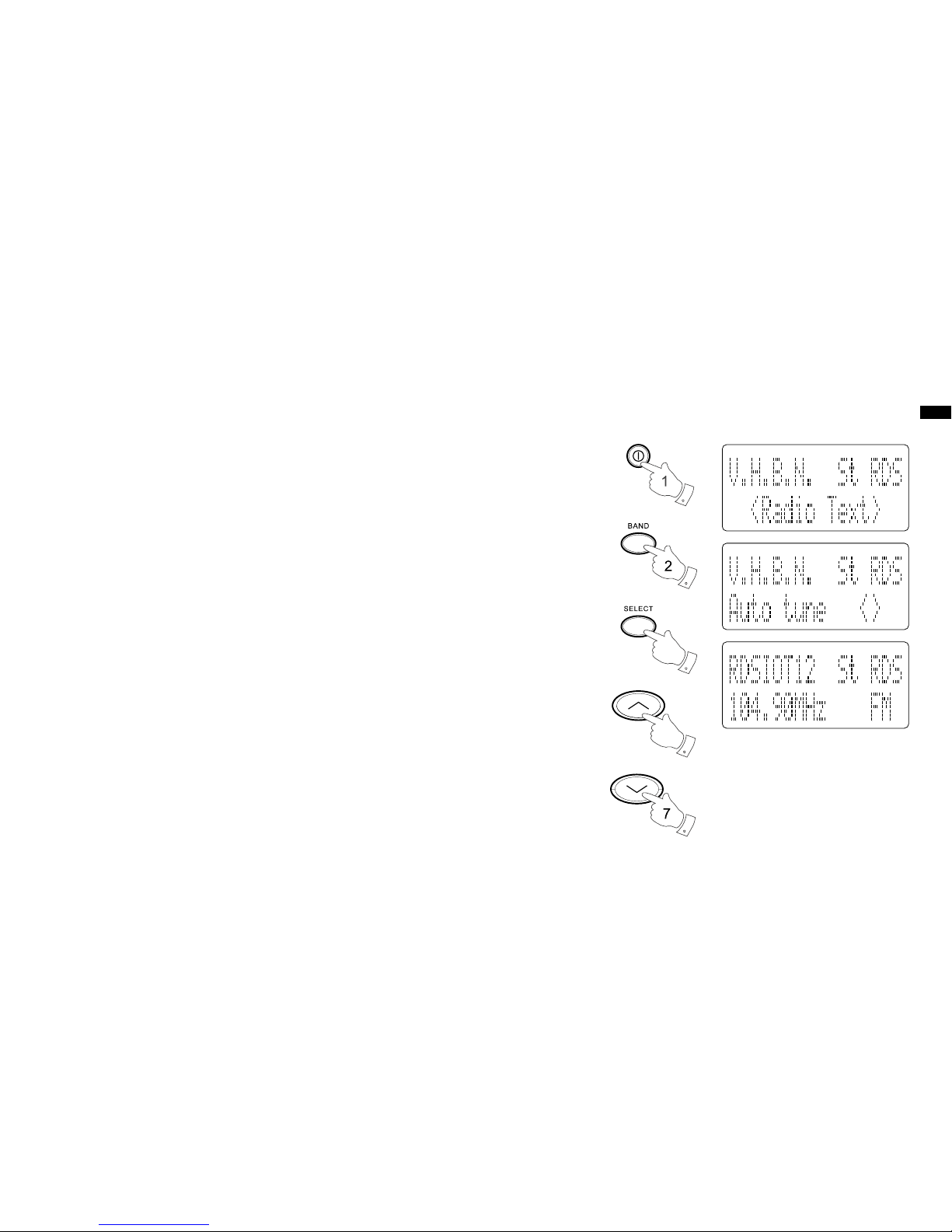

Operating your radio – FM
1. Carefully extend the telescopic aerial.
2. Press the Power On/Off button to switch on your radio. The display
will show “Welcome to Digital Radio” for a few seconds.
3. Press the Band button to select the FM band.
4. Press and release the Select button until the display shows “Auto
tune <>”.
5. Press the Tuning Up button. Your radio will scan from the currently
displayed frequency in direction upwards and will stop scanning
when it nds a station of sufcient strength.
6. The display will show the frequency of the signal which has been
found. If RDS information is available, after a few seconds the display
will show the radio station name. The display will also show “St” and
“RDS” on the upper line if the station is received with stereo and
RDS information.
4
3

19
7. Press the Tuning Down button to scan the FM band in a downwards
direction (high frequency to low frequency).
8. When the end of the waveband is reached your radio will recommencing
tuning from the opposite end of the waveband.
9. Adjust the Volume control to the required setting.
10. To switch off your radio press the Power On/Off button.
