Sangean WR-22 User manual

中文
Version 1
GB
WR-22

1
GB
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet. consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
Important safety instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

2
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket, or table specied
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged. liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
To Reduce the Risk of Fire or Electric Shock, Do not Expose
This Appliance To Rain or Moisture.
11.
12.
13.
14.
15.

3
GB
The Shock Hazard Marking and Associated Graphical Symbol
is provided on the rear of unit.
Apparatus shall not be exposed to dripping or splashing and no
objects lled with liquids, shall be placed on the apparatus.
Excessive sound pressure on ear- and headphones could
impair the hearing ability. Higher setting that idle on the
equalizer leads to higher signal voltages on the output for ear
and headphones.
The power plug should be close to the radio, and easy to be
approached that during the emergency, to disconnect the power
from the radio, just unplug the power plug from the AC power
slot.
Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnected device shall remain readily
operable.
16.
17.
18.
19.
20.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to
the antenna or the device could result in the device exceeding the
RF exposure requirements and void user’s authority to operate the
device.

4
1 2 345678 9 10 11
12
13
14
1516
17
181920

5
GB

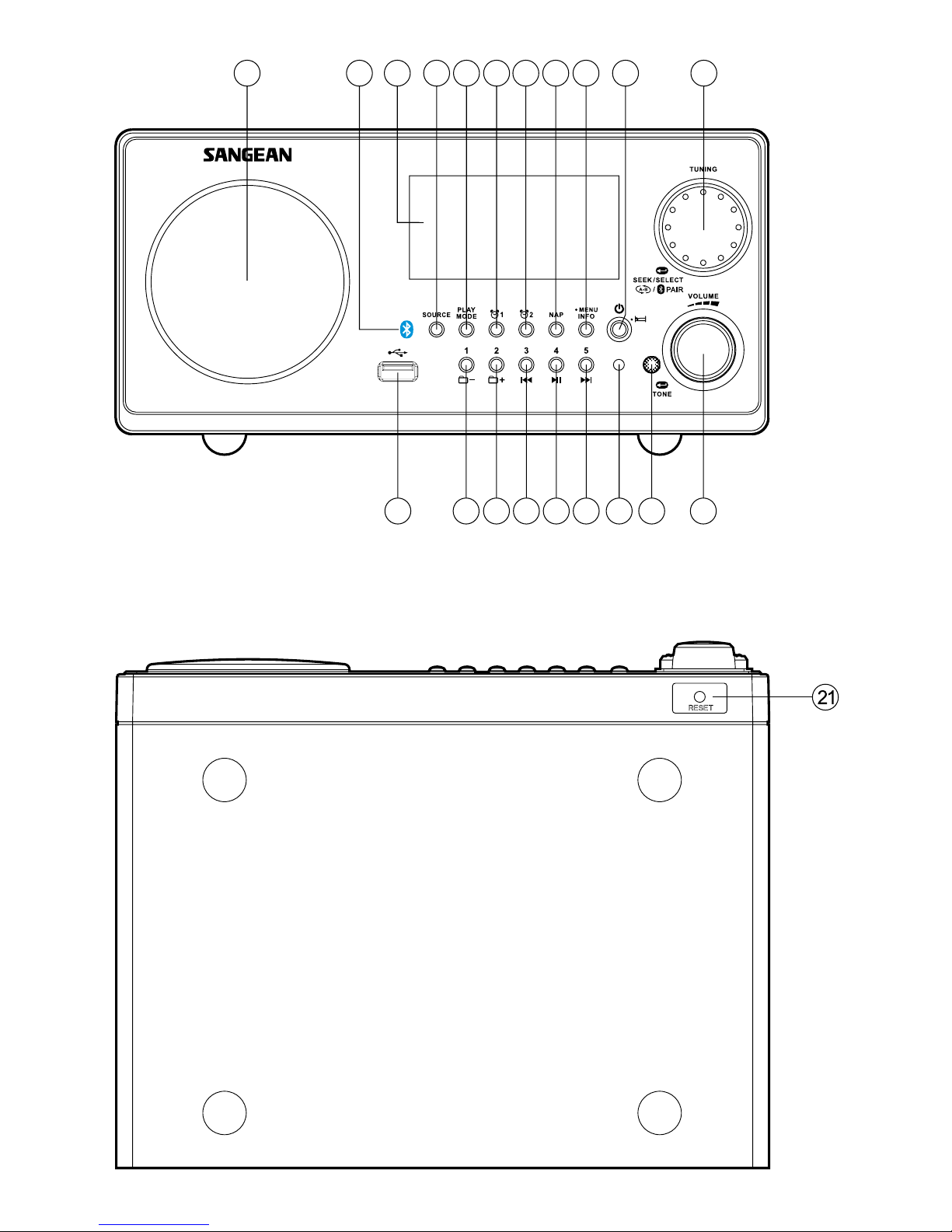

Controls
Speaker
Bluetooth indicator
Display
Source button
Play mode button
Alarm 1 button
Alarm 2 button
Nap button
Menu / Info button
On / Off button / Sleep button
Rotary tuning control
Volume control / Tone control
Dimmer sensor
Remote control sensor
Preset 5 / Fast-forward button
Preset 4 / Play / Pause button
Preset 3 / Backward button
Preset 2 / Fold up button
Preset 1 / Fold down button
USB port
Reset button
2
1
3
5
7
20
19
18
17
16
15
14
13
12
11
10
9
4
6
8
21

6

7
GB
Controls
AC power cord socket
12V DC input socket
Subwoofer output socket
AUX IN socket
Headphone socket
External / Internal antenna switch
External F-type FM antenna terminal
& External AM antenna terminal (USA version only)
3029
28
27
26
25
24
23
22
Display
Frequency / Station display
RDS / RBDS indicator
Nap indicator
PM indicator
Time indicator
Sleep indicator
Alarm 1 indicator
Alarm 2 indicator
Fast-forward indicator
Play / pause indicator
Backward indicator
Shufe
Repeat all
Repeat folder
Repeat one
Repeat section A-B
Stereo indicator
H
G
F
E
D
C
B
A
N
M
L
K
J
I
Q
P
O

8

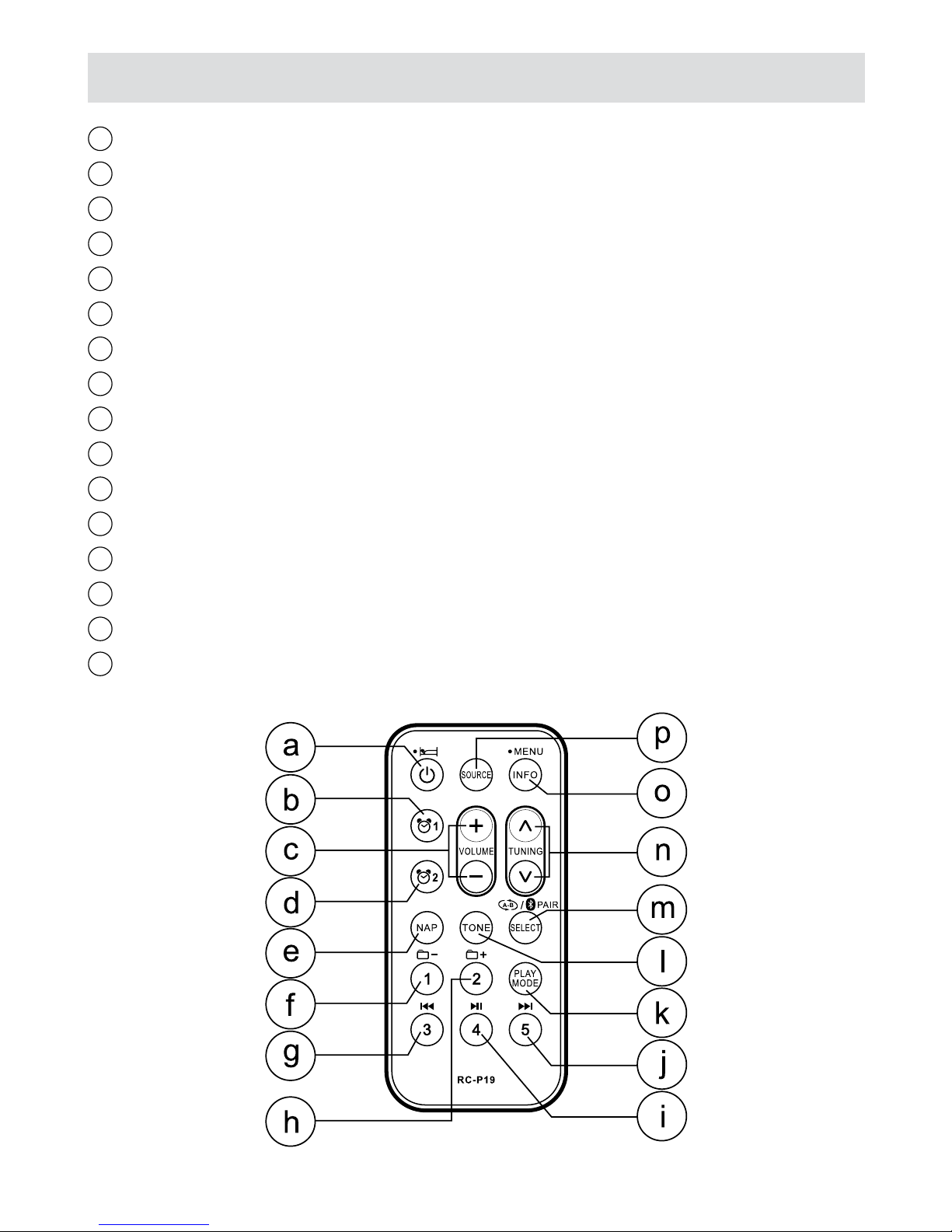

Remote control
On / Off button / Sleep button
Alarm1 button
Volume control button
Alarm 2 button
Nap button
Preset 1 / Folder down button
Preset 3 / Backward button
Preset 2 / Folder up button
Preset 4 / Play / Pause button
Preset 5 / Fast-forward button
Play mode button
Tone control button
Repeat A-B / Select button / Bluetooth pairing button
Tuning up / down button
Info / menu button
Source button
h
g
f
e
d
c
b
a
n
m
L
k
j
i
p
o

9
GB
Power your radio
AC operation
Before plugging the AC cord into the radio, make sure the AC
voltage is correct. Insert the plug on the end of the supplied power
cord into the AC power socket on the back of the radio.
DC operation
For outdoor use, you can power the radio by using 12v DC input
socket from a DC power supply (example, from the power supply of
vehicles or boats). An AC power adaptor with 1 Ampere and center
positive in polarity can also power the radio in house.
Antenna setup for FM reception
The radio comes with built-in AM/FM antenna and external antenna.
To use FM internal antenna, make sure to switch FM external/
internal antenna switch in the back of your radio to internal antenna
position (i.e. INT. FM ANTENNA). As for external antenna, there
are two types of antenna can be used to improve FM reception.
You can connect the supplied FM antenna to the F-type antenna
terminal and adjust the wire for best reception. You can also
connect a 75 ohm coaxial cable of outdoor antenna to the terminal.
Make sure to switch external/internal antenna switch to external
position while connecting the outdoor / rooftop antenna.
Note:
In some of the European countries, you may have to use adaptor
plug to connect with the outdoor/rooftop antenna in case your
antenna has an incorrect type of plug.

10
Antenna setup for AM reception
The radio comes with built-in AM Ferrite antenna which should be
enough for normal listening. To improve the AM reception, you may
connect the outdoor AM antenna (not supplied) with AM external
antenna terminal.

11
GB
Operating your radio
Your radio is equipped with three tuning methods- Scan tuning,
manual tuning and memory preset tuning.
Scan tuning FM / AM
1. Make sure you have set up the FM antenna in advance .
2. Press the On/Off button to switch on your radio.
3. Press the Source button repeatedly to select the desired wave
band.
4. Press the Tuning control rotary. Your radio will scan in an upwards
direction (low frequency to high frequency) and stop automatically
when it nds a station of sufcient strength.
5. After a few seconds the display will update. The display will show
the frequency of the signal found. If the signal is strong enough
and there is RDS / RBDS data present then the radio will display
the station name.
6. To nd other stations, press the Tuning control rotary as before.
7. When the waveband end is reached your radio will recommence
tuning from the opposite waveband end.
8. Adjust the Volume buttons to the required setting.
9. To switch off your radio press the On/Off button.

12
Manual tuning – FM / AM
1. Press the On/Off button to switch on your clock radio.
2. Press the Source button repeatedly to select the desired wave
band.
3. Rotate the Tuning control rotary to tune to a station. The frequency
will change in steps of 50kHz/100 kHz in FM or 9 kHz/10 kHz in AM.
4. When the waveband end is reached the radio will recommence
tuning from the opposite waveband end.
5. Adjust the Volume buttons to the desired settings.
6. To switch off your clock radio press the On/Off button.
Setting up the tuning step increment
1. Press and hold the Info/menu button to enter the menu setting
when the radio source is in AM/FM mode.
2. Rotate the Tuning control rotary button until FM xxK or AM xxkHz
shown on the display, and press the Tuning control rotary to enter
the step increment setting.
3. Rotate the Tuning control rotary button to select 50kHz/100kHz
for FM radio, and 9kHz/10kHz for AM radio. Then press the
Tuning control rotary to conrm the setting.

13
GB
Display modes - FM
Your radio has four display modes for FM radio. These use data
provided by broadcasters which is commonly known as RDS/
RBDS.
The Radio Data System (RDS / RBDS) is a system in which
inaudible digital information is transmitted in addition to the normal
FM radio programme.
RDS / RBDS offers several useful features. The following are
available on your radio:-
1. Press the Menu / Info button to cycle through the various modes.
a. Station name Displays the name of the station being
listened to.
b. Programme Type Displays the type of station being
listened to e.g. Pop, Classic, News, etc.
c. Radio text Displays radio text message such as,
new item etc.
d. Year / Day Displays the current year and day of the
week according to the date setting of
your radio.
e. Date / Day Displays the current date and day of the
week according to the date setting of
your radio.
f. Frequency Displays the frequency of the station
being listened to.
If there is no RDS / RBDS data available (or if the signal is too
weak) then the radio will display only the FM frequency and the
optional Stereo indicator.

14
FM range setting
FM range is different from countries to countries. It is necessary to
adjust FM range to allow the radio to work properly.
1. Press and hold the Menu/ Info button to enter the menu setting.
2. Rotate the Tuning control rotary till the range of FM shows on
the display. Press the Tuning control rotary to conrm the desired
FM range. FM range setting is then completed.
The available FM range is as following:
87-108 for the common area (default)
76-90 for Japan
64-108 for Eastern European countries and Russia
76-108 for some of China area

15
GB
FM stereo / mono setting
If the FM radio station being listened to has a weak signal some
hiss may be audible by headphone. It is preferable to reduce this
hiss by forcing the radio to play the station in mono rather than
stereo.
1. Press the Standby button to switch on your radio.
2. Tune to the required FM radio station as previously described.
3. Press and hold the Menu/Info button to enter the menu setting.
4. Press the Tuning control rotary until ‘FM AUTO or FM MONO’
shown on the display. Press the Tuning control rotary to enter
the setting. If the setting is Auto rotate the Tuning control rotary
to switch to Mono mode to reduce the hiss.
5. To return to Auto (stereo) mode, rotate the Tuning control rotary
to alter the setting, so that the radio will switch back to Auto mode.

16
Presetting stations
There are 5 memory presets for each FM/ AM wavebands.
1. Press the On/ Off button to turn on the radio.
2. Tune to desired station using one of methods previously described.
3. Press and hold the desired Preset button until the radio beeps.
The preset number will appear in the display and the station will
be stored under the chosen preset button.
4. Repeat this procedure for the remaining presets.
5. Station stored in preset memories may be overwritten by following
the above procedure.
Recalling a preset station
1. Press the On/ Off button to turn on the radio.
2. Select the desired waveband by repeatedly pressing the Source
button.
3. Momentarily press the desired Preset button. The preset number
and station frequency will appear in the display.

17
GB
Clock and Alarms
Setting the time format
The clock display used in stand-by mode and on the playing mode
screens can be set to 12 or 24 hour format. The selected format is
then also used when setting the alarms.
1. Press and hold the Info/menu button to enter the menu setting.
2. Rotate the Tuning control rotary until CLOCK XXH appears on
the display, then press the Tuning control rotary to enter the
setting and the setting of time format begins to ash.
3. Rotate the Tuning control rotary to select either 12 or 24 hour format.
Press the Tuning control rotary to confirm your choice of clock
format. The display will then revert to the previous menu.
If the 12 hour clock format is chosen, the radio will then use the 12
hour clock for the setting of alarms with a PM indicator.
Setting the date format
1. Press and hold the Info/menu button to access the menu setting.
2. Rotate the Tuning control rotary until a series digit for month/date/day
shown on the display. Press the Tuning control rotary to enter
the date format setting and the digit for month and date will ash.
3. Rotate the Tuning control rotary to select the required date format.
Press the Tuning control rotary to confirm your choice of date
format. The display will then revert to the previous menu.

18
Setting the clock time
Manual setting
1. When radio power is off, press and hold Menu/ info button to
enter the menu setting.
2. Rotate the Tuning control rotary until ‘CLOCK SET’ shown on the
display. Press the Tuning control rotary to enter the setting.
3. The hour setting on the display will begin flashing. Rotate the
Tuning control rotary to select the desired hour, and press the
Tuning control rotary to conrm the setting. Then rotate the Tuning
control rotary to select the desired minute, and press the Tuning
control rotary to conrm the setting.
Radio Data System (RDS/ RBDS)
When you set the clock time using the RDS/ RBDS function, your
radio will synchronize its clock time whenever it tunes to a radio
station using RDS / RBDS with CT signals.
1. When tuning to a station transmitting RDS / RBDS data, press
and hold the Info/menu button.
2. Rotate the Tuning control rotary until a clock symbol shown on
the display. Press the Tuning control rotary to enter the setting.

19
GB
3. Rotate the Tuning control rotary until ‘RDS CT’ shown on the
display. Press the Tuning control rotary to conrm the setting.
The clock time of the radio will set up automatically according to
the RDS/ RBDS data received.
4. When the action is completed, the RDS/ RBDS icon will appear
on the LCD display indicating the radio time is RDS/RBDS clock
time. The radio cock time will be valid for 2 days each time the
radio time is synchronized with RDS CT.
