Sangean PR-D18 User manual

Version 1
中文
GB
PR-D18

1
GB
Important safety instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not t into your outlet. Consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.

2
11.
12.
13.
14.
15.
16.
17.
Only use attachments/accessories specied by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged. liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
To Reduce the Risk of Fire or Electric Shock, Do not Expose This
Appliance To Rain or Moisture.
The Shock Hazard Marking and Associated Graphical Symbol is
provided on the rear of unit.
Apparatus shall not be exposed to dripping or splashing and no
objects lled with liquids, shall be placed on the apparatus.

4

5
GB

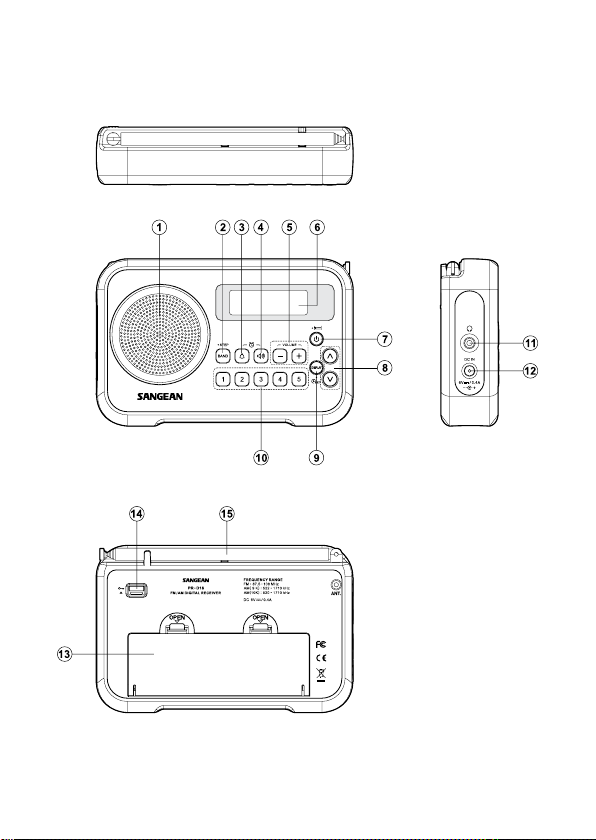

Control
Speaker
Band / step button
Buzzer alarm button
Radio alarm button
Volume up / down button
LCD display
Power / Sleep button
Tuning up / down button
Display / Clock set button
Preset button
Headphone socket
DC jack socket
Battery compartment
Key lock switch
Telescopic aerial
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Icon display
FM/AM indicator
PM indicator
Stereo indicator
Buzzer alarm indicator
Radio alarm indicator
Sleep timer indicator / Snooze indicator
Key lock symbol
Battery indicator
Volume indicator
Preset indicator
Frequency / Clock display
K
J
I
H
G
F
E
D
C
B
A

6
Using the radio for the rst time
Battery operation
1. Remove the battery cover on the rear of the unit by pressing the
catch.
2. Insert four UM-3 (AAsize) batteries into the spaces in the compartment.
3. Take care to ensure all batteries are inserted with correct polarity
as shown on the rear cabinet. Replace the battery cover.
4. Reduced power, distortion, “stuttering sound” and the battery
icon ashing on the display are all signs that the batteries need
replacing.
5. If the radio is not to be used for any extended period of time, it is
recommended that the batteries are removed from the radio.

7
GB
Using the AC power adaptor
The AC power adaptor required for this unit should be 6 volts DC at
0.4 A center pin positive.
Insert the adaptor plug into the DC socket on the left side of the
radio.
Plug the adaptor into a standard mains socket outlet.
Whenever the adaptor is used, the batteries are automatically
disconnected.
The AC adaptor should be disconnected from the main supply when
not in use.

8
Operating your radio - Search tuning AM / FM
1. Fully extend the antenna above the radio. Press the Power button
to switch on your radio.
2. Press the Band button to select the required band.
3. Press and hold the Tuning up/ down button to start the search
tuning. Your radio will scan in an upwards direction (low frequency
to high frequency) or downwards direction (high frequency to low
frequency) and stop automatically when it finds a station of
sufcient strength.
4. To find other stations, press and release the Tuning Up / Down
buttons.
5. Adjust the volume by pressing the Volume up/down button to the
required setting.
Note:
(1) FM stereo is only available when using headphones.
(2) To see time or frequency on the screen, press the Display button.

9
GB
Manual tuning – AM / FM
1. Press the Power button to switch on your radio.
2. Press the Band button to select the required band. Fully extend
the antenna for best reception.
3. Press and release the Tuning up/down button to tune to a station.
The FM frequency will change in steps of 50/100kHz and AM
frequency will change in steps of 9/10kHz.
4. When the waveband end is reached the radio will recommence
tuning from the opposite waveband end.
5. Set the Volume using the Volume Up/Down buttons to the desired
settings.

10
Presetting stations
You may store your preferred AM/FM radio stations to the preset
stations (1 to 5). The procedure for setting preset Stations is
described below.
Note that the radios for AM and FM are saved together in the preset
stations so there are 10 of them. Your preset stations will be
preserved for 30 minutes when there is no power supply from either
the battery or the AC adapter.
1. Press the Power button to switch on your radio.
2. Tune to the required station as previously described.
3. Press and hold the required Preset button (1-5) until you hear a
beep sound and the display shows‘M1’ for example next to the
frequency. The station will be stored using the preset number.
Repeat this procedure for the remaining presets as you wish.
4. Preset stations which have already been stored may be overwritten
by following the above procedure if required.

11
GB
Software version / Setting up the tuning step
increment / 24 / 12 time format
Software version
The software display cannot be altered and is just for your
reference.
1. Make sure your radio is in power off mode.
2. Press and hold the Band/step button until the software version is
shown on the display (e.g. P0 X).
Setting up the tuning step increment
3. Continuing pressing and holding the Band / step button until you
hear a beep sound. Now the radio enters FM/AM step setting.
The screen will show FM tuning step (i.e. 50 or 100). Press the
Tuning up / down button to choose between 50KHZ or 100 KHZ
and then press the Band / step button to conrm the selection.
4. After the selection of FM tuning step, the display will show AM
tuning step (i.e. 9 or 10). Press the Tuning up / down to choose
between 9KHZ or 10 KHZ and then press the Band / step button
to conrm your selection.
24/12 time format
5. After the conrmation of AM tuning step, current 12/24 time format
will flash on the display. Press the Tuning up / down button to
selection your requested option. Then press the Band / step button
to conrm your selection.

12
Clock setting
1. Press and hold the clock set button until the radio beeps once and
the hour digits of time setting begins to ash.
2. Press the Tuning Up / Down button to adjust the hour setting as
required. Then press the clock set button to confirm the hour
setting. Now the minute digit of the setting will ash on the display.
3. Press the Tuning up / down button to adjust the minute setting as
required. Then press the clock set button to conrm the setting.
Your radio clock is now set.
Alarm setting
There are two different alarm modes in this unit. You can choose to
wake up to the radio or to a buzzer. You can set the alarm with the
radio on or off.
1. Press and hold the Alarm button until you hear a beep and see
one of these symbol or ashing on the display.
2. Now both the hour digit and alarm symbol will flash. Press the
Tuning up / down button to set the required hour. Press the Alarm
button again to conrm the setting.
3. Now the minute digit will flash on the display. Press the Tuning
up / down button to adjust the required minute. Press the Alarm
button again to conrm the minute setting. If you are setting the
radio alarm ( ), please go to step 5. Otherwise, please follow the
next step.

13
GB
4. Press the Tuning up / down button to adjust the volume. Then
press the Alarm button to confirm the setting. Now the alarm
setting is completed. Once the alarm is set, it will automatically go
off the next day at the same time.
5. If the radio alarm is selected, you need to choose the station to
wake up to. Press the Band button and then the Tuning up / down
button to tune the radio to your favorite station. Or you can choose
from the preset stations by pressing the Tuning up / down button
and then Preset 1-5 button. Press the Alarm button to conrm the
setting.
6. Press the Tuning up / down button to adjust the volume. Then
press the Alarm button to conrm the setting. Now the radio alarm
setting is completed.
Snooze
When the alarm sounds, press any button other than the Standby
button will silence the alarm for 5 minutes. will appear on the
display.
To cancel the snooze timer while the alarm is suspended, press the
Power button.

14
Turning off the sounding alarm
Press the Power button to turn off the sounding alarm, otherwise,
the alarm will sound for an hour.
Cancelling the alarm setting
Press and hold the Alarm button until you hear a beep and the alarm
symbol will disappear on the display.
Sleep timer
Your radio can be set to turn off automatically after a preset time has
elapsed. The Sleep Timer setting can be adjusted between 15,30,
45, 60, 90 and 120 minutes.
1. Press and hold the Power / Sleep timer button until you hear a
beep and the symbol of shows on the display.
2. Holding the Power / Sleep timer button down will cycle through the
times of 120, 90, 60, 45, 30 and 15 minutes.
3. Release the button when the desired sleep timer option appears
on the display. Now the symbol will appear on the display. The
radio will shut off after a preset time has elapsed.
Note:
To deactivate the sleep timer, simply press and release the Power
button.

15
GB
Headphone socket
A 3.5mm stereo headphone socket is provided on the left hand side
of your radio for use with headphones. Inserting a plug automatically
mutes the internal speaker.
Note:
FM stereo is only available when using headphones.
IMPORTANT:
Excessive sound pressure from earphones and headphones can
cause hearing loss.
Key lock function
The key lock function is used to prevent unintentional operation of
the radio.
1. Key lock switch is located on the rear of the radio. When the key
lock switch is set to LOCK, every button will be disabled. Display
will show the lock symbol
2. To disable the key lock function switch the key lock button to off
position. The key lock function will be disabled.

16
Specications
Power Requirements
Mains DC in 6V / 0.4 A
Battery 4 X 1.5V Size “AA” / UM-3 / LR6
Frequency Range
FM 87.5 – 108 MHz
AM (9K) 520 – 1710 kHz
AM (10K) 520-1710 kHz
Circuit Features
Loudspeaker 2.25” 8 ohm full range
Output Power 1 Watt (max)
Headphone socket 3.5mm dia.
Aerial System FM Telescopic aerial
If at any time in the future you should need to dispose of this
product please note that: Waste electrical products should not be
disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling
advice. (Waste Electrical and Electronic Equipment Directive)
