SANUS VuePoint F215c User manual

F215c INSTRUCTION MANUAL
Scan for easy install video
san.us/869
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-888-333-9952. We’re ready to help!

2
Does your TV weigh more than 60 lbs. (27.2 kg) including accessories?
No — Perfect!
Yes — This mount is NOT compatible. Visit vuepoint.sanus.com or call 1-888-333-9952 to find a compatible mount.
60 lbs.
(27.2 kg)
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV
owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service at 1-888-333-9952.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

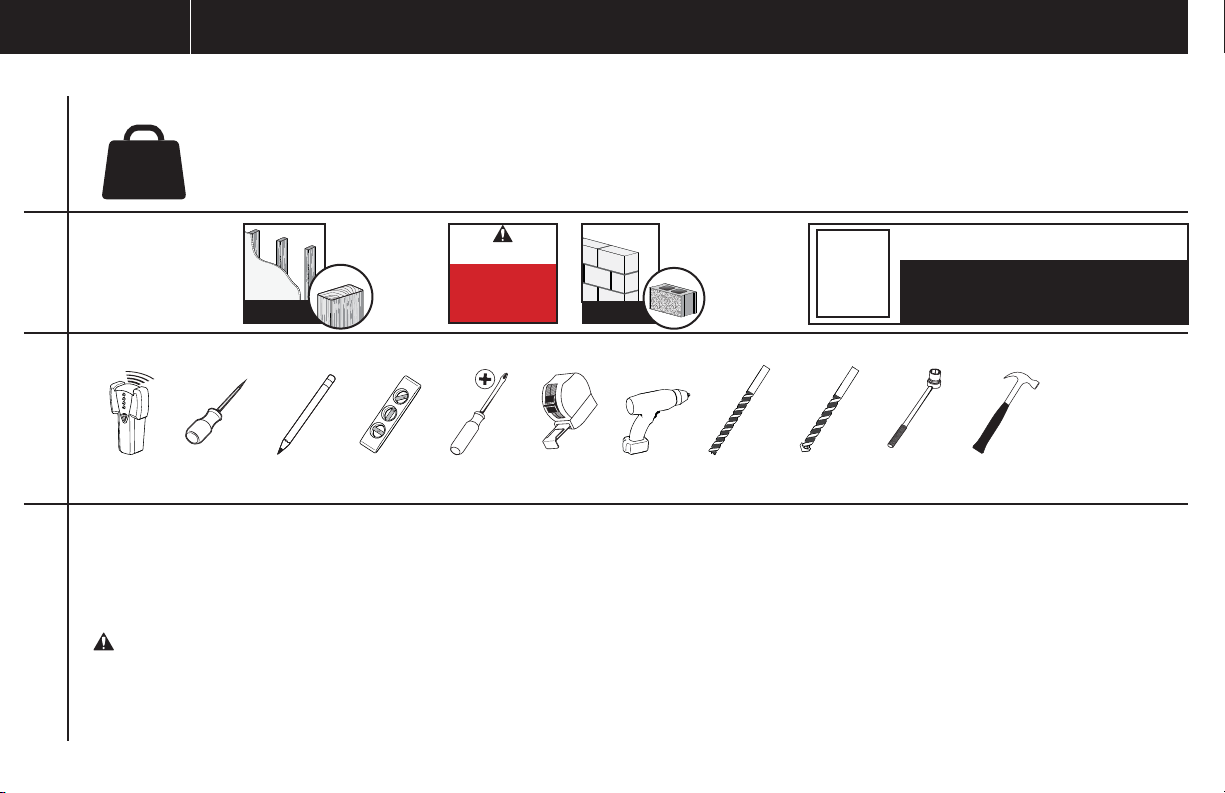

Before getting started, let’s make sure this mount is perfect for you!
1
2
3
4
What is your
wall made
of?
Do you have all of the tools needed?
Solid concrete
or concrete
block?
Drywall with
wood studs?
Perfect! Perfect!
CAUTION:
DO NOT
install into
drywall alone
Unsure?
Call Customer Service:
1-888-333-9952
(UK: 0800-056-2853)
?
Stud
Finder Awl Pencil Level Screwdriver Tape Measure Electric Drill Wood Drill Bit Masonry Drill Bit Socket Wrench Hammer
1/2 in.
(13 mm)
7/32 in.
(5 mm) 3/8 in.
(10 mm)

3
15.8
[40.0]
15.8
[40.0]
11.8
[30.0]
11.8
[30.0]
7.9
[20.0]
7.9
[20.0]
2.9
[7.5]
2.9
[7.5]
19.0
[48.3]
19.0
[48.3]
3.9
[10.0]
3.9
[10.0]
15°
15°
9.5
[24.1]
15.4
[39.1]
3.2
[8.2]
3.0
[7.6]
OFFSET
Dimensions
in.
[cm] NOTE: TV shifts 3.0 in. (7.6 cm) to the
right or left when in the home position.
Consider this when selecting the location of
your wall mount.

4
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to
your dealer; contact Customer Service. Never use damaged parts!

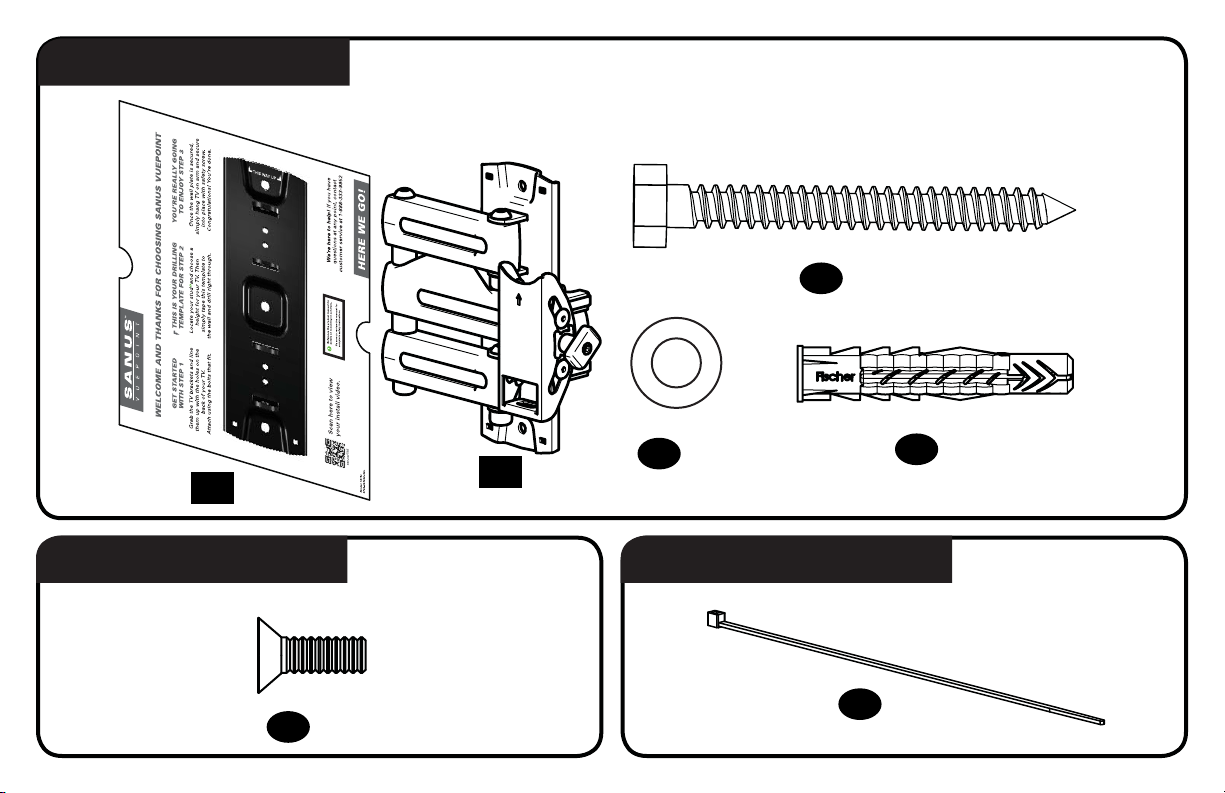

Supplied Parts and Hardware
M4 x 12mm
M5 x 12mm
M6 x 12mm M6 x 35mm
M5 x 35mm
M4 x 35mm
M6 x 20mm
M8 x 16mm
M8 x 12mm M8 x 35mm
M8 x 20mm
STEP 1 Parts and Hardware
TV Bracket
TV Screws
Washers
Spacers
TV Bracket
Extenders
TV Bracket Interface Screws
M
4
/
M
5
M
6
/
M
8
02 x4
03 x8
04 x4 05 x4
07 x4
08 x4
09 x4 11 x4
10 x4 12 x4
13 x4
14 x4
15 x4
16 x4
01
x1
06
x4

5
5/16 x 2¾ in.
.695 x .350 x.075 in. Fischer UX 10 x 60R Anchor
1/4-20 x 3/4 in.
STEP 2 Parts and Hardware
STEP 3 Parts and Hardware Additional Hardware
Wall Plate Assembly
Wall Plate Template
Lag Bolts
Anchors
Lag Bolt Washers
Locking Screw Cable Ties
19 x3
20 x3 21 x3
22 x1 23 x3
17 x1 18 x1

6
STEP 1 Attach TV Bracket to TV
01

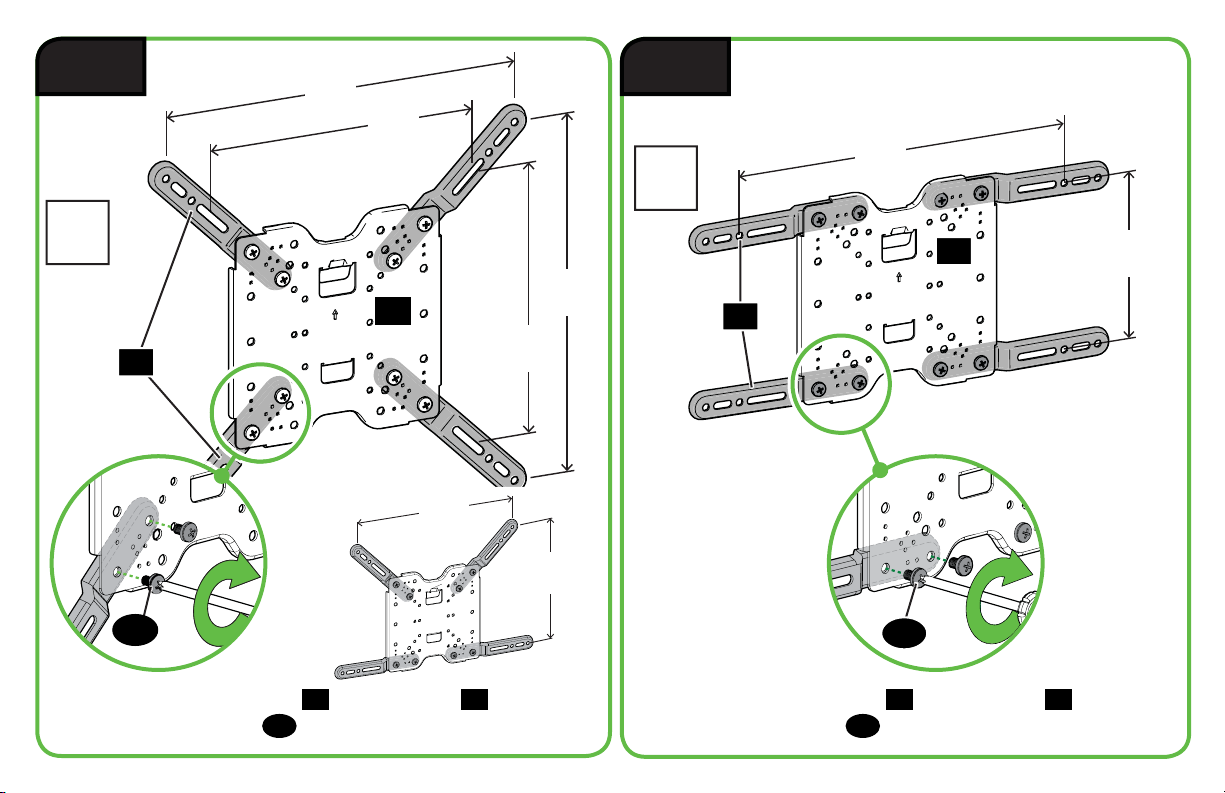

1-1 Measure Your TV Hole Pattern 1-2 Assemble Your TV Bracket
Determine which TV bracket configuration to use, A, B, or C
based on your TV hole pattern measurements.
cm
inches
inch dimensions are approximate
Measure the width and height of your TV hole pattern in cm.
Record your measurements:
Width__________cm x Height ________ cm
75 mm = 7.5 cm ≈ 3 in.
100 mm = 10 cm ≈ 4 in.
200 mm = 20 cm ≈ 7 7/8 in.
300 mm = 30 cm ≈ 11 3/4 in.
400 mm = 40 cm ≈ 15 3/4 in.
A7.9
[20.0]
7.9
[20.0]
3.9
[10.0]
3.9
[10.0]
3.0
[7.5]
3.0
[7.5]
in.
[cm]
These smaller hole patterns only use TV bracket 01 .
Do not use the four TV bracket extenders 02 and eight screws 03 .
7.5 x 7.5
10.0 x 10.0
20.0 X 20.0
02
03

7
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
40.0 x 40.0
30.0 x 30.0
01
01
B
40.0 x 20.0
C
in.
[cm]
in.
[cm]
Assemble TV bracket extenders 02 onto TV bracket 01 as illustrated.
Secure using eight screws 03 in the corner holes shown.
02
02
7.87
[20.0]
15.8
[40.0] 11.8
[30.0] 15.8
[40.0]
15.8
[40.0]
11.8
[30.0]
03 03
11.81
[30.0]
15.75
[40.0]
40.0 x 30.0

8
M5 M6 M8M4
1-3 Select TV Screw Diameter 1-4 Select TV Screw Length
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter (M4, M5, M6, or M8) to use.
FLAT BACK ROUND BACK CABLESINSET HOLES
If your TV has a flat back AND you want your TV closer to the
wall, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
●Round/irregular back TVs
●TVs with inset mounting holes
●Extra space needed for cables
Too Long
CAUTION:
Verify adequate thread
engagment with the screw or
screw/spacer combination.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection, contact
Customer Service at 1-888-
333-9952.

9
1-5 Attach TV Bracket
06
04 05
13 14 15 16
04 05
Note
orientation
of hanging
and locking
tabs
Hanging
Locking
Flat Back
Round Back / Extra Space
Position your TV bracket configuration (A, B, or C) over your TV hole pattern - making sure the bracket is centered over the TV hole pattern and
level. Secure bracket using your screw/washer (Flat Back) or spacer/screw/washer (Round Back / Extra Space) selection.
IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.
07 08 09 10 11 12
01
01
02
TV Bracket Configuration B
- see page 7 -
Illustrated (with spacers)
TV Bracket Configuration A
- see page 6 -
Illustrated (with spacers)

10
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 5/8 in. (16 mm)
●Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate template 17 at your desired height and line up the holes with your stud center line. Level the template and tape in place.
17
≤ 5/8 in.
(16 mm)

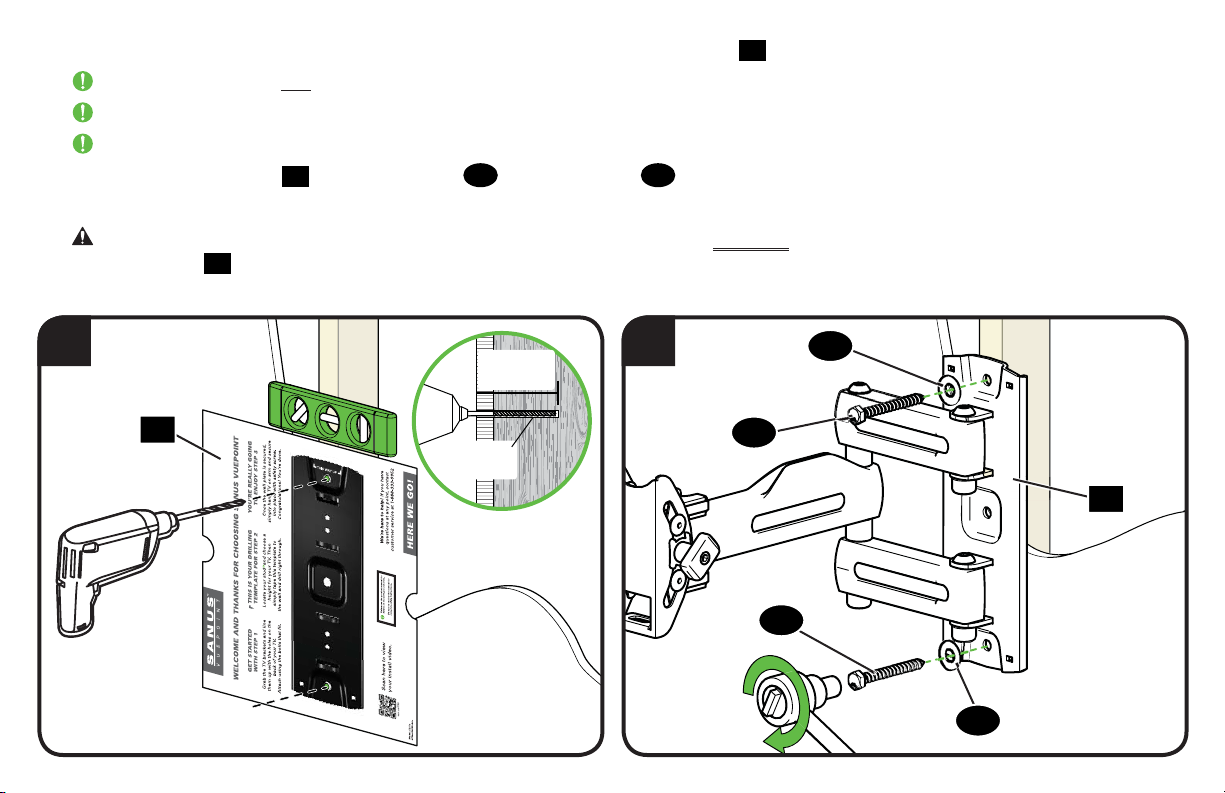

STEP 2A Attach Wall Plate - Wood Stud
NOTE: TV shifts 3.0 in. (7.6 cm)
to the right or left when in the
home position. Consider this when
selecting the location of your wall
mount.
21

11
3 in.
(75 mm)
7/32 in.
(5 mm)
17
3. Drill pilot holes using a 7/32 in. (5 mm) diameter drill bit. Remove wall plate template 17 .
IMPORTANT: Use only two lag bolts for wood stud installation. Using three lag bolts may split the wood stud.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install wall plate assembly 18 using two lag bolts 19 and two washers 20 . Tighten the lag bolts only until they are pulled firmly against the
wall plate.
CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement
of the wall plate 18 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
18
43 20
20
19
19

12
CAUTION: Avoid potential personal injuries and property damage!
●Mount the wall plate assembly 18 directly onto the concrete surface
●Minimum solid concrete thickness: 8 in. (203 mm)
●Minimum concrete block size: 8 x 8x 16 in. ( 203 x 203 x 406 mm)

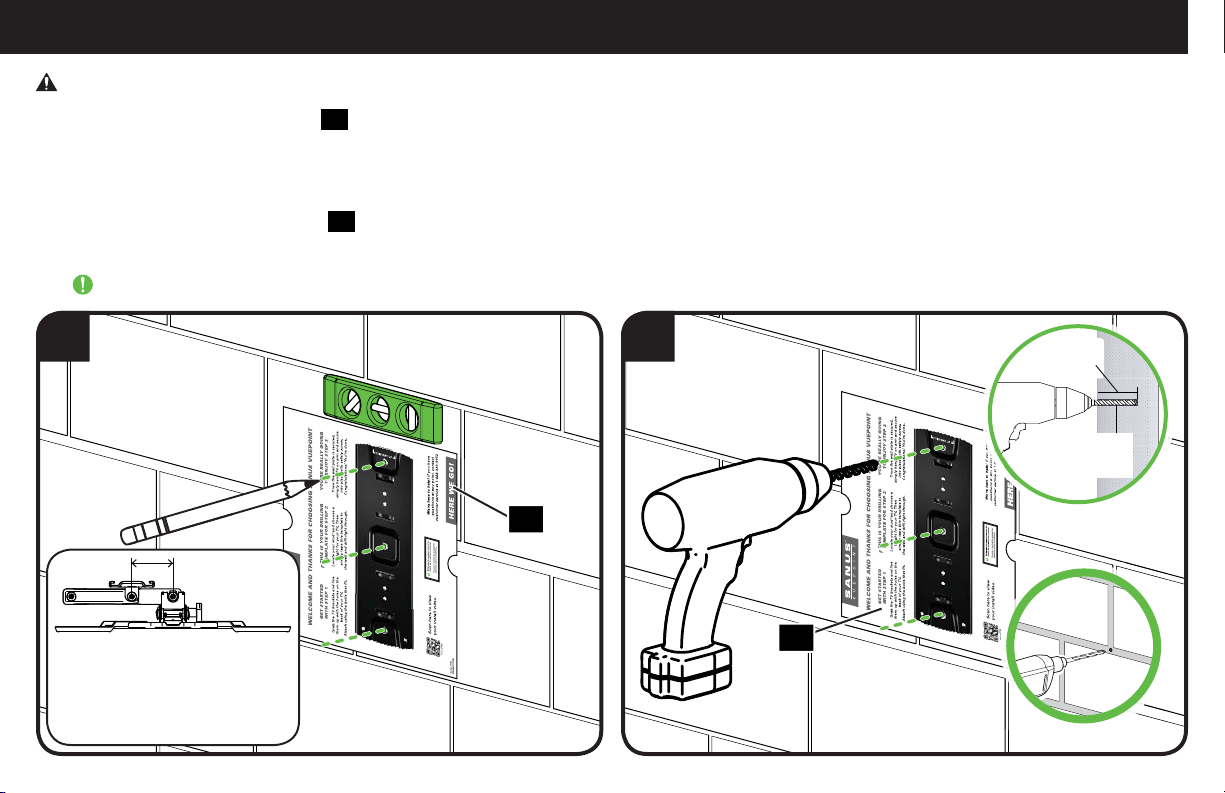

1. Position the wall plate template 17 on the wall at your desired height. Level the wall plate template and mark the hole locations.
2. Drill three pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
17
17
21
STEP 2B Attach Wall Plate - Solid Concrete / Concrete Block
10 mm
(3/8 in.)
75 mm
(3 in.)
NOTE: TV shifts 3.0 in. (7.6 cm)
to the right or left when in the
home position. Consider this when
selecting the location of your wall
mount.

13
43
3. Remove the wall plate template 17 and insert three anchors 21 .
CAUTION: Be sure the anchors 21 are seated flush with the concrete surface.
4. Install wall plate assembly 18 using three lag bolts 19 and three washers 20 . Tighten the lag bolts 19 only until they are pulled firmly
against the wall plate.
CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement
of the wall plate 18 .Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
18
20
19
21

14
HEAVY! You may need assistance with this step.

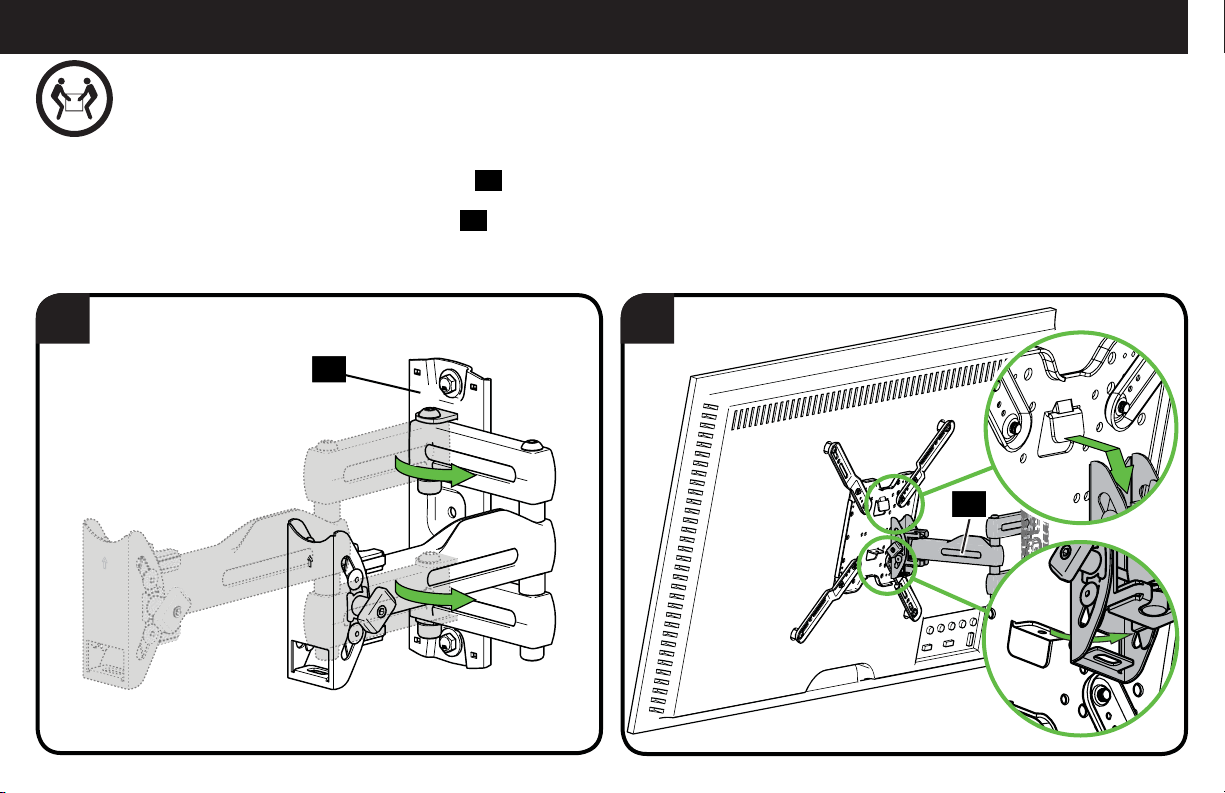

STEP 3 Hang TV onto Wall Plate
1. Fold first section of the arm of wall plate assembly 18 against the wall to provide stability.
2. Hang the TV onto the arm of wall plate assembly 18 by first hooking the top support, then resting the TV into place.
18
21
18

15

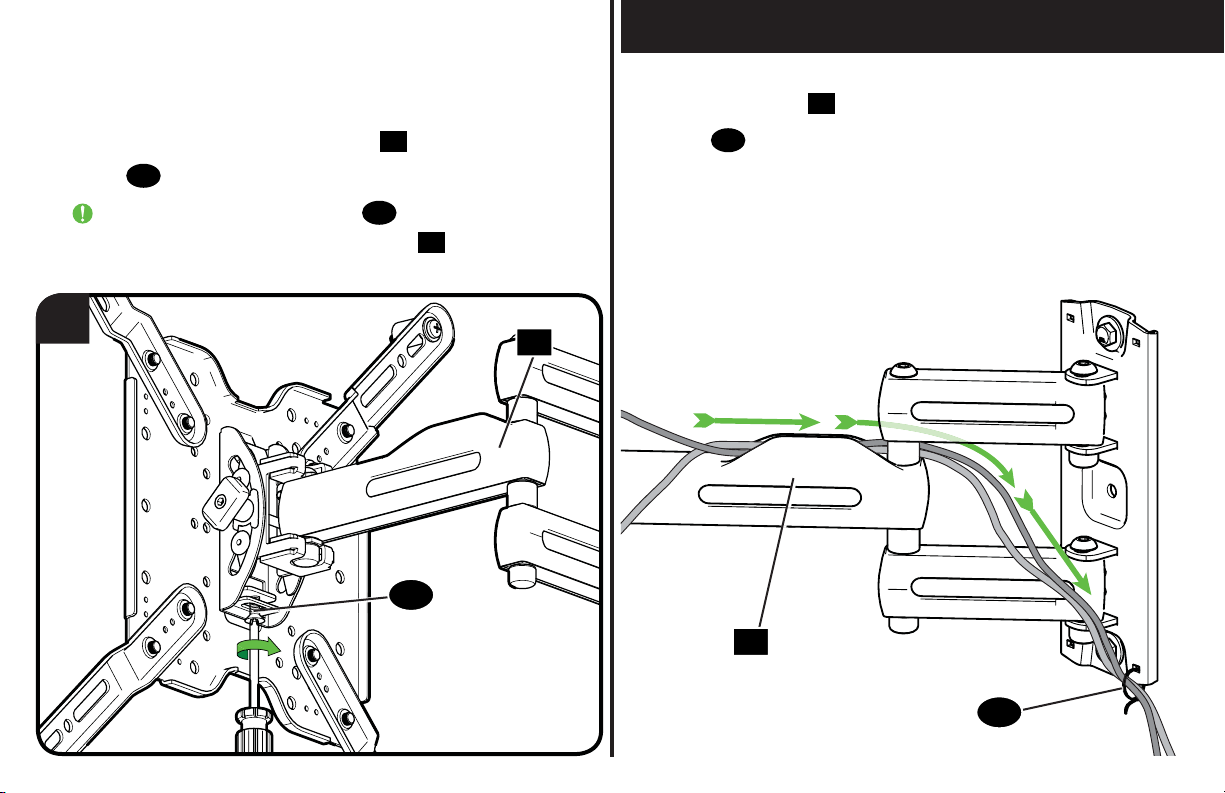

Manage Cables
Cables can be routed through the cable channel on the top of the arm of
the wall plate assembly 18 for a cleaner look.
Cables ties 23 can be used to secure the cables to the wall plate.
Route cables around the arm post and through the open area of the arm
as shown to prevent pinching the cables when folding the arm.
18
18
3
22
3. Lock the TV to the wall plate assembly 18 with locking
screw 22 .
IMPORTANT: This locking screw 22 must be installed to
secure the TV onto the wall plate assembly 18 .
23

16
L
o
o
s
e
n
T
i
g
h
t
e
n
T
i
g
h
t
e
n
L
o
o
s
e
n

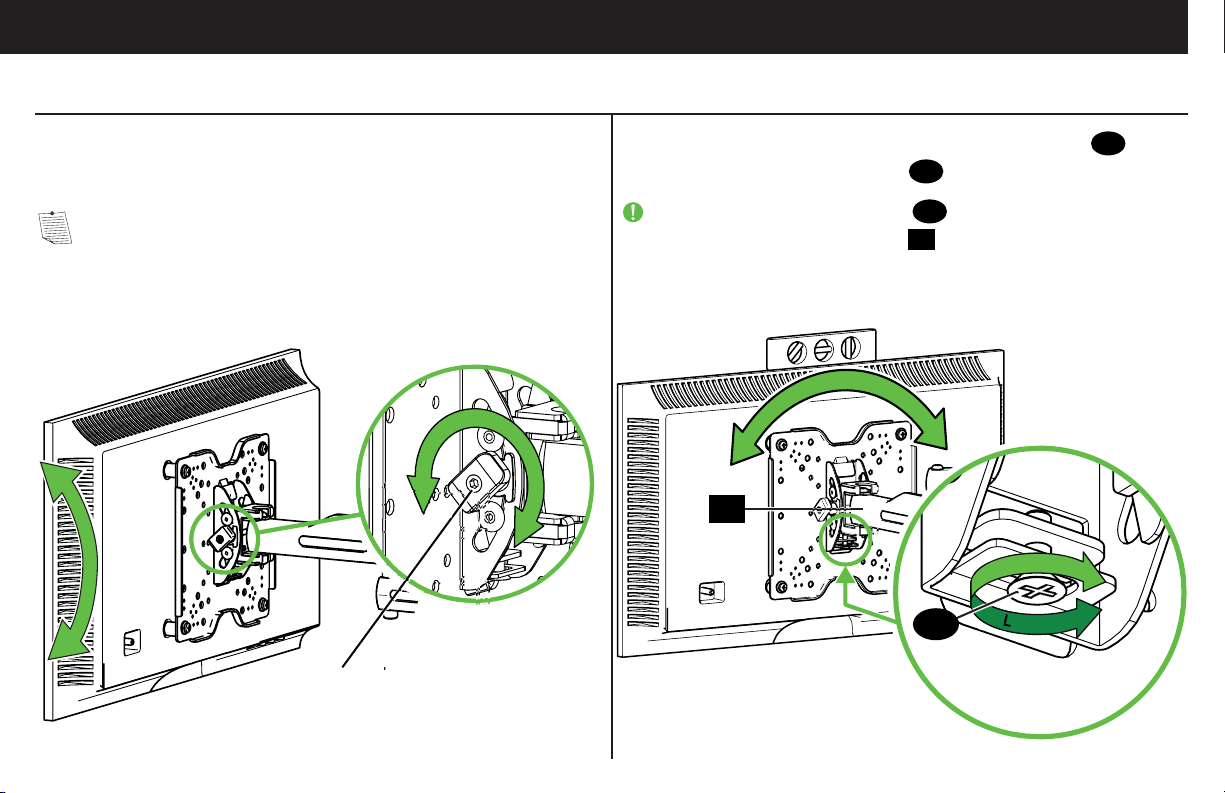

TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when moved, then stay in place.
If your TV is too loose or too tight, adjust the tilt tension knob by hand.
NOTE: Once your TV is in place, tighten the tilt tension knob to
prevent unwanted movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen the locking screw 22 , level
your TV, then tighten locking screw 22 .
IMPORTANT: This locking screw 22 must be installed to secure
the TV onto the wall plate assembly 18 .
Tilt Tension Knob
K
b
L
o
22
18

17
REMOVING THE TV
To remove your TV from the wall plate assembly 18 , disconnect all cables and then reverse the procedures in STEP 3.
18
HEAVY! You may need
assistance with this step.

18
Features
20.0
10.07.5 40.0
40.0
20.0
30.0
7.5
10.0
15º
15º
TV bracket can be
configured to fit TV hole
patterns from 7.5 x 7.5 cm
up to 40.0 x 40.0 cm
Fully articulating arm, with
3 pivot points, creates
optimal viewing positions
TV tilts up or
down for the
perfect viewing
angle
Cable channel
and tie slots hold
cables along
mount arm for a
clean look
Level
adjustments
create a
worry-free
installation
Adjustments allow fingertip control
of TV or restriction of TV movement

19

20
ESPAÑOL
INSTRUCCIONES IMPORTANTES DE SEGURIDAD: GUARDE ESTAS INSTRUCCIONES Y LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO.
¿Su televisor pesa más de 27,2 kg (60 lb) incluidos los accesorios?
No: ¡Perfecto!
Sí: Esta montura NO es compatible. Visite vuepoint.sanus.com o llame al número 1-888-333-9952 para encontrar una montura compatible.
¿Preparado para empezar?
Lea atentamente estas instrucciones en su totalidad para asegurarse de que está familiarizado con el sencillo proceso de instalación. Consulte igualmente el manual de su
televisor para conocer si existen requisitos especiales para el montaje de su aparato.
Si no entiende las instrucciones o si tiene dudas acerca de la seguridad de la instalación, el montaje o el uso del producto, póngase en contacto con el Servicio de
Atención al Cliente o llame a nuestro servicio técnico al número 1-888-333-9952 .
PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
●Este producto se ha diseñado para su uso en montantes de madera, hormigón macizo y paredes de bloques de hormigón: NO lo instale en paredes únicamente de
yeso
●La pared debe ser capaz de soportar hasta cinco veces el peso combinado del televisor y la montura
●No utilice este producto para ningún otro propósito que no sea el explícitamente especificado por el fabricante
●El fabricante no se responsabiliza de ningún daño o lesión resultante del montaje incorrecto o el uso indebido
Antes de empezar, asegúrese de que este es el soporte adecuado para usted.
1
2
3
4
¿De qué está
hecha la
pared?
¿Tiene todas las herramientas necesarias?
27,2 kg
(60 lb)
Localizador de
montantes
Punzón Lápiz Nivel Destornillador Cinta
métrica
Taladro eléctrico Broca para
madera
Broca para
mampostería
Llave de vaso Martillo
13 mm
(1/2 pulg.)
5 mm
(7/32 pulg.)
10 mm
(3/8 pulg.)
¿Hormigón macizo
o bloque de
hormigón?
¿Paneles de yeso
con montantes
de madera?
¡Perfecto! ¡Perfecto!
Llame al Servicio de Atención al Cliente:
1-888-333-9952 (Reino Unido: 0800-056-
2853)
?¿No está seguro?
PRECAUCIÓN:
NO instalar en
panel de yeso
solo
