SAR H0017 User manual
Specialist Access & Rescue Products Ltd.
Sarena House, Vulcan Street, Oldham, OL1 4LQ
EU Declaration of Conformity No. SAR/H015
This declaration of conformity is issued by Specialist Access & Rescue Products Ltd.
Of Sarena House, Vulcan Street, Oldham, OL1 4LQ
EN12277-C:2015
EN813:2008
EN358:1999
Notified body:
Notified Body No:
Performed the EU type examination and issued the EC type examination certificate number:
GB16/872148
The PPE is subject to the conformity assessment procedure. Conformity to type based on quality
assurance of the production process module D. Under the surveillance of the above Notified Body.
Signed by:
Name: Lee Allport
Position: Operations Director
Done At: SAR Products - Sarena House, Vulcan Street, Oldham, OL1 4LQ
On: 17/10/18
We herby declare that:
Equipment: Raid Sit Harness
Models: H0017
is in conformity with PPE EU Regulations 2016/425, as well as the applicable requirements of
the following standards (where applicable)
Ref No.
Specialist Access & Rescue
Products Ltd.
SGS FIMKO OY, Takomotie 8, FI-00380 Helsinki, Finland.
0598
Removable waist pad
Area of restraint point
( If manufactured with)
Detachable gear loops
Mollie System
Elastic leg
supports
Adjustment buckle
Adjustment buckle
Adjustment buckle
Removable leg loops with padding
Crutch system
Belay loop attachment
point for:
Anchoring, belaying,
ascending, abseiling.
Certicate Of Conformity
We certify that the Raid Harness when fully assembled as a unit, conforms to
EN813:2008 & EN12277-C:2015. The Raid belt conforms to EN358:1999 if
manufactured with a restraint point. The Raid Belt & Harness are rated to 150kg.
Other components used with this product must conform to the relevant EN standards.
Signature …………………………………………………… For SAR Products Ltd
User’s Name:
Inspection Record
Date Reason for entry:
Periodic examination or repair
Date Of Manufacture: Date Of Purchase:
Date First Used: Product Serial No.:
Name of
Inspector
Next date of
Inspection
Specialist Access & Rescue Products Ltd.
Sarena House, Vulcan Street, Oldham, OL1 4LQ
Declaration Of Conformity
The EU Declaration of conformity is available by scanning the QR code
or visiting - www.sar-products.com/eu-doc/
Product Record
This documentation should be issued with and kept for each item or system.
Please see the product label for the details required below.
Consult this guide for advice on inspection, maintenance, lifespan, etc.
sar-products.com
+44 (0) 161 621 0309
Specialist Access & Rescue
Products Ltd.
sar-products.com
+44 (0) 161 621 0309
Specialist Access & Rescue
Products Ltd.
Conforms to
EN813:2008, EN12277-C:2015 & EN358:1999
User Guide
Raid Harness/Belt
Serial No.:
Std: QC:
0598
User Guide
Raid Harness/Belt
Raid Harness
The Raid harness when fully assembled as a unit, conforms to EN813:2008 &
EN12277-C:2015 The Raid belt conforms to EN358:1999 if manufactured with a
restraint point. Conforms to EN361 when used with any of our chest harness range &
Link Sling.
Important:
Please read, study and understand these instructions before use. THE MATERIALS
USED IN THIS PRODUCT ARE HIGH SPEC POLYESTERS.
Use:
This harness has been designed for your protection and therefore are (PPE) personal
protective equipment. They are sit harnesses for climbing, mountaineering, rescue,
intervention and technical access (in normal climatic conditions). They are suitable
for many other applications but please check with the manufacturer first. Use only as
instructed and with compatible items of equipment. These should conform to the
relevant European standards or those your country follows. Check that the safe
function of any one component within a system will not interfere with the safe
function of another. Twists in the webbing and buckles fastened incorrectly, can
cause problems, weakness, serious injury or death. Neatness is strength. Users
should be trained, competent or under the supervision of such a person. Before use
in a safe environment, move around and hang in the harness from the tie-in points
to verify that the harness is comfortable and properly adjusted.
The user should satisfy their self that they do not suffer from any medical condition
which could affect there own safety whilst using this equipment normally and in a
rescue. A rescue plan should be in place before using this equipment.
Note: The information in this guide meets the requirements of the PPE EU
Regulations 2016/425. It is not comprehensive and cannot be substituted for the
correct training, which can be provided if required. If in any doubt please don’t
hesitate to contact us.
Safety:
The safety provided by these harnesses depends on their strength and skill of the
user. The strength will be reduced through age, wear and tear, abrasion, cuts, high
impact loads, tight/sharp edges, knots, some chemicals (e.g. alkalis, etc.), UV or
failure to store and maintain as recommended. This list is not exhaustive. The SAR
harnesses have a high strength rating and will help against the above however,
there are exceptions, which include chemical attack or very high temperatures, wet
and icy conditions make harness straps are more difficult to adjust. Do not alter the
product in any way. Any harness subjected to a minor fall should be examined and
discarded if there is any sign of defect or any doubts about its safety. This harness is
not suitable for fall arrest purposes. Users must be medically fit for activities at
height.
WARNING: inert suspension in a harness can result in serious injury or death.
Lifespan:
This is difficult to estimate but we advise as follows:
Do not use more than ten years after the date of manufacture. Assuming you have
used the correct storage. The working life can vary between a single use in extreme
circumstances (e.g. highly chemical environment, serious fall) to the maximum of
ten years, depending on how the product is used. The working life will be reduced
through age, general wear and tear, abrasion, cuts, damage to component parts,
inappropriate ancillary equipment, high impact load, prolonged exposure to UV
light including sunlight, elevated temperature (50°C max) exposure to some
chemicals (e.g. alkalis, etc.) or failure to store and maintain as recommended. This list
is not exhaustive.
Inspection:
Before each use visually inspect to ensure the product is in serviceable condition
and operates correctly. An examination should be carried out at least every 6
months by a competent person authorised by the manufacturer. These inspections
should be recorded paying particular attention to areas of potentially high wear
such as attachment points, buckles, connectors and sewn joints.
Inspect as follows:
Textiles: Check for cuts, tears, and abrasions, damage due to deterioration,
contact with heat, alkalis or other corrosives.
Sewing: Check for broken, cut or worn threads.
Metals: Check for cracks, distortion, corrosion, wear by abrasion, burrs, worn or
loose rivets or screws, discolouration caused by extreme heat (greater
than 100° C) broken springs, frays or cuts, seizure of moving parts, broken
or missing components.
Immediately withdraw from service any items showing defects. The user’s life
depends on it. All repair work should be carried out by the manufacturer or with
their authorisation.
Anchorage & Fall Distance:
Anchor points should always be strong enough to hold the user particularly in the
event of a fall. They should be at least 15kN. A webbing lanyard or rope should be
effectively sleeved to protect against damage if structural members with sharp
edges cannot be avoided as anchorage points. Anchor points,wherever possible,
should be above the user to limit any fall to less than the length of the safety line or
lanyard. Distance of a possible fall should be considered so as to keep clear of
contact with ground or other objects below the work place. Check all user manuals
of all ancillary equipment used.
Maintenance:
Always keep the product clean and dry. Any excess moisture should be removed
with a clean cloth and then allowed to dry naturally in a warm room away from
direct heat.
Cleaning:
Rinse in clean cold water. If still soiled wash in clean warm water (max. 40°C) with
pure soap or a mild detergent (within pH range of 5.5 to 8.5) You can use a washing
machine but first place the product in a suitable bag to protect against mechanical
damage. Rinse properly in clean cold water, dry in a well aired area. NOT IN DIRECT
SUNLIGHT OR WITH HEATERS.
Chemicals:
Avoid contact with any chemicals which could affect the performance of the
product. If contact occurs or is suspected then discard the product immediately. If
used in a marine environment thoroughly rinse in clean cold water and dry after
each use.
Storage:
After cleaning, store unpacked in a cool, dry, dark place away from excessive heat
sources or other possible causes of damage. Do not store wet. If a long shelf life is
required it is advisable to store in a moisture proof package (e.g. polythene bag).
Warning:
Climbing or Working at height is hazardous. It is the user’s responsibility to ensure
understanding of the correct and safe use of this equipment, to use it only for the
purposes for which it is designed and to practise all proper safety procedures.
Lanyards when used in conjunction with a belt be maintained at or above waist
level and be kept taut; and free from movement is restricted to a maximum of 0,6m.
Meanings Of Markings:
• The name, trademark or any other means of identification provided by the
manufacturer or supplier.
• The batch or serial number
• The year of manufacture
• CE… EC logo followed by the number of the notified body
• EN… European standard attributed to this PPE
• Product description and/or reference
• Evaluation of capacity in Kg
• Size
Strengths quoted are when the product is tested new and are in accordance with
the manufacturer’s test methods or to the appropriate standard. Any weights and
measurements are approximate.
Nothing in this document affects the consumer’s statutory rights.
Notified Body:
SGS FIMKO OY, Takomotie 8, FI-00380 Helsinki, Finland.
Notified Body No: 0598
Specications - Raid Harness/Belt:
• Fully adjustable waist and legs
• Wrap around or step in fitting
• Well-established, easy interlocking buckling system
• Laminated, high quality, sandwiched closed cell foam padding
• High quality polyester webbing, with hidden locking stitch
• Removable gear loops
• Standard Waist Size: 85cm to 112cm
• Standard Leg/Thigh Size: 50cm to 74cm
• Working Load Limit: 150kg.
Weight of full harness system:
• Standard Harness: 900g
• QC Harness: 1026g
When threading the belt into the padding.
Fitting Instructions:
Note: the following instructions are to fit the harness as it was designed so that
chemicals or mud etc. would not soil it from your footwear. However you can still fit the
harness as a step in type without disconnecting the waist and leg buckles by stepping
into the harness and adjusting the buckles.

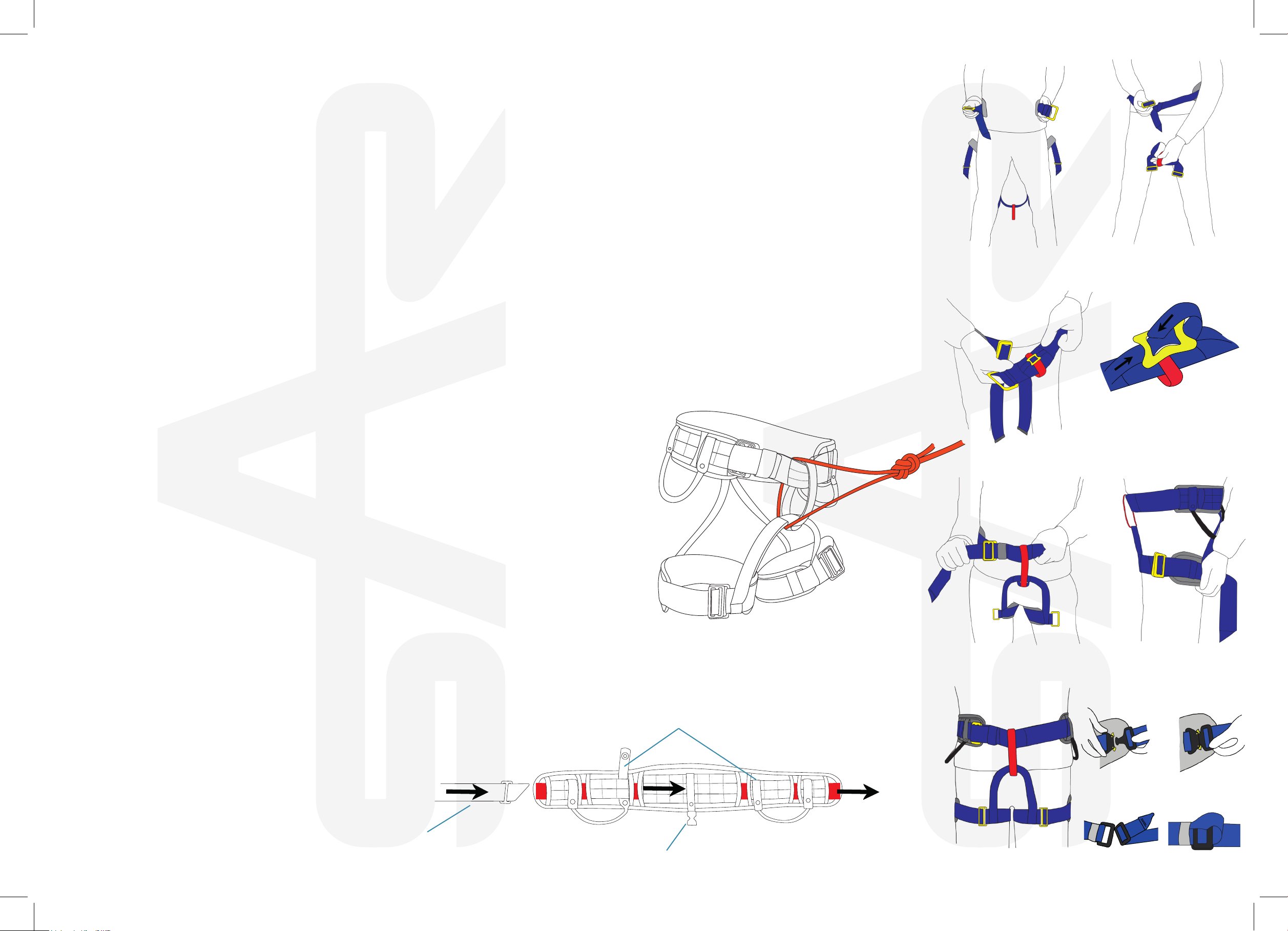

1. Open the harness out and check there are no twists and it is following the lines of its
design.
2. Place around waist and hold in position on waist using your inner arms/elbows. Fig: 1.
3. Bend forward and pull belay loop up through your legs using your right hand still
holding waist in position. Fig. 2.
4. Position belay loop over waist belt buckle and fit into position around belt using 3
bar thread buckle. Figs. 3 & 4
5. Fit waist buckle as shown in Figs. A to D. centralising position of belay to your body
and adjusting to fit comfortably on waist. Fig. 5.
6. Fit each leg firmly around upper thigh and lock. Fig. 6.
7. Once the harness is fitted check all is correct and there are no twists, all buckles are
locked correct and secured back through elastic tidies, the belay loop is around waist
belt and waist pad and belay loop are central. Figs. 7.
IMPORTANT:
Ask a partner to do a BUDDY check on your harness, equipment and set systems prior
to use.
Tying into the belt and crutch system using a figure of 8knot.
WARNING: No other part of the harness should be tied into.
Removable gear loops
Removable leg loop attachment point.
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5
Fig. 7
Fig. 6
A B
C D
