SATO LT408 User manual

PN: 9001154B
Lt408
PRINT ENGINE
PARTS LIST

SATO America, Inc.
10350A Nations Ford Road
Charlotte, NC 28273
Main Phone: [phone]
Technical Support Hotline: [phone]
Technical Support Fax: [phone]
E-Mail: satosale[email protected]m
[e-mail]
www.satoamerica.com

Lt408 Parts List PN: 9001154B
TABLE OF CONTENTS
OPPOSITE (LEFT HAND)
Cover O-1
Housing Cover Assembly O-2
Operator Panel Assembly O-5
Print Assembly O-6
Ribbon Spindle Assembly O-9
Drive Train Assembly O-11
Roller Assembly O-13
Circuit Board Assembly O-14
Chassis Assembly O-15
Frame Assembly O-18
Accessories & Options O-20
STANDARD (RIGHT HAND)
Cover S-1
Housing Cover Assembly S-2
Operator Panel Assembly S-5
Print Assembly S-6
Ribbon Spindle Assembly S-9
Drive Train Assembly S-11
Roller Assembly S-13
Circuit Board Assembly S-14
Chassis Assembly S-15
Frame Assembly S-18
Accessories & Options S-20

Lt408 Parts List O-1 PN: 9001154B
PARTS LIST
• Housing Cover Assembly
• Operator Panel Assembly
• Print Assembly
• Ribbon Spindle Assembly
• Drive Train Assembly
• Roller Assembly
• Circuit Board Assembly
• Chassis Assembly
• Frame Assembly
• Accessories & Options

Opposite
Lt408 Parts List O-2 PN: 9001154B
HOUSING COVER ASSEMBLY
Figure PL1a, Housing Cover Assembly (1)
HOUSING COVER ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 MA1300622 FLAT HEAD SCREW
2 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
3 MH1300822 FLAT HEAD SCREW, P-TIGHT
4 P14122000 REAR HOUSING COVER
5 P15944010 GUIDE RAIL
6 P16550000 EXT COVER
7 P16621000 COVER (VOLUME CAP)
8 Q01373000 STICKER, CAUTION
9 Q01374000 STICKER, AC/FUSE
10 R05940000 REAR SIDE HOUSING COVER

Opposite
Lt408 Parts List O-3 PN: 9001154B
Figure PL2a, Housing Cover Assembly (2)
HOUSING COVER ASSEMBLY (2)
ITEM PART NUMBER PART DESCRIPTION
1 MD3201022 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
2 MD3300622 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
3 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
4 P14086000 COVER-OPEN BRACKET
5 P16740010 PLATE ARM
6 P16765000 ANTI-STATIC SHEET
7 PA6730300 SENSOR COVER
8 R05941010 FRONT SIDE HOUSING COVER
9 R07109000 COVER-OPEN SENSOR ASSEMBLY

Opposite
Lt408 Parts List O-4 PN: 9001154B
Figure PL3a, Housing Cover Assembly (3)
HOUSING COVER ASSEMBLY (3)
ITEM PART NUMBER PART DESCRIPTION
1 MA7300628 TRUSS SCREW
2 MT1300022 NUT
3 NA1030022 WIDE FLAT WASHER
4 P14038000 WINDOW PANE
5 P16741011 PLATE STOPPER
6 P16765000 ANTI-STATIC SHEET
7 P18824000 FELT WASHER
8 R07433010 FRONT HOUSING COVER, HINGED

Opposite
Lt408 Parts List O-5 PN: 9001154B
OPERATOR PANEL ASSEMBLY
Figure PL4a, Operator Panel Assembly (1)
OPERATOR PANEL ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 MD3250622 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
2 MH0300822 PAN HEAD SCREW, P-TIGHT
3 P13748010 SCREW, PANEL
4 P14036000 PROTECT SHEET
5 P14037000 LCD PROTECTOR
6 P15942000 PANEL BASE
7 P15943000 VOLUME COVER
8 P16768000 SPACER, PANEL SWITCH
9 P18934000 PCB PROTECTOR
10 R07309000 PANEL COVER
11 R07452010 PANEL CIRCUIT BOARD ASSEMBLY

Opposite
Lt408 Parts List O-6 PN: 9001154B
PRINT ASSEMBLY
Figure PL5a, Print Assembly (1)

Opposite
Lt408 Parts List O-7 PN: 9001154B
PRINT ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 MD3200622 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
2 MD3300622 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
3 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
4 MN1300625 ALLEN SCREW
5 ND0025030 SNAP RING, TYPE E, 2.5
6 ND0030030 SNAP RING, TYPE E, 3
7 ND0040030 SNAP RING, TYPE E, 4
8 ND0050030 SNAP RING, TYPE E, 5
9 P13742010 SHAFT, HEAD TENSION
10 P13743020 SHAFT, PRESSURE ADJUSTMENT
11 P13744010 SHAFT, HEAD ADJUSTMENT
12 P13791000 SPRING, HEAD OPEN
13 P14019000 SPRING, HEAD PRESSURE
14 P15933010 SPRING LOCK
15 P15934000 HEAD PRESSURE CAM A
16 P15935000 HEAD PRESSURE CAM B
17 P15936010 KNOB, HEAD PRESSURE
18 P15937010 KNOB, HEAD SLIDE
19 P15938010 PRESSURE CAP
20 P16097000 HEAD TOP BRACKET
21 P16098000 HEAD PRESSURE BRACKET
22 P16099011 HEAD BRACKET
23 P16101011 PLATE, HEAD ADJUSTMENT A
24 P16105000 PLATE, RIBBON ADJUSTMENT
25 P16613000 PLATE , HEAD ADJUSTMENT B
26 P16628000 SPRING, HEAD BRACKET
27 P16629010 SPRING, HEAD LOCK
28 R07333000 PRINT HEAD SUB-ASSEMBLY

Opposite
Lt408 Parts List O-8 PN: 9001154B
Figure PL5a, Print Assembly (2)
PRINT ASSEMBLY (2)
ITEM PART NUMBER PART DESCRIPTION
1 MA7401028 TRUSS SCREW
2 MD3300622 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
3 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
4 ND0060030 SNAP RING, TYPE E, 6
5 P13746000 SHAFT, HEAD LOCK
6 P15940000 HEAD LOCK CAM
7 P15941000 HEAD LOCK LEVER B
8 P16092000 BEARING CLAMP
9 P16112100 HEAD SLIDE FRAME
10 P16113000 HEAD LOCK LEVER A
11 P16646010 COLLAR, HEAD SHAFT
12 P17491000 ROLLER BEARING
13 PB3770100 ROLLER, 6*12*143
14 PE2770300 COLLAR, 6*8*4F
15 R07336011 RIBBON ROLLER SUB-ASSEMBLY

Opposite
Lt408 Parts List O-9 PN: 9001154B
RIBBON SPINDLE ASSEMBLY
Figure PL7a, Ribbon Spindle Assembly (1)

Opposite
Lt408 Parts List O-10 PN: 9001154B
RIBBON SPINDLE ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 MA0200822 PAN HEAD SCREW
2 MA0300822 PAN HEAD SCREW
3 MA7401028 TRUSS SCREW
4 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
5 MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
6 MH0300522 PAN HEAD SCREW, P-TIGHT
7 ND0060030 SNAP RING, TYPE E, 6
8 ND0080030 SNAP RING, TYPE E, 8
9 P00588101 RIBBON BOSS
10 P00626000 SPRING, RIBBON BOSS
11 P11280010 BACK FEED STOPPER
12 P11282010 BACK FEED SPRING
13 P11283000 DISK PLATE
14 P12267000 TORQUE LIMITER, RIBBON SUPPLY
15 P13747000 SHAFT, RIBBON A
16 P13889000 SHAFT, RIBBON B
17 P14225000 ONE-WAY CLUTCH
18 P15159000 RIBBON PULLEY
19 P15601000 BEARING
20 P16114010 RIBBON BRACKET B
21 P16747000 TORQUE LIMITER, RIBBON REWIND
22 P17488000 BALL BEARING
23 P18125000 SPRING, BACK FEED STOPPER
24 PA1731000 ADJUSTMENT PLATE
25 PE2720100 COLLAR, 10*12*10
26 PE2730100 STOPPER COLLAR
27 R07310010 RIBBON BRACKET SET
28 R08411000 FELT SUB-ASSEMBLY

Opposite
Lt408 Parts List O-11 PN: 9001154B
DRIVE TRAIN ASSEMBLY

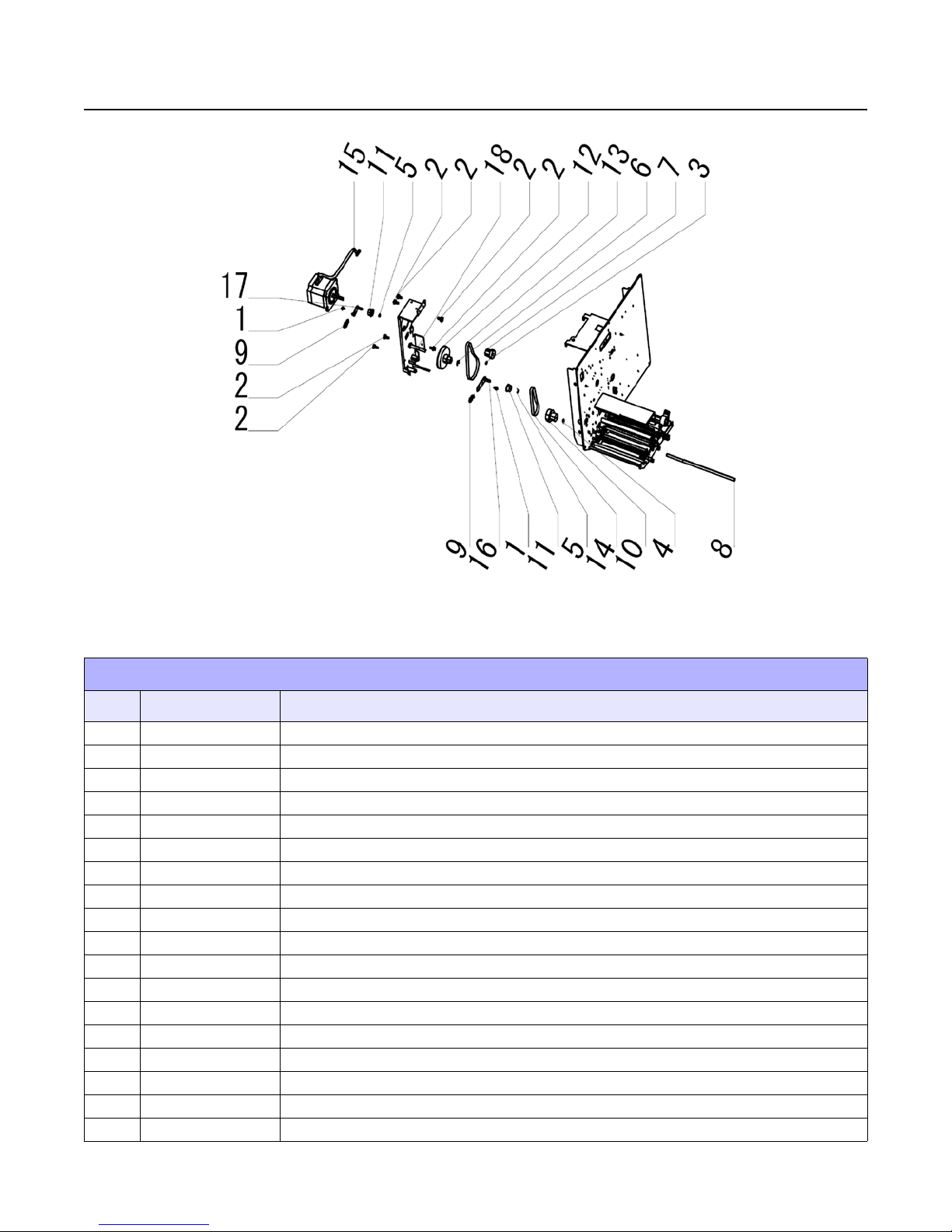

Figure PL8a, Drive Train Assembly (1)
DRIVE TRAIN ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
2 MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
3 MJ1400622 SET SCREW, ALLEN, WITH POINT
4 ND0030030 SNAP RING, TYPE E, 3
5 ND0040030 SNAP RING, TYPE E, 4
6 ND0060030 SNAP RING, TYPE E, 6
7 P11157001 MOTOR PULLEY
8 P13724010 SHAFT, FEED
9 P13782000 SPRING, FELT TENSION
10 P13862010 GEAR/PULLEY, 20/40 RESPECTIVELY
11 P13863000 TENSION ROLLER
12 P13864000 GEAR/PULLEY, 22 & 77/20 RESPECTIVELY
13 P16067000 TIMING BELT, STEPPER MAIN, 260
14 P16068000 TIMING BELT, PLATEN DRIVE, 186
15 P16780000 STEPPER MOTOR, LEFT FEED
16 R05788000 TENSION BRACKET A
17 R05789000 TENSION BRACKET B
18 R07304000 MOTOR BRACKET

Opposite
Lt408 Parts List O-12 PN: 9001154B
Figure PL9a, Drive Train Assembly (2)
DRIVE TRAIN ASSEMBLY (2)
ITEM PART NUMBER PART DESCRIPTION
1 F00177000 PHOTO INTERRUPTER
2 MD3300622 PAN HEAD SCREW W/SPRING WASHER & NARROW FLAT WASHER
3 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
4 ND0040030 SNAP RING, TYPE E, 4
5 ND0050030 SNAP RING, TYPE E, 5
6 P13782000 SPRING, BELT TENSION
7 P13860000 GEAR, 18
8 P13861000 GEAR/PULLEY, 47/22 & 38 RESPECTIVELY
9 P13863000 TENSION ROLLER
10 P16962000 TIMING BELT, RIBBON DRIVE, 218
11 R05788000 TENSION BRACKET A

Opposite
Lt408 Parts List O-13 PN: 9001154B
ROLLER ASSEMBLY
Figure PL10a, Roller Assembly (1)
DRIVE TRAIN ASSEMBLY (2)
ITEM PART NUMBER PART DESCRIPTION
1 MD4400828 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
2 P16092000 BEARING CLAMP
3 P17491000 BALL BEARING
4 R07323010 PLATEN ROLLER SUB-ASSEMBLY A
5 R07324001 PLATEN ROLLER SUB-ASSEMBLY B

Opposite
Lt408 Parts List O-14 PN: 9001154B
CIRCUIT BOARD ASSEMBLY
Figure PL11a, Circuit Board Assembly (1)
CIRCUIT BOARD ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 JG100011A TIE WRAP
2 K00138000 POWER UNIT
3 MD4300822 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER
4 MN1300822 ALLEN SCREW
5 P11523000 WIRE SADDLE
6 R09216000 MAIN CIRCUIT BOARD
7 R07103001 SENSOR CABLE SET
8 R07105000 DC POWER CABLE SET
9 R07106000 MOTOR POWER CABLE SET
10 R07107001 HEAD POWER CABLE SET
11 R07108000 HEAD SIGNAL CABLE SET
12 R07112000 HEAD-OPEN CABLE SET
13 R07450000 MOTOR DRIVER CIRCUIT BOARD
14 R07509000 MAIN CIRCUIT BOARD TO MOTOR CIRCUIT BOARD CABLE SET

Opposite
Lt408 Parts List O-15 PN: 9001154B
CHASSIS ASSEMBLY
Figure PL12a, Chassis Assembly (1)

Opposite
Lt408 Parts List O-16 PN: 9001154B
CHASSIS ASSEMBLY (1)
ITEM PART NUMBER PART DESCRIPTION
1 MD3200622 PAN HEAD SCREW W/ SPRING WASHER & NARROW FLAT WASHER
2 MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
3 MD4300822 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
4 MD4400824 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
5 MJ9300822 THIN HEAD SCREW
6 ND0020030 SNAP RING, TYPE E, 2
7 ND0025030 SNAP RING., TYPE E, 2.5
8 ND0040030 SNAP RING, TYPE E, 4
9 ND0060030 SNAP RING, TYPE E, 6
10 P13732010 POST, LATCH
11 P13733010 SHAFT, SPRING STOPPER A
12 P13734010 PIN, HEAD LOCK B
13 P13736000 SHAFT, PRESSURE ROLLER
14 P13737000 PRESSURE ROLLER
15 P13738010 KNOB, LOCK LEVER
16 P13740010 KNOB, PRESSURE ROLLER
17 P13785000 SPRING, PRESSURE ROLLER A
18 P13786000 SPRING, LOCK LEVER
19 P13960000 HEAD ADJUSTMENT BRACKET
20 P15937010 KNOB, HEAD SLIDE
21 P16090000 DISPENSER PLATE
22 P16091000 SIDE FRAME
23 P16093011 LOCK LEVER
24 P16095000 PRESSURE BRACKET
25 P16323000 SPRING, PRESSURE ROLLER B
26 P16645000 COLLAR, 5.1*7*8
27 P17487000 BALL BEARING
28 R05793000 PRESSURE BRACKET/PLATE

Opposite
Lt408 Parts List O-17 PN: 9001154B
Figure PL13a, Chassis Assembly (2)
CHASSIS ASSEMBLY (2)
ITEM PART NUMBER PART DESCRIPTION
1 MD4300822 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER
2 ND0020030 SNAP RING, TYPE E, 2
3 P13735010 SHAFT, LABEL GUIDE
4 P16117000 SEAT SENSOR
5 PE3520600 DISPENSE ROLLER
6 R07327030 GAP SENSOR SUB-ASSEMBLY
