sauermann Si-HH3 User manual

www.sauermanngroup.com
USER MANUAL
Si-HH3
THERMO-HYGROMETER

A
B
C
The Sauermann Thermo-hygrometer
Si-HH3 is a relative humidity &
temperature measuring instrument.
In addition to the measurement of relative
humidity & temperature, the dew-point,
absolute humidity, enthalpy, mixing
ratio and wet bulb temperature can be
calculated.
Hygrometry probe
LCD screen
Hold/Min/Max/Live value button
A
B
D
On/Off & backlight button
C
1 - Instrument description
D

About this document
Please read this document and familiarize yourself with the product before putting
it to use. Keep this document on hand so that you can refer to it when necessary.
Pass this documentation on to any subsequent users of the product.
Avoid personal injury/damage to equipment
• This device has been developed for relative humidity and temperature
measurement and for an indoor use. Please always use the device in
accordance with its intended use and within parameters described in the
technical features in order not to compromise the protection ensured by the
device.
• Only the accessories provided with the device or available as an option must
be used.
• Never store the product together with solvents, acids or other aggressive
substances.
• Only carry out maintenance and repair work that is described in the
documentation. Follow the detailed steps when doing so. Use only original
spare parts from Sauermann.
• If the device falls or in case of similar inconveniences, or if an irregular
malfunction appears, please do not use the device and bring it back to your
distributor to ensure your own safety.
• The device must not be used in ATEX zones according to applicable standards.
• Do not use the device next to explosive gases, vapor or dust.
• The device does not contain any internal part repairable by the user. Do not
open the instrument.
• This device can pose a risk for wearers of pacemakers. Respect a distance of at
least 10 cm (4’’) between the device and the wearer.
• Observe safety distances to products that can be damaged by the magnetic
field (e.g. monitors, computers, credit cards).
2 - Safety and environment
Exclusions and restrictions of liability
The application operation is under the exclusive customer or user entity
responsibility, who acknowledges using this system at his/her own risks. The
customer or user entity explicitly exclude Sauermann, and every other company
through which the it could have been sold of any kind of responsibility
or warranty regarding any direct, indirect, accidental, consecutive or non-
consecutive damage that could have been subjected, for some or all, by partial
or total non-respect, voluntary or involuntary, of recommendations, conditions
and prerequisites indicated hereafter.

Symbols used
For your safety and in order to avoid any damage of the device, please
follow the procedure described in this user manual and read carefully
the notes preceded by the following symbol:
The following symbol will also be used in this user manual, please read
carefully the information notes indicated after this symbol:
Send back the device at the end of it’s life cycle to a waste collection
center for electrical and electronic components (according to local
regulations), or send it back to your distributor to ensure the device is
properly disposed with respect to the environment.
Protecting the environment
© 2020 Sauermann. All rights reserved. Sauermann & Si-HVACR Measurement MobileApp are the exclusive property of
Sauermann. Non contractual document. The products functionalities and visual appearances can be modied without prior
notice. Smartphone or tablet are not supplied with Sauermann products.
Warning: possibility of electric shock
3 - Standard
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by Sauermann could voice the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.

Measuring element Hygrometry: capacitive sensor
Temperature: NTC
Display Integrated 2-line LCD 7 segment monochrome display with backlight
Housing ABS-PC and TPE, IP20
Keypad 1 ON/OFF & Backlight button
1 Hold/Min/Max/Live & value button
Standards & Directives 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/53/EU RED
Power supply 3 alkaline batteries LR03 AAA 1.5 V
Supply voltage 4.5 V
Consumption 135 mW
Battery life 250 hours* (without backlight and without wireless communication)
Wireless communication
Range frequency from 2402 MHz to 2480 MHz with a transmit power of 0 dBm.
Range up to 15 m (98 ft), depending on smartphone radio strength.
Minimum required versions: Android 5.0, iOS 12.4, BLE 4.0
Ambiance Air and neutral gas
Operating conditions**
From -10 to +60°C (14 to 140°F)
In non condensing conditions
Altitude: from 0 to 2000 m (6561’)
Storage temperature From -20 to +70°C (-4 to 158°F)***
Auto shut-off 10 minutes (can be deactivated)
Weight (with batteries) 200 g (7 oz)
4 - Technical specifications
Parameters Measuring
units Accuracy*Measuring range Resolution
Relative humidity1%RH ±2%RH at 25°C
(5 to 95%RH) From 0 to 100%RH 0.1%RH
Dew point** °CTd, °FTd -From -40 to +60°CTd
From -40 to 140°FTd
0.1°CTd / 0.1°FTd
Absolute humidity*** g/m3- From 0 to 600 g/m30.1 g/m3
Enthalpy*** kJ/kg - From 0 to 10000 kJ/kg 0.1 kJ/kg
Mixing ratio*** g/kg - From 0 to 10000 g/kg 0.1 g/kg
Wet bulb temperature** °CTw / °FTw -From 0 to 60°CTw
From 32 to 140°FTw
0.1°CTw / 0.1°FTw
Temperature °C, °F ±0.5°C
±0.9°F
From -20 to +60°C
From -4 to 140°F 0.1°C / 0.1°F
1Drift : 0.25 %RH/year typical value for operation in normal T/RH (temperature and humidity range of 5°C to 60 °C and 20 %RH to 80 %RH respectively). Maximum
value is < 0.5%RH/yr. Higher drift values might occur due to contaminant environments with vaporized solvents, out-gassing tapes, adhesives, packaging materials
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same
conditions, or carried out with calibration compensation.
**Calculated values / ***Calculated values, only available on the app
5 - General features
*Battery life given at 20°C (68°F) with alkaline batteries.
**The sensor shows best performance when operated within recommended normal temperature and humidity range of 5°C–60 °C and 20 %RH –80 %RH,
respectively. Long-term exposure to conditions outside normal range, especially at high humidity, may temporarily offset the RH signal (e.g.+3%RH after 60h kept
at >80%RH). After returning into the normal temperature and humidity range the sensor will slowly comes back to calibration state by itself.
***If the instrument is stored outside the operating temperature (for example in a van, a warehouse, etc.), please wait for 10 minutes in its operating
temperature before starting and using it.

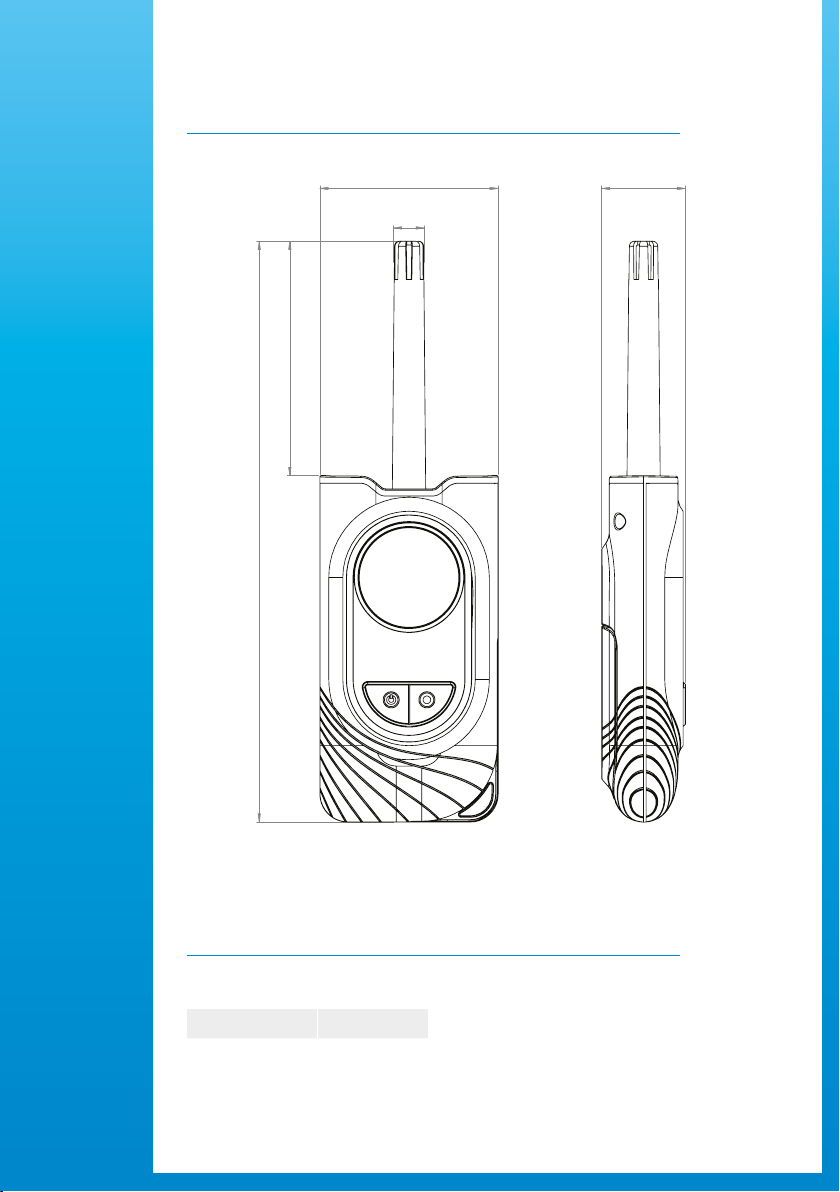

6 - Dimensions
7 - Accessories
70 mm
(2.76’’)
228 mm
(8.98’’)
92
(3.62)
33 mm
(1.3’’)
Ø13 mm
(Ø0.5’’)
70 mm
(2.76’’)
228 mm
(8.98’’)
92
(3.62)
33 mm
(1.3’’)
Ø13 mm
(Ø0.5’’)
Name Reference
Softcase SIACCSC

Insert the batteries
• Unscrew the batteries compartment
cover at the back of the device and
remove the cover.
• Put the 3 alkaline AAA LR03 1.5V
batteries supplied with the instrument.
• Carefully respect the polarity.
• To close the batteries compartment,
push the batteries cover back on,
starting with the upper part.
• Screw the batteries compartment
cover.
Turn on the instrument
• Place the device in the required
location to measure ambiant
temperature & hygrometry.
• Press & hold the ON/OFF key.
• The device displays the temperature
and relative humidity measurements.
Select the unit
• With the device turned on.
• Press and hold simultaneously ON/OFF
& HOLD keys to switch to the required
measurement unit : °F, °C.
• Selecting °F also displays °FTd & °FTw
• Selecting °C also displays °CTd & °CTw
Activate/deactivate the wireless
communication
• With the device turned on.
• Press simultaneously ON/OFF & HOLD
keys to activate or deactivate the
wireless communicaiton.
• When activated, the wireless
communicaion icon flashes on the
instrument screen.
• The icon becomes fixed when the
instrument is paired to a tablet or
smartphone.
Activate/deactivate the Backlight
• With the device turned on.
• Press ON/OFF key to activate or
deactivate the backlight.
Activate/deactivate the Auto shut-off
• The device has an automatic shut-off
set to 10 minutes.
• When the device starts, all the
segments are displayed. During this
time, press & hold the ON/OFF key to
enter the “Power down menu“.
• Press HOLD to activate/deactivate the
auto shut-off.
• Press & hold ON/OFF key to exit the
“Power down menu“.
Display Hold/Min/Max/Live values
• With the device turned on and
measured values are displayed.
• Press HOLD key to successively:
- Freeze the display of measurement values
- Display the minimum measured values
- Display the maximum measured values
- Restore the live display
Switch between measurements
• With the device turned on and
measured values are displayed.
• Press & hold the HOLD key to
successively display dew-point,
wet bulb, %RH & temperature
measurement values.
8 - Operating instructions
KEY SHORT PRESS LONG PRESS (3 seconds)
ON/OFF Backlight ON/OFF Device ON/OFF
HOLD Hold / Min / Max / Live value Dew-point / Wet bulb / %RH & Tem-
perature
ON/OFF and HOLD Wireless communication ON/OFF °C / °F
Key operation

Change batteries
• With the device turned off.
• Unscrew the battery compartment at the back of the device and remove the cover.
• Remove used batteries and insert new batteries (3 alkaline batteries AAA LR03
1.5 V) respecting the polarity.
• To close the battery compartment, push the battery cover back on starting with
the upper part.
• Screw the battery compartment cover.
Clean the instrument
• Clean the housing with a damp cloth (soap suds) if it gets dirty.
• Do not use aggressive cleaning agents or solvents.
9 - Maintenance
10 - Warranty
Instruments have 2-year guarantee for any manufacturing defect.
Download the Si-HVACR
Measurement MobileApp
11 - Mobile App
Download the MobileApp
user manual
The Si-HVACR Measurement MobileApp allows to view and record
measurements in real-time.
Main features:
• Easily view different parameters
• Browse saved measurements history and data graphs (average, min & max
values, etc.)
• Create reports (PDF, CSV or XML format) and add up to four (4) photos

www.sauermanngroup.com
NT – Si-HH3 – EN – 08/01/2021 – Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
BE CAREFUL! Material damages can happen, so please apply the precautionary measures indicated.
Once returned, required waste collection will be assured in the respect of the environment in accordance to guidelines relating to WEEE.
Sauermann NA
140 Fell Court, Ste. 302
Hauppauge, New York 11788
T. ([phone]
F. ([phone]
[e-mail]
Sauermann GmbH
Leibnizstraße 6
D – 74211 Leingarten
T. +49 (0)7131/399990
F. +49 (0)7131/399992
[e-mail]
Sauermann UK
Units 7-9, Trident Business Park
Amy Johnson Way
Blackpool - FY4 2RP
T. [phone]
F. [phone]
[e-mail]
Sauermann Italia SA
Via Golini 61/10
40024 Castel S.Pietro Terme (BO)
T. ([phone]
F. ([phone]
[e-mail]
Sauermann Ibérica
C/Albert Einstein 33.
Planta 3. P. I. Santa Margarida II-
08223 Terrassa (Spain)
T. [phone]
[e-mail]
Sauermann Industrie
ZA Bernard Moulinet
24700 Montpon
France
T. [phone]
[e-mail]
Sauermann Australia
Unit 4/14 Rodborough Road,
Frenchs Forest, NSW 2086
T. ([phone]
