Instruction Manual
TVO
TVO-BA-e-1312 1
ELECTRIC VERTICAL TEST STAND
TVO500N300
Table of contents
1. Construction
2. Function
3. Specification
4. Operation
5. Maintenance
6. Packing list
7. Declaration of Conformity

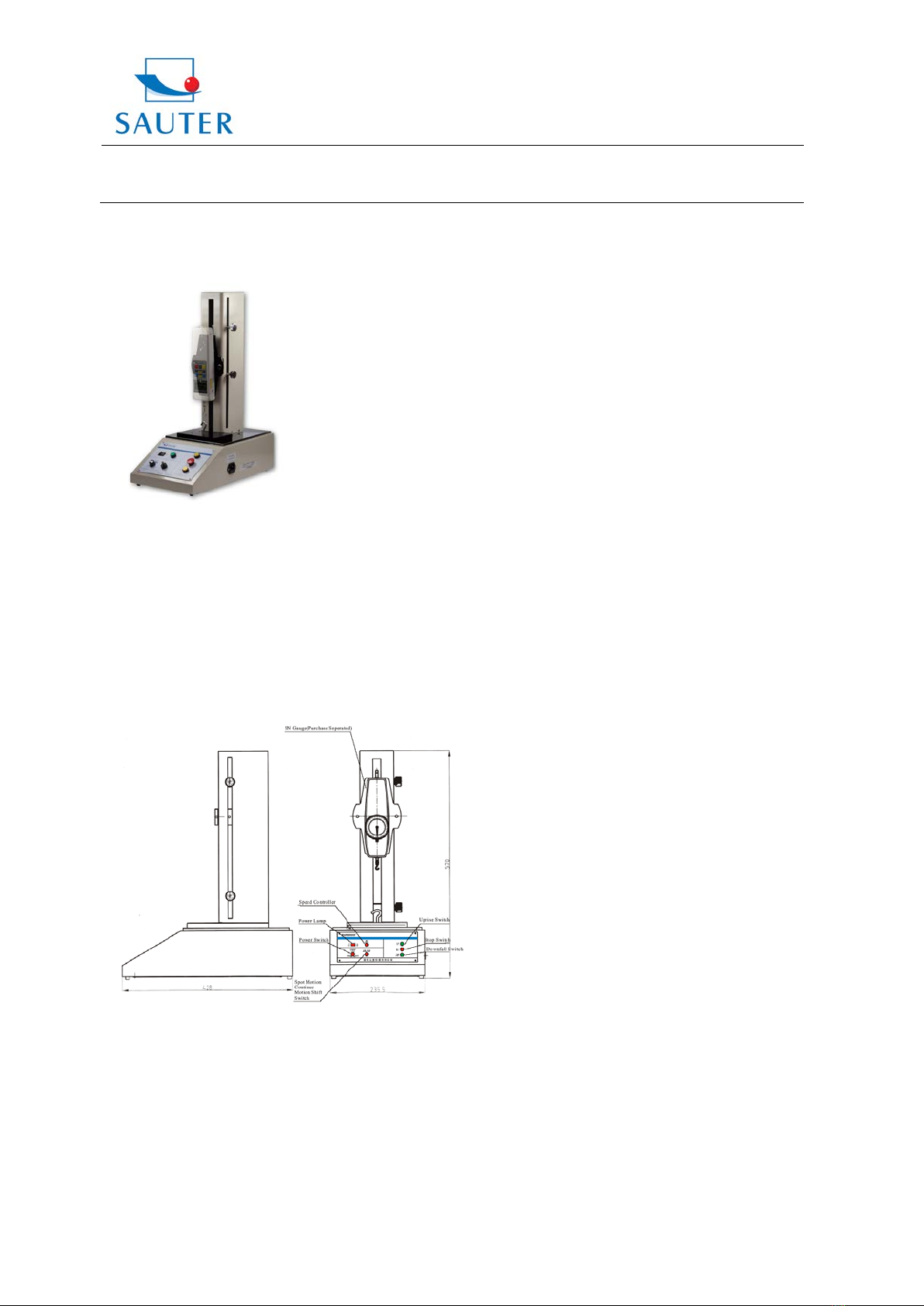

1. Construction
2. Function
The electrical vertical test stand TVO500N300 is applied in
tension and compression tests. It can be assembled with
push and pull gauges. The test stand is of good stability,
has got a wide application range and it is easy to operate.
Furthermore, it has the advantage of non-polar speed
adjustment, manual and automatic operation and auto
control of switch function. It is suitable in the field of rubber
& plastic products, light industry & textile, construction of
frame, complex material, wires & cables, automobile
components, engine and scientific research.
3. Specification
Capacity 500N
Measuring stroke 300mm
Maximum measuring speed 500mm/min
Work voltage Single-phase 220V
Rate flow 1.5A
Fuse of main circuit 3A
Fuse of controlling circuit 0.5A
Working temperature 20± 10°C
Store & Delivery temperature -27°C up to +70°C
Relative Humidity 15% up to 80% RH
4. Operation
Examine before operation!
A. The retainer has to be locked, the power has to
be switched on by the power switch. The power
lamp will be flashing.
B. The test stand has to be examined if there is any
abnormal sound with the test stand moving
without load.
Manual (automatic) test
A. The manual/automatic switch to manual
operation position has to be turned on.
B. The up/ down button on the stand has to be
pressed, then the stand will begin to work.
C. The button has to be loosened, then the test
stand will stop working.
Adjustment of test speed
The test speed is adjustable in the course of testing or
before the test.
The speed controller has to be turned to the required
speed.
5. Maintenance
A. The environment has to be kept clean; liquid and metal
scraps have to be prevented from entering the engine box;
otherwise there is the risk of electric shocks or moving
components may be damaged.
B. The column and motion pedestal has to be kept clean of
lubricants.
C. Some lubricant has to be added to the drive stroke and
gear after some times of usage.
D. The test stand has to be kept away from dust and
moisture in case if it isn’t used.

Sauter GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: [e-mail]
Tel: +49-[0]7433- 9933-199
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Instruction Manual
TVO
TVO-BA-e-1312 2
6. Packing list
-Test stand, main body
- M6 inner-hexagon Spanner
- 230 V power wire
- M6 clamp
- Instruction Manual
7. Declaration of Conformity
