SBS AT10.1 SERIES Training manual

Operating and Service Instructions
AT10.1SERIES
MICROPROCESSOR-CONTROLLED
FLOAT BATTERY CHARGER
SINGLE PHASE INPUT
GROUP I
(6 -25 Adc OUTPUT)
Address: N56 W16665 Ridgewood Drive
Menomonee Falls, WI 53051
Tel: [phone]
Fax: [phone]
Online: www.sbsbattery.com

HOW TO READ THE AT10.1 MODEL NUMBER
GROUP I RATINGS (6-25 Adc)
Your AT10.1 model number is coded to describe the options that are included. Please find the model
number on the data nameplate and write it in the spaces provided below. Then follow the chart to
determine the configuration of your battery charger.
AT10
ABCDEFKLMNPQR
DESCRIPTION CODE FEATURE DESCRIPTION CODE FEATURE
ASERIES AT10 AT10.1 CHARGER SSTANDARD
012 12 Vdc MMEDIUM AIC
024 24 Vdc F
CIRCUIT
BREAKER
RATING
(SEE TABLE) HHIGH AIC
048 48 Vdc
BNOMINAL
DC OUTPUT
VOLTAGE 130 130 Vdc AUX SUPPLIED
006 6 Adc KAUX ALARM
RELAY BOARD XXX NOT SUPPLIED
012 12 Adc
016 16 Adc GSUPPLIED
020 20 Adc LGROUND PAD XNOT SUPPLIED
CNOMINAL
DC OUTPUT
CURRENT
025 25 Adc
UUNFILTERED LSUPPLIED
FFILTERED MLIGHTNING
ARRESTOR XNOT SUPPLIED
DFILTERING EELIMINATOR
120 120 Vac 60 Hz 1FAPPLIED
208 208 Vac 60 Hz 1NFUNGUS
PROOFING XNOT APPLIED
240 240 Vac 60 Hz 1SAPPLIED
480 480 Vac 60 Hz 2PSTATIC
PROOFING XNOT APPLIED
220 220 Vac 50/60 Hz 3
380 380 Vac 50/60 Hz 3QNOT USED X
EAC INPUT
VOLTAGE
416 416 Vac 50/60 Hz 3RCANADIAN CBILINGUAL LABELING
DESCRIPTION CODE FEATURE DESCRIPTION CODE FEATURE
1 -120/208/240 Vac multi-tap input -Unit is wired and shipped from factory at specified voltage.
2 -480 Vac input requires addition of medium or high ampere interrupting capacity circuit breakers.
3 -Special order -Please consult factory for availability.
INPUT AND OUTPUT CIRCUIT BREAKER INTERRUPTING RATINGS
CODE TYPE AC RATINGS
(ALL INPUT VOLTAGES) DC RATINGS (125 Vdc)
SSTANDARD 240 Vac: 10,000 AIC 10,000 AIC 4
5,000 AIC 5
MMEDIUM AIC 240 Vac: 25,000 AIC
480 Vac: 18,000 AIC 10,000 AIC
HHIGH AIC 240 Vac: 65,000 AIC
480 Vac: 25,000 AIC 25,000 AIC
4 -Rating applies to 130Vdc 16-25 Adc units.
5 -Approximate rating applies to all other units.
NOTE:
The model number listed on the charger data nameplate does not include any field-installed
options. Also, certain accessories are not included in the model number, even if they are shipped with the
charger. Check off below any accessories that were included, or that you install yourself.
floor/rack mounting brackets analog ac voltmeter (penthouse-mounted)
NEMA-2 type drip shield assembly analog ac ammeter (penthouse-mounted)
NEMA-4/12/13 type enclosure barrier type auxiliary alarm terminal block
cabinet heater assembly external temperature compensation probe
pad lock for front panel door DNP3 Level 2 / Modbus communications module
zero-center ground detect meter forced load sharing module
Please find the serial number on the
data nameplate and record it here:

IMPORTANT SAFETY INSTRUCTIONS
i
PLEASE READ AND FOLLOW
ALL SAFETY INSTRUCTIONS
1. Before using this equipment, read all instructions and cautionary
markings on: A) this equipment, B) battery, and C) any other equipment
to be used in conjunction with this equipment.
2. This manual contains important safety and operating instructions, and
therefore should be filed for easy access.
3. Remove all jewelry, watches, rings, etc. before proceeding with
installation or service.
4. Do not touch any uninsulated parts of this equipment, especially the
input and output connections, as there is the possibility of electrical
shock.
5. During normal operation, batteries may produce explosive gas. Never
smoke, use an open flame, or create arcs in the vicinity of this equipment
or the battery.
6. Maintain at least 6in / 152mm clearance from all obstructions on the top,
bottom and sides of this equipment. Allow sufficient clearance to open
the front panel for servicing.
7. Turn this equipment off before connecting or disconnecting the battery
to avoid a shock hazard and/or equipment damage.
8. Connect or disconnect the battery only when the battery charger is off to
prevent arcing or burning.
9. De-energize all ac and dc inputs to the battery charger before servicing.
10. Do not operate battery charger if it has been damaged in any way. Refer
to qualified service personnel.
11. Do not disassemble battery charger. Only qualified service personnel
should attempt repairs. Incorrect reassembly may result in explosion,
electrical shock, or fire.
12. Do not install the battery charger outdoors, or in wet or damp locations
unless specifically ordered for that environment.
PLEASE READ AND FOLLOW
ALL SAFETY INSTRUCTIONS

TABLE OF CONTENTS
ii
QUICK OPERATION ..................................................................................................Back Cover
HOW TO READ THE AT10.1 MODEL NUMBER..........................................Inside Front Cover
IMPORTANT SAFETY INSTRUCTIONS ......................................................................................i
1Receiving and Installing the AT10.1 Battery Charger
1.1 Storing the AT10.1 .................................................................................................2
1.2 Reporting shipping damage ...................................................................................2
1.3 Unpacking and inspecting the AT10.1 ...................................................................2
Inspection checklist................................................................................................2
1.4 Moving the AT10.1.................................................................................................3
Enclosure type and weight table............................................................................3
1.5 Mounting the AT10.1..............................................................................................3
1.5.1 Wall-Mounting the AT10.1 ...............................................................................4
1.5.2 Floor-Mounting the AT10.1..............................................................................6
1.5.3 Rack-Mounting the AT10.1..............................................................................8
1.6 Changing transformer taps...................................................................................10
1.7 Making the ac input connections..........................................................................12
1.8 Making the dc output connections........................................................................14
1.9 Wiring the AT10.1 for remote sensing..................................................................16
1.10 Wiring to the remote alarm contacts ....................................................................18
Auxiliary Relay Board (optional)...........................................................................19
1.11 Installing the temperature compensation assembly (optional).............................20
Using temperature compensation ........................................................................22
1.12 Installing the AT10.1 for remote communications (optional)................................23
1.13 Installing the AT10.1 for forced load sharing (optional) .......................................23
2Operating the AT10.1 Battery Charger
2.1 Starting the AT10.1
2.1.1 Understanding the start-up sequence............................................................24
2.1.2 Checking the installation................................................................................24
2.1.3 Starting the AT10.1........................................................................................24
Using the digital meter...................................................................................24
Factory settings table.....................................................................................25
2.2 Using the AT10.1 front panel features
2.2.1 If the meter displays an error message .........................................................26
2.2.2 Selecting the meter mode..............................................................................26
2.2.3 Selecting the Float or Equalize mode............................................................27
2.2.4 Choosing the Equalize method......................................................................27
Manual Timer method....................................................................................27
Manual Equalize method ...............................................................................28
Auto-Equalize Timer method.........................................................................28
2.2.5 Testing the front panel indicators & Summary Alarm Relays........................29
2.2.6 Testing the Auxiliary Relay Board..................................................................29
2.2.7 Interpreting the alarm indicators....................................................................29

TABLE OF CONTENTS
iii
2.3 Setting the AT10.1 parameters
2.3.1 Understanding parameter settings.................................................................30
2.3.2 Setting the Float and Equalize voltages.........................................................31
2.3.3 Setting the Equalize timer..............................................................................32
2.3.4 Setting the Alarms..........................................................................................32
Setting the high and low dc voltage alarms ...................................................33
Adjusting ground detection sensitivity............................................................34
Disabling the ground detection alarm ............................................................35
2.3.5 Setting the current limit value.........................................................................35
2.3.6 Enabling the high dc voltage shutdown feature.............................................36
2.3.7 Adjusting the Voltmeter accuracy ..................................................................37
2.3.8 Using the Low Level Detector (LLD)..............................................................38
2.3.9 Using the front panel security feature............................................................39
2.4 Performing routine maintenance ..........................................................................40
Sample preventive maintenance procedure ..................................................42
3Servicing the AT10.1 Battery Charger
3.1 A step-by-step troubleshooting procedure ...........................................................44
3.2 Interpreting front panel error messages ...............................................................45
3.3 Using the troubleshooting chart............................................................................48
3.4 Troubleshooting chart begins on..........................................................................49
3.5 Replacing defective components..........................................................................58
3.6 Ordering replacement parts..................................................................................64
Replacement parts tables (begin on)....................................................................64
APPENDIX A: AT10.1 Performance Specifications................................................................70
APPENDIX B: Field Installable Accessories...........................................................................71
APPENDIX C: Standard Drawings *
Standard NEMA-1 Enclosure Outline (Style-586)........................................................................72
Standard NEMA-1 Enclosure Outline (Style-594)........................................................................73
Optional Enclosure Dimensions (with penthouse and/or drip shield)...........................................74
Internal Component Layout Detail (Style-586/495) -with Common Options................................76
Instrument Panel Detail -with Optional Auxiliary Relay PC Board...............................................78
Schematic -AT10.1 Group I Battery Charger -Standard w/o Options.........................................80
Schematic -AT10.1 Group I Battery Charger -with Common Options........................................82
Connection Diagram -AT10.1 Group I Battery Charger -Standard w/o Options.........................84
Connection Diagram -AT10.1 Group I Battery Charger -with Common Options........................86
APPENDIX D: Recommended Float / Equalize Voltages.......................................................88
APPENDIX E: DNP3 Level 2 / Modbus Communications Module.........................................89
APPENDIX F: UL Data...............................................................................................................89
MANUAL SPECIFICATIONS (document control information / online availability) .....................90
* Note: A customized record drawing package is available for your AT10.1, featuring an itemized
internal component layout, electrical schematic with component ratings, and a full connection diagram.
If the standard drawings and wire list featured in this manual are not sufficient, please contact your Sales
Representative for drawing availability from the battery charger manufacturer.

RECEIVING THE AT10.1
2
1. RECEIVING THE AT10.1
1.1. STORING THE AT10.1
If you store the AT10.1 for more than a few days before installation, you
should store it in its original shipping container, and in a temperature
controlled, dry climate. Ambient temperatures of 32 to 122° F / 0 to 50° C
are acceptable. Storage should not exceed 2 years due to the limited shelf
life of the dc filter capacitors when they are not in service.
1.2. REPORTING SHIPPING DAMAGE
If, on delivery of the AT10.1 or related goods, you discover any damage
or shortage, make notation on all copies of delivering carrier's delivery
receipt before signing, and notify the delivery person of your findings. If
loss or damage is discovered after delivery, notify delivering carrier
immediately and request an inspection. The manufacturer does not assume
any liability for damage during transportation or handling.
Should the goods require an inspection by or return to the manufacturer,
please contact your sales representative for further instructions. Any
returned material must be properly packed in compliance with shipping
regulations. It is preferable to use the original shipping materials if
possible. Mark the outside of the shipping container with the Return
Material Authorization (RMA) number issued by the manufacturer.
1.3. UNPACKING AND INSPECTING THE AT10.1
Carefully remove all shipping materials from the AT10.1. Remove the
AT10.1 from the shipping pallet for inspection. Save all shipping
materials until you are sure that there is no shipping damage.
Once the AT10.1 is unpacked, inspect the unit for possible shipping
damage, using the checklist below. If shipping damage has occurred,
please refer to Section 1.2 on this page for proper reporting.
INSPECTION CHECKLIST
oEnclosure exterior and interior are not marred or dented.
oThere is no visible damage to exterior or interior components.
oAll internal components are secure.
oPrinted circuit boards are firmly seated on their standoffs.
oAll hardware is tight.
oAll wire terminations are secure.
oThe User's Manual is included.
oYou received all items on the packing list.

INSTALLING THE AT10.1
3
1.4. MOVING THE AT10.1
Once you have established that the AT10.1 is undamaged, identify the
enclosure style and weight of your unit. Refer to the table below.
AT10.1 Enclosure Type And Shipping Weight Table
Group I Cabinets (Style-586 / Style-594)
Ampere Rating
Output
Voltage 6 Adc 12 Adc 16 Adc 20 Adc 25 Adc
12 Vdc
Style-586
44 lbs
20 kg
Style-586
44 lbs
20 kg
Style-586
67 lbs
30 kg
Style-586
67 lbs
30 kg
Style-586
67 lbs
30 kg
24 Vdc
Style-586
44 lbs
20 kg
Style-586
58 lbs
26 kg
Style-586
75 lbs
34 kg
Style-586
75 lbs
34 kg
Style-586
75 lbs
34 kg
48 Vdc
Style-586
58 lbs
26 kg
Style-586
75 lbs
34 kg
Style-594
110 lbs
50 kg
Style-594
110 lbs
50 kg
Style-594
110 lbs
50 kg
130 Vdc
Style-586
80 lbs
36 kg
Style-594
147 lbs
67 kg
Style-594
193 lbs
88 kg
Style-594
193 lbs
88 kg
Style-594
193 lbs
88 kg
NOTE: Actual unit is approximately 20 lbs / 9kg below listed shipping weight in table.
The Style-586 & 594 enclosures do not feature lifting eyes for moving.
Instead, whenever possible move the unit with a forklift truck using the
supplied shipping pallet. To hoist the unit into a wall-mount or rack-
mount location, use a heavy-duty sling applicable to the enclosure size
and unit weight. To relocate the Style-586 & 594 enclosures, use the
aforementioned sling on a hoist or forklift truck.
1.5. MOUNTING THE AT10.1
Chose the mounting method for the unit enclosure from the table below.
ENCLOSURE
MANUAL
SECTION
MOUNTING METHOD Style-586 Style-594
1.5.1 Wall-Mounting STANDARD STANDARD
1.5.2 Floor-Mounting OPTIONAL OPTIONAL
19in / 483mm Rack-Mounting OPTIONAL N/A
1.5.3 23-24in / 584-610mm
Rack-Mounting OPTIONAL OPTIONAL

INSTALLING THE AT10.1
4
1.5.1. Wall-Mounting the AT10.1
Wall-mounting the AT10.1 battery charger is the standard way to install
the Group I enclosures (Style-586/594). In planning for wall mounting of
the AT10.1 consider the following:
1. The wall must be strong enough to properly support the weight of the
AT10.1. See the Weight Table located in Section 1.4 on page 3. The weight
of your AT10.1 may be different from the table value, depending on options
or accessories you ordered.
2. Select conduit entrances carefully. Use of the pref-fab knockouts on the
sides or bottom of the enclosure will allow removal of the cabinet shroud
(and internal access for servicing) without removal of unit from the wall.
3. The location:
• Should be free of drips and splatter. If dripping liquids are a problem,
install a drip shield kit (EI0191-00). For kit availability, see ordering
information in Appendix B on page 71.
• Should be between 32 and 122 °F / 0 and 50 °C, with relative humidity
between 5 and 95% non-condensing.
• Must be free of explosive materials.
4. Maintain at least 6in / 152mm of free air on top, bottom and both sides for
cooling air.
5. Allow 36in / 914mm front clearance for operation and maintenance.
Style-586 Enclosure Style-594 Enclosure

INSTALLING THE AT10.1
5
PROCEDURE
To wall-mount the AT10.1, install four (4) .25in / 6.4mm bolts on the wall
rated to support the charger weight plus a safety factor of at least two (2)
times. Place the AT10.1 on the bolts, add appropriate mounting hardware
and tighten. Refer to the graphics below for mounting dimensions and
specifications.
WALL-MOUNTING THE AT10.1 -GRAPHICS
NOTE:
1. For further AT10.1 standard cabinet information, see the outline
drawings for the Style-586 (JE5023-03) and Style-594 (JE5024-03)
enclosure in Appendix C on pages 72 and 73.

INSTALLING THE AT10.1
6
1.5.2. Floor-Mounting the AT10.1
To floor mount the AT10.1, you must use the floor mounting accessory kit
(EI0192-00). For kit availability, see ordering information in Appendix B
on page 71. The kit contains brackets that elevate the top of the AT10.1
approximately 47in / 1194mm above floor level, with provision for floor
anchoring. The kit includes an instruction sheet (JA0083-00) showing
assembly dimensions and mounting details.
You must locate the anchor-bolt holes at least 4.25in / 108mm from any
wall, to allow clearance for the charger enclosure behind the mounting
brackets. In addition, you must consider the following:
1. Placement of conduit entrances (use the knockouts on the sides or bottom of
the charger to allow access for servicing without removing the unit from the
mounting brackets).
2. The location:
• Should be free of drips and splatter. If dripping liquids are a problem,
install a drip shield kit (EI0191-00). For kit availability, see ordering
information in Appendix B on page 71.
• Should be between 32 and 122 °F / 0 and 50 °C, with relative humidity
between 5 and 95% non-condensing.
• Must be free of explosive materials.
3. Maintain at least 6in / 152mm of free air on top, bottom and both sides for
cooling air.
4. Allow 36in / 914mm front clearance for operation and maintenance.
PROCEDURE
To floor-mount the AT10.1,
follow the directions featured in
instruction sheet (JA0083-00),
included with your floor-
mounting kit (EI0192-00).
These instructions showing
assembly dimensions and
mounting details.
Place the AT10.1 assembly on
the mounting bolts, add
appropriate mounting hardware
and tighten.
Reference the graphics on the
next page.

INSTALLING THE AT10.1
7
FLOOR-MOUNTING THE AT10.1 -GRAPHICS
DIMENSION (in / mm)
ENCLOSURE ABCD
Style-586 16.50 / 419 46.63 / 1184 11.75 / 298 15.00 / 381
Style-594 19.75 / 502 47.75 / 1213 14.25 / 361 18.25 / 463

INSTALLING THE AT10.1
8
1.5.3. Rack-Mounting the AT10.1
The AT10.1 can be installed in most relay racks with standard EIA hole
spacing (see the table below for the allowable combinations). The rack
mounting kit (EI0193-00), includes mounting brackets and the necessary
hardware to install one AT10.1 battery charger. The kit includes an
instruction sheet (JA0091-00) showing installation details. For kit
availability see ordering information in Appendix B on page 71.
When rack mounting the AT10.1, you must consider the following:
1. The rack must be strong enough to properly support the weight of the
AT10.1. See the Weight Table located in Section 1.4 on page 3.
2. Placement of conduit entrances (be sure the knockouts on the sides or
bottom of the charger are accessible after the charger is rack-mounted).
3. The location:
• Should be free of drips and splatter. If dripping liquids are a problem,
install a drip shield kit (EI0191-00). For kit availability, see ordering
information in Appendix B on page 71.
• Should be between 32 and 122 °F / 0 and 50 °C, with relative humidity
between 5 and 95% non-condensing.
• Must be free of explosive materials.
4. Maintain at least 6in / 152mm of free air on top, bottom and both sides for
cooling air.
5. Allow 36in / 914mm front clearance for operation and maintenance.
PROCEDURE
To rack mount the AT10.1, first install the brackets onto the rack. Second,
mount the AT10.1 onto the rack-mounting brackets using the hardware
supplied. Provide at least 6in / 152mm of air space above and below the
AT10.1 in the rack for cooling. You do not need to modify the AT10.1
enclosure. Rack-mount outline dimensions are shown on the next page.
RACK WIDTHCHARGER RATING
Vdc Adc
19in / 483mm 23in / 584mm 24in / 610mm
12 Vdc all Yes Yes Yes
24 Vdc all Yes Yes Yes
48 Vdc 6-12 Adc Yes Yes Yes
48 Vdc 16-25 Adc No Yes Yes
130 Vdc 6 Adc Yes Yes Yes
130 Vdc 12-25 Adc No Yes Yes

INSTALLING THE AT10.1
9
RACK-MOUNTING THE AT10.1 -GRAPHICS
Style-586 Enclosure
Style-594 Enclosure
NOTES:
1. Units are installed from the front.
2. Units shown above without penthouse enclosure. If penthouse is used, add
7in / 178mm to top of enclosure.
3. Refer to the outline drawings in Appedix C for enclosure dimensions.

INSTALLING THE AT10.1
10
1.6. CHANGING TRANSFORMER TAPS
Before you wire ac power to the AT10.1, check the wiring of the main
transformer (T1), to be sure it is connected for your ac input voltage. The
AT10.1 accepts standard input voltages of 120, 208 or 240 Vac by
changing jumpers on T1. No other changes are required. The AT10.1 is
wired at the factory for 240 Vac, except on special order. Models for 220,
380 or 416 Vac at 50/60 Hz are available on special order.
EXCEPTION: An AT10.1 battery charger rated for 480 Vac input uses a
special transformer that has no taps or jumpers. The 480 Vac
transformer cannot be used for any other input voltage.
Before changing the T1 taps, be sure that ac and dc supplies to the AT10.1
are turned off and locked out. Verify that no voltage is present by using a
voltmeter at terminals TB1-L1 and TB1-L2 (ac), TB1(+) and TB1(-) (dc)
and remote sense terminals (dc). Note that turning off the ac and dc circuit
breakers on the AT10.1 does not eliminate live voltages inside the
enclosure. Also de-energize any external wiring to the alarm relay
contacts.
Verify that all voltages within the enclosure are de-energized and locked
out. See Section 3.5 for necessary steps to follow when accessing internal
components within the AT10.1. Change the jumpers on T1 as shown in
the table on the next page. All transformers have (2) jumpers; always use
both as specified in the table. The transformers used in the small enclosure
(586) use piggyback quick-connect terminals. The transformers in the
larger enclosure (594) use 10-32 stud terminals.
Models designed for 220 Vac, 50/60 Hz have no jumpers, and can be used
only for that voltage. Models designed for 380 or 416 Vac also have no
jumpers, and can be operated on either voltage.
NOTE: This procedure refers only to Group I AT10.1 battery chargers
(rated 6-25 Adc). A different procedure exists for Group II AT10.1
battery chargers (rated 30-100 Adc). Please refer to the Operating and
Service Instructions specific to the Group II AT10.1 battery charger for
changing the transformer taps on these larger units. Otherwise, damage
to your charger and equipment may occur.

INSTALLING THE AT10.1
11

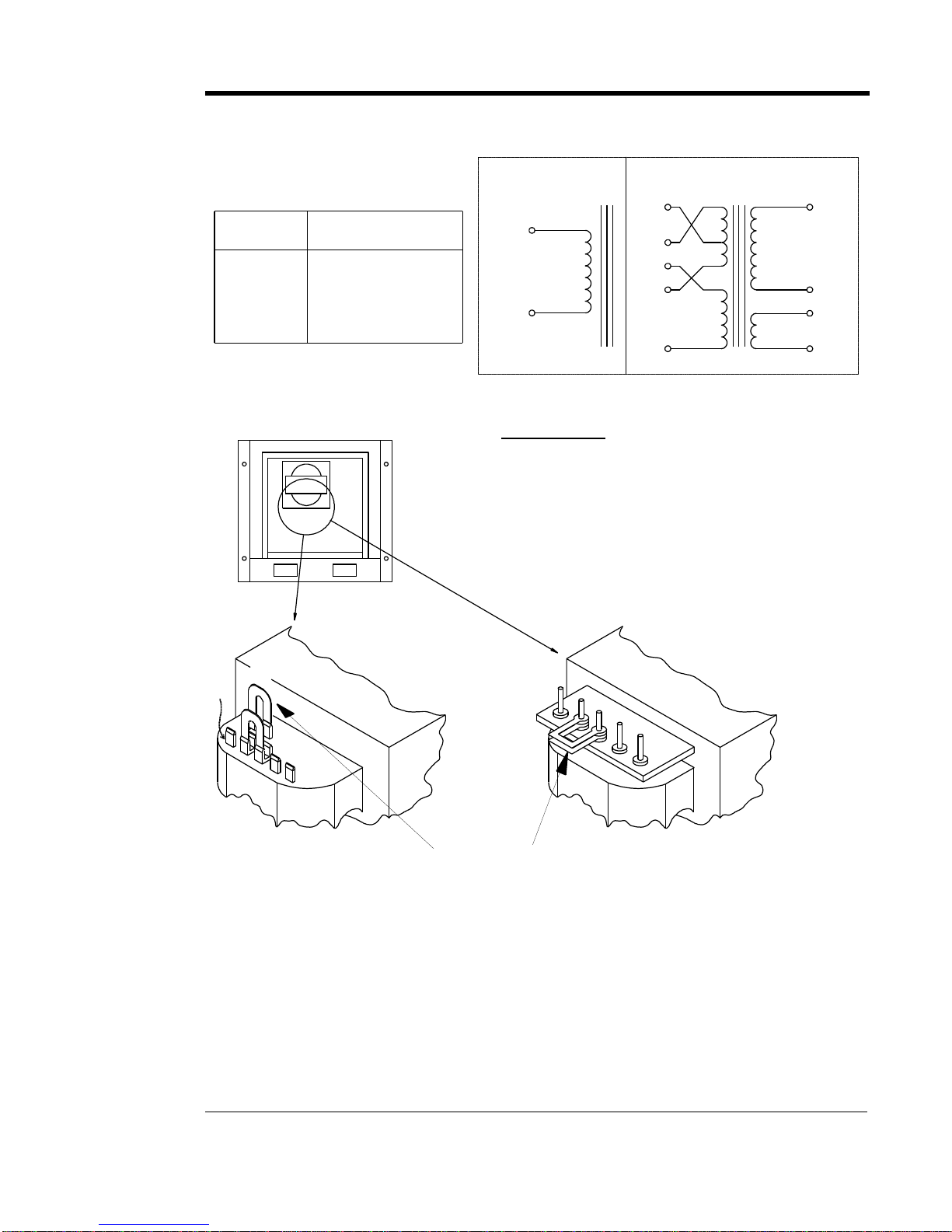

CHANGING TRANSFORMER TAPS -GRAPHICS
TYPICAL FOR TRANSFORMER
IN 594 ENCLOSURE
TYPICAL FOR TRANSFORMER
IN 586 ENCLOSURE
H1
H3 H2 H5 H4
H1 H3 H2 H5 H4
JUMPERS (2)
PROCEDURE:
.
1) BE SURE ALL VOLTAGES ARE DE-ENERGIZED AND LOCKED OUT.
2) BE SURE TERMINALS ARE FULLY SEATED (586 ENCL).
3) BE SURE STUD TERMINALS ARE TIGHT (594 ENCL).
4) CHECK YOUR WORK AFTER COMPLETION.
5) FOR ADDITIONAL INFORMATION, SEE WIRING DIAGRAM
IN APPENDIX.
F1-5R2
T1 CONNECTION TABLE
INPUT VAC JUMPERS
120 H1-H3, H2-H5
208 H2-H4 (2) JUMPERS
240 H2-H3 (2) JUMPERS
480 NONE
TRANSFORMER SCHEMATIC
SECONDARY
H4
H5
H2
H3
H1
X1
X4
Y2
Y1
H5
H1
480 V
PRIMARY PRIMARY
120/208/240 V

INSTALLING THE AT10.1
12
1.7. MAKING THE AC INPUT CONNECTIONS
Follow these steps to connect ac power to the AT10.1:
1. Be sure the AT10.1 main transformer (T1) is properly connected for your ac
input voltage. See Section 1.6 for details.
2. Use a branch circuit breaker or fused disconnect switch, properly sized for
the maximum input current of the AT10.1, as shown in the table below. This
device should have lockout capability so that the ac input can be de-
energized and locked out for maintenance. A time delay circuit breaker or
slow-blow fuse is recommended.
3. Size the ac input wiring per the National Electric Code (NEC) and local
codes for the rating of the branch circuit breaker or fused disconnect switch.
4. Do not run external ac and dc power wiring, feeding the battery charger,
through the same conduit.
5. All specific requirements of your facility take precedence over these
instructions.
PROCEDURE
1. Remove the safety cover.
2. Run the ac wiring to terminals TB1-L1, TB1-L2 and TB1-GND on the I/O
panel in the enclosure. Compression lugs accepting wire sizes #14-6 AWG
wire are supplied for your convenience. To make these connections, strip the
insulation .50in / 13mm on the incoming wires and connect the wires to the
appropriate lugs as shown on the next page.
3. Using a flat-head screwdriver, securely tighten the compression screws on
the lugs to 35-45 in-lb / 4.0-5.1 Nm.
4. Reinstall the safety cover after you have made and checked all connections.
Example (shaded):
A 130 Vdc/12 Adc
battery charger
draws 30 Aac at
120 Vac.
All currents shown
are ±10%.
MAXIMUM INPUT CURRENT AT 120 Vac1
OUTPUT VOLTAGE
OUTPUT
CURRENT 12 24 48 130
624814
12 3714 30
16 4918 32
20 511 23 39
25 614 29 49
1To determine the input current, Iac, for other input voltages, use the formula:
ac
Tac V
II 120 ×=
where Vac is the new input voltage, and ITis the input current from the table above.

INSTALLING THE AT10.1
13
MAKING THE AC INPUT CONNECTIONS -GRAPHICS
NOTES:
1. The drawing above does not show other components mounted to the I/O
panel. Be careful not to disconect any other component leads.
2. Always use a proper ground.
3. Use copper or aluminum conductors only.
4. On 120 Vac input, connect the neutral leg to the terminal L2.

INSTALLING THE AT10.1
14
1.8. MAKING THE DC OUTPUT CONNECTIONS
Follow these steps to connect the battery to the AT10.1:
1. Size the dc wiring to minimize voltage drop. The acceptable wire size
depends on your installation. As a guideline, the voltage drop should not
exceed 1% of nominal output voltage at full current. Refer to the table below
to determine the voltage drops for various wire sizes, currents and distances.
WIRE SIZING CHART
VOLTAGE DROP PER 100ft / 30.5m OF WIRE (FOR COPPER AT 68° F / 20° C)
DC CURRENT (AMPERES)
WIRE SIZE
(AWG) 612 16 20 25
#16 2.5V 5.0V 6.7V 8.2V 10.5V
#14 1.6V 3.2V 4.2V 5.3V 6.6V
#12 1.0V 2.0V 2.6V 3.3V 4.2V
#10 0.63V 1.3V 1.7V 2.1V 2.6V
#8 0.40V 0.80V 1.1V 1.3V 1.7V
#6 0.25V 0.50V 0.66V 0.83V 1.1V
#4 0.16V 0.32V 0.42V 0.52V 0.65V
EXAMPLE: 100ft / 30.5m of #8 AWG wire at 16A has a 1.1V drop.
2. The AT10.1 is factory wired to regulate output voltage at the output
terminals. If the total voltage drop is greater than 1% (e.g., 1.3V for a 130
Vdc system), remote sense wiring is recommended, see Section 1.9.
3. Do not run external ac and dc power wiring, feeding the battery charger,
through the same conduit.
4. All specific requirements of your facility take precedence over these
instructions.
PROCEDURE
1. Use a dc disconnect switch or circuit breaker between the AT10.1 and dc
bus. This device should have lockout capability to allow the AT10.1 to be
disconnected from the dc bus for maintenance.
2. Remove the safety cover.
3. Run the dc wiring to terminals TB1(+) and TB1(-) on the I/O panel in the
enclosure. Compression lugs, accepting wire sizes #14-6 AWG, are supplied
for your convenience. To make these connections, strip the insulation .50in /
12.7mm on the incoming wires. Connect the wires to the appropriate lugs as
shown on the next page.
4. Using a flat-head screwdriver, securely tighten the compression screws on
the lugs to 35-45 in-lb / 4.0-5.1 Nm.
5. Reinstall the safety cover after you have made and checked all connections.

INSTALLING THE AT10.1
15

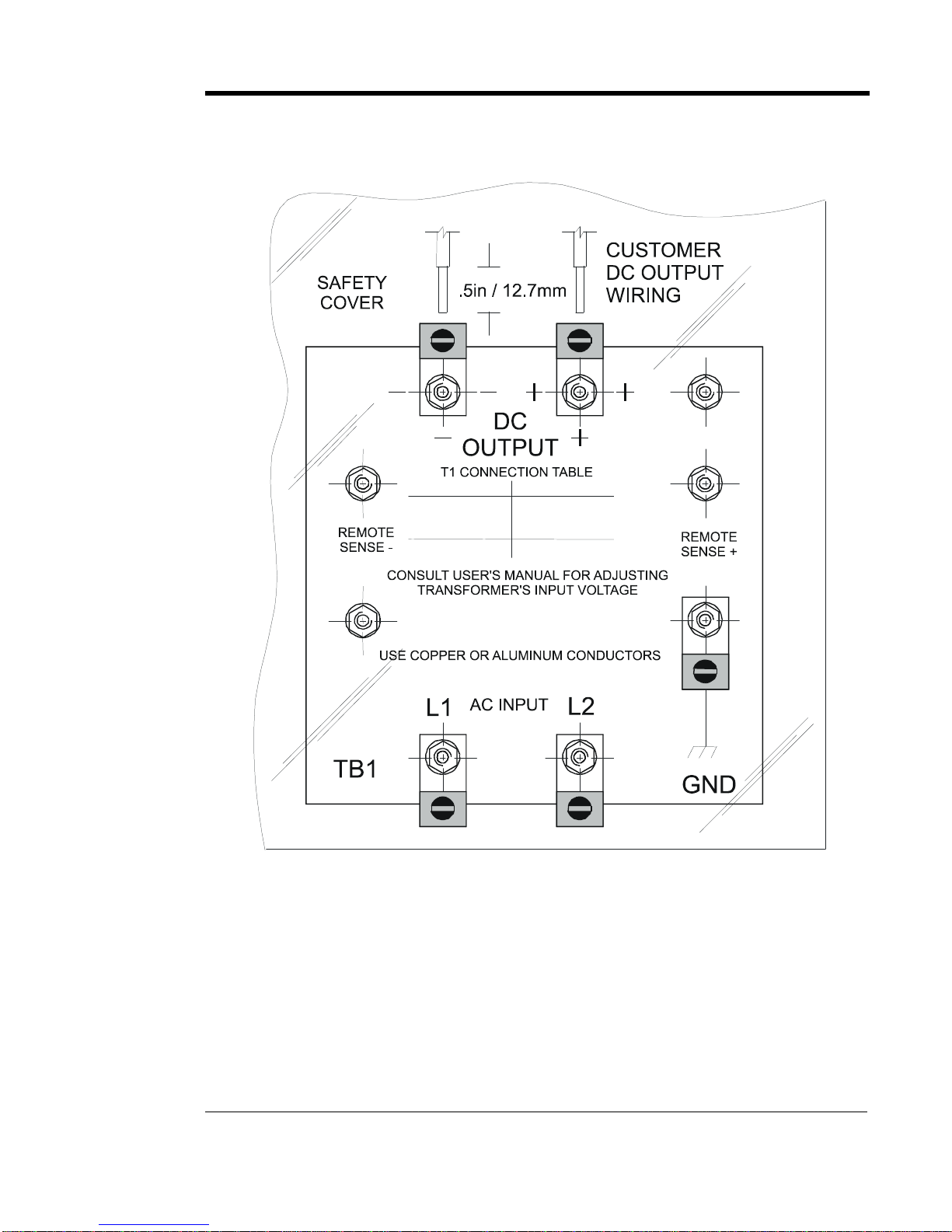

MAKING THE DC OUTPUT CONNECTIONS -GRAPHICS
NOTES:
1. The drawing above does not show other components mounted to the I/O
panel. Be careful not to disconect any other component leads.
2. Always use a proper ground.
3. Use copper or aluminum conductors only.

INSTALLING THE AT10.1
16
1.9. WIRING THE AT10.1 FOR REMOTE SENSING
You can wire the AT10.1 to regulate the output voltage at the battery
terminals, instead of at the charger output terminals. Remote sensing does
the following:
1. Compensates for voltage drop in the dc wiring between the AT10.1 and the
battery.
2. Directly monitors the battery or dc bus voltage. The front panel meter
displays the actual voltage on the battery or dc bus.
You wire the AT10.1 for remote sensing by installing twisted pair cabling
from the AT10.1 remote sense terminals to the battery terminals. The
AT10.1 control circuitry then measures the dc voltage at the battery
terminals, and controls the output of the charger to maintain the battery
voltage at the desired float or equalize voltage.
NOTE: If the remote sense wiring fails, the AT10.1 detects the fault,
and displays E 06 on the front panel meter. See Section 3.2 for details.
CAUTION: The AT10.1 cannot protect against short circuits in the
remote sense wiring. You should install a 1.0A fuse at the battery or dc
bus end of the remote sense cable.
SCHEMATIC
PROCEDURE
1. De-energize and lock out all ac and dc voltages within the AT10.1 enclosure.
Check with a voltmeter.
2. Remove safety shield.
3. Remove the two (2) dc output CU-AL compression lugs.
4. Move lugged end of R14 (with wire # 20) from TB1(-) to REM SENSE(-).
5. Move wire # 21 from TB1(+) to REM SENSE (+).
