Introduction
Thank you for having chosen Storage Battery Systems, Inc. The PSC-series battery charger is designed to provide
quality DC power for many years.
This user's manual contains important technical instructions to be followed by qualified personnel
responsible for the installation, start-up and maintenance of this unit. We recommend that this manual be
read attentively to insure safe and reliable operation of this equipment.
Should you require any assistance, please call our service department at:
Storage Battery Systems, Inc.
N56 W16665 Ridgewood Dr.
Menomonee Falls, WI 53051
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Web site : www.sbsbattery.com
IMPORTANT SAFETY INSTRUCTIONS
Keep these instructions in a safe place: this manual contains important safety and operating instructions
•AC and DC currents are present in this system even with indicators and breakers are on “OFF”
position.
•Before performing any maintenance on this system make sure that the battery and the AC power are
disconnected.
•Experienced and qualified personnel only must perform maintenance.
•Electrostatic sensitive components are used in this equipment. Proper ESD (electrostatic discharge)
procedures must be followed to prevent any severe damage to electronic components.
•Working in the vicinity of a lead acid battery is dangerous: batteries generate explosive gasesduring
normal operation. Therefore never smoke or allow an open spark or flame in the vicinity of the battery
or engine.
•To reduce risk of battery explosion, follow these instructions and those on the battery.
•Never charge a frozen battery.

Storage Battery Systems, Inc. MANUAL PSC 5
Installation
Placement:
FOR INSTALLATION, PLEASE REFER TO NATIONAL AND LOCAL ELECTRICAL CODES.
The system is a very heavy equipment. To prevent personal injury or equipment damage, use lifts and
extreme care when handling.
Ventilation and cooling:
The rectifier/charger is rated to better perform within 18°F (–10°C) and 122°F (+50°C) temperature range.
To calculate the required air displacement (exchange) volume, please use the following equation:
V = BTU x e (0.125 x H x Tk/To)/ (Tr -Tk)
V = air flow: [cubic meter/hour]
BTU: Total dissipated heat
Tr: Maximum allowed room temperature [°K] {i.e. 50°C = 323°K]
Tk= Temperature of input cooling air
To= 273 °K
H = Altitude [km]
Avoid placing the system in direct sunlight
N.B. to insure adequate ventilation and safe access make sure that the following clearances are respected:
•3 in. (10 cm) on the sides and top
•3 feet (1 meter) in front of the unit.
Should seismic conditions require a more secure installation the unit may be bolted to the floor. Four (4) holes
are provided for this purpose.
Electrical Connection and wiring
Before Connecting the PSC battery charger make sure that:
•The battery is disconnected (if applicable)
•The circuit breakers are OFF
•The relays, fuses and circuit boards are installed
•The unit is wired in accordance with the instructions (refer to the wiring connections and electrical diagram)

Storage Battery Systems, Inc. MANUAL PSC 6
Wire size is very important, The nameplate provides the essential information regarding the input and output
voltages and currents.
Refer to your Local or National Electrical Code for WIRE GAUGE and GROUNDING instructions.
Wire ampere capacity must be sized to the maximal correspondent current.
Correct voltage and polarity are of critical importance. Check all connections for tightness and polarity.
Connect battery (if applicable) to the output terminals observing its polarity.
Power up
After all wires installation is completed and has been double checked, the unit may be powered up as follow:
•Before to connect the load to the charger, compare the critical characteristics of the load with the critical
characteristics of the charger (i.e. measure ondulation, line-neutral tension, positive-neutral tension).
•Keep a log of manipulations (i.e. VFLOAT and VEQUALIZE values entered, alarm messages, alarm and SCR
blinking leds).
•All input and output breakers must be on ”OFF” position
•Apply power to the equipment from the source panel
•Turn on AC breaker (”ON” position)
•Turn on DC breaker (if supplied) (”ON” position)
•Green LED must turn ON
•Wait 5 seconds till the indication Screen (LCD) indicates the system output voltage and status
•The system soft starts by rising the output current and the voltage
If readings or calibration of the unit is necessary, refer to the field programming section for more information.
System power Off procedure
•Open the AC breaker (OFF position)
•Open the DC breaker (if supplied) (OFF position)
•Open the source panel’s AC breaker (OFF position)
•If work inside the unit has to be performed, wait 5 minutes to discharge the filter capacitors or use bleeding
resistors of the correct rating to discharge the capacitors.
Now the system can be considered de-energized.

Storage Battery Systems, Inc. MANUAL PSC 7

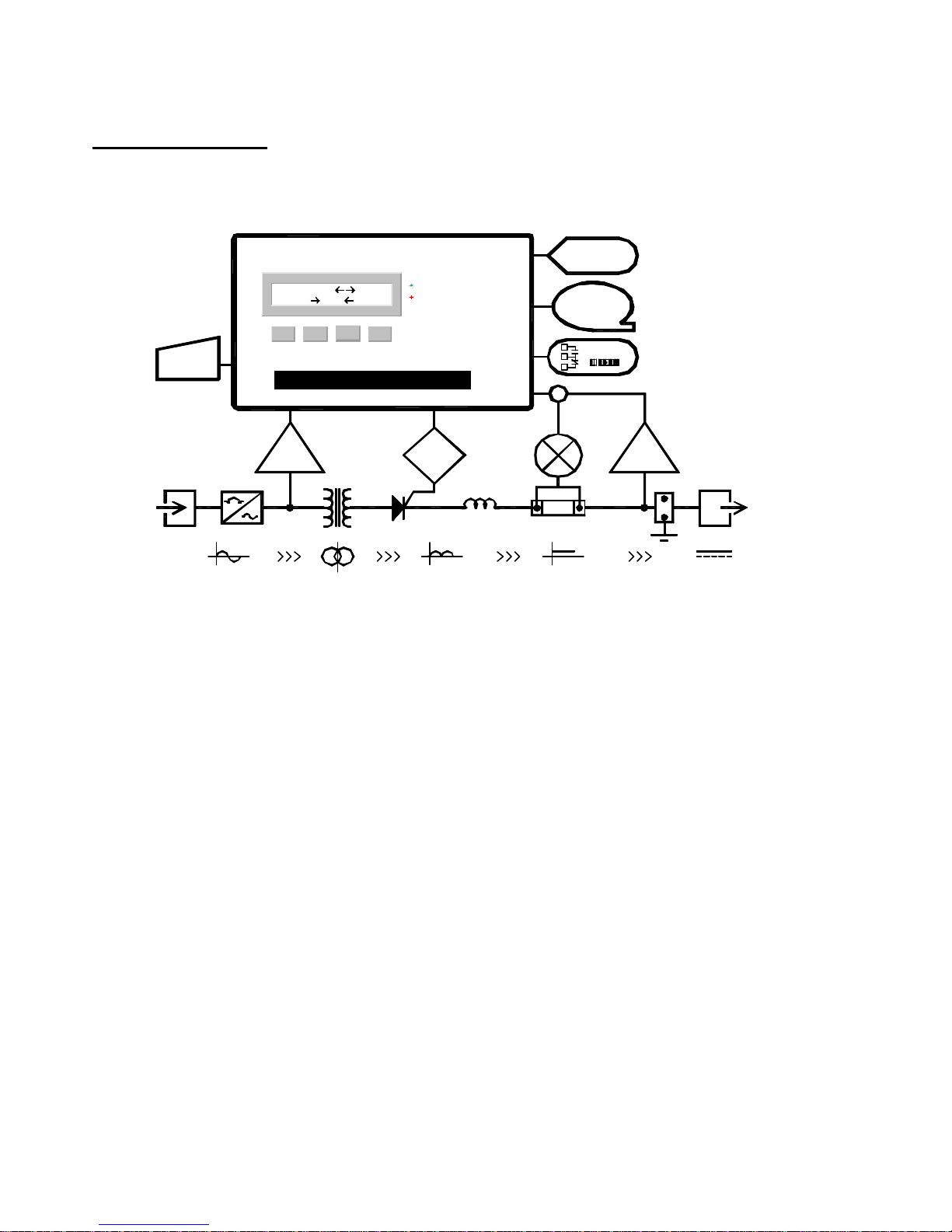

Theory of operation
T1 : the AC supply is transformed and isolated.
SCR: the transformer secondary voltage is rectified by a full-wave, half-controlled bridge.
L1, C1 (optional) : the rectified DC voltage is smoothed by lC filter section.
Shunt : current and voltage reading sent to the control board
F1 : a fuse protects the SCR's and diodes.
Control Board: the PC20/21 series control board provides automatic charge control, precise voltage regulation,
alarm status annunciation and display.
A V
V REG
MONITORING
t
V
IN
AC
t
V
A LIMIT
t
V
+
OUT
MONITORING
DC
MANUAL
INPUT
I / P
DISPLAY
ALARMS
O / P
SEQUENTIAL
ACCESS MSG
MODE FLt Eq
Ok Exit
F1 F2 F3 F4
CONTROL BOARD PC 20/21///////
T1
SCR
L1 F1
Shunt

Storage Battery Systems, Inc. MANUAL PSC 8
Display Screen and Keypad
Display Screen
The PSC-series provides a very flexible and user friendly interface. The display supplied with the standard unit’s
features a high visibility, back light LCD display.
Keypad:
The PSC used four (4) long life membrane switches.
Fixed charger mode:
Display unit
Adjustable values are displayed on the higher row of the LCD, i.e. number of relays, alarm On/Off, voltage level.
Keys function are displayed on the lower row, depending of the menu context.
When an alarm is active on the charger exact failure message appears and the red led blinks to warn the user.
In case of multiple alarms the PSC display unit shows sequentially all the warning messages.
There is also an AC sector detection led (green led).
The user is able to save his parameters individually.
LCD power save feature shut down the display unit after 5 minutes of keyboard inactivity. When the PSC enter in
power save mode it saves the latest values entered. Upon wake-up PSC return to main menu.
The display accuracy is ±2%, ±1 digit
MODE FLt Eq
Ok Exit
F1 F2 F3 F4
TO CHOOSE
EACH KEY CORRESPONDS TO A FUNCTION
ABOVE
FLOAT MODE
OR ANOTHER
MESSAGES
DESCRIBED IN
THIS MANUAL EQUALIZE
MODE OR
OTHER
MESSAGES
DESCRIBED
AC ON
ALARMS
ACTIVES

Storage Battery Systems, Inc. MANUAL PSC 9
Accessing menu via keypad; overview:
On power-up the following readings appears on the screen (example):
From that point, if you press any key of F1 to F4, only once, you reach the menu screen:
F1 (Ok), gives you access to Float / Equalize menu. Press F4(Exit) to step back to the menu.
From the menu, you may reach the different functions by pressing F2(à):
Ok
à
ß
Exit
MODE Flt ßàEq
F3
F2
F4
F1
Ok
à
ß
Exit
MODE Flt ßàEq
F3
F2
F4
F1
Equalize
131.4V 0.0A
F3
F2
F4
F1

Storage Battery Systems, Inc. MANUAL PSC 10
…after one touch of the F2 (à) key, you get the first function “Adjust”:
Continuing pressing F2 (à) will make the screen successively scroll through the following functions:
àReset Alarm ? (present only in case of alarm)
àAdjust?
àReading?
àRelay test?
àContrast LCD
And pressing F3 (ß), 4 times, will make the screen scroll in the opposite direction, back to the following initial
menu screen:
Each function has itself many sub-functions represented by the following tree structure.
Ok
à
ß
Exit
Adjust?
F3
F2
F4
F1
Ok
à
ß
Exit
MODE Flt ßàEq
F3
F2
F4
F1
