SBS SBS-2510 User manual

SBS-2510
Digital Density Meter
UserManual
1-800-554-2243
www.sbsbattery.com
[e-mail]

SBS-2510 Digital Density Meter
1
Table of Contents
1
Introduction
2
2
Safety Information
2
2.1 Definitionsof signal wordsand warning symbols.........................................
3
2.2 Product specific safety notes........................................................................
3
3
Designand Function
5
3.1 Instrumentoverview.....................................................................................
5
3.2 User interface ...............................................................................................
6
3.2.1 Home screen.....................................................................................
6
3.2.2 Iconson the screen...........................................................................
6
4
Installationandcommissioning
7
4.1 Scope of delivery ...............................................................................................
7
4.2 Unpackthe SBS-2510...................................................................................
7
4.3 Charge the SBS-2510..................................................................................
8

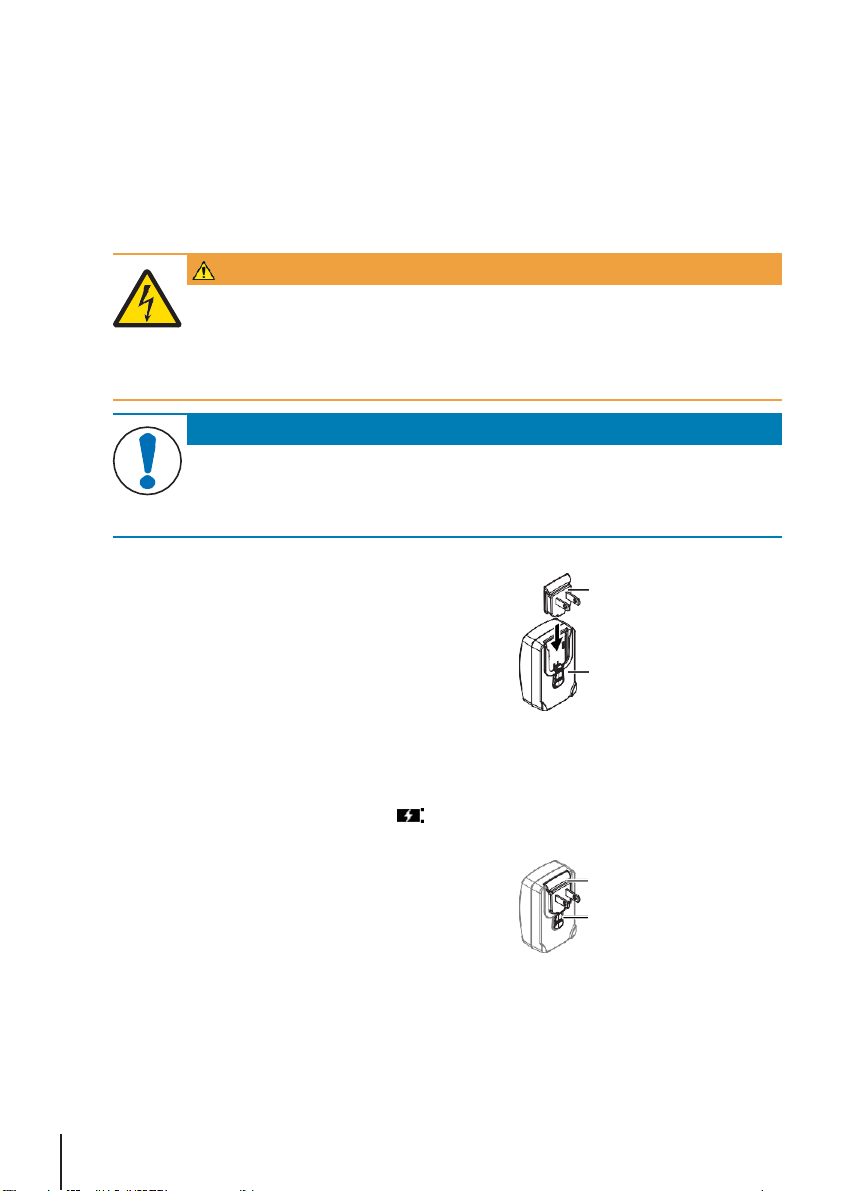

4.3.1 Charge with the ACadapter ................................................................
8
4.3.2 Charge with a computer......................................................................
8
4.4 Setup forworking with the sample pump ...........................................................
9
4.4.1 Activate the sample pump mode.........................................................
9
4.4.2 Install the filling tube...........................................................................
9
5
Operation
10
5.1 Start up the SBS-2510.................................................................................
10
5.2 Shut down the SBS-2510 .............................................................................
10
5.3 Navigate and enterinformation..........................................................................
10

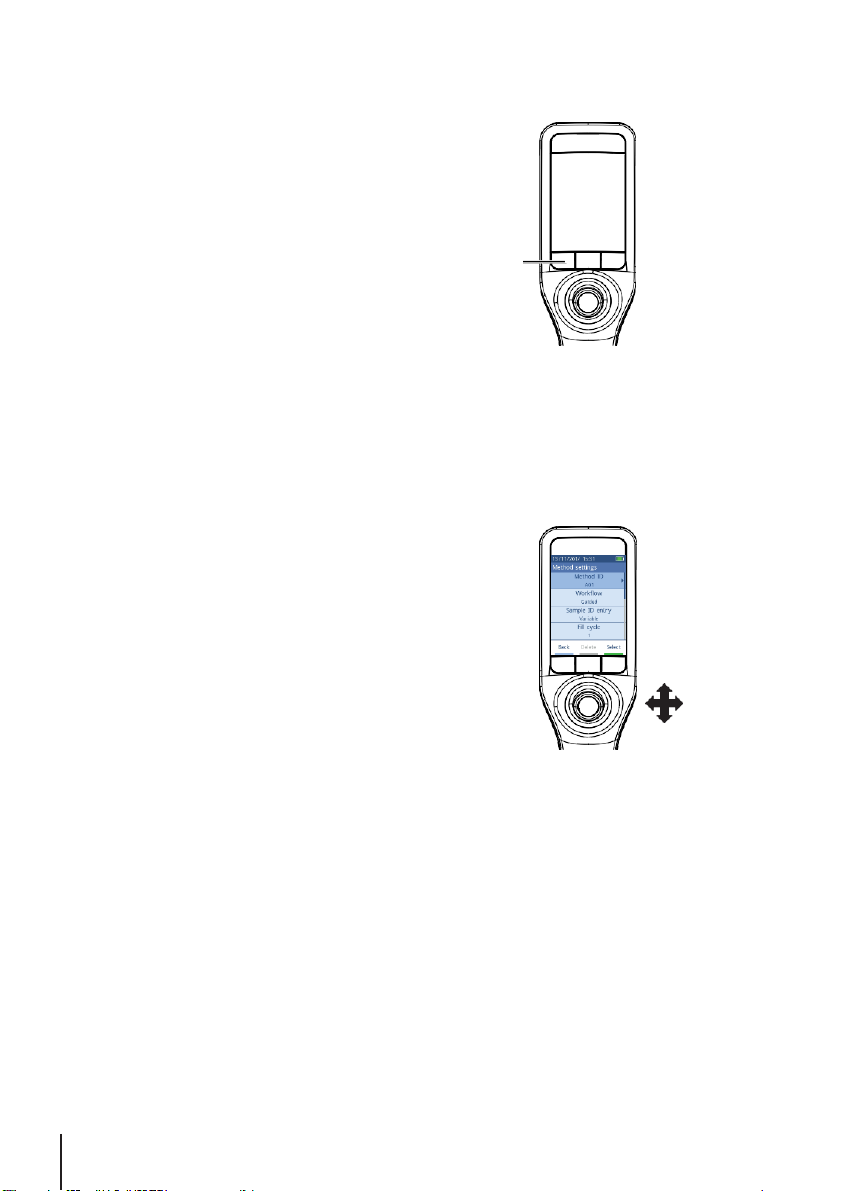

5.3.1 Navigate through menusand confirm settings.....................................
10

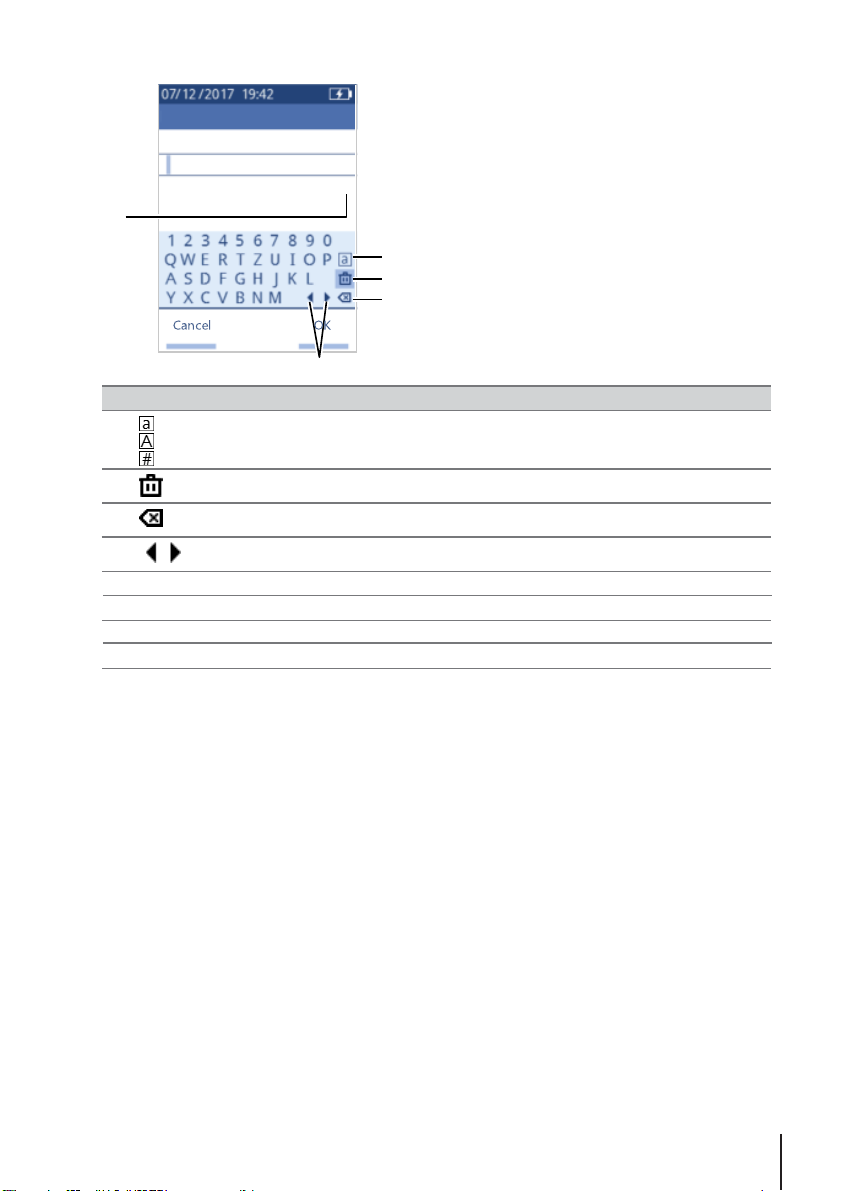

5.3.2 Entertextand numbers.......................................................................
10
5.4 Typical phasesof density determinations...........................................................
11

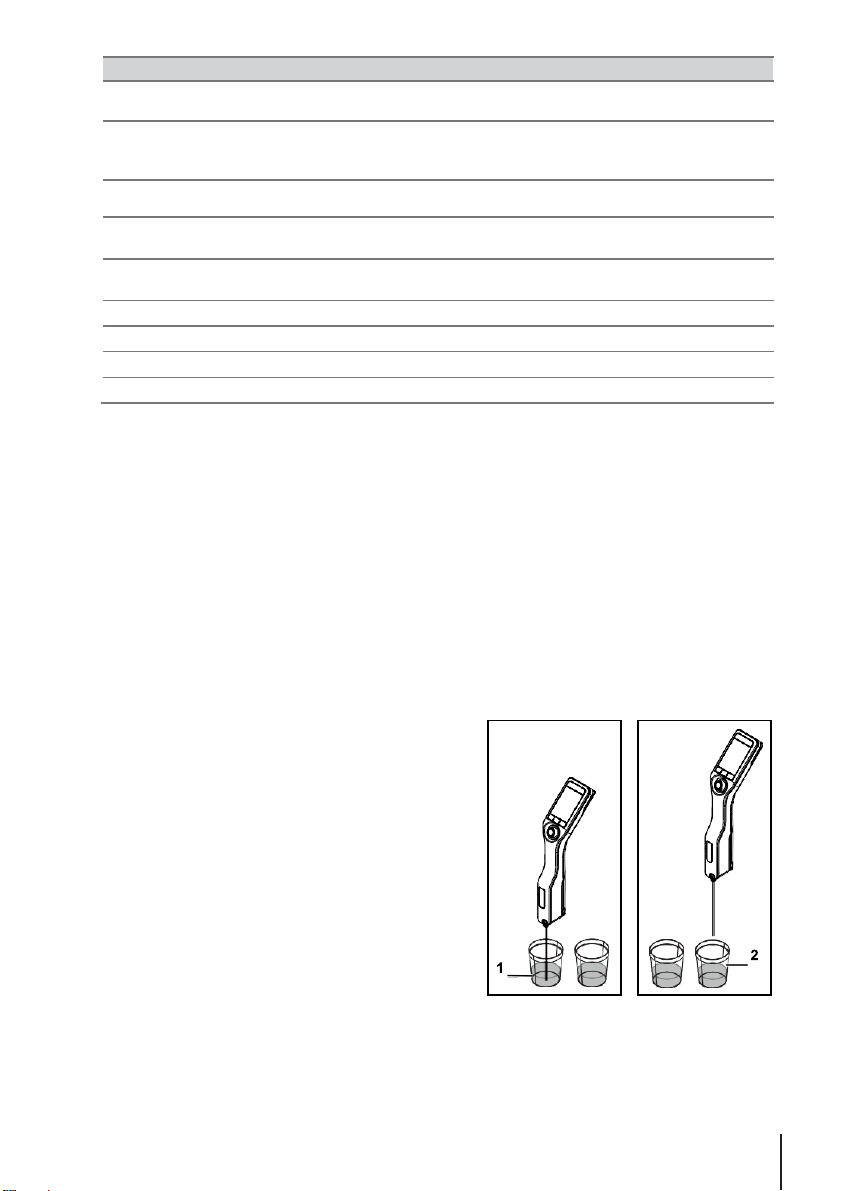

5.4.1 Fill the measuringcellandmeasure the density..................................
11
5.4.2 Prepare the measuring cellforthe next sample...................................
12
5.5 Example:Densitydetermination using thesamplepump ..................................
12
5.5.1 Configure the method..........................................................................
12
5.5.2 Perform the density determination .......................................................
13
6
Transfer Results (printing, exporting, pairingwith SBS-6500)
14
6.1 Saving and exporting data..............................................................................
14
6.1.1 USB stickdata transferoption................................................................
14
6.1.2 Bluetoothexport of resultsto SBS-6500 battery resistance tester…….
15
7
Maintenance
15
7.1 Maintenance schedule.......................................................................................
15
7.2 Clean the SBS-2510 ....................................................................................
16
7.2.1 Clean the housing...............................................................................
16
7.2.2 Clean the measuringcell.....................................................................
16
7.2.2.1 Clean using the sample pump.................................................
16
7.3 Check the measurement accuracy ....................................................................
17
7.3.1 Example: Test with water ....................................................................
17
7.3.1.1 Configure the test .....................................................................
17
7.3.1.2 Perform the test........................................................................
18
7.3.2 Measures if a test fails.........................................................................
19
7.4 Replace the battery...........................................................................................
19
7.5 Replace the samplepump ................................................................................
19
7.6 Prepare the SBS-2510forstorage ...............................................................
20
7.7 Dispose of the SBS-2510.............................................................................
20

2
SBS-2510 Digital Density Meter
8 Technical data 21
8.1 SBS-2510............................................................................................... 21
8.2 Measurement.......................................................................................... 22
1 Introduction
Thank you for choosing a SBS SBS-2510. The SBS-2510 is a handheld measuring instrument used
to determine the density of liquids.
About this document
This document provides you with the information you need to get started with y our SBS handheld
SBS-2510.
The instructions in this document refer to SBS-2510 running firmware version V1.0.0 or higher.
A PDF version of this manual is available online.
https://www.sbsbattery.com/sbs-2510-digital-battery-hydrometer.html
If you have any additional questions, contact your authorized SBS sales representative or dealer.
Conventions andsymbols
Note: For useful information about the product.
Refers to an external document.
Elements ofinstructions
Prerequisites
1 Step
2 …
Intermediate results
Results
2 Safety Information
•The User Manual is printed and delivered with the instrument.
•Keep User Manual for future reference.
Only use the instrument according to the User Manual. If youdo not use the instrument
according to this document or if the instrument is modified, the safety of the instrument may be
impaired and Mettler-Toledo GmbH assumes no liability.
User Manual is available online.
https://www.sbsbattery.com/sbs-2510-digital-battery-hydrometer.html

SBS-2510 Digital Density Meter
3
2.1 Definitions of signal words and warning symbols
Safety notes contain important information on safety issues. Ignoring the safety notes may lead
to personal injury, damage to the instrument, malfunctions and false results. Safety notes are
marked with the following signal words and warning symbols:
Signal words
WARNING A hazardous situation with medium risk, possibly resulting in death or severe
injury if not avoided.
NOTICE A hazardous situation with low risk, resulting in damage to the instrument,
other material damage, malfunctions and erroneous results, or loss of data.
Warning symbols
Electrical shock
General hazard: read the User Manual for information about the hazards and the
resulting measures.
Caution: a hazardous situation with low risk, resulting in minor or moderate injury if not avoided.
2.2 Product specificsafetynotes
Intendeduse
The SBS-2510 is designed to be used by trained staff and is intended for measuring the
density of liquid samples that are compatible with the materials with which they come into
contact.
The SBS-2510 is designed for indoor and outdoor operation in dry conditions. The following site
requirements apply:
•Ambient conditions within the limits specified in the technical data
•No corrosive gas atmosphere
•No explosive atmosphere
•No powerful electric or magnetic fields
Any other ty pe of use and operation beyond the limits of use stated by Storage Battery Sy stems,
LLC without consent is considered as not intended.
FCC Rules
This device complies with Industry Canada license-exempt RSS standard(s) and part 15 of the
FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device. Changes or modifications not expressly approvedby the
party responsible for compliance could v oid the user's authority to operate the equipment.
This equipment has been tested and foundto comply with the limits fora Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and canradiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmf ul interference in which case
the user will be required to correct the interference at his own expense.
Responsibilities ofthe instrument owner
The instrument owner is the person holding thelegal title to the instrument and who usesthe instrument
or authorizes any person to use it, or the person who is deemedby lawto be the operator of the
instrument.The instrumentowner is responsible for thesafety of all usersof the instrument and third
parties.
Storage Battery Systems, LLC assumesthat the instrumentowner trains users to safely use the instrument
in their workplace and deal with potential hazards. Storage Battery Systems,LLC assumesthatthe
instrument owner provides the necessary protective gear.

4
SBS-2510 Digital Density Meter
Safety notes
Danger of death or serious injury due to electric shock!
Contact with parts that carry a livecurrent can lead to death or injury.
1 Only use the SBS AC adapter designed for your instrument.
2 Keep all electrical cables and connections away from liquids and moisture.
3 Check the cables and the plugs fordamage and replace damaged cables and plugs.
Injury due to incorrect handling of the battery
The battery can explode or ignite and cause injury or damage the SBS-2510 if it is not
handled correctly.
1 Do not store or use the battery at temperatures below -20 °C or above 60 °C.
2 Do not subject the battery to mechanical stresses like pressure, bending or impacts.
Damage to the measuring cell due to solidifying samples
Hot samples cool down during the measurement. If the samples solidify in the
measuring cell, you can no longer empty the measuring cell.
−Only measure samples with a viscosity below1000 mPa*s at ambient temperature.
Damage to the instrument due to the use of unsuitable parts
Using unsuitable parts with the instrument can damage the instrument or cause it to malfunction.
−Only use parts from SBS that are intended to be used with your instrument.
WARNING
CAUTION
NOTICE
NOTICE

SBS-2510 Digital Density Meter
5
2
3 Design and Function

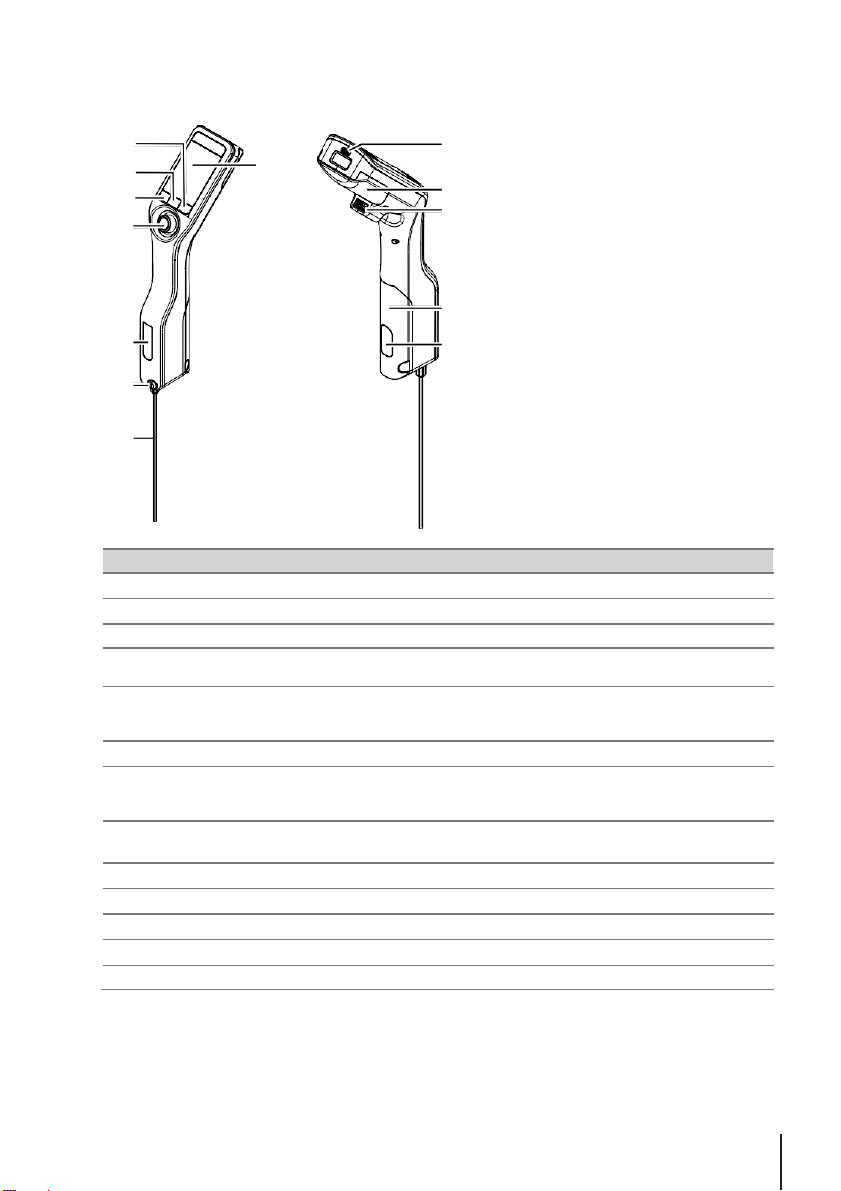

3.1 Instrumentoverview
12 1
11 13
10
3
9
4
8
5
7
6
No.
Name
Function
1
USB-C socket
To connect the SBS-2510 with the AC adapter or a computer.
2
Battery cover
To access the battery .
3
USB-A socket
To connect a USB printer or Bluetooth dongle.
4
Sample pump
cover
To access the sample pump.
5
Sample
pump
window
To viewthe sample pump and to check if the sample pump is filledor
empty.
6
Filling tube
To filland drain the measuring cell.
7
Filling opening
with locking
screw
To filland drain the measuring cell using a syringe. The locking screw
closes off the filling opening.
8
Measuring
cell window
To v iewthe measuring cell and to check if the measuring cell is filled or
empty.
9
Navigation joystick
To nav igate through the menus.
10
Key 1
To start up the SBS-2510, select menu items and to navigate.
11
Key 2
To select menu items and to nav igate.
12
Key 3
To select menu items and to navigate.
13
Screen
To display settings and results.

6
SBS-2510 Digital Density Meter
3.2
User interface
3.2.1

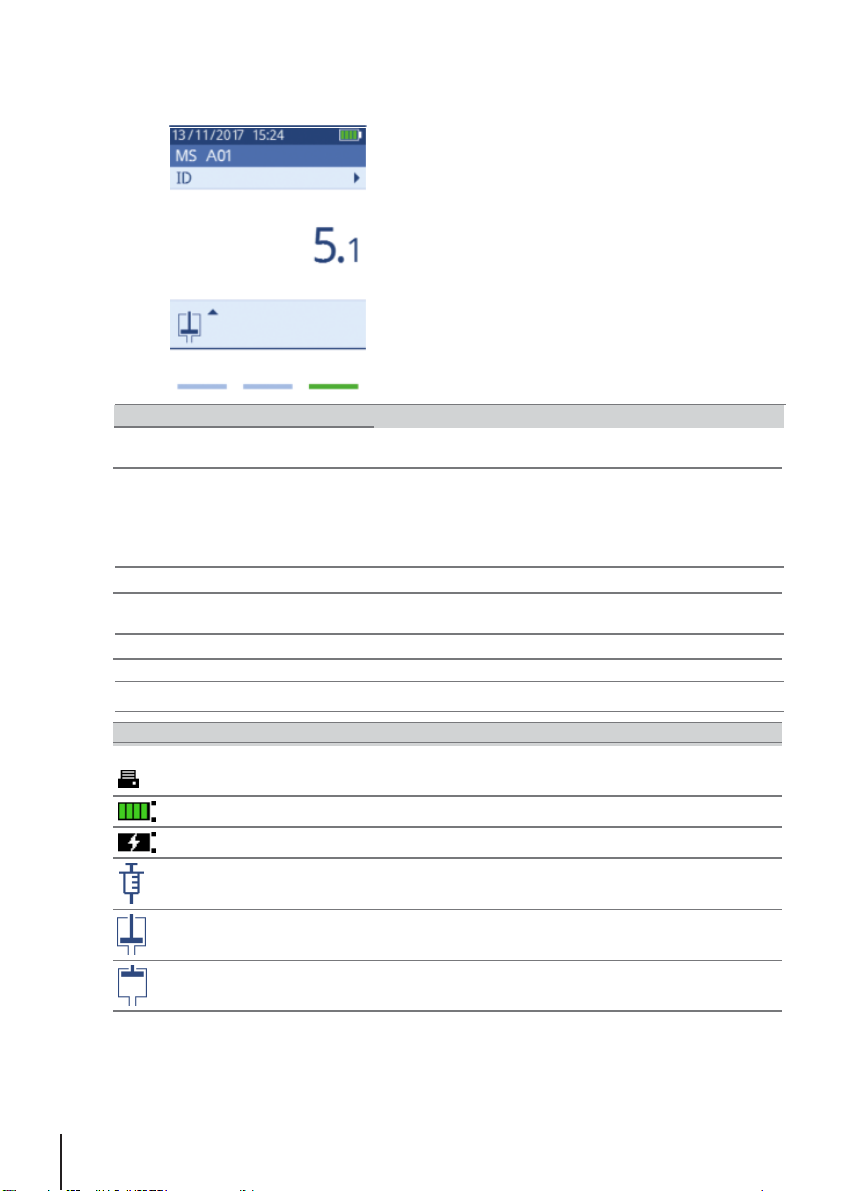

Home screen
1
2
3
4
5
6
No. Name
Explanation
1 Status ribbon Displays the current date, time, battery charge status
2 Method ribbon Display s the type of density determination and the method
identification or the selected standard.
•MS: measurement using a method
•TE: test
•ADJ: adjustment
3 Sample ID ribbon Displays the sample ID.
4 Measuring ribbon Displays the unit, the measured value or result and the
temperature of the measuring cell.
5 Sampling ribbon Displays the current status of the sample pump or syringe.
6 Key functions ribbon Displays the function of the keys.
3.2.2 Icons onthe screen
Status ribbon SBS-2510 is sending data to the printer.
d [g/cm3]
Temp. 76.2 °F
Menu Results Start
Icon Location Explanation
Status ribbon
Status ribbon
Sampling ribbon
Shows the charge of the battery.
Battery is charging.
Syringe mode activated. The sample pump is deactivated.
Sampling ribbon
Sample pump activated and piston in the lowermost position.
Sample pump activated and piston in the uppermost position
Sampling ribbon

SBS-2510 Digital Density Meter
7
4 Installationandcommissioning

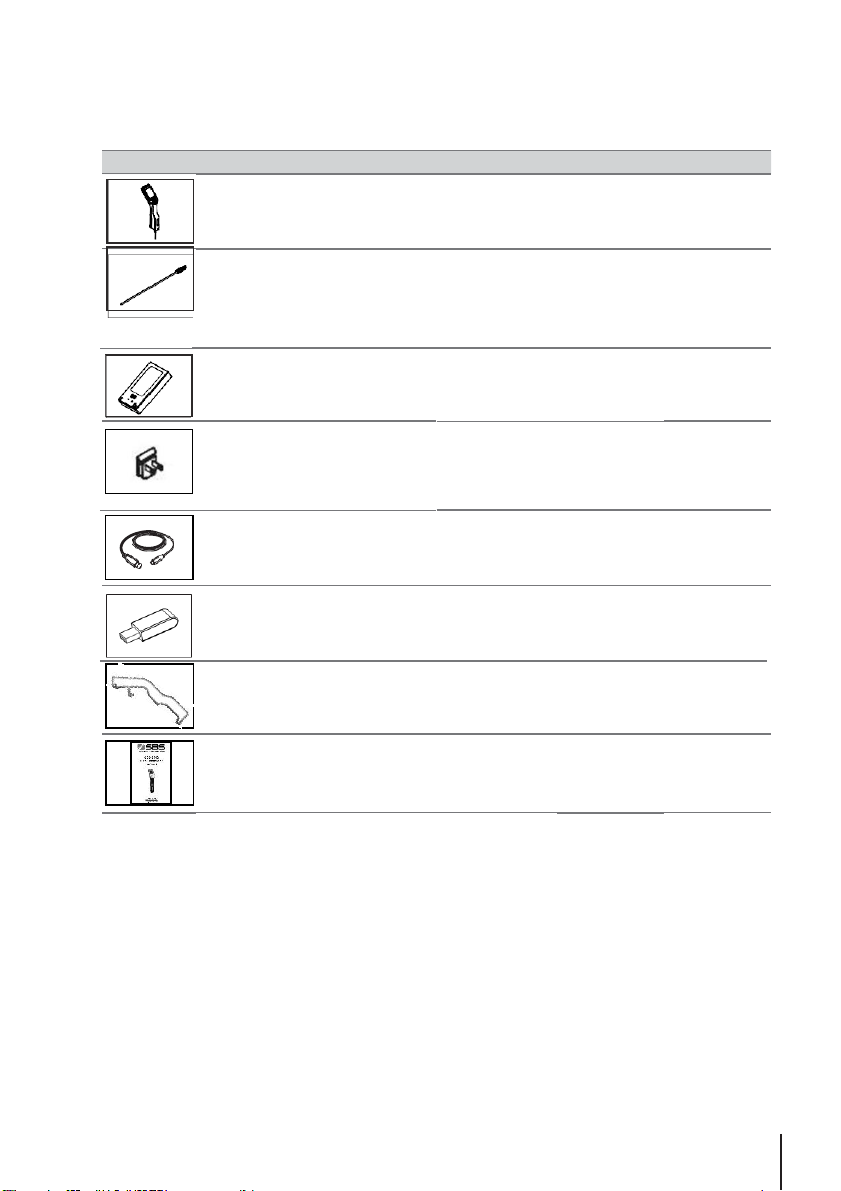

4.1 Scope of delivery
Part Order number
Handheld SBS-2510 SBS-2510
Filling Tube 190 mm
•Tube
•Connector syringe/filling
tube
•Washer
Battery Li-Ion 2400mAh
2510-TUBE-190
User Manual –
4.2 Unpack the SBS-2510
1 Remov e the SBS-2510 from the protective packaging.
2 Store the packing material forlater transport overlong distances.
2510-BATTERY
Protective Cover
2510-COVER
Bluetooth Dongle
2510-DONGLE
USB-Charge Cable
2510-CABLE
Power Supply and Adapter
2510-PWRSUP

8
SBS-2510 Digital Density Meter
3 Check if y ou receiv ed all parts listed in the scope of delivery .
4 Inspect the parts visually f or flaws or damage.
5 If parts are missing or damaged, report it immediately and file a freight claim if needed.
4.3 Charge the SBS-2510
You can either charge the SBS-2510 using the supplied AC adapter or a computer. Recharging
an empty battery takes approximately threehours.
4.3.1 Charge withthe AC adapter
The AC adapter is suitable for all supply line voltages ranging from 100...240 V AC and 50/60 Hz.
Danger of death or serious injury due to electric shock!
Contact with parts that carry a live current can lead to death or injury .
1 Only use the SBS-2510 AC adapter designed for y our instrument.
2 Keep all electrical cables and connections away from liquids and moisture.
3 Check the cables and the plugs fordamage and replace damaged cables and plugs.
Damage to the AC adapter due to overheating
If the AC adapter is cov ered or in a container, it is not suff iciently cooled and overheats.
1 Do not cover the AC adapter.
2 Do not put the AC adapter in a container.
Assemble the AC adapter
1 Slide the desired set of prongs (1) into the AC adapter (2). 1
2 Insert the USB-A plug of the USB-C cable in the USB-A
socket of the AC adapter.
2
Connect the SBS-2510 to the power supply
1 Insert the USB-C plug of the USB-C cable in the USB-C socket of the SBS-2510.
2 Install the cables in such a way that they cannot be damaged or interfere with operation.
3 Insert the plug of the AC adapter in a power outlet that is easily accessible.
The SBS-2510 starts charging and the icon is displayed.
Change the prongs of the AC adapter
1 Pull the plug of the AC adapter out of the power outlet.
2 Push the button (2) and slide the set of prongs (1) out. 1
3 Slide the desired set of prongs into the AC adapter. 2
4.3.2 Charge witha computer
A running computer with USB-A sockets (USB 2.0 or higher) is available.
1 Insert the USB-C plug of the USB-C cable in the USB-C socket of the SBS-2510.
2 Install the cables in such a way that they cannot be damaged or interferewith operation.
WARNING
NOTICE
