SBS-600/700 Quick Start Guide Revision 1.0 -5/2014
1
SBS -600 Graphical Digital Multimeter
SBS- 700 Multi-Function Oscilloscope
Quick Start Guide
Quick start guide will explain basic information about the unit.
For complete Operation and Safety Information, Please refer to the
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

2
User Manual supplied on the CD-Rom included with the Quick start guide.
“READ THE USERS MANUAL PRIOR TO OPERATION”
"Pay special attention to the SAFETY Information sections of the Quick start
guide and the user’s manual”
Attention
Attention mark is displayed to draw ATTENTION during use. Meter could be damaged or
important Data may be lost if the unit is used improperly.
Warning
Warning mark is displayed to indicate improper use. Operating outside of equipment ratings
could cause serious personal injury or fatal death.
[Safety Symbol]
Table lists and describes the safety symbols shown on Meter or in User Manual.
: DC (Direct Current or Voltage)
: AC (Alternating Current or Voltage)
: DC and AC
: Earth Ground
: Double Insulation
: Power Supply OFF
: Power Supply ON
: Warning of Electric Shock
: Warning of Danger
: CategoryⅡ 1000V Overload Protection(Multi-meter Function :Model SBS-600
SBS-700 )
: CategoryⅢ 600V Overload Protection(Multi-meter Function
Model SBS-600, SBS-700)
: CategoryⅢ 300V Overload Protection(Scope Function, Model . SBS-700)
:
[Notes for Safe Operation]
WARNING: USE EXTREME CAUTION IN THE USE OF METER
The improper use of meter may result in injury or death.
Follow all safeguards in this manual, in addition to the normal safety precautions used in
working with live electrical circuits.
DO NOT ATTEMPT TO SERVICE the meter if you are not qualified to do so.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

3
[WARNING ]
Pay attention when testing conditions exceed 60V DC, 30V AC rms or 42.4V AC Peak that can
cause an electric shock. Do not connect the Ground wire to voltage higher than 0V DC, 30V
AC rms or 42.4V AC Peak.
Use only the proper accessories supplied with the meter. Rechargeable Battery Pack, AC
Power Adapter and Internal Charger, Test Lead, Probe, Logic/Signal Cable set. Warranty
will not cover Meter Measurement failure or damage from improper accessories other than
supplied by manufacturer of the Meter.
Connect and disconnect properly. Connect Test Leads, Probes or Cables to the Meter before
connecting to the active circuit to be tested. Disconnect Leads, Probes or Cables from the test
circuit prior to disconnecting them from the meter.
Testing Probe always connected with Testing Circuit in series.
Replace the Ni-MH Battery Pack only with an equivalent from the Manufacturer. Remove
AC Power Adapter, Test Lead, Probe and Cable from Meter when replace the Battery.
When the Battery Warning Symbol is blinking on the display, the measurement may display
in error. Recharge the battery or replace.
Observe all terminal ratings. Observe all rating and marking oin the Meter. Refer to
Operator manual for detailed information.
[ Max Input Voltages]
- Scope Input: 300V CATⅢ.
- Meter Input: 600V CATⅢ.
Do not apply any voltages when measuring OHM (resistance) or Capacitance for the Meter
Mode.
Do not use Meter where in or near explosive, flammable, wet or damp environments.
Do not use Meter with the Case Cover open for any reason.
Fuses should only be replaced with the proper size and rating as specified in the manual.
Do not expose circuit.
[ATTENTION]
Before testing in Resistance, Capacitance, Continuity or Diode modes, disconnect any
power supply to the circuit being tested and discharge High Voltage Rated Capacitance.
Do not attempt Voltage measurement while measuring Current.
[ENVIRONMENT]
The Meter is designed Indoor use in following environment conditions
Operating Temperature: 32°F - 122°F (0°C ~ 50°C)
Guaranteed Accuracy Temperature: 73.4°F +/- 41°F (23 0°C +/- 5°C)
Operating Humidity: 80% R.H. or less
Storage Temperature: 32°F - 158°F (0°C ~ 70°C)
Altitude : 2000m
CAT III 600V Pollution Degree : 2

4
WEEE (Waste Electrical and Electronic Equipment) (2002/96/EC)
Meter complies with WEEE (2002/96/EC) requirements.
Do not dispose Electric / Electronics device with other trash.
 Front View
Key Pad
The Keys are different by models.
[Main Functional Keys]

5
SBS - 600 SBS - 700
Function and Menu selections automatically take effect 2 seconds after
pressing the key.
If the user Prefers immediate setting Pressing the ENTER key will
immediately select the Function or Menu.
Voltage measurement keys : AC+DC, DC, AC
Current measurement keys : AC+DC, DC, AC
Resistance, Continuity, Diode Check key
Capacitance measurement key
Auxiliary measurements (Temperature, Relative Humidity, Hi-Currents.
Pressure) with use of optional accessories not included.
Square wave signal out put
Oscilloscope
Protocol Analyzer
Pattern Generator
Logic Analyzer

6

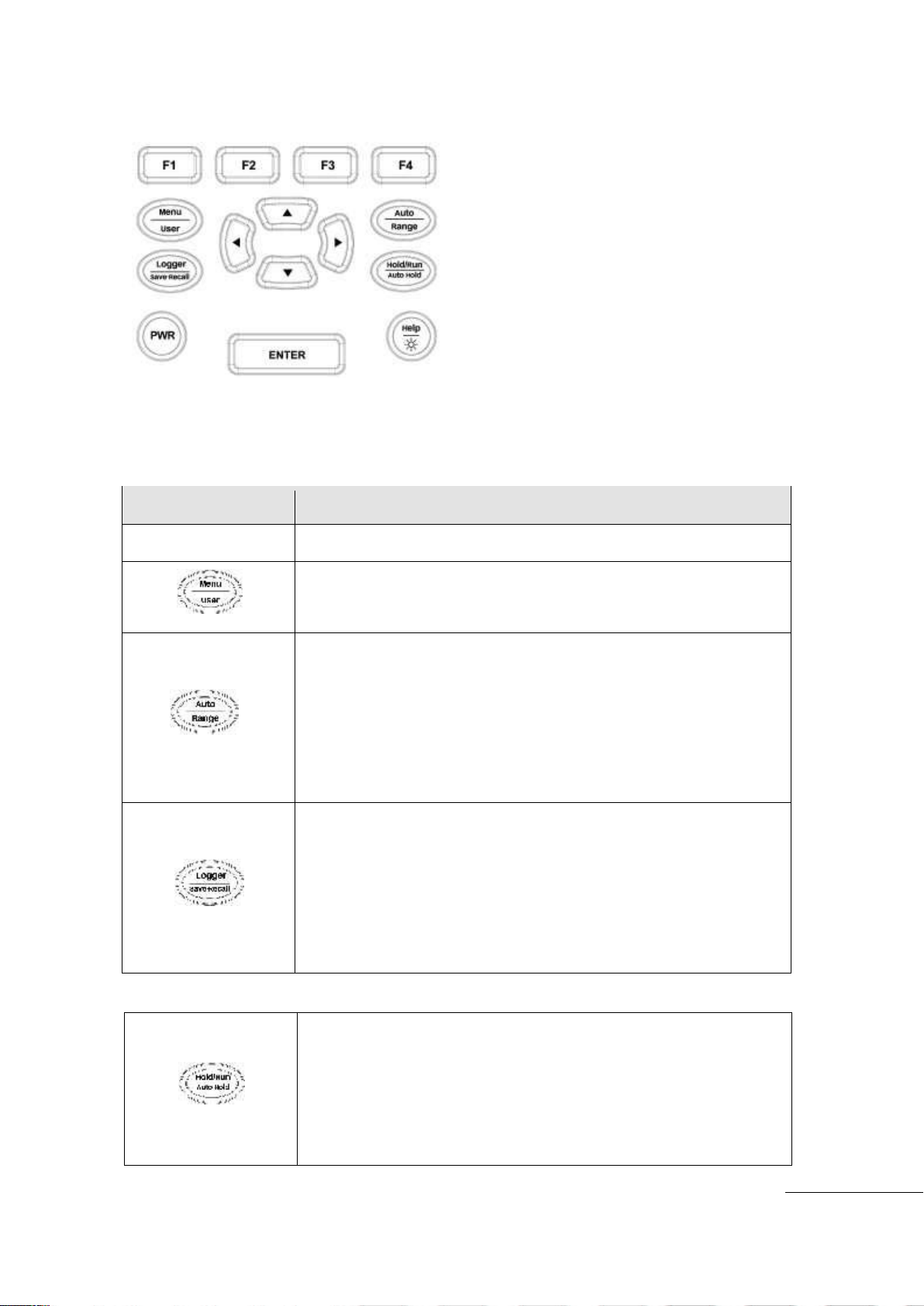

[Secondary Function Key]
[ Secondary Function Keys ]
Function key
Function Description
Selects Sub Menu functions and modes after (main) Menu selection.
Upper Line: (Short Key) One Touch press Enter Menu (Main Menu)
functions and modes. Lower Line: (Long key) Press longer than 2
seconds to enter USER. To return to Menu, press Exit key
Upper Line : Meter setup Auto Ranging mode
Lower Line : (Long key) Press longer than 2 seconds to enter Manual
measurement mode (Range)
- In Manual Range, range up/down can be selected with a Short key
press (One touch)
- To return to Auto measurement mode, hold key down (longer than 2
seconds)
Upper Line: (Short Key) One Touch press enter Data Logger mode.
Lower Line: (Long key) Hold longer than 2 seconds to enter Save
(Data) and Recall (Data) mode. Save or Recall selection change
available at sub-mode.
- Press Short Key to change Logger Mode.
- Press F4 Exit to leave Logger mode.
Upper Line (Manual Hold): (Short Key) One touch press to enter
Hold/Run mode. Hold the present measurement value in Display and
can save the value. Change Hold or Run can be done (Short Key)
One Touch press.
Lower Line (Automatic Hold) : (Long key) Hold longer than 2 seconds
to enter Auto Hold mode.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

7
 LCD Display
Scope Screen
No
Symbol
Description
1
RUN
Present measurement is proceeding and working.
2
HOLD
Measurement is being held momentarily
3
V/div
Volt (Vertical Axis) Division indicator
4
T/div
Time (Horizontal Axis) Division indicator
5
Trigger
Trigger indicator for Level, Position or Edge direction
6
Coupling
Input Coupling selection (DC/AC)
7
Peak
Peak Detection selection (ON/OFF)
8
V/Position
Volt (Vertical Axis) Position adjustment
9
T/Position
Time (Horizontal Axis) Position adjustment
10
Trig Level
Trigger Level adjustment
I (Help): (Short Key) One Touch press to enter Help mode. Brief
Information on present function is displayed.
Back Light On/Off: Hold longer than 2 seconds to enter Back Light
display mode.
Help: short key(50ms), Backlight: long key(2s)
Turn the meter power ON / OFF
Hold Longer than 2 seconds to power ON / OFF
Cursor buttons select an item in Menu. Adjust Display Ratio. Scroll the
information and Input Data

8
DMM Screen
No
symbol
Description
1
Minimum. Maximum, Average measurement
2
Can select Measuring Range in Automatic method or Manual
method
3
Freeze the present reading in display.
4
Freeze the present reading in display.
5
Sub Menu
The Subsidiary Menu. After main menu selected, sub menu tree
show up to select
6
Bar-Graph
Input Signal is displayed in Bar-Graph. refer details " Bar-Graph
page )
7
Compare with a reference value and display the Difference.
8
Negative Reading
9
Input Over Voltage warning that exceeds the defined safety
protection voltage
10
Remaining Battery Capacity level to use.
11
Being connected with AC Power Adapter.
12
Sampling, Run time
13
Measurement mode.(DCV, ACV, Ohm, Capacitance, Diode)
14
Audible signal is active
15
(Bar Scale)
Range of Meter
16
Secondary
measurement
secondary measurement information of Input Signal (Hz. ㏈m)
17
Unit symbol is displayed at right side of the measurement

9

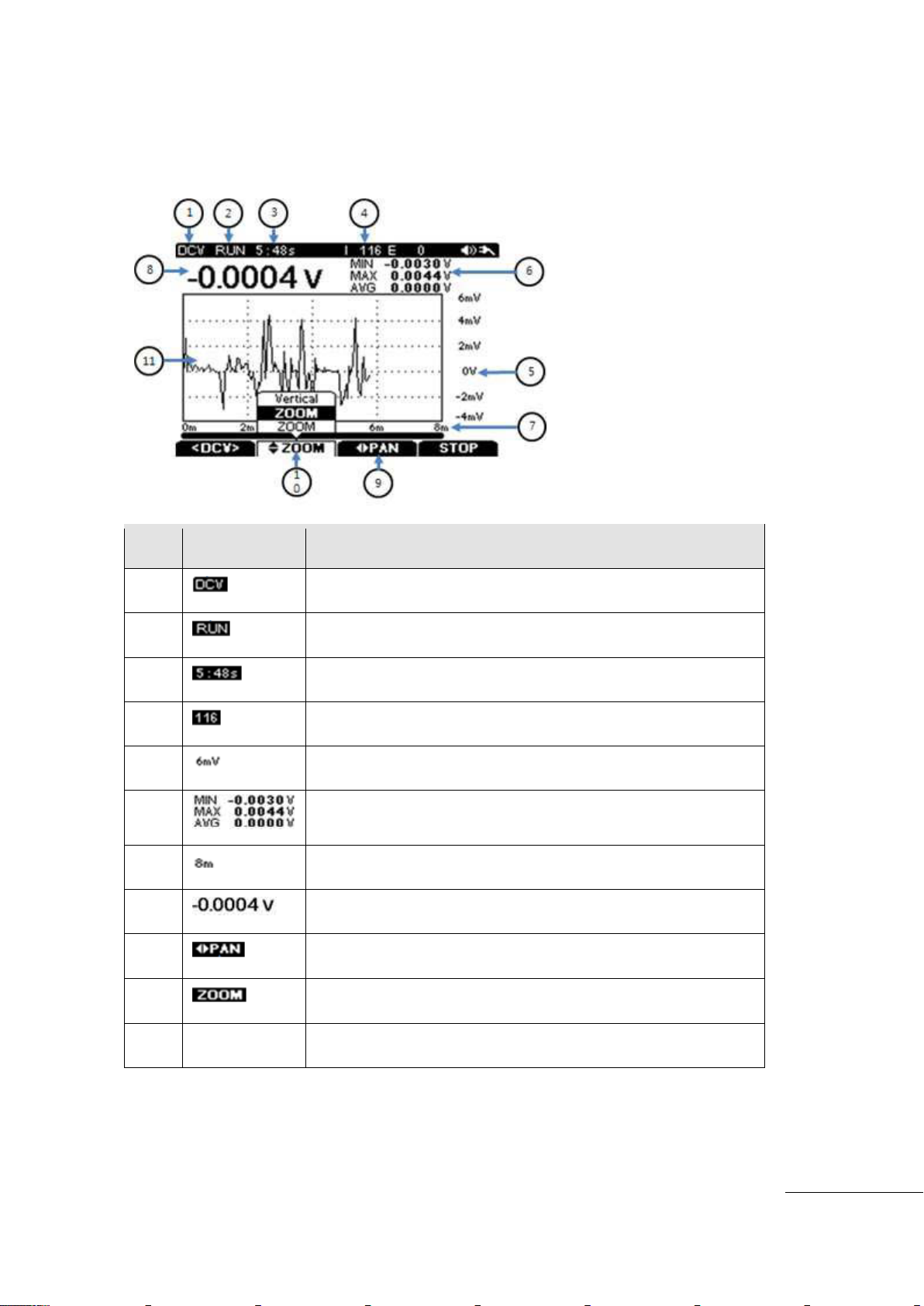

Data Logger Screen
No
Symbol
Description
1
Measuring Mode. (DCV, ACV, Ohm, Capacitance, Diode)
2
RUN and STOP of Data Logger function
3
Run Time
4
Accumulated Sample Q‘ty in Data Logger.
5
Maximum Display Range
6
Minimum, Maximum , Average of the Samples
7
Total Time Scale of Data Logging.
8
Present Measurement Value
9
Change the Time Scale (left - right horizontal axis) to review
closely on the specific Time Zone.
10
Zoom (at Regular Ratio) the specific waveform quickly (up/ down
Vertical axis).
11
Data Logger
Data Logger Display

10

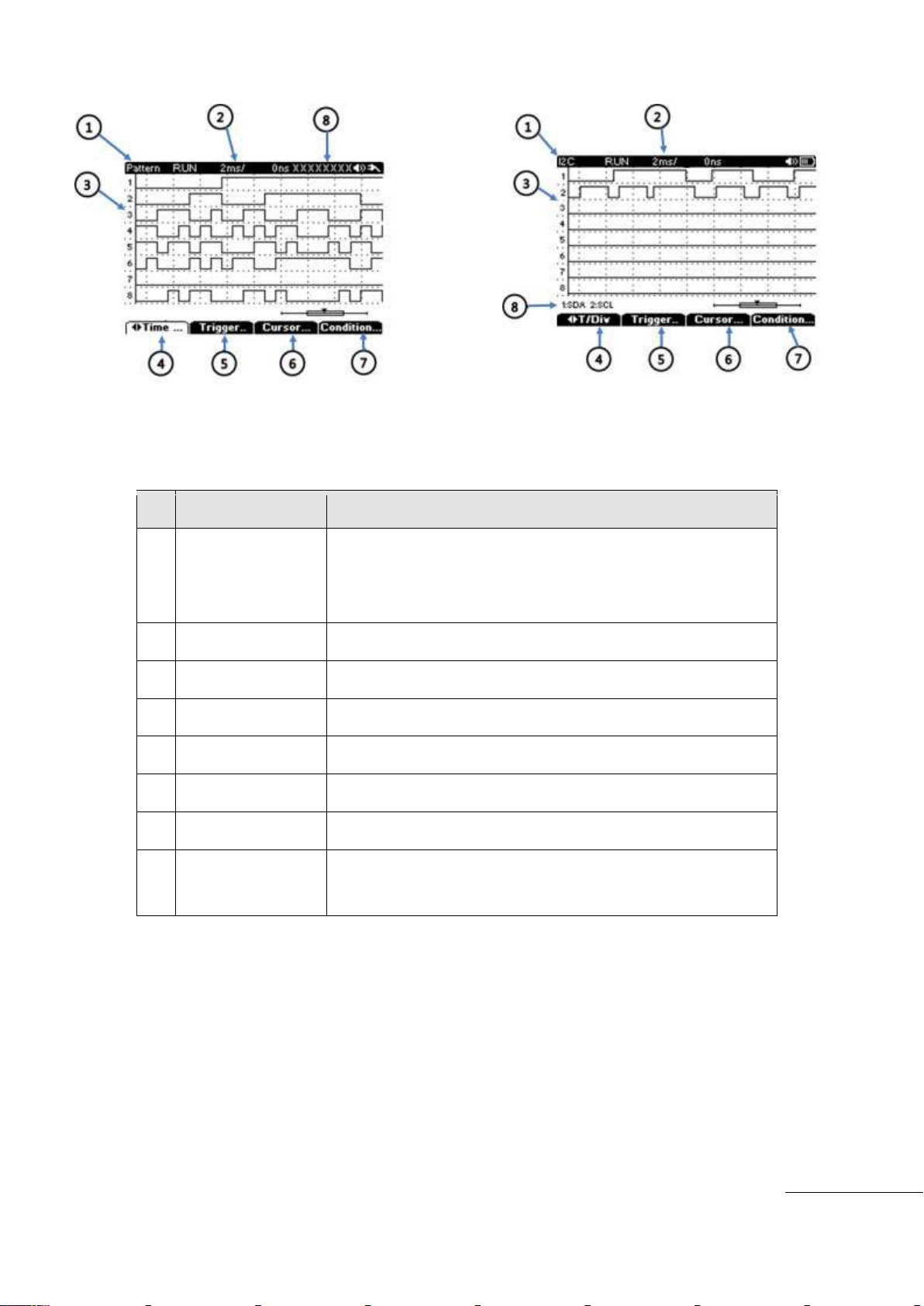

Logic Analyzer Screen Protocol Analyzer Screen
[Logic Analyzer, Protocol Analyzer Display Symbol]
No
Symbol
Description
1
Condition
Logic Analyzer: Pattern, Duration
Protocol Analyzer:
CAN, LIN, I2C, UART, USB, I2S SMBus, SPI, DMX512, 1-Wire
2
Time/div
Measurement Time/div Indicator
3
Channels
Displays all the Input Channels
4
Horizontal
Time Division & Position adjustment
5
Trigger
Trigger Mode, Source, and Trigger Level adjustment
6
Cursor
Horizontal Cursor adjustment
7
Condition
Detailed condition setting for each Logic or Protocol type
8
Information
Display window to show the trigger condition or channel input
information of each type

11

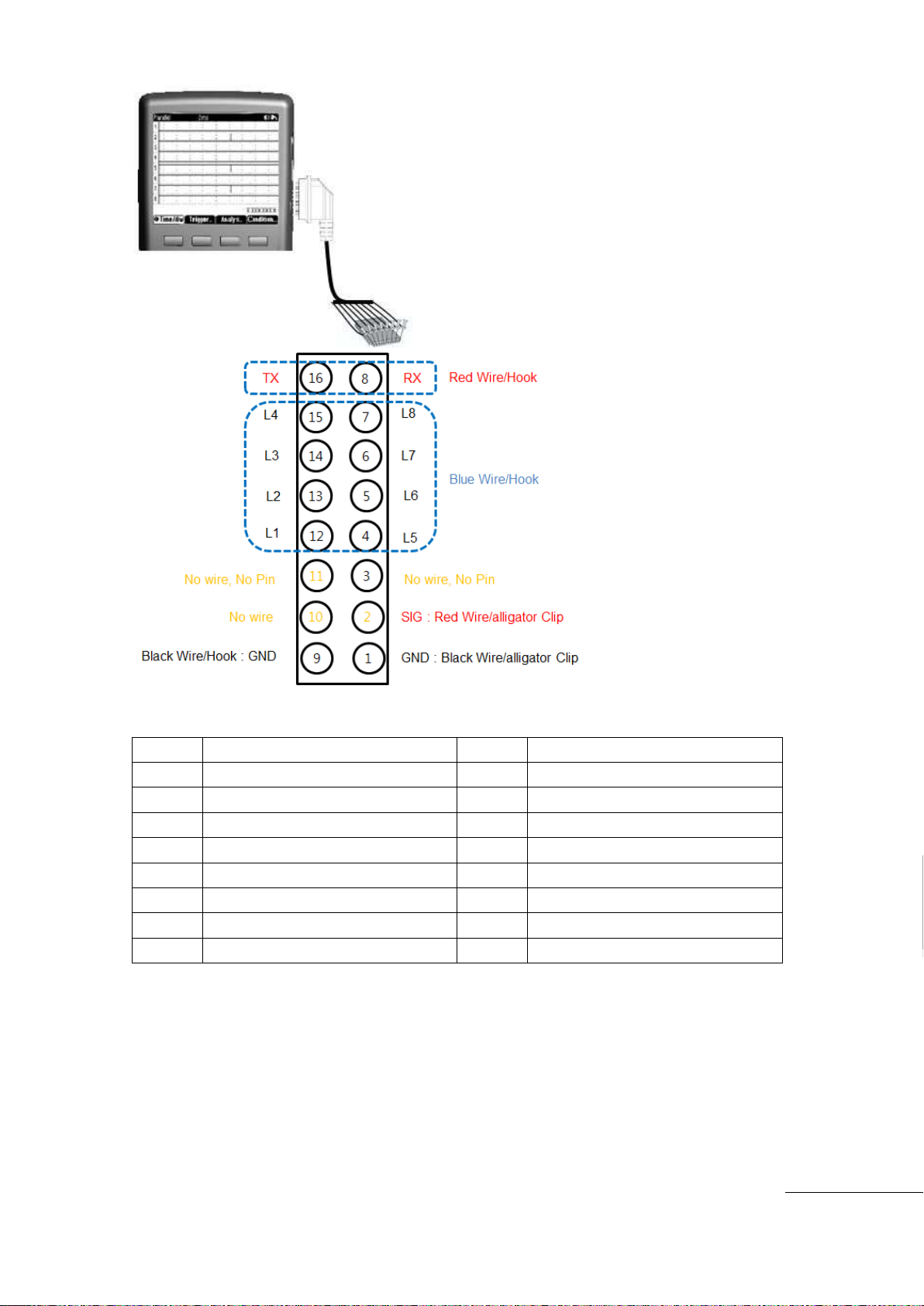

Pattern Generator
[Pattern Generator Display Symbol]
No
Symbol
Description
1
Condition
UART, CAN, User Defined
2
Time/div
Measurement Time/div Indicator
3
Channels
Displays all the Channels (TX/RX)
4
View
Selection of Transaction/Message, Acquisition Mode,
and Cursor adjustment
5
Condition
Selection of Trigger condition, Trigger Level,
and Baud rate used to decide the speed of pattern
6
Message
Used for making the format, cycle, and data of each pattern
7
Output
Selection of signal out or not
8
Information
Display window to show the information of In/Out Transaction or
all the memorized messages
[BAR-GRAPH]
 BAR-GRAPH display Measurement Data in Analogue Meter Display type. Can update 15
times / second. Response Time of Analogue display is faster than Digital display which Bar
-Graph display is very efficient to observe display like as PEAK that input change very fast.
 “Pattern Generator, Current Generator, logic Analyzer, MIN/MAX” modes do not activate
BAR-GRAPH display.

12
 Direct Voltage, Currents and Relative display BAR-GRAPH “0” center position. At Direct
Voltages and Currents, BAR-GRAPH total scale displays the Maximum of the selected
measurement range.
 Displayed Segment indicates Measurement Size which is displayed within the Maximum Scale
of the selected range.
 When measured value exceeds the maximum scale of the selected range, ▶ is displayed at
RIGHT of BAR-GRAPH. When Direct Voltage or Current, ◀ is displayed at LEFT of
BAR-GRAPH at negative MAX and ▶ is displayed at RIGHT of BAR-GRAPH at positive MAX
[Measurement Status display]
 Status icon is displayed at top of Display.
- Battery status, Present Measurement Value, Buzzer (Continuity), Data Hold, Auto Hold, AC
Power Adapter Connected.
[Display]
 Display consist of Main Measurement Display, BAR-GRAPH display, Sub function display (Sub
measurement or Data)
[Sub Menu Key]
 4 keys (F1 ~ F4) underneath of Display. Selected functions available depend on
measurement function or menu.
 Input Terminals
To prevent from Damage, Do not apply exceeding the Rate.
SBS - 600
** CAT III 300 V for Scope input
SBS - 700
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

13

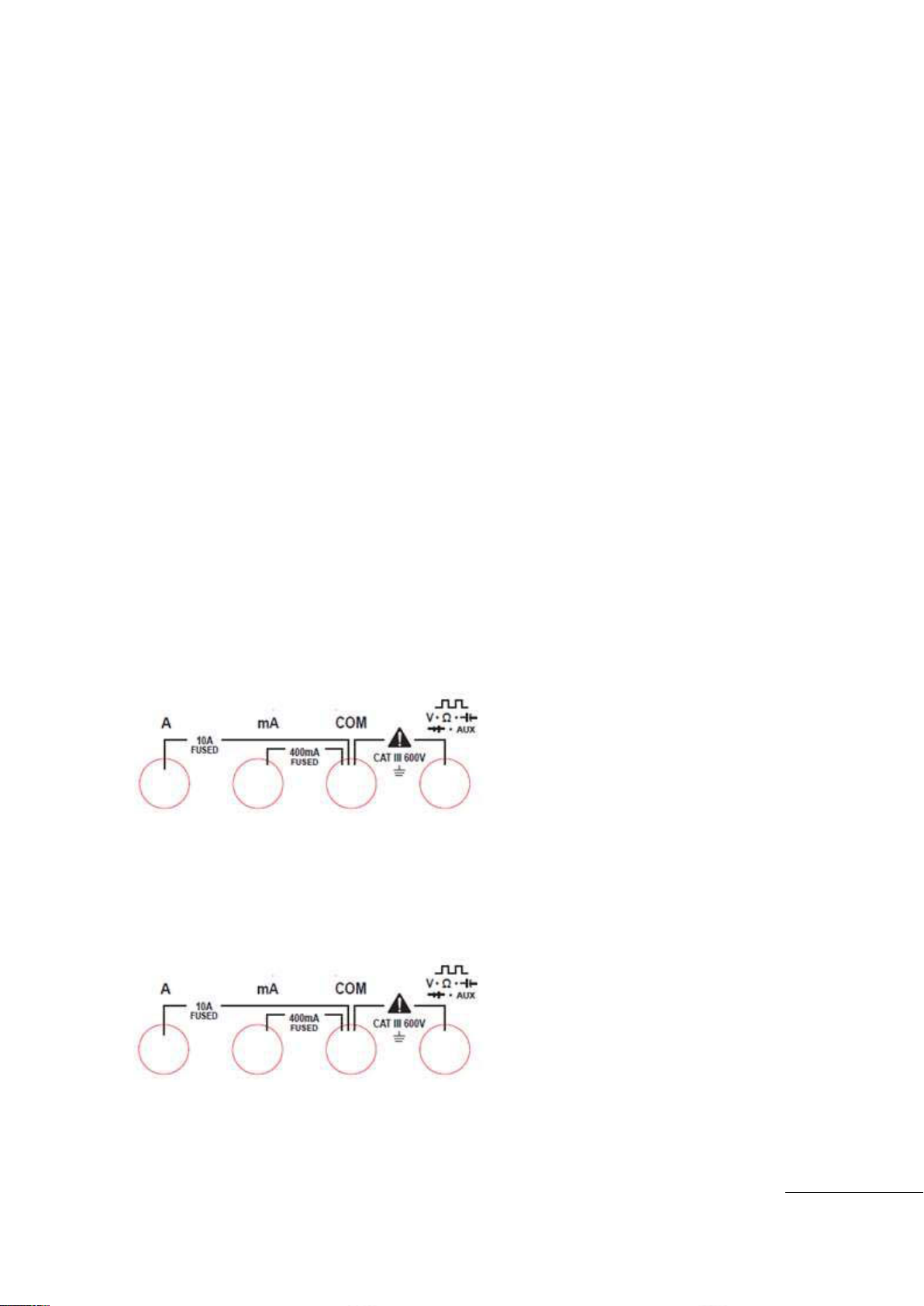

 Input Terminal Connection
 Rear View and Side View
Measurement
Input Terminal
10A
0 A ~ 10.00 A currents. (10A overload, 30sec On, 10 sec OFF)
mA
0 A ~ 500 mA Currents measurement.
COM
Negative Terminal to all measurements.
SCOPE, V, Ω, ㎐,
Sig-out( )
Volts, Continuity, Resistance, Diode, Capacitance, Frequency
measurement and AUX (auxiliary function with external adapter :
Temperature, High Current, Relative Humidity, Pressure
measurement)
13 pin socket
Terminal ( SBS-700)
13 pin socket Terminal (Measurement and Output) : Logic Analyzer,
Pattern Generator, Protocol Analyzer, Sig- Out

14
 Logic, Pattern, Protocol, Signal Out - 13 Pin Cable Connection
 Voltage Warning
 User should pay attention at the Voltage Rating and Over Voltage warning.
 Immediately remove the Test Lead/Test Probe from the METER when VOLTAGE
WARNING comes on. Scope function Input (model SBS-700), max 300V.
Other Multi-meter function Input (models SBS-600, SBS-700 ), max 600V.
Pin No
Function
Pin No
Function
1
Ground(Black/Clip)
9
Ground(Black/Hook)
2
Signal out(Red/Clip)
10
N/A
3
N/A(pin cutting)
11
N/A(pin cutting)
4
Logic5(Blue/Hook)
12
Logic1(Blue/Hook)
5
Logic6(Blue/Hook)
13
Logic2(Blue/Hook)
6
Logic7(Blue/Hook)
14
Logic3(Blue/Hook)
7
Logic8(Blue/Hook)
15
Logic4(Blue/Hook)
8
Pattern Generator RX(Red/Hook)
16
Pattern Generator TX(Red/Hook)

15
 Meter displays VOLTAGE WARNING regardless of AUTO or MANUAL measurement. When
over the Maximum Measurement limit, the WARNING sound starts. At this case, immediately
remove Test Lead/Test Probe from the Meter.
 When measurement range set manually. If the measurement exceeds the range, the display
will show “OL”.
 Power
 6*AA Alkaline Battery ( SBS-600 only )
 7.2V NiMH Battery Pack or AC Power Adapter ( SBS-700 only )
 Remaining Battery Capacity Level indicator
 Top right display indicates Remaining Battery Capacity Level,
Level
Remaining Battery
Fully Charged. (100%)
3/4 charged (75 %)
1/2 charged (50 %)
1/4 charged (25 %)
Depleted ( 0 %)
 Auto Power Off
 During operation the unit will automatically power off after 15 minutes without a button push.
 User can select the Auto Power Off time (min 5 minutes ~ max 2 hours or Auto Power Off
mode).
[NOTE]
 Auto Power Off mode is not active in DATA LOGGER mode (MIN MAX, PEAK mode in
operation)
 Auto Power Off mode is not active when the Meter is powered by ADC Power Adaptor
(SBS-700 only)
 Battery Save Mode
 Auto Power Off mode is not activated during Data Logger or Auto Hold mode of operation. If
no key is pressed on Meter for a certain time, Meter automatically changes to Battery Save
Mode. Mode Change time is equal to Auto Power Off mode time setting.
 All Power off including Display, except present measurement function.
 Exit the Battery Save Mode by
- Pressing any key
- change measurement range
- start PC Interface communication.
Meter function and Operation Mode is not changed

16
 Back Light Display
 When measurement environment is dark or it is hard to see the LCD display, hold
 Back Light key longer than 2 seconds,
 Back Light operation time can be set in USER mode
 Measurement Range selection (Auto/Range)
 Selected Measurement Range is shown at the Right of the BAR-GRAPH. If press key,
change AUTO Range mode or Manual Range mode. When press the at MANUAL
Range mode, measurement range is set automatically.
[NOTE]
 Key is not active in Capacitance, Diode, or Frequency measurements which are
always set to automatically Auto Ranging.
 Manual Range mode can be converted to Auto Range mode by holding key for more
than 2sec.
 Auto Range mode can be converted to Manual Range mode by holding key for
more than 2sec.
 In manual mode, the Up/Down key is activated by each press – each step
Up/Down.
 MENU
 After main function DSO is selected, press MAIN Menu to select Channel,
Trigger, Measure, Cursor
 After Main Menu selected, Select Sub Menu F1, F2, F3, F4 to proceed to desired
measurement.
General Maintenance
Wet or Dusty Input Terminals can cause incorrect measurement readings.
Cleaning procedure is as follows.
① Power off the Meter and separate Test Lead/Probe from Meter.
② Reverse the Meter Top Side and Bottom Side and remove the dust in the terminal by
shaking the meter.
③ Clean the Exterior Cases with soft detergent or wet cloth. Do not use Solvent or an
abrasive.
④ Clean cotton swab wet with Alcohol may be used to clean out the surface of Input
Terminals.
To ensure proper measurements, make sure to use the correct input terminals for that type of
measurement..
Do not test voltages above the ratings of the meter inputs..
 Battery Replacement
Do not short or reverse the polarity to discharge Battery.
Do not attempt to recharge, non-rechargeable batteries.

17
[Note]
 Model SBS-600 uses only 6 * AA, 1.5V Alkaline battery - Non Rechargeable Battery.
Model SBS-700 uses only the supplied 7.2V NiMH Rechargeable Battery Pack.
 When Battery low signal is blinking, In the model SBS-600, replace with New AA Alkaline
battery cell as soon as possible. In the model SBS-700, recharge the battery pack as soon as
possible.
 If Battery is completely depleted, and needs to be replace with a new battery, please replace
battery using the following procedure.
① Remove the Holster Case from the Meter.
② Remove Battery Cover from the Rear Case of the meter.
③ Replace Battery and be sure to connect correct polarity inside the battery compartment.
④ Close Battery Cover and assembly in reverse order of above when opening Battery
Compartment
 Battery Charge (model SBS-700 only).
 Do not discharge battery with reverse polarity.
 Do not use any other Rechargeable Battery. Use only the 7.2 V NiMH battery pack supplied
from original manufacturer.
 Connect the Battery with the proper polarity.
When charging the battery, use only the AC Adapter and Internal charger supplied from the
original manufacturer.
 Please follow Battery Charging procedure.
① Connect the DC Power adapter to Power Outlet.
② Plug charging connector into the SBS-700.
③ When Charging is completed, “FULLY CHARGED” message is displayed on the screen.
④ If Battery is fully charged, disconnect DC Power Adapter.
⑤ Do not charge Battery while meter is being use
 Fuse Replacement
If the Fuses open due to fault, Replace fuses using the procedure below ;
① Power off the Meter. Disconnect Test Lead from Meter.
② If DC power adapter is connected, disconnect the adapter from the meter.
③ Separate Battery Cover from meter.
④ Pull out one end of defect Fuse from Fuse Clip.
⑤ Replace with same size and rating Fuse. Fuse should be placed in center of Fuse Clip.
⑥ Do not touch any other component besides Fuse.
⑦ Assemble the Battery Cover to the meter
⑧ Fuse Ratings and Dimensions are as below ;
[Fuse Rating and Dimensions]
 500mA/250V 5mm × 20mm (FF)
 1OA/250V 6.3mm × 32mm (FF)
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
