Schmeiser CULTI PLOW 2-BAR Guide

CULTI PLOW
T. G. SCHMEISER Co., Inc.
Read and understand the manual. This manual provides information and procedures
to safely operate and maintain the CULTI PLOW.
OPERATION AND PARTS
MANUAL
Version 2.0
August 2019
SCHMEISER
2-BAR
3-BAR HD

Copyright © 2019 T. G. Schmeiser Co., Inc. All rights reserved

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
3
Maintenance Schedule.......................................18
STORAGE................................................................19
Storage Preparation...........................................19
Placing in storage...............................................19
Removing From Storage..................................19
PARTS SECTION.....................................................20
Component Nomenclature..................................20
Ordering Parts....................................................20
Parts Drawings...............................................20
2-Bar Culti Plow Assembly.........................20
2-Bar Culti Plow Shank Assembly..............21
3-Bar Heavy Duty Culti Plow Assembly.22
3-Bar Culti Plow Shank Assembly..........23
Gauge Leg Assembly (Optional)................24
Culti Plow Shank Quantities .......................25
NOTES.......................................................................26
LIMITED WARRANTY STATEMENT...................27
CONTENTS
INTRODUCTION........................................................4
Engineered for Long Life...................................4
Serial Number Information....................................4
Replacement Parts................................................4
Warranty Information............................................4

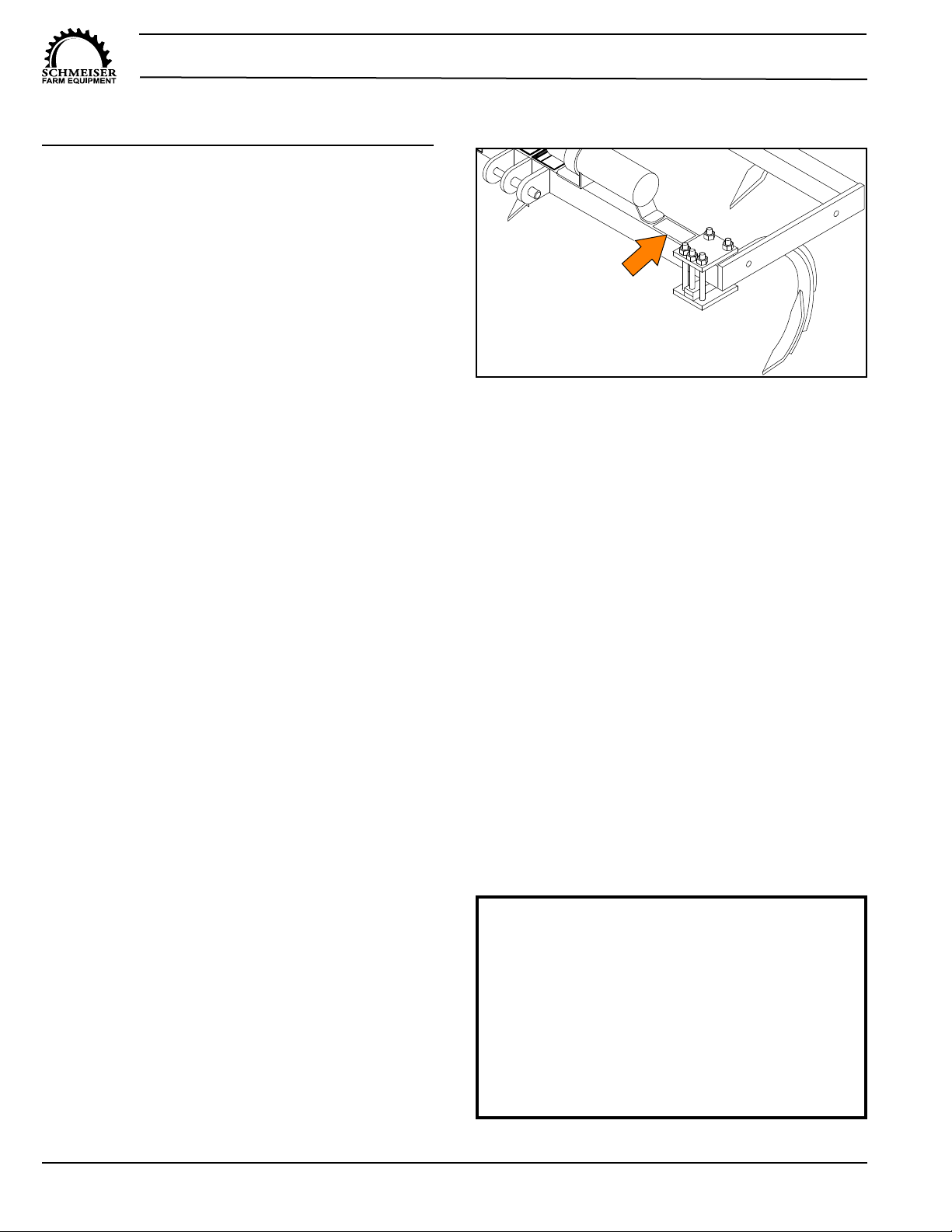

Serial Number Location.........................................4
Factory Contact Information..................................4
Dealer Contact Information....................................4
SPECIFICATIONS......................................................5
SAFETY......................................................................6
Safety Alert Symbols............................................6
Safety Icons Nomenclature..................................7
Personal Protection/Important Information..7
Prohibited Actions........................................7
Hazard Avoidance.......................................7

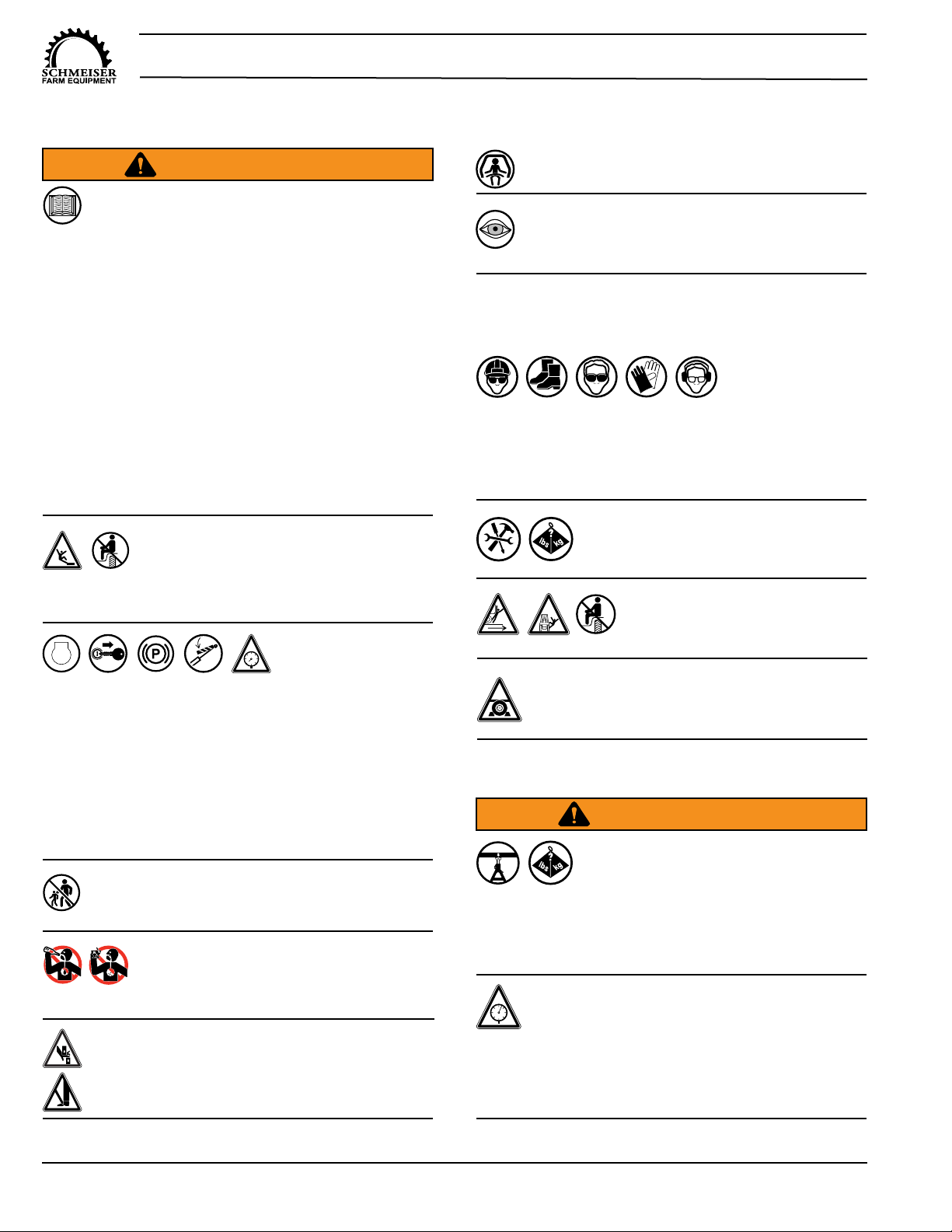

General Safety......................................................8
Assembly Safety...................................................8
Operation Safety...................................................9
Tractor Requirements..................................9
Tractor Safety Devices..............................10
ROPS and Seat Belt..................................10
Attaching to Tractor............................................10

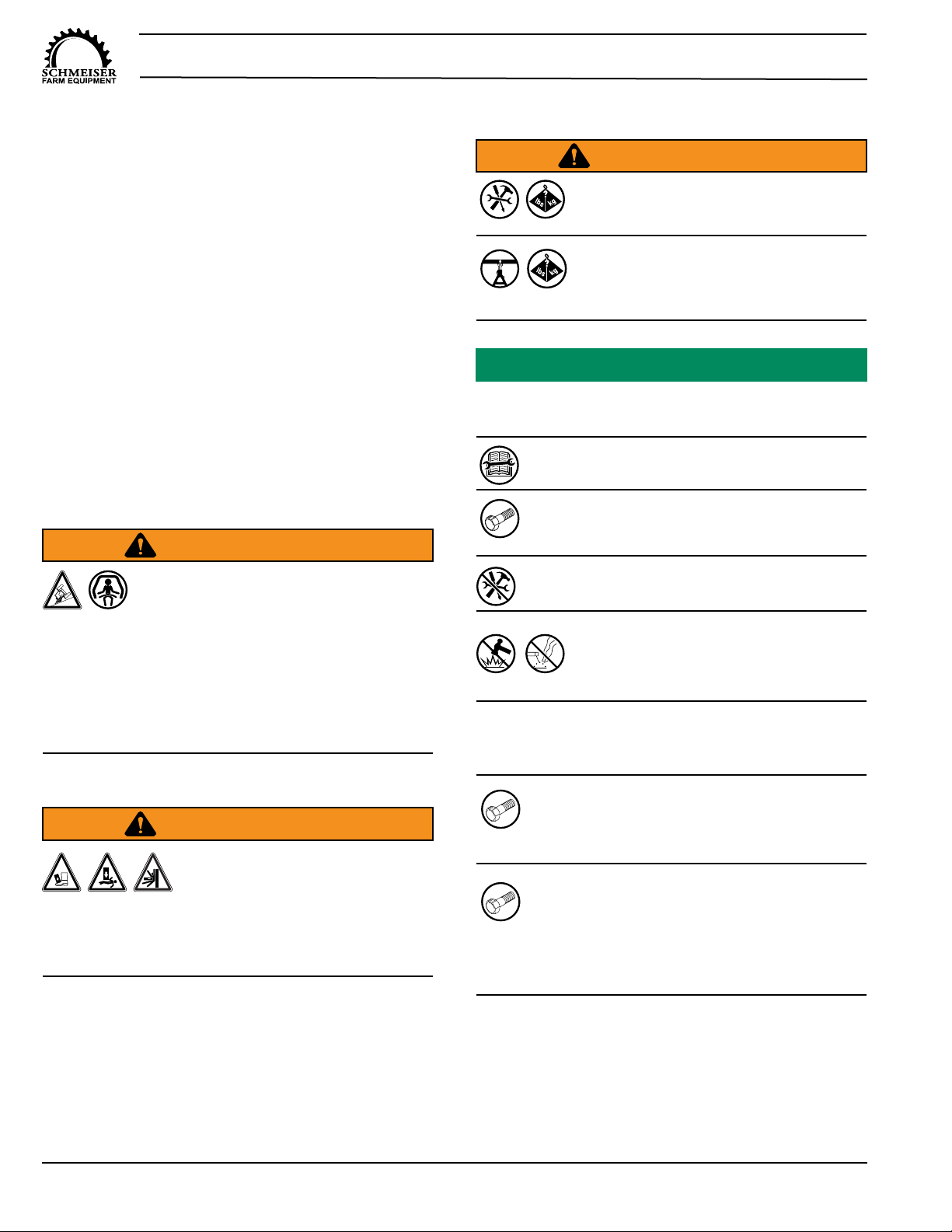

Maintenance Safety............................................10

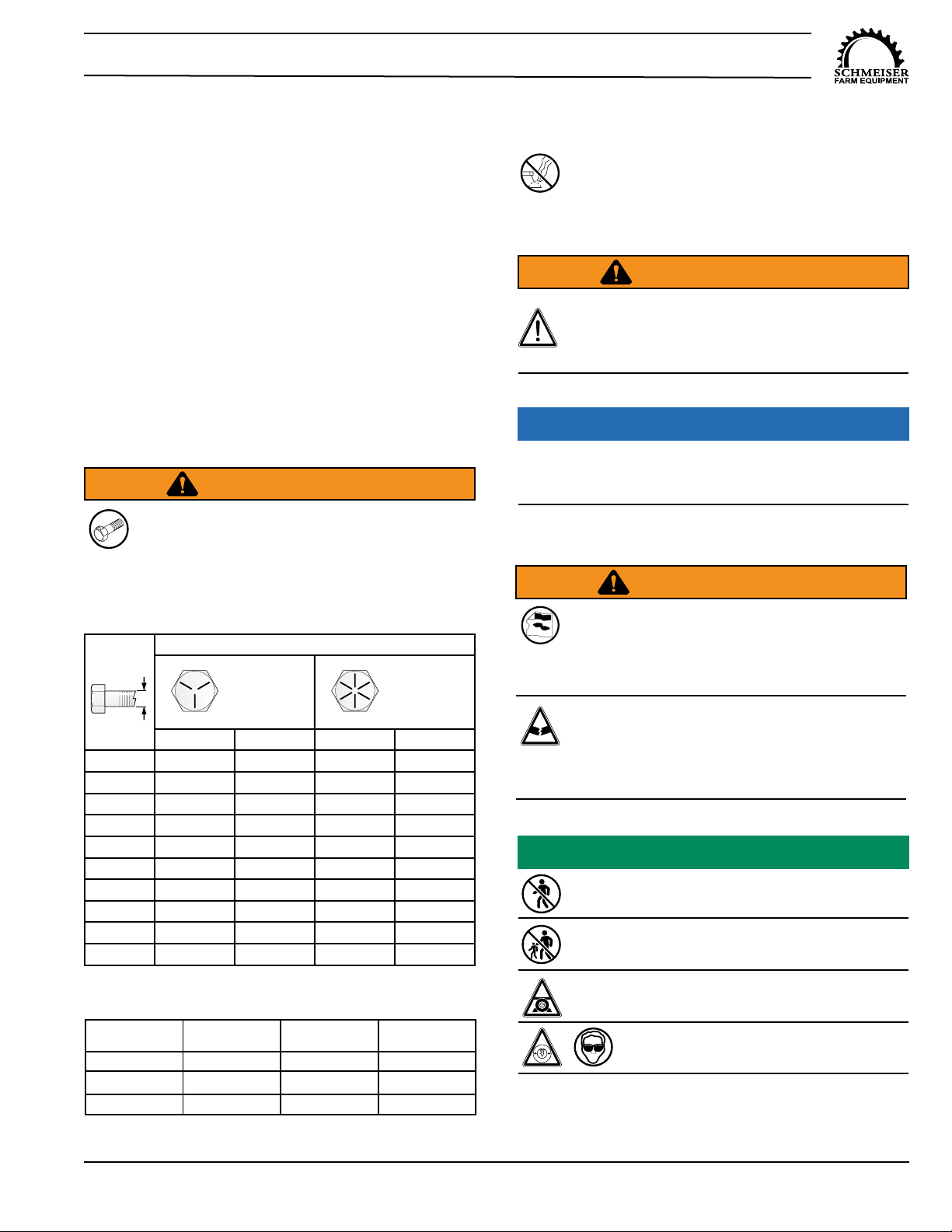

Bolt Torque Requirements.........................11
Tire and Lug Torque Specifications...........11
Welding Repairs........................................11
Storage Safety...................................................11
Disposal of Equipment at End of Useful Life......12
Safety Marking and Lighting...............................13
SAFETY SIGNS AND DECALS.......................14
Safety Sign Placement..................................14
Safety Signs and Decals...................................15
ASSEMBLY AND OPERATION.............................16
Initial Setup Checklist.........................................16
Implement Break-In............................................16
Connecting to Tractor.........................................16
Detaching from Tractor.......................................17
MAINTENANCE.......................................................17
Service Items......................................................17

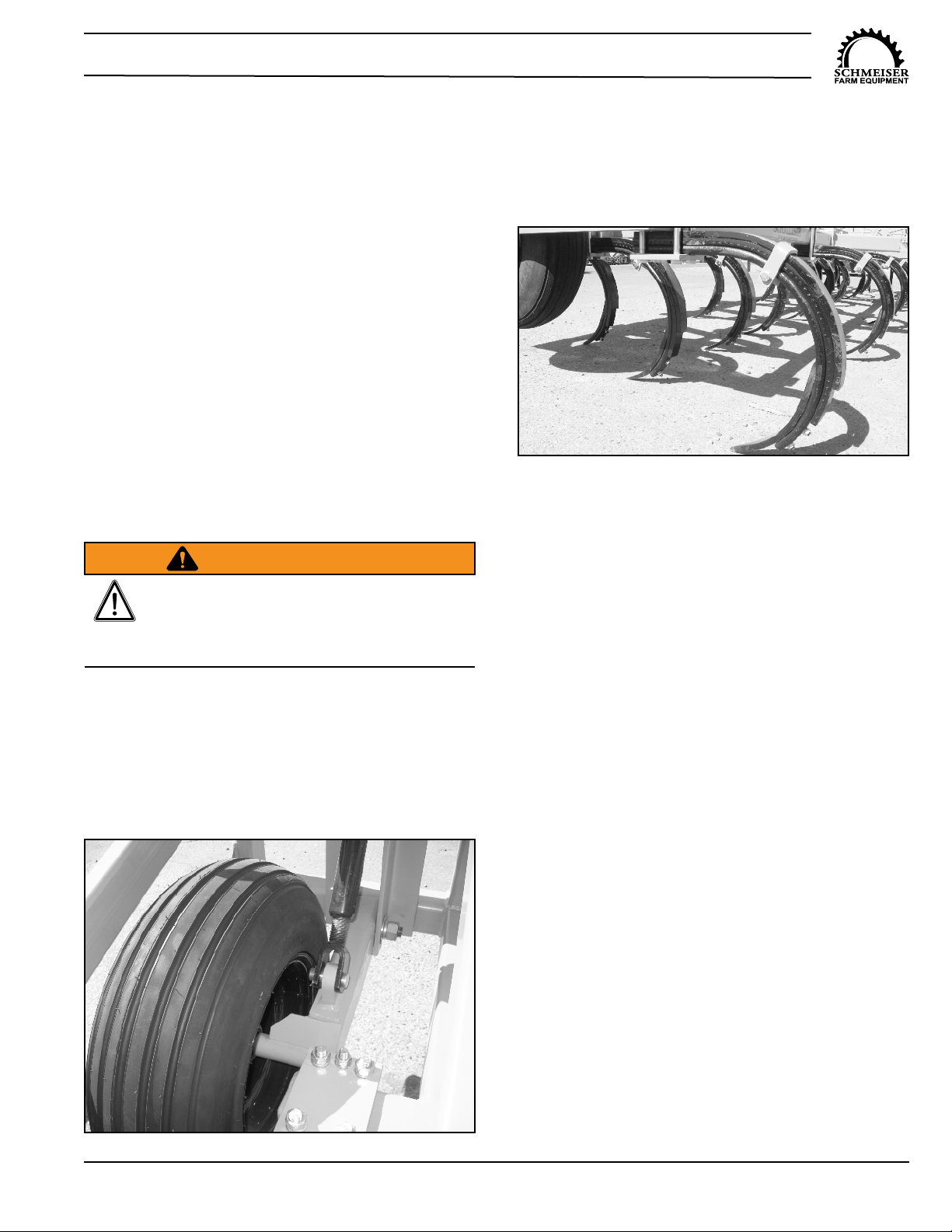

Tires...........................................................17
Ground Engaging Components........................17
Shanks and Points..................................17

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 4
INTRODUCTION
This manual has been prepared to instruct the user in
the safe and efficient operation of this implement. Read
and understand the manual thoroughly and follow all
instructions carefully.
Engineered for Long Life
Your Schmeiser Culti Plow is designed to provide many
years of dependable service.
Our products are engineered to work in conjunction with
other farm implements. This helps save time and
money.
Serial Number Information
Record the serial number, model number, and date
purchased in the space provided in the Serial Number
Location section. Be sure to have this information
whenever contacting the dealer to order parts or
attachments for this implement.
Replacement Parts
Should this implement require replacement parts,
contact your local Schmeiser dealer. Always order
genuine Schmeiser OEM replacement parts.
Warranty Information
It is important that the Warranty Card be completed and
sent to Schmeiser. The warranty will not be valid until
the information is on-file at Schmeiser. If information
not contained in this manual is needed, contact your
Schmeiser dealer.
Thank you for buying a Schmeiser _________________
Serial Number Location
Serial No.
Model No.
Purchase Date
Dealer Name
_____________________________
_____________________________
_____________________________
_____________________________
Factory Contact Information
For questions not answered in this manual, if additional
copies are required, or the manual is damaged, please
contact your local dealer or:
T. G. Schmeiser Co., Inc.
P.O. Box 1392
Selma, CA 93662
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: www.tgschmeiser.com
Additional copies of this manual can also be downloaded
at www.tgschmeiser.com.
Dealer Contact Information
For replacement decals, questions, or to order parts,
contact your dealer:

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
5
SPECIFICATIONS
Model Overall Width Number of Shanks Weight Required HP
4CP1, 4CP3 4’-6” 5 413 lbs, 508 lbs 60-80
5CP1, 5CP3 5’-2” 5 438 lbs, 533 lbs 60-80
6CP1, 6CP3 6’-2” 5 463 lbs, 558 lbs 60-80
7CP1, 7CP3 7’-2” 7 520 lbs, 647 lbs 85-115
8CP1, 8CP3 8’-2” 7 545 lbs, 672 lbs 85-115
HCP310 10’-7” 9 1575 lbs 110-145
HCP312 12’-7” 11 1811 lbs 135-175
HCP314 14’-7” 13 2047 lbs 155-210
HCP316 16’-7” 15 2283 lbs 180-240
HCP318 18’-7” 17 2519 lbs 205-275
HCP320 20’-7” 19 2755 lbs 230-305
CP1 Single Shank Culti Plow
CP3 Double Shank Culti Plow
HCP Heavy Duty Culti Plow
2-Bar Models
3-Bar Models

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 6
Carefully read and follow all safety precautions before
operation. There are obvious and hidden potential
hazards involved in the operation of this implement.
Serious injury or death may occur unless care is
taken to ensure the safety of both the operator and
any other persons in the area. Avoid potential danger
by taking extra time for thought and a more careful
approach to the use of this implement.
Most work related accidents are caused by failure to
observe basic safety rules or precautions. An
accident can often be avoided by recognizing
potentially hazardous situations before an accident
occurs. As you assemble, operate, or maintain the
unit, you must be alert to potential hazards. You
should also have the necessary training, skills, and
tools to perform any assembly or maintenance
procedures.
Improper operation and maintenance of this unit could
result in a dangerous situation that could cause injury
or death. T.G. Schmeiser cannot anticipate every
possible circumstance that might involve a potential
hazard. The warnings in this manual and on the
product are, therefore, not all-inclusive. If a method of
operation not specifically recommended by us is
used, you must satisfy yourself that it is safe for you
and for others. You should also ensure that the unit
will not be damaged or be made unsafe by the
methods that you choose.
The information, specifications, and illustrations in this
manual are based on the information that was
available at the time this material was written and are
subject to change without notice.
Safety Alert Symbols
This is the safety alert symbol. It is used to
alert you to potential personal injury
hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
This manual contains DANGERS, SAFETY
INSTRUCTIONS, CAUTIONS, IMPORTANT NOTICES,
and NOTES which must be followed to prevent the
possibility of improper service, damage to the equipment,
personal injury, or death. The following key words call the
readers attention to potential hazards.
Hazards are identified by the “Safety Alert Symbol” and
followed by a signal word such as “DANGER”,
“WARNING”, or “CAUTION”.
DANGER
Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury .
This signal word is limited to the most extreme
situations .
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury .
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
Indicates that equipment or property damage can
result if instructions are not followed.
NOTICE
Safety instructions (or equivalent) signs indicate
specific safety-related instructions or procedures.
SAFETY INSTRUCTIONS
Note: Contains additional information important to a
procedure.
SAFETY
WARNING

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
7
Safety Icons Nomenclature
This manual and the equipment has
numerous safety icons.
These safety icons provide
important operating instructions
which alert you to potential personal
injury hazards.
READ THE MANUAL
THINK
SAFETY! THINK SAFETY
MAINTENANCE
PROCEDURE
WEIGHT RATING
HAND PROTECTION
HEAD PROTECTION
HEARING PROTECTION
INSPECT EQUIPMENT
N
PLACE IN NEUTRAL
PROTECTIVE SHOES
REMOVE KEY
EYE PROTECTION
DAMAGED HAZARD
LABEL
OEM PARTS ONLY
OEM
SET PARKING BRAKE
SLOW VEHICLE PLACARD
STOP STOP ENGINE
Prohibited Actions
SUPPORT STAND USAGE
USE PROPER TOOLS
VISUALLY INSPECT
USE ROPS
USE CORRECT PARTS
DO NOT ALTER OR MODIFY
DO NOT LEAVE OUT TOOLS
DO NOT WELD
NO ALCOHOL
NO CHILDREN
NO DRUGS
NO BYSTANDERS
NO RIDERS
NO PASSENGERS
CRUSHING HAZARD (body)
CRUSHING HAZARD (foot)
CRUSH HAZARD (rolling over)
DEFECTIVE OR BROKEN PART
FALLING HAZARD
MAINTAIN SAFE DISTANCE
OVERTURN HAZARD
PINCH POINT HAZARD
SAFETY ALERT SYMBOL
SHARP OBJECT HAZARD
0ZERO PRESSURE
COMPRESSED AIR HAZARD
CRUSH HAZARD
CRUSH HAZARD
BLOCK WHEELS
HIGH PRESSURE
FLUID HAZARD
HOT SURFACE HAZARD
HEAVY OBJECT HAZARD
Personal Protection/Important
Information
Hazard Avoidance

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 8
NO PASSENGERS ALLOWED
Do not carry passengers
anywhere on or in the tractor or
implement .
Read and Understand Manual
To prevent personal injury or even death, be sure
you read and understand all of the instructions in
this manual and other related OEM equipment manuals!
This equipment is dangerous to children and persons
unfamiliar with its operation . The operator should be a
responsible adult familiar with farm machinery and
trained in this equipment’s operations . Do not allow
persons to operate or maintain this unit until they have
read this manual and have developed a thorough
understanding of the safety precautions and how it
works .
This unit was designed for a specific application;
DO NOT modify or use this unit for any application other
than that for which it was designed .
Units operated improperly or by untrained personnel
can be dangerous!
WARNING
GENERAL SAFETY
Fall Hazard
Do not use this implement as a work
platform . Do not stand on top of the unit at
any time . Do not ride on the tractor or the implement or
allow others to ride .
Crush Hazard
(Rolling Over)
To prevent serious
injury or death, before disconnecting, leaving the
operator’s seat, servicing, adjusting, repairing, or
performing other work on the implement, ALWAYS:
1 . Stop the tractor or towing vehicle .
2 . Shut off the engine and remove the ignition key .
3 . Set the brakes .
4 . Make sure wheel cylinder transport lock is
attached .
5. Relieve hydraulic fluid pressure.
STOP
0
ASSEMBLY SAFETY
Crush Hazard
Use support blocks or safety stands
rated to support the load when
assembling the unit or performing maintenance .
Never work under equipment supported by hydraulics .
Hydraulics can drop equipment instantly if controls are
actuated even when power to the hydraulics is shut off .
To prevent injury, use a tractor equipped with a
Roll Over Protective System (ROPS) .
Visually Inspect
Visually inspect the unit for any loose bolts,
worn parts, or cracked welds, and make
necessary repairs before using the unit .
Rolling Hazard
To prevent serious injury, lock the wheels when
performing assembly, maintenance, repairs, or
when preparing for storage.
Personal Protection Equipment
When working around or operating this unit, wear
appropriate personal protective equipment . This list
includes but is not limited to:
• A hard hat
• Protective shoes with slip resistant soles
• Protective goggles, glasses, or face shield
• Heavy gloves and protective clothing
• Ear muffs or plugs
Use Properly Rated Tools
To prevent serious injury:
Use sufficient tools, jacks, and hoists
that have the capacity for the job .
Trapped Air Hazard
When installing, replacing, or repairing hydraulic
system cylinders or parts, make sure that the
entire system is charged and free of air before resuming
operations . Failure to bleed the system of all air can
result in improper machine operation, causing severe
injury .
WARNING
Injury Hazard
Do not permit children to play on or around the
unit .
Impaired Operator Hazard
Do not attempt to operate this unit under the
influence of drugs or alcohol. Review the
safety instructions with all users annually .
Pinch Point /Sharp Object Hazard
Do not place any body parts between moving and /
or stationary parts . The weight of the implement will
easily cause serious bodily injury.

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
9
Tractor Requirements
Highway and Transport Operations
Be observant of bridge load restrictions . Do not cross
bridges rated lower than the gross weight at which you
are operating .
Be a safe and courteous driver . Always yield to
oncoming traffic in all situations, including narrow
bridges, intersections, etc . Plan your route to avoid
heavy traffic.
Some localities prohibit the use of flashing amber
lights . Local laws should be checked for all highway
lighting and marking requirements .
When towing the unit on public roads, use
flashing amber warning lights and a slow moving
vehicle (SMV) identification emblem.
Make sure the SMV placard is clearly visible to vehicles
approaching from the rear .
When transporting the implement on public
roads, use approved accessory lighting, flags, or
other necessary warning devices to protect
operators of other vehicles on the highway
during daytime and nighttime transport . Various safety
lights and devices are available from your dealer .
SAFETY INSTRUCTIONS
OPERATION SAFETY
WARNING
Crush Hazard (Rolling Over)
Do not clean, lubricate, or make adjustments
while the unit is moving .
Never allow inexperienced or untrained
personnel to operate the implement or tractor
without supervision .
Enter And Exit Tractor
To avoid being run over, do not enter or exit
tractor when it is moving . Avoid serious injury or
death, from contact with rotating tires, by
entering or exiting tractor only when it is
completely stopped .
Safe Distance
Keep all bystanders, especially children, away
from the tractor and implement during operation .
Periodically clear the unit of brush, twigs, or other
materials to prevent buildup of dry, combustible
materials .
Visually check all fasteners for tightness
or damage before and after operation .
Repair immediately if required .
SAFETY INSTRUCTIONS
Tractor Owner/Operator Manual
Always refer to the tractor Operator’s Manual
to ensure compatibility and maximum safety .
Be familiar with the location, settings, and function of the
tractor controls before using this equipment .
WARNING
SAFETY INSTRUCTIONS
Do not use a tractor of more than the recommended HP
to prevent damaging implement components.
Loss of Control
A minimum of 20% of the combined tractor
and equipment weight should be on the front
wheels to ensure adequate stability during transport
and operation . To avoid serious injury or death from
a loss of control accident, maintain 20% weight on
the front wheels . Add front end weight if necessary .

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 10
If transporting or operating the tractor and implement
near a public roadway, the tractor must be equipped
with proper warning lighting and a Slow Moving Vehicle
(SMV) emblem, which are clearly visible from the rear of
the unit. Lights and a SMV emblem must be attached
directly to the implement if the visibility of the tractor
warning signals is obscured.
Never operate the tractor PTO with the PTO master
shield missing or in the raised position.
Rollover Hazard
To avoid serious injury or death from
falling off tractor, equipment runover,
rollover, or crushing:
1) Use ROPS equipped tractor .
2) Keep ROPS locked in the UP position .
3) Only operate the equipment when seated in the
tractor seat .
4) Always fasten seat belt when operating the tractor
and Implement .
ROPS and Seat Belt
Tractor Safety Devices
The tractor must be equipped with a Roll Over Protective
Structure (ROPS) (tractor cab or roll-bar) and seat belt to
protect the operator from falling off the tractor, especially
during a roll-over where the driver could be crushed and
killed.
Only operate the tractor with the ROPS in the raised
position and seat belt fastened.
WARNING
Crush Hazard
Use care when attaching the unit
to the tractor . Never place any
part of your body under the tongue or hitch assembly .
Do not allow anyone to stand between moving tractor
and implement during hook-up operations.
WARNING
Connecting to Tractor
MAINTENANCE SAFETY
WARNING
Use Properly Rated Tools
Use sufficient tools, jacks, and hoists
that have the capacity for the job .
Crush Hazard
Use support blocks or safety stands
rated to support the load when
performing maintenance .
SAFETY INSTRUCTIONS
Never replace hex bolts with less than Grade
5 bolts unless otherwise specified. In locations
where Grade 8 bolts are used, Grade 8
replacements are required .
OEM
If equipment has been altered in any way from the
original design, the manufacturer does not accept any
liability for injury or warranty .
Do not modify unit or safety devices . Do
not weld on the unit . Unauthorized
modifications may impair its function and
safety .
Do not leave tools lying on the unit .
Keep all parts in good condition and properly
installed . Fix damage immediately . Replace
worn or broken parts .
Understand the service procedure before
performing the work . Keep area clean and dry .
Follow all operating, maintenance, and safety
instructions found in this manual .
Where replacement parts are necessary for
periodic maintenance and servicing, genuine
factory replacement parts must be used to
restore the unit to original specifications.
The manufacturer will not accept responsibility for
damages as a result of the use of unapproved parts .
OEM

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
11
It is extremely important to apply and maintain proper
torque on all bolts. Use a torque wrench to assure the
proper amount of torque is being applied to the fastener.
Start all bolts or nuts by hand to prevent cross threading.
Torque figures indicated in the chart are used for non-
greased or non-oiled threads unless otherwise specified.
Therefore, do not grease or oil bolts or cap screws
unless otherwise specified in this manual. When using
locking elements, increase torque values by 5%.
The chart gives correct torque values for various
bolts and cap screws. Tighten all bolts to the torques
specified in the chart unless otherwise noted. Check
tightness of bolts periodically, using the bolt torque chart
as a guide. Always replace hardware with the same
Grade bolt.
Bolt Torque Requirements
WARNING
N·m ft .lbs . N·m ft .lbs .
1/4" 12 9 17 12
5/16" 25 19 36 27
3/8" 45 33 63 45
7/16" 72 53 100 75
1/2" 110 80 155 115
9/16" 155 115 220 165
5/8" 215 158 305 220
3/4" 390 290 540 398
7/8" 570 420 880 650
1" 850 630 1320 970
Bolt
Diameter
Bolt Torque Specifications
3 Radial Lines
Grade 8
6 Radial Lines
Grade 5
Equipment Failure
The torque value for bolts and cap screws are
identified by their head markings. Replacing
higher “Grade” bolts (Grade 5) with lower Grade
bolts will lead to equipment failure and can result in
injury or death . Always use replacement bolts with
the same Grade markings as the removed bolt .
OEM
Lug Torque
(lb. ft .)
7.6 x 15 8 Ply 1/2” 80
9.5 x 15 8 Ply 1/2” 80
12.5 x 16 14 Ply 9/16” 70
Tire Size Ply Rating Lug Size
Tire and Lug Torque Specifications
Before performing any type of welding repair to
the implement, contact T.G. Schmeiser Co., Inc.
for approval. Repair welding must be done with care and
with procedures that may be beyond the capabilities of
the ordinary welder.
Anyone performing a welding repair should be
certified in accordance to the American Welding
Society (AWS) standards.
NOTICE
Personal Injury Hazard
Repairs or modifications to the implement can
result in serious injury or death should these
repairs fail .
WARNING
Welding Repairs
Hazard And Information Signs
Replace any missing or hard-to-read safety
signs . Safety sign placement and part numbers
can be found in the Nomenclature section of this manual.
AR
N
I
NG
Damaged Parts Hazard
Do not use this unit if it is in need of repair .
If you believe the unit has a defect which could
cause damage, injury, or death, you should immediately
stop using the unit .
STORAGE SAFETY
WARNING
When using compressed air to clean
implement, wear safety glasses .
Store the implement in an area away from
human activity.
Do not permit children to play on or around the
stored unit at any time .
Block the wheels to prevent the implement from
rolling .
SAFETY INSTRUCTIONS

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 12
The T. G. Schmeiser implement has been designed for
the specific purpose of conditioning the ground in
agricultural applications. When this unit is no longer
capable of doing its designed purpose, it should be
dismantled and scrapped. Do not use any materials or
components from this unit for any other purpose.
DISPOSAL OF EQUIPMENT AT END OF
USEFUL LIFE

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
13
## Part Number Description Q’ty
1 GLT-LSDY Lamp, Surface Mount Double Yellow 2
2 GLT-LSSR Lamp, Surface Mount Single Red 2
3 D-2X9RY Reflective Tape, Yellow 2
4 D-2X9RR Reflective Tape, Red 2
5 D-2X9FL Fluorescent Tape, Orange 2
6 GLT-HF07 Front Harness, 7 Ft. Long 1
7 GLT-FCM Flasher Control Module 1
8 GLT-HW1024 Rear Wishbone Harness 10 Ft.-24 Ft. 1
SAFETY LIGHTING AND MARKING
LIGHTING DIAGRAM (FOR 3-BAR HD CULTI-PLOWS)
2-BAR CULTI PLOW
3-BAR HD CULTI PLOW
1
2
3
2
1
6
7
8
8
3
4
5
4
5
4
4
FRONT OF
MACHINE FRONT OF
MACHINE

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 14
Follow all operating, maintenance, and safety Instructions found in this manual .
Replace all worn or damaged safety and instruction decals .
●It is the responsibility of the customer to know the marking requirements of the local highway authorities and to comply
with the regulations.
●Keep safety signs clean and legible at all times. Replace safety signs that are missing or have become illegible.
●Do not paint over, remove, or deface any safety signs or instructional decals on your equipment. Observe all safety
signs and follow the instructions on them.
●When parts that display a safety sign are replaced,the replacement part should display the same sign.
●Make sure the safety signs and other instructional decals are legible and attached to the unit before use.
●Safety signs are available from your Distributor, Dealer Parts Department, or the factory.
●Use care when washing or cleaning the unit not to remove or damage the labels.
●Locations for the labels and replacement part numbers are shown in this section.
SAFETY SIGNS AND DECALS
SAFETY INSTRUCTIONS
SAFETY SIGN PLACEMENT
1
1
2
3
4
65
7
1
1
3
2
6
5
4

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
15
2.
4.
6. D32X048RBC
5.
D52X272BLK
7.
1.
3.
Safety Signs
Item Part Number Description Qty.
1 D28X048PPT Pinch Point 2
2 D48X038RTM Read the Manual 1
3 D48X038CRR Crush / Rollover Hazard 1
4 D48X48QR Scan to Access Online Manual 1
5 — FEMA 1
6 D32X048RBC Made in the USA 1
7 D32X208TGS Schmeiser (13”) 4
D-KIT-TP TP Decal Kit (includes items 1, 2, and 3)

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 16
Initial Setup Checklist
Efficient and safe operation of the implement requires
that every user read and understand the operational
instructions and all related safety instructions outlined in
this manual.
This checklist is provided for the user/owner. It is
important for both personal safety and to maintain the
mechanical condition of the implement that this checklist
is followed.
Initial Setup Checklist
(prior to using for the first time)
Location Task
Make sure the Implement is
properly attached to the tractor.
Refer to “Attaching to Tractor”
on page 11.
Make sure all hardware is
properly installed and tightened.
Refer to “Maintenance” on page
13.
Check the condition of the
shanks and points for wear.
Implement Break-In
Although there are no operational restrictions on the
Implement when used for the first time, it is
recommended that the following mechanical items be
checked:
1. After 1/2 hour of operation:
a. Check all fasteners and tighten if necessary.
b. Make sure that the ring roller is in good
condition.
Connecting to the Tractor
Make sure the unit is resting on the ground with safety
stand securely installed before attaching the unit to the
tractor.
1. Remove the lynch pins and lift pins.
2. Board the tractor and start the engine. Position the
tractor with the 3-point lift arms positioned at the
same height and aligned with the Culti Plow hitch pin
holes.
Note: Set the 3-point lift control to “Position Control” so
that the lift arms maintain a constant height when
attaching the Culti Plow. See the tractor
Operator’s Manual for correct settings when
attaching 3-point equipment.
3. Turn off the tractor engine and dismount.
4. Insert the hitch pin through the lift arm and lug holes
and install the lynch pin.
5. Walk around to the opposite side and repeat the
procedure for the remaining lift arm and hitch pin.
6. Extend or retract the 3-point top link to align its end
hole with the hole of the Culti Plow top link. Insert the
top link hitch pin and insert the lynch pin into the hitch
pin.
7. Return to the tractor and slowly raise the 3-point lift
arms fully up and down to make sure the Culti Plow
does not make contact with the tractor tire, draw bar,
or any other equipment on the tractor.
NOTE: Move or remove the draw bar if it interferes with
the implement.
8. Remove safety clip and securing pin on rear Safety
Stand, raise Stand to storage position, and reinstall
securing pin and safety clip.
ASSEMBLY AND OPERATION
WARNING
Understand Safety Procedures!
Read and understand all safety procedures
described in this manual before performing any work
on or around the implement.
2. After 10 hours of operation:
a. Go to the normal servicing and maintenance
schedule, as defined in the Maintenance
Section.

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
17
Detaching From Tractor
1. Park the tractor, place the transmission in park or
neutral, and apply the parking brake. Shut down the
engine, relieve all hydraulic pressure, and remove the
key before exiting the tractor.
2. Remove Culti Plow safety stand securing pin and
lower the safety stand to in-use position. Lock in
place with securing pin.
3. Lower the implement to the ground and make sure the
safety stand makes full contact with the ground.
4. Extend or retract the tractor 3-point hitch top link to
remove tension on the top link hitch pin. When the
pin is loose and easy to rotate, remove the pin from
the Culti Plow.
5. Disconnect the lift arms and drive the tractor away
from the Culti Plow.
MAINTENANCE
WARNING
Understand Safety Procedures!
Read and understand all safety procedures
described in this manual before performing any work
on or around the implement.
Shanks and Points
Visually inspect shanks and points for wear and damage.
Replace any excessively worn or damaged items.
Tires (Optional) - 3-Bar Heavy Duty Culti Plow
Check tire pressure and set to tire manufacturer’s
recommended specifications. Inspect the tires for wear
and/or damage. Make sure the wheel lugs are tightened
to the proper torque.
Ground Engaging Components
Service Items

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 18
Before Each Use
Ensure that all fasteners are tight, and all pins are secured
in place.
Inspect the frame for structural fractures.
Make sure all warning decals are in place and legible.
Check shanks and points for wear and damage. Replace if
necessary.
Lubricate zerk fittings on turnbuckles with a good general
purpose grease (Optional gauge wheels).
Every 50 Hours or Weekly
Perform the Daily Maintenance schedule.
Lubricate zerk fittings on turnbuckles with a good general
purpose grease (Optional gauge wheels).
Check tire pressure and set to tire manufacturer’s
recommended specifications. Inspect the tires for wear and/
or damage. Make sure the wheel lugs are tightened to the
proper torque. Refer to “Tire and Lug Torque Specifications”
on page 12 (Optional gauge wheels).
Every 1000 Hours or Annually
Perform the Daily Maintenance schedule.
Perform the Weekly Maintenance schedule.
Lubricate zerk fittings on the optional gauge wheel bearing
hubs with a good quality wheel bearing grease. Fill each
cavity just until resistance is felt. Do not force grease past the
seals.
Remove debris and clean the entire implement with
compressed air or a pressure washer.
Remove rust and apply a coat of paint to frame surfaces
Maintenance Schedule
The period recommended is based on normal operating
conditions. Severe or unusual conditions may require
more frequent service.
Copy this page to continue the record.
Hours and
Serviced By
Maintenance

CULTI PLOWT.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com
19
NOTICE
To help prevent damage, avoid spraying air, water,
steam, or cleaning solvents directly at the bearings and
seals.
7. Add grease to the fittings on the gauge wheel bearing
hubs with a good quality wheel bearing grease. Fill
each cavity just until resistance is felt. Do not force
grease past the seals (Optional gauge wheels).
8. Apply a thin layer of grease or rust preventative to all
exposed metal surfaces of the cylinder rods.
9. To help prevent corrosion, remove rust and apply a
coat of paint to frame surfaces where paint has been
worn off or damaged.
Placing in storage
1. Move the Culti Plow to a storage area with a firm and
level base to prevent it from tipping or sinking into the
ground. For best results, always store the Culti Plow
in a dry, protected location. Leaving this implement
unprotected will shorten the service life.
Removing From Storage
Each season, perform the following inspection and
maintenance before using the unit.
1. Read the operator’s manual to review all safety,
operational, and maintenance procedures.
NOTE: Store the operator’s manual in the document
storage canister located on the main frame.
2. Perform any recommended maintenance that was not
completed when the implement was put into storage.
3. Visually inspect the implement for wear or damage.
4. Check the tire pressure and set to the tire
manufacturer’s recommended specification. Inspect
the tires for wear and/or damage (Optional gauge
wheels).
6. Make sure all the warning decals are in place and
legible. Replace any damaged or missing decals.
7. Hitch the implement to a tractor. Refer to
“Connecting to Tractor” on page 16.
2. Lower safety stand (if equipped), secure it in place
with locking pin, and unhitch the implement from the
tractor. Refer to “Detaching From Tractor” on page
17.
3. Store the implement with the storage lockouts
secured in place. Do not leave the tractor attached to
the implement while in storage.
Storage Preparation
After Culti Plow field work is completed for a season,
perform the following maintenance procedures before
storing the implement.
1. Check all bolted connections. Ensure that the
fasteners are tight, and all retaining pins are secured
in place with appropriate retaining clips.
2. Check the tire pressure and set to the tire
manufacturer’s recommended specification. Inspect
the tires for wear and/or damage. Make sure the
wheel lugs are properly tightened. Refer to “Tire and
Lug Torque Specifications” on page 12 (Optional
gauge wheels).
3. Inspect the frame for structure fractures and inspect
the side wing pivot points for wear or damage.
4. Check all shanks and points for wear and damage. If
any items are excessively worn or damaged, they
must be replaced.
5. Make sure all the warning decals are in place and
legible. Replace any worn decals as needed.
6. Remove debris and clean the entire implement with
compressed air or low pressure water.
STORAGE

CULTI PLOW T.G. Schmeiser Co., Inc.
Ph. [phone]
Fax [phone]
www.tgschmeiser.com 20
1
2
3
4
12
12
10 119
8
8
7
11
10
11
10
5
6
13
14
Item Part Number Description Qty
1SCP-00B000 3-Pt. Culti Plow Main Frame (specify size) 1
2 SCP-00A400 A-Frame Brace QH 2
3 SCP-00A300 3-Pt. Culti Plow A-Frame Mast QH 1
4 —-------------- Shank Assembly (see p. for details) Varies
5 GPN-18CA12 CA 1 & 2 Pull Pin 2
6 GPN-040LYN 1/4” Lynch Pin 2
7 SCP-01EX00 1 Ft. Extension Frame (Optional) 2
8 CSNC512040 3/4" X 2-1/2” NC Gr.5 Cap Screw 2 or 6*
9 CSNC512104 3/4” X 6-1/2” NC Gr.5 Cap Screw 1
10 LWASHER-12 3/4” Lock Washer 3 or 7*
11 HXNUT-12NC 3/4” NC Hex Nut 3 or 7*
12 FWASHER-12 3/4” Flat Washer 2
13 SCP-00D200 Safety Stand 1
14 OMC-1 Owner Manual Canister 1
Parts Drawings
2-Bar Culti-Plow Assembly
Ordering Parts
We manufacture a quality product that requires very little maintenance or repair. However, should a part break or
become damaged, our knowledgeable staff can make sure you receive the part(s) to put your unit back into operation.
