SCHOTT MC-LS Instruction manual

Microscopy Light Source
MC-LS
Quick-Start Manual
D20990.105 Rev A –DCN 24220
Intended Use
The SCHOTT Microscopy Light Source (MC-LS) is a variable intensity white LED light source intended for use with
fiber optic light guides. This light source has a highly efficient, state of the art light engine, a simple user interface,
and basic remote control capabilities. The MC-LS is compatible with SCHOTT ColdVision Series fiber optics.
Scope
This manual is designed to provide users with the technical information needed to safely operate the MC-LS, model
#A20990.
Safety Information
If the equipment is not used in the manner specified by the manufacturer, the protection provided by the equipment
may be impaired.
Symbol
Meaning
Warning, read the manual before operating the unit.
Possibly hazardous optical radiation emitted from this product. Do not stare at operating
lamp. May be harmful to the eyes.
Caution, hot surface
Direct current
Light-absorbing materialshave the physical property of converting incident light into heat. Damage may occur to heat
sensitive or flammable light absorbing materials. To avoid such thermal damage and the potential danger of fire or
burns, please adhere to the following instructions:
Never block the optical output aperture or place any part of the body in the light output path.
Due to the high optical power in the focal area only fiber optic light guide with glass optical fibers should be
used. Plastic optical fibers may be damaged due to the high temperatures.
Do not cover any of the air vents when operating the unit.
Use only the included power supply adaptor.
Disconnect the power cord when the unit will be left unused for long periods of time.

D20990.105 Rev A MC-LS Quick-Start User Manual Page 2
Do not use this unit near liquids, or in an area with excessive moisture. Do not spill liquids on the unit.
Do not operate the MC-LS in an explosive environment. Do not place flammable materials on or near theunit.
No not open or disassemble any part of the unit. There are no user-serviceable components inside the unit.
Repairs must be carried out by an authorized service center. Contact your distributor or a SCHOTT sales
representative for more information.
Operation
1. Place the MC-LS on a sturdy, flat surface. Ensure there is at least 2” of space between the top, rear, and
sides of the unit and other equipment.
2. Insert the fiber optic into the nosecone. Gently tighten the thumbscrew by hand to secure the fiber optic.
Over-tightening the thumbscrew may cause damage to both the MC-LS and the fiber optic.
3. Insert the power supply plug into the DC power receptacle on the rear of the MC-LS.
4. Plug the included AC power cord into the power supply and a grounded receptacle with the appropriate
voltage and frequency.
5. Press the pushbutton on the front panel of the unit to turn it on. A blue light on the pushbutton will illuminate
to indicate that the LED output is enabled.
6. Rotate the knob on the front panel to control the LED intensity.
Technical Specification
Power Supply Adaptor
Input: 100-240Vac (±10%), 50-60Hz 1.5A
Output: 24VDC, 2.5A
Manufacturer: GlobTek, Inc., Part Number: TR9CI2700LCP-N(R6B)
Overvoltage Category
Overvoltage category II
MC-LS DC Power Input
24VDC, 2.5A rated, 5.5mm x 2.5mm barrel connector, center is positive
Optical Output
850 lumens minimum, 1000 lumens typical, measured with an integrating sphere at
the output of a reference light guide, 13mm active area, 1m length (SCHOTT P/N
A08051.40)
Color temperature
5400K (typical)
Operating temperature
0°C to 40°C

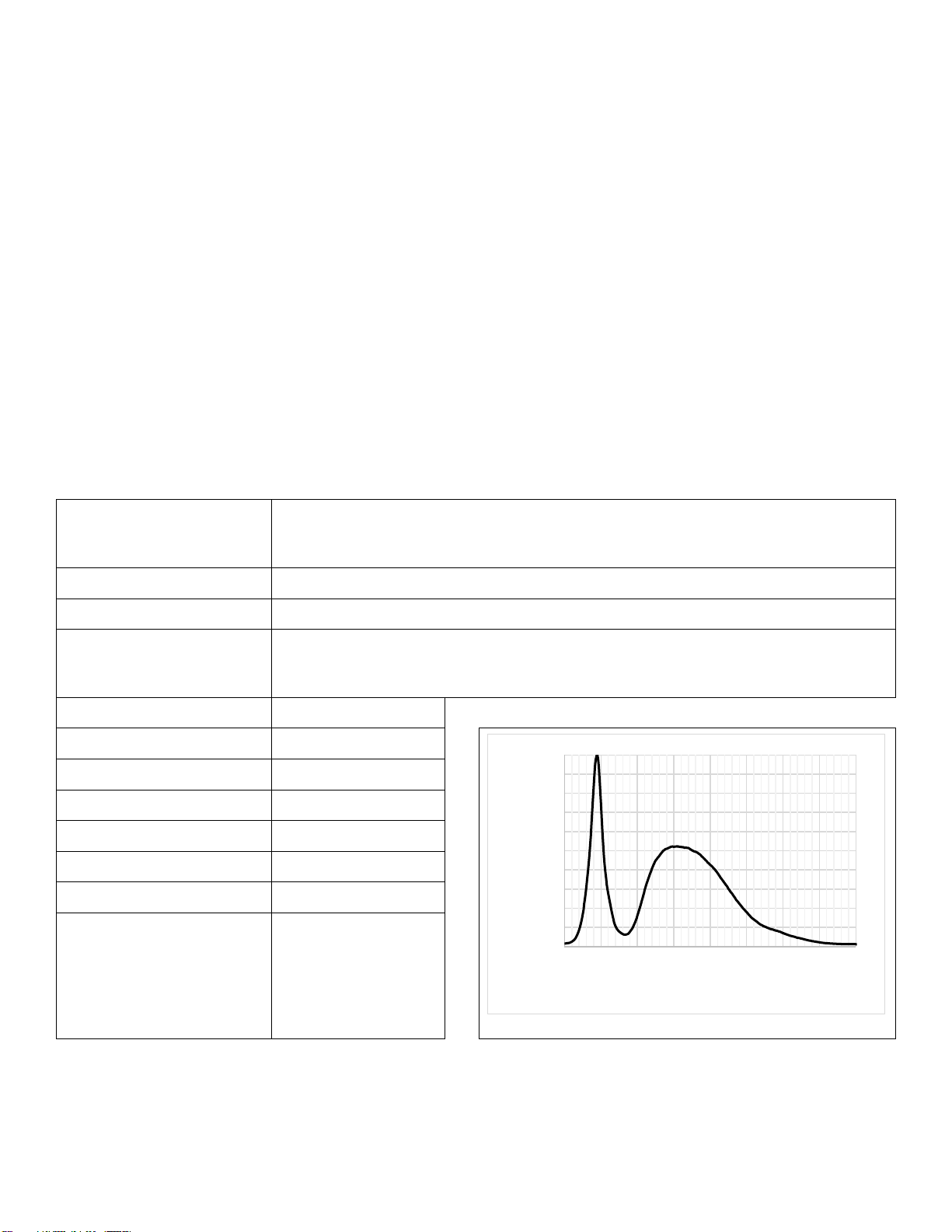

Figure 1: Typical Relative Spectral Output
Relative humidity
85% maximum
Pollution Degree
2
Altitude
0 –2000m
Indoor or Outdoor Use
Indoor use only
Weight
5 lb. [2.3 kg]
Dimensions
5.8” [147mm] L x
5.7” [145mm] W x
3.9” [98mm] H
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
400 450 500 550 600 650 700 750 800
Relative Output
Wavelength (nm)

D20990.105 Rev A MC-LS Quick-Start User Manual Page 3
Remote Operation
Basic use of the remote operation features are
described in this section. Cable lengths must be
limited to a maximum length of 3m.
Analog/Digital Controls
The MC-LS may be operated remotely using a
potentiometer and a switch connected to the
appropriate pins of the IN/OUT port as shown in
Figure 3.
In the default configuration, the MC-LS must first be
turned on using the front panel power switch.
Connecting Pin 1 (Digital Input) to Pin 5 (Common)
will then turn off the LED output.
Serial Control (USB or RS-232)
The MC-LS may be controlled remotely using
simple text commands sent over the USB COM
port or RS-232 serial port. The RS-232 port must
be configured for 9600 baud, 8 data bits, 1 stop bit,
and no parity.
All commands begin with an ampersand (&) and
end with Carriage Return, ASCII code 0x0D
(typically denoted as ‘\r’).
Basic operating commands:
Please refer to the MC-LS product page of the SCHOTT website for further information about remote operation.

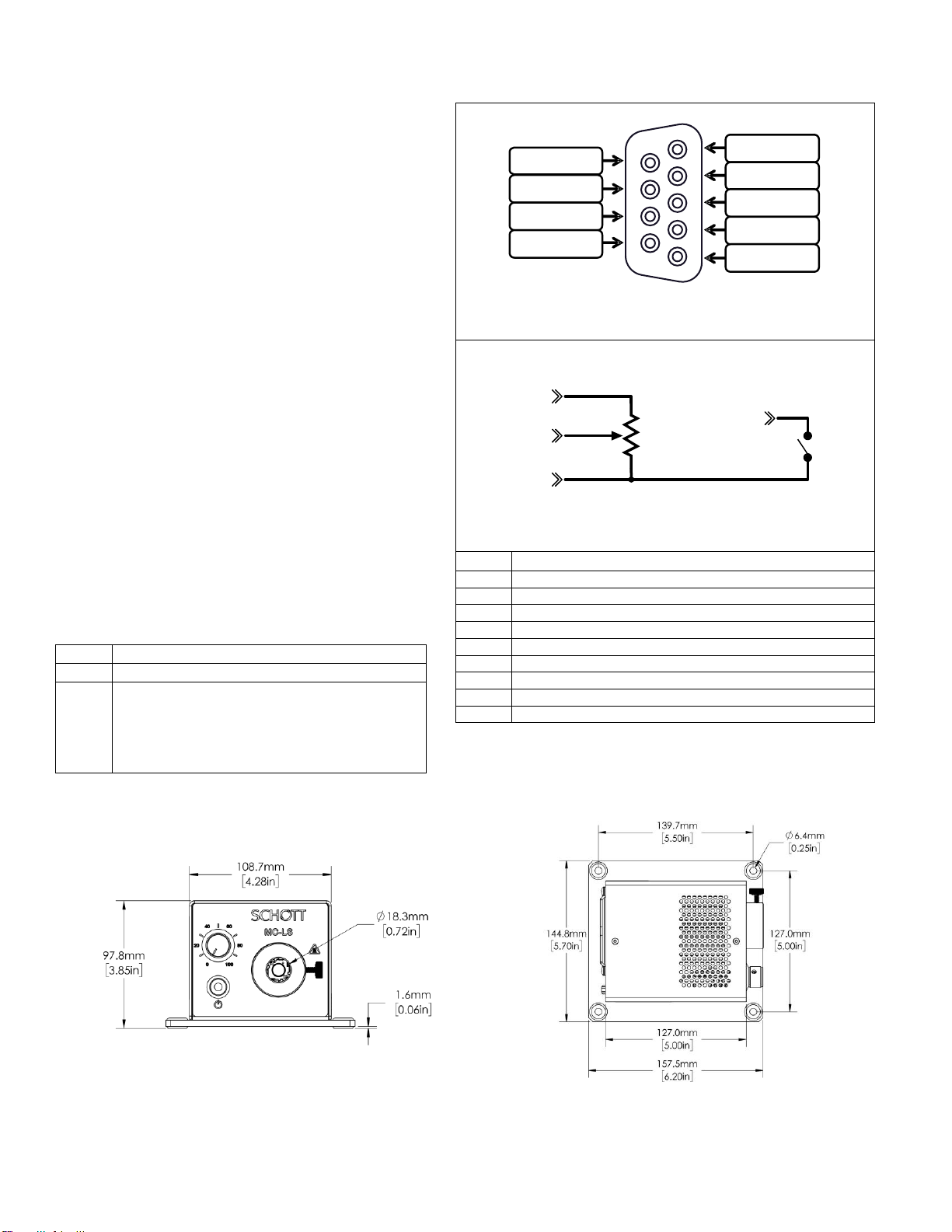

Figure 4: Outline Dimensions
9: +5V Ref
8: Fault Out
7: Not Used
6: Intensity
5: Common
4: Not Used
3: RS232 RX
2: RS232 TX
1: Digital In
Figure 2: IN/OUT Port Pinout
Figure 3: Analog/Digital Control, Typical Application
Pin
Description
1
Digital input, 0-5V, 24V tolerant
2
RS232 Transmit
3
RS232 Receive
4
Not connected
5
Common return for all signals
6
Intensity adjustment, 0-5V analog, 24V tolerant
7
Not connected
8
Fault output, open collector, 30V, 10mA
9
+5V output, 10mA maximum
10kΩ
Pin 9: +5V
Pin 5: Common
Pin 6: Intensity
Intensity
Adjustment
Switch
Pin 1: Digital Input
On/Off
Control
&L1
Enable LED output
&L0
Disable LED output
&I##
Adjust LED intensity
## must be a hexadecimal value between
0 and FF (decimal 0 to 255) where FF is
maximum brightness.
Example: &I7F for 50% brightness

D20990.105 Rev A MC-LS Quick-Start User Manual Page 4
Figure 5 –Front Controls
Figure 6 –Rear Controls
Warranty and Liability
SCHOTT warrants our light sources to be free from defective workmanship and materials. If, within two (2) years
from shipment date, any product and/or part thereof are determined by SCHOTT to be defective, we will repair or
replace it with a new or reconditioned product and/or part.
Warranty is void if:
We determine the product has been subjected to neglect or misuse, or has been installed following
procedures not in accordance with our instruction manual.
Unauthorized repairs or modifications have occurred.
The warranty seal has been broken or the serial number label has been altered.
Our obligation is limited to repair or replacement. SCHOTT will not be held responsible for consequential damages,
transportation, installation, adjustment or other expenses arising in connection with our products or parts. This
warranty is in lieu of all other statements or guarantees, written or implied, by SCHOTT or SCHOTT authorized
representatives.
Servicing
There are no user-serviceable components inside the MC-LS. All repairs must be made by an authorized repair
facility. Opening the housing of the unit will void the warranty. Please contact your distributor or SCHOTT sales
representative for technical support.
Contact Information
Customer Support
Lighting and imaging
SCHOTT North America, Inc.
122 Charlton Street
Southbridge, MA 01550
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Website: www.us.schott.com/lightingimaging
Technical Support
For technical support, please contact your distributor,
SCHOTT sales representative, or email
[e-mail].
The latest product information can be found on the SCHOTT
website at www.us.schott.com/lightingimaging
Manufacturing Location, Plant #3540
SCHOTT de México, S.A. de C.V.
Carretera México-Veracruz Km.349 Venta Parada,
Amatlán de los Reyes, Veracruz México 94946
Phone: [phone]
© SCHOTT North America, Inc.
Fiber Optic
Receptacle
Exhaust
Vents
Power Switch
with Status
Indicator
Intensity
Control
IN/OUT
Port
USB
Port
DC
Power
