Installation Instructions
INSTALLERS: PLEASE LEAVE THIS MANUAL WITH THE OWNER.
Doc. #400184 |v. 1.1 |25 January 2023

Scan the QR code to view the SI warranty for this product.
Technical Support: 512.832.6939 screeninnovations.com
Hours of Support: 7:30am – 5pm CST [email protected]
Please use this QR Code to access the updated installation instructions and related
documents.

Operating and Care of Your Screen � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Before Proceeding � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Parts in the Box � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Installation Methods� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Mounting Methods � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Installation Method 1 – Assembled� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Mounting Bracket � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Mounting Cassette� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Mounting Through Bolting Cassette � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Installation Method 2 – Disassembled � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10
Unpacking � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �10
Material Roll Removal � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Mounting Cassette � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Material Roll Reinsertion � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
Fascia Door� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �14
Installation Ceiling Mount - Moab � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
Wiring� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16 - 17
Internal Cassette Wiring –24v DC � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �16
Internal Cassette Wiring – 110v/220v AC� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
Commissioning Guide Reference � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18
Controls Guide Reference � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �18
TABLE OF CONTENTS

4
• Operation of the screen systems should only be performed by responsible parties.
• Always check the path of the Solo 3 Screen before operating to ensure that the path is clear of
furniture or obstacles that could prevent full operation. Monitor the Solo 3 Screen for smooth
operation through its entire range. Operating a Solo 3 Screen unattended may lead to damage from
obstructions or other causes.
• Fabric maintenance and cleaning– Solo 3 Screen fabric is subject to debris under normal use or in
storage, requiring occasional maintenance and cleaning. While fading and wear over time are normal,
debris could accelerate this wear. Screen fabrics can be cleaned with gentle soap and water.
OPERATING AND CARE OF YOUR SCREEN
Preparing for installation: It is crucial that all installations are planned out carefully before
specifying a screen order.
• If drilling through the cassette is required, the cassette must be square or the door will not line up,
causing poor operation.
• Electrical work should be performed following appropriate electrical codes and regulations by a
licensed electrical professional.
• Use fasteners appropriate for the structure the Solo 3 Screen will be mounted to.
• Do not use any sharp blades when opening the packaging.
Read the instructions in their entirety before proceeding. Actions contrary to the instructions
invalidate the warranty and may result in serious damage and/or injury.
BEFORE PROCEEDING

5

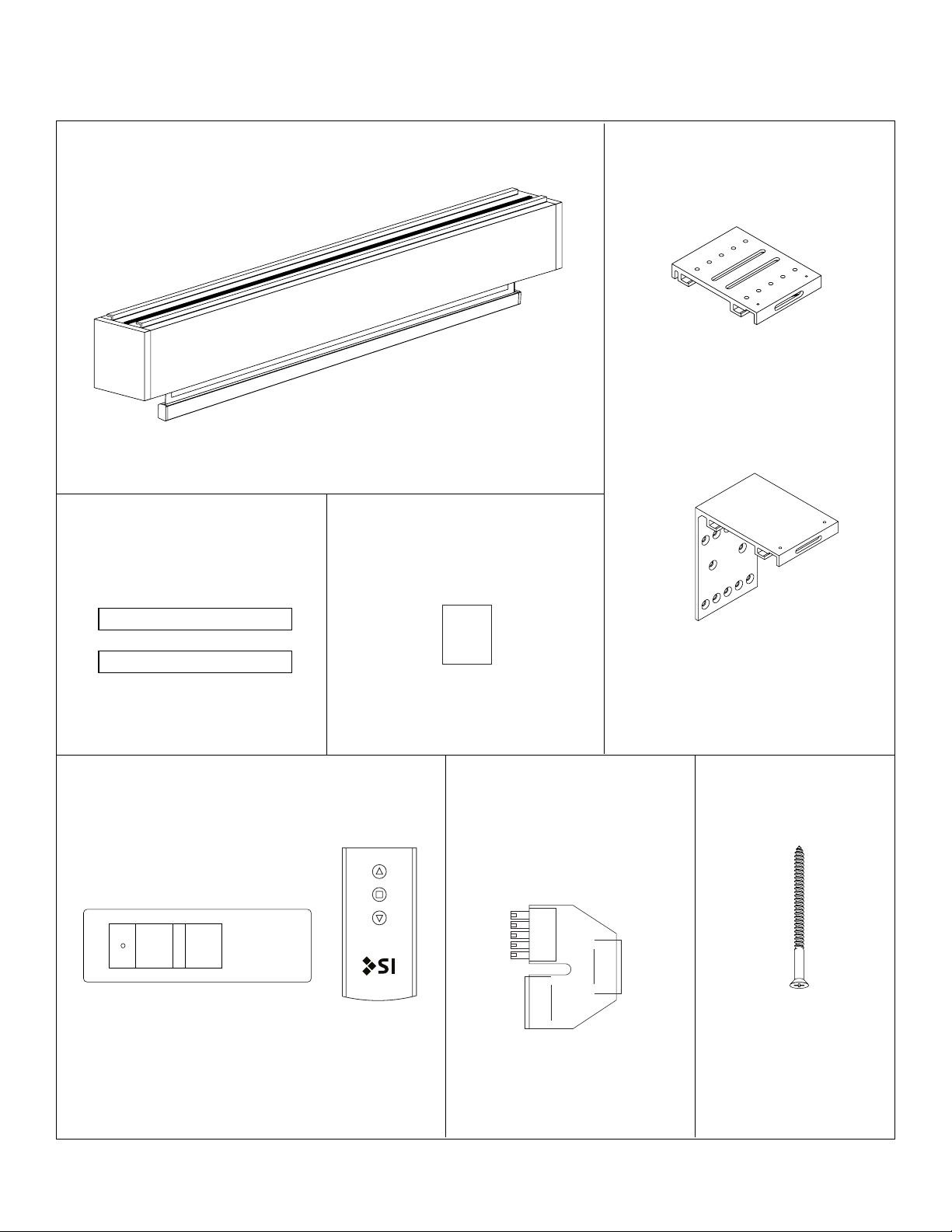

(6) Mounting Screws
(2/3) Ceiling Mount Brackets
(2/3) Wall Mount Brackets
Case Assembly
Mounting Bracket Options
Red Straps
Required
Hardware
PARTS IN THE BOX – SOLO 3 575 EXTERNAL – INDOOR
Screen
Note: Not Provided.
RF Remote

Included remotes’ form factor may
vary, however functionality and
performance is consistent.
IR Remote
RJ45 Coupler
(AC – 485 
DUOCoup


6
INSTALLATION METHODS
MOUNTING
MOUNTING NOTES:
• To ensure best results, read all instructions before assembly.
• Unpacking the box– lay cassette, fabric tube, and material roll on a soft, clean surface during the
installation process. When removing from the box, ensure the assembly is kept horizontal to prevent
damage.
• The following section, Mounting, of the indoor Solo 3 575/675 External instructions applies to ALL
installations, regardless of method, determined above.
• When utilizing either method, especially METHOD 1, make certain there are enough installers/
hoisting equipment to safely lift the cassette (and/or material) onto the brackets. Brackets must be
level and in-line with one another before attempting to lift cassette onto brackets. Use safe lifting
and rigging techniques.
• For METHOD 2, ensure installation is complete by returning to page 16 after securing the casette to
the brackets.
1
2
METHOD 1 – 
METHOD 2 
Before installation, determine your installation method according to your product order and installation
preferences. The indoor Solo 3 575 External may be installed preassembled or separately (fabric tube and
material installed after the cassette).

7
METHOD 1 

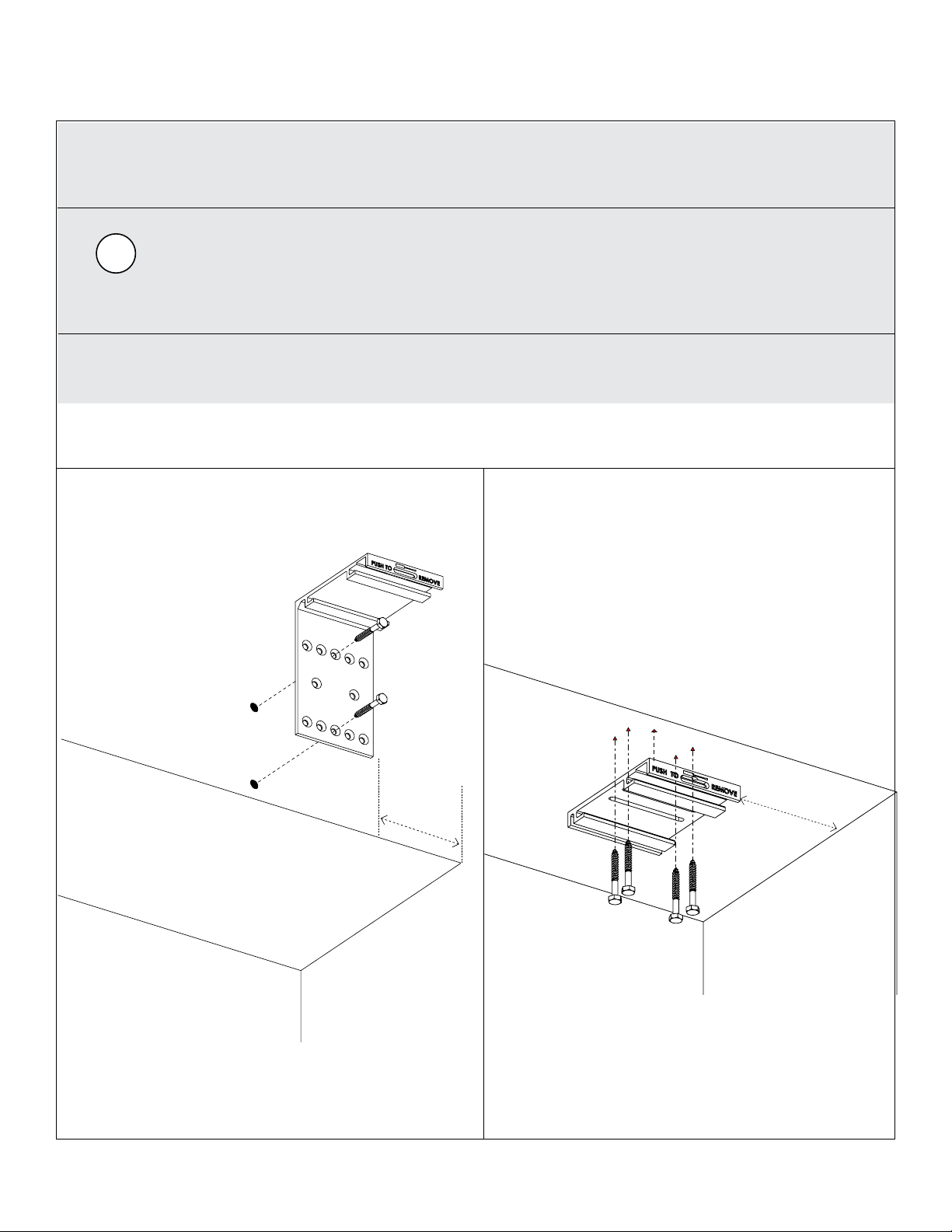

1Use appropriate fasteners to mount the ceiling brackets to structural supports. Mount
brackets between (2–6’’) from the opening ends (additional brackets are intended to prevent
cassette sag and should generally be applied to the middle of the cassette). All brackets must
be in line and level to each other.
BEFORE INSTALL– Check upper corners of the opening clearance, as necessary, to prevent
interference with the cassette and end caps.
Ceiling MountWall Mount
NOTE: Ensure the fasteners used are adequate for the weight of the Solo 3 Screen and the structure.
2– 6”
2– 6”

8

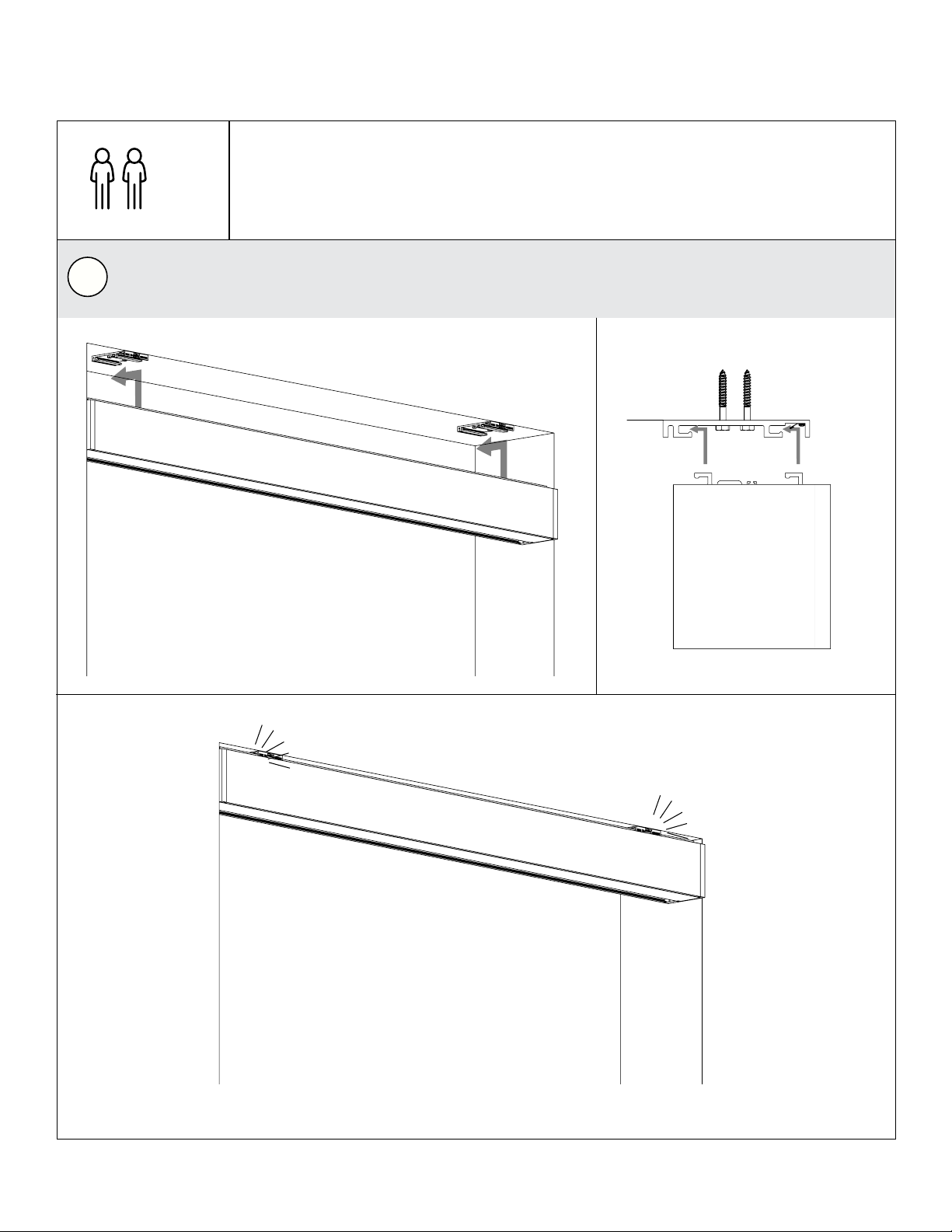

For METHOD 1, lift and secure assembly onto brackets. Once the bracket engages, the cassette will
“click” into place.
Installation requires two or more people and/or hoisting equipment.
Please use safe lifting and rigging techniques.
2+
2
METHOD 1 

9
METHOD 1 
NOTE: Be careful not to over-torque or aggressively drill retention hardware when mounting
the cassette as deformation to the case could occur; this is especially important when ceiling
mounting. The structure behind the mounting points should be at and level.
WARNING! Select a screw or anchor type that has a shallower head prole to eliminate the
risk of contact with the screen material roll. Damage to the material caused by anchoring is
not covered under warranty. Before starting, ensure the screws or anchors being used are of a
quantity, size, and type compatible with the structural substrate you are mounting to, and rated
for the weight being carried. Weight can be found on the shipping documents or on the box
label.
3
XL Cassette Mount Cassette Mount

10

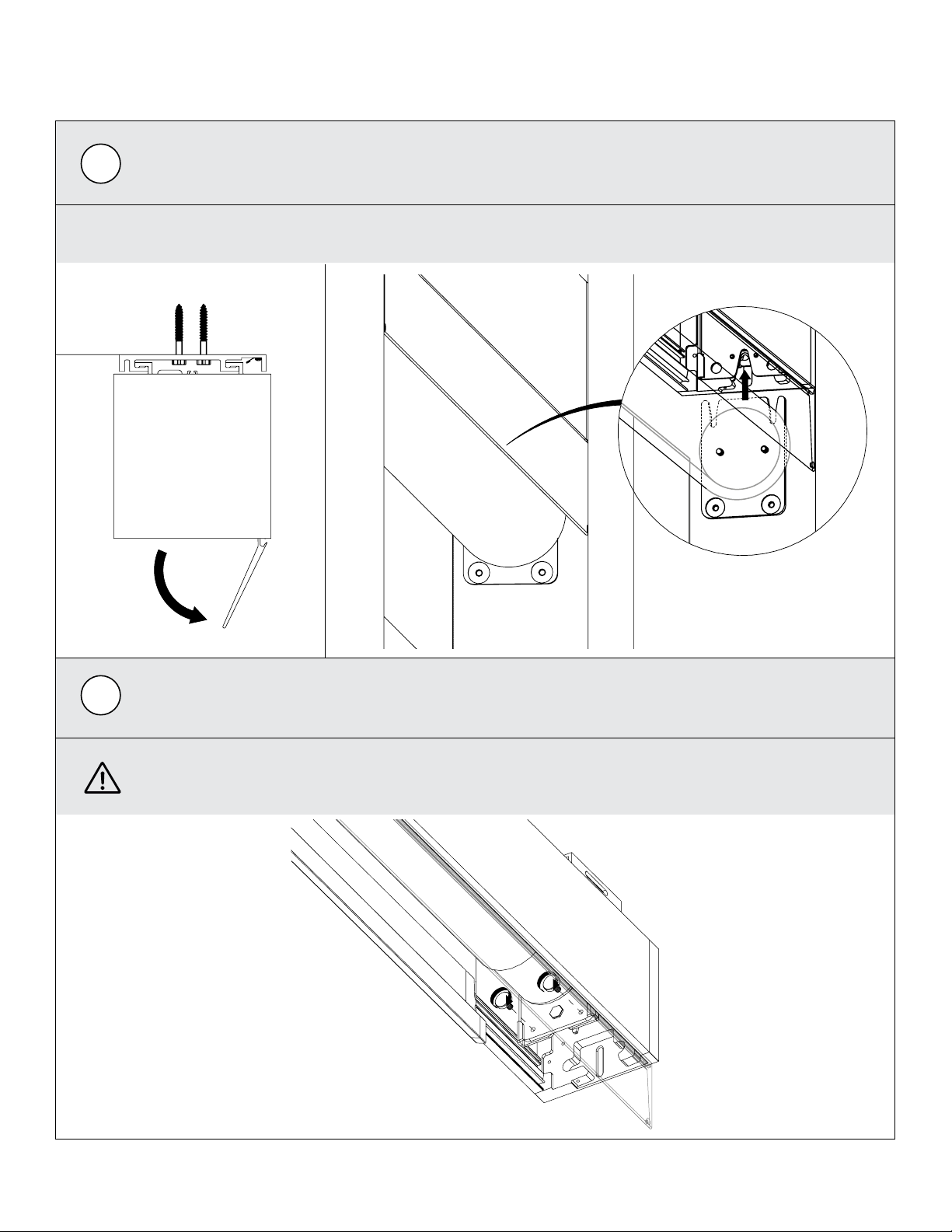

Undo the silver safety screws, then press the latch as shown.
2
METHOD 2 
Starting with the cassette on a soft, clean surface, remove the screws from the fascia door and
open to reveal the inside.
NOTE: The following section of the Solo 3 Indoor 575 External instructions applies to separately
assembled projects where the cassette is installed prior to the fabric tube and material.
1

11
METHOD 2 

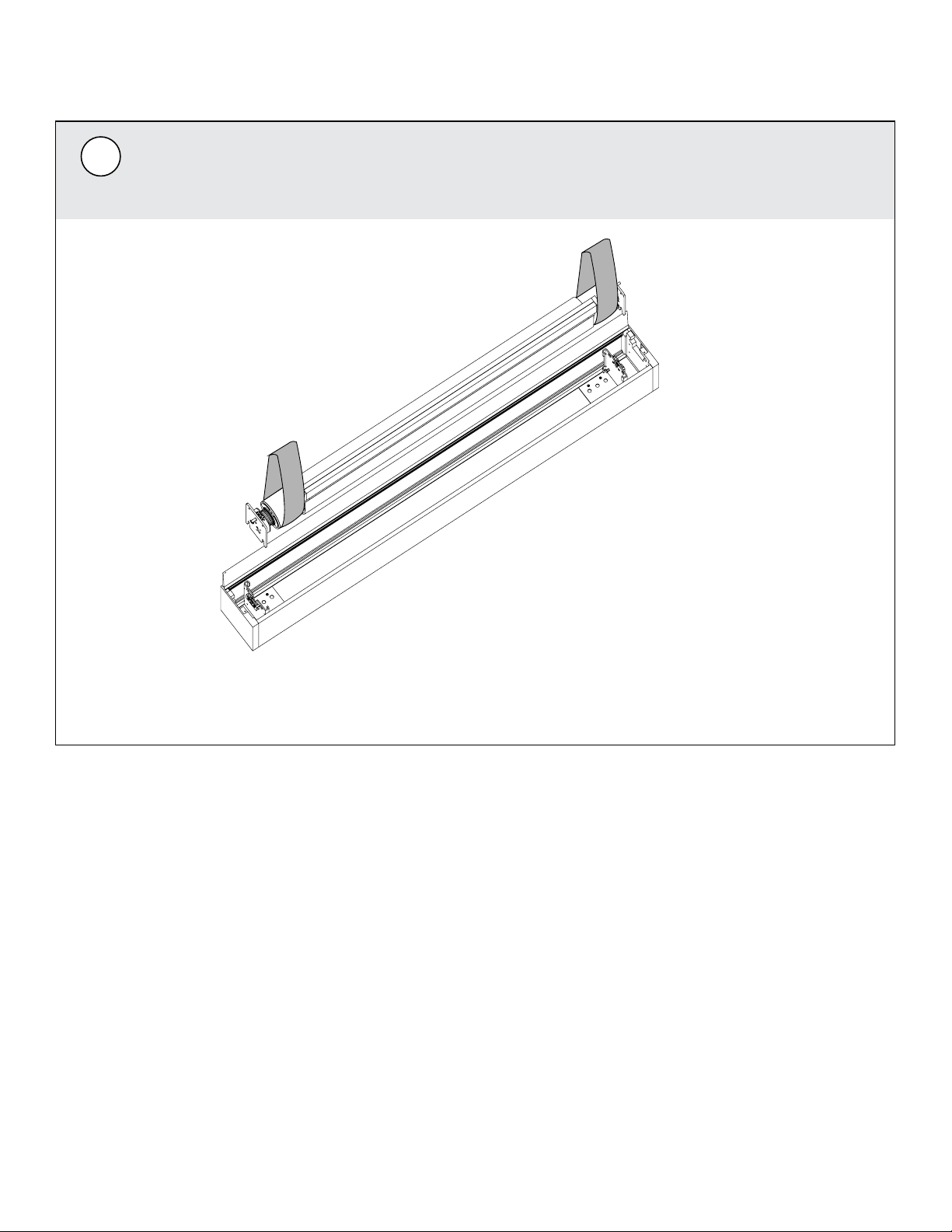

Using the red straps, loop the straps under the material roll, being careful to avoid contact with the
material or any obstructions. With the help of the straps on both the ends, slowly pull out material
roll and set it aside.
Now you are ready to mount the cassette, follow the steps on the next page.
3

12

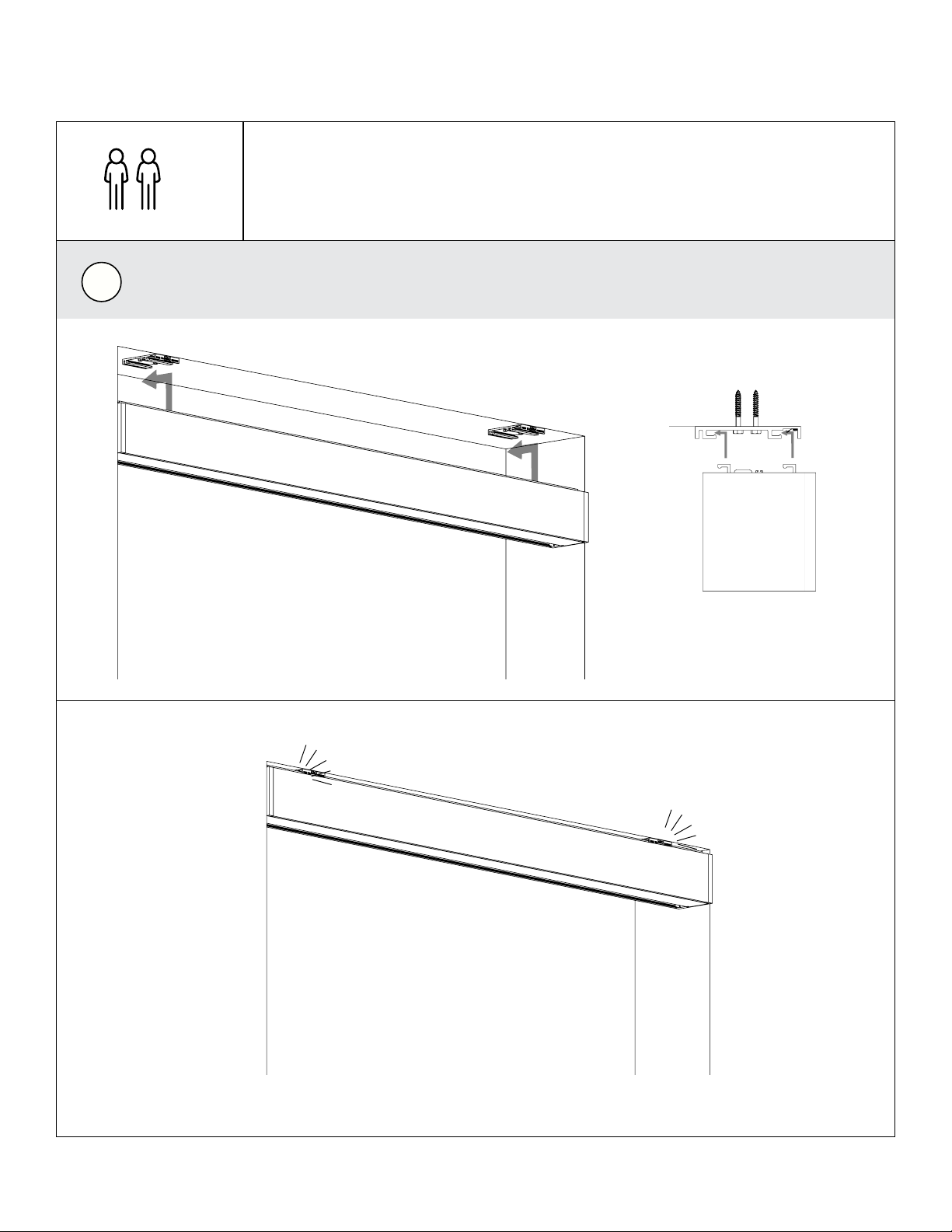

Lift and secure the cassette onto the brackets. Once the bracket engages, the cassette will “click”
into place.
Installation requires two or more people and/or hoisting equipment.
Please use safe lifting and rigging techniques.
2+
4
METHOD 2 

13

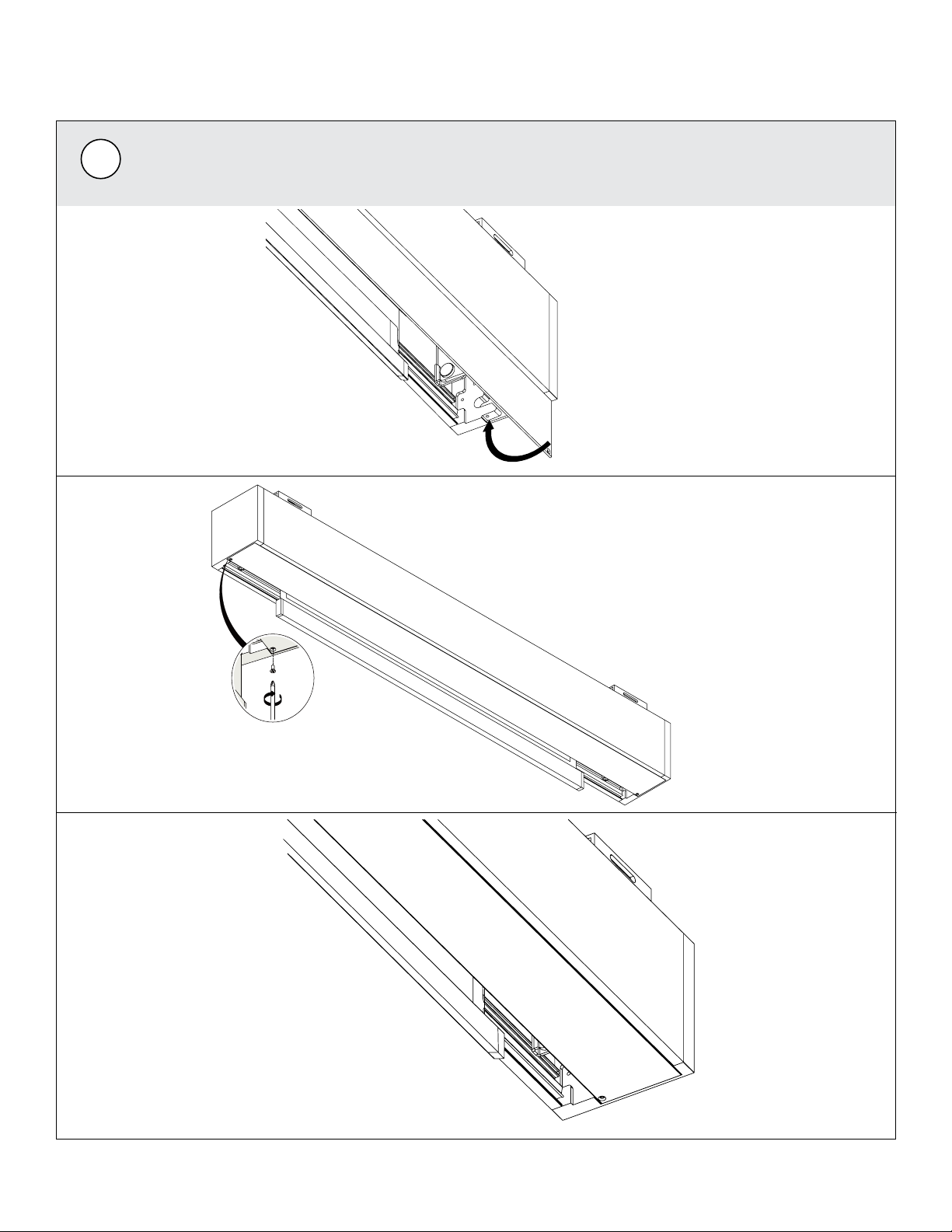

With the cassette mounted, open the door and slide the material roll with mounting plates on
each end into the cassette. Each end will “click” into place as the brackets engage.
NOTE: The roll must remain level while installing into the cassette.
Fasten the silver safety screws on the mounting plates to secure the material roll. Plug motor
power cable into the barrel connector located in the cassette.
This step is required for safety. Back safety screws out before installation. Must be re-engaged
after installing material roll.
5
6
METHOD 2

14
To close the fascia door, set the door into the cassette; the door will hook in by gravity. Secure
with screws.
5
METHOD 2

15
Plug the motor power cable into the barrel connector (AC power), located within the cassette, or the
terminal blocks (DC power) to connect Moab (see pages 5 - 7 for power options).
The Moab board may be placed or removed from the internal PCB mounting plate by gently shifting
the entire board up to remove, down to reattach the four (4) standoffs.
If using low voltage, use the included DUOCoup to facilitate the wiring connections.
Upon reattachment, the board will tactically “click” and snap into place.
NOTE: If you plan to permanently remove/relocate externally Moab, carefully review the
Moab instructions to determine all the various options.
2
INSTALLATION
Push cassette all the way to the anges and ceiling; ne tune as needed with a mounting key.
1

16
INSIDE CASSETTE WIRING – 24V DC
To head end/equipment
Side View
Scan this QR code to determine the max. length of the wire of the wiring on the three
(3) options as shown below, or alternatively use this link:
https://si-website-les.s3.amazonaws.com/Downloads/Programming+Guides/Shade/
wire-topologies.pdf
Detailed Low Voltage Power and 485 Control Wiring (DC Motor)





1. Terminate the wires using the provided terminal block, shown below.
To head end/equipment
connects to bottom terminal
block of Moab
Data cable from
motor connects
to top terminal
block of Moab
Motor Front View
Optional relocation of IR Reciever
when removed from Moab
24v Wire:
Light Grey

17
1. Terminate the wires with the provided terminal block, as shown below.
2. Locate junction box appropriately.
Installer must follow all local electrical codes when connecting 110v AC power. Certied electrician
is required to connect pigtail power.
INSIDE CASSETTE WIRING – 110V/220V AC
Pigtail
L 
N

Cat5e





RS485 (+) - White
RS485 (-) - Orange
-
Power 7v DC - Red
-
-
-
Ground - Brown
Pin 1
Pin 8
Detailed AC pinouts
Front View
Black: AC wire
Light Grey: 24v wire
Dark grey: Motor Com cable
To 110v AC
To head end/equipment
Side View
To head end/equipment To 110v AC
Optional relocation of IR Reciever
when removed from Moab
Conect your power
to the motor by
snapping together
the connector�
Data cable
from motor
connects to
top RJ45 of
Moab

18
Moab Installation Instructions (contains 485 detailed instructions):
Scan the QR code, alternately use the link below to access
https://les.screeninnovations.com/Downloads/Installation+Instructions/Connectivity/
moab-installation-instructions.pdf
Moab Quick Start Guide (contains 485 instructions only):
Scan the QR code, alternately use the link below to access
https://les.screeninnovations.com/Downloads/Installation+Instructions/Connectivity/
moab-quick-start-guide.pdf
Note: to get more detailed instructions refer to the Moab installation instructions below.
Quick Motor Commissioning Guide for all motor types (contains 485, RTS, Zigbee
instructions):
Scan the QR code, alternately use the link below to access
https://les.screeninnovations.com/Downloads/Programming+Guides/quick-motor-
commisioning-guide.pdf
COMMISSIONING GUIDE REFERENCE
With your screen order, you shall receive one of the below mentioned Controls Guides which will walk
you through integrating with control system.
TRO.Y Installation Instructions (RS232, IP Control, third party Control system):
Scan the QR code, alternately use this link to access
https://les.screeninnovations.com/Downloads/Installation+Instructions/Connectivity/troy-
installation-instructions.pdf
LinkPro Z Installation Instructions (IP Control, third party Control system):
Scan the QR code, alternately use this link to access
https://les.screeninnovations.com/Downloads/Installation+Instructions/Connectivity/
LinkProZ-installation-instructions.pdf
CONTROLS GUIDE REFERENCE
Technical Support: 512.832.6939 screeninnovations.com
Hours of Support: 7:30am - 5pm CST [email protected]
Scan this QR Code to
access the updated
installation instruc-
tions and related
documents.

19
NOTES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.

Screen Innovations



Doc. #400184 |v. 1.1 |25 January 2023
