Sealey CP314 User manual

20V 2AH CORDLESS RIVETER
MODEL NO: CP314
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test)
tested.
Electrical safety information, it is important that the following information is read and understood.
9Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9 Ensurethatthevoltageratingontheappliancesuitsthepowersupplytobeusedandthattheplugisttedwiththecorrectfuse-see
fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOTpulltheplugfromthesocketbythecable.Removetheplugfromthesocketbymaintainingarmgripontheplug.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
 qualiedelectrician.
 ThisproductisttedwithaBS1363/A13Amp3pinplug.
 Ifthecableorplugisdamagedduringuse,switcho󰀨theelectricitysupplyandremovefromuse.
 ReplaceadamagedplugwithaBS1363/A13Amp3pinplug.Ifindoubtcontactaqualiedelectrician.

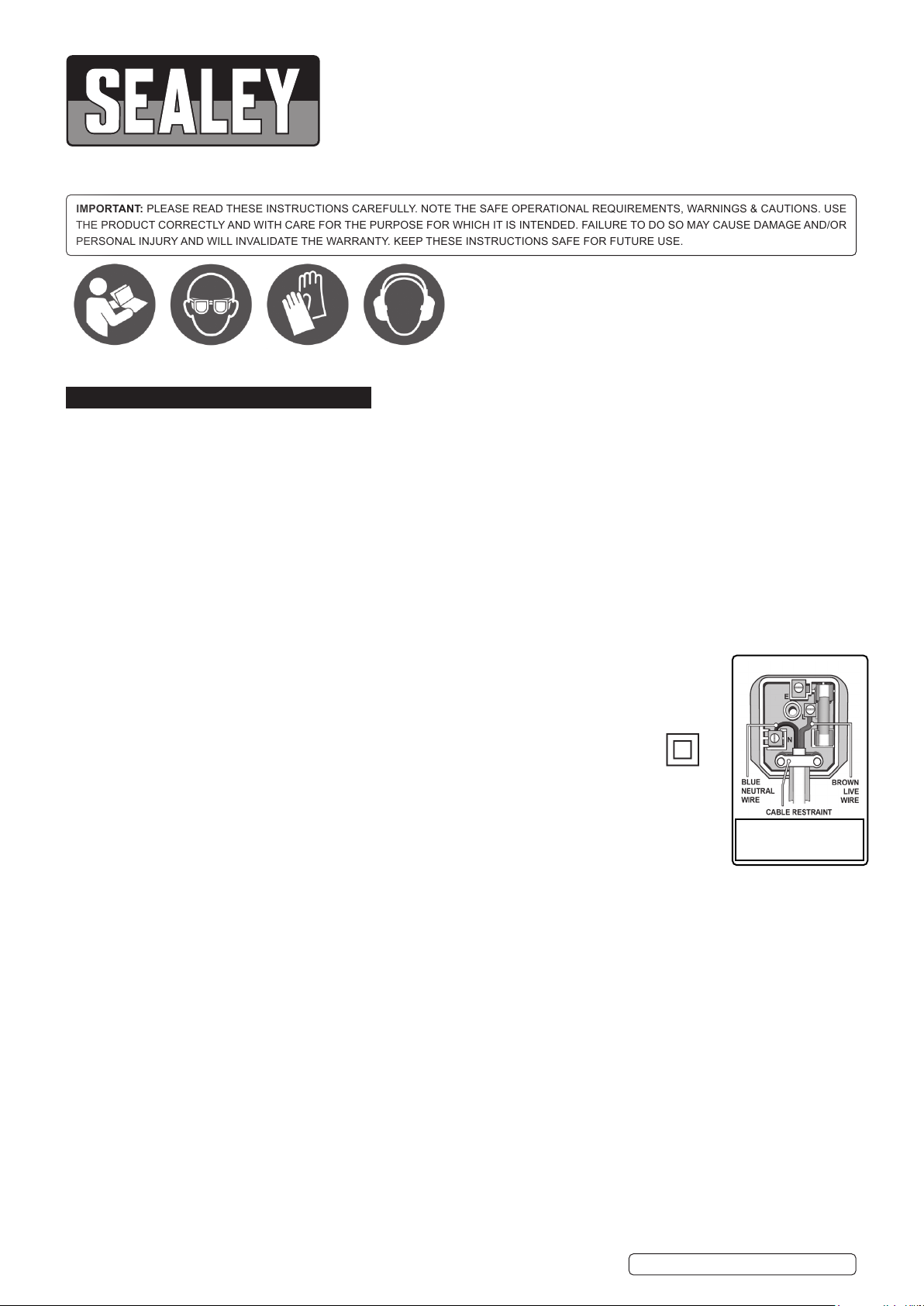

Class II products are wired with live (brown) and neutral (blue) only are marked with the Class II symbol;
 A)ConnecttheBROWNlivewiretotheliveterminal‘L’.
 B)ConnecttheBLUEneutralwiretotheneutralterminal‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
8DO NOT connect either wire to the earth terminal.
 Sealeyrecommendthatrepairsarecarriedoutbyaqualiedelectrician.
1.2. BATTERY CHARGER SAFETY INSTRUCTIONS
WARNING! DO NOT use the charging base to charge any battery other than that required for the tool. Other types of batteries may
explode!
9Inspect the plug, cable and the charging base for wear and damage to ensure items are safe before connecting to the mains power
supply. If worn or damaged DO NOTuse,immediatelyreplace,orcontactaqualiedelectrician.
9Check cables are always protected against short circuit and overload.
9 Uncoilthepowercablebetweentheplugandthechargingbasebeforeuse.
8DO NOT pull or carry the charging base by the charger power lead, or pull the plug from the mains socket by the power lead.
8DO NOT use any other type of transformer with the charging base.
8DO NOTtrytoopenordis-assembletheplugorchargingbase.
8DO NOT use the plug to power any other electrical item.
9Disconnect the charging base from the mains power supply when not in use.
8DO NOT expose the charging base to damp or wet conditions (for indoor use only).
8DO NOT operate the charging base if it has been dropped, or has received a sharp knock, or is damaged. Contact an authorised
service agent.
8DO NOT dismantle the charging base as this may cause damage or personal injury and will invalidate your warranty.
8DO NOT insert foreign objects or material into the slot reserved for the battery.
8DO NOT immediately charge a second battery. Consecutive charging will overheat the charging base. Allow the unit to cool for
 15minutesbeforechargingthenextbattery.
9Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9Ensure that cables are always protected against short circuit and overload.
8DO NOTusewornordamagedcables,plugsorconnectors.Immediatelyhaveanyfaultyitemreplacedbyaqualiedelectrician.
1.3. BATTERY SAFETY INSTRUCTIONS
WARNING!BatterycontainsLithium-ionwhichisdangerous.Handlewithcaretoavoiddamage,re,corrosionorpersonalinjury.
Recommended fuse rating:
3 AMP
CP314Issue2(3)27/04/2021
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Weareye
protection
Wearprotective
gloves
Wearear
protection

9 Chargebatterypriortoitsrstuse.Thebatterywillhavebeenshippedinalowchargestate.Toreducetheriskofburnsorre:
8DO NOT Attempt to open, disassemble, modify or service the battery pack.
8DO NOTCrush,puncture,shortexternalcontactsordisposeofinreorwater.
8DO NOTExposetotemperaturesabove40°C(104°F).
9Replace only with the battery pack designated for this product.
9 Useonlythechargingbaseprovidedtochargethegrinderbattery.
8DO NOT attempt recharging the battery by means of an engine generator or a DC power source.
WARNING!DisposeofspentbatteriescorrectlyastheycontainLithium-ion.DANGER! DO NOT attempt to disassemble the
 battery.ForsafetyandenvironmentalreasonsDO NOT discard in domestic waste or by burning. ONLY discard or recycle
according to local authority regulations.
WARNING! DO NOT allow a leaking battery to contact your person.
1.4. GENERAL SAFETY
WARNING!EnsurethatHealth&Safety,localauthorityandgeneralworkshoppracticeregulationsareadheredtowhenusingthis
equipment.
9 Familiariseyourselfwiththeapplications,limitationsandpotentialhazardspeculiartotheriveter.
WARNING! Disconnect the riveter from the battery before changing accessories, servicing or performing any maintenance.
9Maintain the riveter in good condition (use an authorised service agent).
9 Replaceorrepairdamagedparts.Usegenuinepartsonly.Unauthorisedpartsmaybedangerousandwillinvalidatethewarranty.
9Keep the work area clean, uncluttered and ensure that there is adequate lighting.
9Keep the riveter clean for best and safest performance.
WARNING! Always wear approved eye or face protection when operating the riveter.
9 Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnon-slipshoes.
9 Removeillttingclothing.Removeties,watches,ringsandotherloosejewelleryandcontain,and/ortieback,longhair.
9Keep the riveter away from your body and at a safe distance from others.
9Keep children and unauthorised persons away from the work area.
9Secure unstable workpiece with a clamp, vice or other adequate holding device.
9Ensure that spent rivet stems are disposed of correctly and DO NOTcauseahazard.
8DO NOT use the riveter for any purpose other than that for which it is designed.
8DO NOT operate the riveter if any parts are damaged or missing.
8DO NOT get the riveter wet or use in damp or wet locations or areas where there is condensation.
8DO NOT allow untrained persons to operate the riveter.
8DO NOTpointorretheriveteratpeopleoranimals.
8DO NOToperatetheriveterwhenyouaretiredorundertheinuenceofalcohol,drugsorintoxicatingmedication.
8DO NOT direct air from the air hose at yourself or others.
9 Whennotinusedisconnectfromtheairsupplyandstoreinasafe,dry,childproofarea.
2. INTRODUCTION
Suitableforaluminium,steelandstainlesssteelrivetsfrom2.4to5.0mm.Poweredbya20V2AhLithium-ionbatterywithapullingforceofup
to9000N.Fourselectablepowersettingshelppreservebatterybyonlysupplyingtheforcerequired.LEDbatterylevelindicator.Fourriveting
nozzles,2.4mm,3.2mm,4.0mmand5.0mm.Suppliedindurableplasticstoragecasewithmainschargerand2Ahbattery.
3. SPECIFICATION
MODEL NO:...............................................................CP314
Battery: ...........................................................20V2AhLi-ion
Blind Rivet Type: ................Aluminium, Steel, Stainless Steel
MaximumPullingForce:...............................................9000N
NozzleSize(s):......................................... 2.4,3.2,4,4.8mm
Replacement Parts: ........................ CP314BP-BatteryPack
4. OPERATION
4.1. BATTERY REMOVAL/ INSTALLATION
4.1.1. Always be aware of the condition of the riveter before insertion or removal of the battery cartridge.
4.2. BATTERY REMOVAL
4.2.1. Holdthehandletightlyandpushthebatterylatchtoremovethebattery.
WARNING! Never short circuit the battery.
4.3. BATTERY INSTALLATION
4.3.1. To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip into place. Always
insert it all the way until it locks in place with a little click.
Note: Prior to operation prepare and check the work environment, make sure the work site meets all the conditions laid out in the
precautions.
4.4. CHECKING THE BATTERY
4.4.1. Makesurethatthebatteryisinstalledrmly.
CP314Issue2(3)27/04/2021
Original Language Version
© Jack Sealey Limited

4.5. USING THE RIVET GUN
4.5.1. Inserttherivetstemasfaraspossibleintotheriveternozzle(g.2).
4.6. AUTOMATIC MODE
NOTE: Alwaysusetheriveterinautomaticmode.Toselectautomaticmodepushthemodeselectionswitchtotheleft(g.1.6)
4.6.1. Accordingtothesizeofrivet,adjustforthelengthoftherivetasfollows;
 Fig.1.1:reducethelengthofrivet,whichissuitableforshortrivetriveting.
 Fig.1.3:increasethelengthofrivet,whichissuitableforlongrivetriveting.
 Fig.1.4:Ifonegreenlightison,itmeanstherivetingmodeisonforrstposition(shortestlengthforriveting);Whenallfourlights
are on it means it is set in the longest riveting position.
4.6.2. Pullthetriggertopulltherivetup.Keepthetriggerdepresseduntiltherivetstemisheardtosnapawayfromthehead(g.2andg.3).
4.6.3. At this point, release the trigger; the machine will reverse automatically and release the stem.
4.6.4. Whenthe user pressesbutton1andthenthetriggertheriveterwillbeinautomaticmode.
5. MAINTENANCE
5.1.  Beforeusingthetools,chargethebatteryasfollows.
5.1.1. Plugthebatterycharger(g.4.3).Thecharginglightwilllightupgreen(g.4.2).
5.1.2. Insertthebatterycartridge(g.4.1)sothattheplusandminusterminalson
the battery cartridge are on the same side as their respective markings on the
charger.
5.1.3. Whenthebatterycartridgeisinsertedfully,thecharginglight(g.4.2)willash
green and charging will begin.
5.1.4. Whenthecharginglightchangestofromgreenashingtosolidgreen(g.4.2),
the charging cycle is complete.
5.1.5. After charging, unplug the charger from the power source.
WARNING! The battery charger is for the original battery cartridge. Never use
it for other purposes or for other manufacturers batteries.
5.1.6. Whenyouchargeabatterycartridgewhichisneworhasnotbeencharged
for a long period of time, it may not accept a full charge until after discharging
it completely and recharging it a couple of times.
5.1.7. If you charge a battery from a just operated tool or a battery which has been exposed to direct sunlight or heat for a long time, the
charging light will turn red. Let the battery cool before charging.
6. TROUBLESHOOTING
6.1. If a rivet gets stuck in the riveter, switch the riveter from automatic to manual mode a couple of times. This should free the stuck rivet.
1Long and short rivet reduction button.
2 Battery power indicator.
3Long and short rivet adjustment button.
4Long and short rivet indicator light.
5Trigger.
6Mode selection switch
g.1
g.2 g.3
g.4
CP314Issue2(3)27/04/2021
Original Language Version
© Jack Sealey Limited

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
arecyclingcentreanddisposedofinamannerwhichiscompatiblewiththeenvironment.Whentheproductbecomescompletely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
DisposeofthisproductattheendofitsworkinglifeincompliancewiththeEUDirectiveonWasteElectricalandElectronicEquipment
(WEEE).Whentheproductisnolongerrequired,itmustbedisposedofinanenvironmentallyprotectiveway.Contactyourlocalsolid
waste authority for recycling information.
BATTERY REMOVAL
UndertheWasteBatteriesandAccumulatorsRegulations2009,JackSealeyLtdarerequiredtoinformpotentialpurchasersofproducts
containingbatteries(asdefinedwithintheseregulations),thattheyareregisteredwithValpak’sregisteredcompliancescheme.Jack
SealeyLtdBatteriesProducerRegistrationNumber(BPRN)isBPRN00705.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
