Sealey SA660 User manual

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according
to these instructions and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure health & safety, local authority, and general workshop practice regulations
are adhered to when using this equipment.
WARNING! Disconnect from air supply before changing accessories or servicing.
Maintain the needle scaler in good condition and replace any damaged or worn parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use
and ensure that all connections are secure.
Only use needles which are specifically designed for use with a needle scaler.
Wear approved safety eye/face shield, ear defenders, and hand protection.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Keep children and non essential persons away from the working area.
DO NOT use the needle scaler for a task it is not designed to perform.
WARNING! DO NOT use needle scaler if damaged or thought to be faulty. (Contact Sealey
service agent).
DO NOT use needle scaler unless you have been instructed in its use by a qualified person.
DO NOT carry the needle scaler by the air hose, or yank the hose from the air supply.
DO NOT operate needle scaler if you are tired or under the influence of alcohol, drugs or
intoxicating medication.
DO NOT carry needle scaler with your hand on the power trigger in order to avoid
unintentional starting.
DO NOT direct air from the air hose at yourself or others.
When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATIONS
Stroke ........................................................................................................................... 58mm
Free speed............................................................................................................... 4500bpm
Air consumption ............................................................................................................ 12cfm
Operating pressure ........................................................................................................ 90psi
Air inlet size ...............................................................................................................1/4”BSP
Weight............................................................................................................................ 1.7kg
Noise........................................................................................................................ 96.7dB.A
Vibration...................................................................................................................... 5.2m/s²
Suitable for cleaning heavy paint and rust scale from metal surfaces. Composite housing
protects user from chill and helps to reduce vibration. Soft-grip handle and in-line handle
provide added comfort and control. Spare needle sets are readily available.
INSTRUCTIONS FOR:
AIR NEEDLE SCALER
COMPOSITE PISTOL TYPE
MODEL No: SA660
Original Language Version SA660 Issue: 1 - 31/08/11

3.1. Assembly

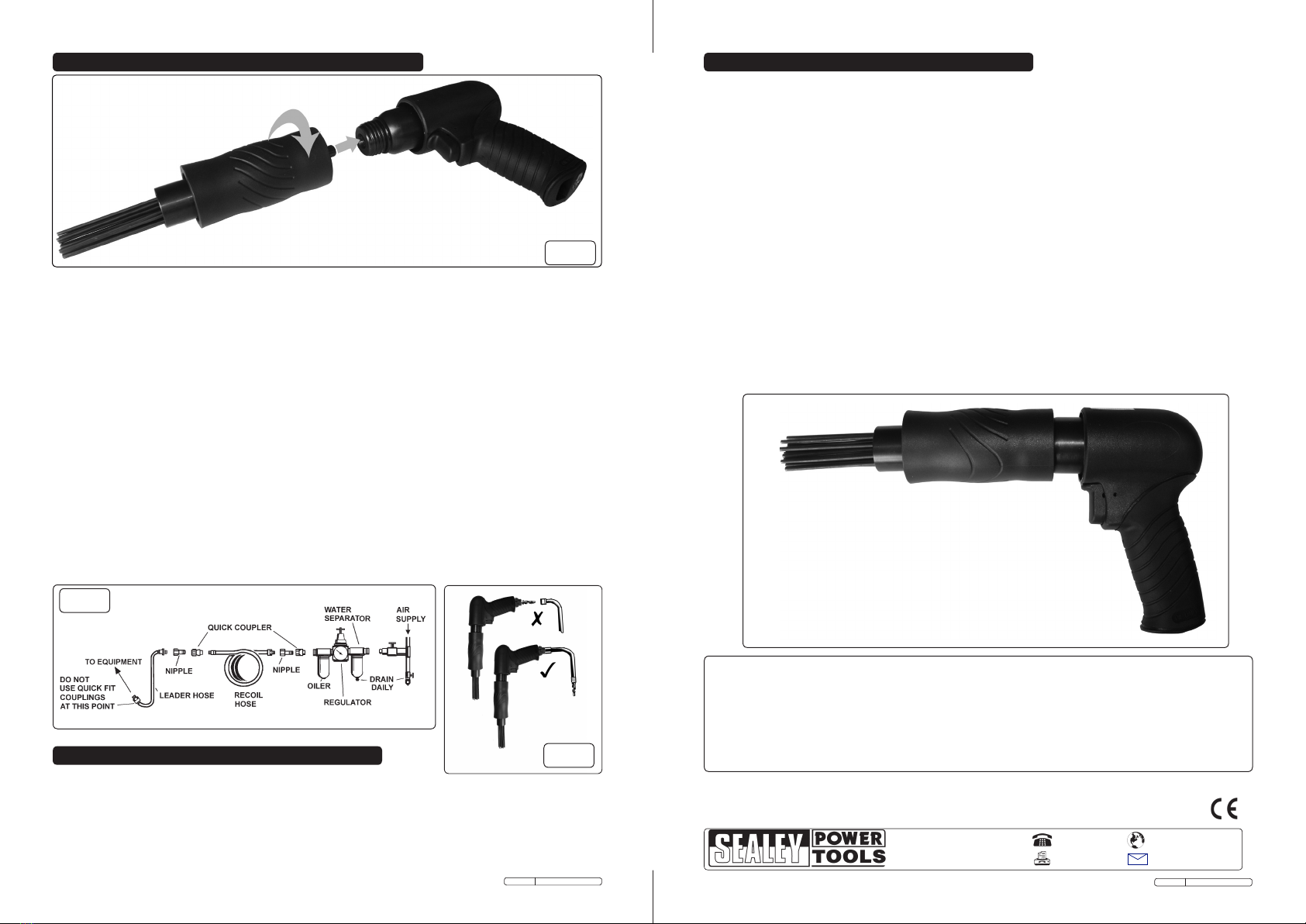

3.1.1. Screw the scaling head fully onto the body as indicated above in fig.1.
3.2. Air Supply
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the
needle scaler. Too high an air pressure and unclean air will shorten the product life due to
excessive wear, and may be dangerous causing damage and/or personal injury.
3.2.1. Ensure needle scaler trigger is not depressed before connecting to the air supply.
3.2.2. You will require an air pressure of 90psi, and a minimum air flow of 12cfm.
3.2.3. Drain the air tank daily. Water in the air line will damage the needle scaler.
3.2.4. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig.2.
3.2.5. Line pressure should be increased to compensate for unusually long air hoses (over 8
metres). The minimum hose diameter should be 1/4” internal diameter and fittings must
have compatible dimensions.
3.2.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain
that all connections are secure.
3.3. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the needle
scaler. To overcome this, connect a leader hose to the needle scaler (Sealey ref: AH2R or
AH2R/38). A quick change coupling may then be used to connect the leader hose to the air
line recoil hose. See fig.2 & fig.3.
WARNING! Disconnect needle scaler from air supply before servicing or performing
maintenance. Replace or repair damaged parts. Use genuine parts only. Unauthorised parts
may be dangerous and will invalidate the warranty.
5.1. To replace the needles, remove the large circlip from the back opening of the scaling head.
Carefully ease the plastic retainer out of the sleeve against the spring pressure. Remove the
needle supporter and needles. Remove the old needles from the needle supporter and
replace them with a new set. Reassemble the scaling head in the reverse order of that
described above. Screw the reassembled scaling head back onto the pistol body.
5.2. Lubricate the needle scaler daily with a few drops of Sealey air tool oil dripped into the air
inlet.
5.3. Clean the needle scaler after use.
5.4. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type
of hose connectors. To remedy check the air supply and follow instructions in Section 3.
b) Grit or gum deposits in the needle scaler may also reduce performance. Flush the needle
scaler out with gum solvent oil or an equal mixture of SAE10 oil and paraffin. Allow to dry
before use.
5.5. For a full service contact your local Sealey service agent.
5.6. When not in use, disconnect from air supply, clean needle scaler and store in a safe, dry,
childproof location.
3. PREPARING TOOL FOR USE
4. OPERATING INSTRUCTIONS
5. MAINTENANCE
WARNING! Ensure you read, understand and apply Section 1 safety instructions.
4.1. Connect the needle scaler to the air supply as described in Section 3.
4.2. To start the scaler, depress the trigger.
DO NOT allow the needle scaler to free run for an extended period of time as this will
shorten its life.
fig.1
fig.2
fig.3
Risk of Hand Arm Vibration Injury.
The Air Pistol Needle Scaler Model No. SA660, when operated in accordance with these instructions and tested in accordance
with BS EN ISO 28927-9:2009 results in the following vibration emission declared in accordance with BS EN12096:1996.
Measured vibration emission value:.................. 5.2m/s2 Uncertainty: ................................2.08m/s2
These values are suitable for comparison with emission levels of other tools that have been subject to the same test.
This tool may cause hand-arm vibration syndrome if its use is inadequately managed.
Recommended Measures to reduce risk of hand-arm vibration syndrome:
This tool should not be used by an individual regularly for more than 226 minutes in any 8 hour period.
This duration of use should be reduced if the individual is exposed to hand-arm vibration from other sources.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
