Sealite SLC310 Supplement

SL-C310
Compact 3-5NM+ Solar Marine Lantern
V5.0
INSTALLATION & SERVICE MANUAL

2
Version No. Description Date Author Approved
4.0 Update: Contact details April 2016 J. Dore M.Nicholson
4.1 Update: Flash Code Tables June 2017 A.Dixon M.Nicholson
4.2 Update: products images,Drawings October 2018 M.Nicholson
4.3 Update to Flash Code Tables May 2019 A.Gazzola M.Nicholson
4.4 Minor amendment - ash code May 2019 M.Dutka M.Nicholson
4.5 Material specication change June 2019 M.Dutka M.Nicholson
5.0 Major product update including SATCOM &
SL-410/415 consolidation
January 2020 M.Sugars &
M.Dutka
M.Nicholson

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 3
Table of Contents
Introduction............................................................................................................................................................... Page 4
Operating Principle ............................................................................................................................................. Page 4
Technology ............................................................................................................................................................... Page 4
SL-C310 Models .................................................................................................................................................... Page 5
Product Components.................................................................................................................................... Page 6
Technical Specifications............................................................................................................................... Page 7
Installation................................................................................................................................................................ Page 10
Setting the Intensity via DIP Switches .............................................................................................. Page 11
Selecting a Flash Code............................................................................................................................... Page 12
Optional IR Remote Control ........................................................................................................................ Page 19
GPS Synchronisation ...................................................................................................................................... Page 28
OptionalIridiumSatelliteMonitoring&Control .................................................................................Page29
Optional GSM Monitoring & Control System ................................................................................. Page 30
Lantern Status...................................................................................................................................................... Page 31
Maintenance & Servicing............................................................................................................................. Page 32
Trouble Shooting................................................................................................................................................. Page 35
Sealite LED Light Warranty......................................................................................................................... Page 35

4
Introduction
Congratulations! By choosing to purchase a Sealite lantern you have become the owner of one of
the most advanced LED marine lanterns in the world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken
to ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been
independently certified as complying with the requirements of ISO9001:2015 quality management
system.
Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids to
Navigation.
By taking a few moments to browse through this booklet, you will become familiar with the versatility
of your lantern, and be able to maximize its operating function.
Operating Principle
The solar module of the lantern converts sunlight to an electrical current that is used to charge the
battery. The battery provides power to operate the lantern at night.
The flasher unit has very low current requirements. A microprocessor drives multiple ultra-bright
LED’s (Light Emitting Diodes) through a DC/DC converter, which enables the LED’s to operate within
the manufacturer’s specifications. The battery is protected from over-charging within the circuit to
ensure maximum battery life.
On darkness, the microprocessor will initiate a program check and after approximately 1 minute begin
flashing to the set Flash Code.
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We employ leading
mechanical, optical, hardware & software engineers to create innovative products to service the
needs of our customers worldwide and offer the widest range of solar-powered LED lanterns in the
marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and
related circuitry. All individual electronic components are sourced directly by Sealite procurement staff
ensuring that only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED technology as a light source. The major
advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and
servicing costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic
lenses, light bases and a range of other components ensures that all Sealite products are of consistent
and superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. The company has
superior in-house lens manufacturing capabilities to support outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative
designs, with other regional patents pending in Canada, United Kingdom and Europe.

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 5
SL-C310
Compact 3-5NM+ Solar Marine Lantern
The SL-C310 range are robust, completely self-contained 3-5NM+ Solar LED Lantern marine lanterns.
They are specifically designed to withstand the tough marine environment to provide years of
reliable, low maintenance service. The 3 & 4 hole bolt pattern base fits directly onto existing 200mm
bolt pattern industry standard mounts for ease of installation. They are available in three chassis
size configurations; compact, standard and extended to accommodate larger battery capacity and
additional solar charging capability. Satellite connectivity is available as an option.
The four (4) premium-grade solar modules are integrated into the assembly, and mounted to collect
sunlight at all angles. The base and top of the lanterns are made from composite moulded polymer
with UV-stabilised rubber corners and gaskets providing a superior IP68 water ingress rating – the
best in the industry. A handle is incorporated into the chassis for safe lifting.
The tough, polycarbonate lens is specifically designed for use with LEDs and incorporates an
environmentally-friendly spike to deter unwelcome bird life.
The SL-C310 is available with GPS Synchronisation as standard. Two (2) or more lights can be
synchronised to flash in unison via an internal GPS module.
The SL-C310 may also be fitted with Satellite Communications Module or GSM Module – enabling
users to access real-time diagnostic data and two-way monitoring and control through the Star2M®
portal. The system can also be configured to send out alarm messages to designated phone
numbers. Users can also have alarms and reports sent to designated email addresses.
These models have an IR sensor which also allows them to be operated via Sealite’s IR remote
control.
All this is backed by Sealite’s industry leading 3-year warranty.

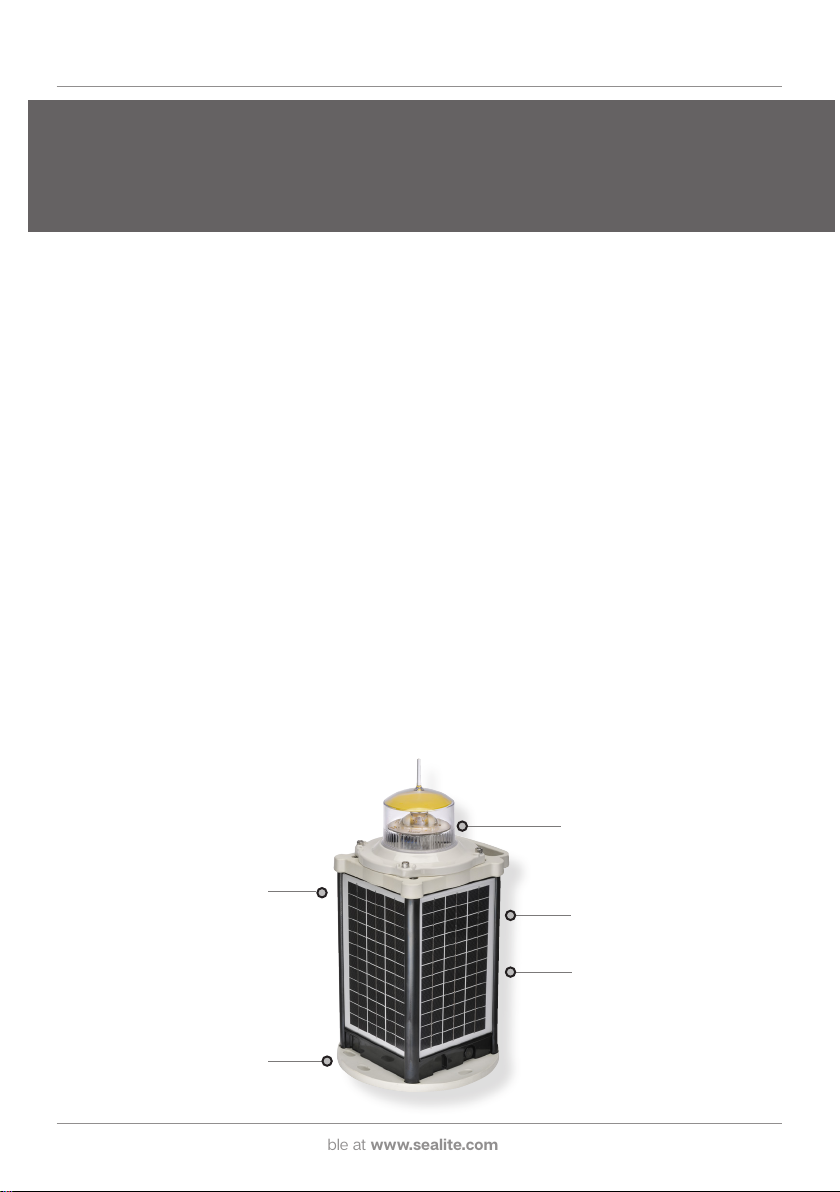

LED Optic
Robust composite moulded
base and top with handle,
Aluminium chassis with rubber
extruded corners
3 & 4 hole 200mm bolt pattern
base for ease of installation
4 x monocrystalline solar modules,
ensuring maximum light collection to
charge the battery
Internal Battery

6
The following components come as standard with each lantern:
• SL-LA310 lantern
• SL-SBA 310 Chassis
• Quick Start Guide
Optional
• IR programmer remote
These components are securely packaged within protective wrap, in a carton and shipped to you.
Please check that ALL of these components are included with your order and contact your
Sealite representative as soon as possible if anything is missing.
Product Components

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 7
SL-C310 Datasheet
SL-C310 Compact Standard Extended
Light Characteristics
Light Source LED
Available Colours Red, Green, White, Yellow, Blue
Typical Maximum Intensity Red - 121, Green - 88, White - 156, Yellow - 95
Visible Range (NM) AT @ 0.74: 3–5
Horizontal Output (degrees) 360
Vertical Divergence (degrees) >7
Available Flash Characteristics Up to 310 IALA recommended (user adjustable)
Intensity Adjustments Multiple intensity settings
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Current Draw (mA) Refer to Sealite Solar Calculator
Circuit Protection Integrated
Nominal Voltage (V) 12
Autonomy (nights)
>60 (14 hour
darkness, 12.5% duty
cycle)
>110 (14 hour darkness, 12.5% duty cycle)
Solar Characteristics
Solar Module Type Monocrystalline
Output (watts) 20 (4 x 5watt) 28 (4 x 7watt) 33.6 (4 x 8.4watt)
Charging Regulation MPPT
Power Supply
Battery Type SLA (Sealed Lead Acid)
Battery Capacity (Ah) 12 24
Physical Characteristics
Body Material Aluminium chassis with UV-stabilised rubber corners & gaskets. Polymer
composite-moulded top and base
Lens Material LEXAN®Polycarbonate – UV stabilised
Lens Diameter (mm/inches) 99 / 3 ⁄
Lens Design Single LED Optic
Mounting 3 and 4 hole 200mm bolt pattern
Height - Base Model
(mm/inches) 484 / 19 ⁄ 581 / 22 ⁄ 640 / 25 ⁄
Height - SATCOM Model
(mm/inches) 504 / 19 ⁄ 601 / 23 ⁄ 660 / 25 ⁄
Width (mm/inches) 234 / 9 ⁄ 234 / 9 ⁄ 234 / 9 ⁄
Mass (kg/lbs) 9.1 / 20 13.9 / 30 ⁄ 14.6 / 32 ⁄
Service Life 15 years^
Environmental Standards
Shock MIL-STD-202G Test Condition H, Method 213B 30G vertical and 35G horizontal
shock
Vibration MIL-STD-202G, Test Condition B, Method 204D 5G in all axes
Ice Loading Rated to withstand 22kg/m2
Salt Fog MIL-STD-810F Method 509.4
Rain Test MIL-STD-810F Method 506.4 procedure 1
Wind Exposure Rated to withstand 140 knots
Humidity MIL-STD-810F method 507.4 (0 – 100%, condensing)
Temperature Range -30 to 50°C
Compliance
CE EN61000-6-2:2005, IEC61000-4-2:2008, IEC61000-4-3:2010, IEC61000-6-1:2016
IALA Signal colors compliant to IALAE-200-1
Quality Assurance ISO 9001:2015
Ingress Protection IP68
Intellectual Property
Trademarks SEALITE®is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • 50mm pole mount adapterplate • Satellite Communications • GSM Cell-Phone
Monitoring • External Battery Charging Port • External ON/OFF Switch

8
484
303
168
581
400
Ø 234
120°
Ø 200
99
640
460
Compact
Base
Standard Extended
484
303
168
581
400
Ø 234
120°
Ø 200
99
640
460
Compact
Base
Standard Extended
484
303
168
581
400
Ø 234
120°
Ø 200
99
640
460
Compact
Base
Standard Extended
504
601
400
660
460
303
Compact
Base
Standard Extended
120°
Ø 234
Ø 200
168
99
SL-C310 with
Satellite Module
SL-C310
Base Model

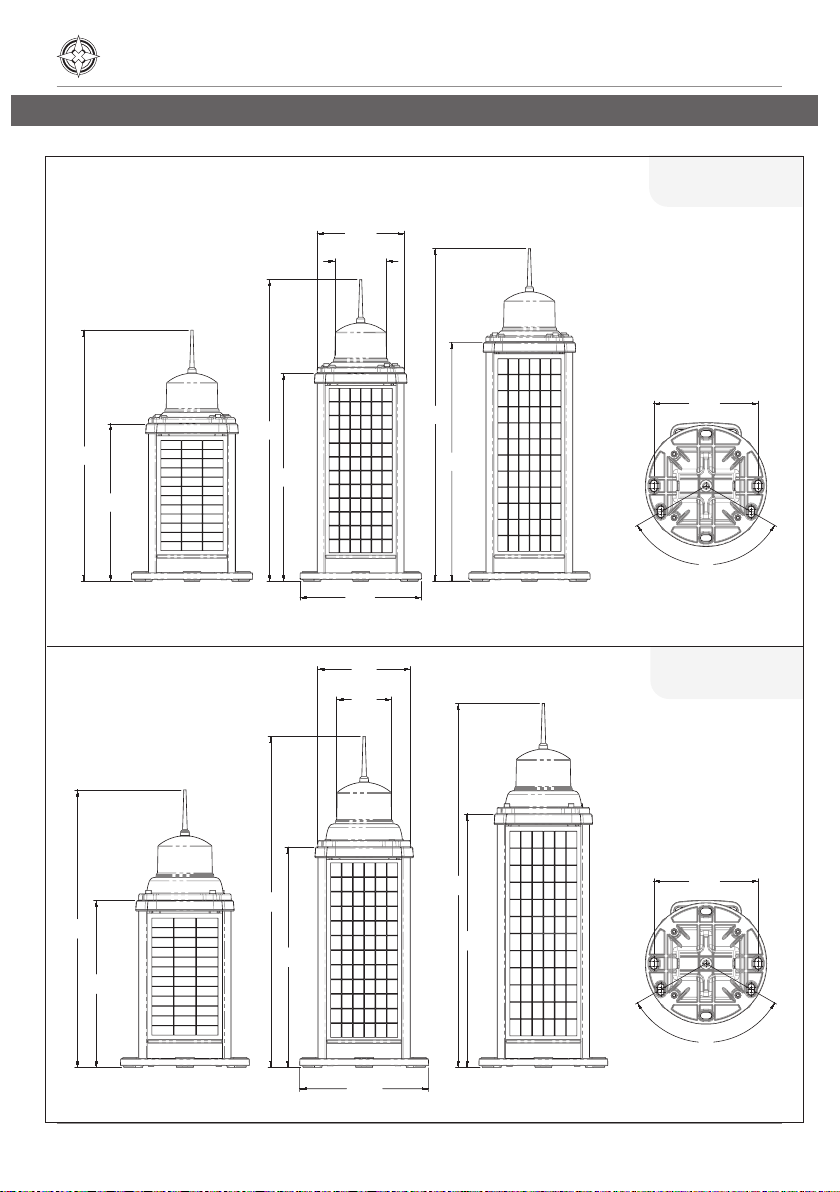

Technical Illustrations

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 9
Item Description Quantity
1 SL-C310 Composite Base 1
2 SL-C310 Lens Assembly 1
3 Battery 12V 1
4 Battery Clamp 1
5 Washer M4 2
6 M2 Cap Screw 2
7 O-Ring, ID 145 x 4.0 1
8 Socket Head Screw M5 x 16 4
9 Interfacing Cable 1
10 ON/OFF Switch 1
11 Charge Port 1
12 Maximum Power Point Tracker
(MPPT)
1
Compact model shown

10
Charging the Battery
New lanterns should be left in the sun for 1-2 days to ensure battery is charged before placing in
service.
Preferred Installation Location
For best lantern performance, ensure solar modules are not covered and are in clear view of the sky
with no shadows.
Lantern Installations Settings
The lantern can be programmed via 3 methods,
1. Via the Star2M Portal for satellite connected devices - visit star2m.com for further guidance;
2. Via DIP switch settings. Instructions are included in this manual.
3. Via the optional Sealite IR Controller (optional). Instructions are included in this manual.
Lantern Operation
The lantern is activated by connecting the 4-Pin Connector between the battery and the regulator.
Flash Codes and Intensity settings need to be set via one of the three methods identified above.
1. Remove the four socket-head screws on the top of the lens assembly and lift the SL-C310 (light
head) assembly from the solar chassis.
2. Join the 4-Pin connector together to join the battery and the solar panels to the light head. The
battery is disconnected to reduce discharge during transportation and for long term storage.
3. Feed all wiring back inside the solar chassis and make sure the O-ring is properly placed.
4. Replace the SL-C310 (light head) assembly and the four (4) socket head screws. Sealite
recommends that the light head be tightened onto the solar chassis base using a general purpose
“grip tool”, similar in shape to a screwdriver, however with the appropriate hex key head fitted. The
torque setting applied to each of the four (4) hex bolts, be applied sufficient enough, to ensure that
the light head base is secured firmly, but not over tightened with excessive force.
To achieve a satisfactory seal, it is recommended that a torque of 3Nm is applied to the bolts used for
holding down the Light Head to the Solar Base and that only the supplied bolts are used.
Applying a higher torque setting is not recommended and may void warranty. If in doubt, please
contact your local Sealite representative.
5. To test, place a dark cover (towel or jacket) on top of the light to activate sensor. The light will come
on within thirty seconds.
6. Ensure that the unit is bolted to an even, flat surface.
Installation

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 11
Setting Intensity/Power Settings Using DIP Switches
Intensity/power settings on Sealite lanterns operate via DIP switches, located near the rotary switches
on the flasher unit. The intensity/power settings may be used to reduce the power consumption and
intensity of the lantern. Setting the lantern to 25% intensity will reduce the power consumption to 25%
of the normal 100% setting and the range by 20% - 40% depending on the maximum intensity. Refer
to Sealite power calculator to confirm reduced range. This setting may be used to adjust the current
draw of the light to local sunlight conditions.
The following diagrams indicate intensity/power settings:-
If the number of Full Sunlight hours is less than 2.5-3.0 hours, please consider reducing the intensity
(Power) or reducing the Duty Cycle.
Automatic Intensity Reduction for Fixed-On Character
• When the flash code is configured to 00 or ‘Steady On’, the maximum intensity is set to 50%. If a
higher intensity is previously set when the lamp is on, the intensity will automatically fall to the 50%
setting when flash code 00 is configured.
• The intensity settings available for lamps with a flash code set to 00 are 25% and 50%. The lamp
will flash an error condition if an intensity setting greater than 50% is selected with the IR Remote
Control.
• If the flash code is changed from 00 to another value, the maximum allowable intensity reverts
back to 100%.
100%
1 2
ON
75%
1 2
ON
50%
1 2
ON
25%
1 2
ON
Intensity
Setting
Power White
cd
Green
cd
Red
cd
Yellow
cd
100% 120mA 156 88 121 95
75% 94mA 132 66 90 71
50% 64mA 88 44 60 48
25% 35mA 44 22 30 24
Model
Total power
used per night
(mAh)
Solar Panel
Charge (mA)
Number of full sunlight hours
required to break even
(the amount of time it will take for the solar to
replace what the light took out overnight)
SL-C310 Compact / 277 =
SL-C310 Standard / 435 =
SL-C415 Extended / 554 =

12
All lanterns have 2 rotary switches marked A and B on the flasher unit. Turning the small arrows to the
appropriate number or letter will set the code. The unit may take up to one minute to activate a new
flash code. A comprehensive list of available flash codes is listed on in the ‘Flash Codes’ section of this
manual.
Example:
Selecting a Flash Code - Rotary Switches A & B
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
A
B
SWITCH FLASH CODE ON OFF
A B
A 0 FL 3 S 0.3 2.7
Note – if setting the lantern to a demanding duty-cycle
such as steady-on, the power setting must be reduced
to ensure reliable operation

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 13
Flash Codes
Sealite marine lanterns may be set to any of 256 IALA recommended flash settings which are
user-adjustable on site without the need for external devices.
SEALITE® code reference is listed by number of flashes
For the latest version of this document visit www.sealite.com
or email [e-mail]
Symbols
FL Flash followed by number Eg. FL 1 S, one flash every second
F Fixed
Q Quick flash
VQ Very quick flash
OC Occulting; greater period on than off
ISO Isophase; equal period on and off
LFL Long flash long
MO Morse code ( ) contains letter
For example, VQ (6) + LFL 10 S means 6 very quick flashes followed by a long flash, during a
10-second interval.
The amount of power your lantern draws through the night depends on the duty cycle, i.e. The amount
of time on as a proportion to the timing cycle. For example, 0.5 seconds on and 4.5 seconds off equals a
10% duty cycle.
It is best to operate at the lowest duty cycle appropriate to the actual needs of the application.
Recommended Rhythm for Flashing Light - IALA Regions A and B
MARK DESCRIPTION RHYTHM
Port Hand & Starboard Marks: Any, other than Composite Group Flashing (2+1)
Preferred Channel Starboard: Composite Group Flashing (2+1)
Preferred Channel Port: Composite Group Flashing (2+1)
North Cardinal Mark: Very quick or quick
East Cardinal Mark: Very quick (3) every 5 seconds or quick (3) every 10 seconds
South Cardinal Mark: Very quick (6) + long ash every 10 seconds or quick (6) + long ash every 15 seconds
West Cardinal Mark: Very quick (9) every 10 seconds or quick (9) every 15 seconds
Isolated Danger Mark: Group ashing (2)
Safe Water Mark: Isophase, occulting, one long ash every 10 seconds or Morse Code “A”
Special Marks: Any, other than those described for Cardinal, Isolated Danger or Safe Water Marks

14
SWITCH
IR
Controller FLASH CODE ON OFF
A B
0 0 000 F (Steady light)
D 3 211 VQ 0.5 S 0.2 0.3
- - 274 VQ 0.5 S 0.25 0.25
E 3 227 VQ 0.6 S 0.2 0.4
F 3 243 VQ 0.6 S 0.3 0.3
7 3 115 Q 1 S 0.2 0.8
8 3 131 Q 1 S 0.3 0.7
9 3 147 Q 1 S 0.4 0.6
A 3 163 Q 1 S 0.5 0.5
8 4 132 Q 1 S 0.8 0.2
B 3 179 Q 1.2 S 0.3 0.9
- - 293 FL 1.2 S 0.4 0.8
9 4 148 Q 1.2 S 0.5 0.7
C 3 195 Q 1.2 S 0.6 0.6
F 4 244 FL 1.5 S 0.2 1.3
1 0 16 FL 1.5 S 0.3 1.2
0 5 5 FL 1.5 S 0.4 1.1
0 4 4 FL 1.5 S 0.5 1.0
2 0 32 FL 2 S 0.2 1.8
3 0 48 FL 2 S 0.3 1.7
4 0 64 FL 2 S 0.4 1.6
5 0 80 FL 2 S 0.5 1.5
6 0 96 FL 2 S 0.7 1.3
7 0 112 FL 2 S 0.8 1.2
1 2 18 ISO 2 S 1.0 1.0
8 0 128 FL 2.5 S 0.3 2.2
9 0 144 FL 2.5 S 0.5 2.0
D 6 214 FL 2.5 S 1.0 1.5
1 5 21 FL 3 S 0.2 2.8
A 0 160 FL 3 S 0.3 2.7
2 5 37 FL 3 S 0.4 2.6
B 0 176 FL 3 S 0.5 2.5
3 5 53 FL 3 S 0.6 2.4
C 0 192 FL 3 S 0.7 2.3
D 0 208 FL 3 S 1.0 2.0
2 2 34 ISO 3 S 1.5 1.5
5 4 84 OC 3 S 2.0 1.0
E 2 226 OC 3 S 2.5 0.5
4 6 70 OC 3.5 S 2.5 1.0
4 5 69 FL 4 S 0.2 3.8
5 5 85 FL 4 S 0.3 3.7
E 0 224 FL 4 S 0.4 3.6
F 0 240 FL 4 S 0.5 3.5
6 5 101 FL 4 S 0.6 3.4
0 1 1 FL 4 S 0.8 3.2
1 1 17 FL 4 S 1.0 3.0
2 1 33 FL 4 S 1.5 2.5
3 2 50 ISO 4 S 2.0 2.0
3 6 54 OC 4 S 2.5 1.5
F 2 242 OC 4 S 3.0 1.0
3 1 49 FL 4.3 S 1.3 3.0
8 5 133 FL 5 S 0.2 4.8
4 1 65 FL 5 S 0.3 4.7
- - 279 FL 5 S 0.4 4.6
5 1 81 FL 5 S 0.5 4.5
9 5 149 FL 5 S 0.9 4.1
6 1 97 FL 5 S 1.0 4.0
7 1 113 FL 5 S 1.5 3.5
SWITCH
IR
Controller FLASH CODE ON OFF
A B
4 2 66 ISO 5 S 2.5 2.5
8 2 130 LFL 5 S 2.0 3.0
0 3 3 OC 5 S 3.0 2.0
1 3 19 OC 5 S 4.0 1.0
2 3 35 OC 5 S 4.5 0.5
C 6 198 FL 6 S 0.2 5.8
B 5 181 FL 6 S 0.3 5.7
C 5 197 FL 6 S 0.4 5.6
8 1 129 FL 6 S 0.5 5.5
9 1 145 FL 6 S 0.6 5.4
A 1 161 FL 6 S 1.0 5.0
7 5 117 FL 6 S 1.2 4.8
B 1 177 FL 6 S 1.5 4.5
5 2 82 ISO 6 S 3.0 3.0
9 2 146 LFL 6 S 2.0 4.0
6 4 100 OC 6 S 4.0 2.0
3 3 51 OC 6 S 4.5 1.5
4 3 67 OC 6 S 5.0 1.0
- - 280 FL 7 S 0.4 6.6
A 4 164 FL 7 S 1.0 6.0
9 6 150 FL 7 S 2.0 5.0
5 6 86 OC 7 S 4.5 2.5
D 5 213 FL 7.5 S 0.5 7.0
C 1 193 FL 7.5 S 0.8 6.7
E 5 229 FL 8 S 0.5 7.5
B 4 180 FL 8 S 1.0 7.0
6 2 98 ISO 8 S 4.0 4.0
A 2 162 LFL 8 S 2.0 6.0
6 6 102 OC 8 S 5.0 3.0
- - 294 OC 8 S 6.0 2.0
B 2 178 LFL 8 S 3.0 5.0
F 5 245 FL 9 S 0.9 8.1
C 4 196 FL 9 S 1.0 8.0
7 6 118 OC 9 S 6.0 3.0
0 6 6 FL 10 S 0.2 9.8
1 6 22 FL 10 S 0.3 9.7
- - 281 FL 10 S 0.4 9.6
D 1 209 FL 10 S 0.5 9.5
2 6 38 FL 10 S 0.8 9.2
E 1 225 FL 10 S 1.0 9.0
1 4 20 FL 10 S 1.5 8.5
C 2 194 LFL 10 S 2.0 8.0
D 2 210 LFL 10 S 3.0 7.0
7 2 114 ISO 10 S 5.0 5.0
2 4 36 LFL 10 S 4.0 6.0
8 6 134 OC 10 S 6.0 4.0
5 3 83 OC 10 S 7.0 3.0
6 3 99 OC 10 S 7.5 2.5
- - 303 FL 11 S 1.0 10.0
- - 302 FL 12 S 1.0 11.0
F 1 241 FL 12 S 1.2 10.8
D 4 212 FL 12 S 2.5 9.5
3 4 52 LFL 12 S 2.0 10.0
0 2 2 FL 15 S 1.0 14.0
4 4 68 LFL 15 S 4.0 11.0
7 4 116 OC 15 S 10 5.0
A 6 166 LFL 20 S 2.0 18.0
E 4 228 FL 26 S 1.0 25.0

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 15
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF
A B
0 A 10 FL (2) 4 S 0.5 1.0 0.5 2.0
E B 235 VQ (2) 4 S 0.2 1.0 0.2 2.6
1 A 26 FL (2) 4.5 S 0.3 1.0 0.3 2.9
2 A 42 FL (2) 4.5 S 0.4 1.0 0.4 2.7
3 A 58 FL (2) 4.5 S 0.5 1.0 0.5 2.5
- - 277 FL (2) 4.6 S 0.3 0.3 0.3 3.7
F 9 249 FL (2) 5 S 0.2 0.8 0.2 3.8
2 C 44 FL (2) 5 S 0.2 1.2 0.2 3.4
4 A 74 FL (2) 5 S 0.4 0.6 0.4 3.6
- - 282 FL (2) 5 S 0.4 1.1 0.4 3.1
0 7 7 FL (2) 5 S 0.5 1.0 0.5 3.0
1 7 23 FL (2) 5 S 1.0 1.0 1.0 2.0
- - 257 FL (2) 5 S 0.3 1.0 0.3 3.4
9 B 155 Q (2) 5 S 0.3 0.7 0.3 3.7
2 9 41 Q (2) 5 S 0.5 0.5 0.5 3.5
- - 305 FL (2) 5 S 0.5 0.7 0.5 3.3
5 A 90 FL (2) 5.5 S 0.4 1.4 0.4 3.3
7 8 120 FL (2) 6 S 0.3 0.6 1.0 4.1
A A 170 FL (2) 6 S 0.3 0.9 0.3 4.5
6 A 106 FL (2) 6 S 0.3 1.0 0.3 4.4
7 A 122 FL (2) 6 S 0.4 1.0 0.4 4.2
- - 283 FL (2) 6 S 0.4 1.2 0.4 4.0
9 9 153 FL (2) 6 S 0.5 1.0 0.5 4.0
2 8 40 FL (2) 6 S 0.8 1.2 0.8 3.2
- - 256 FL (2) 6 S 0.8 0.8 0.8 3.6
3 7 55 FL (2) 6 S 1.0 1.0 1.0 3.0
3 9 57 Q (2) 6 S 0.3 0.7 0.3 4.7
- - 295 LFL + FL 6 S 3.0 1.0 1.0 1.0
- - 273 FL (2) 6.5 S 0.5 1.0 0.5 4.5
- - 284 FL (2) 7 S 0.4 1.2 0.4 5.0
- - 311 FL (2) 7 S 0.5 1.5 0.5 4.5
A 9 169 FL (2) 7 S 1.0 1.0 1.0 4.0
7 B 123 FL (2) 8 S 0.4 0.6 2.0 5.0
8 A 138 FL (2) 8 S 0.4 1.0 0.4 6.2
- - 285 FL (2) 8 S 0.4 1.7 0.4 5.5
4 7 71 FL (2) 8 S 0.5 1.0 0.5 6.0
- - 297 FL (2) 8 S 0.5 0.5 1.5 5.5
8 8 136 FL (2) 8 S 0.8 1.2 2.4 3.6
5 7 87 FL (2) 8 S 1.0 1.0 1.0 5.0
4 C 76 OC (2) 8 S 3.0 2.0 1.0 2.0
5 C 92 OC (2) 8 S 5.0 1.0 1.0 1.0
F B 251 VQ (2) 8 S 0.2 1.0 0.2 6.6
- - 286 FL (2) 9 S 0.4 1.7 0.4 6.5
9 A 154 FL (2) 10 S 0.4 1.6 0.4 7.6
- - 287 FL (2) 10 S 0.4 2.2 0.4 7.0
6 7 103 FL (2) 10 S 0.5 1.0 0.5 8.0
7 7 119 FL (2) 10 S 0.5 1.5 0.5 7.5
6 9 105 FL (2) 10 S 0.5 2.0 0.5 7.0
- - 298 FL (2) 10 S 0.5 0.5 1.5 7.5
8 7 135 FL (2) 10 S 0.8 1.2 0.8 7.2
B 9 185 FL (2) 10 S 1.0 1.0 1.0 7.0
9 7 151 FL (2) 10 S 1.0 1.5 1.0 6.5
4 9 73 Q (2) 10 S 0.6 0.4 0.6 8.4
B A 186 FL (2) 12 S 0.4 1.0 0.4 10.2
C 9 201 FL (2) 12 S 0.5 1.0 0.5 10.0
D 9 217 FL (2) 12 S 1.5 2.0 1.5 7.0
A 8 168 FL (2) 15 S 0.5 1.5 2.0 11.0
A 7 167 FL (2) 15 S 1.0 2.0 1.0 11.0
8 B 139 Q (2) 15 S 0.2 0.8 0.2 13.8
C A 202 FL (2) 20 S 1.0 3.0 1.0 15.0
D A 218 FL (2) 25 S 1.0 1.0 1.0 22.0

16
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF
A B
7 9 121 Q (3) 5 S 0.5 0.5 0.5 0.5 0.5 2.5
5 9 89 VQ (3) 5 S 0.2 0.3 0.2 0.3 0.2 3.8
0 C 12 VQ (3) 5 S 0.3 0.2 0.3 0.2 0.3 3.7
E 9 233 VQ (3) 5 S 0.3 0.3 0.3 0.3 0.3 3.5
- - 308 FL (3) 5 S 0.3 0.7 0.3 0.7 0.3 3.7
0.3 3.7 60 FL (3) 6 S 0.5 1.0 0.5 1.0 0.5 2.5
2 B 43 FL (2+1) 6 S 0.3 0.4 0.3 1.2 0.3 3.5
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF
A B
A B 171 Q (3) 6 S 0.3 0.7 0.3 0.7 0.3 3.7
F A 250 FL (3) 8 S 0.5 1.0 0.5 1.0 0.5 4.5
- - 301 FL (3) 8 S 1.5 0.5 0.5 0.5 0.5 4.5
- - 266 Q (3) 9 S 0.5 0.5 0.5 1.0 0.5 6.0
0 B 11 FL (3) 9 S 0.3 1.0 0.3 1.0 0.3 6.1
- - 306 FL (3) 9 S 0.5 1.5 0.5 1.5 0.5 4.5
B 7 183 FL (3) 9 S 0.8 1.2 0.8 1.2 0.8 4.2
B 8 184 FL (3) 10 S 0.3 0.7 0.3 0.7 0.9 7.1
C 8 200 FL (3) 10 S 0.4 0.6 0.4 0.6 1.2 6.8
- - 290 FL (3) 10 S 0.4 0.8 0.4 0.8 0.4 7.2
C B 203 FL (3) 10 S 0.5 0.5 0.5 0.5 0.5 7.5
C 7 199 FL (3) 10 S 0.5 1.5 0.5 1.5 0.5 5.5
D B 219 FL (3) 10 S 0.6 0.6 0.6 0.6 0.6 7.0
- - 278 FL (3) 10 S 0.9 1.1 0.9 1.1 0.9 5.1
D 7 215 FL (3) 10 S 1.0 1.0 1.0 1.0 1.0 5.0
- - 261 FL (3) 10 S 0.35 0.65 0.35 0.65 0.35 7.65
3 8 56 FL (2+1) 10 S 0.5 0.7 0.5 2.1 0.5 5.7
8 9 137 OC (3) 10 S 5.0 1.0 1.0 1.0 1.0 1.0
B B 187 Q (3) 10 S 0.3 0.7 0.3 0.7 0.3 7.7
D 8 216 FL (2 + 1) 10 S 0.5 0.5 0.5 0.5 1.5 6.5
- - 288 FL (3) 12 S 0.4 2.1 0.4 2.1 0.4 6.6
1 B 27 FL (3) 12 S 0.5 1.5 0.5 1.5 0.5 7.5
E A 234 FL (3) 12 S 0.5 2.0 0.5 2.0 0.5 6.5
E 7 231 FL (3) 12 S 0.8 1.2 0.8 1.2 0.8 7.2
B 6 182 FL (3) 12 S 1.0 1.0 1.0 3.0 1.0 5.0
4 8 72 FL (2+1) 12 S 0.8 1.2 0.8 2.4 0.8 6.0
5 8 88 FL (2+1) 12 S 1.0 1.0 1.0 4.0 1.0 4.0
- - 272 FL (3) 12.5 S 0.5 1.0 0.5 1.0 0.5 9.0
- - 289 FL (3) 13 S 0.4 2.1 0.4 2.1 0.4 7.6
- - 296 LFL + FL(2) 13 S 6.0 1.0 2.0 1.0 2.0 1.0
1 8 24 FL (2+1) 13.5 S 1.0 1.0 1.0 4.0 1.0 5.5
- - 307 FL (3) 14.5 S 0.5 1.0 1.5 3.0 0.5 9.0
F 7 247 FL (3) 15 S 0.3 1.7 0.3 1.7 0.3 10.7
9 D 157 FL (3) 15 S 0.4 1.0 0.4 1.0 0.4 11.8
0 8 8 FL (3) 15 S 0.5 1.5 0.5 1.5 0.5 10.5
- - 259 FL (3) 15 S 0.5 2.0 0.5 2.0 0.5 9.5
- - 260 FL (3) 15 S 1.0 1.0 1.30 1.0 1.0 10.0
F 8 248 FL (2+1) 15 S 0.6 0.3 0.6 0.3 1.4 11.8
0 9 9 FL (2+1) 15 S 0.7 0.5 0.7 0.5 1.9 10.7
1 9 25 FL (2+1) 15 S 0.7 0.7 0.7 0.7 2.1 10.1
6 8 104 FL (2+1) 15 S 1.0 2.0 1.0 5.0 1.0 5.0
- - 265 FL (2+1) 15 S 1.3 0.7 1.3 0.7 3.3 7.7
- - 264 FL (2+1) 15.75 S 0.55 0.35 0.55 0.35 1.45 12.5
1 C 28 VQ (3) 15 S 0.1 0.5 0.1 0.5 0.1 13.7
- - 313 FL (2) + LFL 16 S 2.0 2.0 2.0 2.0 6.0 2.0
4 B 75 FL (3) 20 S 0.5 3.0 0.5 3.0 0.5 12.5
3 B 59 FL (3) 20 S 0.5 1.5 0.5 1.5 0.5 15.5
- - 263 FL (3) 20 S 0.5 2.0 0.5 2.0 0.5 12.0
5 B 91 FL (3) 20 S 0.8 1.2 0.8 1.2 0.8 15.2
6 B 107 FL (3) 20 S 1.0 1.0 1.0 1.0 1.0 15.0

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 17
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF ON OFF
A B
D D 221 Q (5) 7 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 2.7
- - 310 Q (5) 9 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 4.5
E D 237 Q (5) 10 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 5.7
E 8 232 FL (5) 12 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 1.5 0.5 3.5
- - 276 FL (5) 16 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 1.5 0.5 7.5
5 F 95 FL (5) 20 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 15.5
9 F 159 FL (5) 20 S 0.8 1.2 0.8 1.2 0.8 1.2 0.8 1.2 0.8 11.2
9 E 158 FL (5) 20 S 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 11.0
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF
A B
F D 253 Q (6) 10 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 4.7
A F 175 FL (6) 15 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 9.7
7 F 127 FL (6) 15 S 0.5 1.0 0.5 1.0 0.5 1.0 0.5 1.0 0.5 1.0 0.5 7.0
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF
A B
- - 271 VQ (4) 2 S 0.10 0.13 0.10 0.13 0.10 0.13 0.10 1.21
B F 191 VQ (4) 4 S 0.3 0.3 0.3 0.3 0.3 0.3 0.3 2.3
B D 189 Q (4) 6 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 2.7
8 D 141 Q (4) 6 S 0.4 0.6 0.4 0.6 0.4 0.6 0.4 2.6
- - 299 FL (1+3) 8 S 1.5 0.5 0.5 0.5 0.5 0.5 0.5 3.5
- - 309 FL (4) 7 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 3.7
1 D 29 FL (4) 10 S 0.5 1.0 0.5 1.0 0.5 1.0 0.5 5.0
2 D 45 FL (4) 10 S 0.8 1.2 0.8 1.2 0.8 1.2 0.8 3.2
F E 254 Q (4) 10 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 6.7
- - 300 FL (4) 10 S 1.5 0.5 0.5 0.5 0.5 0.5 0.5 4.5
- - 312 FL (4) 11 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 4.5
B E 190 FL (4) 12 S 0.3 1.7 0.3 1.7 0.3 1.7 0.3 5.7
4 F 79 FL (4) 12 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 8.5
C E 206 FL (4) 12 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 5.5
3 D 61 FL (4) 12 S 0.8 1.2 0.8 1.2 0.8 1.2 0.8 5.2
A D 173 Q (4) 12 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 8.7
4 D 77 FL (4) 15 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 8.5
8 E 142 FL (4) 15 S 1.0 1.0 1.0 1.0 1.0 1.0 1.0 8.0
7 D 125 FL (4) 15 S 1.5 0.5 0.5 0.5 0.5 0.5 0.5 10.5
D E 222 FL (4) 16 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 9.5
- - 314 FL (3+1) 18 S 1.5 1.5 1.5 1.5 1.5 4.5 1.5 4.5
- - 304 FL (4) 19 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 15.7
C D 205 FL (4) 20 S 0.3 3.0 0.3 3.0 0.3 3.0 0.3 9.8
5 D 93 FL (4) 20 S 0.5 1.5 0.5 1.5 0.5 1.5 0.5 13.5
0 D 13 FL (4) 20 S 0.5 1.5 0.5 1.5 0.5 4.5 0.5 10.5
3 F 63 FL (4) 20 S 1.5 1.5 1.5 1.5 1.5 1.5 1.5 9.5
0 F 15 Q (4) 20 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 16.5
- - 263 FL (4) 20 S 0.5 2.0 0.5 2.0 0.5 2.0 0.5 12.0
E E 238 Q (4) 28 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 24.5
6 F 111 FL (4) 30 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 26.5

18
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF
A B
- - 275 FL (3+5) 12.2 S 0.9 0.3 0.9 1.0 0.9 0.3 0.3 0.3 0.3 1.0 0.3 0.3 0.3 0.3 0.3 4.5 - -
4 E 78 VQ (9) 10 S 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 5.8
5 E 94 VQ (9) 10 S 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 4.9
1 F 31 Q (9) 15 S 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 6.8
0 E 14 Q (9) 15 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 6.7
- - 267 Q (9) 15 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 6.5
1 E 30 Q (9) 15 S 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 4.8
- - 291 FL (9) 32.92 S 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 22.9
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF
A B
MORSE CODE ( ) INDICATES LETTER
7 8 120 MO (A) 6 S 0.3 0.6 1.0 4.1
7 B 123 MO (A) 8 S 0.4 0.6 2.0 5.0
8 8 136 MO (A) 8 S 0.8 1.2 2.4 3.6
B 8 184 MO (U) 10 S 0.3 0.7 0.3 0.7 0.9 7.1
C 8 200 MO (U) 10 S 0.4 0.6 0.4 0.6 1.2 6.8
D 8 216 MO (U) 10 S 0.5 0.5 0.5 0.5 1.5 6.5
9 8 152 MO (A) 10 S 0.5 0.5 1.5 7.5
8 9 137 MO (D) 10 S 5.0 1.0 1.0 1.0 1.0 1.0
A 8 168 MO (A) 15 S 0.5 1.5 2.0 11.0
F 8 248 MO (U) 15 S 0.6 0.3 0.6 0.3 1.4 11.8
0 9 9 MO (U) 15 S 0.7 0.5 0.7 0.5 1.9 10.7
1 9 25 MO (U) 15 S 0.7 0.7 0.7 0.7 2.1 10.1
7 D 125 MO (B) 15 S 1.5 0.5 0.5 0.5 0.5 0.5 0.5 10.5
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF
A B
6 E 110 VQ (6) + LFL 10 S 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 2.0 5.0
7 E 126 VQ (6) + LFL 10 S 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 2.0 4.4
2 F 47 Q (6) + LFL 15 S 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 2.0 7.0
2 E 46 Q (6) + LFL 15 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 2.0 7.0
3 E 62 Q (6) + LFL 15 S 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 2.0 5.8
- - 258 FL (6 + 1) 15 S 0.35 0.65 0.35 0.65 0.35 0.65 0.35 0.65 0.35 0.65 0.35 0.65 1.05 7.95
- - 292 FL (6) + LFL 15 S 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 2.0 5.8
- - 262 FL (6) + LFL 15 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 2.0 7.0
8 F 143 VQ (6) + LFL 15 S 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 2.0 9.4
The following ash characters can only be set via the IR Programmer (sold separately). Please refer to
the IR section of this manual for set up instructions.
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF
336 F1 8 S 0.4 7.6
337 Q (9) 15 S 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 5
338 Mo(A) 9 S 0.5 0.5 1.5 6.5
339 Mo(A) 11 S 0.5 0.5 1.5 8.5
340 Mo(C) 13 S 1.5 0.5 0.5 0.5 1.5 0.5 0.5 7.5
341 Mo(C) 17 S 1.5 0.5 0.5 0.5 1.5 0.5 0.5 11.5
342 Mo(D) 10 S 1.5 0.5 0.5 0.5 0.5 6.5
343 Mo(D) 13 S 1.5 0.5 0.5 0.5 0.5 9.5

SL-C310
Compact 3-5NM+ Solar Marine Lantern
Latest products and information available at www.sealite.com 19
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF
A B
- - 275 FL (3+5) 12.2 S 0.9 0.3 0.9 1.0 0.9 0.3 0.3 0.3 0.3 1.0 0.3 0.3 0.3 0.3 0.3 4.5 - -
4 E 78 VQ (9) 10 S 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 0.3 0.2 5.8
5 E 94 VQ (9) 10 S 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 4.9
1 F 31 Q (9) 15 S 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 0.8 0.2 6.8
0 E 14 Q (9) 15 S 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 0.7 0.3 6.7
- - 267 Q (9) 15 S 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 6.5
1 E 30 Q (9) 15 S 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 4.8
- - 291 FL (9) 32.92 S 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 0.8 0.4 22.9
SWITCH
IR
Controller FLASH CODE ON OFF ON OFF ON OFF ON OFF
A B
MORSE CODE ( ) INDICATES LETTER
7 8 120 MO (A) 6 S 0.3 0.6 1.0 4.1
7 B 123 MO (A) 8 S 0.4 0.6 2.0 5.0
8 8 136 MO (A) 8 S 0.8 1.2 2.4 3.6
B 8 184 MO (U) 10 S 0.3 0.7 0.3 0.7 0.9 7.1
C 8 200 MO (U) 10 S 0.4 0.6 0.4 0.6 1.2 6.8
D 8 216 MO (U) 10 S 0.5 0.5 0.5 0.5 1.5 6.5
9 8 152 MO (A) 10 S 0.5 0.5 1.5 7.5
8 9 137 MO (D) 10 S 5.0 1.0 1.0 1.0 1.0 1.0
A 8 168 MO (A) 15 S 0.5 1.5 2.0 11.0
F 8 248 MO (U) 15 S 0.6 0.3 0.6 0.3 1.4 11.8
0 9 9 MO (U) 15 S 0.7 0.5 0.7 0.5 1.9 10.7
1 9 25 MO (U) 15 S 0.7 0.7 0.7 0.7 2.1 10.1
7 D 125 MO (B) 15 S 1.5 0.5 0.5 0.5 0.5 0.5 0.5 10.5
Optional IR Remote Control
The IR programmer is used to communicate with Sealite lighting products that
have an IR sensor fitted. The remote control is used for the following functions:
• Flash Code: Read the current flash code, configure a new flash code.
• Lamp Intensity:Read the current lamp intensity, configure a new intensity
level.
• Ambient Light Thresholds:Read the current light thresholds, configure
new ambient light thresholds.
• Perform a battery health check.
On receiving a valid key signal from the IR Programmer, the light will flash
once.
The user should wait until the light responds to each keypress before pressing
another key. If there is no response to the keypress after 3 seconds, it has not
been detected by the light and the key can be pressed again.
If an invalid key is detected, the light will flash quickly 5 times. In this case, the
command will have to be restarted.
T/CT/C
Read Lux
Flash Code Intensity Battery Status
Test / Congure
R L
FC I B
3
4 5 6
7 8 9
0
1 2

20
IR Controller Functions
Test Mode / Configure
Pressing the T/C button up to 5 seconds places the light in Test Mode. The light will flash once in
response to the T/C button being pressed and then turn off.
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
Normal Operation
The light will return to normal operation once it has not detected a valid key press for 30 seconds. The
light will flash once to indicate it is returning to normal operation.
Read
Pressing the Read followed by one of the configuration keys shall cause the light to flash the
configured value.
Example Key Sequences:
The light flashes the ‘IR Remote’ number belonging to the currently set Flash
Code. Refer to the Flash Code tables to match the ‘IR Remote’ flash number to
the Flash Code.
The light flashes the current intensity setting: 1 flash for 25%, 2 for 50%, 3 for
75% and 4 for 100%.
The light flashes the current battery status.
The light flashes the sunset level in Lux, followed by a 2 second gap, followed
by the sunrise level. Levels are in the range of 1 to 5.
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
Flash Code
This key sets the Flash Code on the light.
Example Key sequence:
This sets the Flash Code to value 123. The light responds by flashing the Flash Code value.
T/CT/C
R L
FC
I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2 T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
