Sealite SL-300-2D5 Series Supplement

SL-300-2D5 Series
13-19 NM Marine Lanterns
V4-4
INSTALLATION & SERVICE MANUAL

2
Version No. Description Date Approved
1.0 Manual Launch September 2014 Y. Chambers
1.1 Typical Power & Lantern installation update February 2015 Y. Chambers
2.0 Separate Manual. Power consumption & Power
supply design considerations added.
June 2015 Y. Chambers
2.1 Operational Mode IR Command July 2015 Y. Chambers
3.0 Code & PC Conguration Tool Updates September 2015 M. Walker
4.0 Updates: Product Code, hard wire sync removed,
contact details
February 2016 J. Dore
4.1 Power supply design considerations Peak Current March 2016 Y. Chambers
4.2 Trouble Shooting Guide updated ECR488 August 2016 Y. Chambers
4.3 Power Supply Design Considerations update August 2018 Y. Chambers
4.4 Addition of Lantern Status Chart November 2019 M. Nicholson

SL-300-2D5 Series
13-19NM Marine Lanterns
Latest products and information available at www.sealite.com 3
Introduction....................................................................................................... Page 4
Operating Principle .......................................................................................... Page 4
Technology........................................................................................................ Page 4
SL-300-2D5 Series ............................................................................................ Page 5
Product Components .................................................................................... Page 10
Programming the Lantern: PC Conguration Tool ..................................... Page 11

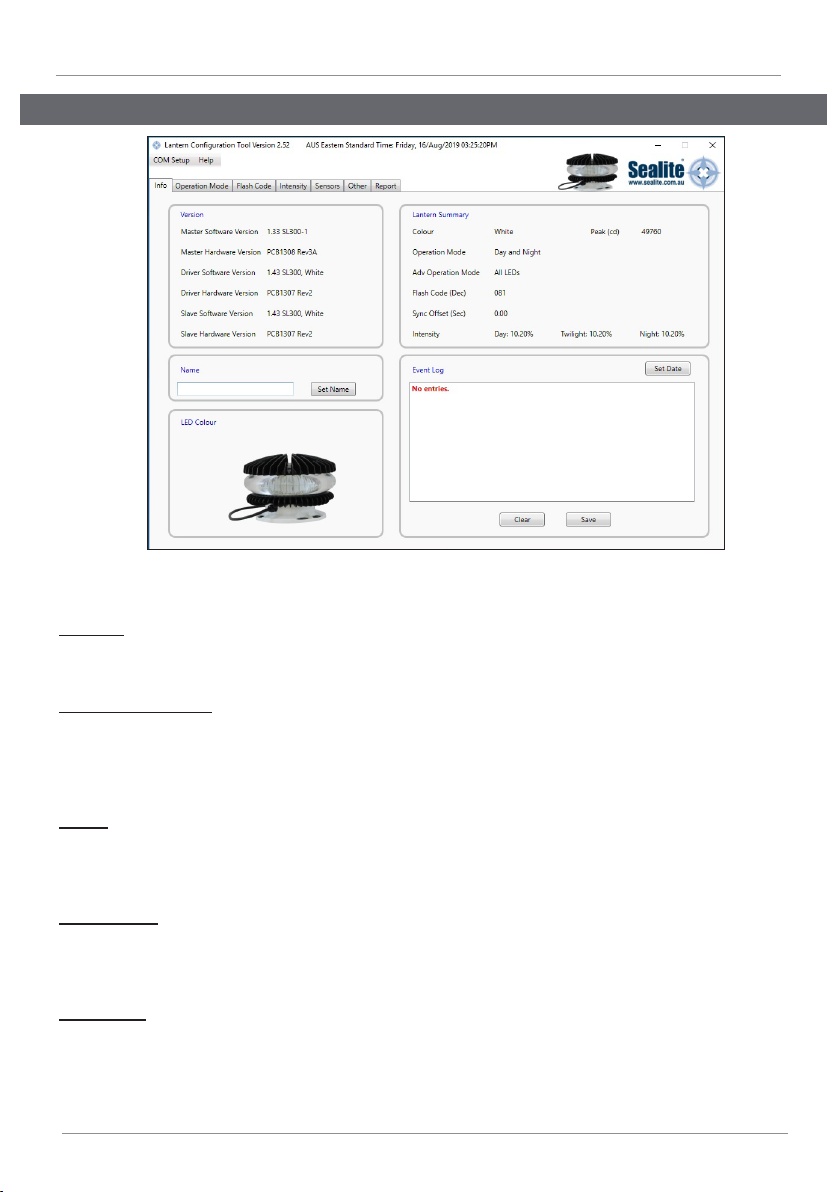

Info Tab ...................................................................................................... Page 15
Operation mode Tab ................................................................................. Page 16
Flash Code ................................................................................................ Page 17
Intensity ..................................................................................................... Page 18
Sensors...................................................................................................... Page 19
AIS Report ................................................................................................. Page 21
Programming the Lantern: IR Programmer ................................................. Page 22
Sealite IR Controller / Universal Remote Compatibility ........................ Page 22
IR Programmer Functions........................................................................ Page 23
Test Mode / Congure ........................................................................... Page 23
Normal Operation.................................................................................. Page 23
Read...................................................................................................... Page 23
Flash Code............................................................................................ Page 24
Flash Code Numbers ............................................................................ Page 24
Intensity................................................................................................. Page 24
Battery Status........................................................................................ Page 25
Lux ........................................................................................................ Page 25
Error / Acknowledge Indication.............................................................. Page 26
Conguration Settings........................................................................... Page 26
Operational Mode (Advanced Users).................................................... Page 27
Lantern Status Chart ............................................................................. Page 28
SL-300 Series Lantern Power Consumption................................................ Page 29
Power Basics ............................................................................................ Page 29
Thermal Management............................................................................... Page 30
Lantern data .............................................................................................. Page 31
Thermal limit operation ............................................................................ Page 31
Let’s try a practical example.................................................................... Page 32
Power Supply Design Considerations.......................................................... Page 34
Lantern Testing............................................................................................... Page 35
Lantern Installation ........................................................................................ Page 36
Optional GPS Synchronisation ..................................................................... Page 41
Optional GSM Monitoring & Control System............................................... Page 42
Maintenance & Servicing............................................................................... Page 43
Trouble Shooting ............................................................................................ Page 43
Appendix: Flash Codes.................................................................................. Page 44
Sealite LED Light Warranty ........................................................................... Page 49
Table of Contents

4
Introduction
Congratulations! By choosing to purchase a Sealite lantern you have become the owner of
one of the most advanced LED marine lanterns in the world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to
ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been independently
certied as complying with the requirements of ISO9001:2015 quality management system.
Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To
Navigation.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of your
lantern, and be able to maximise its operating function.
Operating Principle
The solar module of the lantern converts sunlight to an electrical current that is used to charge the battery. The
battery provides power to operate the lantern at night.
The asher unit has very low current requirements. A microprocessor drives an ultra bright LED through a
DC/DC converter, which enables the LED to operate within the manufacturer’s specications. The battery is
protected from over-charging within the circuit to ensure maximum battery life.
On darkness, the microprocessor will initiate a program check and after approximately 1 minute begin ashing
to the set code
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We
employ leading mechanical, optical, hardware & software engineers to create innovative
products to service the needs of our customers worldwide, and oer the widest range of
solar-powered LED lanterns in the marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Sealite procurement sta󰀨 ensuring that
only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing
costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Sealite products are of a consistent & superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. The company has
superior in-house lens manufacturing capabilities to support outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative designs,
with other regional patents pending in Canada, United Kingdom and Europe.

SL-300-2D5 Series
13-19NM Marine Lanterns
Latest products and information available at www.sealite.com 5
SL-300-2D5 Series
13–19NM Marine Lanterns
The SL-300-2D5 Series are 13 to 19NM long range marine lanterns with a 2.5 degree
vertical distribution, suitable for a range of applications including ports & harbours,
lighthouse authorities, and general marine navigation.
Small Form Factor
The single tier SL-300-2D5-1 offers multiple intensity adjustments to over 46,000cd luminous
intensity while the two tier SL-300-2D5-2 offers multiple intensity adjustments to over 93,000cd
luminous intensity – providing high levels of efficiency, minimal wind loading, and delivering significant
advantages over larger assemblies.
Advanced Thermal Management
The SL-300-2D5 Series lanterns feature precision heat sinking.
The custom designed heat sinks are interconnected, and designed to maintain an appropriate
LED temperature across a wide range of duty cycles, enabling the lanterns to run efficiently whilst
maintaining a compact size.
Advanced PC or IR Programming
Sealite’s convenient PC Configuration Tool or IR programmer allows a host of features to be user set
including;
• Multiple intensity settings
• 310 flash settings including custom character
• Automatic effective intensity adjustment
• Adjustable on/off lux levels
• Low battery threshold
• GPS synchronisation offset
• Alarm conditions

6
SL-300-2D5-1 Model
Precision upper & lower heat
sinking
UV-stabilised acrylic lens
Marine grade two
part epoxy coating

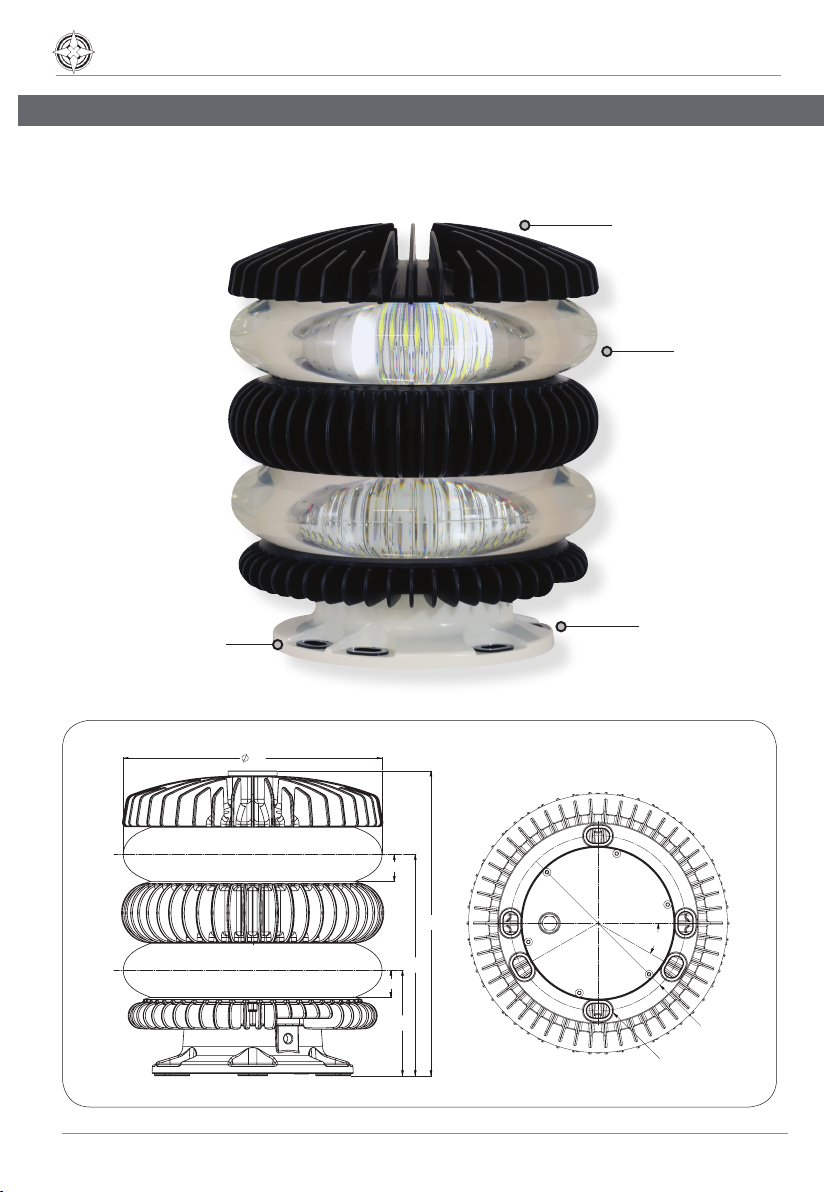

200mm bolt pattern
for ease of installation
216
121 31
296
30°
PCD 200
16 X 15 Slots
6 Places

SL-300-2D5 Series
13-19NM Marine Lanterns
Latest products and information available at www.sealite.com 7
•Specifications subject to change or variation without notice
*Subject to standard terms and conditions
†Intensity setting subject to solar availability
SPECIFICATIONS•*
SL-300-2D5-1
Light Characteristics
Light Source High efficiency LEDs
Available Colours White. Other colours available on request
Maximum Luminous Intensity (cd)† White - 46,700
Visible Range (NM) AT @ 0.74: 13–17.5
AT @ 0.85: 19.2–26.9
Horizontal Output (degrees) 0º - 360º
Vertical Divergence (degrees) >2.5
Available Flash Characteristics Up to 310 including 256 IALA recommended, & 1 custom
Intensity Adjustments User adjustable
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Voltage Range (V) 24-48V DC
Nominal Voltage (V) 24V DC
Peak Power (W) 384
Average Power (W) 132
Physical Characteristics
Body Material Marine grade two part epoxy coating to resist the elements
Lens Material UV-stabilised acrylic
Lens Diameter (mm/inches) 298 / 11¾
Lens Design Multiple LED optic
Mounting 3 & 4 hole 200mm bolt pattern
Height (mm/inches) 216 / 8½
Width (mm/inches) 298 / 11¾
Mass (kg/lbs) 8.8 / 19½
Product Life Expectancy Up to 12 years
Environmental Standards
Shock MIL-STD-202-213 Test condition H
Vibration MIL-STD-202-204 Test Condition B (5g)
Ice Loading Rated to withstand 22kg/m2
Temperature Range -40 to 80°C
Wind Exposure Rated to withstand 140knots
Humidity 0 – 100%, condensing
Driving Rain at 45° from vertical
Certifications
Immunity EN61000-6-1: 2007 (IEC61000-6-1:2005)
Emission EN61000-6-4: 2007 (IEC61000-6-4:2006) + A1: 2001.
FCC Part 15 Rules FCC Part 15 Subpart B.
IALA Signal colours compliant to IALA E-200-1
Quality Assurance ISO9001:2015
Waterproof IP68
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • GPS Synchronisation
• AIS Type 1 or Type 3
• GSM Monitoring & Control System
• RS232/422/485 Port
• General purpose inputs (2) & outputs (2)
• Variety of solar/battery configurations
• Bird deterrent spikes
• Serial programming cable

8
200mm bolt pattern
for ease of installation
Precision upper, middle &
lower heat sinking
UV-stabilised
acrylic lens
Marine grade two part
epoxy coating
SL-300-2D5-2 Model
349
121
253
31 31
296
30°
PCD 200
16 X 15 Slots
6 Places

SL-300-2D5 Series
13-19NM Marine Lanterns
Latest products and information available at www.sealite.com 9
SPECIFICATIONS•*
SL-300-2D5-2
Light Characteristics
Light Source High efficiency LEDs
Available Colours White. Other colours available on request
Maximum Luminous Intensity (cd)† White - 93,400
Visible Range (NM) AT @ 0.74: 18–19
AT @ 0.85: 27.8–29.6
Horizontal Output (degrees) 0º - 360º
Vertical Divergence (degrees) >2.5
Available Flash Characteristics Up to 310 including 256 IALA recommended, & 1 custom
Intensity Adjustments User adjustable
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Voltage Range (V) 24-48V DC
Nominal Voltage (V) 24V DC
Peak Power (W) 768
Average Power (W) 264
Physical Characteristics
Body Material Marine grade two part epoxy coating to resist the elements
Lens Material UV-stabilised acrylic
Lens Diameter (mm/inches) 298 / 11¾
Lens Design Multiple LED optic
Mounting 3 & 4 hole 200mm bolt pattern
Height (mm/inches) 342 / 13½
Width (mm/inches) 298 / 11¾
Mass (kg/lbs) 18 / 39¾
Product Life Expectancy Up to 12 years
Environmental Standards
Shock MIL-STD-202-213 Test condition H
Vibration MIL-STD-202-204 Test Condition B (5g)
Ice Loading Rated to withstand 22kg/m2
Temperature Range -40 to 80°C
Wind Exposure Rated to withstand 140knots
Humidity 0 – 100%, condensing
Driving Rain at 45° from vertical
Certifications
Immunity EN61000-6-1: 2007 (IEC61000-6-1:2005)
Emission EN61000-6-4: 2007 (IEC61000-6-4:2006) + A1: 2001.
FCC Part 15 Rules FCC Part 15 Subpart B.
IALA Signal colours compliant to IALA E-200-1
Quality Assurance ISO9001:2015
Waterproof IP68
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • GPS Synchronisation
• AIS Type 1 or Type 3
• GSM Monitoring & Control System
• RS232/422/485 Port
• General purpose inputs (2) & outputs (2)
• Variety of solar/battery configurations
• Bird deterrent spikes
• Serial programming cable
•Specifications subject to change or variation without notice
*Subject to standard terms and conditions
†Intensity setting subject to solar availability

10
The following components come standard with each lantern:-
• SL-300 Series lantern
• IR Programmer
• USB Drive
• Programming cable (optional)
• Installation & service manual
These components are securely packaged within foam in a carton, and shipped to you.
PLEASE NOTE: The programming cable provided is suitable for use with PC’s. If you require
connection to your notebook/laptop, a Serial Port to USB cable may need to be purchased.
Please check that ALL of these components are included with your order, and
contact your Sealite representative as soon as possible if anything is missing.
Product Components
