Sealite SL-75 User manual

For the full manual, visit the link below:
sealite.com/3-5nm-stand-alone-marine-lantern/
Quick Start Guide
SL-75
Thank you for purchasing this product. This guide will
provide you with a brief summary of the steps involved in
successfully installing the SL-75 compact marine lantern.
Your system will consist of: 1 x SL-75 marine lantern, switch key and IR Programmer.
Other tools required to successfully set up this product, are:
• Internet connection
• Star2M®portal access for GSM & satellite devices
• SealitePro for Bluetooth Connectivity
Introduction
The purpose of this quick start guide is to present a brief summary of the steps involved in the installation
of the SL-75 compact marine lantern, from the physical installation of the product itself to conguration into
Star2M for GSM and satellite connected devices.
Step 1: Installing the SL-75 lantern

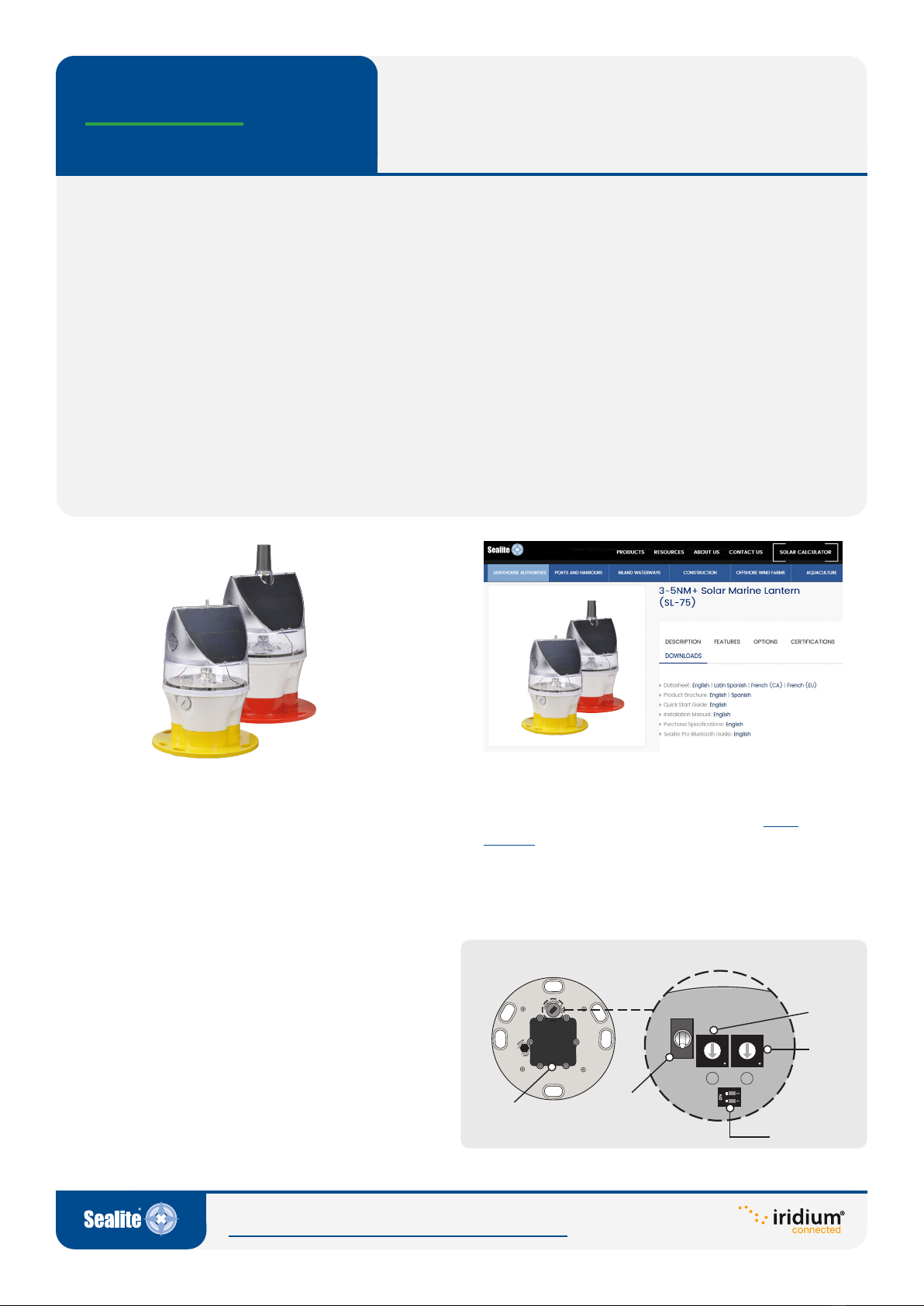

Remove the SL-75 marine lantern, switch key and
IR programmer from the packaging.
Carefully place on a solid work surface.
Step 2: Visit Sealite website
Visit www.sealite.com and download the User
Manual from the Sealite website. This document
provides in depth information on how to fully
congure your SL-75 compact marine lantern.
Step 3: Power the unit
Use the switch key to remove the SL-75 bung to
access the ON/OFF toggle switch.
Refer to Diagram 1.
Use the switch key to switch ON the SL-75 and
place the SL-75 bung back on the base.
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
AB
ON
OFF Rotary
Switch A
Rotary
Switch B
Intensity Setting
ON / OFF
Switch
User Replaceable Battery
Diagram 1 - Lantern Base

Head Oce
[phone]
Sealite USA
[phone]
Sealite Asia
[phone]
Sealite UK
[phone]
Step 9: Satellite* & GSM enabled devices
To activate Satellite Connectivity and GSM
Monitoring services please login to your Star2M®
account or visit star2m.com to register.

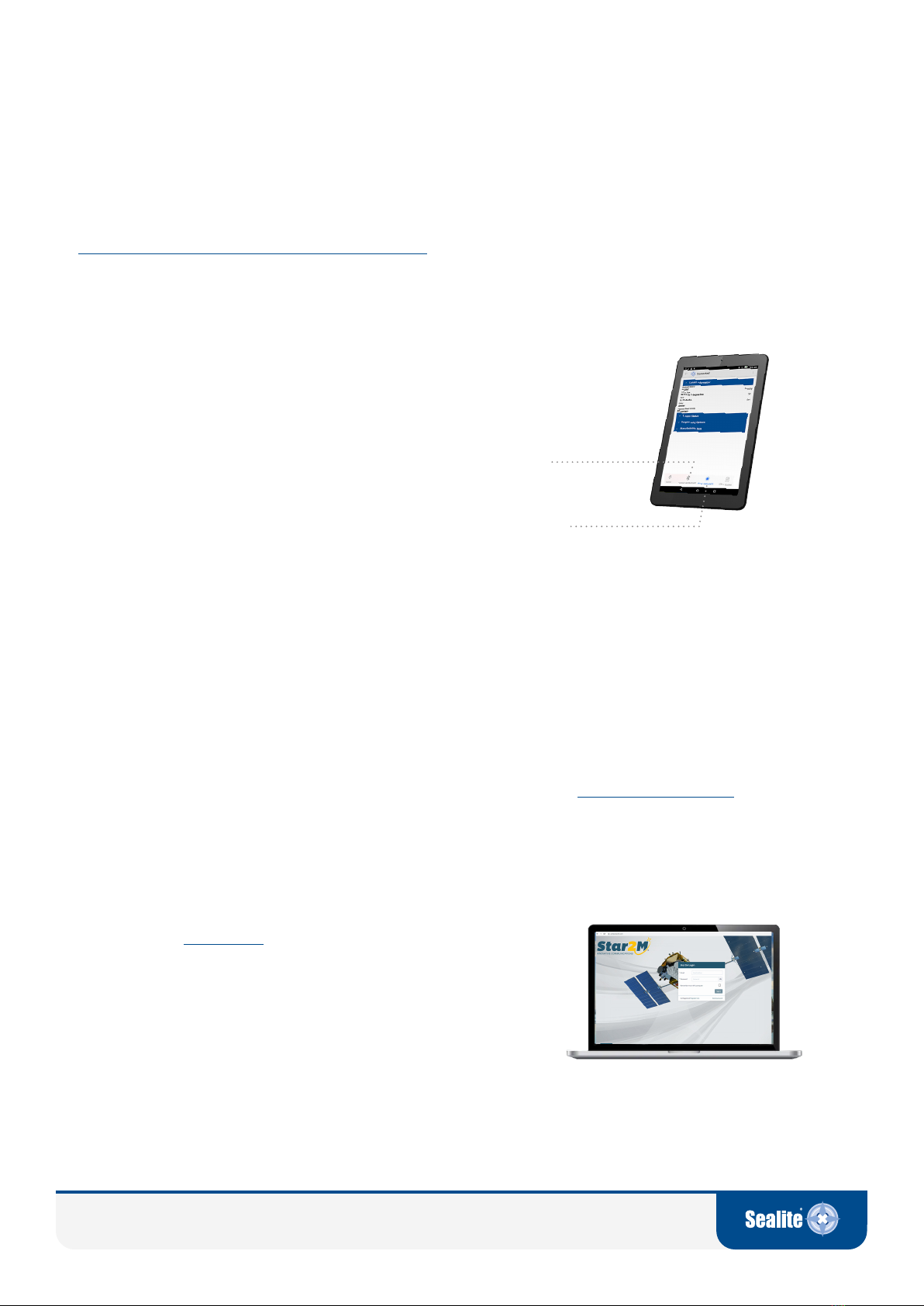

Step 6: Connecting to the SealitePro® App
Download the SealitePro® App to your device. It is
available for both Android® and iOS platforms.
Once downloaded, open the App on your device.
Connect to the lantern, by pressing “Connect via
Bluetooth®”.
Select a lantern displayed on the “Scan for Lanterns”
screen. Expand the “Lantern Information” drop down
menu then press Identify. The lantern will ash quickly
several times as conrmation.
Note that only one device may be connected at any one
time.
Step 10: IMEI number (Satcom devices)
For satellite enabled devices an IMEI number is required
to activate your Iridium unit. The IMEI number can be
found underneath the light-head as well as a copy
enclosed with this guide.
* Iridium® connected satellite technology is factory tted and available at point of sale only.
Step 4: Pre-installation check
The factory default setting is 0.5 seconds ON and 4.5
seconds OFF with operating mode of Dusk till Dawn.
The ash character can be changed using the using the
switch key to adjust the rotary switches (refer diag. 1).
Alternatively use the IR programmer or download the
SealitePro® App and connect the lantern to Bluetooth®.
Download the user manual to set alternate settings.
Step 5: Activate the lantern
To activate for testing, ensure the lantern is in
darkness for 30 seconds. The SL-75 will begin
to ash. In the event the lantern does not ash,
ensure the unit is in adequate darkness.
Once the lantern has started to ash, expose the
lantern to light and within 30 seconds the SL-75
will stop ashing.
Connect via Bluetooth
Configure the lantern
Step 7: Charging the battery
For optimal performance, new lanterns should be left in
full sun for 1-2 days for the battery to charge, prior to
installation.
Step 8: Preferred installation location
For best lantern performance, ensure solar
modules are not covered or in shade. Lanterns
exposed in clear view of the sky will result in
optimum charging results.
Use the Sealite Solar Calculator to ensure the
intended operational characteristics are valid for
your geographical location.
