About this manual
This manual contains information, recom-
mendations, suggestions and advice about
your radio system. The other sections of the
on-board documentation also contain impor-
tant instructions that both driver and passen-
gers must be aware of for their own safety.
Ensure that the on-board documentation is
kept in the vehicle at all times. This is espe-
cially important when lending or selling the
vehicle to another person.
This manual describes the features of the ve-
hicle at the time of drafting this text. Some of
the features described below will be intro-
duced in the future or will only be available in
certain markets.
Some details on the drawings may vary from
its vehicle and must be interpreted as a
standard representation.
The colour of the display and the informa-
tion displayed on it may vary depending on
the model of your vehicle.
The component location instructions are
based on the direction of the vehicle unless
otherwise specified.
The audiovisual material is only meant to
help the users better understand some fea-
tures of the car. It is not a replacement for the
instruction manual. Access the instruction
manual to see the complete information and
warnings.
The features marked with an asterisk
are included by default only in certain
versions of the model, supplied as op-
tional only for certain versions or only of-
fered in certain countries.
Trademarks are marked with ®. The ab-
sence of this symbol does not guarantee
that the term is not a trademark.
It indicates that the section continues on
the next page.

®

WARNING
Texts after this symbol contain informa-
tion about safety and warn you about
possible accident or injury risks.
CAUTION
Texts after this symbol indicate possible
damage to the vehicle.
For the sake of the environment
Texts after this symbol contain informa-
tion about the protection of the environ-
ment.
Note
Texts after this symbol contain addition-
al information.

Table of Contents
Table of Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Main menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General operating information . . . . . . . . . . . 7
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Telephone management sys-
tem* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Introduction to the telephone manage-
ment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Description of the telephone manage-
ment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Car menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Introduction to using the Vehicle
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Menu and system settings . . . . . . . . . . . . . . . . 40
Sound and volume setup . . . . . . . . . . . . . . . . . 41
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3

Overview
Overview
Unit overview
Fig. 1 Overview of the controls
1›››page 12
2›››page 9
3›››page 27 / ››› page 16
4›››page 19
5›››page 41
6›››page 37
7›››page 40
8›››page 8
9›››page 23
10 ›››page 8
4

Overview
Main menus
Fig. 2 Summary of the menus. »
5

Overview
Radio ›››page 12
Main menu RADIO ›››page 12
Radio data services RDS ›››page 13
Digital radio mode ›››page 14
Memory buttons ›››page 15
Select, tune and store stations to memory›››page 15
SCAN ›››page 16
Traffic information TP›››page 16
Settings ›››page 17
Media ›››page 19
Media sources and audio files ›››page 19
Playing order ››› page 20
Changing the media source››› page 21
Memory card ›››page 23
External player with Bluetooth®››› page 25
Change track ›››page 22
Select a track ›››page 22
Settings ›››page 26
USB/AUX-IN ›››page 24, ››› page 26
Sound ›››page 41 Sound and volume setup››› page 41
Telephone ›››page 27
Pairing ›››page 29
Bluetooth®›››page 28
Function buttons ›››page 30
Active call ›››page 30
Entering number ›››page 32
Phonebook ›››page 33
Call list ››› page 34
Setup ››› page 35
Vehicle ›››page 37 Journey ›››page 37
Status ›››page 39
Tyres ›››page 39
Consumers ›››page 37
Air conditioning ›››Booklet Instruction Manual
Setup ›››page 40
Display
Language
Date and time
Units
Factory settings
6

Introduction
Introduction
General operating informa-
tion
Safety notes
Travelling on today's roads requires the driv-
er's full attention at all times.
Only operate the radio and its various func-
tions when the traffic situation really permits
this.
WARNING
●Before starting the trip, you should famili-
arise yourself with the different radio func-
tions.
●High audio volume may represent a dan-
ger to you and to others.
●Adjust the volume in a way that you can
distinguish surrounding noise, for example,
horns and sirens, etc.
●Radio settings should be made when the
car is stopped or by a passenger.
WARNING
Distracting the driver in any way can lead
to an accident and cause injuries. Operat-
ing the infotainment system while driving
can distract your attention from the traffic.
●Always drive carefully and responsibly.
●Select volume settings that allow you to
easily hear signals from outside the vehicle
at all times (e.g. emergency service sirens).
●If you set the volume excessively high you
may suffer damage to your ears. This can
also happen if you are exposed to an ex-
cessively high volume even for a short time.
WARNING
The volume level may suddenly change
when you switch audio source or connect a
new audio source.
●Reduce the base volume before switch-
ing audio source or connecting a new audio
source ››› page 8.
WARNING
Connecting, inserting or removing a data
medium while driving can distract your at-
tention from the traffic and cause an acci-
dent.
WARNING
Connecting leads for external devices may
obstruct the driver.
●Arrange the connecting leads so that
they do not obstruct the driver.
WARNING
External devices that are loose or not prop-
erly secured could be flung though the in-
terior during a sudden driving or braking
manoeuvre, or in the event of an accident.
●Never, for any reason, fit the external
units on the doors, on the windscreen, on or
near the area marked “AIRBAG” on the
steering wheel, on the dash panel, on the
seat backrests or between these areas and
the passengers. These units may cause se-
rious injury in the event of an accident, es-
pecially if the airbag is activated.
WARNING
The centre armrest may obstruct the driv-
er's arm movements, which could cause an
accident and severe injuries.
●Always keep the armrest closed while the
vehicle is in motion.
Note
●Not inserting the data medium correctly,
or inserting unsuitable data media, may
damage the unit.
●When inserting the memory card, make
sure it is in the correct position ››› page 23
●If you push too hard, you could damage
the lock on the memory card slot.
●Only use suitable memory cards. »
7

Introduction
●The vehicle loudspeakers may be dam-
aged if the volume is too high or the sound
is distorted.
●Lightly pressing the buttons or briefly
pressing the touchscreen is sufficient to
operate the unit.
●It is possible that not all the functions and
function buttons are available as the soft-
ware of the unit responds to the specific
characteristics of each market. A missing
function button on the screen is not the re-
sult of an error in the unit.
●Due to country-specific legislation, cer-
tain functions cannot be selected on the
screen when the vehicle is travelling above
a certain speed.
●Using a mobile telephone inside the vehi-
cle can cause noise in the speakers.
●There may be restrictions on the use of
Bluetooth®devices in some countries. Infor-
mation is available from the local authori-
ties.
●In some vehicles equipped with a parking
distance warning system, the volume of the
audio source is automatically lowered
when the gear is engaged.
●If the steering wheel has a voice control
button , it will not work in this radio mod-
el, so it has no function in relation to the ra-
dio.
Rotary knobs and buttons
Rotary knobs
The left-hand rotary knob ››› Fig. 1 8is
used as the volume control or on/off button.
The right-hand rotary knob ››› Fig. 1 10 is
used as the setup button.
Infotainment buttons
In these instructions, the unit buttons are de-
picted by the word “infotainment button” and
their function is shown inside a rectangle (for
example: infotainment button  .
The infotainment buttons are operated by
pressing them or holding them down.
Switching on and off
To manually switch the Infotainment system
on and off, briefly press the right rotary knob
››› Fig. 1 8.
When the unit is switched on the system
starts up. The last active audio source will be
played with the volume set, as long this does
not exceed the maximum, predefined switch-
on volume ››› page 41.
The unit will switch off automatically when
the key is removed from the ignition or when
the on/off button is pressed (depending on
the equipment fitted or the vehicle). If you
turn the unit back on after the engine has
been switched off, it will turn off automatical-
ly after approximately 30 minutes (delayed
switch-off).
Note
●The unit is linked to the vehicle. It cannot
be used in any other vehicle.
●If only the battery has been disconnec-
ted from the vehicle, the vehicle must be
started before turning the unit back on.
Adjusting the base volume
Function Use
Increase the
volume.
Turn the volume control clockwise
or move the thumbwheel on the mul-
tifunction steering wheel upward 
›››Booklet Instruction Manual.
Lower the
volume.
Turn the volume control clockwise
or move the thumbwheel on the mul-
tifunction steering wheel downward
.
The volume modification is shown on the
screen with a bar.
It is possible to preset certain volume settings
and adjustments ››› page 41.
8

Introduction
Silence the unit
●Turn the volume control anticlockwise
until you see .
●OR: Press the MUTE function button
››› Fig. 41).
While the unit is muted, the active media
source is paused. is displayed on the
screen.
Note
If the basic playback volume of an audio
source has been increased substantially,
lower the volume before changing to an-
other audio source.
Operating the function buttons on-
screen

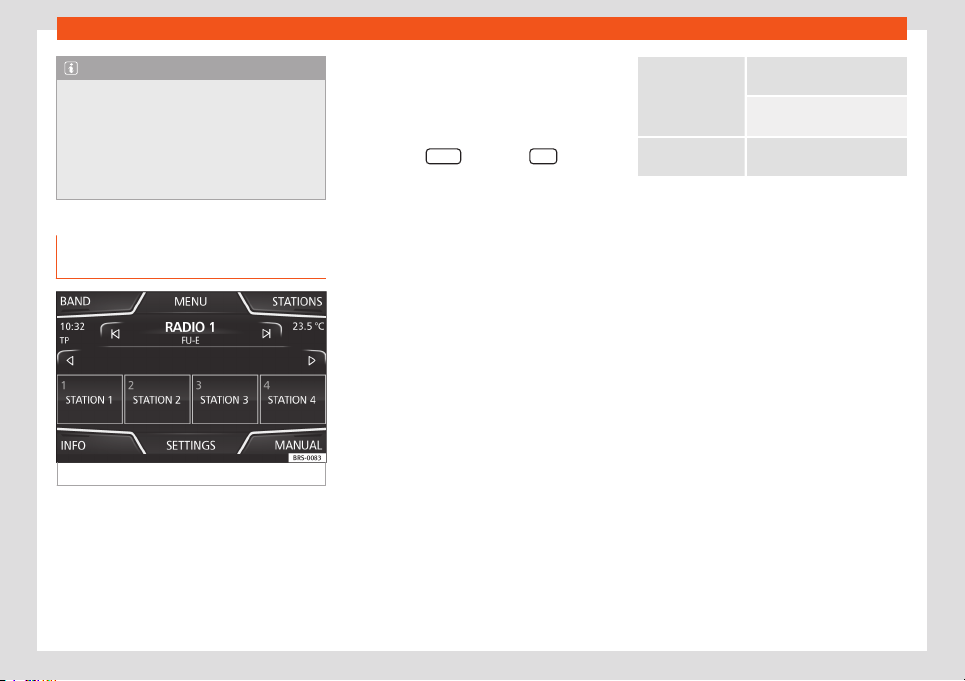

Fig. 3 View of possible function buttons.
Fig. 4 View of possible function buttons.
The unit is equipped with a touchscreen.
Active areas of the screen that call up a cer-
tain function are called “function buttons”.
These buttons are operated by briefly press-
ing the screen or by pressing and holding.
The function buttons appear in the instruc-
tions with the label “function button” and a
button symbol inside a rectangle .
Function buttons start functions or open sub-
menus. The menu currently selected is shown
in the submenus title line ››› Fig. 3 A.
The function buttons that appear deactiva-
ted (in grey) may not be selected at that time.
Summary of the indications and function
buttons
Operation and effect
A
The title line shows the menu selected
at that time and, if applicable, other
function buttons ›››Fig. 3.
BPress to open an additional menu
›››Fig. 3.
C
Move the control around the screen by
pressing lightly, without lifting your fin-
ger ›››Fig. 3.
D
Move the cursor around the screen by
pressing lightly, without resting your
finger. Or: Press the desired destination
on the screen; the cursor will move to
this position ››› Fig. 4.»
1) According to version
9

Introduction
Operation and effect
BACK 
Briefly press to return progressively to
the main menu from a submenu, or to
undo the changes made.

Press briefly to open a pop-up window
with additional setup options. To close
the pop-up window briefly press out-
side of it or select an option.
/ 
Activated/deactivated function.
Some functions or instructions are
marked with a checkbox, and are acti-
vated or deactivated by touching them
briefly.
OK Briefly press to confirm the data en-
tered or to select.
×Briefly press to close a pop-up window
or a data entry screen.
/ Briefly press to modify the setup pro-
gressively.
SET-
TINGS
To activate the setup of the menus and
systems.
MENU Go to menu selection.
Activating the list entries and
searching through the lists
Fig. 5 Setup menu list entries.
Select and activate the list entries with the
setting knob or by pressing directly on the
screen.
●Search an item of the list by turning the ad-
justment knob: each entry of the list will be
highlighted until the one you are searching
for is found.
●Press the setting knob to activate the selec-
ted list entry.
Scrolling through the list
If a list contains more elements than can be
viewed on the screen, a scroll bar will be
shown on the right of the screen ››› Fig. 3 C.
●Scroll down a list: turn the settings knob.
●To quickly scan through a long list: Place
your finger on the scroll marker and move it
downwards over the screen without losing
contact. Lift your finger off the screen when
you reach the desired position.
Additional information and display
options
The information on the screen can vary de-
pending on the settings and may differ from
the descriptions shown here.
The main screens show the current time and
outdoor temperature.
All information is displayed just after fully
starting up the infotainment system.
Initial configuration wizard
Fig. 6 Initial configuration wizard
10

Introduction
The initial configuration wizard will help you
to set up your Infotainment system the first
time you switch it on.
Every time you switch on the Infotainment
system, the initial setup screen will appear
››› Fig. 6 if any parameters have not been set
or if the NEVER function button has not been
pressed.
Function button: function
CLOSE
Closes the Configuration Wizard, and
the main menu or last mode in which
you used the Infotainment system will
appear. The next time you switch on
the system, the Configuration Wizard
will start up again.
NEVER
Disables the possibility of changing
the settings of the Infotainment sys-
tem. If you want to perform the initial
system setup, you must enter via
System setup and select Configu-
ration Wizard ›››page 40.
START Starts up the Configuration Wizard.
APress to set the time.
BPress to set the date.
C
Press to search and store to memory
the radio stations that have the best
reception at that moment.
DPress to link your mobile telephone to
the Infotainment system.
Function button: function
PREVIOUS
NEXT
To go to the previous or next parame-
ter to set.
When a parameter has been set, the
only way to reset it is from the main
menu, clicking on it, and not using the
Previous/Next buttons.
When setting any parameter, a con-
firmation mark will appear on it .
FINISH
Once one or more settings have been
applied, click on this in the main
menu of the wizard to confirm and fi-
nalize the settings.
If there are any parameters you have
not set, the next time you connect the
Infotainment system, the Initial Con-
figuration Wizard will start up.
11

Radio
Radio
Radio mode
Introduction
Note
●Please bear in mind that in car parks, tun-
nels, areas with high buildings or mountains
the radio signal can be impaired.
●Foil or metal-coated stickers attached to
the windows may affect reception on vehi-
cles with a window aerial.
●The availability of AM and DAB bands de-
pends on the country and/or equipment.
●The radio stations are responsible for the
content broadcast.
RADIO main menu
Fig. 7 RADIO main menu.
Fig. 8 Station list.
Press the infotainment button  to open
the Radio main menu ››› Fig. 7.
Radio main menu function buttons
Function button: function
BAND Allows you to select the frequency
band and memory bank.
STATION
LIST
Opens the list of currently receivable
radio stations ››› page 15.
MANUAL Allows you to select the frequency
manually ›››table on page 15.
SETTINGS Opens the setup menu of the active
frequency band ›››page 17.
INFO Allows you to view the radio text of the
selected station.
or 
Selects the previous/next stored sta-
tion (or available station). Arrow but-
tons setup in the Setup (FM, AM, DAB)
menu ›››page 17.
or Change between station banks.
SCAN
Stops the station scan function (only
visible when the function is running)
›››page 16.
1to 12 Memory buttons ›››table on
page 16.
Updating Updates the list of stations (AM/DAB)
›››page 15.
12

Radio
Information and possible icons
Display: Meaning
The RDS radio data service is disa-
bled.
TP Traffic news is available .
No stations with traffic news are avail-
able.
AF off The tracking of alternative frequencies
is disabled.
The radio station is stored in a memory
button.
Radio Data Services RDS (FM band)

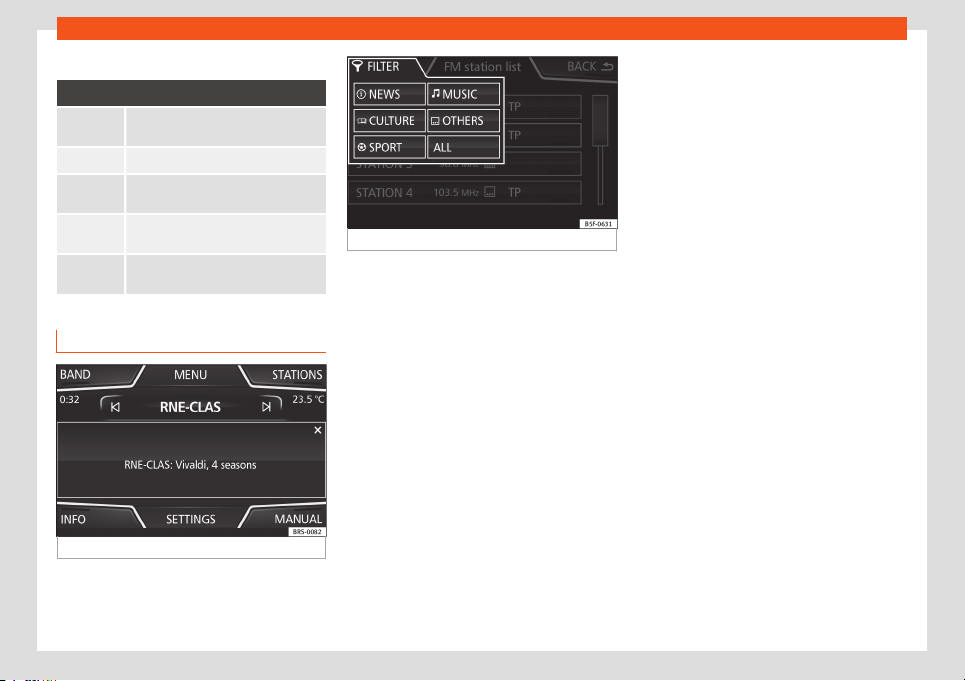

Fig. 9 Radio text.
Fig. 10 Filter (PTY).
The RDS (Radio Data System) offers addi-
tional information in FM such as the visualisa-
tion of the station name, automatic station
tracking (AF), text broadcast by radio (Radio
Text ››› Fig. 7), traffic announcements (TP)
and station type (PTY).
Depending on the country and the unit in
question, the RDS can be deactivated in the
FM Settings menu ››› page 17.
Without RDS it is not possible to obtain ra-
dio data services.
Station name and automatic station track-
ing
When the RDS is available, you can view the
names of the stations providing this service in
the RADIO main menu and in the list of FM
stations.
The FM stations send different contents under
one name (for example, Radio 3) in various re-
gional frequencies, provisionally or perma-
nently ››› Fig. 7.
When driving, the automatic station tracking
automatically changes to the frequency that
provides the best reception of the currently-
selected station. However, this can interrupt
the regional station currently tuned.
The automatic changing of frequencies and
automatic station tracking can be configured
through FM Settings ››› page 17.
Set a station name
In some cases the name of the station is too
long. This text may be blocked/unblocked by
pressing on the station name for 3 seconds. A
dot will appear/disappear to the left or right
of the station name.
Radio text
Some RDS-enabled stations also broadcast
additional text information known as radio
text. The INFO button allows you to view the
radio text.
Filter by station type (PTY)
With the RDS activated, stations may provide
information on their broadcast content (news,
music, culture, etc.). As seen in figure
››› Fig. 10, it is possible to filter stations by
their content. »
13

Radio
Note
●Due to matters of infrastructure, RDS
functions may be limited in certain coun-
tries, and you may not be able to receive
traffic announcements, automatic station
tracking (AF) or programme types (PTY).
The TP button will not function in these
countries.
Digital radio mode (DAB, DAB+ and
DMB audio)*
Fig. 11 Main DAB RADIO menu.
The DAB radio receiver is compatible with the
standards DAB, DAB+ and DMB audio.
In Europe, digital radio broadcasts on the
band III frequencies (174 MHz to 240 MHz).
The frequencies of the two bands are refer-
red to as “channels” and each has a channel
name (e.g. 12 A).
Several available DAB stations are combined
into one channel in an “ensemble”.
Starting DAB radio mode
In the RADIO main menu, press the function
key ››› Fig. 11 BAND and select DAB .
The DAB radio station that was last selected
will be played if it can still be received at the
current location.
The station selected at that time is shown on
the top line of the screen. The selected En-
semble of stations is displayed below
››› Fig. 11.
Additional DAB stations
Some DAB stations temporarily or perma-
nently offer additional programmes, (for ex-
ample, for broadcasting sports events).
Additional stations are selected in the same
way as the conventional DAB stations. How-
ever, these are differentiated in the station list
by the icon 2nd.
The name of the additional available station
is displayed in the main DAB menu next to the
symbol .
The additional stations cannot be stored.
From the main
screen
Press the name of the main
station
Press the memory button of
the main station
From the station list Select the additional station
from the list
Automatic station tracking
DAB is currently not available in all areas. In
areas without DAB, is displayed in DAB ra-
dio mode.
If reception of the currently selected DAB sta-
tion is lost (e.g. no DAB reception available),
the Infotainment system attempts to find the
station and tune to it on the other available
frequency bands. If the station still cannot be
found, the radio will be muted. Automatic sta-
tion tracking can be activated in the DAB set-
tings in the following modes:
●DAB-DAB station tracking: The radio at-
tempts to tune into the same station on an al-
ternative DAB frequency. Automatic station
tracking only works if both DAB stations trans-
mit the same station identifier or the DAB sig-
nal indicates the corresponding other DAB
station.
●Automatic DAB - FM switching: The radio
attempts to tune into the same station on the
FM frequency band. Automatic station track-
ing only works if the DAB station and the FM
station transmit the same station identifier or
14

Radio
the DAB signal indicates the corresponding
FM station. Once the corresponding FM sta-
tion has been found, FM is displayed after the
station name. When reception for the corre-
sponding DAB station returns, after a short
time the unit will switch back to DAB mode
and FM will no longer be displayed.
Radio text
Some stations also broadcast additional text
information known as radio text. The INFO
button allows you to view the radio text.
Memory buttons

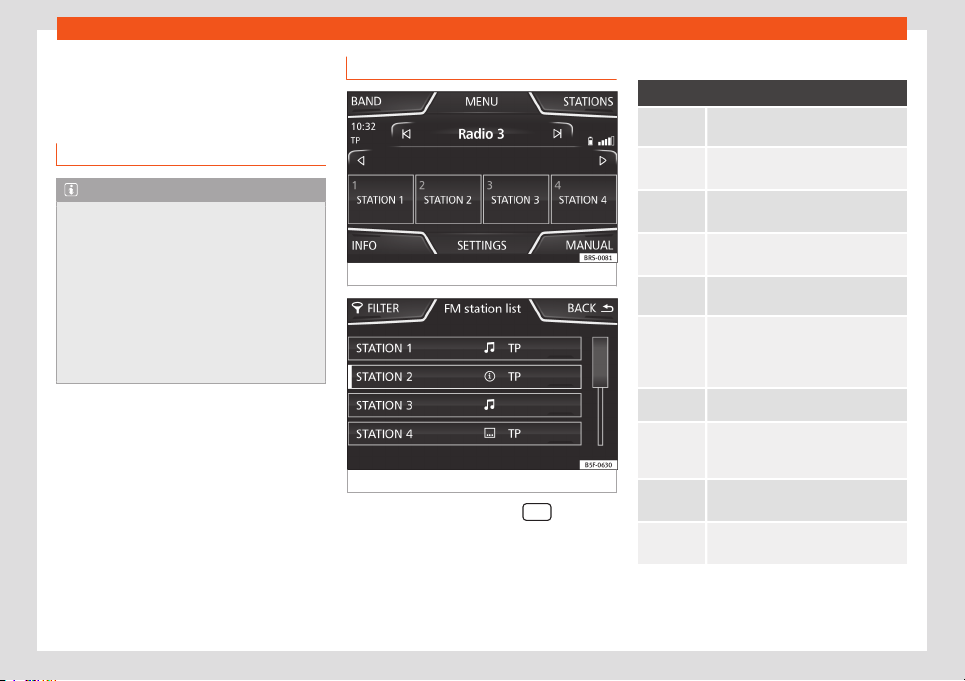

Fig. 12 Group of stored stations.
In the RADIO main menu, you can store sta-
tions from all available frequency wave-
lengths on the numbered function buttons.
These function buttons are called “memory
buttons”.
Functions of the memory buttons
Selecting the sta-
tion from the mem-
ory buttons
Press the memory button of
the station you want.
The stored stations can only
be played by pressing the cor-
responding memory button,
provided it can be received at
your current location.
Switching between
memory banks
Press the BAND function but-
ton ›››Fig. 12.
OR: Press the and buttons
on the touch screen.
The memory buttons are dis-
played in three memory
banks.
Storing the station
on the memory
buttons
See: Storing stations ›››table
on page 16.
Select, tune and store stations to
memory
Selecting a station
Select the
station with
the arrow
buttons 
Press the or the function but-
ton. This will change between stor-
ed or available stations, depending
on the setup of the arrow buttons.
Arrow buttons setup in the Setup
(FM, AM and DAB) menu
›››page 17.
Selecting a station
Selecting a
station from a
station list
Press the Stations function button to
open the list of stations. Go through
the list and select the desired sta-
tion by pressing it. Press the
BACK function button to return to
the previous screen.
To update the
list of stations
The list of stations in the FM fre-
quency band is automatically up-
dated. For the AM and DAB frequen-
cy bands, press the function button
Update to update the station list.
Manually tuning in a station frequency.
Viewing the
frequency di-
al
Briefly press the Manual function
button.
Adjusting the
frequency in
stages
Press the buttons +–, to the right
and left of the frequency band.
OR: Turn the adjustment knob.
Quickly
browsing the
frequency
band
Place your finger on the slider in the
frequency dial and drag it along the
dial.
Hiding the
frequency
band
Briefly press the button Manual .»
15

Radio
Storing stations
Storing the
station being
listened to on
a memory
button
Hold down the desired memory but-
ton until you hear the signal. The
station that you are listening to will
be stored in this memory button.
Storing a sta-
tion on the list
of stations
Press the Stations function button to
open the list of stations. Select the
desired station (by holding a finger
on the touchscreen or holding down
the setup button) until the store dis-
play appears.
Press the memory button and, after
the confirmation tone, the station
will then be recorded on this memo-
ry button.
To store more stations from the list,
press Back and repeat the process.
Deleting a
stored station
The stored stations can be deleted
one by one or all at once in the FM,
AM and DAB setup menu.
Scan function (SCAN)
When the scan function is running, all availa-
ble stations on the current frequency band
are played in sequence for about 5 seconds
each.
Starting and stopping the scan function
Starting the
scan function
Press the SETTINGS function button
and then select SCAN .
Starting and stopping the scan function
Stopping the
scan function
Press the function button to
stop the scan function at the sta-
tion that is currently playing.
OR: Briefly press the adjustment
knob.
Manually selecting a station with
the memory buttons or changing
the screen also stops the scan
function.
Traffic information (TP)
Traffic information tracking with the TP func-
tion is only possible if the station is available.
The stations with the traffic information func-
tion are indicated in the Radio main menu
and in the list of stations by the TP symbol
››› Fig. 7 and ››› Fig. 8.
Some stations that do not have their own traf-
fic news support the TP function by broad-
casting traffic announcements from other
stations (EON).
Switching the TP function on and off
●In the menu Setup (FM, AM and DAB),
press the function button Traffic Program (TP)
to activate or deactivate this function
››› page 17.
Active TP function and station selection
Traffic warnings are played in Audio mode.
In FM mode, the station tuned in must have
the TP function. If a station without the TP
function is selected, this will be indicated half
way up the left of the screen .
In AM mode or media mode, the unit will al-
ways automatically tune to a traffic news sta-
tion in the background, provided that one is
available. Depending on your location, this
process can take some time.
Incoming traffic information
In active Audio mode, an incoming traffic an-
nouncement will play automatically.
During the traffic announcement, a pop-up
window is displayed and the radio changes,
depending on the case, to the traffic news
station (EON).
The media mode is paused and the volume is
adjusted to the preset level ››› page 41.
The volume of the traffic announcement can
be adjusted with the volume control. The ad-
justed volume setting will be applied to sub-
sequent announcements.
●Press the function button Cancel to end the
current traffic announcement. The TP func-
tion remains activated.
●OR: Press the function button Deactivate to
end the current traffic announcement and
permanently deactivate the TP function. This
can be reactivated in the setup menu.
16

Radio
Setup (FM, AM, DAB)
FM setup
●Select the FM frequency band by pressing
the Infotainment button  .
●Press the function button Setup to open the
menu FM setup.
Function button: function
SCAN : Scan function. When the scan function is ac-
tive, all available stations on the current frequency
band are played in sequence for approximately 5
seconds ›››page 16.
Search mode : determines the setup of the buttons
with arrows and . This setting applies to all fre-
quency bands (FM, AM and DAB).
Preset list : All stored stations on the selected fre-
quency band can be selected with the arrow but-
tons.
Station list : All available stations on the selected
frequency band can be selected with the arrow
buttons.
Sort by : to choose the mode in which the stations will
be arrangeda).
Group : sort by station group.
Alphabetical : sort by alphabetical order.
Traffic station (TP) : The TP function (traffic news
station tracking) is active›››page 16a).
Delete memory : to delete all or some of the stored
stations.
Function button: function
Advanced settings a):
Radio Data System (RDS) a): Radio Data System
(RDS) enabled ›››page 13. With the checkbox de-
selected , the functions depending on the RDS
system will not be available. The function buttons
depending on the RDS system will remain inactive
(in grey).
Alternative frequency : the automatic station track-
ing is active. With the checkbox deselected the
function button Regional RDS remains inactive
(grey).a)
Regional RDS : determines the setup for the regional
automatic station tracking via the RDS
›››page 13a).
Fixed : the unit only switches to alternative fre-
quencies for the selected station if the same re-
gional service is being broadcast.
Automatic : the unit always switches to the sta-
tion's frequency that currently offers the best re-
ception. As a result, regional programmes may
be interrupted.
a) This depends on the country and unit in question.
AM setup
●Select the AM frequency band by pressing
the Infotainment button  .
●Press the function button Setup to open the
menu AM setup.
Function button: function
SCAN : Scan function. When the scan function is ac-
tive, all available stations on the current frequency
band are played in sequence for approximately 5
seconds ›››page 16.
Traffic station (TP) : The TP function (traffic news
station tracking) is active›››page 16 .
Search mode : determines the setup of the buttons
with arrows and . This setting applies to all fre-
quency bands (FM, AM and DAB).
Presets : all stored stations on the selected fre-
quency band can be selected with the arrow but-
tons.
Stations : All available stations on the selected fre-
quency band can be selected with the arrow but-
tons.
Delete memory : to delete all or some of the stored
stations.
DAB setup
●Select the DAB frequency band by pressing
the Infotainment button  .
●Press the function button Setup to open the
menu DAB setup.
Function button: function
SCAN : Scan function. When the scan function is ac-
tive, all available stations on the current frequency
band are played in sequence for approximately 5
seconds ›››page 16.»
17

Radio
Function button: function
Search mode : determines the setup of the buttons
with arrows and . This setting applies to all fre-
quency bands (FM, AM and DAB).
Presets : all stored stations on the selected fre-
quency band can be selected with the arrow but-
tons.
Stations : All available stations on the selected fre-
quency band can be selected with the arrow but-
tons.
VIEW : to select the type of view of the DAB station
list.
Set : hierarchical view of stations and ensembles in
alphabetical order.
Stations :overall view of stations in alphabetical or-
der.
Traffic station (TP) : The TP function (traffic news sta-
tion tracking) is active ›››page 16 .
Delete memory : to delete all or some of the stored
stations.
Advanced settings : DAB services setup.
DAB traffic reports : DAB traffic announcements
are played in the same way as TP traffic an-
nouncements in all operating modes.
Other DAB announcements : DAB announcements
(news, sport, weather, warnings etc.) will interrupt
the current DAB radio mode.
DAB-DAB programme tracking : automatic station
tracking within the DAB frequency band has been
activated.
Function button: function
Automatic switch DAB - FM : switching to FM fre-
quency band is allowed for automatic station
tracking.
18

Media
Media
Media mode
Introduction
Media sources are audio sources containing
audio files on various different data storage
devices (e.g. SD memory card, USB, external
MP3 player, etc.). These audio files can be
played by the infotainment system from its
corresponding drives or audio input sockets
(memory card slot, AUX-IN multi-media sock-
et etc.)
Note
●The audio coding technology MPEG-4
HE-AAC and patents have a Fraunhofer IIS
licence.
●This product is protected by copyright
and property rights of Microsoft Corpora-
tion. Using or distributing similar technolo-
gy outside of this product without a licence
from Microsoft or any of its authorised sub-
sidiaries is prohibited.
●The infotainment system only plays un-
damaged compatible audio files; other
files are ignored.
●Consult the list of supported devices on
the web.
Requirements for the media sour-
ces and audio files
The supported file formats listed are collec-
tively referred to below as “audio files”.
Media sources Requirements for
playing in the unit
SD and MMC
Memory cards com-
patible with the
FAT12, FAT16, FAT32,
XFAT or VFAT file sys-
tem (max. 2 GB)
along with SDHC and
SDXC cards.
– MP3 files (.mp3) with a
rate of 8 to 320 kbit/s or var-
iable.
– WMA files (.wma) of up to
9.2 mono/stereo with no
copy protection.
– Playlists in PLS, M3U, WPL
and ASX formats.
– Playlists no larger than
1000 elements or 20 kB.
– File names and addresses
no larger than 256 charac-
ters.
– On memory cards: a maxi-
mum of 1000 folders and
2048 files.
USB data stor-
age device with 2.0
specification, com-
patible with the
FAT12, FAT16, FAT32,
or VFAT file system
(max. 2 GB).
Audio file play-
back via Bluetooth®a).
– The external media player
must support the Bluetooth®
profile A2DP.
a) Bluetooth®is a registered trademark of Bluetooth
SIG, Inc.
Restrictions and instructions
Contamination, exposure to high tempera-
tures and mechanical damage may render a
data medium unusable. Please observe the
manufacturer's instructions.
Variations in the quality of data media pro-
duced by different manufacturers may lead
to anomalies during playback.
Please observe copyright laws.
The unit may be unable to read individual
tracks or the entire data medium due to the
data medium configuration or the devices
and programs used for recording. Information
can be found on the internet regarding the
best ways to create audio files and data me-
dia (compression rate, ID3 tag etc.).
Depending on the size, its condition due to
use (copy and delete processes), the folder
structure and file type, the read time of the
data media used can vary considerably.
Playlists only determine a certain playing or-
der. There are no files stored in a playlist. The
unit will not play a playlist if the files are not
on the data medium at the locations referred
to by the playlist (relative file paths).
Note
●Do not use adaptors for memory cards.
●We will not accept any responsibility for
files damaged or lost on the data medium.
19
