Secutron MGC MIX-4000 Series User manual

Installation and Operation Manual LT-6671SEC Rev. 2
November 2023
MR-400
Addressable Fire Alarm Control Panel
All MGC MIX-4000 Series Detectors are not FM Approved

3
Table of Contents
1.0 FCC Notice 7
1.1 Notice for all MR-400 Series Built-in UDACTs Sold in the U.S.A. ................................. 7
1.2 FCC Notice .................................................................................................................... 7
2.0 Introduction 9
2.1 The MR-400 Addressable Fire Alarm Control Panel ...................................................... 9
2.2 General Notes ................................................................................................................ 10
3.0 MR-400 Overview 11
3.1 MR-400 Addressable Fire Alarm Control Panel Model .................................................. 11
3.2 MR-400 System Components ........................................................................................ 12
4.0 Installation 16
4.1 Mechanical Installation ................................................................................................... 16
4.2 Installation Tips .............................................................................................................. 17
4.3 Connections and Jumpers ............................................................................................. 18
4.4 Installing Adder Modules ................................................................................................ 21
4.5 Annunciators .................................................................................................................. 26
4.6 MR-2312-SR12/MR-2312-SW12 Smart Relay Module .................................................. 26
4.7 MR-2300T Remote Trouble Indicator ............................................................................ 26
5.0 Operation 27
5.1 Addressable/Analog Devices ......................................................................................... 27
5.2 Configurable Input Types ............................................................................................... 29
5.3 Output Types ................................................................................................................. 33
5.4 NAC Circuit Operation ................................................................................................... 34
5.5 Single Stage Operation .................................................................................................. 35
5.6 Evacuation Codes .......................................................................................................... 36
5.7 Positive Alarm Sequence ............................................................................................... 36
5.8 Remote Annunciator Operation ..................................................................................... 37
5.9 Dialer Operation ............................................................................................................. 39
5.10 Using the Operation Menu from the Control Panel ........................................................ 40
6.0 Indication & Controls 55
6.1 Indication and Controls .................................................................................................. 55

4
6.2 LCD Display ................................................................................................................... 55
6.3 Common LED Indicators and Control Buttons ............................................................... 57
7.0 Wiring 61
7.1 Wiring Tables ................................................................................................................. 61
7.2 Wire Routing .................................................................................................................. 63
7.3 Addressable Loop (Signaling Line Circuit) Wiring .......................................................... 64
7.4 NAC Circuit Wiring ......................................................................................................... 65
7.5 Module and Devices Wiring ........................................................................................... 68
7.6 Power Supply Wiring ...................................................................................................... 72
7.7 System Checkout ........................................................................................................... 75
7.8 Troubleshooting ............................................................................................................. 75
8.0 Appendix A - Compatible Receivers 76
9.0 Appendix B - Manual Panel Configuration 77
10.0 Appendix C - Reporting 83
10.1 Ademco Contact-ID MR-400 Series Event Codes ......................................................... 83
10.2 Security Industries Association SIA Format Protocol MR-400 Series Event Codes ...... 84
11.0 Appendix D - Specifications 85
11.1 MR-400 Fire Alarm Control Panel .................................................................................. 85
11.2 MR-400 System Module and Annunciator Specifications .............................................. 86
12.0 Appendix E - Battery Calculations 87
13.0 Warranty and Warning Information 89

5
List of Figures
Figure 1 Model MR-400 Single Loop (SLC) Fire Alarm Control Panel ......................................... 11
Figure 2 MR-400 Mechanical Installation Instructions and Dimensions ....................................... 16
Figure 3 Port and Jumper Locations on Main Board .................................................................... 18
Figure 4 Jumper on back of display ............................................................................................. 20
Figure 5 Main Board with all Modules Installed ............................................................................ 21
Figure 6 Installing the MR-2300-PR Polarity Reversal and City Tie Module ................................ 22
Figure 7 IPS-2424DS Programmable Input Switches Module Front Chassis View ..................... 23
Figure 8 IPS-2424DS Cable Connections .................................................................................... 24
Figure 9 IPS-4848DS Programmable Input Switches Module Front Chassis View ..................... 25
Figure 10 IPS-4848DS Cable Connections .................................................................................... 25
Figure 11 MGC-400 Configurator Date and Time Settings ............................................................ 28
Figure 12 Enabling the Positive Alarm Sequence .......................................................................... 37
Figure 13 Operation Menu ............................................................................................................. 41
Figure 14 LED Indicators and Control Buttons ............................................................................... 55
Figure 15 Numeric Keypad ............................................................................................................ 56
Figure 16 Wire Routing .................................................................................................................. 63
Figure 17 Addressable Loop Wiring - Class B ............................................................................... 64
Figure 18 Addressable Loop Wiring - Class A ............................................................................... 64
Figure 19 Addressable Loop Wiring - Class X ............................................................................... 65
Figure 20 NAC Circuit – Class B Wiring ......................................................................................... 66
Figure 21 NAC Circuit – Class A Wiring ......................................................................................... 66
Figure 22 MR-2300T Common Remote Trouble Indicator Wiring .................................................. 67
Figure 23 Wiring the Dialer ........................................................................................................... 68
Figure 24 Connecting an FACP to a 3G4010CF Interface Device outside Canada ...................... 69
Figure 25 Connecting an FACP to a SLE-LTEV or SLE-LTEA Interface Device outside Canada . 70
Figure 26 Wiring the MR-2300-PR Polarity Reversal and City Tie Module .................................... 71
Figure 27 Main Power Supply Wiring and Connections ................................................................. 73
Figure 28 Supervision of Auxiliary Supplies ................................................................................... 74

6
List of Tables

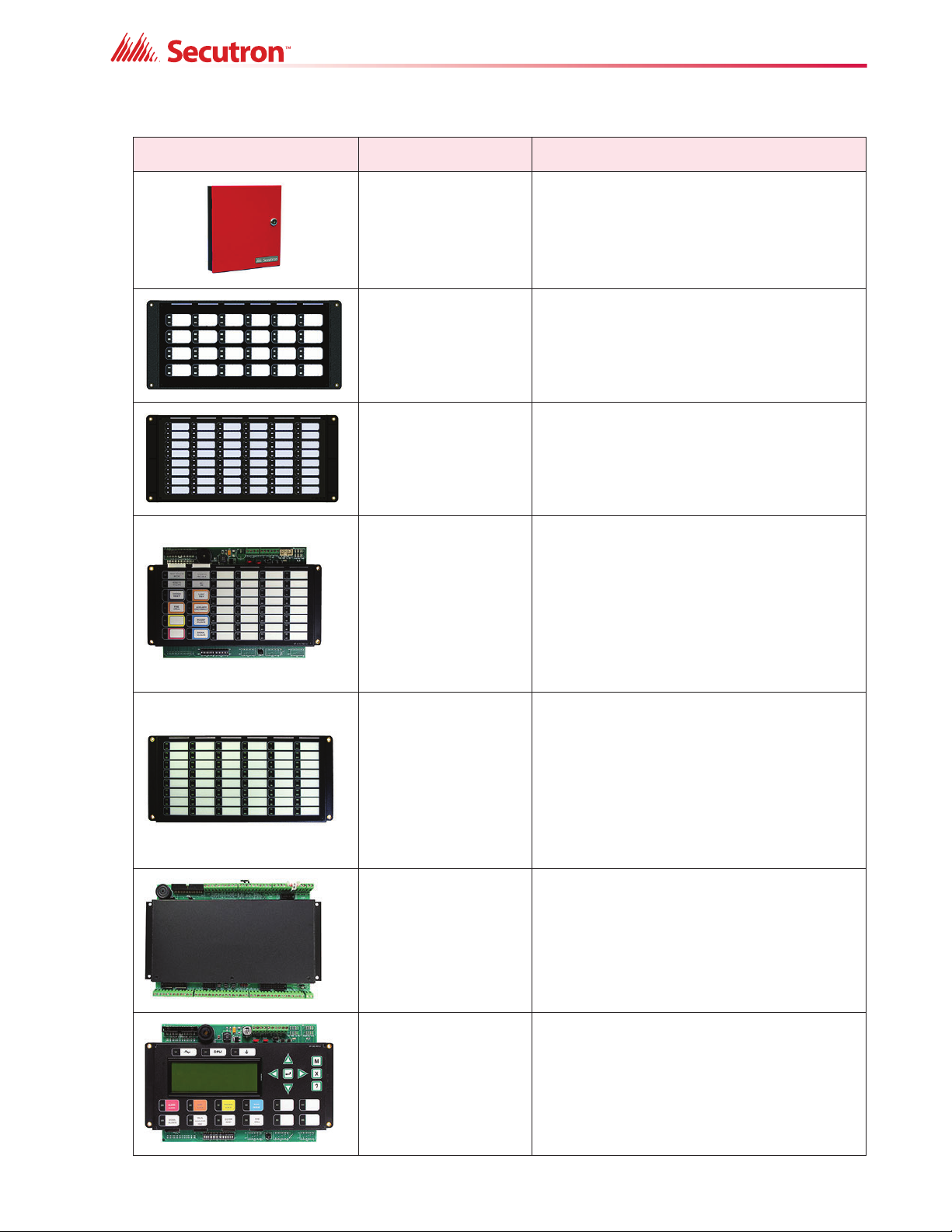

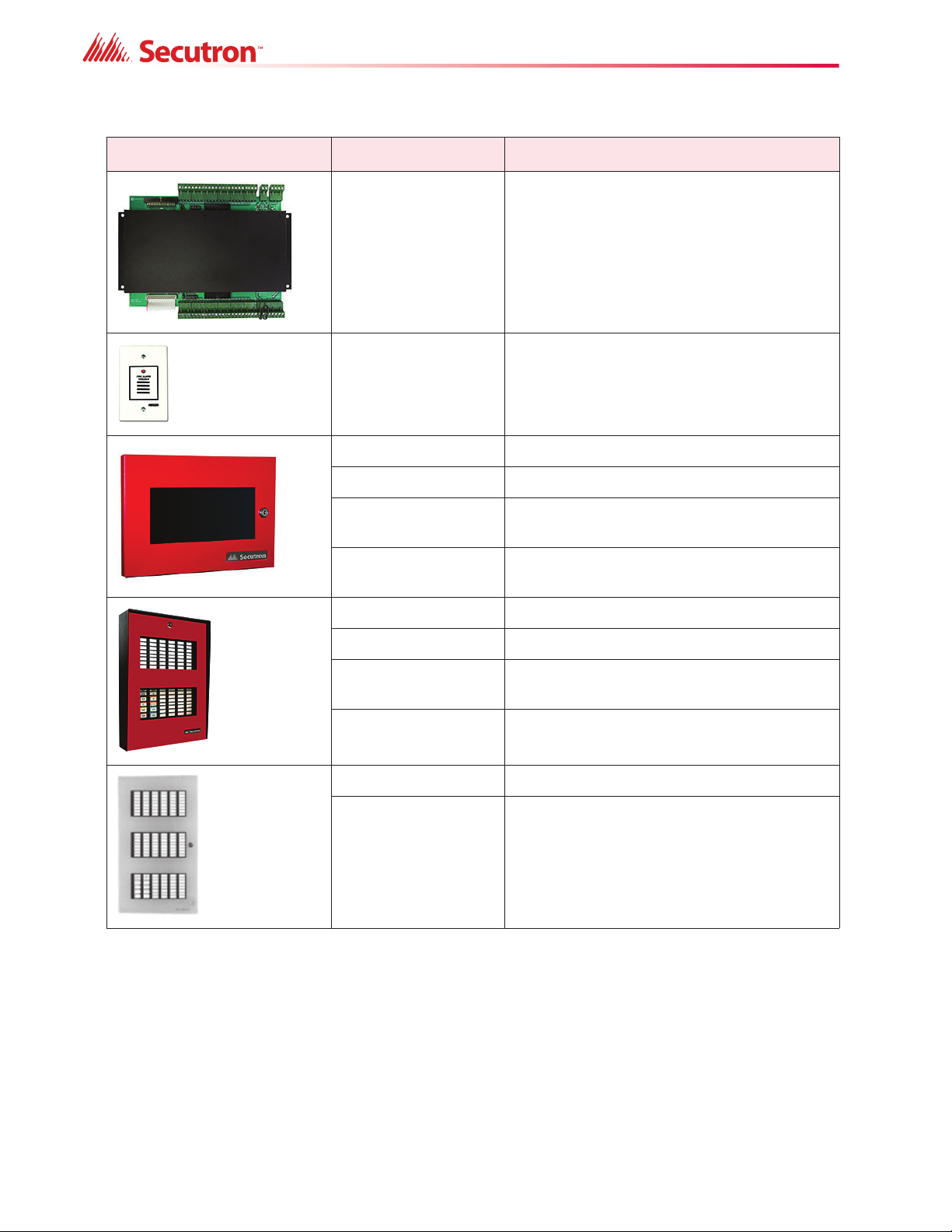

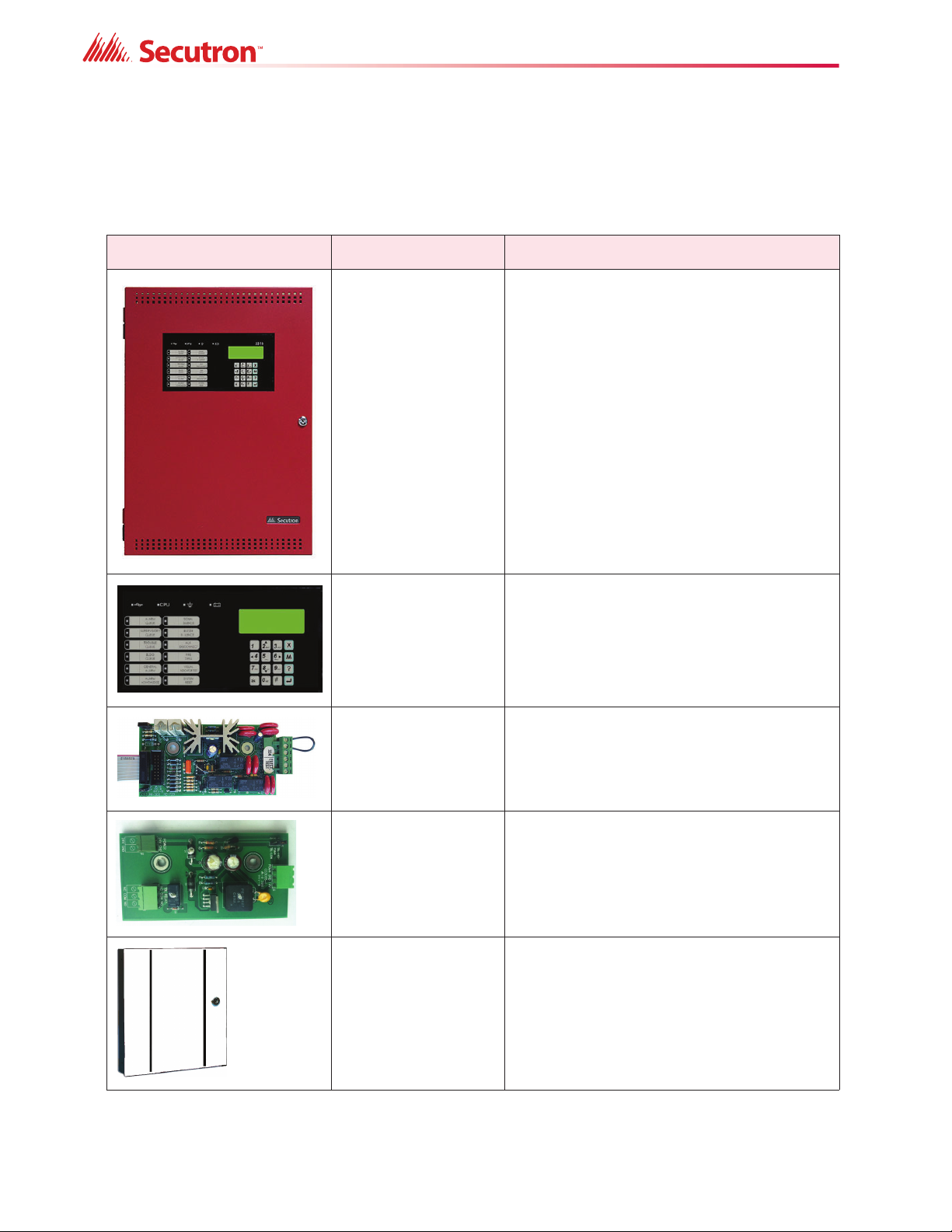

Table 1 MR-400 System Components ........................................................................................ 12
Table 2 Main Board Connectors and Jumpers ............................................................................ 19
Table 3 Core Board Connectors and Jumpers ............................................................................ 20
Table 4 MR-2300-PR Polarity Reversal and City Tie Module Connectors and Jumpers ............ 22
Table 5 Settings Permitted in UL864 .......................................................................................... 27
Table 6 Configurable Input Types ............................................................................................... 29
Table 7 Configurable Output Types ............................................................................................ 33
Table 8 Annunciator Address DIP Switch Settings ..................................................................... 38
Table 9 List Bypass Special Characters ..................................................................................... 50
Table 10 Numeric Keypad and Cursor Buttons ............................................................................. 56
Table 11 LED Indicators and Control Buttons ............................................................................... 57
Table 12 Secutron (MRI-4000 series) Devices Addressable Loop Wiring Table .......................... 61
Table 13 NAC and Auxiliary Power Circuits Wiring Table ............................................................. 62
Table 14 Conventional Zone Module Input Circuit Wiring Table ................................................... 62
Table 15 Power Supply Electrical Ratings .................................................................................... 72
Table 16 Compatible DACR Receivers ......................................................................................... 76
Table 17 Contact-ID Event Codes ................................................................................................ 83
Table 18 SIA-DCS Event Codes ................................................................................................... 84
Table 19 MR-400 Specifications ................................................................................................... 85
Table 20 MR-400 Modules and Annunciator Specifications ......................................................... 86
Table 21 Recommended Batteries ................................................................................................ 88

7
1.0 FCC Notice
1.1 Notice for all MR-400 Series Built-in UDACTs Sold in the U.S.A.
Secutron’s MR-400 SERIES BUILT-IN UDACT Digital Communicator described in this manual
is listed by Underwriters Laboratories Inc. (ULI) for use in slave application in conjunction with
a Listed Fire Alarm Control Panel under Standard 864 (Control Units for Fire Protective
Signalling Systems). These Communicators comply with the National Fire Protection
Association (NFPA) performance requirements for UDACTs and should be installed in
accordance with NFPA 72 (Supervising Station Fire Alarm System). These Communicators
should be installed in accordance with this manual; the National Electrical Code (NFPA 70);
and/or the local Authority Having Jurisdiction (AHJ).
1.2 FCC Notice
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the
ACTA. On the telco transformer of this equipment is a label that contains, among other
information, a product identifier in the format US:6OTAL01BMR3500. If requested, this
number must be provided to the telephone company. This equipment is capable of seizing the
line. This capability is provided in the hardware.
Type of Service
The Communicator is designed to be used on standard device telephone lines. It connects to
the telephone line by means of a standard jack called the USOC RJ-11C (or USOC FJ45S).
Connection to telephone company provided coin service (central office implemented systems)
is prohibited. Connection to party lines service is subject to state tariffs.
Telephone Company Procedures
The goal of the telephone company is to provide you with the best service it can. In order to do
this, it may occasionally be necessary for them to make changes in their equipment,
operations or procedures. If these changes might affect your service or the operation of your
equipment, the telephone company will give you notice, in writing, to allow you to make any
changes necessary to maintain uninterrupted service. In certain circumstances, it may be
necessary for the telephone company to request information from you concerning the
Attention: Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or
electrician, as appropriate.
Notes: The Ringer Equivalence Number (REN) assigned to each terminal device
provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an interface may consist
of any combination of devices subject only to the requirement that the sum of the
Ringer Equivalence Numbers of all the devices does not exceed 5.
The Label Identification Number for this product is US:6OTAL01BMR3500. The
01B represents the REN without a decimal point (for example, 01B is a REN of
0.1B).

8
equipment which you have connected to your telephone line. Upon request of the telephone
company, provide the FCC registration number and the ringer equivalence number (REN);
both of these items are listed on the equipment label. The sum of all of the REN’s on your
telephone lines should be less than five in order to assure proper service from the telephone
company. In some cases, a sum of five may not be usable on a given line.
If Problems Arise
If any of your telephone equipment is not operating properly, you should immediately remove it
from your telephone line, as it may cause harm to the telephone network. If the telephone
company notes a problem, they may temporarily discontinue service. When practical, they will
notify you in advance of this disconnection. If advance notice is not feasible, you will be
notified as soon as possible. When you are notified, you will be given the opportunity to correct
the problem and informed of your right to file a complaint with the FCC. Contact your
telephone company if you have any questions about your phone line. For device repairs or
replacements, please visit our RMA Request page to submit your request.
https://mircom.com/technical-support/submit-return-material-authorization-form/

9
2.0 Introduction
This document provides information for the successful installation and operation of the MR-
400 Addressable Fire Alarm Control Panel (FACP).
2.1 The MR-400 Addressable Fire Alarm Control Panel
Secutron’s MR-400 Addressable Fire Alarm Control Panel provides the following:
• Addressable Protocol with one addressable (SLC) loop with a maximum of 240
Addressable devices (MRI-4000 series) in total.
• Compatible with Addressable devices (MRI-4000 series).
• Compatible with conventional detectors using Addressable MRI-4042 Analog Interface
(Conventional Zone) module; refer to document LT-1023SEC for compatible
conventional detectors.
• Four Power Limited Class B or Class A NAC circuits rated at 1.5A each, 5.0A total.
• NAC circuits may be configured as silenceable signal, non-silenceable signal,
silenceable strobes, non-silenceable strobes, or relay output. The audible signal may be
Steady, Temporal Code, California Code, or March Time.
•Supports sync strobe protocols from major manufacturers.
• Supports Addressable 400 Series NAC devices.
• Alarm verification and positive alarm sequence operations.
• Configurable Signal Silence Inhibit, Auto Signal Silence, and One-Man Walk Test.
• Subsequent Alarm, Supervisory, Monitor and Trouble operation.
• Relay Contacts for Common Alarm, Common Supervisory and Common Trouble all non-
disconnectable and Auxiliary Alarm Relay (disconnectable).
• Built-in Dialer.
2.1.1 Optional Items
• Supports up to 2 RAX-1048TZDS Display Adder Modules.
• Semi-flush or surface mountable enclosures for retrofits and new installations.
Note: Installation of the MR-400 Addressable Fire Alarm Control panel should be in
accordance with National Electrical Code NFPA 70 and NFPA 72. Final
acceptance subject to the Local Authority Having Jurisdiction (AHJ).
All MGC MIX-4000 Series Detectors are not FM Approved

10
2.2 General Notes
Circuits
Refers to a physical electrical interface for the analog loop, indicating signals or relays, and
common alarm, supervisory, and trouble relay outputs.
Zone/Group
Is a logical concept for a Fire Alarm Protected Area, and will consist of at least one Circuit. The
MR-400 uses zones to facilitate annunciation of multiple input and output points on the RAX-
1048TZDS (up to 96 points) and to facilitate the indication of bypass points.
Display Points
The MR-400 LCD display annunciates the status of the system and connected devices. There
are up to two (2) RAX-1048TZDS Display Adder Module Display points that may be configured
to assign LEDs to groups of inputs or outputs. There are two LEDs for every display point; one
single color (yellow) and one dual color (red/yellow).
Wiring Styles
The addressable (SLC) loop can be configured system-wide as Class B or Class A . With the
addition of isolators, a Class A loop will become a Class X.

11
3.0 MR-400 Overview
This chapter lists all the possible components of an MR-400 addressable fire alarm control
system.
3.1 MR-400 Addressable Fire Alarm Control Panel Model
The MR-400 Addressable Fire Alarm Control Panel has the following features:
• Main Board, Power Supply and Backbox.
• Addressable fire alarm control panel.
• Main Display with 4 x 20 LCD display.
• One Class A, Class X, or Class B SLC analog loop.
• Four Power Limited Class B or Class A NAC circuits (max 1.5 Amps each - 5.0 Amps
total).
• Addressable Protocol with up to 240 Addressable devices (MRI-4000 series).
• Dedicated common alarm, supervisory, trouble, and auxiliary alarm relays.
• Additional RAX-1048TZDS Display Adder Module can be added to provide 48
annunciation points per Adder. Two modules required for 96 annunciation points.
• Additional outputs include connections for a MR-2300T remote trouble indicator, MR-
2300-PR Reverse Polarity Module, an RS-485 bus for connection of up to seven RAX-
LCD-LITE, RAM-3318-LCDs, MR-2312-SR12s or MR-2312-SW12s and RA-1000 Series
annunciators.
•Auxiliary power is available in the form of 24V FWR unfiltered and unsupervised, 24VDC
filtered and regulated, and resettable auxiliary power supply.
Figure 1 Model MR-400 Single Loop (SLC) Fire Alarm Control Panel

12
3.2 MR-400 System Components
The following table describes the components of the MR-400 Addressable Fire Alarm Control
System.
Table 1 MR-400 System Components
Model Description
MR-400
Model MR-400, black backbox, red door
enclosure comes complete with main board,
power supply, transformer and main display.
RAM-3318-LCD Remote Annunciator with 4-line LCD Display.
MR-2300-PR Polarity Reversal and City Tie Module.
PCS-100
Power Supply Interface Board use for
powering SLE-LTEV, SLE-LTEA, 3G4010CF
Universal Wireless Alarm Communicator.
MR-2312-SW12 Smart Relay Module with White Enclosure.
Can support up to 12 relays.

13
MR-2312-SR12 Smart Relay Module with Red Enclosure.
Can support up to 12 relays.
IPS-2424DS Programmable Input Switches Module with 24
switches.
IPS-4848DS Programmable Input Switches Module with 48
switches.
RAM-1032TZDS
RAM-1032TZDS-CC
RAM-1032TZDS Main Chassis Remote
Annunciator with 16 bi-coloured LEDs and 32
trouble LEDs.
RAM-1032TZDS-CC is the same as the
RAM-1032TZDS, except it has conformal
coating and is to be used in the MMX-BB-
1001WPA/MMX-BB-1001WPRA weather
protected box.
RAX-1048TZDS
RAX-1048TZDS-CC
RAX-1048TZDS Adder Annunciator Chassis
with 48 bi-coloured LEDs and 48 trouble
LEDs.
RAX-1048TZDS-CC is the same as the
RAX-1048TZDS, except it has conformal
coating and is to be used in the MMX-BB-
1002WPA/MMX-BB-1002WPRA weather
protected box.
MGD-32 Master Graphic Driver Module.
RAX-LCD-LITE Remote Annunciator with 4-line LCD Display.
Table 1 MR-400 System Components (Continued)
Model Description

14
AGD-048 Adder Graphic Driver Module.
MR-2300T Common Remote Trouble Indicator, Buzzer
and LED.
MMX-BB-1001D White Enclosure for one annunciator.
MMX-BB-1001DR Red Enclosure for one annunciator.
MMX-BB-1001WPA White enclosure for one annunciator rated for
outdoor environment, wet location.
MMX-BB-1001WPRA Red enclosure for one annunciator rated for
outdoor environment, wet location.
MMX-BB-1002D White Enclosure for two annunciators.
MMX-BB-1002DR Red Enclosure for two annunciators.
MMX-BB-1002WPA White enclosure for two annunciators rated for
outdoor environment, wet location.
MMX-BB-1002WPRA Red enclosure for two annunciators rated for
outdoor environment, wet location.
MMX-BB-1003D White Enclosure for three annunciators.
MMX-BB-1003DR Red Enclosure for three annunciators.
Table 1 MR-400 System Components (Continued)
Model Description

15
3.2.1 Devices
Refer to document LT-1023SEC for compatible devices.
MP-300 End of line resistor plate. 3K9.
Table 1 MR-400 System Components (Continued)
Model Description

16
4.0 Installation
This chapter describes the installation of the MR-400.
4.1 Mechanical Installation
The MR-400 is suitable for flush or surface mounting with a built-in trim ring.
Figure 2 MR-400 Mechanical Installation Instructions and Dimensions
Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.25” x 21.14”
Distance between horizontal mounting screws 12”
Distance between vertical mounting screws 18.9”
Complete Dimensions of Door 16.71” x 5.7” x 22.95”
5.70
12.00
12.00
18.90
14.50
5.75
21.14
1.51 16.28
16.71
22.92

17
4.2 Installation Tips
1. Group the incoming wires through the top of the enclosure. For easy identification and
neatness use a wire tie to group wires.
2. Be sure to connect a solid Earth Ground (from building system ground / to a cold water
pipe) to the Chassis Earth Ground Mounting Lug, and to connect the Earth Ground Wire
Lugs from the Main Chassis to the ground screw on the backbox.
Attention: DO NOT install cable through bottom of the box. This space is reserved
for Batteries.

18
4.3 Connections and Jumpers
Figure 3 Port and Jumper Locations on Main Board
P2
P3
P4
P5
P8
P9
P13
P10P11P14
JW1
JW2
JW5
JW6
JW10
JW7
Buzzer
JW11
3
2
1
3
2
1
JW4 JW5
Core Board
Main Board
P7
JW12
JW14
1
3
2
P5
Micro USB Port to
PC Configurator
RS-485 for
annunciators and
smart relay modules
Auxiliary relay
Trouble relay
Alarm relay
Supervisory relay
Signaling Line
Circuit
Shield for
Signaling Line
Circuit
Dialer line
1
Dialer line
2
Auxiliary
power
supply 1
Auxiliary
power
supply 2
(resettable)
Unfiltered
Supply
Connection
for remote
trouble
indicator
Notification
Appliance
Circuits 1 to 4
Not used To polarity
reversal and
city tie module
Not used Not used
To power
supply
To power
supply
USB port to PC
Configurator
To PC Configurator
To P4 on main
display
To printer

19
Table 2 Main Board Connectors and Jumpers
Connector/
Jumper
Description
TS1 RS-485 for annunciators and MR-2312-SR12/MR-2312-SW12
TS2 Auxiliary power supply 1, used to power the remote annunciators and smart relay
modules (section 7.6.2)
TS3 Trouble relay
TS4 Alarm relay
TS5 Supervisory relay
TS6 Auxiliary relay
TS7 Auxiliary power supply 2 (resettable) (section 7.6.2)
TS8 Unfiltered supply (section 7.6.2)
TS9 Connection for MR-2300T (section 7.4.4)
TS10-TS13 Notification Appliance Circuits 1 to 4 (section 7.4)
TS14 Dialer line 1 (section 7.5)
TS15 Dialer line 2 (section 7.5)
TS16 Signaling Line Circuit (section 7.3)
TS17 Shield for Signaling Line Circuit (section 7.1.1)
P2 To P5 on power supply (section 7.6)
P3 To P6 on power supply (section 7.6)
P4 Ribbon cable connects to P4 on main display
P5 To PC Configurator
P7 Not used
P8 To MR-2300-PR
P9 To printer
P10 Not used
P11 Not used
P13 USB port to PC Configurator
P14 Not used
JW1 Must be on (closed) - allows configuration connection. The default setting is on.
JW2 Must be on (closed) - annunciator end of line. The default setting is on.
JW5 Normally off (open). Place jumper here and power down (AC and batteries) and power
back to restore Master Passcode. After reset, remove jumper and leave open. The
default setting is open.
JW6 Normally off (open) to BLOCK remote configuration with a modem. Place jumper here
to ALLOW for remote configuration. When jumper is on (closed), panel will indicate a
trouble. The default setting is open.
JW7 This jumper must be off (open) if a MR-2300-PR Polarity Reversal and City Tie
Module is installed. The default setting is on (closed).

20
4.3.1 Jumper on Display
The jumper on the back of the display is factory installed on the middle 2 pins.
Figure 4 Jumper on back of display
JW10 Must be in the 1-2 position (bottom 2 pins) - allows PC connection through serial port
JW11 Place in the 1-2 position (bottom 2 pins) for serial port or place in the 2-3 position (top
2 pins) for Keltron Dialer.
JW12 Close pins 2 and 3 to send the debug trace to the printer. Close pins 1 and 2 to send
events to the printer. The printer is supervised when the pins are in position 2 and 3.
The default setting is the 1-2 position.
JW14 Factory set on pins 2 and 3. Do not change.
Table 3 Core Board Connectors and Jumpers
Connector/
Jumper
Description
P5 Micro USB Port to PC Configurator.
JW4 Factory set on (closed). Leave as is.
JW5 Factory set off (open). Leave as is.
Attention: ADVANCED INSTALLER NOTE
Closing JW5 and JW6 on the main board at start-up will revert the panel
to the default configuration.
Table 2 Main Board Connectors and Jumpers (Continued)
Connector/
Jumper
Description
Not used
P4 - Ribbon cable
connecting to main panel
Jumper on the
middle 2 pins by
default
