Seiko 4R36 User manual

Cal. 4R35/36
INSTRUCTIONS (P. 3)
BEDIENUNGSANLEITUNG (S. 24)
INSTRUCTIONS (P. 46)
ISTRUZIONI (P. 68)
INSTRUCCIONES (P. 90)
INSTRUÇÕES (P. 113)
ИНСТРУКЦИИ (P. 135)
(157 )

ENGLISH
3
歡迎購買精工 4R35/36 機型自動手錶。為保證在最佳狀態下操作手錶，請在使用手錶之前
仔細閱讀本手冊內的各項使用說明。並妥善保管本使用手冊以備今後參考。
CONTENTS
page
CHARACTERISTICS OF A MECHANICAL WATCH ..................................... 4
NAMES OF THE PARTS................................................................................. 5、
HOW TO USE ................................................................................................. 7、
HOW TO SET THE TIME AND DATE............................................................. 9、
HOW TO SET THE TIME, DAY AND DATE ................................................... 12、
TO PRESERVE THE QUALITY OF YOUR WATCH ........................................ 15、
PLACES TO KEEP YOUR WATCH ................................................................. 19、
NOTES ON OVERHAUL................................................................................. 19、
NOTES ON GUARANTEE AND REPAIR........................................................ 20、
TROUBLESHOOTING .................................................................................... 20、
ACCURACY OF MECHANICAL WATCHES................................................... 22、
SPECIFICATIONS........................................................................................... 23
You are now the proud owner of a SEIKO Automatic Watch Cal. 4R35/36. To ensure its optimum
performance, please read the instructions in this booklet carefully before using it. Please keep
this manual handy for ready reference.
Sie sind jetz t stolzer Besitzer eines SEIKO Automatikuhr Kal. 4 R3 5/ 36 . Lesen Sie die se
Bedienungsanleitung vor der Verwendung aufmerksam durch, um Ihre Uhr optimal zu nutzen.
Heben Sie diese Bedienungsanleitung gut auf, um jederzeit wieder nachlesen zu können.
Vous voici l'heureux propriétaire d'une montre automatique SEIKO Cal. 4R35/ 36. Pour en
obtenir des performances optimales, veuillez lire attentivement cette brochure avant d'utiliser
la montre. Conservez ce manuel pour vous y référer en cas de besoin.
Grazie di aver acquistato questo nuovo Orologio Automatico SEIKO Cal. 4R35/36. Per poter
utilizzare l’orologio al massimo delle sue prestazioni leggere attentamente questo manuale di
istruzioni prima di passare all’uso dell’orologio stesso, e conservarlo poi per qualsiasi eventuale
futura consultazione.
Usted es ahora el orgulloso propietario de un Reloj Autom tico de SEIKO Cal. 4R35/36. Para
asegurar el óptimo rendimiento de su reloj, sírvase leer cuidadosamente las instrucciones
contenidas en este manual antes de su uso. Guarde este manual en un lugar muy accesible
para la rápida referencia.
Você poderá sentir-se orgulhoso de possuir um Relógio Autom tico SEIKO Cal. 4R35/36. . Para
garantir o seu excelente rendimento, leia atentamente as instruções contidas neste opúsculo
antes de usá-lo. Conserve este manual à mão para consultas futuras.
Вы стали гордым обладателем автоматических часов SEIKO калибра 4R35/36. Чтобы
использовать часы оптимальным образом, внимательно прочитайте эту инструкцию,
прежде чем приступать к пользованию. Сохраните эту брошюру, чтобы обратиться к
ней в случае необходимости.

English
4
English
5

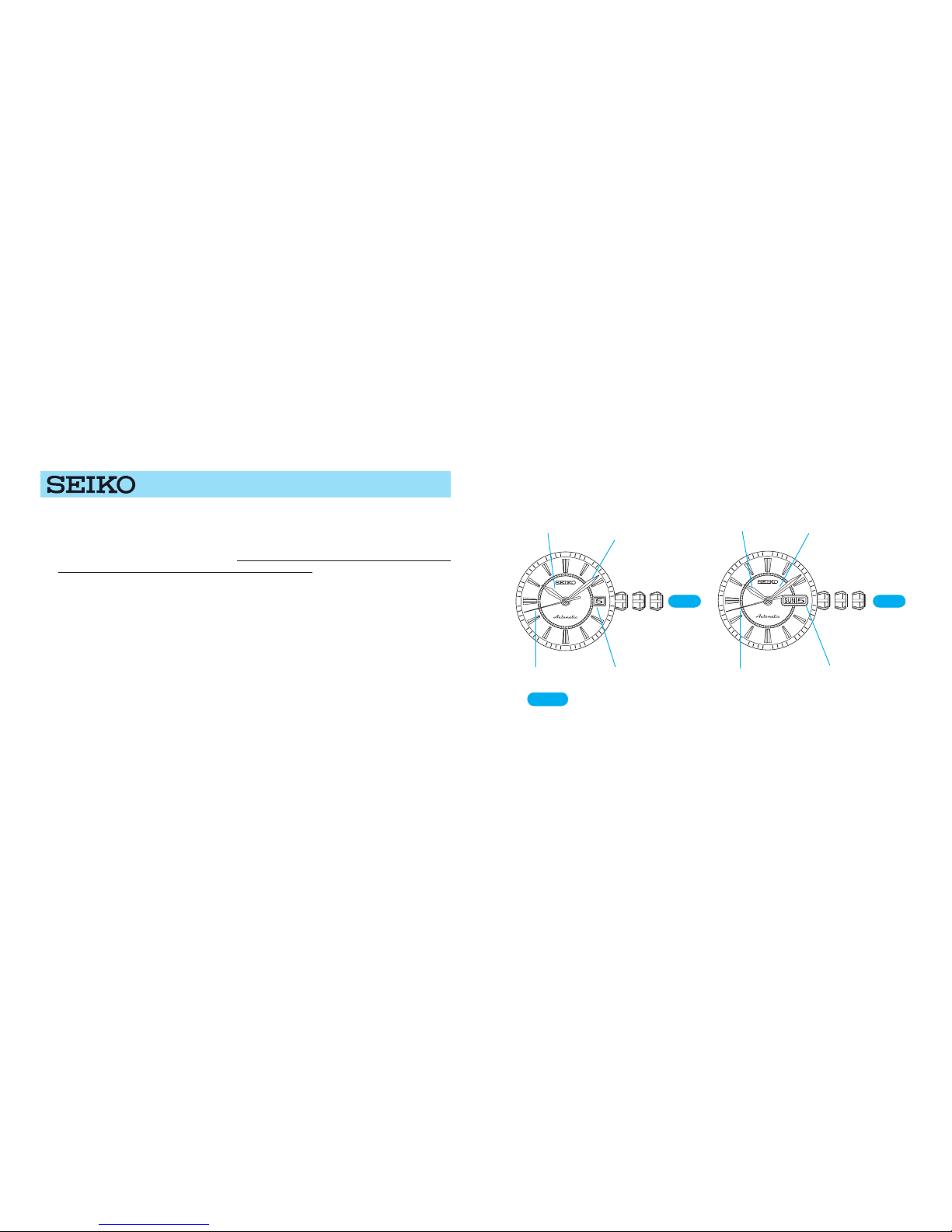

NAMES OF THE PARTS
CHARACTERISTICS OF A MECHANICAL WATCH
(self-winding type, automatic winding type)
●This mechanical watch operates using power obtained from a mainspring.
●If the watch is completely stopped, manually turn the crown approximately 20
times to wind up the mainspring to start the watch.
●While loss/gain of a quartz watch is indicated by a monthly or annual rate, accuracy
of a mechanical watch is normally indicated by a daily rate (loss/gain per day).
● Normal usage accuracy of a mechanical watch varies according to conditions of
use (time period that the watch is worn on the wrist, temperature environment,
hand movement, and winding state of the mainspring).
● When the watch is affected by strong magnetism, it temporarily gains or loses
time. If the watch encounters a strong magnetic field, the parts of the watch may
be magnetized. In this case, repairs such as removal of magnetism are required.
Contact the retailer from whom the watch was purchased.
CAL. 4R35/36
●4R36
5
35
10
15
40
55
25
60
30
50
45
20
5
35
10
15
40
55
25
60
30
50
45
20
●4R35
a) Normal position : winding up the mainspring (manual operation)
b) First click position : date setting(4R35), day/date setting(4R36)
c) Second click position : time setting
Hour hand
Second hand
Minute hand
Day and Date
CROWN
abc
CROWN
Hour hand
Second hand
Minute hand
CROWN
abc
Day

English
6
English
7
1. Slowly turn the c rown clock wise ( in
the 12 o’clock direction) to wind the
mainspring.
* Turning the crown counterclockwise (the
6 o’clock direction) does not wind the
mainspring.
5
35
10
15
40
55
25
60
30
50
45
20
HOW TO USE
This watch is an automatic watch equipped with a manual winding mechanism.
• When the watch is worn on the wrist, the motion of the wearer's arm winds the
mainspring of the watch.
• If your watch is completely stopped, it is recommended that you manually wind
the mainspring by turning the crown.

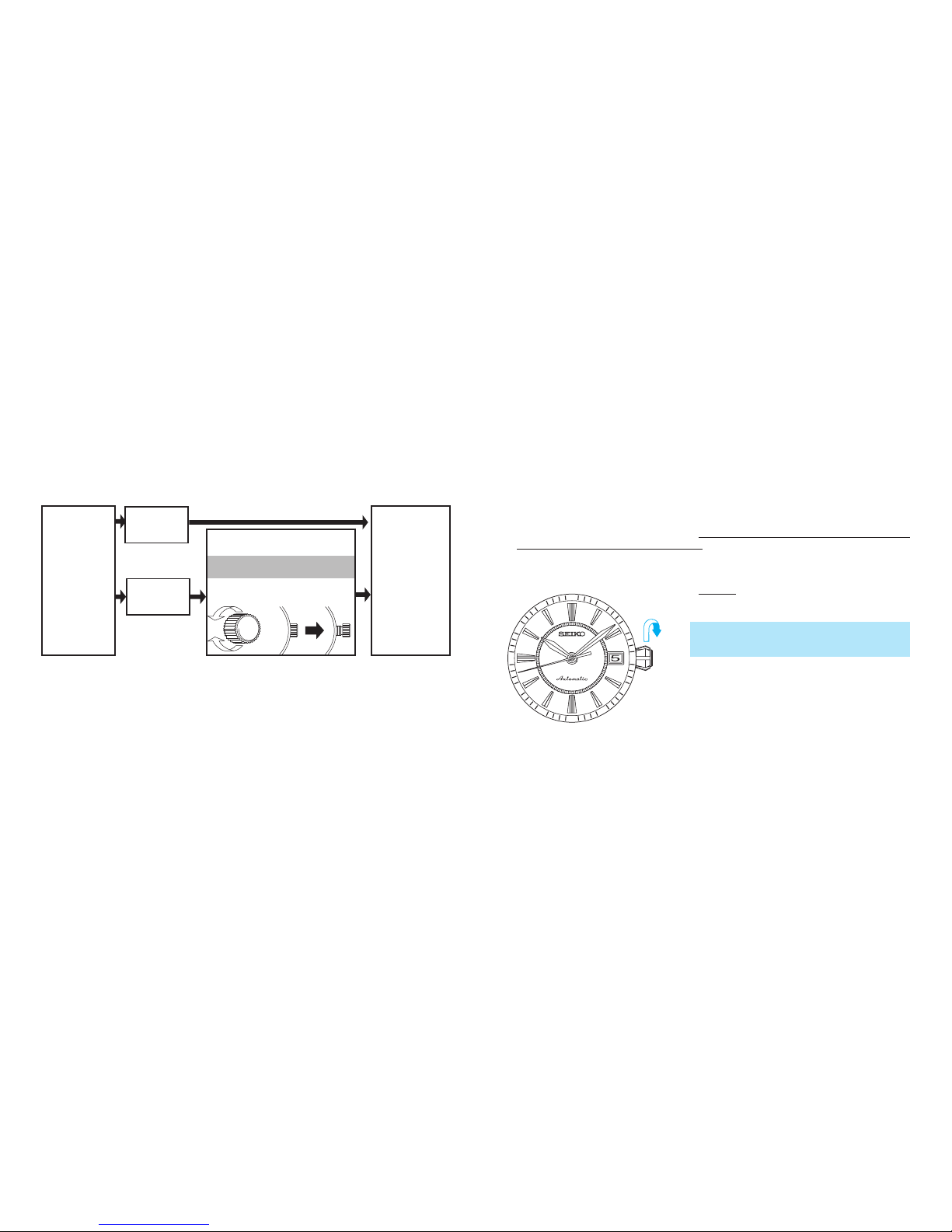

●How to manually wind the mainspring by turning the crown
●Check the type of the crown of your watch
Turn the
crown
clockwise.
The crown
turns.
Go to
"HOW TO
USE"
The crown
does not
turn.
Unscrew the crown by turning it
counterclockwise.
To set the watch
The crown of your watch is
*the screw lock type.
Unscrew.
Screw up.
2. Continue to turn the crown until the
mainspring is sufficiently wound. The
second hand will start moving.
3. Set the time and date before putting the
watch on your wrist.
• The winding operation for 4R35 and 4R36 are the same.
* If your watch has a screw-lock crown, the crown will screw into the watch case
for added protection.
• After completing all settings of the watch, screw the crown in again by turn-
ing it clockwise while pressing it.
• If the crown turns out to be too stiff to be screwed in, turn the crown coun-
terclockwise once and then give another try.
• Do not screw it in by force as it may damage the slots of the crown.

English
8
English
9
• Check that the watch is operating, and then set the time and date.
• The watch is provided with a date function and is so designed that the date
changes once every 24 hours. The date changes around 12 o’clock midnight. If
AM/PM is not properly set, the date will change around 12 o’clock noon.

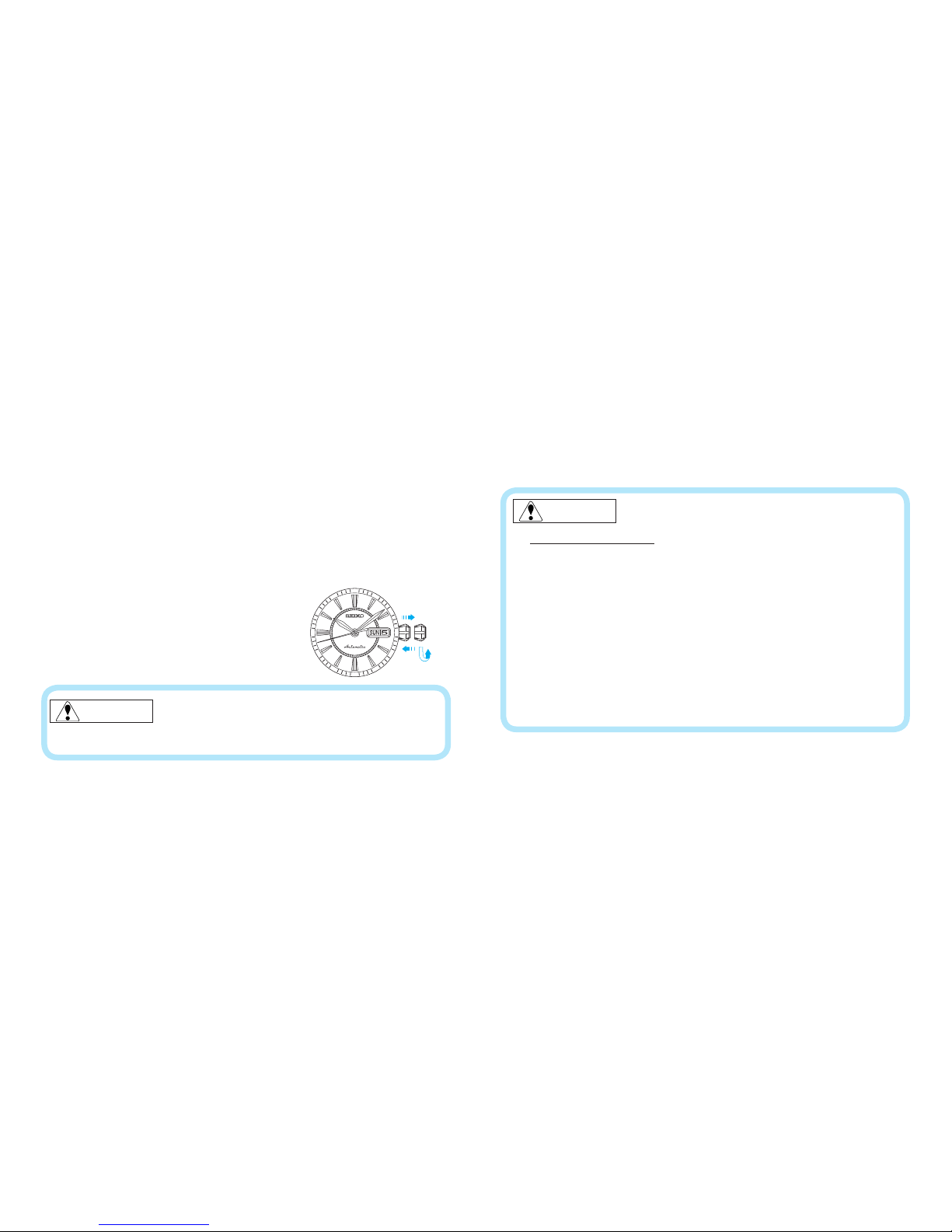

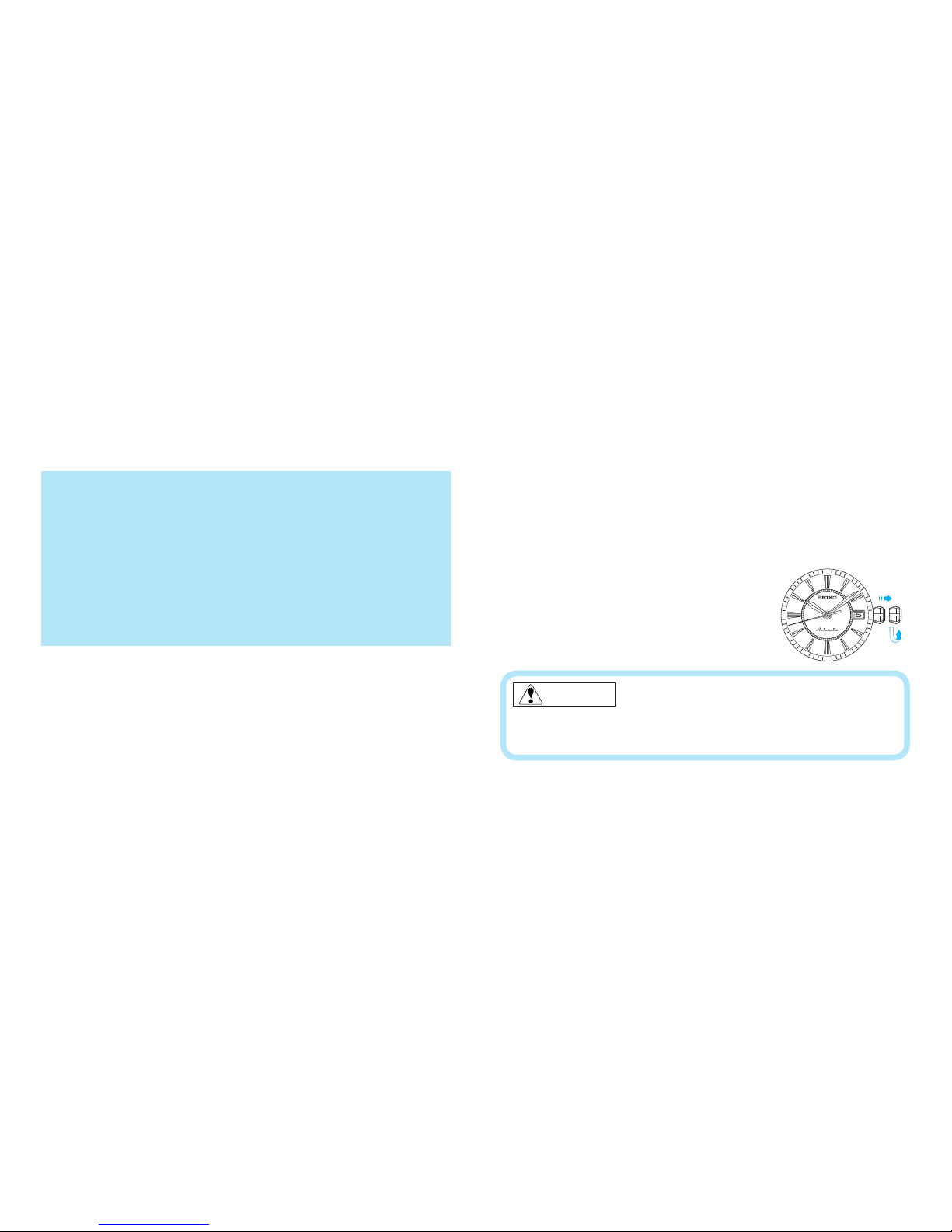

1. Pull out the crown to the first click. (The second hand
continues moving and the accuracy of the watch is
unimpaired.)
2. The da t e c an b e se t by t u r n i n g t h e c ro w n
counterclockwise. Turn it until the previous day’s
date appears.
Ex.) If today is the 5th of the month, first set the date to
”4” by turning the crown counterclockwise.
5
35
10
15
40
55
25
60
30
50
45
20
HOW TO SET THE TIME AND DATE
(FOR CAL. 4R35)
* There is no need to turn the crown further when the mainspring is fully wound. But
the crown can be turned without damaging the watch mechanism.
* Once the watch is wound up fully, it operates for about 41 hours.
* If the watch is used without being wound up fully, gain or loss of the watch may
result. To avoid this, wear the watch for more than 10 hours a day. If the watch is
used without wearing on the wrist (if it is used on the desk like a clock, for exam-
ple), be sure to wind it up fully every day at a fixed time.
* If the watch has stopped with the mainspring unwound, winding the mainspring
with the crown will not start the watch immediately. This is because the main-
spring torque (force) is low at the beginning of its winding due to the characteristics
of mechanical watches. The second hand starts to move when a certain degree
of strong torque is reached after the mainspring has been wound up. However,
swinging the watch from side to side to forcibly turn the balance can start the
watch sooner.
CAUTION
• Do not set the date between 9:00 p.m. and 1:00 a.m. If you do so, the date
may not change properly / it may cause a malfunction.

English
10
English
11
CAUTION
• The mechanism of mechanical watches is different from that of quartz
watches.
When setting the time, be sure to turn back the minute hand a little behind
the desired time and then advance it to the exact time.

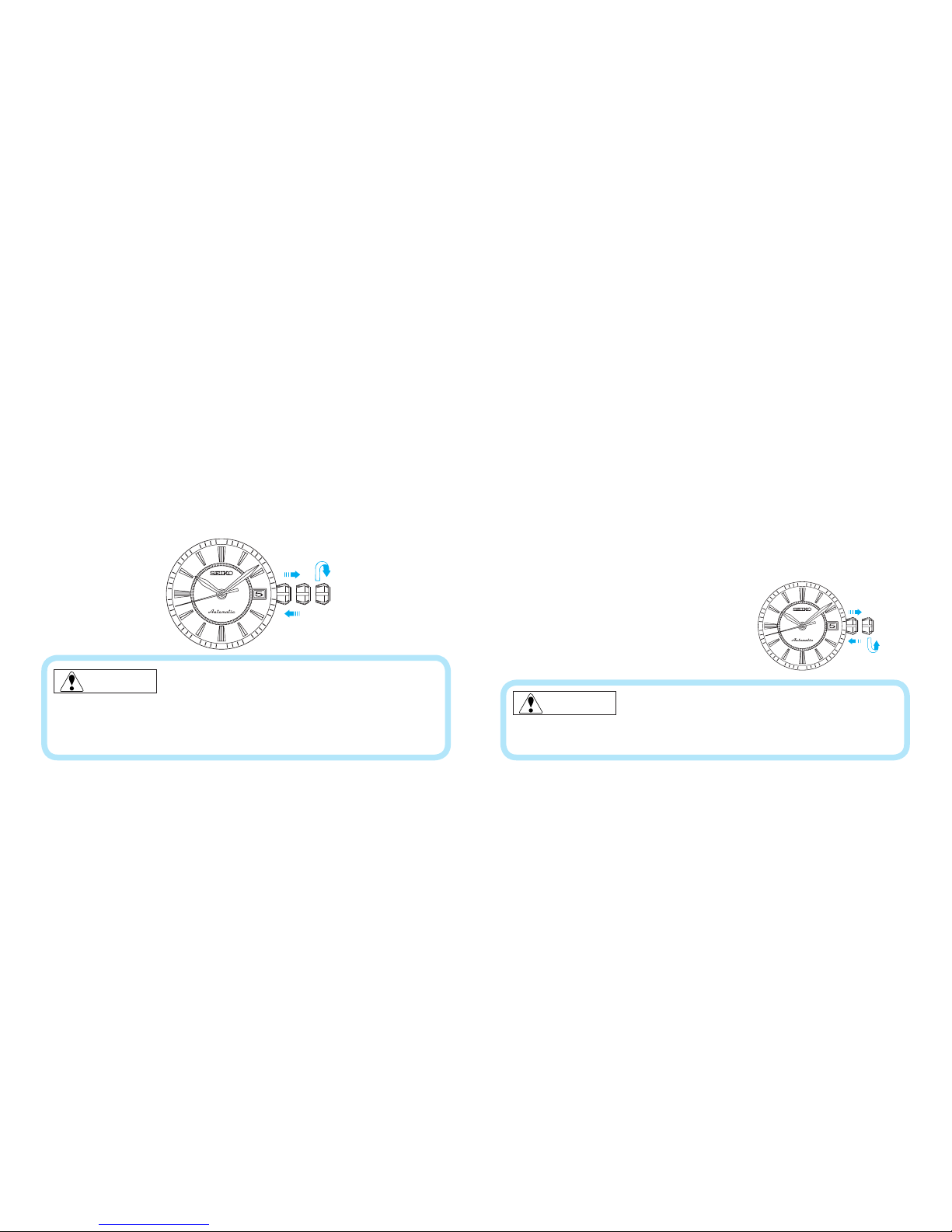

3. Pull out the crown to the second click when the second hand is at the 12 o’clock
position. (The second hand stops on the spot.)
Turn the crown to advance the hands until the date changes to the next. The
time is now set for the a.m. period. Advance the hands to set the correct time.
4. Push the crown back in to the normal position in accordance with a time
signal.
It is necessary to adjust the date on the first day after a month that has less than
31 days.

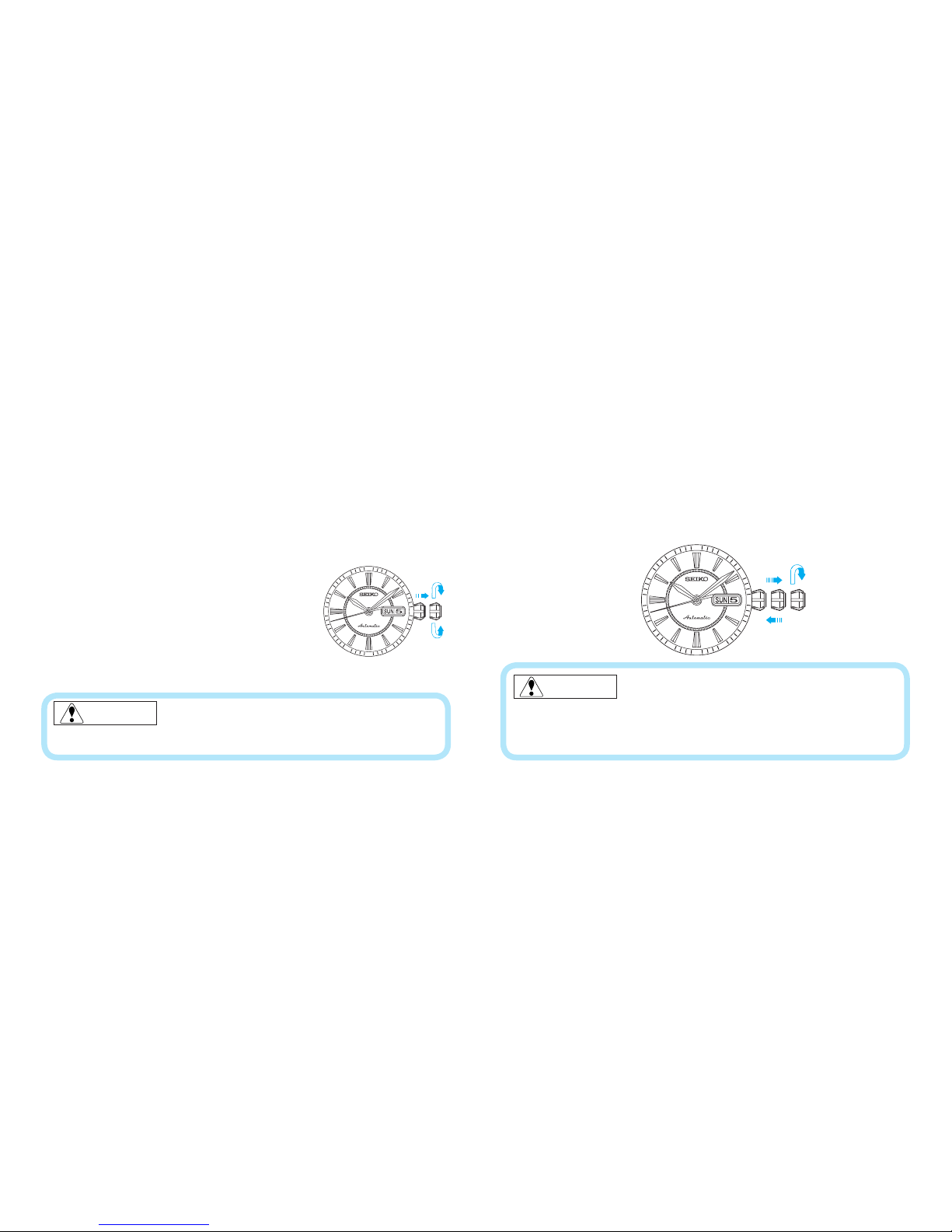

Ex.) To adust the date in the a.m. period on the first day of a month following a
30-day month.
1. The watch displays “31” instead of ”1”. Pull out the crown to the first click.
2. Turn the crown to set the date to “1” and then push the crown back in to the
normal position.
CAUTION
• Do not set the date between 9:00 p.m. and 1:00 a.m. If you do, the date may
not change properly / it may cause a malfunction.
●Date adjustment at the beginning of the month
5
35
10
15
40
55
25
60
30
50
45
20
5
35
10
15
40
55
25
60
30
50
45
20

English
12
English
13
HOW TO SET THE TIME, DAY AND DATE
(FOR CAL. 4R36)
• Check that the watch is operating, and then set the time, day and date.
• The watch is provided with a day and date function and is so designed that the
day and date changes once every 24 hours. The date changes around 12 o’clock
midnight, and the day around 4:00 a.m. If AM/PM is not properly set, the date
will change around 12 o’clock noon, and the day around 4:00 p.m.
1. Pull out the crown to the first click. (The second hand
continues moving and the accuracy of the watch is
unimpaired.)
2. The day can be set by turning the crown clockwise.
3. The date c a n b e s et b y t urning the crown
counterclockwise. Turn it until the previous day’s
date appears.
Ex.) If today is the 5th of the month, first set the date to “4” by turning the crown
counterclockwise.
CAUTION
• Do not set the date between 9:00 p.m. and 4:00 a.m. If you do, the date
may not change properly / it may cause a malfunction.
4. Pull out the crown to the second click when the second hand is at the 12 o’clock
position. (The second hand stops on the spot.)
Turn the crown to advance the hands until the date changes to the next. The
time is now set for the a.m. period. Advance the hands to set the correct time.
5. Push the crown back in to the normal position in accordance with a time
signal.
CAUTION
• The mechanism of mechanical watches is different from that of quartz
watches.
When setting the time, be sure to turn back the minute hand a little behind
the desired time and then advance it to the exact time.
5
35
10
15
40
55
25
60
30
50
45
20
5
35
10
15
40
55
25
60
30
50
45
20

English
14
English
15
CAUTION
• Do not set the date between 9:00 p.m. and 4:00 a.m. If you do, the date
may not change properly / it may cause a malfunction.

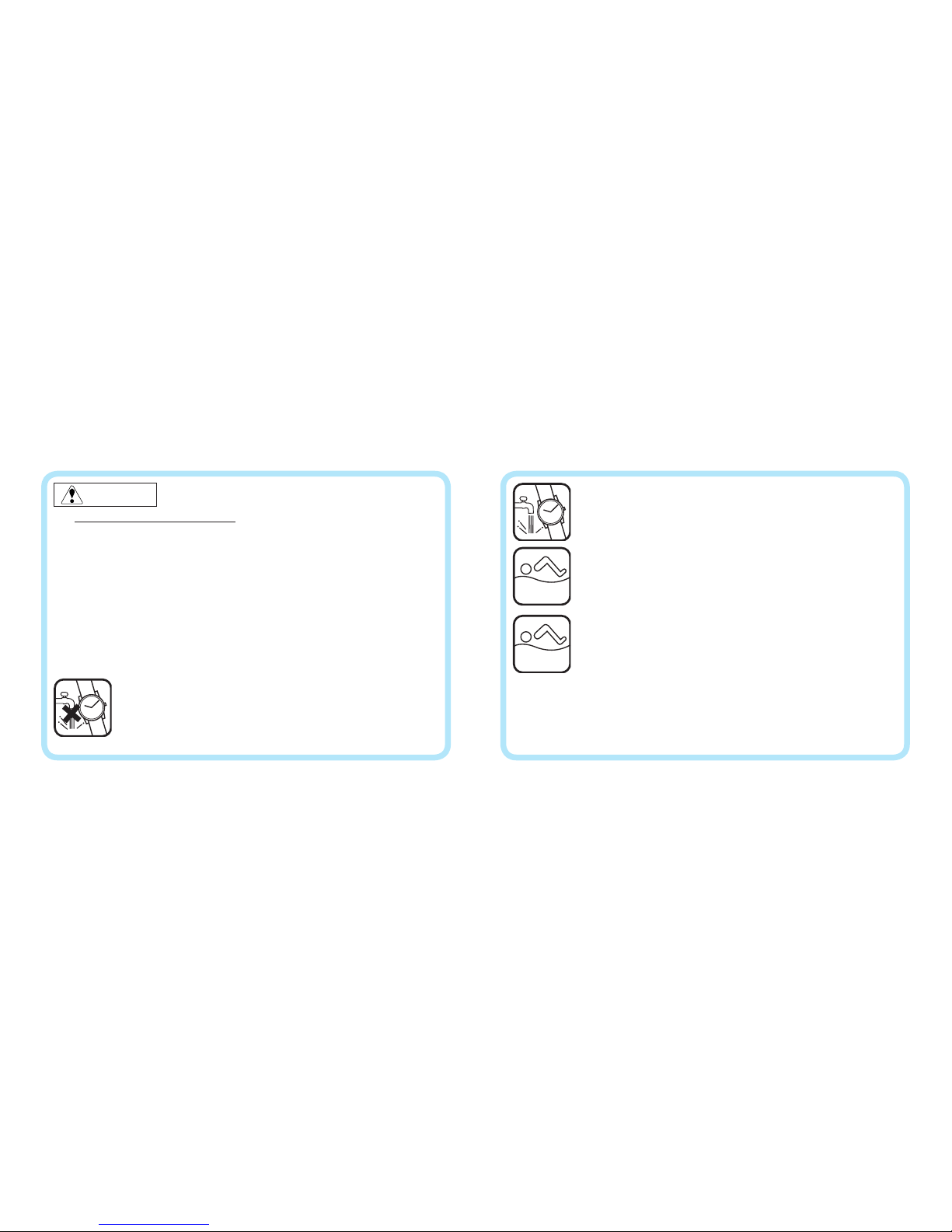

TO PRESERVE THE QUALITY OF YOUR WATCH
CAUTION
●CARE OF YOUR WATCH
• The case and band touch the skin directly. Keep the case and band clean at
all times. This will help to extend the life of the watch and will reduce the
risk of skin irritations.
• When you take the watch off, wipe off moisture, sweat or soil with a soft
dry cloth as soon as possible. This will help to extend the life of the case,
band and gasket.
<Leather strap>
• Gently blot up the moisture using a soft dry cloth. Do not rub the leather,
as this may cause abrasions or discoloration.
<Metal bracelet>
• To keep the bracelet clean, use a soft toothbrush dipped in clean or soapy
water. Be careful not to get water on the case.
●Date adjustment at the beginning of the month
It is necessary to adjust the date on the first day after a month that has less than 31
days.
Ex.) To adust the date in the a.m. period on the first day of a month following a
30-day month.
1. The watch displays “31” instead of “1”. Pull out the crown to the first click.
2. Turn the crown to set the date to “1” and then push the crown back into the
normal position.
5
35
10
15
40
55
25
60
30
50
45
20

English
16
English
17
CAUTION
●RASH AND ALLERGIC REACTION
•
Adjust the band to allow a little clearance around your wrist to ensure proper
airflow.
• Prolonged and/or repeated contact with the band may cause skin irritation
or dermatitis for those susceptible.
• Possible causes of dermatitis
• Allergic reaction to metals or leathers
• Rust, contamination or perspiration accumulated on the watch case or
band.
• If you should develop any allergic symptoms or skin irritation, immediately
stop wearing the watch and seek medical attention.
●WATER RESISTANCE
●Non-water resistance
If ”WATER RESISTANT” is not inscribed on the case back,
your watch is not water resistant, and care should be taken
not to get it wet as water may damage the movement. If the
watch becomes wet, we suggest that you have it checked
by the retailer from whom the watch was purchased or your
SERVICE CENTER.
●Water resistance (3 bar)
If ”WATER RESISTANT” is inscribed on the case back, your
watch is designed and manufactured to withstand up to 3 bar,
such as accidental contact with splashes of water or rain, but it
is not designed for wearing while swimming or diving.
●Water resistance (5 bar)*
If ”WATER RESISTANT 5 BAR” is inscribed on the case back,
your watch is designed and manufactured to withstand up to 5
bar and is suitable for wearing while swimming, yachting and
taking a shower.
●Water resistance (10 bar/15 bar/20 bar)*
If ”WATER RESISTANT 10 BAR”, ”WATER RESISTANT 15 BAR”
or ”WATER RESISTANT 20 BAR” is inscribed on the case back,
your watch is designed and manufactured to withstand up to
10 bar/15 bar/20 bar, respectively, and is suitable for wearing
while taking a bath or shallow diving, but not for scuba diving.
We recommend that you wear a SEIKO Diver’s watch while
scuba diving.
5 bar WR
10/15/20
bar WR
* Before using a water resistant 5, 10, 15 or 20 bar watch in water, make sure
the crown is pushed in completely.
Do not operate the crown when the watch is wet or in water. If used in sea
water, rinse the watch in fresh water and dry it completely.

English
18
English
19
* When taking a shower while wearing a water resistant 5 bar watch, or taking
a bath while wearing a water resistant 10, 15 or 20 bar watch, make sure to
observe the following:
• Do not operate the crown when the watch is wet with soapy water or
shampoo.
• If the watch is left in warm water, a slight time loss or gain may be caused.
This condition, however, will be corrected when the watch returns to normal
temperature.
PRECAUTIONS ON WEARING YOUR WATCH
• Exercise care when you hold an infant or small child while wearing the
watch on your wrist, as the infant or child may be injured or develop an
allergic reaction caused by direct contact with the watch.
• Avoid undue shocks such as dropping or scratching against hard surfaces
or playing active sports, which may cause temporary malfunctions.
• There is a possibility of injury caused by wearing the watch on your wrist
especially if you fall down or bump into other people or objects.
NOTE:
Pressure in bar is a test pressure and should not be considered as corresponding
to an actual diving depth since swimming movements tend to increase the
pressure at a given depth. Care should also be taken when diving with the
watch into water.
PLACES TO KEEP YOUR WATCH
●Do not leave the watch in a place where it will be subjected to strong magnetism
(for example, near television sets, loudspeakers or magnetic necklaces) or static
electricity.
●Do not leave the watch where there are strong vibrations.
●Do not leave the watch in dusty places.
●Do not expose the watch to chemical substances or gases.
(Ex.: Organic solvents such as benzine and thinner, gasoline, nail polish, cosmetic
sprays, detergents, adhesives, mercury, and iodine antiseptic solution.)
●Do not leave the watch in close contact with hot spring water.
NOTES ON OVERHAUL
●The watch is a precision device with many moving parts lubricated with special
oils. If the parts run short of oil or get worn out, the watch may lose time or stop
operation. In such a case, have the watch overhauled.
