English
5
English
4
NAMES OF THE PARTS
CHARACTERISTICS OF A MECHANICAL WATCH
(self-winding type, automatic winding type)
●This mechanical watch operates using power obtained from a mainspring.
●If the watch is completely stopped, manually turn the crown approximately 20
times to wind up the mainspring to start the watch.
●While loss/gain of a quartz watch is indicated by a monthly or annual rate, accuracy
of a mechanical watch is normally indicated by a daily rate (loss/gain per day).
● Normal usage accuracy of a mechanical watch varies according to conditions of
use (time period that the watch is worn on the wrist, temperature environment,
hand movement, and winding state of the mainspring).
● When the watch is affected by strong magnetism, it temporarily gains or loses
time. If the watch encounters a strong magnetic field, the parts of the watch may
be magnetized. In this case, repairs such as removal of magnetism are required.
Contact the retailer from whom the watch was purchased.
CAL. 4R35/36/37/38/39
●4R37
5
35
10
15
40
55
25
60
30
50
45
20
●4R35
a) Normal position : winding up the mainspring (manual operation)
b) First click position : date setting
c) Second click position : time setting
Hour hand
Second hand
Minute hand
Date
CROWN
abc
CROWN
Hour hand
Second hand
Minute hand
CROWN
abc
Date
24-hour hand

English
7
English
6
●4R36
5
35
10
15
40
55
25
60
30
50
45
20
a) Normal position : winding up the mainspring (manual operation)
b) First click position : date/day setting
c) Second click position : time setting
Date and Day
CROWN
Hour hand
Second hand
Minute hand
CROWN
abc
●4R39
●4R38
a) Normal position : winding up the mainspring (manual operation)
b) First click position : time setting
Hour hand
Second hand
Minute hand
CROWN
ab
CROWN
Hour hand
Second hand
Minute hand
CROWN
24 hour hand
ab

English
9
English
8
1. Slowly turn the crown clockwise (in
the 12 o’clock direction) to wind the
mainspring.
Turning the crown counterclockwise (the
6 o’clock direction) does not wind the
mainspring.
5
35
10
15
40
55
25
60
30
50
45
20
HOW TO USE
This watch is an automatic watch equipped with a manual winding mechanism.
• Whenthewatchiswornonthewrist,themotionofthewearer'sarmwindsthe
mainspring of the watch.
• Ifyourwatchiscompletelystopped,it is recommended that you manually wind
the mainspring by turning the crown.
●How to manually wind the mainspring by turning the crown
●Check the type of the crown of your watch
Turn the
crown
clockwise.
The crown
turns.
Go to
"HOW TO
USE"
The crown
does not
turn.
Unscrew the crown by turning it
counterclockwise.
To set the watch
The crown of your watch is
the screw lock type.*
Unscrew.
Screw up.
2. Continue to turn the crown until the
mainspring is sufficiently wound. The
second hand will start moving.
3. Set the time and date before putting the
watch on your wrist.
• Thewindingoperationfor4R35,4R36,4R37,4R38and4R39arethesame.
*If your watch has a screw-lock crown, the crown will screw into the watch case
for added protection.
• Aftercompletingallsettingsofthewatch,screwthecrowninagainbyturn-
ing it clockwise while pressing it.
• Ifthecrownturnsouttobetoostifftobescrewedin,turnthecrowncoun-
terclockwise once and then give another try.
• Donotscrewitinbyforceasitmaydamagetheslotsofthecrown.

English
11
English
10
• Checkthatthewatchisoperating,andthensetthetimeanddate.
• The watch is provided with a date function and is so designed that the date
changes once every 24 hours. The date changes around 12 o’clock midnight. If
AM/PM is not properly set, the date will change around 12 o’clock noon.
1. Pull out the crown to the first click. (The second hand
continues moving and the accuracy of the watch is
unimpaired.)
2. The date can be set by turning the crown
counterclockwise. Turn it until the previous day’s
date appears.
Ex.) If today is the 5th of the month, first set the date to
”4” by turning the crown counterclockwise.
5
35
10
15
40
55
25
60
30
50
45
20
HOW TO SET THE TIME AND DATE
(FOR CAL. 4R35 AND 4R37)
• Thereisnoneedtoturnthecrownfurtherwhenthemainspringisfullywound.But
the crown can be turned without damaging the watch mechanism.
• Oncethewatchiswoundupfully,itoperatesforabout41hours.
• Ifthe watchisusedwithoutbeingwoundup fully,gainorlossofthewatch may
result.Toavoidthis,wearthewatchformorethan10hoursaday.Ifthewatchis
usedwithoutwearingonthewrist(ifitisusedonthedesklikeaclock,forexam-
ple),besuretowinditupfullyeverydayataxedtime.
• If the watch has stopped with the mainspring unwound, winding the mainspring
with the crown will not start the watch immediately. This is because the main-
springtorque(force)islowatthebeginningofitswindingduetothecharacteristics
ofmechanicalwatches.  The secondhandstarts to move whenacertain degree
of strong torque is reached after the mainspring has been wound up.  However,
swinging the watch from side to side to forcibly turn the balance can start the
watch sooner.
CAUTION
• Donotsetthedatebetween9:00p.m.and1:00a.m.Ifyoudoso,thedate
may not change properly / it may cause a malfunction.

English
13
English
12
• The mechanism of mechanical watches is different from that of quartz
watches. When setting the time, be sure to turn back the minute hand a
little behind the desired time and then advance it to the exact time.
CAUTION
3. Pull out the crown to the second click when the
second hand is at the 12 o’clock position. (The
second hand stops on the spot.)
Turn the crown to advance the hands until the date
changes to the next. The time is now set for the
a.m. period. Advance the hands to set the correct
time.
4. Push the crown back in to the normal position in
accordance with a time signal. It is necessary to adjust the date on the first day after a
month that has less than 31 days.
Ex.) To adust the date in the a.m. period on the first day
of a month following a 30-day month.
1. The watch displays “31” instead of ”1”. Pull out the
crown to the first click.
2. Turn the crown to set the date to “1” and then push
the crown back in to the normal position.
CAUTION
• Donotsetthedatebetween9:00p.m.and1:00a.m.Ifyoudo,thedatemay
not change properly / it may cause a malfunction.
●Date adjustment at the beginning of the month
5
35
10
15
40
55
25
60
30
50
45
20
5
35
10
15
40
55
25
60
30
50
45
20

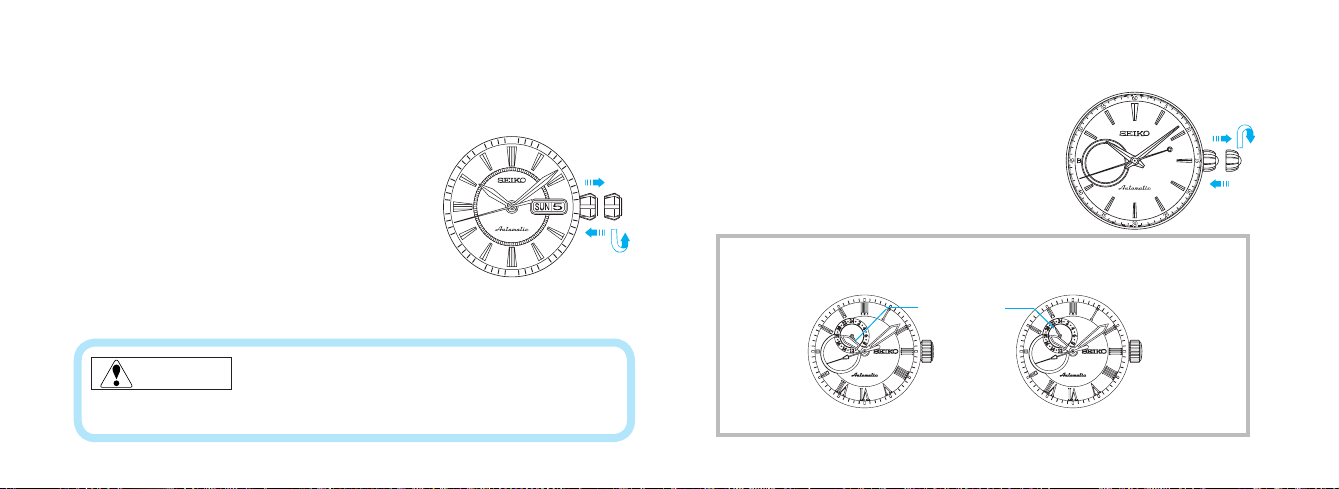

• Cal. 4R37 has a 24-hour hand, which moves correspondingly with
the hour hand. When setting the time, check that the 24-hour hand is
correctly set.
10:08 22:08
24-hour hand

English
15
English
14
HOW TO SET THE TIME, DAY AND DATE
(FOR CAL. 4R36)
• Checkthatthewatchisoperating,andthensetthetime,dayanddate.
• Thewatchisprovidedwithadayanddatefunctionandissodesignedthatthe
day and date changes once every 24 hours. The date changes around 12 o’clock
midnight,andthedayaround4:00a.m.IfAM/PMisnotproperlyset,thedate
willchangearound12o’clocknoon,andthedayaround4:00p.m.
1. Pull out the crown to the first click. (The second
hand continues moving and the accuracy of the
watch is unimpaired.)
2. The day can be set by turning the crown
clockwise.
3. The date can be set by turning the crown
counterclockwise. Turn it until the previous day’s
date appears.
Ex.) If today is the 5th of the month, first set the date
to “4” by turning the crown counterclockwise.
4. Pull out the crown to the second click when the
second hand is at the 12 o’clock position. (The
second hand stops on the spot.)
Turn the crown to advance the hands until the
date changes to the next. The time is now set
for the a.m. period. Advance the hands to set
the correct time.
5. Push the crown back in to the normal position
in accordance with a time signal.
CAUTION
• Themechanismofmechanicalwatchesisdifferentfromthatofquartz
watches.
When setting the time, be sure to turn back the minute hand a little behind
the desired time and then advance it to the exact time.
5
35
10
15
40
55
25
60
30
50
45
20
5
35
10
15
40
55
25
60
30
50
45
20
CAUTION
• Donotsetthedatebetween9:00p.m.and4:00a.m.Ifyoudo,thedate
may not change properly / it may cause a malfunction.

English
17
English
16
CAUTION
• Donotsetthedatebetween9:00p.m.and4:00a.m.Ifyoudo,thedate
may not change properly / it may cause a malfunction.
HOW TO SET THE TIME
(FOR CAL. 4R38 AND CAL. 4R39)
1. Pull out the crown to the first click when the second
hand is at the 12 o’clock position. (The second
hand stops on the spot.)
2. Turn the crown to set the hour and minute hands
to the correct time.
3. Push the crown back in to the normal position in
accordance with a time signal.
• Cal. 4R39 has a 24-hour hand, which moves correspondingly with
the hour hand. When setting the time, check that the 24-hour hand is
correctly set.
10:08 22:08
●Date adjustment at the beginning of the month
It is necessary to adjust the date on the first day after a month that has less than 31 days.
Ex.) To adust the date in the a.m. period on the first day of a month following a
30-day month.
1. The watch displays “31” instead of “1”. Pull out
the crown to the first click.
2. Turn the crown to set the date to “1” and then push
the crown back into the normal position.
5
35
10
15
40
55
25
60
30
50
45
20
24-hour hand

English
19
English
18
TO PRESERVE THE QUALITY OF YOUR WATCH
CAUTION
●CARE OF YOUR WATCH
• Thecaseandbandtouchtheskindirectly.Keepthecaseandbandcleanat
all times. This will help to extend the life of the watch and will reduce the
risk of skin irritations.
• Whenyoutakethewatchoff,wipeoffmoisture,sweatorsoilwithasoft
dry cloth as soon as possible. This will help to extend the life of the case,
band and gasket.
<Leather strap>
• Gentlyblotupthemoistureusingasoftdrycloth.Donotrubtheleather,
as this may cause abrasions or discoloration.
<Metal bracelet>
• Tokeepthebraceletclean,useasofttoothbrushdippedincleanorsoapy
water. Be careful not to get water on the case.
CAUTION
●RASH AND ALLERGIC REACTION
• Adjust the band to allow a little clearance around your wrist to ensure proper
airflow.
• Prolongedand/orrepeatedcontactwiththebandmaycauseskinirritation
or dermatitis for those susceptible.
• Possiblecausesofdermatitis
• Allergicreactiontometalsorleathers
• Rust,contaminationor perspirationaccumulated onthewatchcase or
band.
• Ifyoushoulddevelopanyallergicsymptomsorskinirritation,immediately
stop wearing the watch and seek medical attention.
●WATER RESISTANCE
●Non-water resistance
If ”WATER RESISTANT” is not inscribed on the case back,
your watch is not water resistant, and care should be taken
not to get it wet as water may damage the movement. If the
watch becomes wet, we suggest that you have it checked
by the retailer from whom the watch was purchased or your
SERVICE CENTER.

English
21
English
20
●Water resistance (3 bar)
If ”WATER RESISTANT” is inscribed on the case back, your
watch is designed and manufactured to withstand up to 3 bar,
such as accidental contact with splashes of water or rain, but it
is not designed for wearing while swimming or diving.
●Water resistance (5 bar)*
If ”WATER RESISTANT 5 BAR” is inscribed on the case back,
your watch is designed and manufactured to withstand up to 5
bar and is suitable for wearing while swimming, yachting and
taking a shower.
●Water resistance (10 bar/15 bar/20 bar)*
If ”WATER RESISTANT 10 BAR”, ”WATER RESISTANT 15 BAR”
or ”WATER RESISTANT 20 BAR” is inscribed on the case back,
your watch is designed and manufactured to withstand up to
10 bar/15 bar/20 bar, respectively, and is suitable for wearing
while taking a bath or shallow diving, but not for scuba diving.
We recommend that you wear a SEIKO Diver’s watch while
scuba diving.
5 bar WR
10/15/20
bar WR
*Before using a water resistant 5, 10, 15 or 20 bar watch in water, make sure
the crown is pushed in completely.
Do not operate the crown when the watch is wet or in water. If used in sea
water, rinse the watch in fresh water and dry it completely.
*When taking a shower while wearing a water resistant 5 bar watch, or
taking a bath while wearing a water resistant 10, 15 or 20 bar watch, make
sure to observe the following:
• Donotoperatethecrownwhenthewatchiswetwithsoapywateror
shampoo.
• Ifthewatchisleftinwarmwater,aslighttimelossorgainmaybecaused.
This condition, however, will be corrected when the watch returns to
normal temperature.
PRECAUTIONS ON WEARING YOUR WATCH
• Exercisecarewhenyouholdaninfantorsmallchildwhilewearingthe
watch on your wrist, as the infant or child may be injured or develop an
allergic reaction caused by direct contact with the watch.
• Avoidundueshockssuchasdroppingorscratchingagainsthardsurfaces
or playing active sports, which may cause temporary malfunctions.
• Thereisapossibilityofinjurycausedbywearingthewatchonyourwrist
especially if you fall down or bump into other people or objects.
NOTE:
Pressure in bar is a test pressure and should not be considered as corresponding
to an actual diving depth since swimming movements tend to increase the
pressure at a given depth. Care should also be taken when diving with the
watch into water.

English
23
English
22
PLACES TO KEEP YOUR WATCH
● Donotleavethewatchinaplacewhereitwillbesubjectedtostrongmagnetism
(for example, near television sets, loudspeakers or magnetic necklaces) or static
electricity.
● Donotleavethewatchwheretherearestrongvibrations.
● Donotleavethewatchindustyplaces.
● Donotexposethewatchtochemicalsubstancesorgases.
 (Ex.:Organicsolventssuchasbenzineandthinner,gasoline,nailpolish,cosmetic
sprays, detergents, adhesives, mercury, and iodine antiseptic solution.)
● Donotleavethewatchinclosecontactwithhotspringwater.
NOTES ON OVERHAUL
●The watch is a precision device with many moving parts lubricated with special
oils. If the parts run short of oil or get worn out, the watch may lose time or stop
operation. In such a case, have the watch overhauled.
NOTES ON GUARANTEE AND REPAIR
●Please contact the retailer the watch was purchased from or SEIKO CUSTOMER
SERVICE CENTER for repair or overhaul.
●Within the guarantee period, please present the certificate of guarantee to receive
repair services.
●Guarantee coverage is provided in the certificate of guarantee. Please read
carefully and retain it.
TROUBLESHOOTING
Problem Possible causes Solutions
The watch stops
operating.
The power supplied
by the mainspring
has been consumed.
Turn the crown or swing the watch to wind
it up. The watch will start operating. If the
watch does not start, consult the retailer
from whom the watch was purchased.
Even though you
wear the watch
every day, it soon
stops operating.
The watch is worn
on your wrist only
for a short period of
time, or the amount
of arm movement is
small.
Wear the watch for an extended period of
time, or when taking off the watch, turn the
crown to wind the mainspring.

English
25
English
24
Problem Possible causes Solutions
The watch
gains/loses time
temporarily.
The watch has been
left in extremely high
or low temperatures
for a long time.
Normal accuracy will resume when the
watch returns to normal temperature.
The watch was
brought into close
contact with a
magnetic object.
Normal accuracy will resume when the
watch is kept away from close contact
with the magnetic source. If this condition
persists, consult the retailer from whom the
watch was purchased.
You dropped the watch,
hit it against a hard
surface or wore it while
playing active sports.
The watch was exposed
to strong vibrations.
Normal accuracy will not resume. Consult
the retailer from whom the watch was
purchased.
The watch has not
been overhauled for
more than 3 years.
Consult the retailer from whom the watch
was purchased.
The date change at
12 o’clock noon.
AM/PM is not
properly set. Advance the hands by 12 hours.
The glass is blurred
and the blur persists
for a long time.
Water got inside the
watch due to the
deterioration of the
gasket, etc.
Consult the retailer from whom the watch
was purchased.
• For the soluton of troubles other than listed above, contact the retailer from whm the watch was purchased.
ACCURACY OF MECHANICAL WATCHES
●The accuracy of mechanical watches is indicated by the daily rates of one week
or so.
●The accuracy of mechanical watches may not fall within the specified range of
time accuracy because of loss/gain changes due to the conditions of use, such as
the length of time during which the watch is worn on the wrist, arm movement,
whether the mainspring is wound up fully or not, etc.
●The key components in mechanical watches are made of metals which expand
or contract depending on temperatures due to metal properties. This exerts an
effect on the accuracy of the watches. Mechanical watches tend to lose time at
high temperatures while they tend to gain time at low temperatures.
●In order to improve accuracy, it is important to regularly supply energy to the
balance that controls the speed of the gears. The driving force of the mainspring
that powers mechanical watches varies between when it is fully wound and
immediately before it is unwound. As the mainspring unwinds, the force
weakens.
Relatively steady accuracy can be obtained by wearing the watch on the wrist
frequently for the self-winding type and winding up the mainspring fully everyday
at a fixed time to move it regularly for the wind-up mechanical type.
●When affected by external strong magnetism, a mechanical watch may loss/gain
time temporarily. The parts of the watch may become magnetized depending on
the extent of the effect. In such a case, consult the retailer from whom the watch
was purchased since the watch requires repair, including demagnetizing.

English
26
SPECIFICATIONS
1 Features
4R35............................................................. 3 hands, time display (Hour, minute and second hands),
and date display
4R36............................................................. 3 hands, time display (Hour, minute and second hands),
day and date display
4R37............................................................. 4 hands, time display (Hour, minute, second and 24-
hour hands) and date display
4R38............................................................. 3 hands, time display (Hour, minute and second
hands)
4R39............................................................. 4 hands, time display (Hour, minute, second and 24-
hour hands)
2 Vibrations per hour.............................................. 21,600
3 Operational temperature range........................... Between -10 ºC and 60 ºC (Between 14 ºF and 140 ºF)
4 Continuous operating time ................................ More than approx. 41 hours
5 Driving system.................................................... Automatic winding type with manual winding
mechanism
6 Jewels
4R35............................................................. 23 jewels
4R36, 4R37, 4R38 and 4R39........................ 24 jewels
7 Magnetic resistance ........................................... 4,800 A/m (60 gauss)
• Thespecicationsaresubjecttochangewithoutpriornoticeforproductimprovement.
