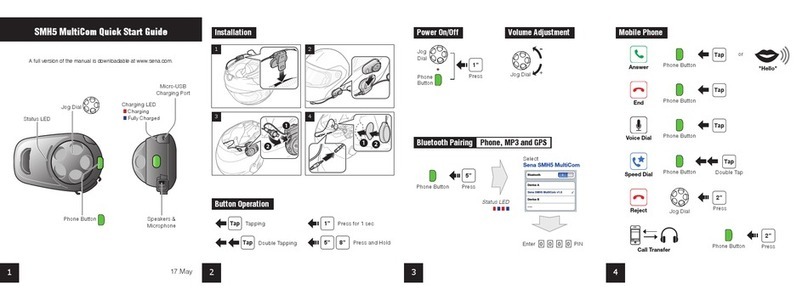

Sena SMH5 MULTICOM User manual

User's Guide
www.senabluetooth.com

English
SMH5
© 1998-2012 Sena Technologies, Inc. All rights reserved.
Sena Technologies, Inc reserves the right to make any changes and improvements to its product without providing prior notice.
Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. SMH10™, SMH5™, SPH10™,
SPH10S™, SPH10H™, SR10™, SM10™ are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be
used without the express permission of Sena.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other
trademarks and tradenames are those of their respective owners.

SMH5
10.7 Intercom Reconnection
10.8 Stereo Music
10.9 Function Priority
10.10 Enabling/Disabling Voice Prompts (Factory Default: Enabled)
10.11 Enabling/Disabling PLC, Packet Loss Consealment (Factory Default: Enabled)
10.12 Reset to Factory Default Settings
10.13 Fault Reset
11. FIRMWARE UPGRADE
12. OPERATION QUICK REFERENCE
BATTERY INFORMATION
MAINTENANCE AND CARE
DISPOSAL
CERTIFICATION AND SAFETY APPROVALS

FCC RF Exposure Statement
FCC Caution
CE Declaration of Conformity
Industry Canada Statement
Bluetooth License
WAIVER AND GENERAL RELEASE
Two Year Limited Warranty
Limitation of Liability
Return for Full Refund
WARNING
1. INTRODUCTION
2. PACKAGE CONTENTS
3. INSTALLING THE SMH5 ON YOUR HELMET
4. POWERING ON/OFF AND CHARGING
4.1 Powering On
4.2 Powering Off
4.3 Charging
4.4 Low Battery Warning
5. CHECKING THE BATTERY LEVEL
5.1 LED Indicator
5.2 Voice Indicator
6. PAIRING THE SMH5 WITH BLUETOOTH DEVICES
6.1 Mobile Phone Pairing
6.2 Bluetooth MP3 Player Pairing
6.3 Bluetooth GPS Navigation Pairing
7. PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE
7.1 A2DP Stereo Music Only
7.2 HFP for Phone Call Only
8. PAIRING WITH OTHER SMH5 HEADSETS FOR INTERCOM CONVERSATION
9. PAIRING WITH OTHER SENA HEADSET MODELS FOR INTERCOM CONVERSATION
10. USING THE SMH5
10.1 Volume Adjustment
10.2 Mobile Phone Call Making and Answering
10.3 Enabling/Disabling Voice Activated Phone Answering (Factory Default: Enabled)
10.4 Intercom Conversation
10.5 Intercom vs. Mobile Phone Call
10.6 Intercom Failure
5
6
7
10
10
10
10
10
11
11
11
11
11
12
12
13
13
13
14
15
16
16
16
16
17
17
18
CONTENTS
18
18
19
20
20
20
20
21
22
22
23
23
24
24
24
24
24
25
25
25
27
27
28
28

English
SMH5
5
English
Thank you for choosing the Sena SMH5, Bluetooth Stereo Headset
and Intercom for scooters and motorcycles. With the SMH5, you can
call handsfree on your Bluetooth mobile phone, listen to stereo music
or voice instructions of GPS navigation by Bluetooth wirelessly, and
have intercom conversations in full duplex with a passenger or other
riders.
The SMH5 is compliant with the Bluetooth Specification 3.0 supporting
the following profiles: Headset Profile, Hands-Free Profile (HFP),
Advanced Audio Distribution Profile (A2DP), and Audio Video Remote
Control Profile (AVRCP). Please check with the manufacturers of other
devices to determine their compatibility with this headset.
Please read this user’s guide carefully before using the headset. Also
check www.senabluetooth.com for the latest version of the user’s
guide and additional information related to Sena Bluetooth products.
The SMH5 features:
 Bluetooth handsfree for Bluetooth mobile phones
 Bluetooth stereo headset for Bluetooth stereo devices such as MP3
players
 Bluetooth stereo headset for Bluetooth GPS navigations
 Bluetooth intercom up to 400 meters (437 yards)*
 Multi-pair Bluetooth intercom to pair with 3 other headsets
 Firmware upgradeable
Key Specifications:
 Bluetooth 3.0
 Supporting profiles: Headset Profile, Hands-Free Profile (HFP),
Advanced Audio Distribution Profile (A2DP), Audio Video Remote
Control Profile (AVRCP)
* in open terrain
EnglishEnglish
1. INTRODUCTION

SMH5
6
2. PACKAGE CONTENTS














English
SMH5
7
English
1. Loosen the two screws on the back plate of the clamp using the
enclosed Allen Wrench. Insert the back plate of the clamp unit
between the internal padding and external shell of the helmet, and
tighten the two screws.
English
3. INSTALLING THE SMH5 ON YOUR HELMET
Insert










SMH5
8
2. Attach the headset main unit to the clamp. Insert the main unit in
the clamp until you feel the click that signals a secure attachment.
3. If you have any problem mounting the clamp unit on the helmet for
any reason, you may use the glued surface mounting plate which
can be attached to the external surface of the helmet.
 Locate a proper surface on the helmet to attach the unit, clean
the helmet surface location with a moistened towel, and allow to
dry thoroughly.
 Peel off the cover of the adhesive tape of the plate and attach the
unit on the proper surface of your helmet.
4. Place the helmet speakers along with the velcro pads, centered
to your ear, in the ear pockets of the helmet. If the helmet has
deep ear pockets, you can use the speaker pads to place the
speakers closer to your ears.
5. Attach the boom microphone included in the “Basic Kit”
between the internal padding and the external shell. The boom
microphone should be mounted on the inside surface of the
external shell so it is facing properly towards your mouth. Please
make sure that the microphone is located close to your mouth
Note:
Sena recommends the clamp unit over the glued surface mounting plate.
Even though the glued surface mounting plate is provided for convenience,
Sena does not assume any responsibility for use of it. Users may have to
use the glued plate at their own risk and responsibility.

English
SMH5
9
when you wear the helmet. You can use the enclosed velcro pad
and holder for the boom microphone to ensure secure placement.
In the case of the wired microphone included in the “Full-face
Helmet Kit”, attach the enclosed velcro pad for wired microphone
to the inside of the chin guard for full-face helmets. Place the wired
microphone on the velcro pad and attach it to the connector of the
speaker cable.
English
6. When you use the boom microphone included in the “Basic Kit”,
please make sure that the fin side of the microphone is facing
outward; away from your lips. You can easily recognize it by
touching the fin with your fingers.
7. To remove the headset main unit from the clamp, please make sure
to pull out the speaker cable connector from the main unit first.
Then, remove the main unit from the clamp.
English


SMH5
10
To power on and off the headset, you don’t need to press and hold
any button for several seconds. Just short press the Jog Dial and
the Phone Button simultaneously, and you will get quick on-and-off
convenience.
4.1 Powering On
Press the Jog Dial and the Phone Button at the same time for about
1 second to power on. The blue LED turns on and you will hear
ascending beeps.
4.2 Powering Off
Just short press the Jog Dial and the Phone Button simultaneously,
you don’t need to press and hold for a few seconds. The red LED
turns on for a while until it turns off completely and you will hear
descending beeps.
4.3 Charging
 To charge the SMH5, use the USB Power Cable included in the
package by plugging into computer’s USB port or USB wall charger.
USB wall charger is not included in the package, but you can use
any USB wall charger in the market.*
4. POWERING ON/OFF AND CHARGING
 The USB Power Cable is also used for firmware upgrade of the
SMH5.
 You can use any of the standard Micro-USB cables which is
mostly adopted by smartphones and general Bluetooth headsets
manufacturers.
 The Charging LED beside the charging port turns on red while
charging, and turns to blue when the headset is fully charged. It
takes about 2.5 hours to be fully charged.
 You can use the SMH5 while charging. It is especially helpful when
you use a cigarette charger for a long road trip.
 A cigarette charger for the SMH5 is separately available as an
optional accessory but you can use any micro-USB car charger in
the market.
4.4 Low Battery Warning
When the battery is low, the blinking blue LED in stand-by mode turns
to red and you will hear mid-tone triple beeps and a voice prompt
saying “Low battery”.
*please contact Sena regarding locally approved agencies Sena accepts.

English
SMH5
11
You can check the battery level in two different ways when the
headset is powering on.
5.1 LED Indicator
When the headset is powering on, the red LED flashes rapidly
indicating the battery level .
4 flashes = High, 70~100%
3 flashes = Medium, 30~70%
2 flashes = Low, 0~30%
5.2 Voice Prompt Indicator
When you power on the headset, keep pressing the Jog Dial and
Phone Button simultaneously for about 3 seconds until you hear
three high tone beeps. Then you will hear a voice prompt indicating
the battery level. However, if you release the buttons as soon as the
headset turns on, you will not hear the voice prompt for the battery
level.
5. CHECKING THE BATTERY LEVEL
Before using the SMH5 Bluetooth headset with any of Bluetooth
devices for the first time, you need to do the pairing operation. It can
be paired with Bluetooth mobile phones, Bluetooth stereo devices
such as MP3, or motorcycle specific Bluetooth GPS, and with other
Sena Bluetooth headsets. This pairing operation is only required once
for each Bluetooth device, and the headset will remain paired with
the devices and automatically connects to the paired devices again
when they are within range. You will hear a high tone single beep
and a voice prompt when the headset connects to the paired device
automatically: “Phone connected” to a mobile phone, “Media
connected” to a Bluetooth stereo device.
6.1 Mobile Phone Pairing
1. Turn on the SMH5 and press the Phone Button for 5 seconds until
the LED flashes red and blue alternately and you hear multiple
beeps. You will hear a voice prompt saying “Phone pairing”.
2. Search for Bluetooth devices on your mobile phone. Select the
Sena SMH5 in the list of the devices detected on the mobile phone.
3. Enter 0000 for the PIN. Some mobile phones may not ask for the
6. PAIRING THE SMH5 WITH BLUETOOTH
DEVICES
*please contact Sena regarding locally approved agencies Sena accepts.

SMH5
12
PIN.
4. The mobile phone confirms that pairing has completed and the
SMH5 is ready to use. You will hear a voice prompt from the SMH5
saying “Your headset is paired”.
5. If the pairing process is not completed within three minutes, the
SMH5 will return to stand-by mode .
6.2 Bluetooth Stereo Device Pairing
1. If the Bluetooth stereo device is integrated with the mobile phone
such as smartphones, you don’t need to pair the SMH5 with it
separately. When the SMH5 is paired with the mobile phone, it is
also paired as a stereo music device.
2. If you have a stand alone Bluetooth stereo device, follow the pairing
procedure separately. The procedure is the same as the procedure
of “Mobile phone pairing”.
Note:
1. If Bluetooth connection between the headset and a mobile phone is
disconnected, tap the Phone Button to recover the Bluetooth connection
immediately.
2. If Bluetooth connection between the headset and a media player is
disconnected, press the Jog Dial for 1 second to recover the Bluetooth
connection and play.
6.3 Bluetooth GPS Navigation Pairing
1. You can listen to Bluetooth voice instructions from a Bluetooth GPS
navigation.
2. The GPS paring procedure is the same with the procedure of
“Mobile Phone Pairing”.
3. Some GPSs use mobile phone profile (HFP, Hands-Free Profile)
and others use stereo music profile (A2DP, Advanced Audio
Distribution Profile). If you want to use a mobile phone with a GPS
which uses mobile phone profile, you have to pair the SMH5 with
the GPS, and the GPS with the mobile phone. Most motorcycle
specific GPSs use mobile phone profile. Please refer to the manual
of the Bluetooth GPS navigation for details.
Note:
You have to use motorcycle specific GPS which transmits turn-by-turn
voice instruction to the headset by Bluetooth. Most SMH5 automotive GPS
system don’t have this feature.

English
SMH5
13
EnglishEnglish
If you have a MP3 stereo music phone such as a smartphone,
sometimes you may need to selectively use the SMH5 for A2DP stereo
music only or for mobile phone handsfree only. This instruction is for
advanced users who want to pair the SMH5 to their s martphones
only with one selective profile: A2DP for stereo music or HFP for
phone call.
If you have previously paired a mobile phone to the SMH5, you must
clear the previous paring list on both devices; the mobile phone
and SMH5. To clear the pairing list on SMH5, please do a factory
reset described on the page 19.To clear the pairing list on the
mobile phone, please refer to the mobile phone manual. For most
smartphones, delete the Sena SMH5 from the list of Bluetooth devices
in setting menu.
7.1 A2DP Stereo Music Only
1. Turn on the headset and press the Phone Button for 5 seconds
until the LED flashes red and blue alternately and you hear multiple
beeps.
2. Within 2 seconds, tap the Jog Dial again, then the LED turns to
red flashing and the beeps turn to double mid-tone beeps. You will
hear a voice prompt saying “Media selective pairing”.
3. Search for Bluetooth devices on your smartphone. Select the Sena
SMH5 in the list of devices detected on your phone.
4. Enter 0000 for the PIN. Some smartphones may not ask for PIN.
7.2 HFP for Phone Call Only
1. Turn on the headset and press the Phone Button for 5 seconds
until the LED flashes red and blue alternately and you hear multiple
beeps.
2. Within 2 seconds, tap the Phone Button again, then the LED turns
to blue flashing and the beeps turn to multiple mid-tone beeps. You
will hear a voice prompt saying “Phone selective pairing”.
3. Search for Bluetooth devices on your smartphone. Select the Sena
SMH5 in the list of devices detected on your phone.
4. Enter 0000 for the PIN. Some smart phones may not ask for PIN.
7. PAIRING WITH SELECTIVE PROFILE:
A2DP STEREO OR HANDSFREE

SMH5
14


A
B
Pairing A & B
A
B
Pairing A & C

A
B
Pairing A & D

4. You can make other pairings between the headset A and C, and
between the headset A and D by following the same procedure as
above.
The SMH5 can be paired with up to three other headsets for Bluetooth
Intercom conversation.
1. Turn on the two SMH5 headsets (A and B) that you would like to
pair with each other.
2. Press and hold the Jog Dial of the headset A and B for 5 seconds
until red LEDs of the both units start to flash rapidly. You will hear a
voice prompt saying “Intercom pairing”.
3. Simply tap the Jog Dial of any one of the two headsets A or B
(It doesn’t matter that you choose A or B) and wait until the
LEDs of both headsets turn to blue and intercom connection is
automatically established. The two SMH5 headsets A and B are
paired with each other for intercom conversation. If the pairing
process is not completed within one minute, the SMH5 will return
to stand-by mode .
8. PAIRING WITH OTHER SMH5 HEADSETS
FOR INTERCOM CONVERSATION

English
SMH5
15
EnglishEnglish
5. The intercom pairing queue is ‘Last-Come, First-Served’. If a
headset has multiple paired headsets for intercom conversations,
the last paired headset is set as   . The
previous Intercom friend becomes , and
.
The SMH5 can be paired with all other Sena headset models such as
the SMH10 and the SPH10 for intercom conversation. Please follow
the same procedure as above to pair with these headset models.
Note:
For example, after the pairing procedures listed above, headset D is the
   of headset A. Headset C is the  
 of headset A, and headset B is the  of headset
A.
9. PAIRING WITH OTHER SENA HEADSET
MODELS FOR INTERCOM CONVERSATION

SMH5
16
5. To transfer a call between the mobile phone and the headset during
the phone conversation, press the Phone Button for 2 seconds until
you hear a beep.
6. There are several ways to make a phone call:
- Enter numbers on your mobile phone keypad and make a call.
Then the call is automatically transferred to the headset.
- For some older mobile phones which do not automatically transfer
calls to the headset, press the Phone Button after entering phone
numbers on the mobile phone keypad.
- Tap the Phone Button in stand-by mode to activate the voice
dialing of your mobile phone. For this, the voice dialing feature
must be available on the mobile phone. Refer to your mobile
phone manual for further instruction.
- To redial the last number, double tap the Phone Button in stand-by
mode. You will hear a voice prompt saying “Last number redial”.
10.3 Enabling/Disabling Voice Activated Phone
Answering, VOX Phone (Factory Default: Enabled)
If this feature is enabled, you can answer incoming calls by simply
saying a word loudly enough. For example, when you hear a series
of beeps for an incoming call, you can answer the phone by saying
“Hello” or any other word loudly. This is enabled from the factory but
you can disable this. If this mode is disabled, the only way to answer
an incoming call is to tap the Phone Button.
10.1 Volume Adjustment
You can easily adjust the volume by rotating the Jog Dial. You will
hear a beep when the volume reaches maximum or minimum level.
The volume is set and maintained independently at different levels for
each audio source even when you turn off and on the headset. For
example, once you set the volume for mobile phone handsfree, it will
not change even if you adjust the volume when you hear Bluetooth
MP3 music. So you can always maintain the preferred optimum
volume level for each audio source.
10.2 Mobile Phone Call Making and Answering
1. When you have an incoming call, simply tap the Jog Dial or the
Phone Button to answer the call.
2. You can also answer the incoming call by loudly speaking any word
of your choice if 
is enabled. (Refer to the next section for details.)
3. To end a call, tap the Jog Dial or the Phone Button, or wait for the
called person to end the call.
4. To reject a call, press the Jog Dial for 2 seconds until you hear a
beep while the phone is ringing.
10. USING THE SMH5

English
SMH5
17
EnglishEnglish
1. Press and hold the Phone Button for 8 seconds until the red LED is
rapidly flashing. When you do this, after first 5 seconds you press
the button, you will see the headset enter into the Mobile Phone
Pairing sequence, but you have to keep pressing the button for
another 3 seconds until the red LED flashes rapidly. You will hear a
voice prompt saying “VOX phone”.
2. To disable, tap the Jog Dial within 10 seconds, then you will hear
a single beep and the red LED flashes for 2 seconds. To enable
VOX, tap the Phone Button within 10 seconds, then you will hear a
double beep and the blue LED flashes for 2 seconds. If any button
is not pressed within 10 seconds, it remains unchanged and goes
back to stand-by.
10.4 Intercom Conversation
1. You can start an intercom conversation with any of intercom friends
by tapping the Jog Dial: single tapping to intercom with the first
intercom friend, double tapping with the second intercom friend,
and triple tapping with the third intercom friend.
2. To terminate an intercom conversation, single tap the Jog Dial. Any
intercom connection with any intercom friend will be terminated by
a single tapping. A double or triple tapping will do nothing in this
case.
10.5 Intercom and Mobile Phone Call
1. When you have an incoming mobile phone call during an intercom
conversation, you will hear a ring tone. You can choose whether to 1)
answer the mobile phone call and stop the intercom conversation,
or 2) reject the phone call and stay on the intercom conversation.
1st Intercom Friend 2nd Intercom Friend
3rd Intercom Friend

SMH5
18
10.6 Intercom Failure
When you try to start an intercom conversation with an intercom friend
who is already having an intercom conversation with another intercom
friend or a mobile phone call with another person, you will hear a low
tone double beep signifying a busy signal. You will also hear a voice
prompt saying “Intercom failed, try again later”. In this case, you
have to try again later. On the other hand, the intercom friend will hear
4 high tone beeps alerting them that there is an incoming intercom
call.
10.7 Intercom Reconnection
If your intercom friend goes out of range while having an intercom
conversation, you may hear static noise and eventually the intercom
will be disconnected. In this case, the SMH5 automatically tries to
reconnect the intercom every 8 seconds. You will hear high tone
double beeps until the intercom is reestablished. If you don’t want to
make a reconnection, tap the Jog Dial to stop the attempt.
10.8 Stereo Music
You can listen to stereo music by Bluetooth wireless stereo. The
Bluetooth audio device must be paired with the SMH5 by following the
Bluetooth Stereo Device Pairing instructions described in the previous
chapter. The SMH5 supports the Audio/Video Remote Control Profile
(AVRCP), so if your Bluetooth audio device also supports the AVRCP,
a. To answer the phone call and stop the intercom conversation,
tap the Jog Dial or the Phone Button. When you hang up the
phone call, the intercom will automatically be recovered.
b. To reject the phone call and stay on the intercom conversation,
press the Jog Dial for 2 seconds until you hear a beep.
Unlike other motorcycle Bluetooth headsets, this prevents a
user from being dropped out of an intercom conversation by an
incoming mobile call.
2. When you have an incoming intercom call during a mobile phone
call, you will hear 4 high tone beeps, alerting you that there is an
incoming intercom call. You will also hear a voice prompt saying
“Intercom requested”. In this case, the intercom call does not
override the mobile phone call because intercom has lower priority
than mobile call. You have to hang up the mobile phone call to
make or receive an intercom call.
Terminate

English
SMH5
19
EnglishEnglish
you can use the SMH5 to remotely control music playback. So, You
not only can adjust the volume but also use the functions such as
play, pause, next track and previous track.
- To adjust the volume, rotate the Jog Dial.
- To play or pause music, press and hold the Jog Dial for 1 second
until you hear a double beep.
- To track forward or track back, rotate while pressing the Jog Dial
clockwise or counter clockwise.
10.9 Function Priority
The SMH5 operates in the following order of priority:
(Highest) Mobile Phone,
Intercom
 Bluetooth Stereo Music
A lower priority function is always interrupted by a higher priority
function. For example, stereo music is interrupted by intercom call,
and intercom conversation is interrupted by incoming mobile phone
call .

SMH5
20
a voice prompt saying “PLC setting”.
2. To disable, tap the Jog Dial within 10 seconds, then you will hear a
single beep and the red LED flashes for 2 seconds. To enable the
PLC algorithm, tap the Phone Button within 10 seconds, then you
will hear a double beep and the blue LED flashes for 2 seconds. If
any button is not pressed within 10 seconds, it remains unchanged
and goes back to stand-by.
10.12 Reset to Factory Default Settings
1. To restore the SMH5 to factory default settings, press and hold the
Phone Button for 12 seconds until the LED shows solid red and you
hear high tone double beeps. You will also hear a voice prompt
saying “Factory reset”.
2. Within 5 seconds, press the Jog Dial to confirm reset. The headset
will be restored to factory setting and switched off automatically.
You will hear a voice prompt saying “Headset reset, good-bye”.
3. If you don’t press the Jog Dial within 5 seconds, the reset attempt is
canceled and the headset returns to stand-by mode. You will hear
a voice prompt saying, “Canceled”.
10.13 Fault Reset
When the SMH5 is not working properly or is in faulty status for any
reason, you may reset by pushing the pin-hole reset button at the
back of the headset main unit. Insert a paper clip into the reset pin-
10.10 Enabling/Disabling Voice Prompts (Factory Default:
Enabled)
The voice prompt feature is enabled from the factory, and is enabled
or disabled by the following procedures.
1. Press and hold the Jog Dial for 8 seconds until the blue LED is
rapidly flashing and you hear a mid-tone double beep. You will also
hear a voice prompt saying “Voice prompt”.
2. To disable, tap the Jog Dial within 10 seconds, then you will hear a
single beep and the red LED flashes for 2 seconds. To enable the
voice prompts, tap the Phone Button within 10 seconds, then you
will hear a double beep and the blue LED flashes for 2 seconds. If
any button is not pressed within 10 seconds, it remains unchanged
and goes back to stand-by.
10.11 Enabling/Disabling PLC, Packet Loss Consealment
(Factory Default: Enabled)
The PLC (Packet Loss Concealment ) algorithm is enabled from the
factory, and is enabled or disabled by the following procedures. It
is recommended to enable this setting. The PLC algorithm improves
the audio quality of the intercom and mobile phone handsfree in the
presence of data packet errors within the Bluetooth link.
1. Press and hold the Jog Dial for 12 seconds until the LED shows
sold blue and you hear a high tone double beep. You will also hear

English
SMH5
21
EnglishEnglish
hole and press the reset button for a second with light pressure.
The SMH5 will be switched off after which time, you have to turn
the system back on and try again. However, this will not restore the
headset to factory default settings. The SMH5 supports firmware upgrade function. Please visit Sena
Bluetooth web site at www.senabluetooth.com to check the latest
software downloads.
11. FIRMWARE UPGRADE
