1. INTRODUCTION
--------------------------------
*in open terrain
Thank you for choosing the Sena SPH10H-FM, Bluetooth
Stereo Headset & Intercom with Built-in FM Tuner for Half
Helmets. With the SPH10H-FM, you can call handsfree on
your Bluetooth mobile phone, listen to stereo music or voice
instructions of GPS navigations by Bluetooth wirelessly,
and have intercom conversations in full duplex with a
passenger or other motorcycle riders.
The SPH10H-FM is compliant with the Bluetooth 3.0
supporting the following profiles: Headset Profile, Hands-
Free Profile (HFP), Advanced Audio Distribution Profile
(A2DP), and Audio Video Remote Control Profile (AVRCP).
Please check with the manufacturers of other devices to
determine their compatibility with this headset.
Please read this user’s guide carefully before using the
headset. Also check www.senabluetooth.com/support
for the latest version of the user’s guide and additional
information related to Sena Bluetooth products.
The SPH10H-FM features:
•Bluetooth handsfree for Bluetooth mobile phones
•Bluetooth stereo headset for Bluetooth audio devices
such as MP3 players
•Bluetooth stereo headset for Bluetooth GPS navigations
•Bluetooth intercom up to 700 meters (760 yards)*
•Four-way conference intercom
• Three-way conference phone call with intercom
participant
•Built-in FM radio tuner with station scan and save function
•Multipoint Bluetooth pairing with GPS navigation or Sena
SR10 Two-way Radio Adapter
•Multipoint Bluetooth pairing for 2 mobile phones
•Simple earpad design for quick installation to half
helmets
•Compatible with shorty helmets in the market
•Firmware upgradeable
Key Specifications:
•Bluetooth 3.0
•Supporting profiles: Headset Profile, Hands-Free Profile
(HFP), Advanced Audio Distribution Profile (A2DP),
Audio Video Remote Control Profile (AVRCP)

SPH10H-FM
4
2. PACKAGE CONTENTS

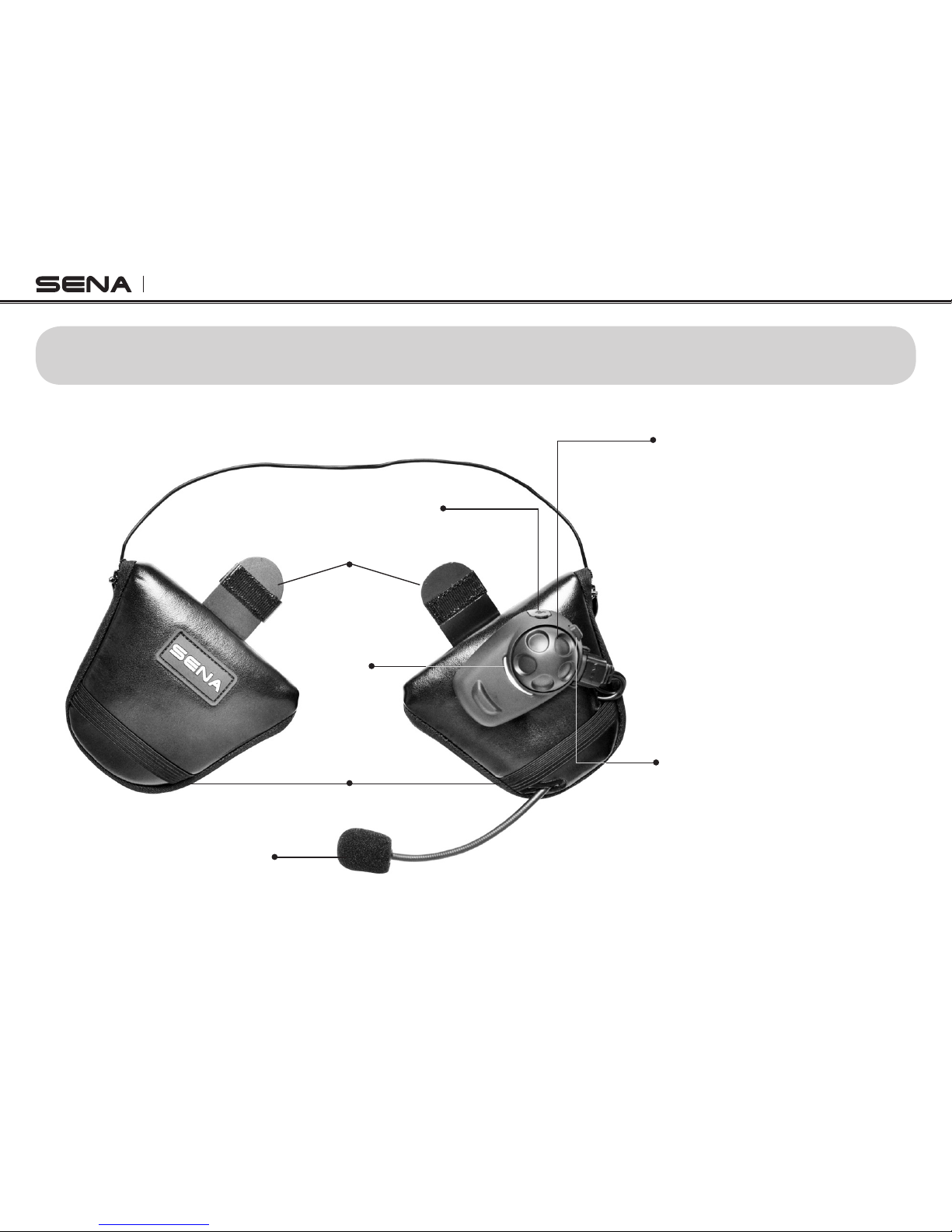

• SPH10H-FM Headset
[ LEFT ][ RIGHT ]
DC Power Charging &
Firmware Upgrade Port
Guide Strap

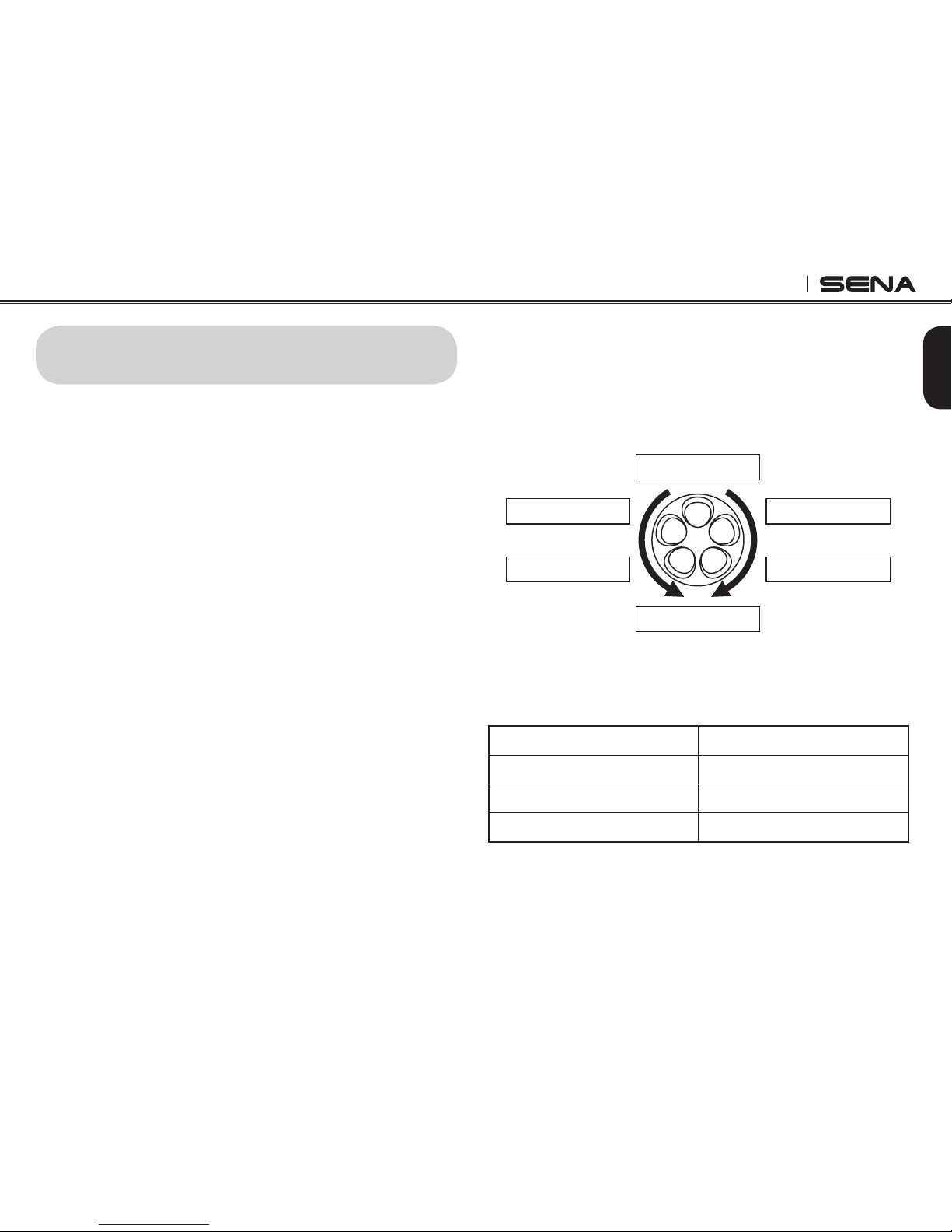

Jog Dial
• Answer and end a mobile phone call
• Reject an incoming mobile phone call
• Start and end intercom conversation
• Volume adjustment by rotating
• Play and pause Bluetooth stereo device
• Track-forward and track-back by rotating
while pressing the button
• Enter into intercom pairing mode
• Enter into voice configuration setting
• Navigate through configuration menu
• Seek FM radio station
Phone Button
• Answer and end a mobile phone call
• Redial last number
• Call transfer between mobile phone and
headset
• Enter into mobile phone pairing mode
• Enter into Bluetooth stereo device pairing
mode
• Enter into factory reset mode
• Turn on / off FM tuner
Tab
Status LED
Microphone

English
SPH10H-FM
5

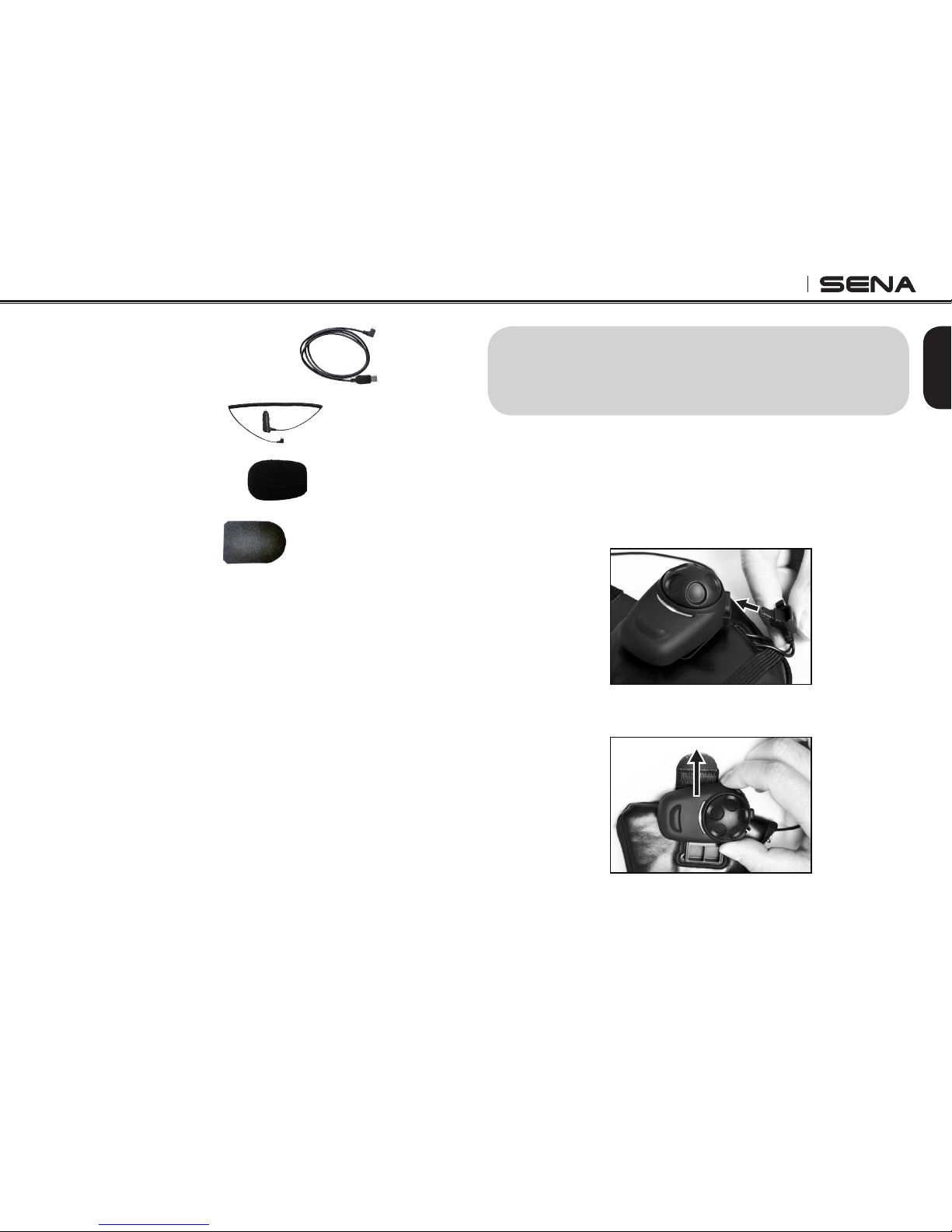

Before installing the SPH10H-FM, remove the main unit
from the earpad.
1. Pull the connector cover upward to unlock the
connector and pull out the speaker cable.
2. Slide upward the main unit to remove from the earpad.
• USB Power and Data Cable
• Cigarette Charger
• Microphone Sponges
• Tab Insertion Tool
3. INSTALLING THE SPH10H-FM
ON YOUR HELMET

SPH10H-FM
6
3. Insert the two plastic tabs of the SPH10H-FM on the
headset earpads into the left and right side of your
helmet. You may use the tab insertion tool located in
the package to help insert the plastic tabs into your
helmet. Place the tab insertion tool against the tab
side with velcro. Insert the tab and tab insertion tool at
the same time into the helmet. When the tab is in the
proper position, slide the tab insertion tool out. The
velcro will now hold the tab securely in place.
4. Pass through the Y strap of the helmet into the guide
strap of the earpads.
5. Attach the main unit to the earpad. Insert the main
unit on the earpad until you feel the click that signals
a secure attachment.
6. Insert the speaker cable connector over the Y strap
into the main unit and push the connector cover down
to lock the connector in place.
7. Please make sure that one of the headset earpads
with the microphone is located on the left side of your
helmet.

English
SPH10H-FM
7
4. POWERING ON/OFF AND CHARGING
To power on and off the headset, you don’t need to press
and hold any button for several seconds. Just short
press the Jog Dial and the Phone Button simultaneously,
and you will get quick on-and-off convenience.
4.1 Powering On
Press the Jog Dial and the Phone Button at the same
time for about 1 second to power on. The blue LED turns
on and you will hear ascending beeps.
4.2 Powering Off
Just short press the Jog Dial and the Phone Button
simultaneously, you don’t need to press and hold for
a few seconds. The red LED turns on for a while until
it turns off completely and you will hear descending
beeps.
4.3 Charging
• To charge the SPH10H-FM, use the USB power and
data cable included in the package by plugging into
computer’s USB port or USB wall charger. USB wall
charger is not included in the package, but you can
use any USB wall charger in the market.
8. Tuck in the cable that connects left and right earpads,
between the helmet shell and protective padding or
inside the helmet.

SPH10H-FM
8
• The USB power and data cable is also used for
firmware upgrade of the SPH10H-FM.
• You can use any of the standard micro-USB cables
which is mostly adopted by smartphones and general
Bluetooth headsets manufacturers.
• The charging LED beside the charging port turns on
red while charging, and turns to blue when the headset
is fully charged. It takes about 2.5 hours to be fully
charged.
• You can use the SPH10H-FM while charging. It is
especially helpful when you use a cigarette charger for
a long road trip.
4.4 Low Battery Warning
When the battery is low, the blinking blue LED in stand-
by mode turns to red and you will hear mid-tone triple
beeps and a voice prompt saying “Low Battery”.
4.5 Checking the Battery Level
You can check the battery level in two different ways
when the headset is powering on.
4.5.1 LED Indicator
When the headset is powering on, the red LED flashes
rapidly indicating the battery level.
4 flashes = High, 70~100%
3 flashes = Medium, 30~70%
2 flashes = Low, 0~30%
4.5.2 Voice Prompt Indicator
When you power on the headset, keep pressing the
Jog Dial and Phone Button simultaneously for about
3 seconds until you hear high tone triple beeps. Then
you will hear voice prompt indicating the battery level.
However, if you release the buttons as soon as the
headset turns on, you will not hear the voice prompt of
battery level indication.
