Thank you for choosing the Sena SMH5-FM, Bluetooth Stereo
Headset and Intercom for scooters and motorcycles. With the SMH5-
FM, you can call handsfree on your Bluetooth mobile phone, listen
to stereo music or voice instructions of GPS navigation by Bluetooth
wirelessly, and have intercom conversations in full duplex with a
passenger or other riders.
The SMH5-FM is compliant with the Bluetooth Specication 3.0
supportingthefollowingproles:HeadsetProle,Hands-FreeProle
(HFP),AdvancedAudioDistributionProle(A2DP),andAudioVideo
RemoteControlProle(AVRCP).Pleasecheckwiththemanufacturers
of other devices to determine their compatibility with this headset.
Please read this user’s guide carefully before using the headset. Also
check www.SenaBluetooth.com for the latest version of the user’s
guide and additional information related to Sena Bluetooth products.
1. INTRODUCTION
TheSMH5-FMfeatures:
•Bluetooth handsfree for Bluetooth mobile phones
•Bluetooth stereo headset for Bluetooth stereo devices such as MP3
players
•Bluetooth stereo headset for Bluetooth GPS navigations
•Bluetooth intercom up to 700 meters (760 yards)*
•Built-in FM radio tuner with station scan and save function
•Multi-pair Bluetooth intercom to pair with 3 other headsets
•Firmware upgradeable
•Universal Intercom™
•Multipoint Bluetooth for dual mobile phone
•Speed Dialing
•Sidetone
•Advanced Noise Control™
KeySpecications:
•Bluetooth 3.0
•Supporting proles: Headset Prole, Hands-Free Prole (HFP),
AdvancedAudioDistributionProle(A2DP),AudioVideoRemote
ControlProle(AVRCP)
* in open terrain

SMH5-FM
6

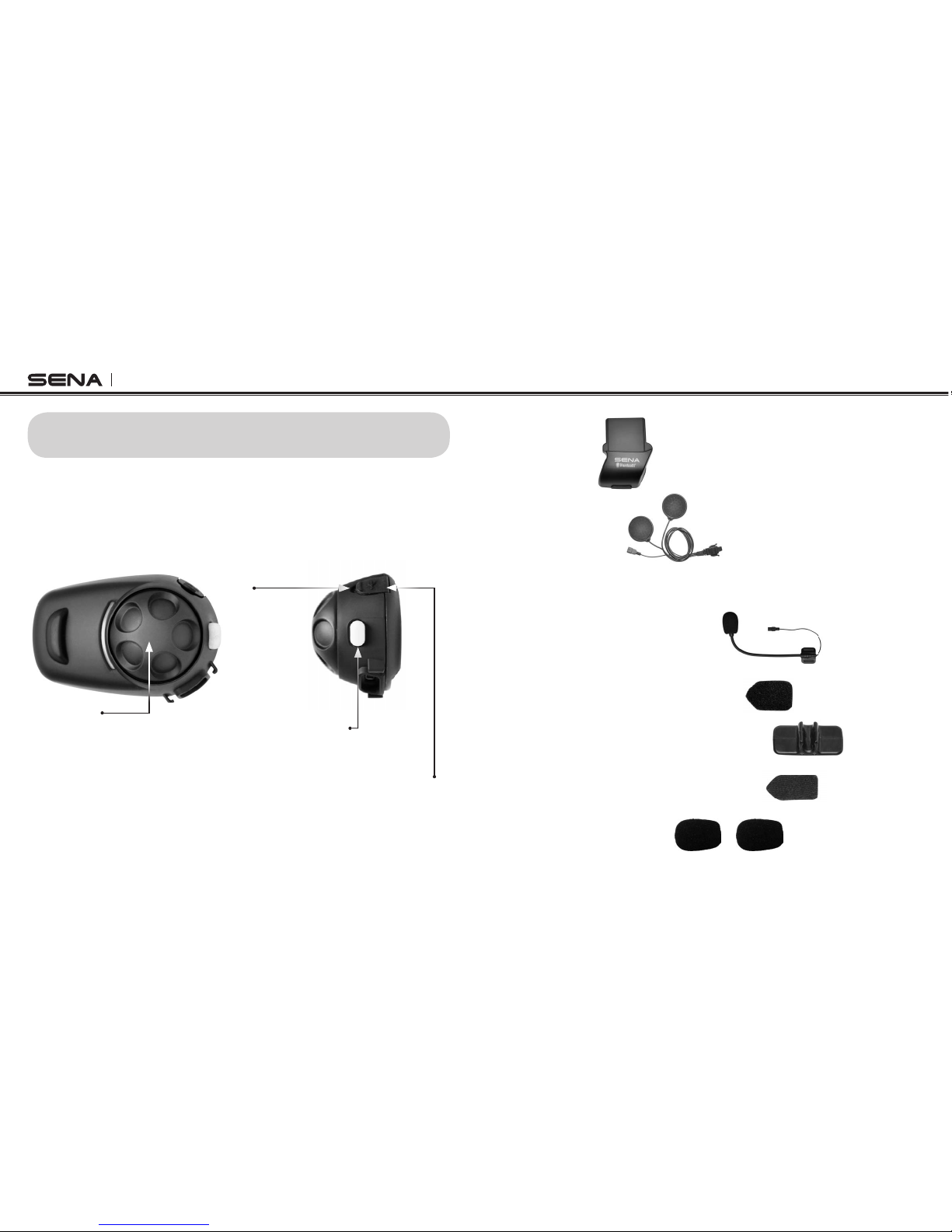

2. PACKAGE CONTENTS
• Headset Main Unit
Jog Dial
LED
•Charging LED
Phone Button
DC Power Charging & Firmware Upgrade Port
• Microphone
- Open-face Helmet Kit
• Clamp Unit
• Helmet Speakers
∙ Attachable Boom Microphone
∙ Velcro Pad for Boom Microphone
∙ Attachable Boom Microphone Holder
∙ Attachable Boom Microphone Holder
∙ Microphone Sponges

English
SMH5-FM
7
3. INSTALLING THE SMH5-FM ON YOUR HELMET

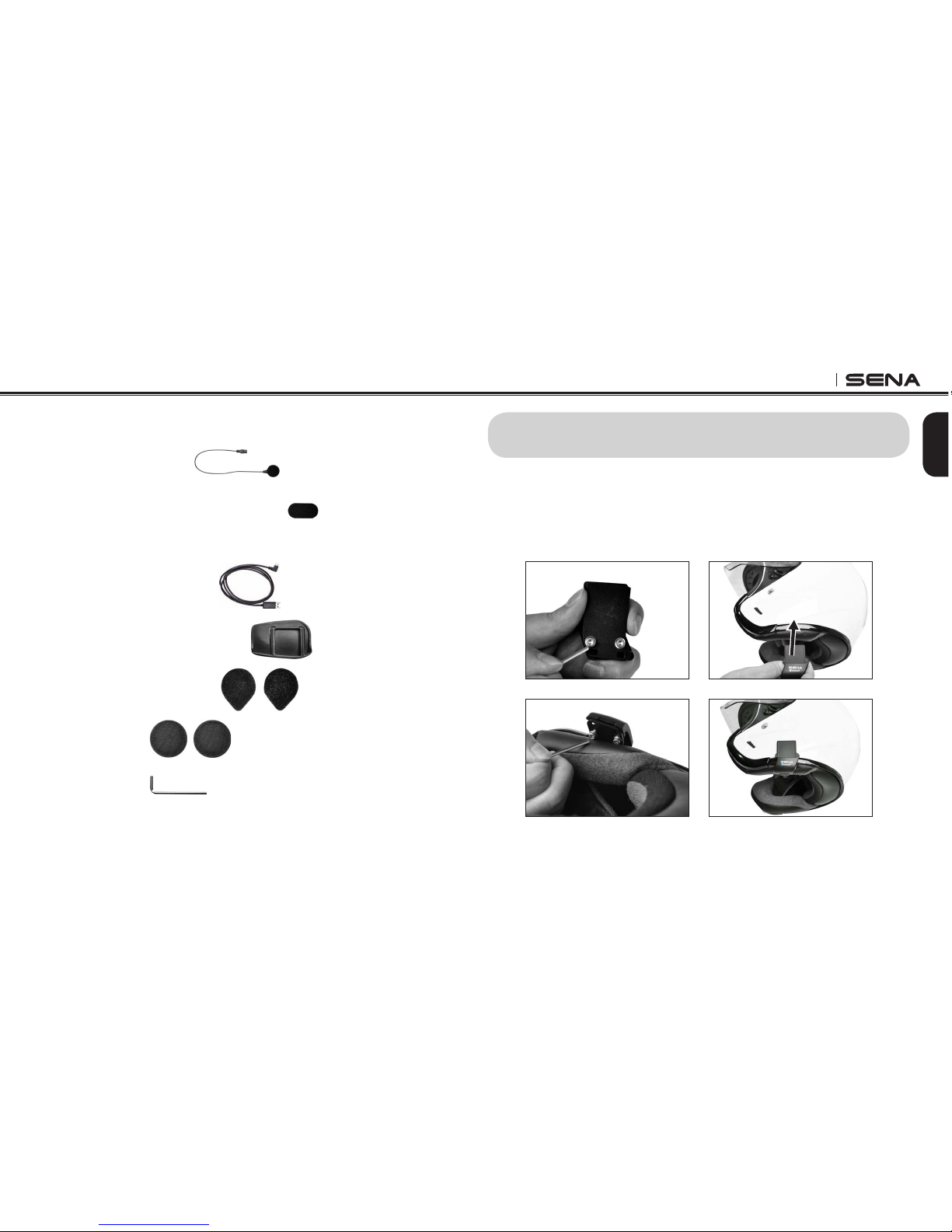

1. Loosen the two screws on the back plate of the clamp using the
enclosed Allen Wrench. Insert the back plate of the clamp unit
between the internal padding and external shell of the helmet, and
tighten the two screws.
Insert
∙ Wired Microphone
∙ Velcro Pads for Wired Microphone
- Full-face Helmet Kit
• USB Power & Data Cable
• Glued Surface Mounting Plate
• Velcro Pads for Speakers
• Speaker Pads
• Allen Wrench

SMH5-FM
8
2. Attach the headset main unit to the clamp. Insert the main unit in
the clamp until you feel the click that signals a secure attachment.
3. If you have any problem mounting the clamp unit on the helmet for
any reason, you may use the glued surface mounting plate which
can be attached to the external surface of the helmet.
• Locate a proper surface on the helmet to attach the unit, clean
the helmet surface location with a moistened towel, and allow to
dry thoroughly.
• Peel off the cover of the adhesive tape of the plate and attach the
unit on the proper surface of your helmet.
Note:
Sena recommends the clamp unit over the glued surface mounting plate.
Even though the glued surface mounting plate is provided for convenience,
Sena does not assume any responsibility for use of it. Users may have to
use the glued plate at their own risk and responsibility.
4. Place the helmet speakers along with the velcro pads, centered to
your ear, in the ear pockets of the helmet. If the helmet has deep
ear pockets, you can use the speaker pads to place the speakers
closer to your ears.
5. Attach the boom microphone included in the “Basic Kit” between
the internal padding and the external shell. The boom microphone
should be mounted on the inside surface of the external shell so it
is facing properly towards your mouth. Please make sure that the
microphone is located close to your mouth when you wear the helmet.

English
SMH5-FM
9
You can use the enclosed velcro pad and holder for the boom
microphone to ensure secure placement.
In the case of the wired microphone included in the “Full-face
Helmet Kit”, attach the enclosed velcro pad for wired microphone
to the inside of the chin guard for full-face helmets. Place the
wired microphone on the velcro pad and attach it to the connector
of the speaker cable.
6. When you use the boom microphone included in the “Basic Kit”,
please make sure that the n side of the microphone is facing
outward; away from your lips. You can easily recognize it by
touchingthenwithyourngers.
n

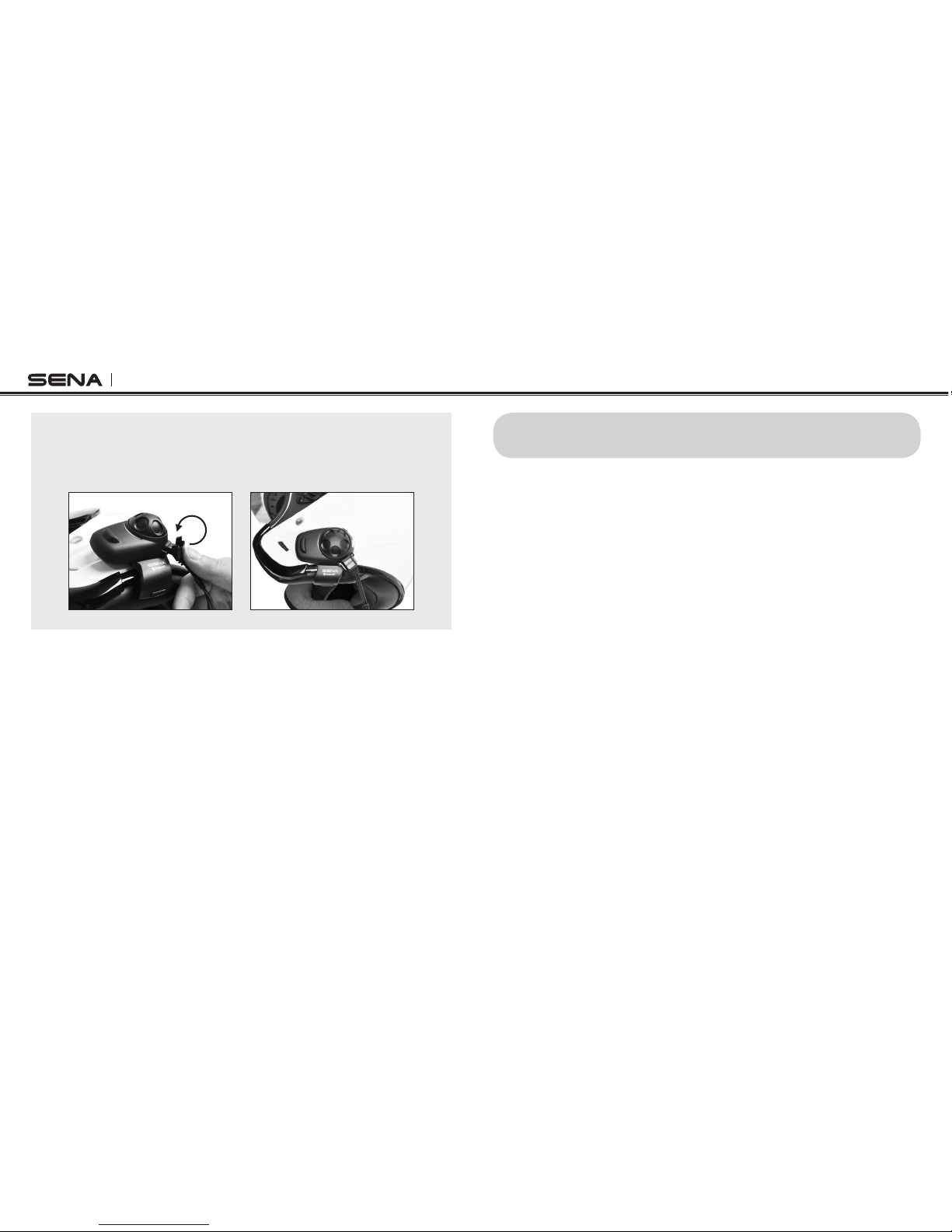

7. To remove the headset main unit from the clamp, please make
sure to pull out the speaker cable connector from the main unit
rst.Then,removethemainunitfromtheclamp.

SMH5-FM
10
4. POWERING ON/OFF AND CHARGING
To power on and off the headset, you don’t need to press and hold
any button for several seconds. Just short press the Jog Dial and
the Phone Button simultaneously, and you will get quick on-and-off
convenience.
4.1 Powering On
Press the Jog Dial and the Phone Button at the same time for about
1 second to power on. The blue LED turns on and you will hear
ascending beeps.
4.2 Powering Off
Just short press the Jog Dial and the Phone Button simultaneously,
you don’t need to press and hold for a few seconds. The red LED
turns on for a while until it turns off completely and you will hear
descending beeps.
4.3 Charging
•To charge the SMH5-FM, use the USB Power Cable included in the
package by plugging into computer’s USB port or USB wall charger.
USB wall charger is not included in the package, but you can use
any USB wall charger in the market.*
Note:
Insert the speaker cable connector into the main unit and push the
connector cover down to lock the connector in place.
