Senco FramePro 652 User manual

* Schematic drawings inside
SM
MEMBER
Questions? Comments? call SENCO’s toll-free Action-line:
1-800-543-4596 (North & South America only)
or e-mail: [email protected]
Senco Products, Inc.
8485 Broadwell Rd.
Cincinnati, Ohio 45244
Visit our Website www.senco.com
NFG02E Revised November 6, 2006 (Replaces 3/13/06 © 2002, 2006 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.

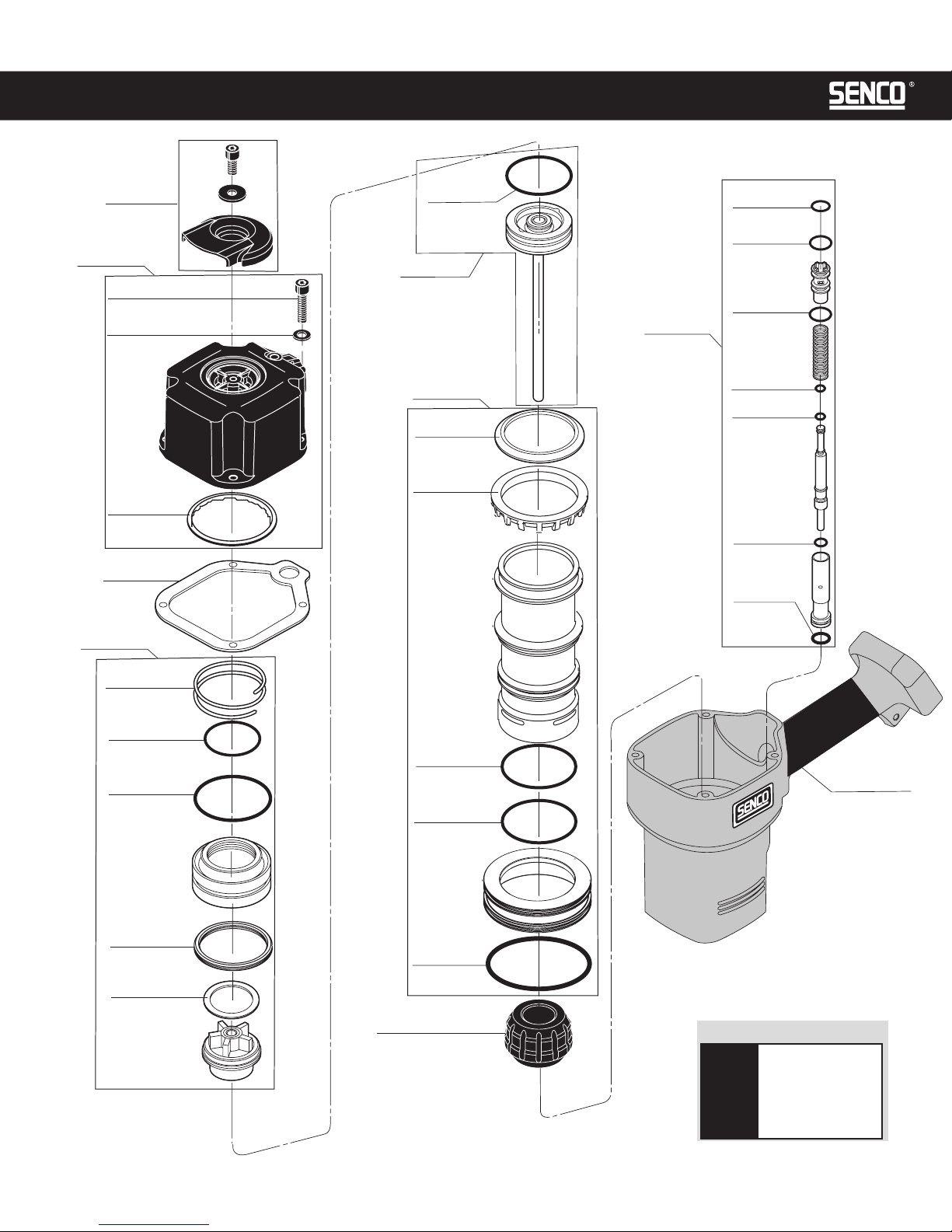

FramePro
®
652
Framing Nailer
FramePro
®
652

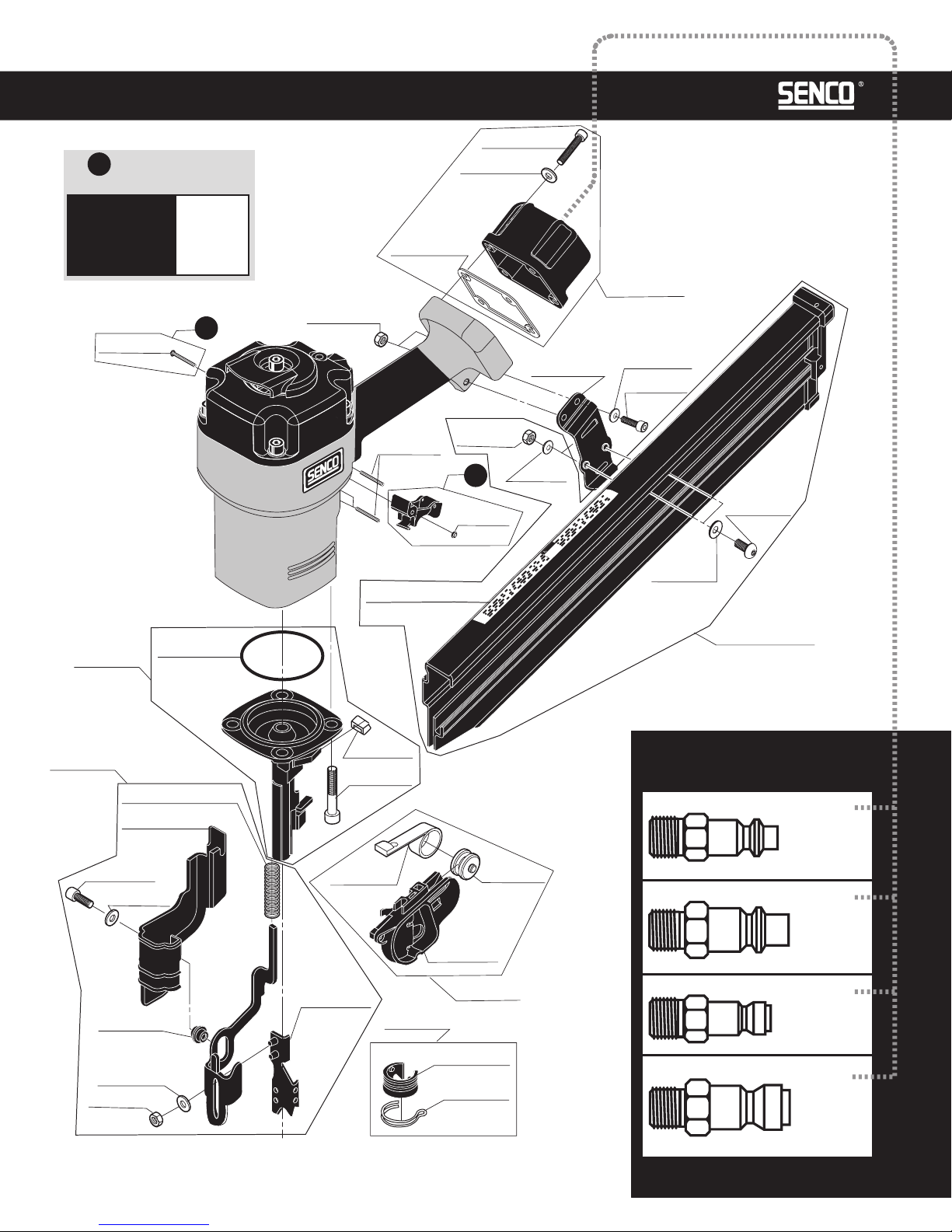

3/8"
Body
1/4"
Body
Tru-Flate 3/8" NPT
Tru-Flate 3/8" NPT
Ind. Interchange 3/8" NPT
Ind. Interchange 3/8" NPT
PC0480
PC0485 4
PC0469
PC0475 4
1/4"
Body
4 Recommended Plugs
3/8"
Body
Plugs shown smaller than actual size
Available Plugs
(Not Included with Tool)
FramePro
®
652
BB0148
Dual Action
Restrictive
Contact Actuation
Single Sequential
Actuation
2E0003N
2E0004N
2E2001N
2E2002N
Model
Tool #
*O-Rings available- order YK0353
EA0163
Dual Action/
Contact Actuation
Restrictive/
Single Sequential
Actuation
Trigger Type Part Number
A
AA0142
NFG02E Revised November 6, 2006 (Replaces 3/13/06) © 2002, 2006 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.
FA0243
A
A
FramePro
®
652
AA0143
BA0159
BA0161
BC0483
LB1017*
LB1016*
LB1015*
LB1018*
KB3255
KB9752
BC0482
KB4393
LB1020*
LB1021*
BC0485*
BC0481*
BC0486
BC0484
MC5113
AA0140 LB0018*
LB0057*
LB1014*
LB1011*
LB1010*
LB0057*
CA0108
LB0057*
HA0167
HA0168
KB9909
HC0431
GA0466 (US)
GC1019
KB9903
KB9825
KB9837
KB9909
GC1017
KB9909
HA0169
GA0460
GA0467 (Euro)
KB9905
KB9910
AC0302
KC0873
LB1019
HG0063 (US)
KB4394
KB9909
HC0428
KB9909
KB9837
KB9837
GC1015 GC1016
KB9908
HC0429
KB9776
GC1018
HG0068 (Euro)
HC0427
HA0170
GC0902
KB9912
HC0430

3/8"
Body
1/4"
Body
Tru-Flate 3/8" NPT
Tru-Flate 3/8" NPT
Ind. Interchange 3/8" NPT
Ind. Interchange 3/8" NPT
PC0480
PC0485 4
PC0469
PC0475 4
1/4"
Body
4 Recommended Plugs
3/8"
Body
Plugs shown smaller than actual size
Available Plugs
(Not Included with Tool)
FramePro
®
652
BB0148
Dual Action
Restrictive
Contact Actuation
Single Sequential
Actuation
2E0003N
2E0004N
2E2001N
2E2002N
Model
Tool #
*O-Rings available- order YK0353
EA0163
Dual Action/
Contact Actuation
Restrictive/
Single Sequential
Actuation
Trigger Type Part Number
A
AA0142
NFG02E Revised November 6, 2006 (Replaces 3/13/06) © 2002, 2006 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.
FA0243
A
A
FramePro
®
652
AA0143
BA0159
BA0161
BC0483
LB1017*
LB1016*
LB1015*
LB1018*
KB3255
KB9752
BC0482
KB4393
LB1020*
LB1021*
BC0485*
BC0481*
BC0486
BC0484
MC5113
AA0140 LB0018*
LB0057*
LB1014*
LB1011*
LB1010*
LB0057*
CA0108
LB0057*
HA0167
HA0168
KB9909
HC0431
GA0466 (US)
GC1019
KB9903
KB9825
KB9837
KB9909
GC1017
KB9909
HA0169
GA0460
GA0467 (Euro)
KB9905
KB9910
AC0302
KC0873
LB1019
HG0063 (US)
KB4394
KB9909
HC0428
KB9909
KB9837
KB9837
GC1015 GC1016
KB9908
HC0429
KB9776
GC1018
HG0068 (Euro)
HC0427
HA0170
GC0902
KB9912
HC0430

FramePro
®
652 Framing Nailer
REPLACEMENT PARTS LIST • LISTA DE PARTES DE REPUESTO • ERSATSTEILE-LISTE • LISTE DE PIÈCES DE RECHANGE
Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North & South America only) or e-mail: [e-mail]
PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION
AA0140....................DEFLECTOR ASSEMBLY....................ASAMBLE DE DESVIADOR........................ABWEISER-ZUSAMMENBAU.................................... ENSEMBLE DÉFLECTEUR
AA0142....................END CAP ASSEMBLY......................... ASAMBLE DE TAPA TERMINAL.................ABSCHLUßKAPPE-ZUSAMMENBAU......................... BOUCHON D’EXTRÉMITE DE RAIL
AA0143....................CAP ASSEMBLY.................................ASAMBLE DE TAPA ...................................KAPPE-ZUSAMMENBAU ..........................................ENSEMBLE BOUCHON
AC0302....................SEAL..................................................SELLO .......................................................DICHTUNG................................................................ JOINT
BA0159 ...................FIRING VALVE ASSEMBLY................. ASAMBLE DE VÁLVULA ............................VENTIL-ZUSAMMENBAU.......................................... ENSEMBLE VALVE
BA0161....................CYLINDER ASSEMBLY ......................ASAMBLE DE CILINDRO ...........................ZYLINDER-ZUSAMMENBAU..................................... ENSEMBLE CYLINDRE
BB0148....................STOP, PISTON ................................... TOPE .........................................................PUFFER .................................................................... ARRÊT
BC0481....................WASHER............................................ARANDELA................................................SCHEIBE................................................................... RONDELLE
BC0482....................SEAL..................................................SELLO .......................................................DICHTUNG................................................................ JOINT
BC0483 ....................RETAINER, SLEEVE ........................... RETÉN.......................................................SICHERUNGSRING................................................... RETENUE
BC0484....................SEAL..................................................SELLO .......................................................DICHTUNG................................................................ JOINT
BC0485....................WASHER............................................ARANDELA................................................SCHEIBE................................................................... RONDELLE
BC0486....................RETAINER..........................................RETÉN.......................................................SICHERUNGSRING................................................... RETENUE
CA0108....................CORE ASSEMBLY..............................ASAMBLE DE VÁSTAGO............................VENTILSTIFT-ZUSAMMENBAU................................. ENSEMBLE NOYAU
EA0163 ....................PISTON ASSEMBLY...........................ASAMBLE DE PISTON ...............................KOLBEN-ZUSAMMENBAU........................................ ENSEMBLE PISTON–COUTEAU
FA0243.....................GUIDE BODY ASSEMBLY .................. ASAMBLE DE PLACA DE NARIZ................NAGELFÜHRUNG-ZUSAMMENBAU.......................... ENSEMBLE FRONT
GA0460....................FEEDER SHOE ASSEMBLY ................ ASAMBLE DE ALIMENTADOR ...................NAGELSCHIEBER-ZUSAMMENBAU.......................... ENSEMBLE POUSSOIR
GA0466.................... MAGAZINE (US) ................................CARGADOR............................................... MAGAZIN.................................................................. MAGASIN
GA0467....................MAGAZINE (EURO)............................ CARGADOR...............................................MAGAZIN.................................................................. MAGASIN
GC0902....................RETAINER, PIN.................................. RETÉN.......................................................SICHERUNGSRING................................................... RETENUE
GC1015....................SPRING, FEEDER............................... RESORTE...................................................FEDER ...................................................................... RESSORT
GC1016....................ROLLER, FEEDER SPRING ................RODILLO...................................................ROLLE ...................................................................... GALET
GC1017....................BRACKET........................................... BRAZO.......................................................HALTERUNG............................................................. CAVALIER
GC1018.................... STOP .................................................TOPE .........................................................PUFFER .................................................................... ARRÊT
GC1019....................FEEDER SHOE ................................... ALIMENTADOR..........................................NAGELSCHIEBER ..................................................... POUSSOIR
HA0167....................TRIGGER ASSY, DUAL ACTION. ........ASAMBLE DE GATILLO..............................AUSLÖSER-ZUSAMMENBAU ................................... ENSEMBLE GÂCHETTE
HA0168....................TRIGGER ASSY, RESTRICTIVE..........ASAMBLE DE GATILLO..............................AUSLÖSER-ZUSAMMENBAU ................................... ENSEMBLE GÂCHETTE
HA0169....................SAFETY ELEMENT ASSEMBLY .......... ASAMBLE DE SEGURO..............................SICHERHEITSVORRICHTUNG-ZUSAMMENBAU ......ENSEMBLE PALPEUR DE SÉCURITÉ
HA0170....................NO-MAR PAD ASSEMBLY..................ASAMBLE DE AMORTIGUADOR................SCHUTZ-ZUSAMMENBAU........................................ ENSEMBLE COUSSIN
HC0427.................... SPRING .............................................RESORTE...................................................FEDER ...................................................................... RESSORT
HC0428....................BUSHING........................................... CASQUILLO...............................................HÜLSE ...................................................................... DOUILLE
HC0429....................NO-MAR PAD .................................... AMORTIGUADOR ......................................SCHUTZ.................................................................... COUSSIN
HC0430................... .SAFETY ELEMENT............................. SEGURO.................................................... SICHERHEITSVORRICHTUNG................................. PALPEUR DE SÉCURITÉ
HC0431....................COVER, SAFETY ................................ CUBIERTA..................................................ABDECKUNG ............................................................ COUVERCLE
HG0063....................LABEL (US) ....................................... ETIQUETA..................................................AUFKLEBER.............................................................. ÉTIQUETTE
HG0068....................LABEL (EURO)...................................ETIQUETA..................................................AUFKLEBER.............................................................. ÉTIQUETTE
KB3255....................SCREW.............................................. TORNILLO.................................................SCHRAUBE............................................................... VIS
KB4393....................SPRING, FIRING VALVE..................... RESORTE...................................................FEDER ...................................................................... RESSORT
KB4394....................SPRING, SAFETY............................... RESORTE...................................................FEDER ...................................................................... RESSORT
KB9752....................WASHER............................................ARANDELA................................................SCHEIBE................................................................... RONDELLE
KB9776....................SCREW.............................................. TORNILLO.................................................SCHRAUBE............................................................... VIS
KB9825....................SCREW.............................................. TORNILLO.................................................SCHRAUBE............................................................... VIS
KB9837....................NUT .................................................. TUERCA.....................................................MUTTER ................................................................... ÉCROU
KB9903....................SCREW.............................................. TORNILLO.................................................SCHRAUBE............................................................... VIS
KB9905....................SCREW.............................................. TORNILLO.................................................SCHRAUBE............................................................... VIS
KB9908....................SCREW.............................................. TORNILLO.................................................SCHRAUBE............................................................... VIS
KB9909....................WASHER............................................ARANDELA................................................SCHEIBE................................................................... RONDELLE
KB9910....................WASHER............................................ARANDELA................................................SCHEIBE................................................................... RONDELLE
KB9912....................PIN ....................................................PASADOR..................................................STIFT........................................................................ GOUPILLE
KC0873....................PIN, TRIGGER PIVOT ........................PASADOR..................................................STIFT........................................................................ GOUPILLE
LB0018 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB0057 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1010 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1011 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1014 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1015 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1016 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1017 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1018 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1019 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1020 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
LB1021 ....................SEAL.................................................. SELLO .......................................................DICHTUNG................................................................ JOINT
MC5113 ...................GRIP..................................................AGARRADERO...........................................GRIFF........................................................................ GAINE EN CUIR
YK0353....................SEAL KIT ...........................................ASAMBLE DE SELLO.................................DICHTUNG-ZUSAMMENBAU.................................... ENSEMBLE JOINT
