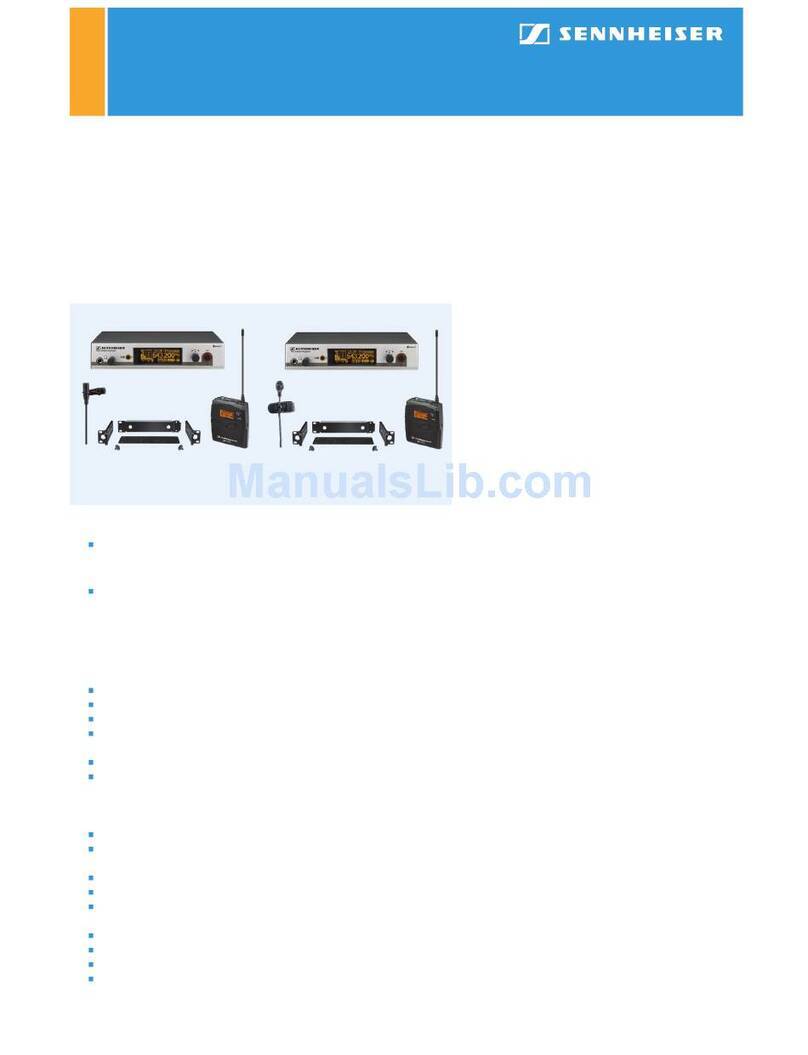

Sennheiser EW 322 G3 User manual

• Sturdy metal housing
• PC-supported frequency management for transmitter and receiver
• Tunable UHF frequencies within a large switching bandwidth
• Bodypack transmitter with programmable MUTE function, external activation as an option
• Headset microphone with optimized acoustics
• NEW: Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer –
this delivers a good overview of monitoring and professional data management for multi-channel systems
• NEW: Wireless synchronization of transmitters via infrared interface
• NEW: Enhanced frequency bank with up to 24 compatible frequencies
• NEW: 42 MHz bandwidth  1680 switchable frequencies
• NEW: Increased range for audio sensitivity
• NEW: Large, illuminated dot matrix display with warning indicator
• NEW: More control options (menu)
• NEW: Enhanced AF frequency range
• NEW: Soundcheck mode
• NEW: Integrated equalizer
• NEW: Switchable RF output power
• 2 AA batteries for more than 8 hours of use
• 4-level charge indicator for transmitter battery
• Contacts for recharging the BA 2015 accupack directly in the transmitter
• HDX compander for crystal-clear sound
• True diversity receiver for optimum reception
• Incl. installation kit for 19” rack mounting (1 U)
The evolution wireless G3 headset is the ideal
solution for capturing rousing stage situations
with grand gestures. As a performer you have
the entire breadth of the stage at your disposal –
and even your hands are free, giving you greater
scope to speak, dance and act. The headset can
be worn inconspicuously, the bodypack trans-
mitter can be practically invisibly attached to
garments and theconnecting wire from the
headset to the transmitter can be concealed
under the clothing. The headset shows the full
extent of its professionalism in complex live
situations: A special frequency response renders
the microphone insensitive to ambient stage
noise and popping sounds, allowing even those
sitting in the back rows to experience a clean,
powerful sound.
You Know
You CanPresentation Set
300 Series
Presentation
Presentation Set • Sturdy metal housing (transmitter & receiver) • PC-supported frequency management for transmitter and receiver • Tunable UHF frequencies within a large switching bandwidth • Bodypack transmitter with programmable MUTE function, external activation as an option

Technical Data
ew 300 g
Modulation wideband FM
Frequency ranges 516-558, 566-608, 626-668, 734-776, 780-822, 823-865

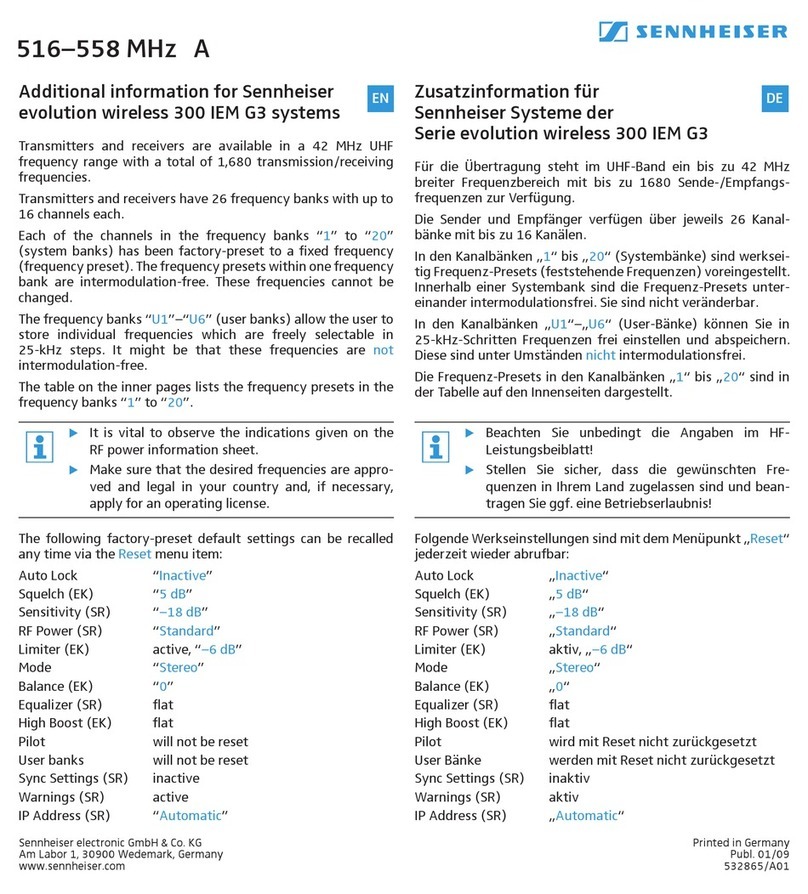

Transmission/Receiving frequencies 20 channel banks, 6 xed banks, 24 factory preset channels each
Switching bandwidth 42 MHz
Noise reduction system Sennheiser HDX
AF frequency response 25 – 18.000 Hz
S/N ratio (at 1mV and peak deviation) ≥ 115 dBA
THD (at nominal deviation and 1 kHz) ≤ 0,9 %
EM 300 g
SK 300 g
Receiver principle True Diversity
Sensitivity (with HDX, peak deviation) <2 µV at 52 dBAeff S/N
Adjacent channel rejection ≥ 75 dB
Intermodulation attenuation ≥ 70 dB
Blocking ≥ 75 dB
Pilot-tone squelch detachable
Antenna inputs 4 BNC sockets
AF output voltage (at peak deviation, 1kHz AF) ¼" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket,
balanced: +18 dBu
Power supply 12 V DC
Dimensions 202 x 212 x 43 mm (7.95" x 8.35" x 1.69")
Weight approx. 980 g (2.16 lbs)
RF output power at 50 O typ. 30/10mW, switchable
AF frequency response 25 – 18.000 Hz (Line)
80 – 18.000 Hz (Mic)
Max input voltage transmitter / line 3 Veff
Input impedance transmitter / line 40 kO, unbalanced / 1MO
Power supply 2 AA batteries, 1.5 V
Nominal voltage 2.4 V
Operating time typ. 8h
Dimensions 82 x 64 x 24 mm / 3.23" x 2.52" x 0.94"
Weight approx. 160 g (5.64 oz)
Presentation Set with
ME 2 clip-on microphone
Presentation Set with
ME 4 clip-on microphone
ME 2 ME 4
Transducer principle condenser
Sensitivity 20 mV/Pa
Pick-up pattern omni-directional
Max. SPL 130 dB SPL
Transducer principle condenser
Sensitivity 40 mV/Pa
Pick-up pattern cardioid
Max. SPL 120 dB SPL
Delivery includes
• EM 300 g rack-mount receiver
• SK 300 g bodypack transmitter
• GA 3 rackmount adapter
• ME 2/ME 4 clip-on microphone
For recommended accessories please visit www.sennheiser.com
ew 312 gew 322 g
