Sennheiser ew 572 G3 Dimensions

ew 572 G3 Instrument Set
ew 572 ©Instrument Set
RF Wireless Systems | evolution wireless G3
General Description
The EW 572 G3 system offers automatic wireless setup via the enhanced
sync function, the components can be programmed without transmitting
RF (silent configuration mode). The set is also equipped with soundcheck
mode, which allows the signal strength and the RF and audio levels to
be checked continuously on the large front panel display. An enhanced
AF frequency response that starts at 25 Hz will satisfy even the most
discriminating 5-string bass players. An integrated 5-band equalizer,
guitar tuner, and a guitar cable virtual length emulator complete this
feature-rich set.
Technical Specifications
ew 500 ©
Modulation............................................... wideband FM
Frequency ranges .......................516–558, 566–608,
................... 626–668, 734–776, 780–822, 823–865
Transmission/Receiving
frequencies ............ 20 channel banks, 6 user banks,
...................................32 factory preset channels each
Switching bandwidth........................................42 MHz
Noise reduction system.....................Sennheiser HDX
AF frequency response.......................25 – 18,000 Hz
S/N ratio (at 1mV and peak deviation) .. ≥115 dBA
THD (at nominal deviation and 1 kHz) ........ .≤0.9 %
EM 500 ©
Receiver principle................................... True Diversity
Sensitivity (with HDX,
peak deviation)................... <2.5 µV at 52 dBAeff S/N
Adjacent channel rejection..............................≥75 dB
Intermodulation attenuation..........................≥70 dB
Blocking ...............................................................≥75 dB
Pilot-tone squelch....................................... detachable
Antenna inputs ...................................... 5 BNC sockets
AF output voltage (at peak deviation,
1 kHz AF)......................... 1/4“ (6.3 mm) jack socket,
................................ unbalanced: +12 dBu XLR socket,
...........................................................balanced: +18 dBu
Power supply......................................................12 V DC
Dimensions ................................7.95“ x 8.35“ x 1.69“
Weight ................................................. approx. 2.16 lbs
SK 500 ©
RF output power at 50 Ω..................typ. 30/10 mW,
......................................................................... switchable
AF frequency response...........25 – 18,000 Hz (Line)
......................................................80 – 18,000 Hz (Mic)
Max input voltage transmitter ............................3 Veff
Input impedance
transmitter........................ 40kΩ, unbalanced / 1MΩ
Power supply..............................2 AA batteries, 1.5 V
Nominal voltage..................................................... 2.4 V
Operating time ..................................................typ. 8 h
Dimensions ................................3.23“ x 2.52“ x 0.94“
Weight .................................................. approx. 5.64 oz

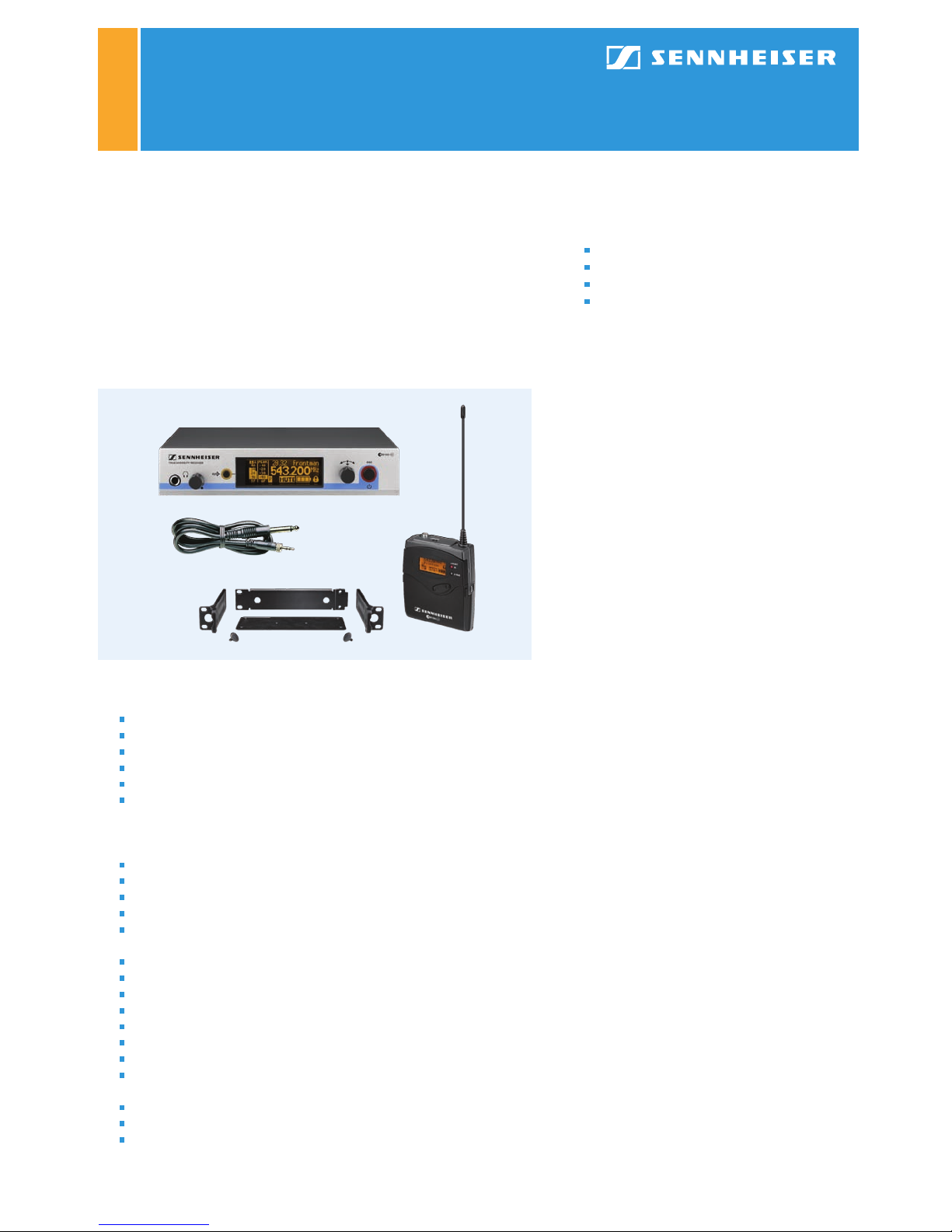

Kit includes:
(1) EM 500 G3 rack-mountable receiver
(1) SK 500 G3 bodypack transmitter
(1) Ci1 instrument cable
(1) GA 3 rack-mount kit
For recommended accessories please visit
www.sennheiserusa.com
Features
Sturdy metal housing
PC-supported frequency management for transmitter and receiver
Tunable UHF frequencies within a large switching bandwidth
Integrated guitar tuner & cable emulation circuit
Programmable MUTE switch
Ethernet port for connecting to the Wireless Systems Manager
(WSM) software for control via computer – this delivers a good
overview of monitoring and professional data management for
multi-channel systems
Wireless synchronization of transmitters via infrared interface
Enhanced frequency band with up to 32 compatible frequencies
42 MHz bandwidth, 1,680 switchable frequencies
Increased range for audio sensitivity
Large, illuminated dot matrix display with dual color warning
indicator
More control options (menu)
Enhanced AF frequency range
Switchable RF output power (10/30 mW)
Soundcheck mode
Integrated equalizer
(2) AA batteries for more than 8 hours of use
4-level battery indicator for transmitter
Contacts for recharging the BA 2015 accupack directly in the
transmitter
HDX compander for crystal-clear sound
True diversity receiver for optimum reception
Includes installation kit for 19” rack mounting (1 RU)

ew 572 ©Instrument Set
RF Wireless Systems | evolution wireless G3
Architect and Engineering Specifications
The wireless microphone system shall feature a true-diversity receiver with 42 MHz of available tuning bandwidth with a total
of 1,680 frequencies accessible in 25 kHz steps. The wireless microphone receiver must feature one Balanced XLR output with a
max. output of +18 dBu, and one unbalanced ¼” output with a max. output of +12 dBu. The wireless microphone receiver must
feature two BNC antenna inputs, one for each receiver module in the true diversity system. The wireless microphone receiver must
feature a backlit display that displays AF and RF levels, battery telemetry from the transmitter, operating frequency, and diversity
switching information. The wireless microphone receiver must feature an automatic frequency scanning function that utilizes
eight banks of pre-coordinated frequencies that are free of intermodulation interference. The wireless microphone receiver must
also feature a user bank in order to store user defined frequencies. The wireless microphone transmitter must operate on two
1.5V AA battery cells. The wireless microphone transmitter must have access to 1,680 frequencies tuned in 25 kHz steps across a
defined 42 MHz bandwidth. The wireless microphone transmitter must feature a backlit display that displays frequency informa-
tion, AF level, battery level. The wireless microphone transmitter must transmit a pilot-tone squelch. The wireless microphone
transmitter must have a specified RF output power of 30mW. The wireless microphone receiver must accept 12V DC power via
BNC antenna inputs.
Limited Product Warranty/Service
Sennheiser Electronic Corporation extends the following limited product warranty for Sennheiser products:
The warranty period for all covered Sennheiser products is two years from the date of purchase. Not covered by this
warranty are accessories and other consumables; for example, items of wear and tear, such as cables. During the warranty
period, Sennheiser Electronic Corporation warrants that the Sennheiser equipment will be free from defects in materials and
workmanship used in making the product. Abnormal conditions, deliberate abuse and damage due to accidents, operator’s
error, or unauthorized service attempts are excluded from any warranty claims. Under this warranty, Sennheiser Electronic
Corporation will repair, or at its option, replace free of charge the covered defective Sennheiser product, provided it is returned
(postage paid, with proof of purchase from the original seller) to a Sennheiser Service Facility. Products should be returned in
their original package, or otherwise suitably protected to avoid shipping damage. Either product registration or a valid, dated
proof of purchase is accepted to establish the warranty period. The Sennheiser Service Department will be the sole authority to
determine the validity of all warranty issues.
This Limited Product Warranty is Sennheiser Electronic Corporation’s only warranty, and the customer’s only remedy concerning
Sennheiser products. All other representations and warranties, express or implied, written or oral, including, but not limited to,
any warranties of merchantability, fitness for a particular purpose, or non-infringement, are expressly excluded. As a result,
except as set forth in the previous paragraphs, the product is sold “as-is” and the customer is assuming the entire risk as to the
product’s suitability for his needs, its quality and its performance.
In no event will Sennheiser Electronic Corporation be liable for direct, indirect, special, incidental or consequential damages
resulting from any defect in the product or from its use, even if advised of the possibility of such damages.
