Sennheiser ew D1-835-S User guide

System Manual

2

1
Contents
Contents
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Optimum sound the easy way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
EM D1 rack receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SKM D1, SKM-S D1 and SK D1 transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Displays of the transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Optional accessories for the transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ME 3-II headset microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ME 2-2 clip-on microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Putting the products into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Putting the receiver into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Putting the bodypack transmitter into operation . . . . . . . . . . . . . . . . . . . . . . 22
Preparing the headset microphone for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Attaching the clip-on microphone to clothing . . . . . . . . . . . . . . . . . . . . . . . . . 23
Putting the handheld transmitter into operation . . . . . . . . . . . . . . . . . . . . . . 24
Recharging the accupack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Switching the devices on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Checking the charge status of the batteries or accupacks . . . . . . . . . . . . . . . 27
Checking the RF signal level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Muting the bodypack transmitter or the SKM-S D1 handheld transmitter 28
Pairing a receiver with a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Identifying paired devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the devices in multi-channel operation . . . . . . . . . . . . . . . . . . . . . . . . . 29
Switching between the standard display and the extended standard display 29
Using the operating menu of the receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Controlling, monitoring or updating devices via the network . . . . . . . . . . . . 38
Cleaning and maintaining the products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
If a problem occurs ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reacting to messages displayed on the display panel . . . . . . . . . . . . . . . . . . 45
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Manufacturer Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

2
Important safety instructions
Important safety instructions
1. Read these safety instructions and the instruction manuals of the prod-
ucts.
2. Keep these safety instructions and the instruction manuals of the prod-
ucts. Always include these safety instructions and the instruction manuals
when passing the products on to third parties.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the products near water.
6. Only clean the products when they are not connected to the power supply
system. Use a dry cloth for cleaning.
7. Do not block any ventilation openings. Install the products in accordance
with the instructions given in the instruction manuals.
8. Do not operate near any heat sources such as radiators, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Only operate the products from the types of power source specified in the
chapter “Specifications” on page 46 and indicated on the power supply
unit.
10. Only use the supplied power supply units.
11. Unplug the power supply units from the wall socket,
- to completely disconnect the products from the power supply system,
- during lightning storms or
- when not using the products for long periods of time.
12. Always ensure that the power supply units are
- in a safe operating condition and easily accessible,
- properly plugged into the wall socket,
- only operated within the permissible temperature range,
- not covered or exposed to direct sunlight for longer periods of time in
order to prevent heat accumulation.
13. Protect the power cords from being walked on or pinched, particularly at
the points where they exit from wall sockets, power supply units and prod-
ucts.
14. Only use attachments, accessories or spare parts specified by Sennheiser
15. Only use the products with the carts, stands, tripods, brackets, or tables
specified by Sennheiser, or sold with the products.
16. When a cart is used, use caution when moving the cart/product combina-
tion to avoid injury from tip-over.
17. When using the supplied device feet, do not place the products on delicate
surfaces. Delicate surfaces can become discolored or stained when they
come into contact with the plastic of the device feet.
18. Refer all servicing to qualified service personnel. Servicing is required
when the products have been damaged in any way, liquid has been spilled
or objects have fallen into the products, when the products has been
exposed to rain or moisture, do not operate normally, or have been
dropped.
19. WARNING: To reduce the risk of fire or electric shock, do not expose the
products to rain or moisture
20. Do not expose the products to dripping or splashing. Ensure that no
objects filled with liquids, such as vases, are placed on the products.

3
Important safety instructions
Risk of fire due to overloading
왘Do not overload wall outlets and extension cables as this may result in fire
and electric shock.
Safety instructions for antennas
왘Use safety wires to protect the antennas against tipping/dropping.
The safety wires, rope terminations and coupling links must comply in their
dimensioning and condition with the regulations and standards of the
country in which they are used!
Safety instructions for lithium-ion rechargeable batteries
If abused or misused, the rechargeable batteries may leak. In extreme cases,
they may even present a risk of
•explosion,
• fire development,
• heat generation,
• smoke or gas development.
Sennheiser does not accept any liability for damage arising from abuse or mis-
use.
왘Keep away from children.
왘Only charge rechargeable batteries with chargers recommended by
Sennheiser.
왘Observe correct polarity.
왘Pack/store charged rechargeable batteries so that the terminals cannot
contact each other – danger of shorting out/fire hazard.
왘Do not expose to moisture.
왘Switch rechargeable battery-powered products off after use.
왘Only charge rechargeable batteries at ambient temperatures between
10 °C/50 °F and 40 °C/104 °F.
왘When not using rechargeable batteries for extended periods of time,
charge them regularly (about every three months).
왘Do not mutilate or dismantle.
왘Do not heat above 60 °C/140 °F, e.g. do not expose to sunlight or throw
into a fire.
왘Immediately remove rechargeable batteries from obviously defective prod-
ucts.
왘Do not continue to use defective rechargeable batteries.
왘Only use rechargeable batteries specified by Sennheiser.

4
Important safety instructions
왘Dispose of rechargeable batteries at special collection points or return them
to your specialist dealer.
왘Store the products in a cool and dry place at room temperature (approx.
20 °C/68 °F).
왘Remove the rechargeable batteries if the products will not be used for
extended periods of time.
Intended use
The microphones, the transmitters, the receiver and the accessories of the
Sennheiser system can be combined with each other and
have been designed for indoor use (e.g. in rehearsal rooms, studios, theaters
and on stages).
In order that music and vocals are transmitted in the best possible quality, the
products have to be connected, as described in this instruction manual, to a
suitable mixing console or amplifier which, in turn, has to be connected to
optimally positioned loudspeakers.
The products can be used for commercial purposes.
Intended use includes:
• having read and understood these safety instructions and the instruction
manuals of the products
• using the products within the operating conditions and limitations
described in these safety instructions and in the instruction manuals of the
products.
It is considered improper use when the products are used for any application
not named in the instruction manuals of the products.
Sennheiser does not accept liability for damage arising from abuse or misuse
of the products and their accessories.

5
Optimum sound the easy way
Optimum sound the easy way
The Sennheiser series consists of high-quality state-of-
the-art RF transmission systems with a high level of operational reliability and
ease of use. The transmitters and the receiver permit wireless transmission
with studio-quality sound.
Features of the series:
• Digital transmission with an excellent transmission range and intelligent
signal amplification
• Optimum sound due to preset sound profiles and audio effects:
- low-cut filter
- equalizer
- automatic gain control
-de-esser
• Quick and easy setup and operation due to automatic frequency manage-
ment and automatic microphone sensitivity adjustment
• Low latency
• Extended dynamic range
• Secure and license-free transmission in the 2.4 GHz frequency band
• Automatic interference management provides optimum protection against
sources of interference such as WiFi or Bluetooth
• Long battery life
• Centralized remote control, monitoring and firmware updating via the
“Wireless System Remote” (WSR) app or the “Sennheiser D1 SL Updater”
software
• Convenient access to help functions via QR codes

6
Package contents
Package contents
Package contents Vocal Sets Lavalier
Set
Headmic
Set
Instrument
Set
ew D1-835-S ew D1-845-S ew D1-935 ew D1-945 ew D1-ME2 ew D1-ME3 ew D1-CI1
EM D1
rack receiver 1 1 1 1 1 1 1
SK D1
bodypack transmitter – – – – 1 1 1
ME 2-2
clip-on microphone – – – – 1 – –
ME 3-II
headset microphone – – – – – 1 –
Handheld transmitter
with mute switch
and MMD 835-1
microphone head
1 – – – – – –
Handheld transmitter
with mute switch
and MMD 845-1
microphone head
– 1 – – – – –
Handheld transmitter
with MMD 935-1
microphone head
– – 1 – – – –
Handheld transmitter
with MMD 945-1
microphone head
– – – 1 – – –
B 10 battery box 1 1 1 1 – – –
B 30 battery box – – – – 1 1 1
NT 12-4C1or NT 2-32
power supply unit
1Country-specific versions of the NT 12-4C are available for Europe, the UK, and the USA.
2The NT 2-3 power supply unit is available for all other regions.
1 1 1 1 1 1 1
CI 1 guitar cable – – – – – – 1
Transport case 1 1 1 1 1 1 1
AA size batteries
(1,5 V) 2 2 2 2 2 2 2

7
Product overviews
Product overviews
The transmitters and the receiver are available in different country variants:
• -H variants are available in Europe, the UK and all other countries in which
the products are distributed
• -NH variants are available in the Americas, China and Australia
• -NH10 variants are available in Japan and South Korea
The country variant can be found on the packaging and on the type plate as
shown on the left.
왘Only use the country variant permitted for use at the venue.
왘Do not combine devices of different country variants.
EM D1 rack receiver
Operating elements – front panel
1
234567

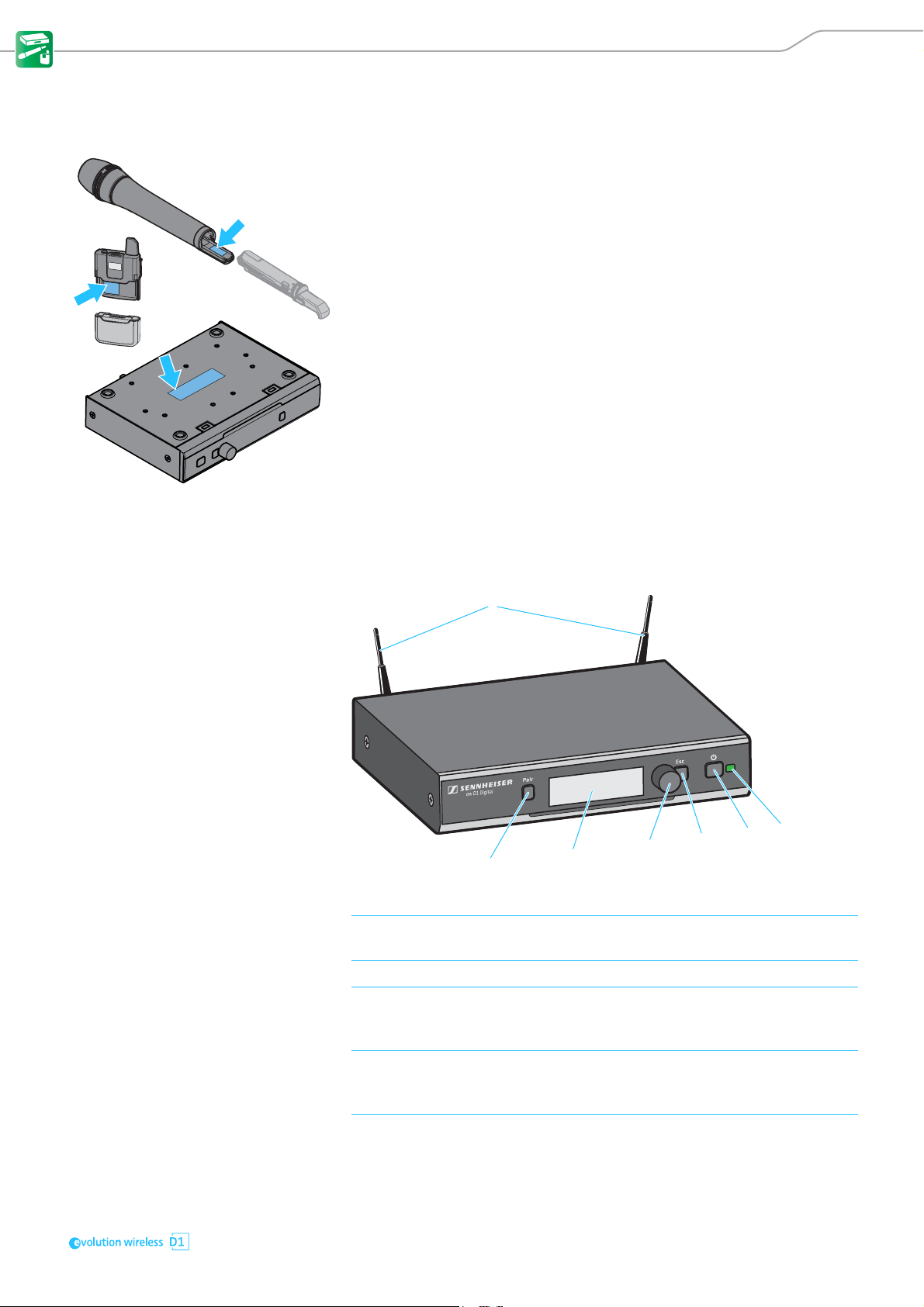

12G4 rod antennas for connection to the R-SMA sockets at the rear of the receiver
2PAIR button Short-press to identify the paired transmitter (see page 29).
Long-press to change the pairing (see page 28).
3Display panel For details, see page 9.
4Jog dial Turn to navigate through the menu, to change settings or to change from the
standard display to the extended standard display.
Press to open the menu or to confirm the entry or selection.
5ESC button Short-press to navigate to the next higher level in the menu or to exit a menu
item without confirming new settings or entries.
Long-press to exit the menu and to return to the standard display.
6STANDBY button Short-press to switch the receiver on.
Long-press to switch the receiver off.

8
Product overviews
Operating elements – rear panel
7Status LED lights up green: A radio link to the transmitter is established. The batteries of the received
transmitter are sufficiently charged.
flashes green:
The PAIR button has been short-pressed. Paired devices are being identified.
flashes alternately
green and red:
The PAIR button has been long-pressed. The receiver establishes a radio link
to a transmitter whose PAIR button has also been long-pressed.
lights up yellow: The received transmitter has been muted with the MUTE switch. In addition,
Muted is displayed on the display panel.
flashes red:
The battery capacity of the received transmitter is only sufficient for approx.
30 minutes of operation.
lights up red: No radio link to a transmitter. In addition, the background of the display panel
changes back and forth between light and dark and No Link appears on the
display panel.
890ABCD

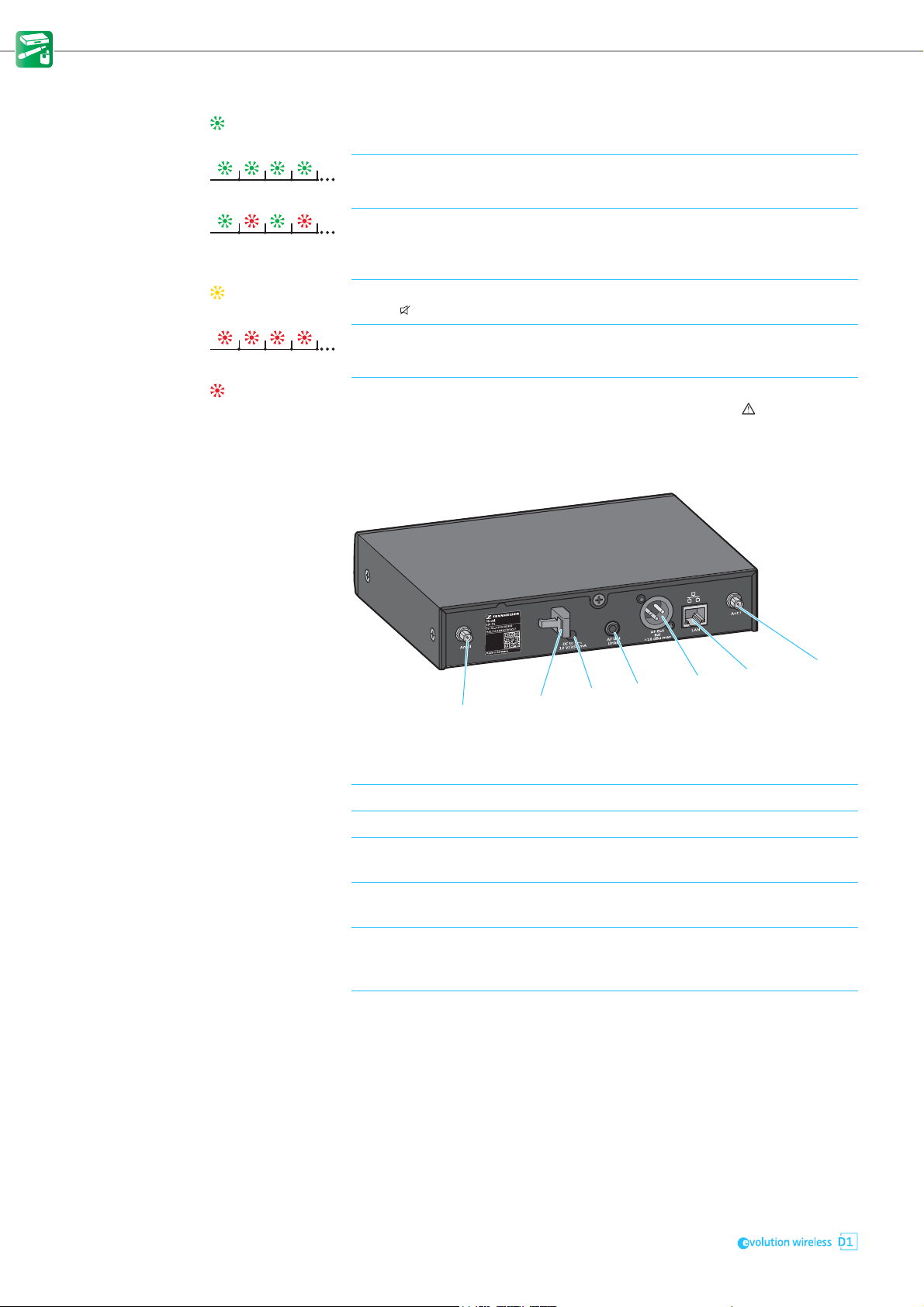

8R-SMA socket ANT II Antenna input II for connecting a supplied 2G4 rod antenna (for details, see
page 16)
9Cable grip for the cable of the power supply unit
0DC IN socket for connection of the power supply unit
A¼" (6.3 mm) jack socket
AF OUT UNBAL
Unbalanced audio output for connection to the ¼" (6.3 mm) jack input of the
mixing console (for details, see page 20)
BXLR-3 socket AF OUT BAL Balanced audio output for connection to the XLR-3 input of the mixing console
(for details, see page 20)
CEthernet socket LAN for connecting to a network router or a switch (e.g. to control, monitor and
update several receivers via a mobile device or a computer (for details, see
page 20)
DR-SMA socket ANT I Antenna input I for connecting a supplied 2G4 rod antenna (for details, see
page 16)

9
Product overviews

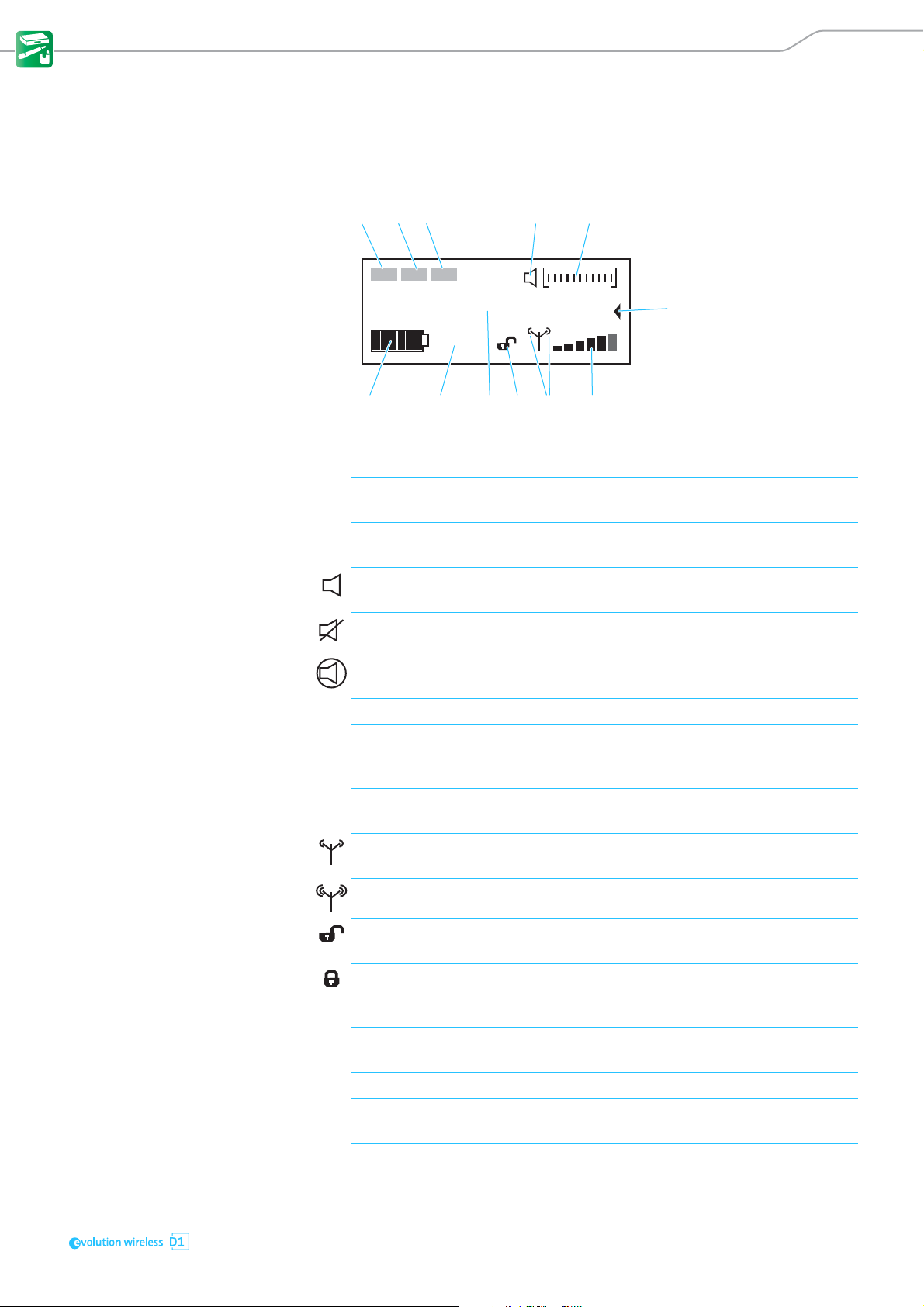

Displays and icons on the receiver's display panel
Standard display The standard display appears automatically after switch-on or when no but-
ton has been pressed on the receiver for a long period of time. The brightness
of the standard display automatically dims after a few minutes.
NAME
EQ DE-S AGC
10 h
15
07
6
B
4
98
23
A
1Equalizer If one of the equalizer functions is activated, EQ appears in inverse on the
standard display (for details, see page 32).
2De-esser If one of the de-esser functions is activated, DE-S appears in inverse on the
standard display (for details, see page 33).
3Auto gain control If one of the compression functions is activated, AGC appears in inverse on the
standard display (for details, see page 33).
4MUTE The received transmitter is not muted, but can be muted at any time (for
details, see page 28).
The received transmitter is muted. In addition, the status LED lights up yellow.
The received transmitter cannot be muted because its MUTE switch is deacti-
vated (for details see page 35).
5Audio level display The audio level is automatically optimally adjusted.
6Extended standard display The extended standard display appears when you turn the jog dial to the left
(see page 10). The above shown standard display appears again after 10 sec-
onds or when you turn the jog dial to the right.
76-segment RF signal level display Displays the field strength of the received signal. The 6-segment RF signal
level display is also shown on the transmitter display panel.
8RF output power of the receiver‘s
back channel
Medium RF output
power
Displayed by the -H and -NH10 country variants.
High RF output power Only displayed by the -NH country variant.
9Lock mode Open padlock icon: The lock mode is temporarily deactivated and the receiver
can be operated as usual.
Locked padlock icon: The lock mode is activated. Press and hold the jog dial to
temporarily deactivate the lock mode. To permanently deactivate the lock
mode, see page 34.
If no padlock icon is displayed, the lock mode is permanently deactivated (for
details, see page 34).
0Name of the radio link To change this name, see page 32.
ARemaining battery life of the received
transmitter
This information is only displayed when the transmitter is powered via the
optional accupack (for details, see page 27).
B7-segment display of the transmitter‘s
battery or accupack capacity
The 7-segment battery or accupack capacity display is also shown on the
transmitter display panel (for details, see page 27).

10
Product overviews
Extended standard display The extended standard display appears when you turn the jog dial to the left.
Power supply units for the receiver
CPick-up pattern of the microphone used For details, see page 24.
DStatus of the low-cut filter (ON/OFF) For details, see page 32.
EOutput level of the receiver in dB For details, see page 34.
FProduct name of the microphone head used For details, see page 24.
Low cut filter: Off
10 dBAudio out:
845
D
C
EF
1NT 2-3
power supply unit
Not available in Europe, the UK, and the USA.
2Interchangeable
country adapters
for plugging onto the NT 2-3
3NT 12-4C
power supply unit
Country-specific variants are available in Europe,
the UK, and the USA.
123
NT 2-3 NT 12-4C

11
Product overviews
SKM D1, SKM-S D1 and SK D1 transmitters
Operating elements of the SKM D1 and SKM-S D1 handheld transmitters
SKM D1
Mute
Mic
SKM-S D1
1
2
3
4
5
6
1Unscrewable microphone head For details, see page 24.
Do not cover the microphone head during transmission to avoid chang-
ing the characteristics of the pick-up pattern.
2Display panel For details, see page 13.
3MUTE switch for muting the SKM-S D1 handheld transmitter (for details, see page 28)
4ON/OFFbuttonwith status LED Short-press to switch the handheld transmitter on.
Long-press to switch the handheld transmitter off (for details, see page 26).
lights up green: A radio link to the receiver is established. The batteries of the handheld trans-
mitter are sufficiently charged.
flashes green:
The PAIR button has been short-pressed. Paired devices are being identified.
flashes alternately
green and red:
The PAIR button has been long-pressed. The handheld transmitter establishes
a radio link to a receiver whose PAIR button has also been long-pressed.
lights up yellow: The SKM-S D1 handheld transmitter has been muted with the MUTE switch. In
addition, Muted is displayed on the display panel.
flashes red:
The battery capacity of the handheld transmitter is only sufficient for approx.
30 minutes of operation.
lights up red: No radio link to a receiver. In addition, No Link is displayed on the display
panel.
5PAIR button Short-press to identify the paired receiver (see page 29).
Long-press to change the pairing (see page 28).
6Antenna Do not touch the antenna during transmission to avoid a reduction in
the transmission range.

12
Product overviews
Operating elements of the SK D1 bodypack transmitter
1
2345
8
9
6
7
7

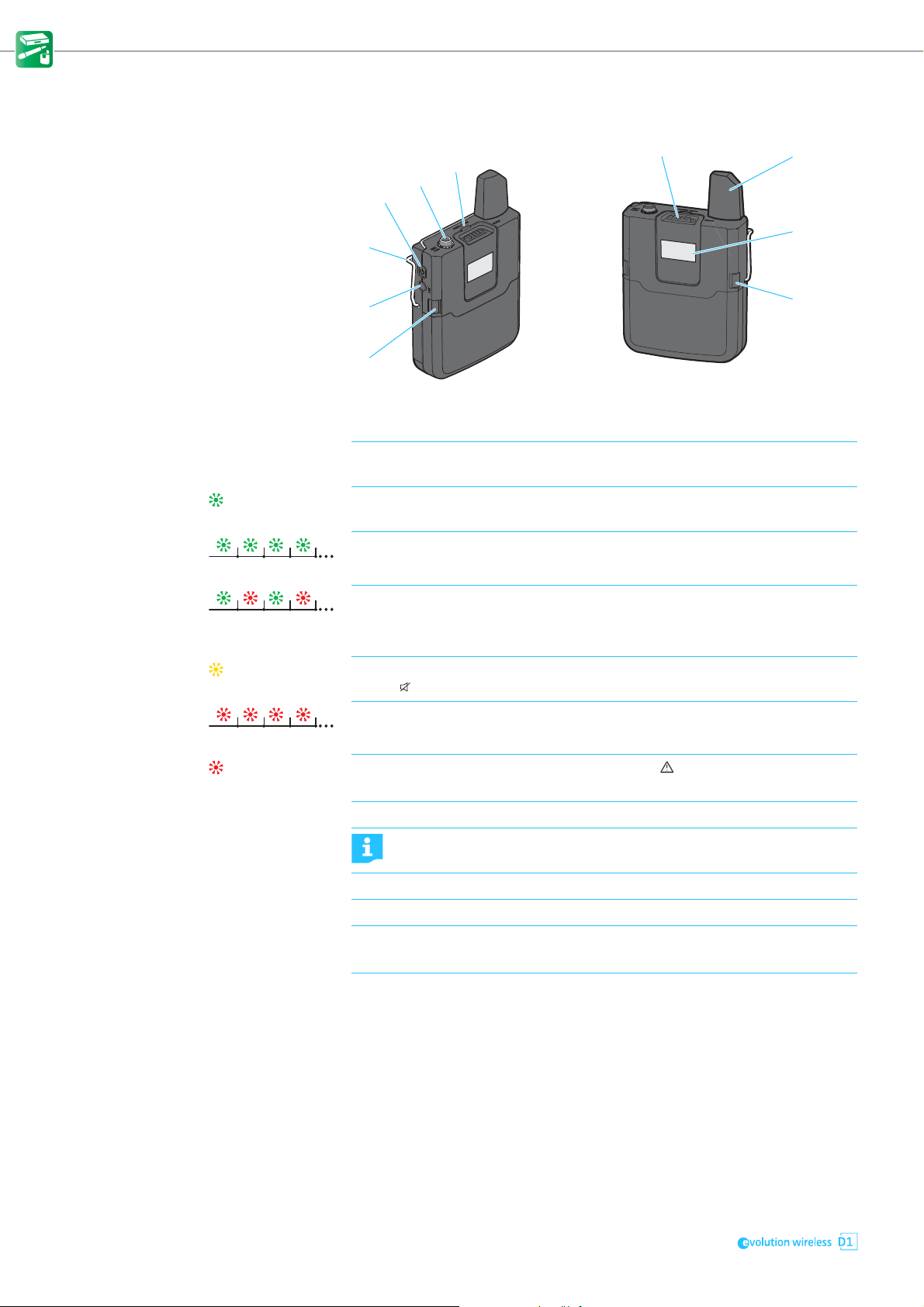

1ON/OFF button Short-press to switch the bodypack transmitter on.
Long-press to switch the bodypack transmitter off (for details, see page 26).
23.5 mm jack socket
Mic/Line
for connecting the clip-on or headset microphone
3Status LED lights up green: A radio link to the receiver is established. The batteries of the bodypack trans-
mitter are sufficiently charged.
flashes green:
The PAIR button has been short-pressed. Paired devices are being identified
(for details, see page 29).
flashes alternately
green and red:
The PAIR button has been long-pressed. The bodypack transmitter establishes
a radio link to a receiver whose PAIR button has also been long-pressed (for
details, see page 28).
lights up yellow: The bodypack transmitter has been muted with the MUTE switch. In addition,
Muted is displayed on the display panel (for details, see page 28).
flashes red:
The battery capacity of the bodypack transmitter is only sufficient for approx.
30 minutes of operation.
lights up red: No radio link to a receiver. In addition, No Link is displayed on the display
panel.
4MUTE switch for muting the bodypack transmitter (for details, see page 28)
5Antenna Do not touch the antenna during transmission to avoid a reduction in
the transmission range.
6Display panel For details, see page 13.
7Catches Press simultaneously to release the battery box or the accupack.
8PAIR button Short-press to identify the paired receiver (see page 29).
Long-press to change the pairing (see page 28).
9Belt clip For details, see page 22.

13
Product overviews
Displays of the transmitters
Optional accessories for the transmitters
BA 10 accupack for the SKM D1 or SKM-S D1 handheld transmitter
BA 30 accupack for the SK D1 bodypack tranmsitter
USB power supply/charger for charging the accupacks
1Name of the radio link For details, see page 32.
27-segment display of the battery
or accupack capacity
For details, see page 27.
36-segment RF signal level display Displays the field strength of the trans-
mitted signal at the receiver.
NAME
1
3
2
1
3
4
2
5
6
1Micro USB socket with
cover flap
for charging the accupack with any USB power sup-
ply/charger (for details, see page 25)
2Charge status LED lights up red: The accupack is being charged
lights up green: The accupack is fully charged
3Contact surfaces for powering the handheld transmitter
4Accupack contains the Li-Ion rechargeable battery
5Catches Press simultaneously to release the accupack from
the handheld transmitter.
6Charging contacts for charging the accupack in the charging unit
1
32
4
5
1Contact surfaces for powering the bodypack transmitter
2Accupack contains the Li-Ion rechargeable battery
3Charging contacts for charging the accupack in the charging unit
4Micro USB socket with
cover flap
for charging the accupack with any USB power sup-
ply/charger (for details, see page 25)
5Charge status LED lights up red: The accupack is being charged
lights up green: The accupack is fully charged
1
3
2
1NT 5-10-U USB power supply/charger (country-specific)
for charging the accupacks
2USB connector
(type A)
for connection to the USB power supply/charger
3Micro USB connector for connection to an accupack

14
Product overviews
ME 3-II headset microphone
ME 2-2 clip-on microphone
Supplied with microphone clip to attach the clip-on microphone to clothing.
1Microphone capsule
with windshield
with lateral sound inlet and cardioid pick-up pattern
2Flexible microphone
boom
for precise positioning of the microphone at the corner
of the mouth
3Ear hooks for a secure fit on the ears
4Clips for attaching the connection cable to the ear hook
5Connection cable with lockable 3.5 mm jack plug
6Neckband for a secure fit on the head
7Neckband padding for a comfortable fit, adjustable in length with a Velcro
fastener
1
2
35
7
46
1
2
3
1Microphone capsule with
windshield
should be pointed towards the mouth
2Anti-kink protection to prevent cable damage
3Connection cable (1.6 m) with lockable 3.5 mm jack plug for connection to
the bodypack transmitter

15
Putting the products into operation
Putting the products into operation
Avoiding sources of interference Featuring automatic interference management, the devices are capable of
avoiding interfering signals at any time by automatically moving together to
unused frequencies in the 2.4 GHz frequency band, without any audio inter-
ruption. However, the number of usable radio links is reduced if there are
active sources of interference in the vicinity of the devices.
왘Switch off possible sources of interference operating in the 2.4 GHz fre-
quency band.
Possible sources of interference use e.g. WiFi or Bluetooth.
Infrared remote controls and headphones, DECT headphones and UHF radio
links (e.g. Sennheiser evolution wireless G3) do not represent a source of
interference and can remain switched on.
왘If you want to use WiFi while operating devices of the
series, use a dual-band WiFi router and deactivate its 2.4 GHz frequency
band in order to minimize interference to the radio links.
If conditions are optimal, you can operate up to 15 radio links simultaneously
(for details, see “Using the devices in multi-channel operation” on page 29).
Direct line of sight recommended Walls and other obstacles will reduce the range. Therefore, there should
always be a direct line of sight between the transmitting antenna and the
receiving antennas of a radio link. To ensure this, you can mount the antennas
of the receiver in different ways.
• When using the EM D1 as a stand-alone receiver, you can mount the sup-
plied 2G4 rod antennas to the rear of the receiver (see page 16).
• When rack-mounting the receiver, you should use the GA 4 rack-mount kit
to mount the receiver antennas to the front of the rack (see page 19).
You can identify and locate sources of interference using a WiFi scan-
ning tool.

16
Putting the products into operation
Putting the receiver into operation
Fitting the device feet
왘Clean the recesses for the device feet at base of the receiver.
왘Fit the device feet to the recesses of the receiver.
왘Place the receiver on a flat, horizontal surface.
The device feet will adhere reliably to the receiver only after some time.
Avoid moving the receiver during this time.
Mounting the rack mount “ears”
To fasten the rack mount “ears”:
왘Unscrew and remove the two recessed head screws on each side of the
receiver.
왘Secure the rack mount “ears” 1to the sides of the receiver using the pre-
viously removed recessed head screws.
Connecting the rod antennas to the receiver
The supplied 2G4 rod antennas can be mounted quickly and easily. The rod
antennas are suitable for all applications where – good reception conditions
provided – a wireless transmission system is to be used without a large
amount of installation work
ATTENTION
Risk of staining of furniture surfaces!
Some furniture surfaces have been treated with varnish, polish or synthetics
which might cause stains when they come into contact with other synthetics.
Despite a thorough testing of the synthetics used by us, we cannot rule out
the possibility of staining.
왘Do not place the receiver on delicate surfaces.
Do not fit the device feet when mounting the receiver into a rack.
The rack mount “ears” are designed to help protect the operating ele-
ments from damage or deformation, e.g. if the receiver is dropped.
왘Therefore, always fasten the rack mount “ears”, even if you do not
want to rack mount the receiver.
1

17
Putting the products into operation
왘Connect the supplied 2G4 rod antennas to the two R-SMA sockets at the
rear of the receiver.
왘Align the 2G4 rod antennas vertically upwards.
Mounting the receiver into a 19" rack
For mounting one or several receiver into a rack, you require the optional GA 4
rack-mount kit. The GA 4 rack-mount kit is supplied with individually pur-
chased receivers and is also available separately as an accessory.
Using the GA 4 rack-mount kit, you can:
• mount a single receiver into a 19" rack (see page 18),
• mount the two 2G4 rod antennas to the front of the rack (see page 19) or
• mount two receivers side by side into a 19" rack (see page 19).

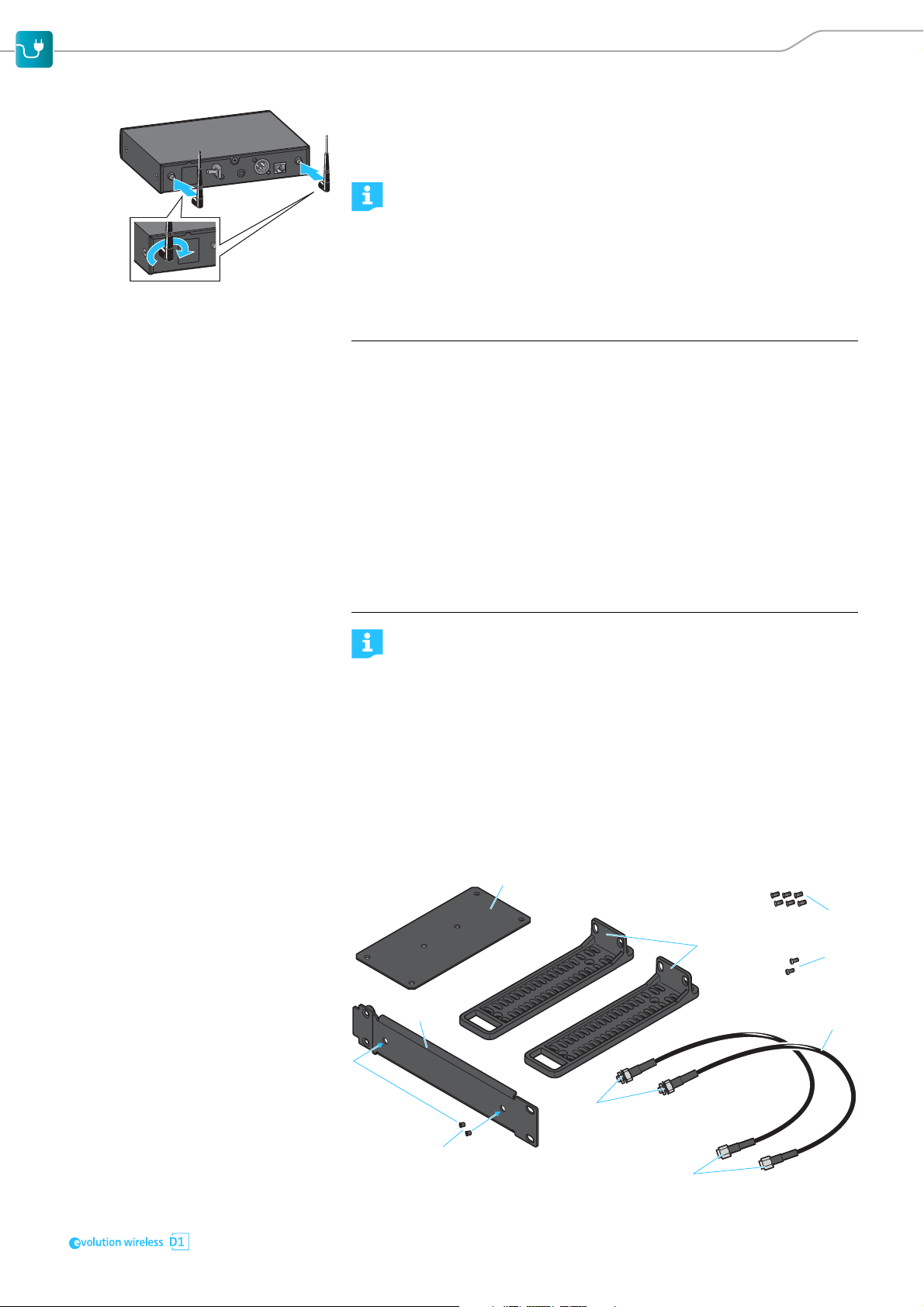

The GA 4 rack-mount kit consists of:
When rack-mounting the receiver, you should use the GA 4 rack-mount
kit to mount the receiver antennas to the front of the rack (see next
chapter).
ATTENTION
Danger due to high temperature, mechanical loading or electric leakage cur-
rents
When rack-mounted, the receivers can be damaged by overheat or excessive
mechanical loading.
왘Make sure that the temperature within the rack does not exceed the per-
missible temperature limit specified in the specifications (see page 46).
왘Make sure that the receivers in the rack are not mechanically loaded.
왘Make sure that circuits are not overloaded by providing overcurrent protec-
tion, if necessary.
왘Make sure that the sum of the leakage currents of all power supply units do
not exceed the allowable limit values by grounding the rack via an addi-
tional ground connection, if necessary.
Do not fit the device feet when mounting the receiver into a 19" rack.
1
3
4
6
5
7
8
9
2

18
Putting the products into operation
12 rack mount “ears”
21 blanking plate
31 jointing plate
42 R-SMA extension cables
5Screw-in R-SMA sockets
6R-SMA connectors with washers and nuts
72 blanking plugs for closing off the antenna holes in the blanking plate
82 recessed head screws
96 recessed head screws

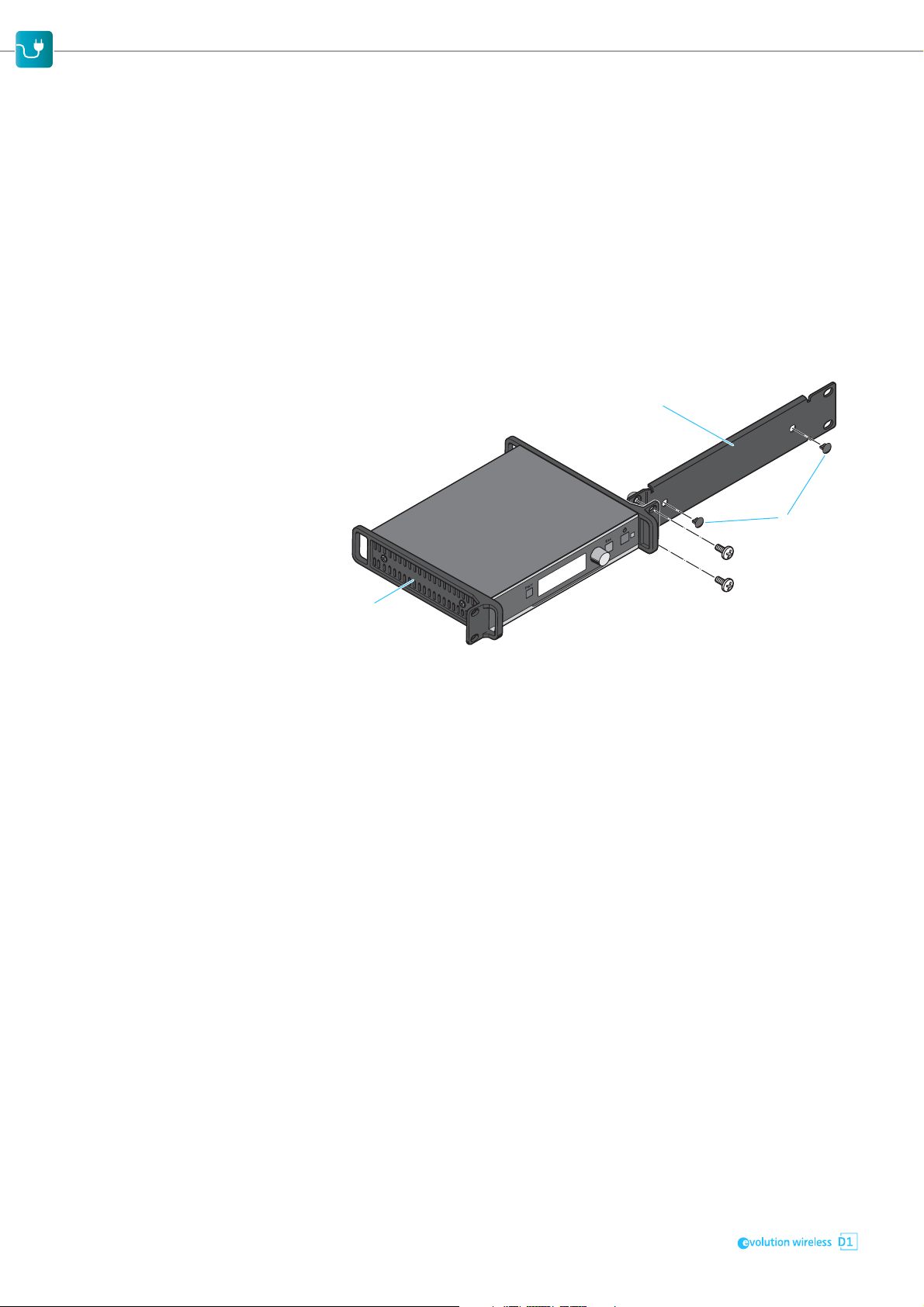

Mounting a single receiver into a rack
왘Unscrew and remove the four screws located on the sides of the receiver
housing.
왘Secure the rack mount “ears” 1to the sides of the receiver using the pre-
viously removed recessed head screws (see right-hand diagram).
Make sure that the angled ends of the rack mount “ears” point forward.
왘Secure the blanking plate 2to one of the rack mount “ears” 1using the
two recessed head screws 8.
Make sure to use the correct side (the one with the round holes) of the
blanking plate 2to secure it to the rack mount “ear”.
If you want to mount the supplied rod antennas to the front of the rack:
왘Read the next section.
If you do not want to mount the supplied rod antennas to the front of the rack:
왘Insert the two blanking plugs 7into the unused antenna holes.
왘Slide the receiver into the 19" rack.
왘Secure the rack mount “ears” 1and the blanking plate 2 to the rack.
2
1
7
